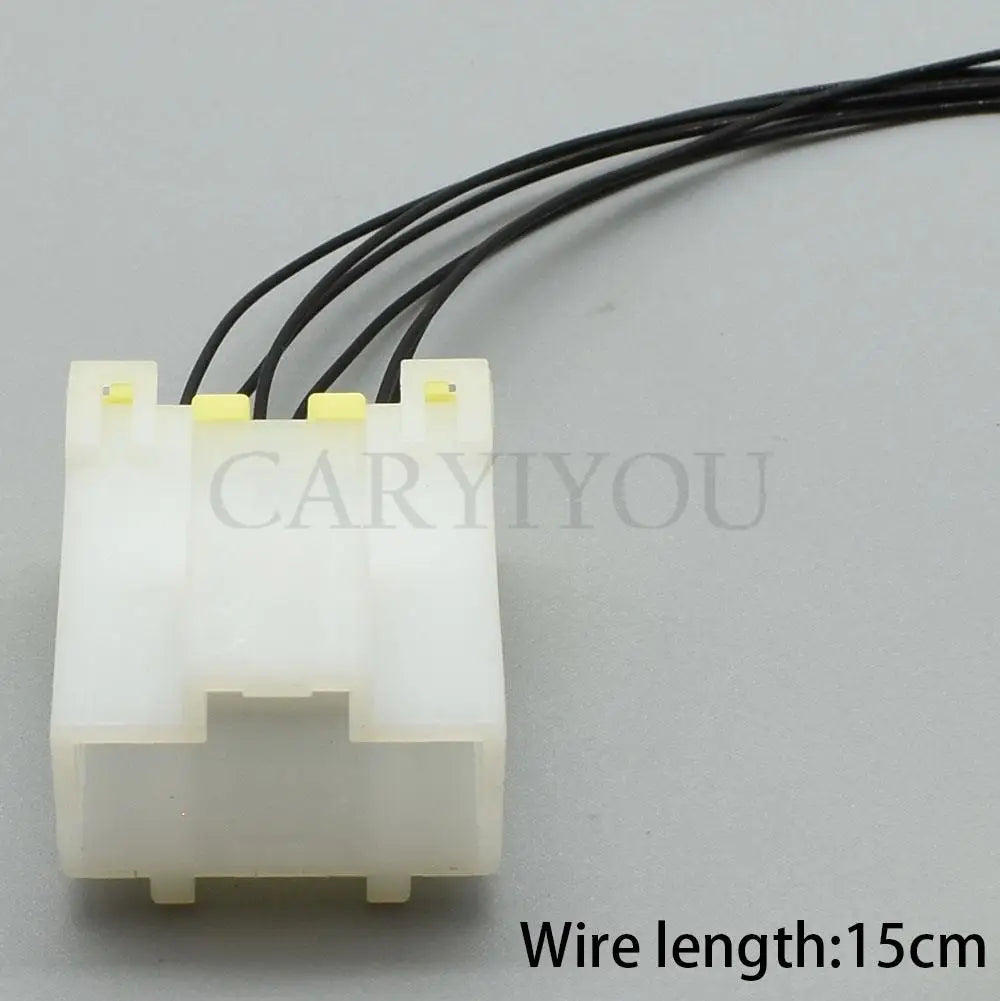

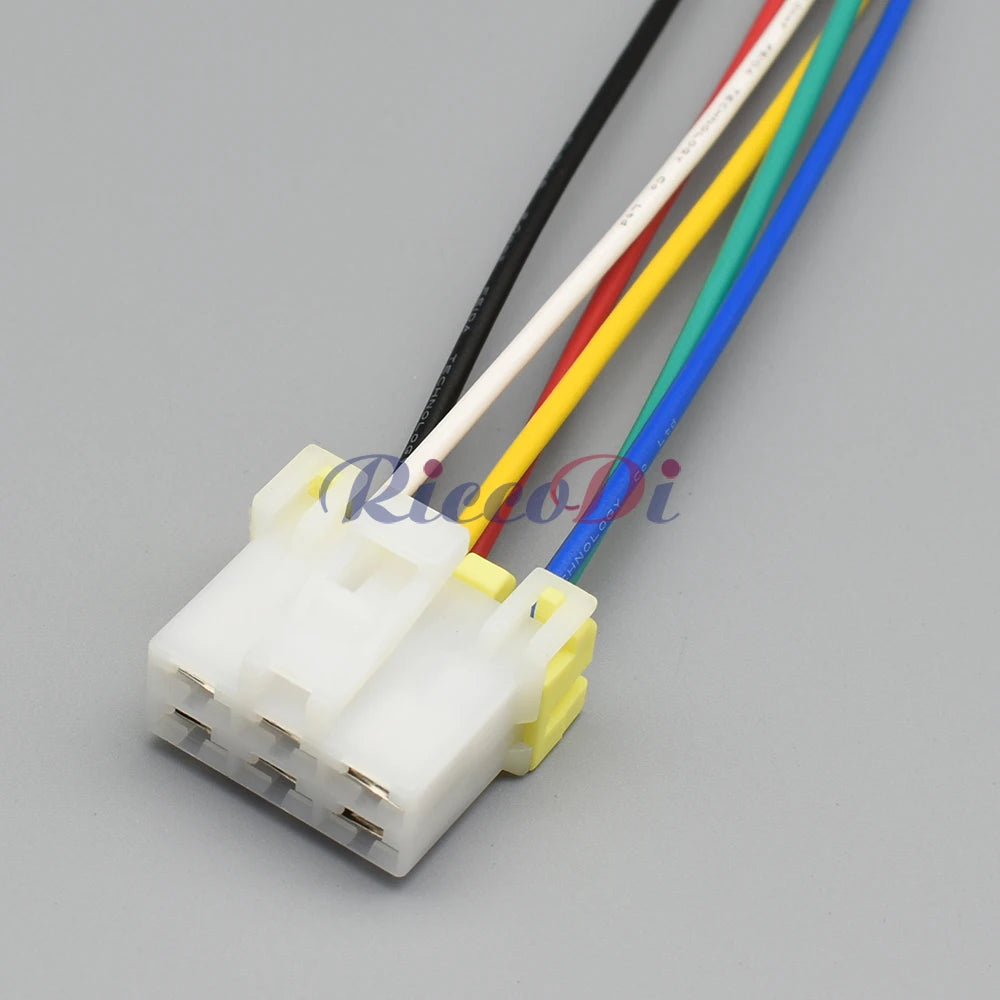

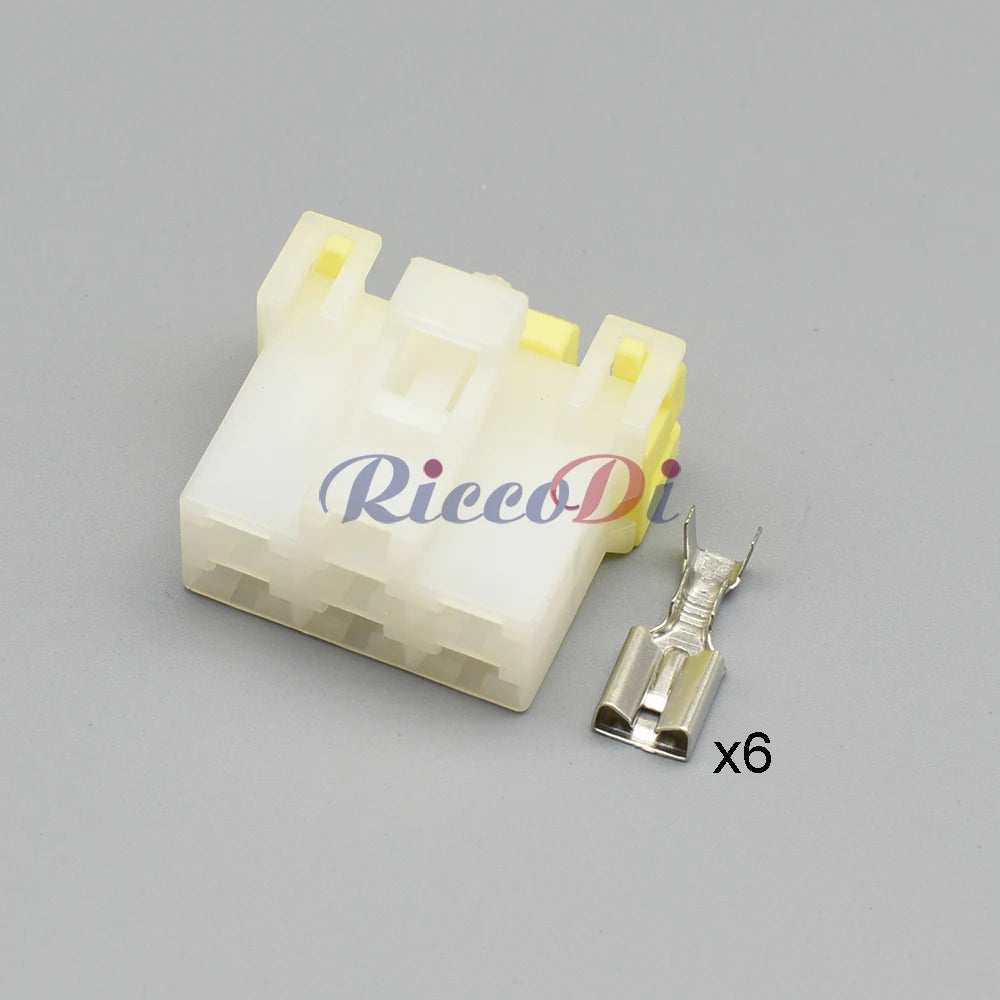

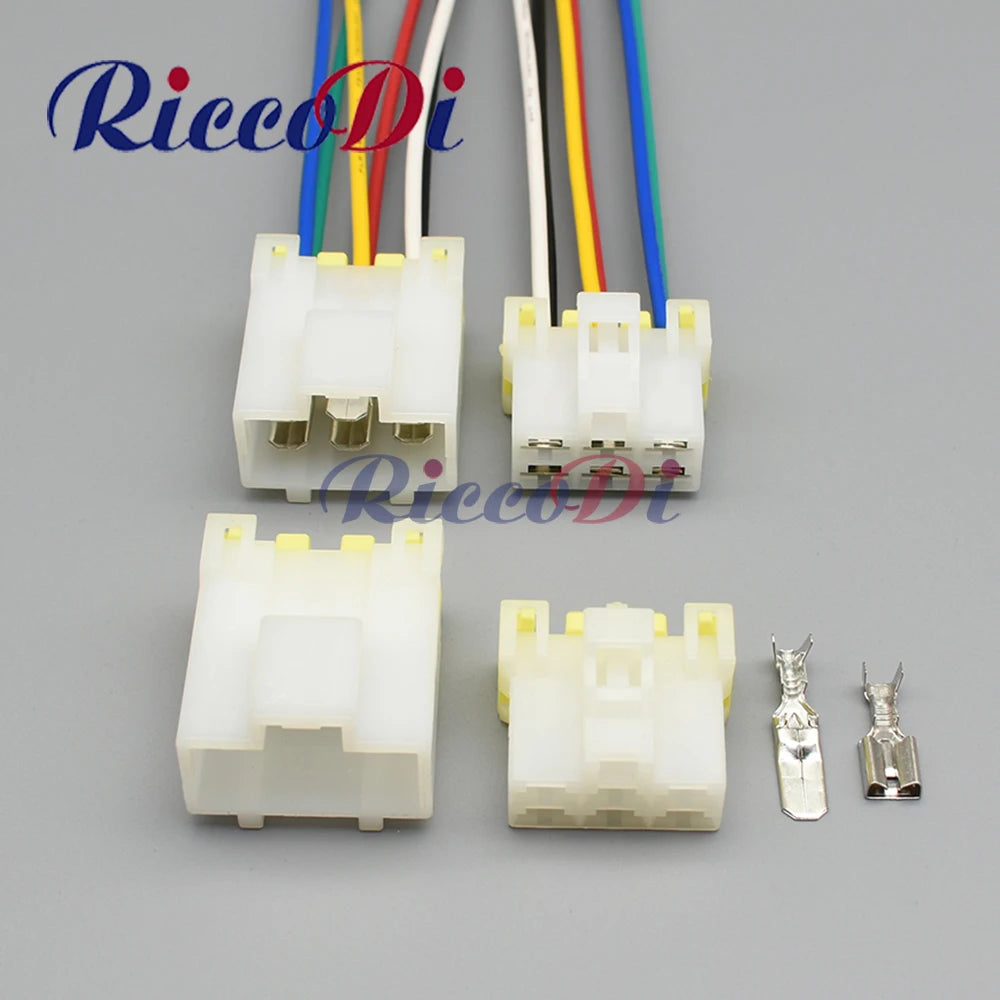

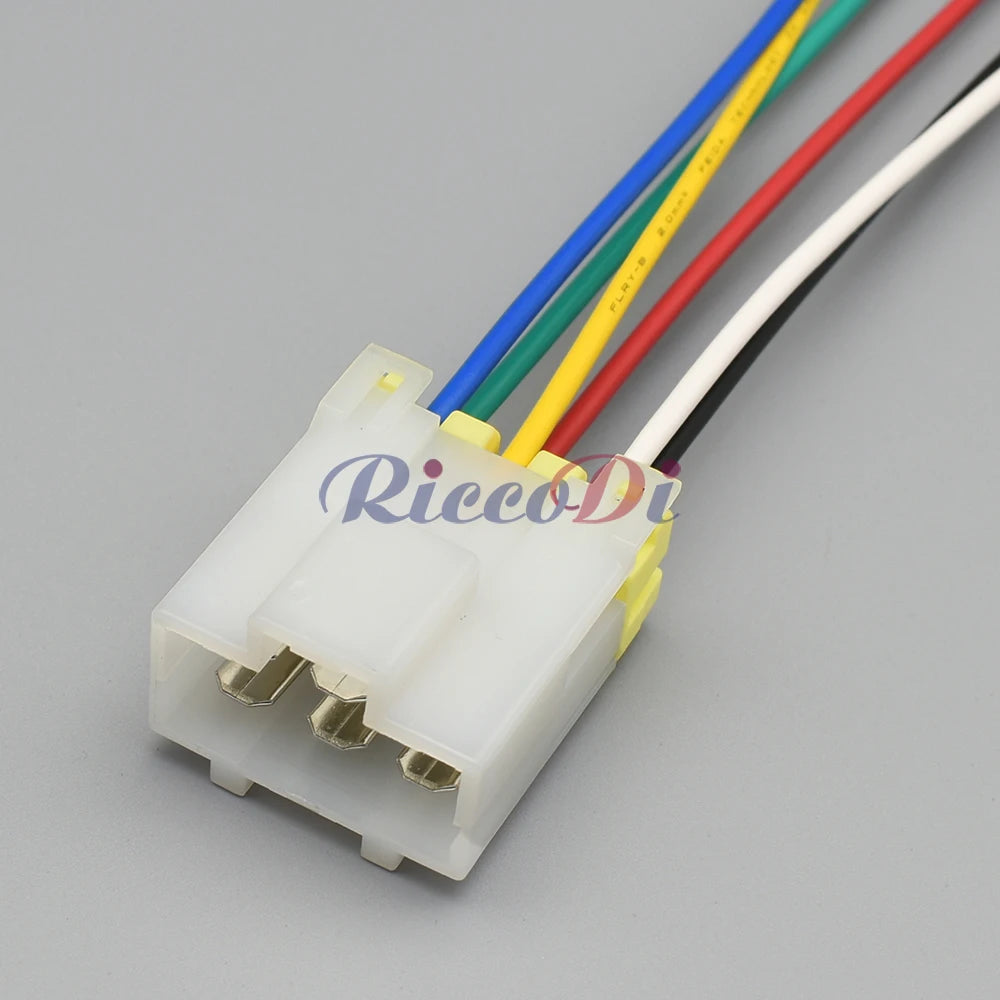

7122-6060 / 7123-6060 Automotive 6-Way Motormeter High Current Connector — Car Instrument Socket with Pre-wired Cables
7122-6060 / 7123-6060 Automotive 6-Way Motormeter High Current Connector Car Instrument Socket with Pre-wired Cables
Couldn't load pickup availability
7122-6060 / 7123-6060 Automotive 6-Way Motormeter High Current Connector — Car Instrument Socket with Pre-wired Cables
Instrument cluster and motormeter connectors carry both high-current power circuits and precision signal circuits in a single connector body — demanding low contact resistance for accurate gauge readings and reliable power delivery for backlight and stepper motor circuits. The 7122-6060 / 7123-6060 6-way automotive motormeter high current connector is the OEM-specification instrument socket for car instrument cluster and motormeter wiring harness applications, supplied with pre-wired cables for direct plug-and-play installation or harness repair.
Built from PA66 nylon housing with high-current tin-plated copper alloy contacts and supplied with a pre-wired cable harness, the 7122-6060 / 7123-6060 simplifies instrument cluster harness repair — restoring factory-grade electrical continuity to power, ground, and signal circuits without custom wire termination in the field.
Technical Specifications
| Parameter | Value |
|---|---|

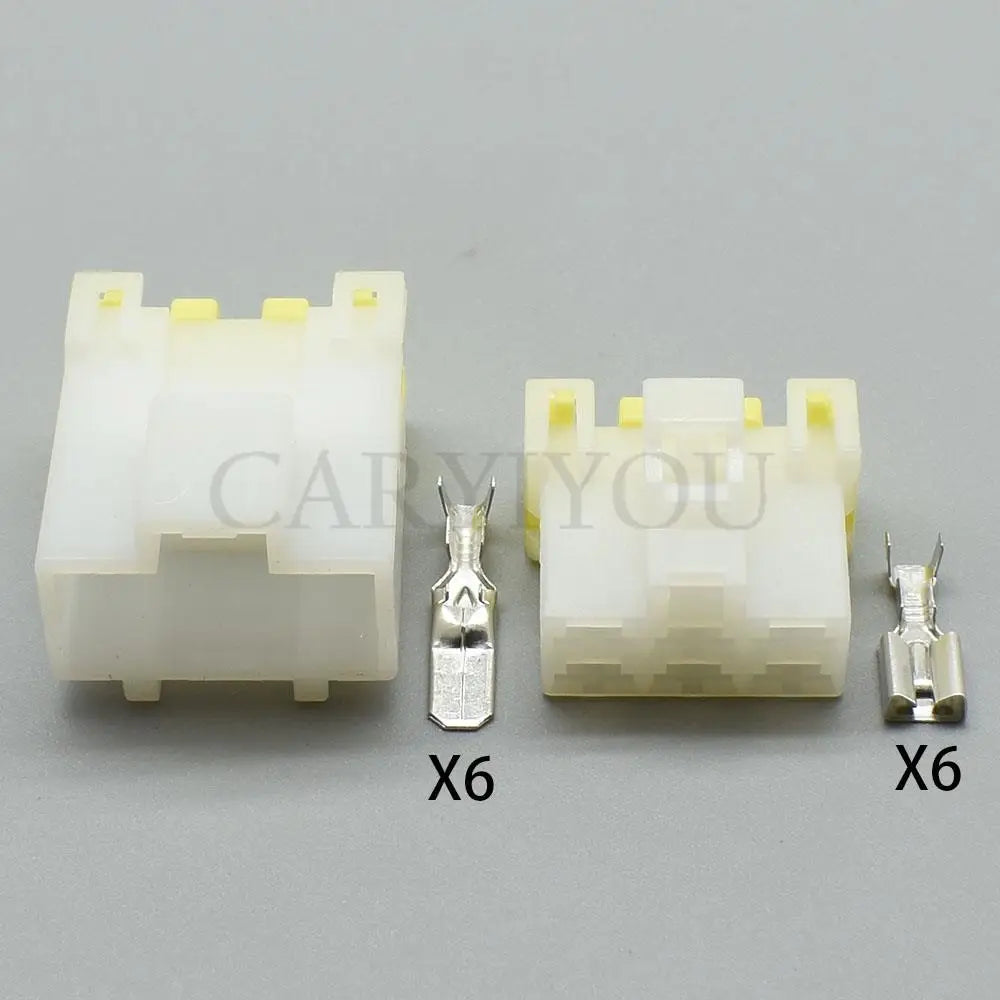

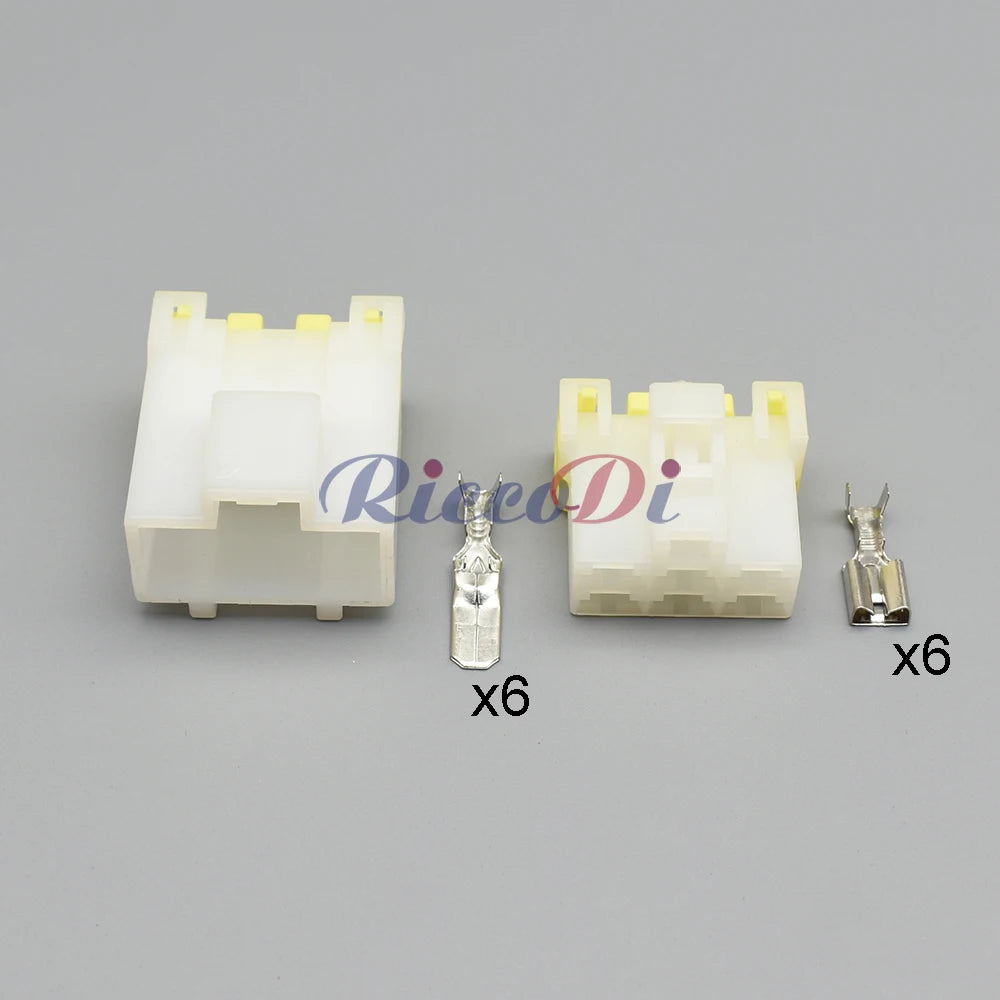

| Part Numbers | 7122-6060 (female) / 7123-6060 (male) |
| Pin Count | 6 ways |
| Connector Type | High current automotive instrument / motormeter connector |
| Primary Application | Car instrument cluster, motormeter wiring harness |

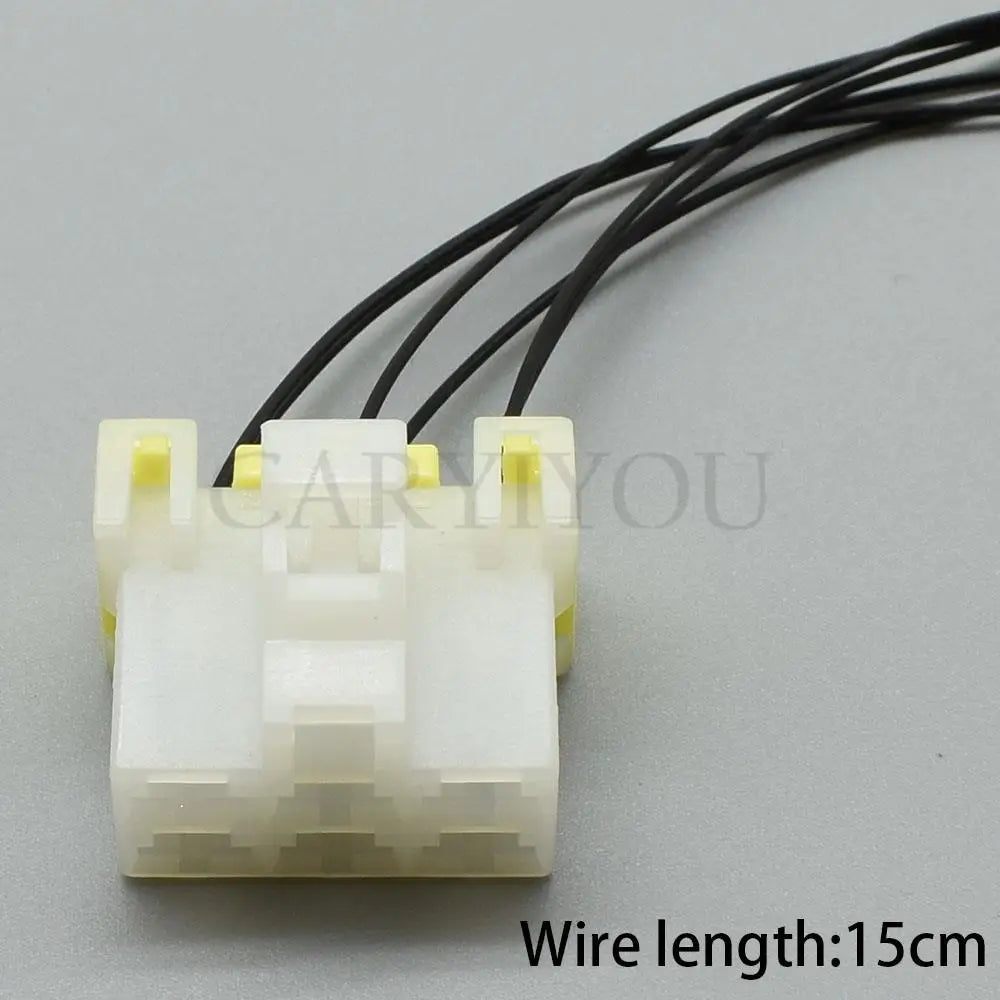

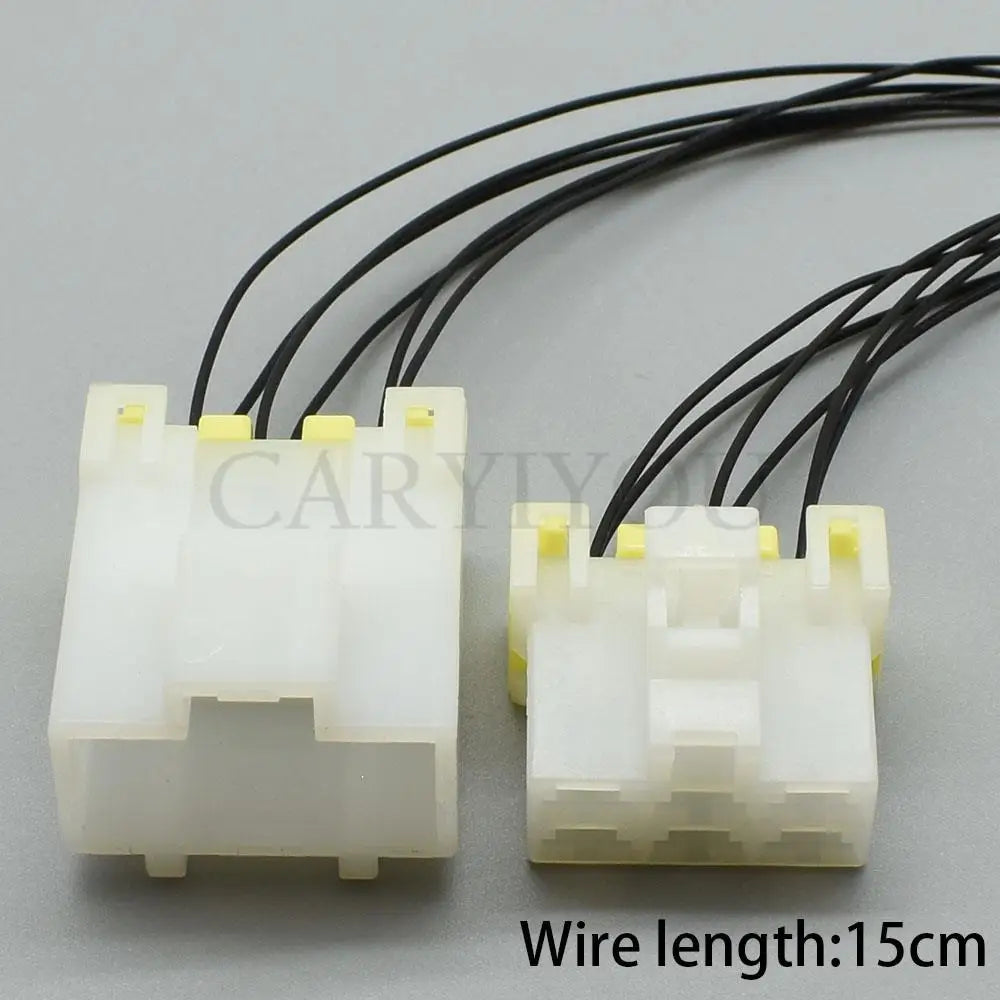

| Includes | Pre-wired cable harness |
| Housing Material | PA66 nylon |
| Contact Material | Tin-plated copper alloy (high current rated) |
| Certification | CE |
| Origin | Mainland China |
Key Features
- ✅ Pre-wired cable harness included — connector supplied with pre-terminated wire harness for direct plug-and-play instrument cluster harness repair without custom crimping
- ✅ OEM part numbers 7122-6060 / 7123-6060 — direct-fit dimensional match for automotive instrument cluster and motormeter wiring harness connector positions
- ✅ High current rated contacts — designed for instrument cluster power and backlight circuits requiring higher current capacity than standard signal connectors
- ✅ 6-way configuration — covers power, ground, and multiple signal circuits for instrument cluster and motormeter assemblies
- ✅ PA66 nylon housing — dimensionally stable in dashboard temperature ranges; resistant to UV exposure and interior cleaning products
- ✅ CE certified — meets European automotive electrical component standards
Common Applications
- Automotive instrument cluster and motormeter wiring harness connector repair
- Car dashboard instrument socket replacement for power and signal circuits
- Custom instrument cluster wiring harness fabrication
FAQ
Q: What is the length of the pre-wired cable harness?
A: Please refer to the product listing variant details for the specific pre-wired harness length.
Package Contents

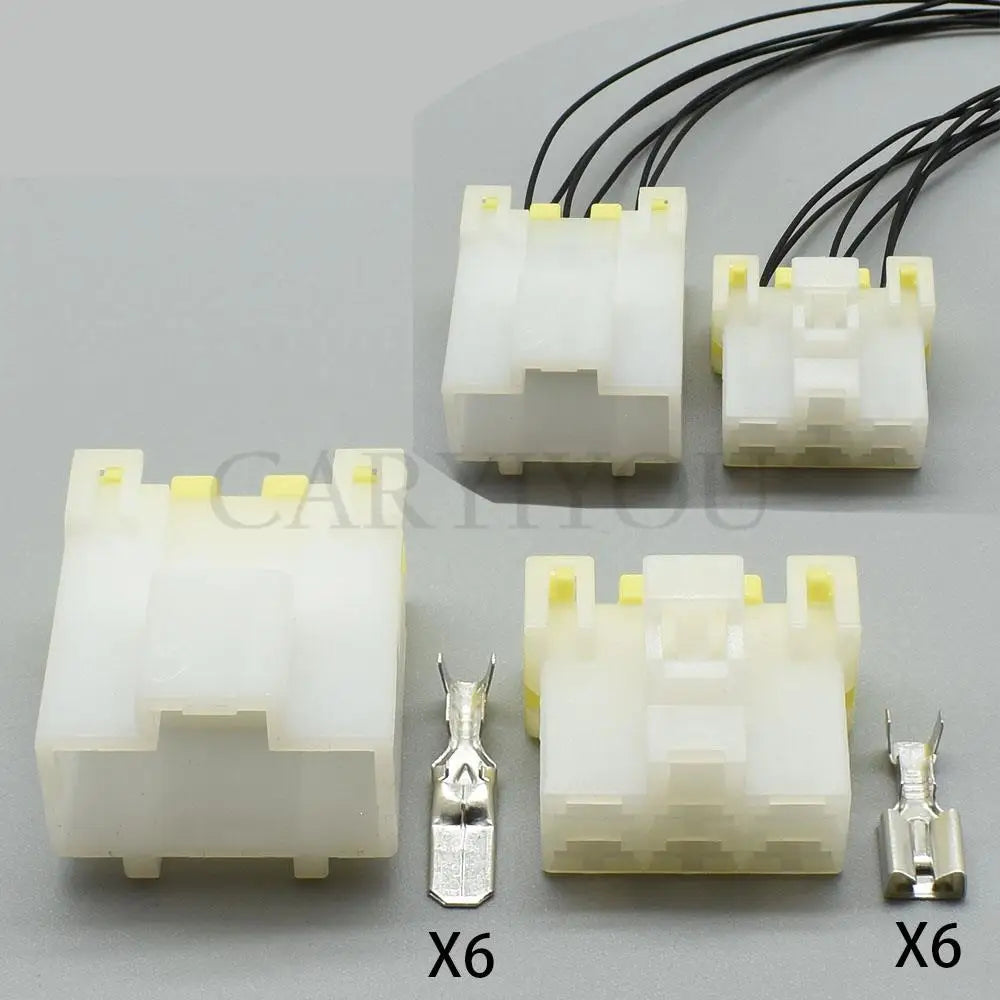

- 1× 7122-6060 / 7123-6060 6-Way Automotive Motormeter High Current Connector with Pre-wired Cable Harness
