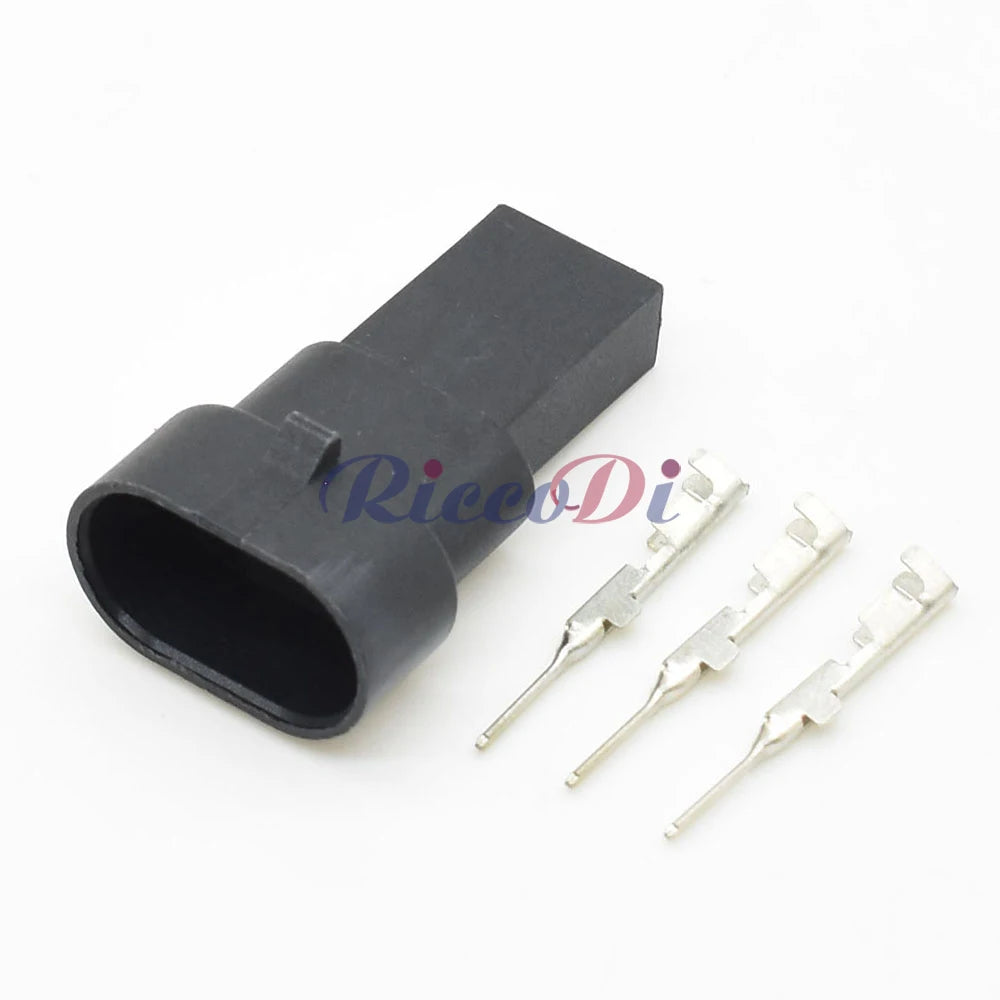

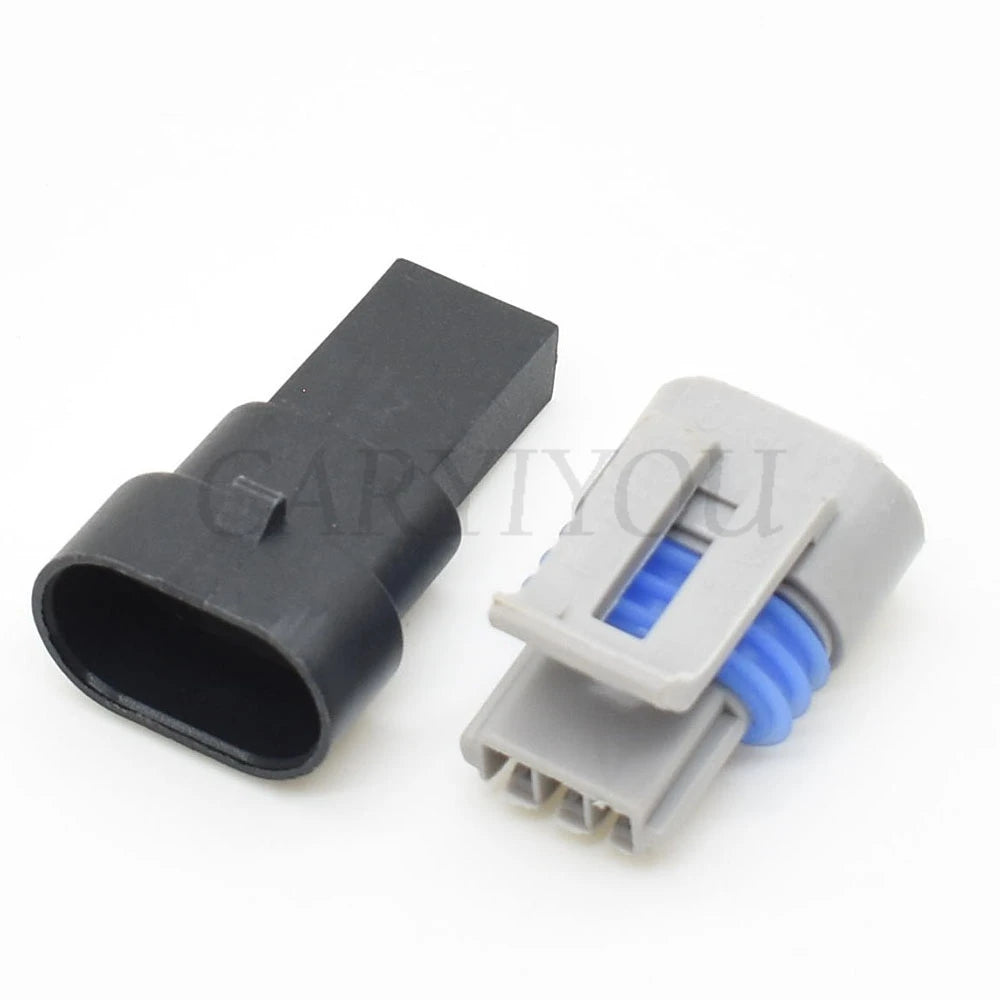

3 Pin 1.5mm Delphi GM Connector 12162182 12162185 12162280 DJ7036Y-1.5 PA66 Wiring Harness Socket

$14.46 USD

Save Liquid error (snippets/price line 138): divided by 0% Sold out

Taxes included. Shipping calculated at checkout.

Color

Quantity

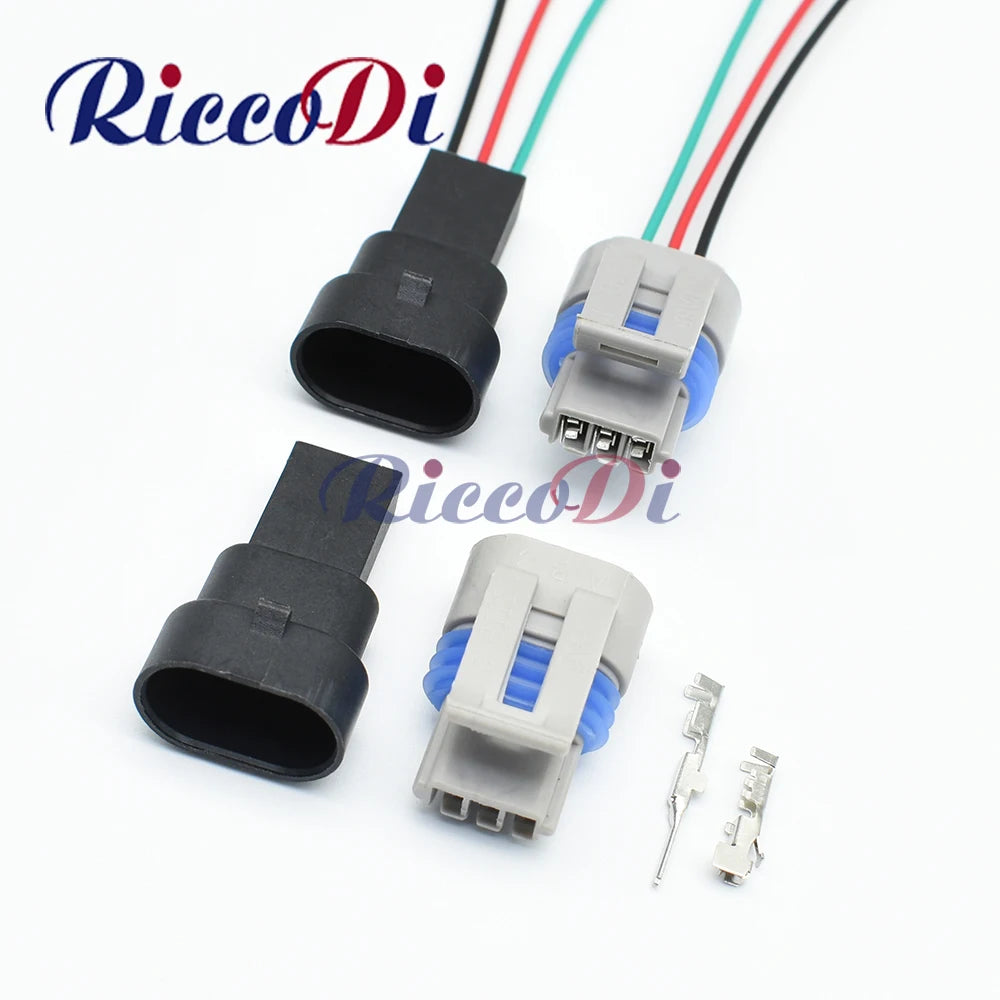

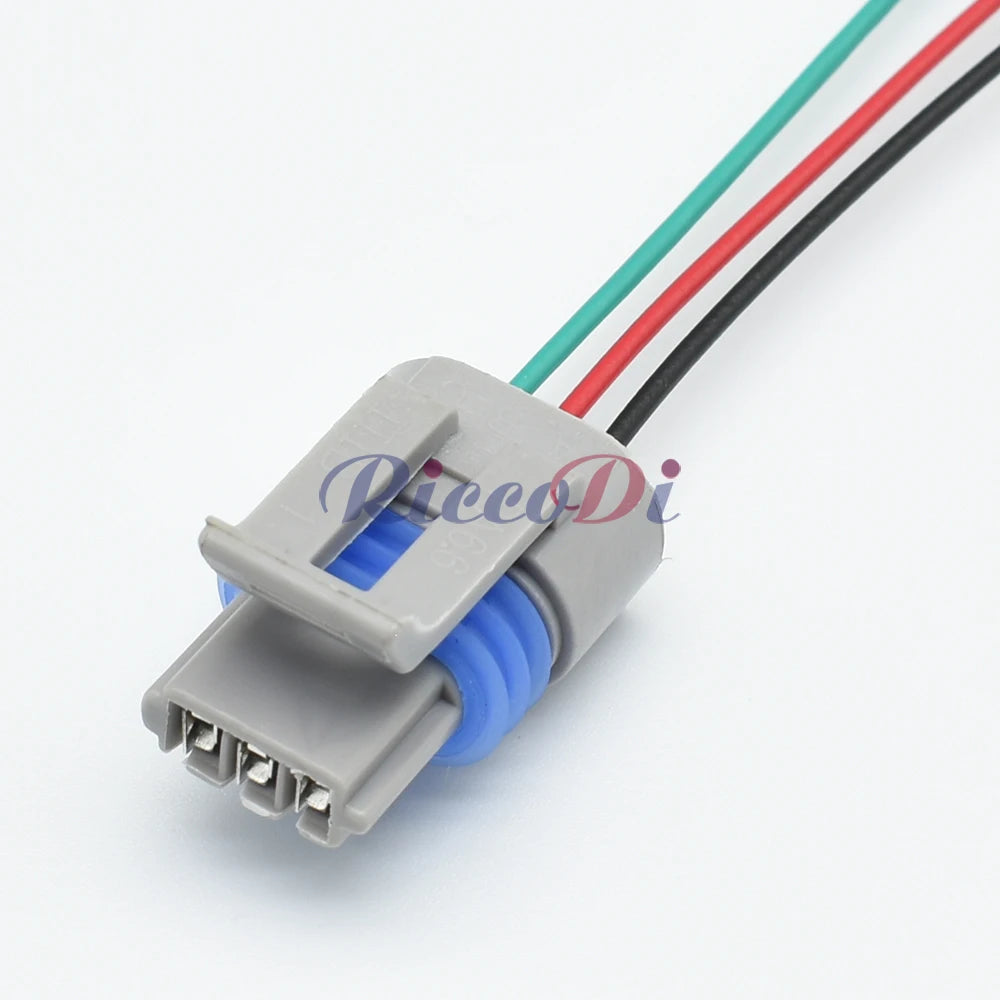

3-Pin 1.5mm Delphi GM Connector — OEM 12162182 / 12162185 / 12162280 / DJ7036Y-1.5

This 3-pin 1.5mm Delphi GM series connector is the OEM-specification replacement for sensor and actuator connectors used across General Motors, Chevrolet, Buick, Cadillac, and Opel vehicles. Compatible with OEM part numbers 12162182 (female), 12162185 (male), 12162280, and 12162197, also cross-referenced as DJ7036Y-1.5.

Key Specifications

Parameter	Value
OEM Part Numbers	12162182 / 12162185 / 12162280 / 12162197 / DJ7036Y-1.5
Pin Count	3-pin
Pin Pitch	1.5mm

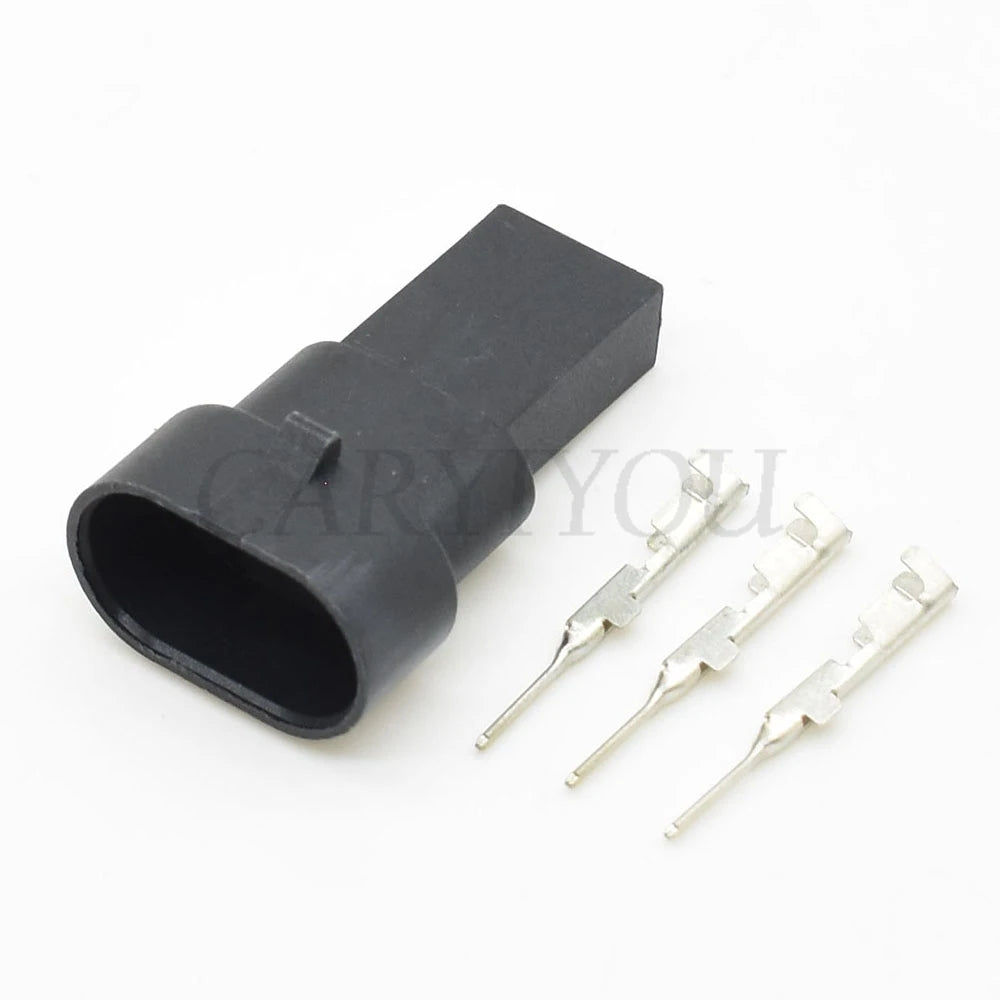

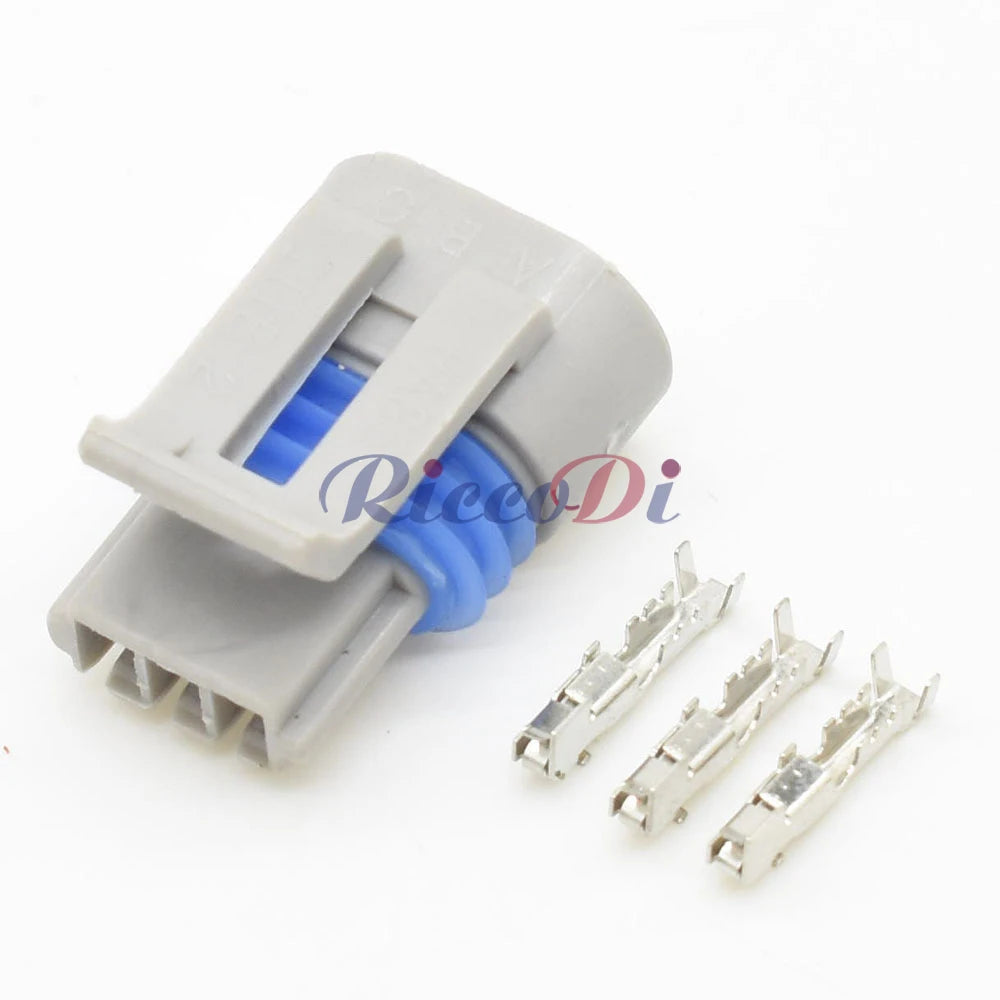

Gender	Male (plug) or Female (socket) — select variant
Housing Material	PA66 nylon
Sealing	Sealed (individual wire seals)
Terminal Material	Copper alloy, tin-plated
Wire Gauge	0.35mm² – 0.5mm² (AWG 22–20)
Temperature Rating	-40°C to +125°C
Certification	CE

OEM Cross-Reference

Part Number	Gender	Notes
12162182	Female (socket)	Harness side
12162185	Male (plug)	Sensor/component side
12162280	Female	Alternate GM part number
12162197	Male	Alternate GM part number
DJ7036Y-1.5	Both	Chinese OEM cross-reference

Vehicle Compatibility

General Motors: Chevrolet Silverado, Tahoe, Suburban, Camaro, Corvette
Buick: LaCrosse, Enclave, Regal
Cadillac: CTS, Escalade, SRX
Opel/Vauxhall: Astra, Vectra, Zafira
GM LS Engine Swaps: Sensor wiring harness builds

Typical Applications

GM LS engine sensor connector repair (TPS, MAP, IAT, CLT)
Transmission sensor wiring harness repair
ABS and wheel speed sensor connector replacement
Custom GM engine swap wiring harness
Aftermarket ECU sensor wiring (HP Tuners, EFI Live)

FAQ

Q: Is 12162182 compatible with Delphi Packard terminals?
A: Yes — this connector uses Delphi Packard 1.5mm Metri-Pack 150 series terminals. Use Delphi terminal part 12089190 (female) or 12089193 (male) for field assembly.

Q: Can this connector be used for LS engine swaps?
A: Yes — this is one of the most common connectors in GM LS wiring harnesses. Essential for TPS, MAP, IAT, and CLT sensor connections in LS swap builds.
