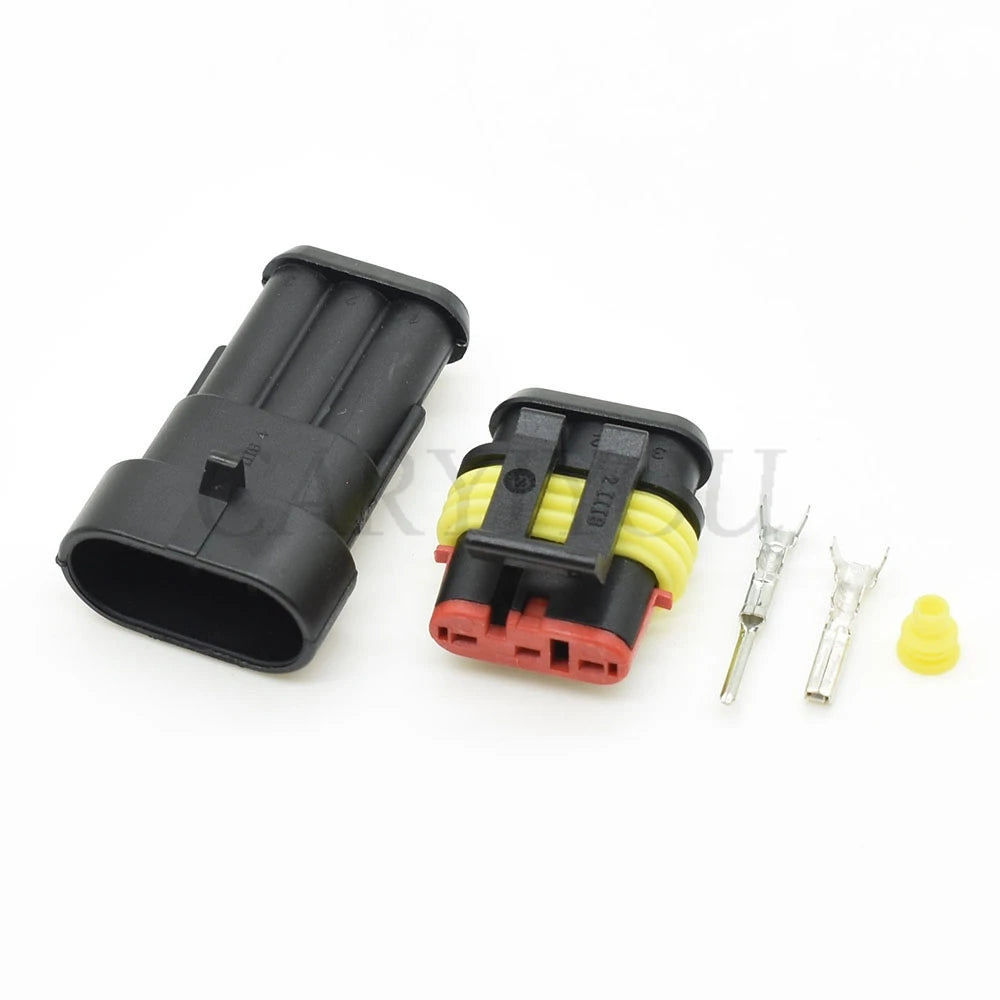

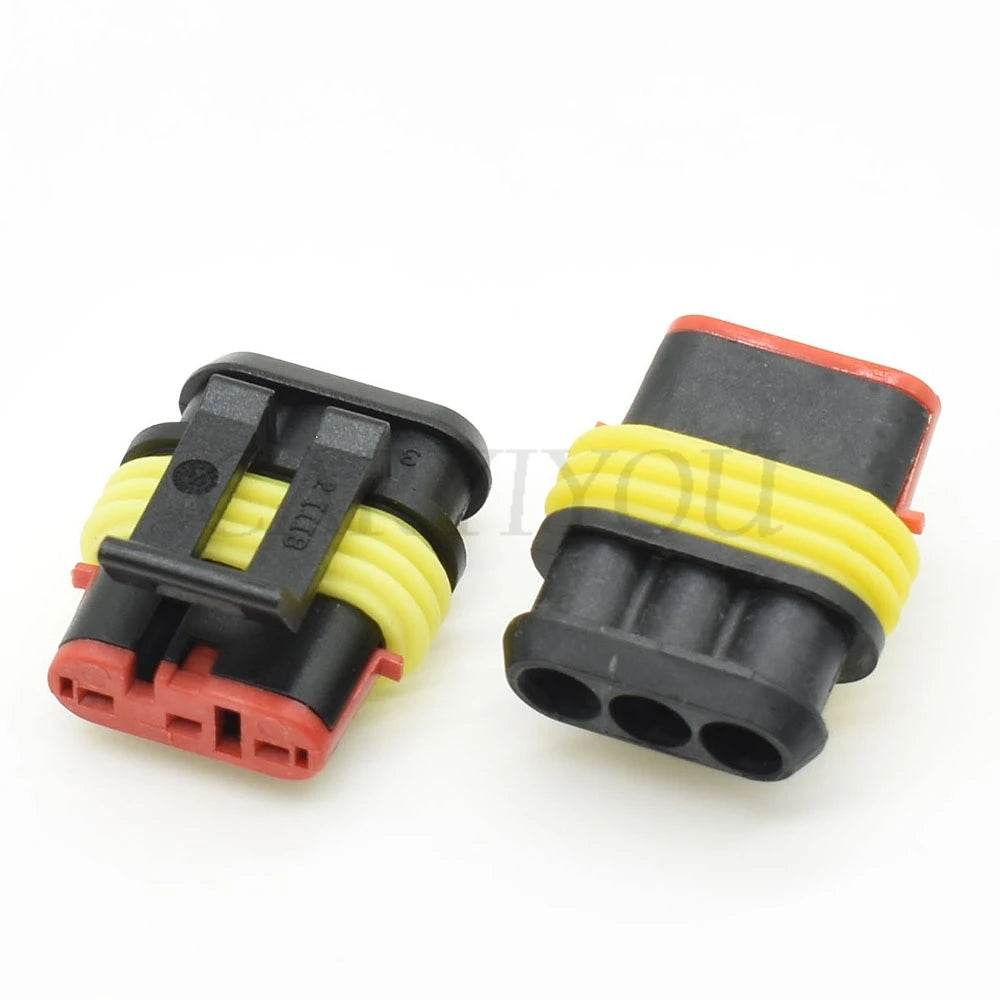

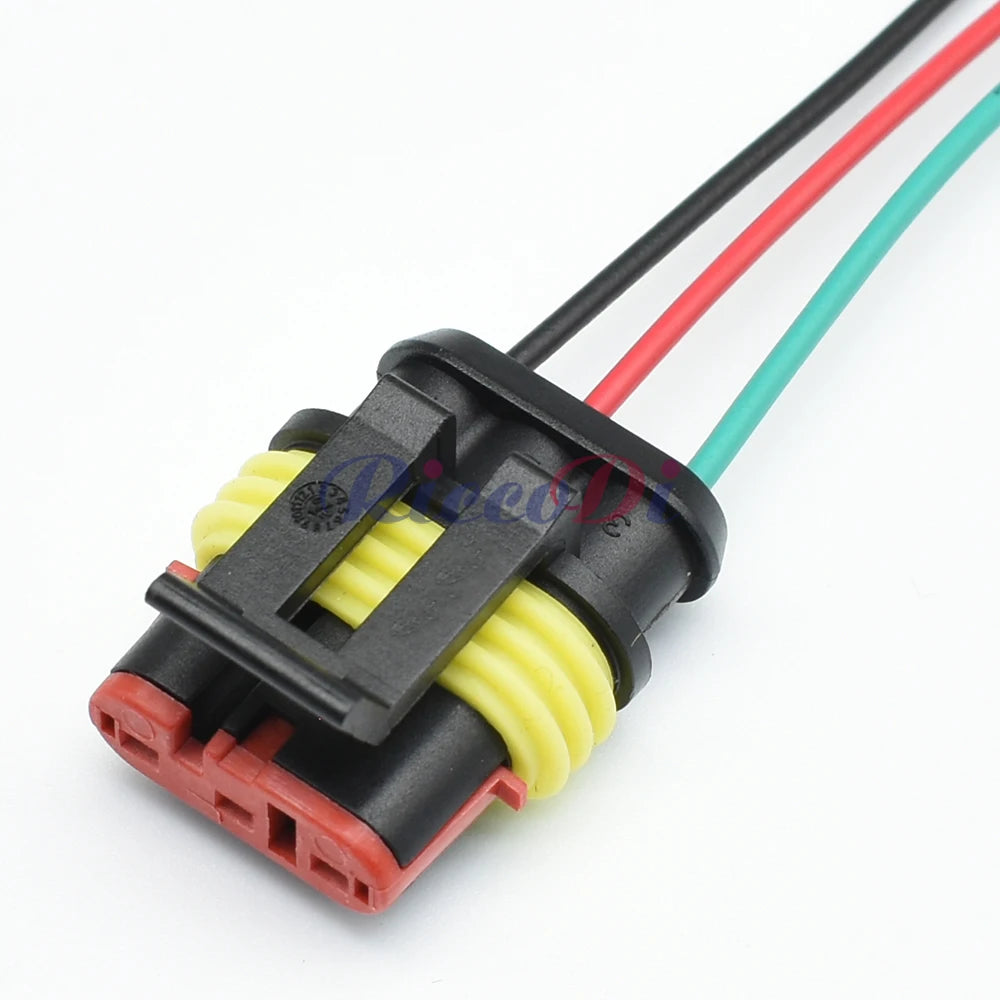

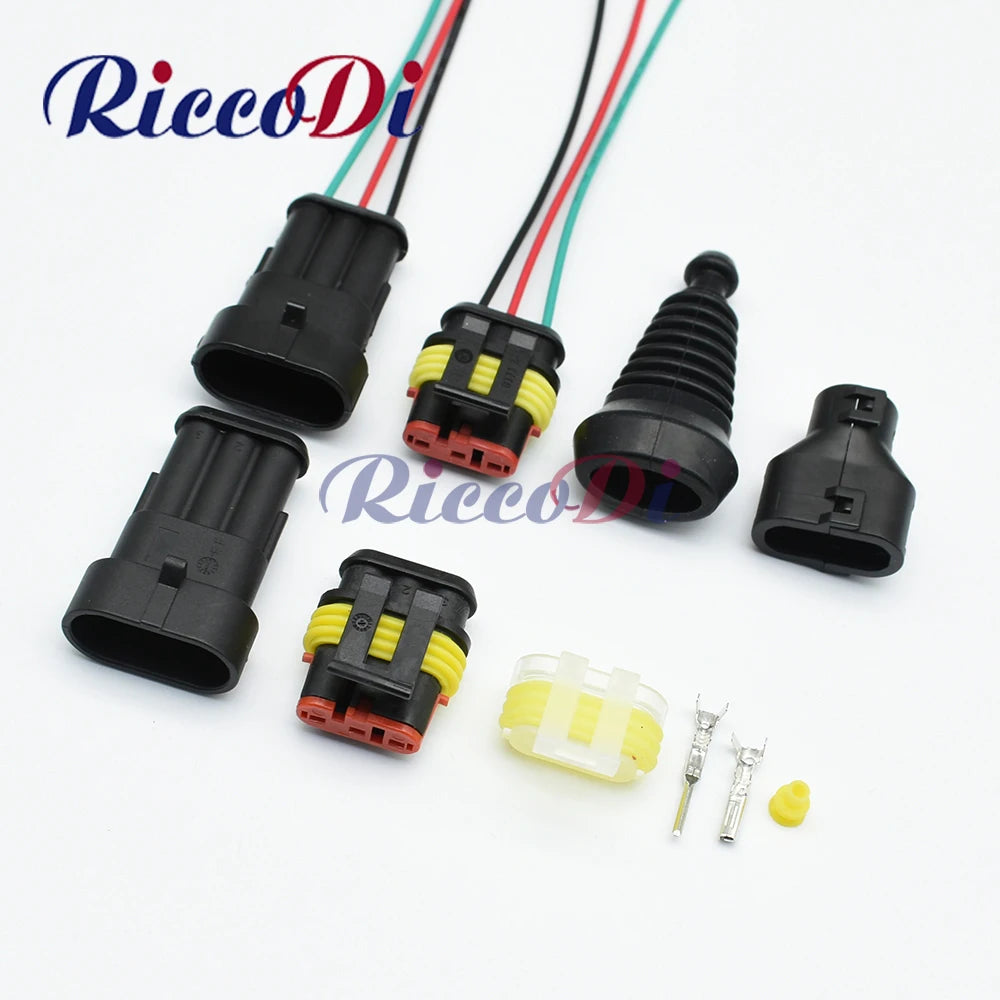

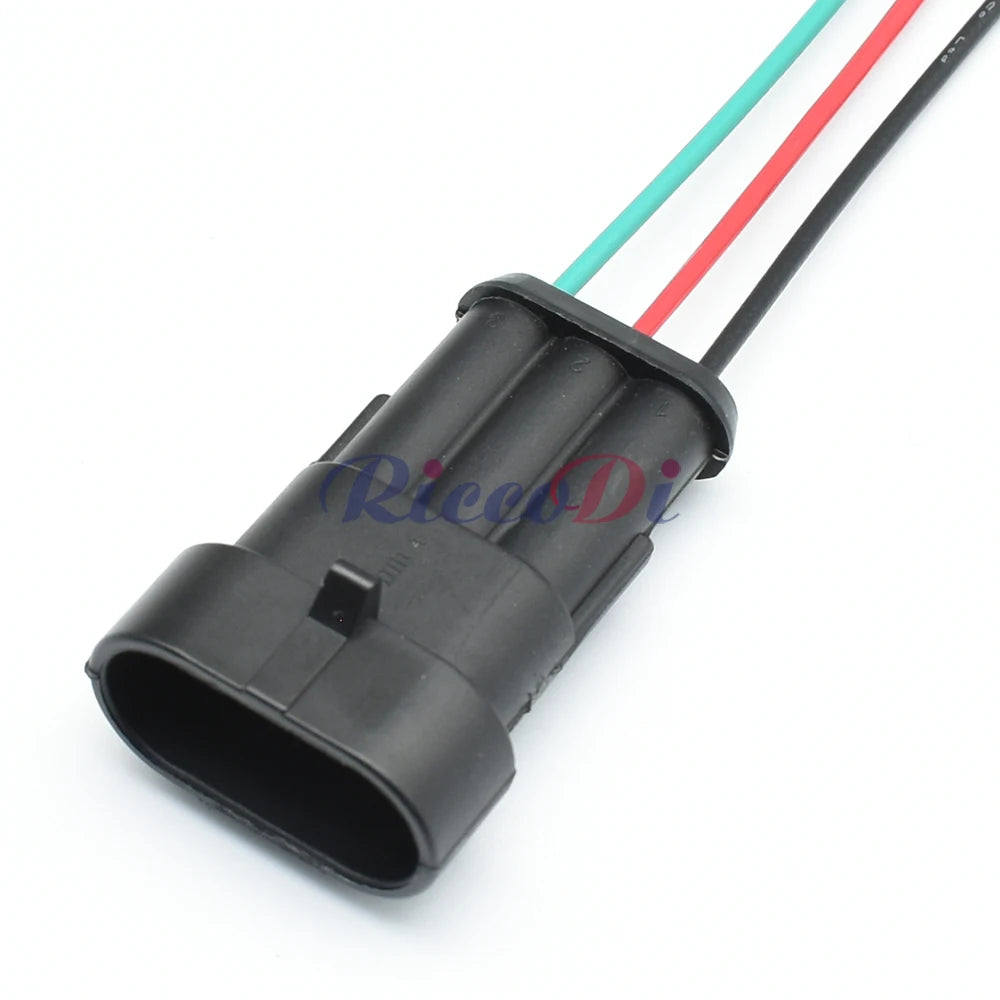

3-Pin 1.5mm Sealed Waterproof Connector — OEM 282087-1 / 282105-1 / DJ7031-1.8
This 3-pin 1.5mm sealed waterproof automotive connector is compatible with OEM part numbers 282087-1 (female/socket) and 282105-1 (male/plug), also cross-referenced as DJ7031-1.8. The 1.5mm pin pitch and individual rubber wire seals make it suitable for sensor, actuator, and control module wiring harness applications requiring IP67 waterproof protection.
Key Specifications
| Parameter | Value |
|---|---|
| OEM Part Numbers | 282087-1 (female) / 282105-1 (male) / DJ7031-1.8 |
| Pin Count | 3-pin |
| Pin Pitch | 1.5mm |
| Gender | Male (plug) or Female (socket) — select variant |
| Housing Material | PA66 nylon |

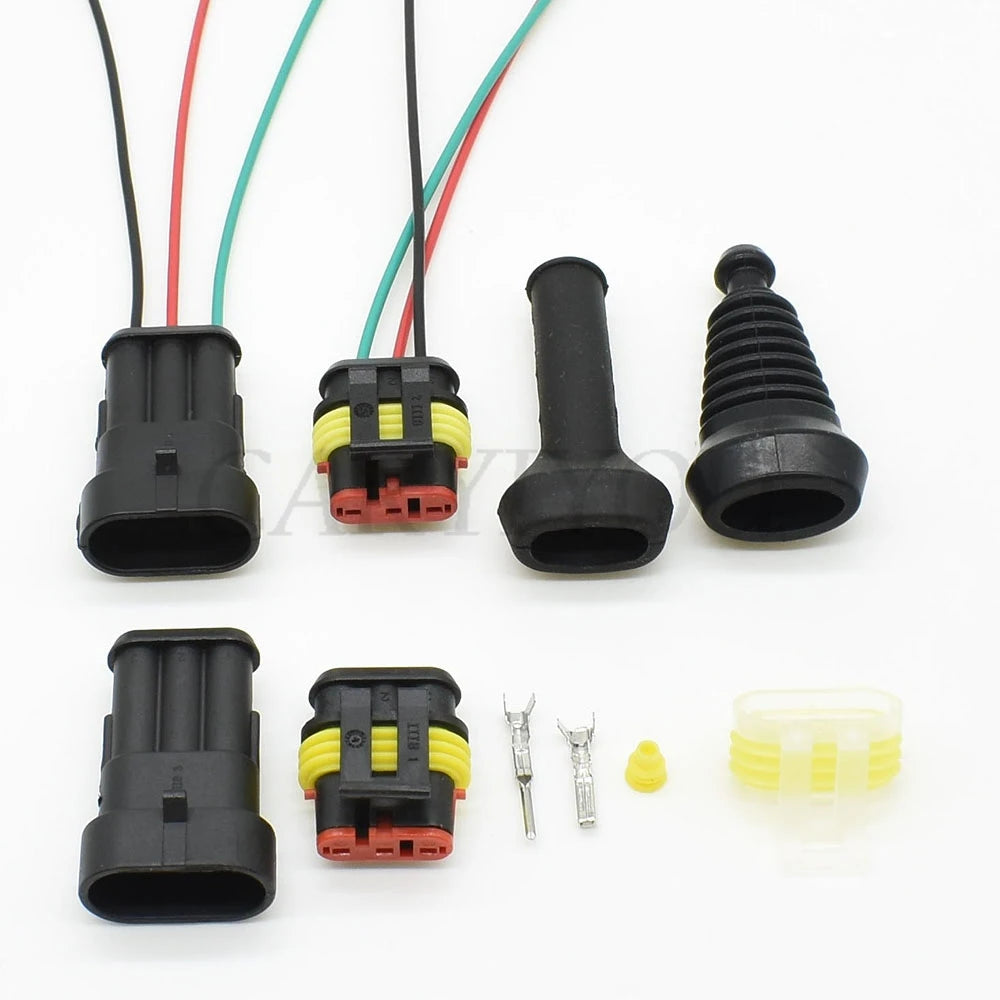

| Sealing | Individual rubber wire seals + connector seal |
| Terminal Material | Copper alloy, tin-plated |
| Wire Gauge | 0.35mm² – 0.5mm² (AWG 22–20) |
| Temperature Rating | -40°C to +125°C |
| Certification | CE |
OEM Cross-Reference
| Part Number | Gender | Manufacturer |
|---|---|---|
| 282087-1 | Female (socket) | Tyco/AMP |
| 282105-1 | Male (plug) | Tyco/AMP |
| DJ7031-1.8 | Both | Chinese OEM cross-reference |
Why Choose This Connector?
- 1.5mm Pitch — Compact sealed connector for sensor and low-current control wiring
- IP67 Waterproof — Individual wire seals prevent moisture ingress in engine bay and underbody locations
- PA66 Housing — High-temperature nylon for engine bay reliability
- Includes Terminals & Seals — Complete kit for field assembly (check variant)
- CE Certified — Meets European automotive electrical standards
Typical Applications
- Automotive sensor wiring harness repair (temperature, pressure, position sensors)
- ECU and control module connector repair
- Custom wiring harness build for engine swaps
- Aftermarket sensor installation (AEM, Bosch, Delphi)
- Motorcycle and powersport wiring harness
FAQ
Q: What terminal size is used with 282087-1?
A: Tyco/AMP 1.5mm series terminals (part 927774-1 or equivalent). Wire gauge: 0.35–0.5mm² (AWG 22–20). Use a proper ratchet crimping tool for reliable termination.
Q: Is DJ7031-1.8 the same as 282087-1?
A: DJ7031-1.8 is the Chinese OEM cross-reference designation for the Tyco 282087-1 connector. Physically identical; may have minor material differences.

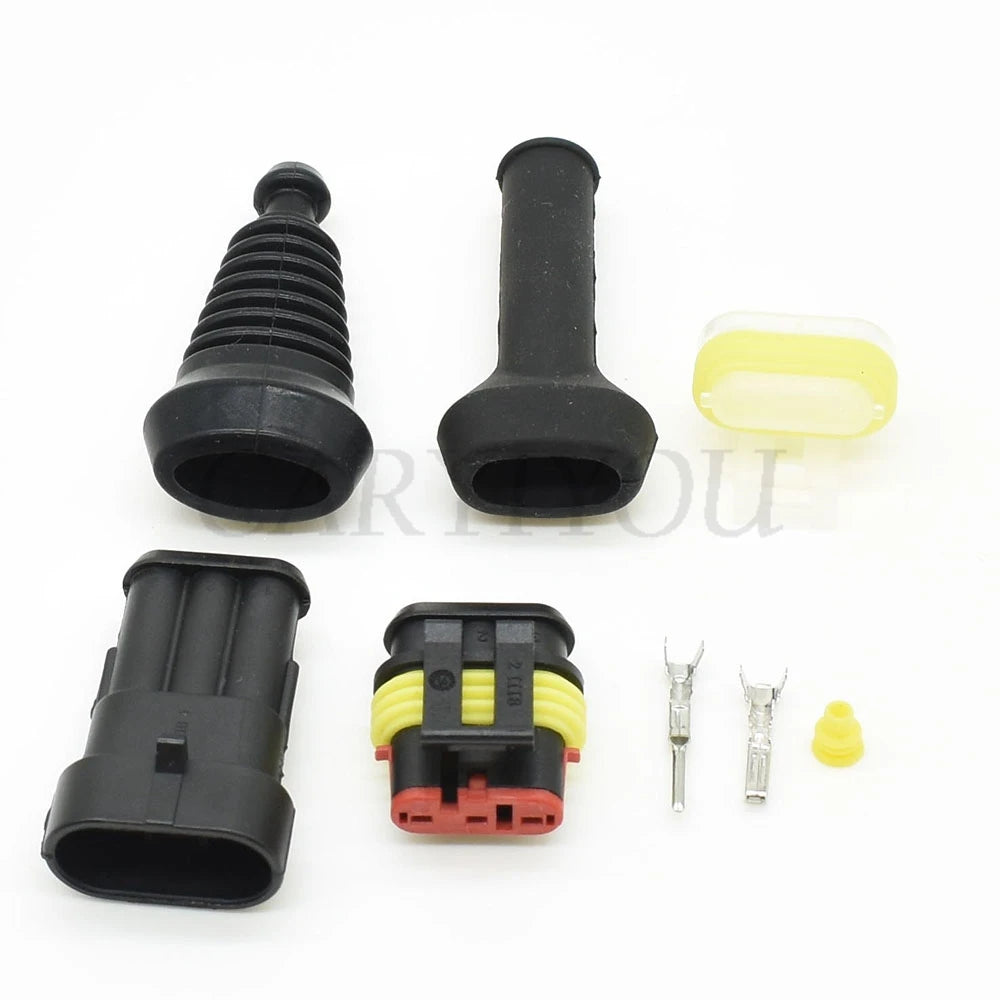

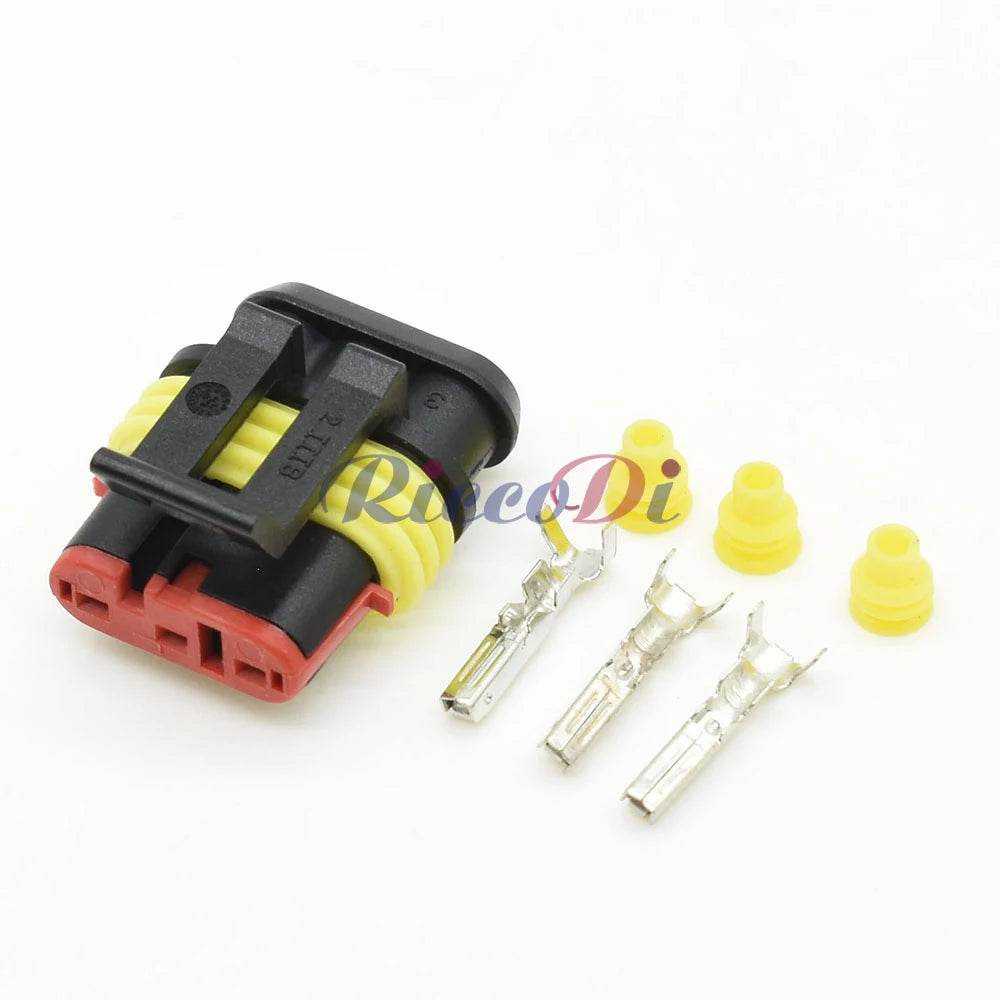

Package Contents

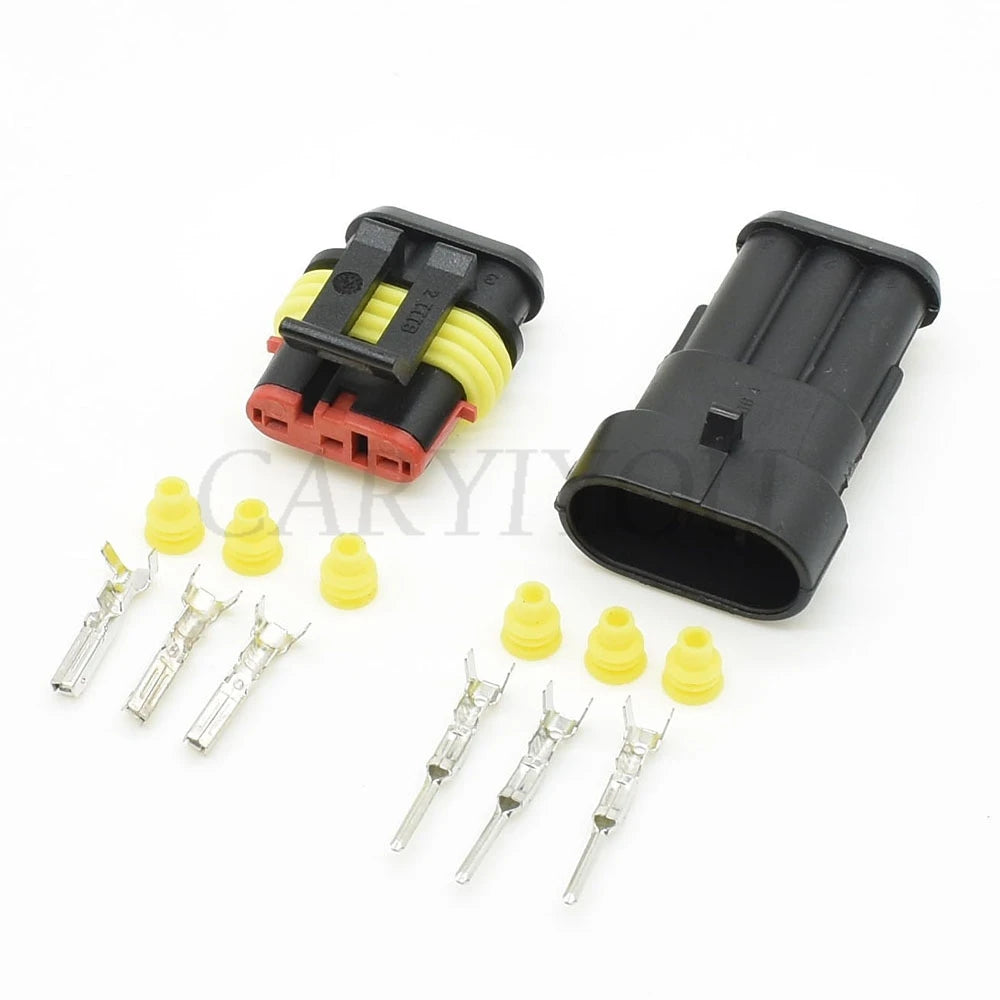

- 1× 3-Pin 1.5mm Sealed Connector with Terminals and Seals (per selected variant)
