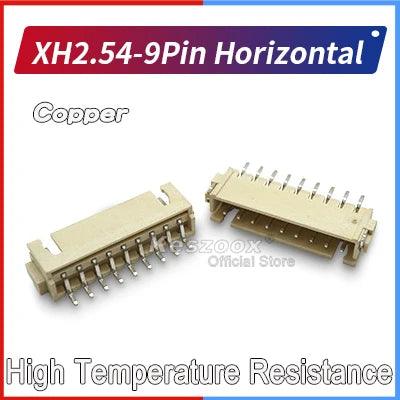

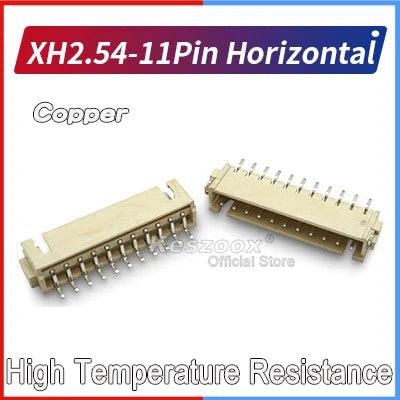

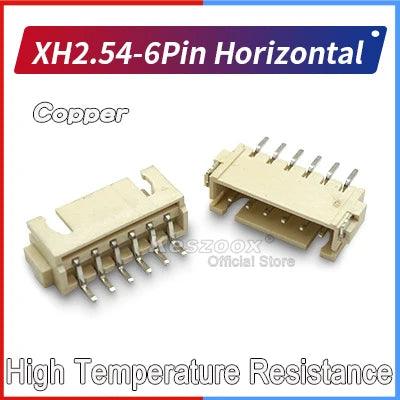

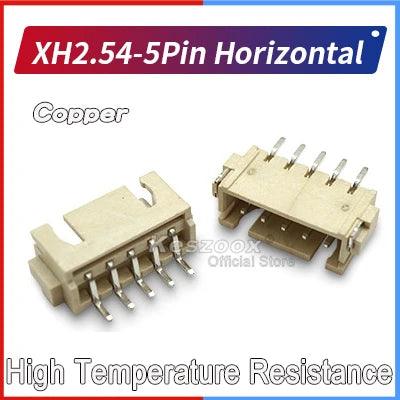

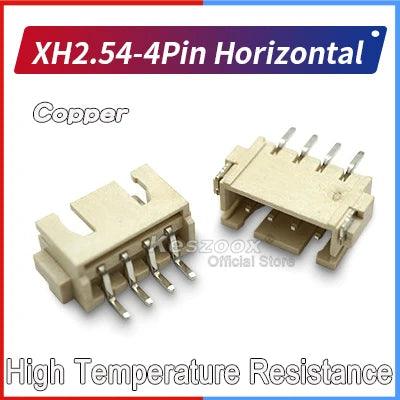

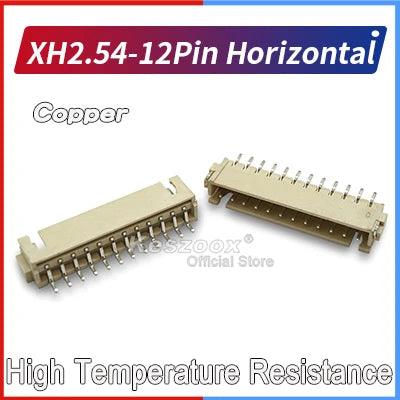

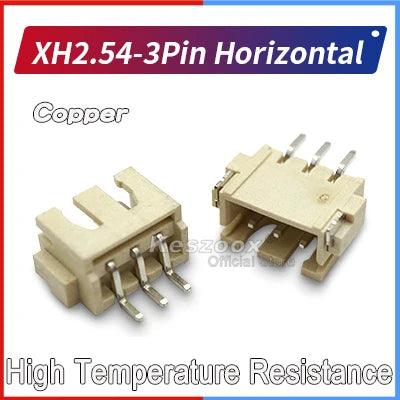

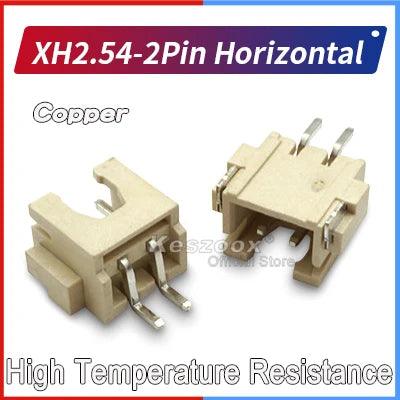

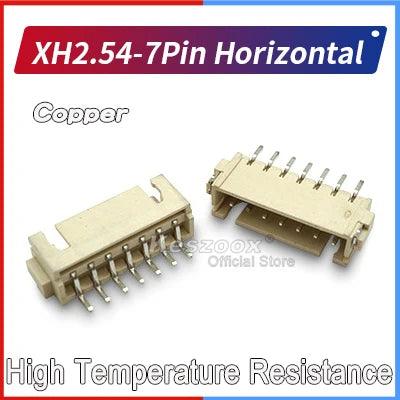

JST XH 2.54mm SMT Horizontal Socket — Side-Entry Low-Profile PCB Connector

When vertical clearance is limited and cable routing must exit parallel to the PCB surface, the JST XH 2.54mm SMT horizontal socket is the engineering solution. The side-entry design allows mated cables to lie flat against the board — reducing the overall assembly height, improving cable management in tight enclosures, and eliminating the stress concentration that occurs when vertical connectors are used in applications where cables must be bent immediately after the connector.

Surface-mount termination eliminates through-hole drilling from the PCB fabrication process, reducing board cost and enabling placement on both sides of the PCB. The SMT footprint is compatible with standard reflow soldering processes, making this connector suitable for automated assembly lines as well as hand-soldering in prototype and low-volume production environments.

The XH 2.54mm pitch is the universal standard for Arduino shields, 3D printer mainboards, LiPo battery management systems, and virtually every hobbyist and light-industrial PCB produced in the last decade. This horizontal SMT variant brings the same proven XH locking geometry and 3A/250V electrical rating to applications where the standard vertical through-hole connector cannot be used.

Technical Specifications

Connector System: JST XH series, 2.54mm pitch
Mounting Style: SMT (Surface Mount Technology), horizontal / side-entry
Orientation: Low-profile, cable exits parallel to PCB surface
Current Rating: 3A per contact
Voltage Rating: 250V AC/DC
Contact Material: Copper alloy, tin-plated
Housing Material: PA66 (Nylon 66), UL94 V-0 flame retardant
Locking Mechanism: Positive latch lock
Pitch: 2.54mm (0.1 inch)
Soldering Method: Reflow or hand soldering
RoHS Compliant: Yes

SMT Horizontal vs. Through-Hole Vertical — When to Choose Each

Choose SMT Horizontal when: Assembly height is constrained (e.g., slim enclosures, stacked PCB assemblies), cables must route parallel to the board surface, through-hole drilling is not available or desired, or the connector is on the underside of a PCB where vertical connectors would be inaccessible.

Choose Through-Hole Vertical when: Maximum mechanical retention is required (through-hole pins provide stronger pull-out resistance), the PCB is single-sided, or the application involves frequent mating/unmating cycles where SMT pad stress is a concern.

PCB Design Considerations

The SMT horizontal footprint requires accurate pad placement to ensure proper contact alignment and solder joint quality. Refer to the JST XH series SMT horizontal datasheet for the recommended land pattern, stencil aperture, and solder paste volume. For hand-soldering, use a fine-tip iron at 300–320°C with no-clean flux to avoid housing distortion. Ensure the PCB surface is clean and free of oxidation before soldering to achieve reliable solder joints on all contacts.

Typical Applications

Slim Enclosure Electronics: Wearable devices, handheld instruments, compact IoT nodes where vertical connector height is unacceptable
Stacked PCB Assemblies: Multi-board systems where inter-board clearance is limited
3D Printer Electronics: Mainboard connectors in low-profile printer designs, toolhead PCB connections
Arduino & Development Boards: Custom shield designs requiring low-profile connectors, sensor module PCBs
Battery Management Systems: LiPo BMS boards where cable routing must be parallel to the board surface
Industrial & IoT: Panel-mount PCB assemblies, sensor node boards, compact control electronics
Robotics: Servo controller boards, motor driver PCBs in space-constrained robot chassis

Compatibility

Compatible with all standard JST XH series pre-crimped cables and XH housings at 2.54mm pitch. The locking geometry is identical to the standard vertical XH connector, ensuring full interchangeability of mating cables between horizontal SMT and vertical through-hole variants.
