JST XH 2.5mm 4-Pin Terminal Wire — 22AWG, SXH-001T-P0.6 Contact, 3A/250V

A precision pre-crimped terminal wire for JST XH 2.5mm connector systems, built with the genuine JST SXH-001T-P0.6 contact — the OEM-specified terminal for the XH series. One end carries a factory-crimped SXH-001T-P0.6 terminal ready to insert into any standard JST XH 4-pin housing; the other end is left bare for direct soldering, screw terminal connection, or custom termination. Four conductors cover the full range of common 4-wire interface protocols: I2C (SDA/SCL/VCC/GND), SPI (MOSI/MISO/SCK/CS), stepper motor phase pairs, and UART with hardware flow control.

The SXH-001T-P0.6 contact is the genuine JST-specified terminal for the XH series — not a generic substitute. Using the correct OEM contact ensures proper engagement with the housing latch, correct contact force against the mating pin, and full compliance with the XH series electrical ratings. For applications where connector reliability is critical, specifying the correct contact is as important as specifying the correct housing.

22AWG stranded copper wire rated at 3A/250V handles both signal and light power applications across the full 4-pin XH range.

Technical Specifications

Connector System: JST XH series, 2.5mm pitch
Pin Count: 4-pin
Contact Part Number: JST SXH-001T-P0.6

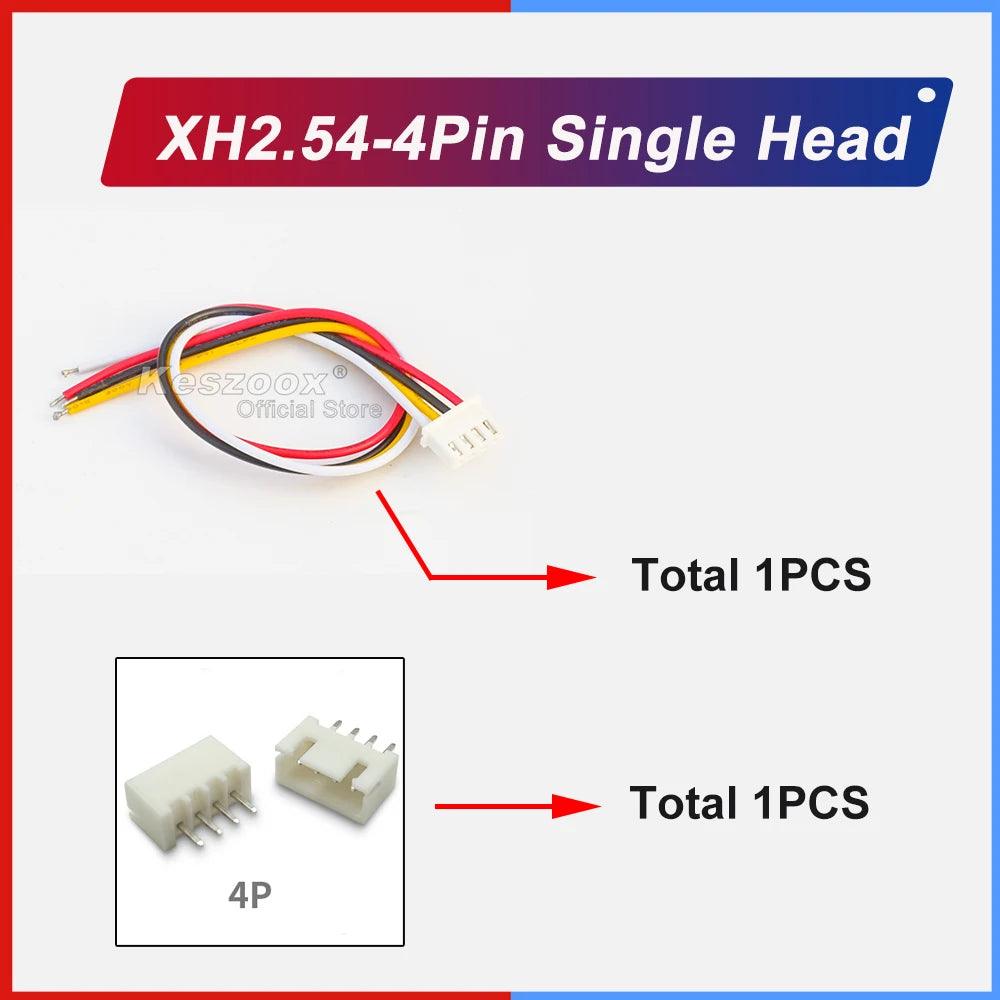

Configuration: Single-head — one end crimped (SXH-001T-P0.6 terminal), one end bare wire
Wire Gauge: 22AWG stranded copper
Current Rating: 3A per contact
Voltage Rating: 250V AC/DC
Contact Material: Copper alloy, tin-plated
Insulation: PVC, UL-rated
Locking Mechanism: Positive latch lock (via housing)
Pitch: 2.5mm
RoHS Compliant: Yes

Why the SXH-001T-P0.6 Contact Matters

The JST SXH-001T-P0.6 is the OEM-specified crimp terminal for the XH connector series. It features a precisely dimensioned crimp barrel sized for 22–28AWG wire, a contact beam geometry engineered to deliver the correct normal force against the mating pin, and a retention lance that locks positively into the XH housing. Generic terminals may fit physically but often deliver lower contact force, higher contact resistance, and reduced retention force — all of which degrade connection reliability over time. For production assemblies and any application where connector performance matters, the genuine JST contact is the correct specification.

Typical Applications

I2C Buses: OLED displays, RTC modules, IMU sensors, environmental sensors (BME280, SHT31), EEPROM connections
SPI Interfaces: SD card modules, display drivers, ADC/DAC breakouts, flash memory connections
3D Printers: Stepper motor phase wiring (X/Y/Z/E axes), BLTouch/CR Touch probe connections, filament sensor leads
Stepper Motor Drivers: Motor phase output connections (A1/A2/B1/B2), driver module wiring
Arduino & Microcontrollers: Multi-wire sensor modules, relay module connections, LCD interface wiring
RC & Drones: Flight controller I2C peripherals, compass module connections, barometer leads
Industrial: 4-wire RTD temperature sensor leads, 4-20mA transmitter connections, PLC I/O wiring

Compatibility

Terminal is compatible with JST XH series 4-pin housings (JST part: XHP-4) and all 2.5mm pitch PCB headers with XH-compatible locking geometry. Bare wire end accepts screw terminals, Dupont 2.54mm housings, or direct PCB soldering.

Housing not included. This listing is for the pre-crimped terminal wire only.
