JST XH 2.54mm 5-Pin Cable Connector Both Sided — Same Side & Reverse, Custom Length

JST XH 2.54mm 5-Pin Both-Sided Connector Cable — Same Side & Reverse Polarity, 22AWG

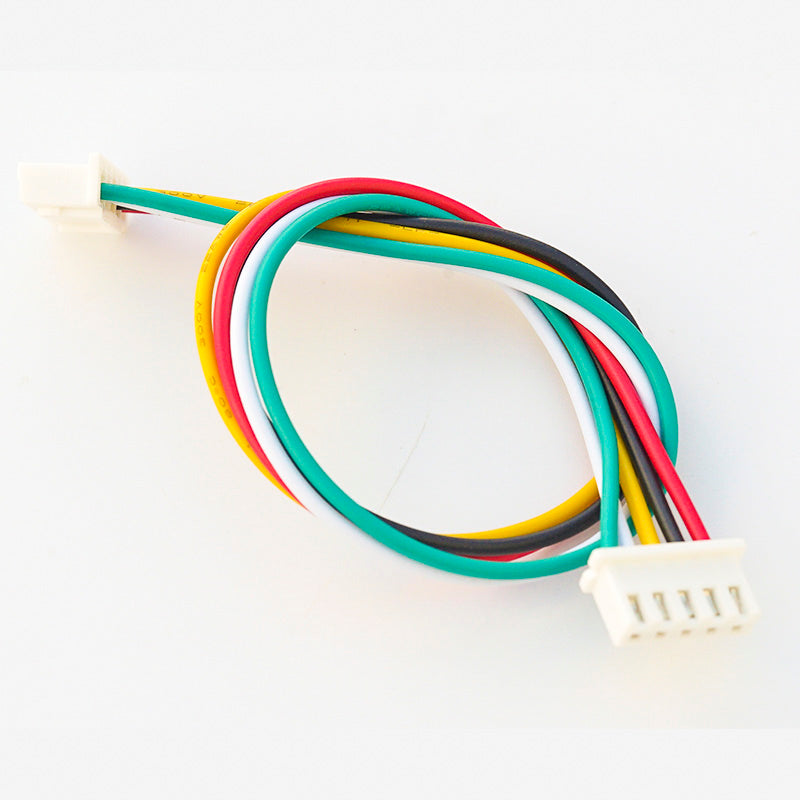

Five conductors, both ends factory-crimped, zero assembly required. This JST XH 2.54mm 5-pin both-sided cable is the ready-to-use solution for extending or connecting 5-wire interfaces — UART with flow control, 5-wire stepper motor connections, RGB LED assemblies with dedicated power rails, and multi-sensor modules with interrupt lines. Available in Same Side (straight-through) and Reverse Side (mirrored) configurations to match the connector orientation required by your specific PCB layout.

At five conductors, the value of factory crimping becomes especially clear. Each of the ten contacts (five per end) is machine-crimped to a defined pull-force specification — the same standard used in automotive harness production. A single failed crimp in a 5-wire interface can corrupt an entire communication bus or cause a motor to misstep. Factory crimping eliminates this failure mode entirely, producing assemblies that perform consistently from the first connection to the ten-thousandth.

22AWG stranded copper wire rated at 3A/250V handles mixed power-and-signal applications. Positive latch locks on both ends. Available in 8 lengths from 10cm to 80cm and 8 wire colors.

Technical Specifications

• Connector System: JST XH series, 2.54mm pitch
• Pin Count: 5-pin
• Configuration: Both-sided — XH terminals on both ends
• Polarity Options: Same Side (1-to-1 straight) / Reverse Side (1-to-5 mirrored)
• Wire Gauge: 22AWG stranded copper
• Current Rating: 3A per contact
• Voltage Rating: 250V AC/DC
• Contact Material: Copper alloy, tin-plated
• Insulation: PVC, UL-rated
• Locking Mechanism: Positive latch lock on both ends

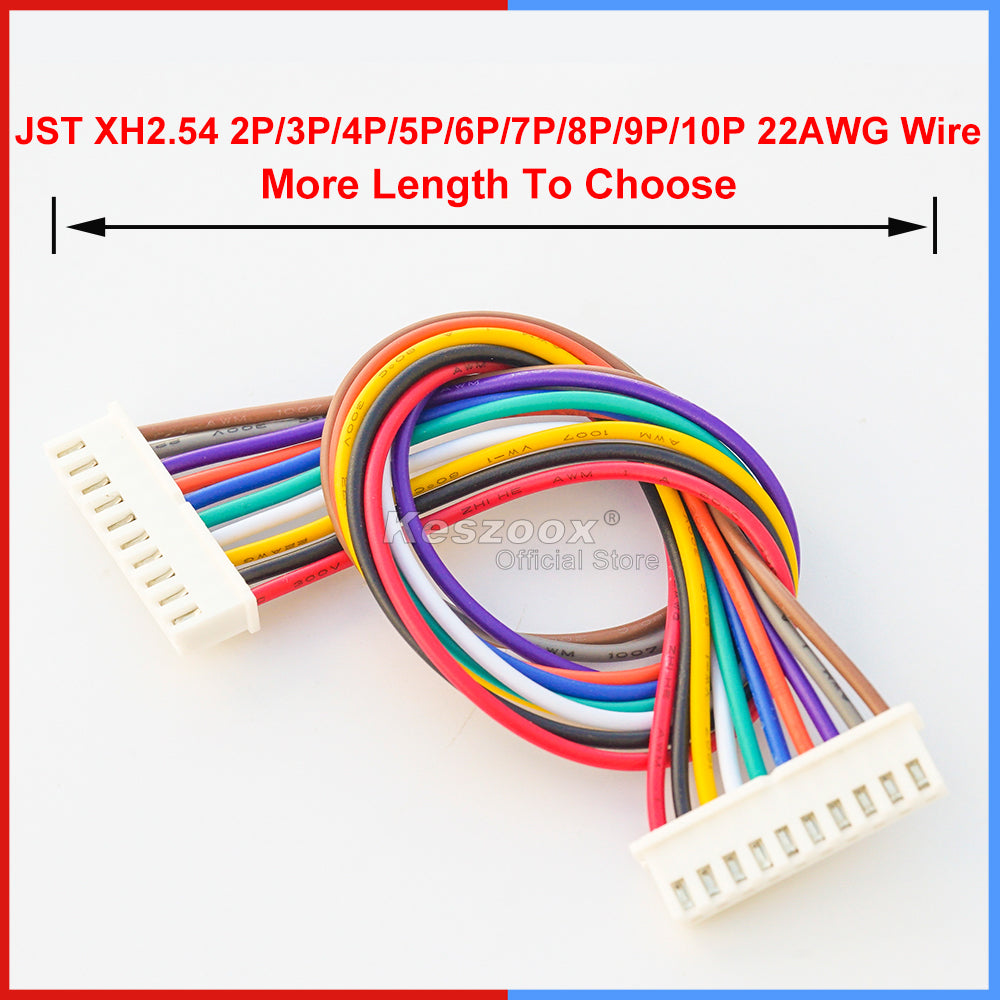

• Available Lengths: 10cm / 20cm / 30cm / 40cm / 50cm / 60cm / 70cm / 80cm
• Available Colors: Red, Black, White, Yellow, Blue, Green, Orange, Purple
• Pitch: 2.54mm (0.1 inch)
• RoHS Compliant: Yes

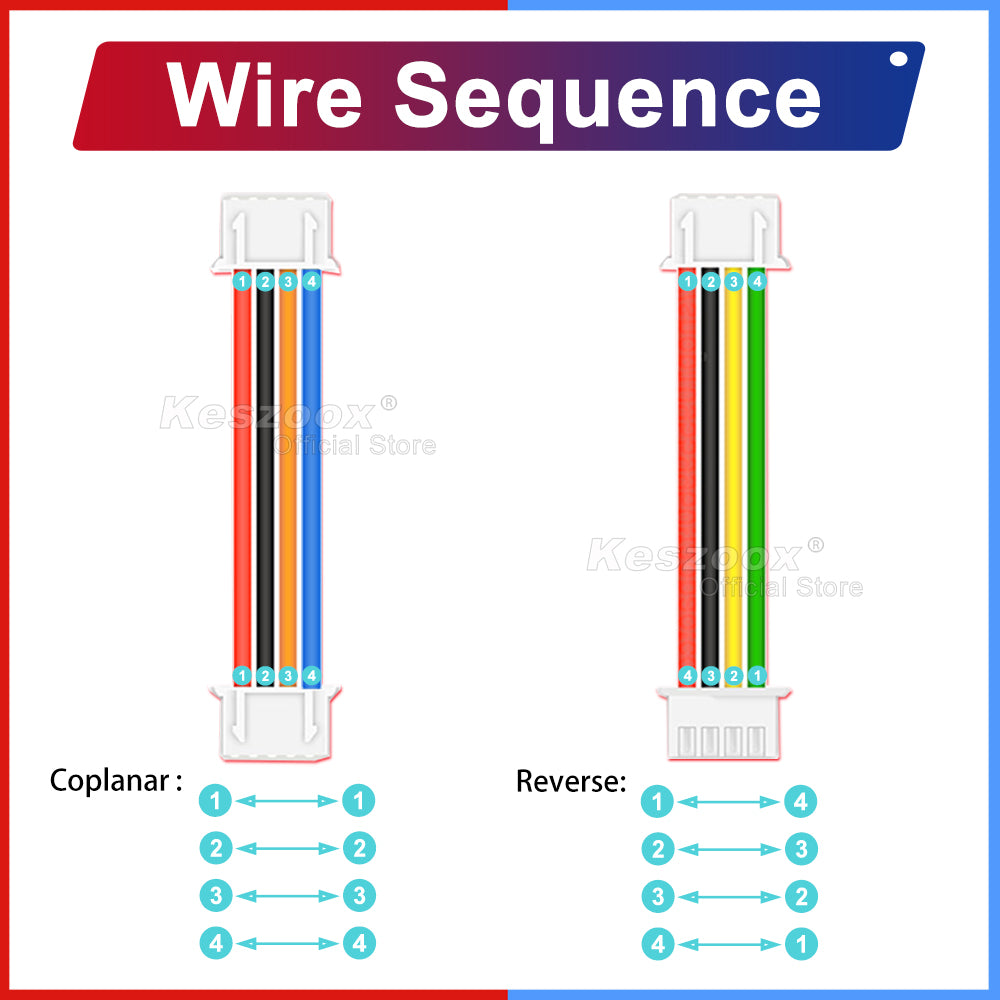

Same Side vs. Reverse Side — Which Do You Need?

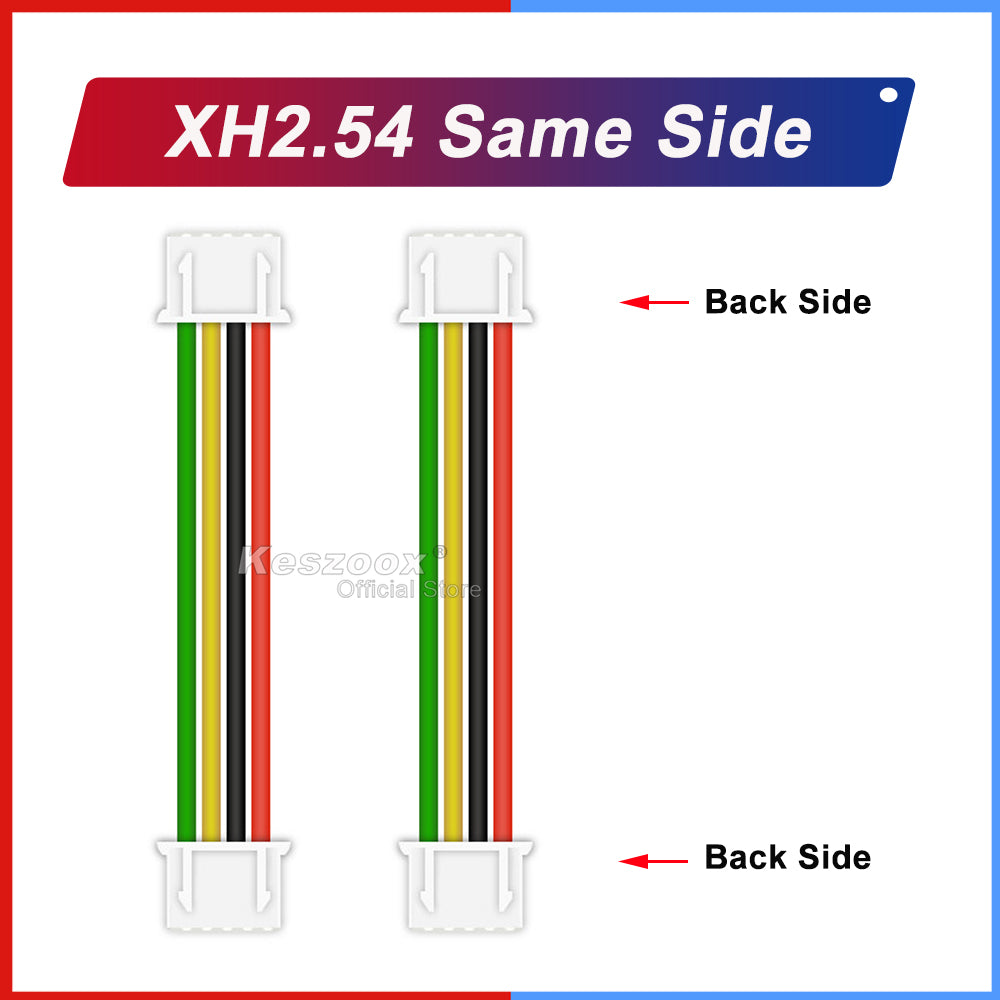

Same Side (Straight-Through): Pin 1 connects to pin 1 at both ends. Use for UART extensions, stepper motor cable extensions, and any application where both connectors face the same direction with identical pinouts.

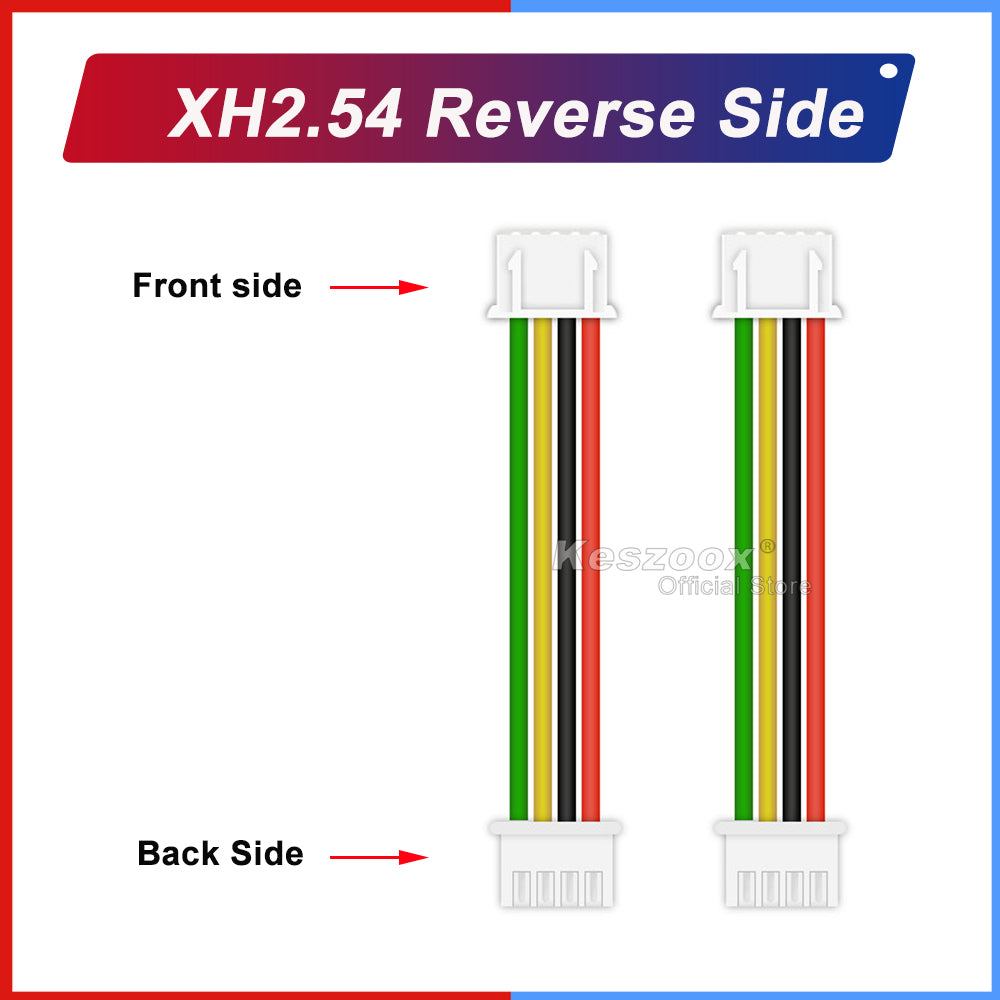

Reverse Side (Mirrored): Pin 1 connects to pin 5 (and pin 2 to pin 4, pin 3 to pin 3). Use when connectors face opposite directions, or when the PCB layout requires a mirrored pinout at one end.

Typical Applications

• UART with Flow Control: Full-duplex serial extensions (TX/RX/RTS/CTS/GND) for Bluetooth modules, GPS receivers, and industrial serial devices
• 5-Wire Stepper Motors: Unipolar stepper motor extension cables, precision positioning stage connections
• RGB LED with Power: RGB LED module extensions with separate VCC and GND rails
• Multi-Sensor Modules: Sensor extensions with interrupt lines, touch controller connections with IRQ
• 3D Printers: Multi-function toolhead extensions, dual-extrusion wiring extensions
• Arduino & Microcontrollers: Custom shield extensions, multi-wire peripheral interface cables
• Industrial & Automation: 5-wire resistive touchscreen extensions, multi-channel analog input leads

Compatibility

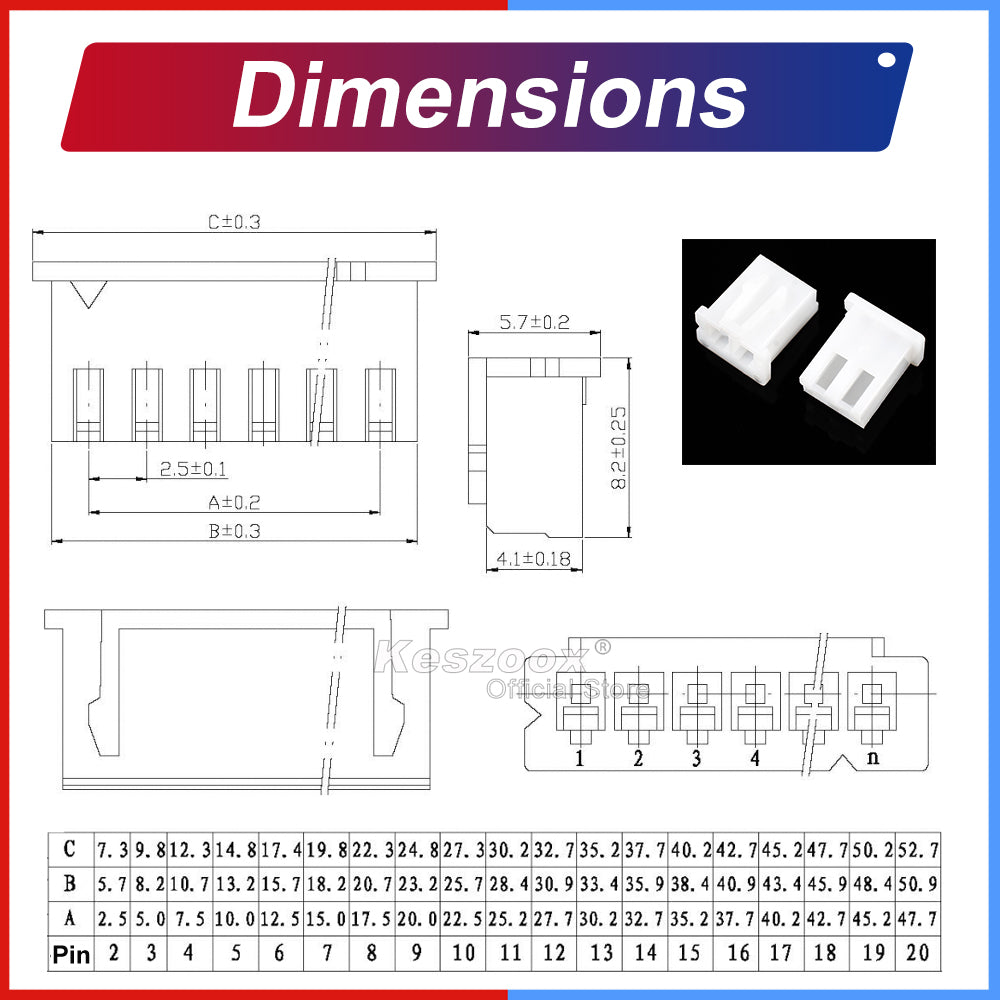

Both ends are compatible with JST XH series 5-pin housings (JST part: XHP-5) and all 2.54mm pitch PCB headers with XH-compatible locking geometry.

Housings not included. This listing is for the pre-crimped cable only. Select your required polarity (Same Side or Reverse Side) and length from the variant options above.
