Romeo V2.2 All-in-One Robot Controller — Arduino Compatible

Romeo V2.2 All-in-One Robot Controller — Arduino Compatible

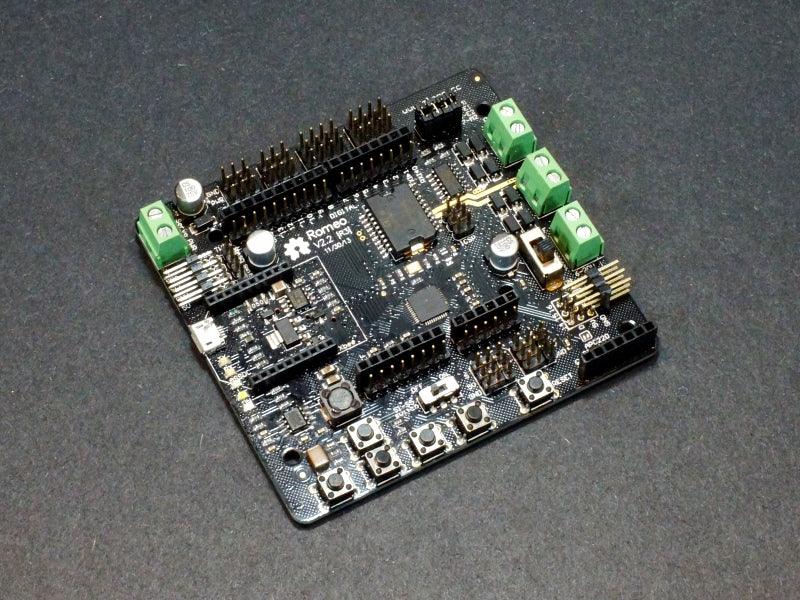

The Romeo V2.2 is an all-in-one Arduino-compatible robot controller that combines an Arduino Uno-compatible ATmega328P with a dual DC motor driver and servo headers on a single board. Eliminates the need for a separate motor shield, reducing wiring complexity and board stack height. Ideal for wheeled robots, robotic arms, and any project requiring motor control with Arduino.

Key Specifications

• MCU: ATmega328P | Clock: 16MHz | Voltage: 5V
• Flash: 32KB | SRAM: 2KB | EEPROM: 1KB
• Motor driver: Dual DC motor driver (on-board)
• Servo headers: Multiple servo PWM headers
• Digital I/O: 14 pins | Analog in: 8 channels
• USB: Micro USB (CH340) | IDE: Arduino IDE compatible
• Compliance: RoHS compliant

Why Choose This?

• ✅ All-in-one design — Arduino + motor driver on one board, no shield stacking needed
• ✅ Dual DC motor driver — drive two DC motors directly from the board
• ✅ Servo headers — connect servos directly without a separate servo shield
• ✅ Arduino IDE compatible — use all existing Arduino libraries

Typical Applications

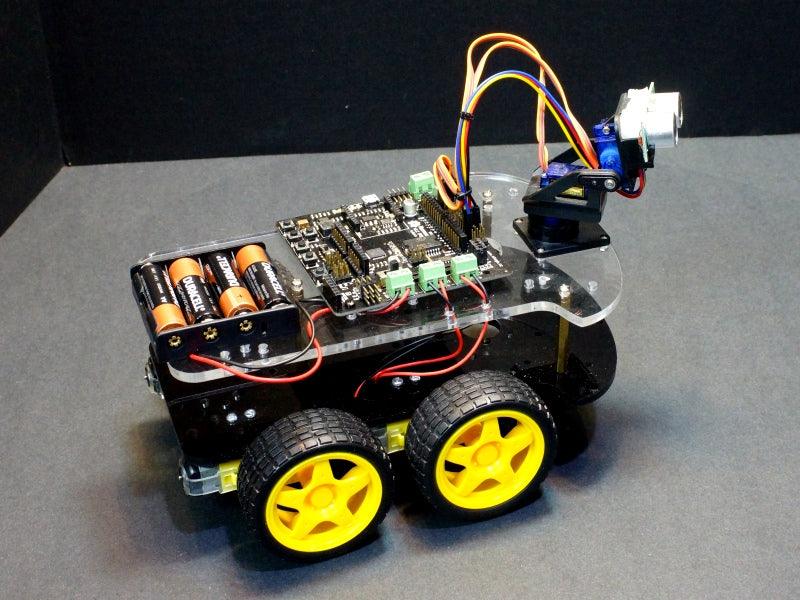

• Wheeled robot and rover projects
• Robotic arm and gripper control
• Arduino motor control learning projects
• Compact robot controller for competitions
