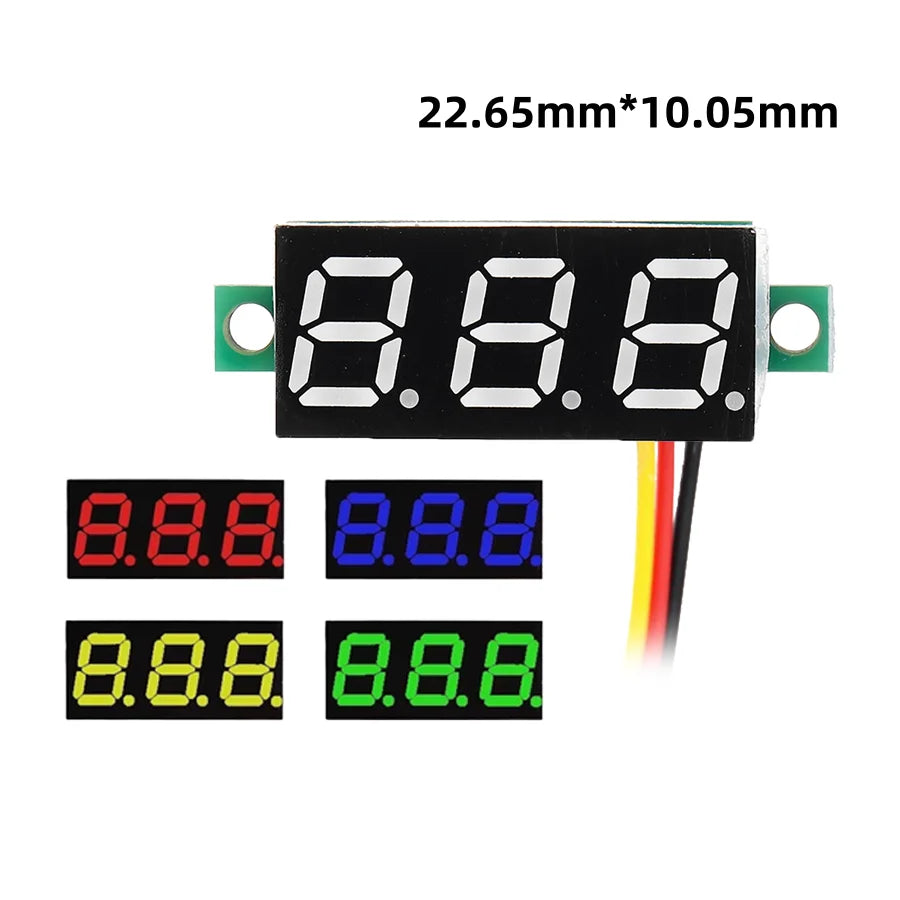

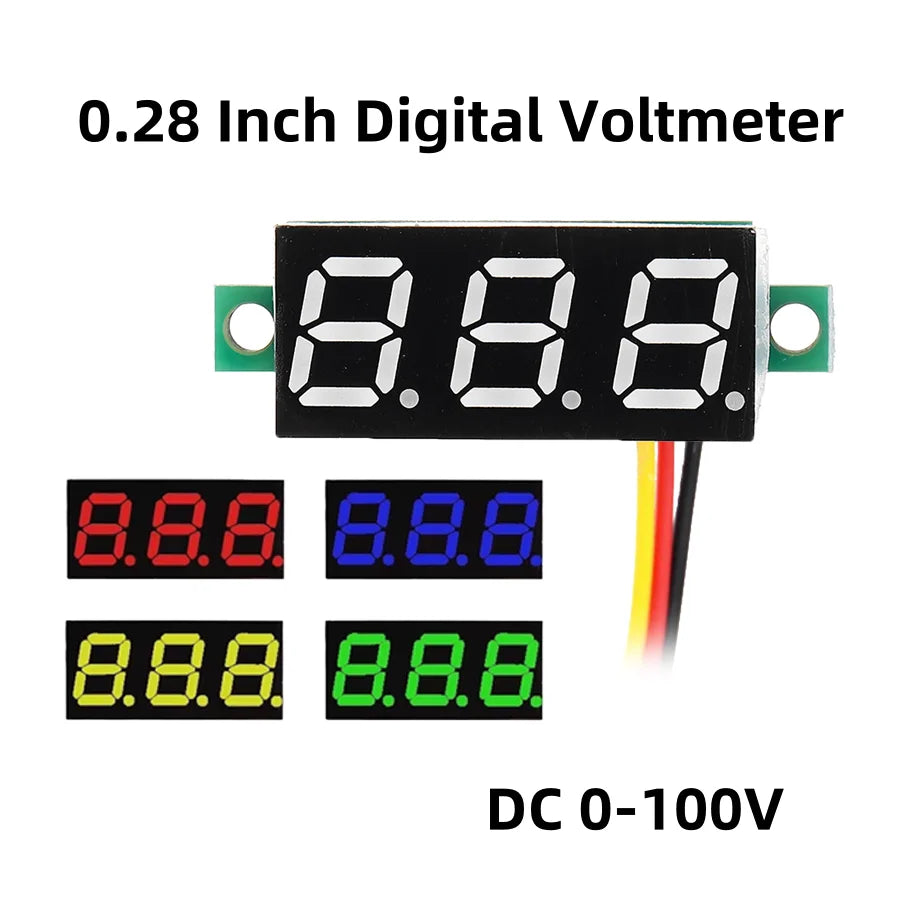

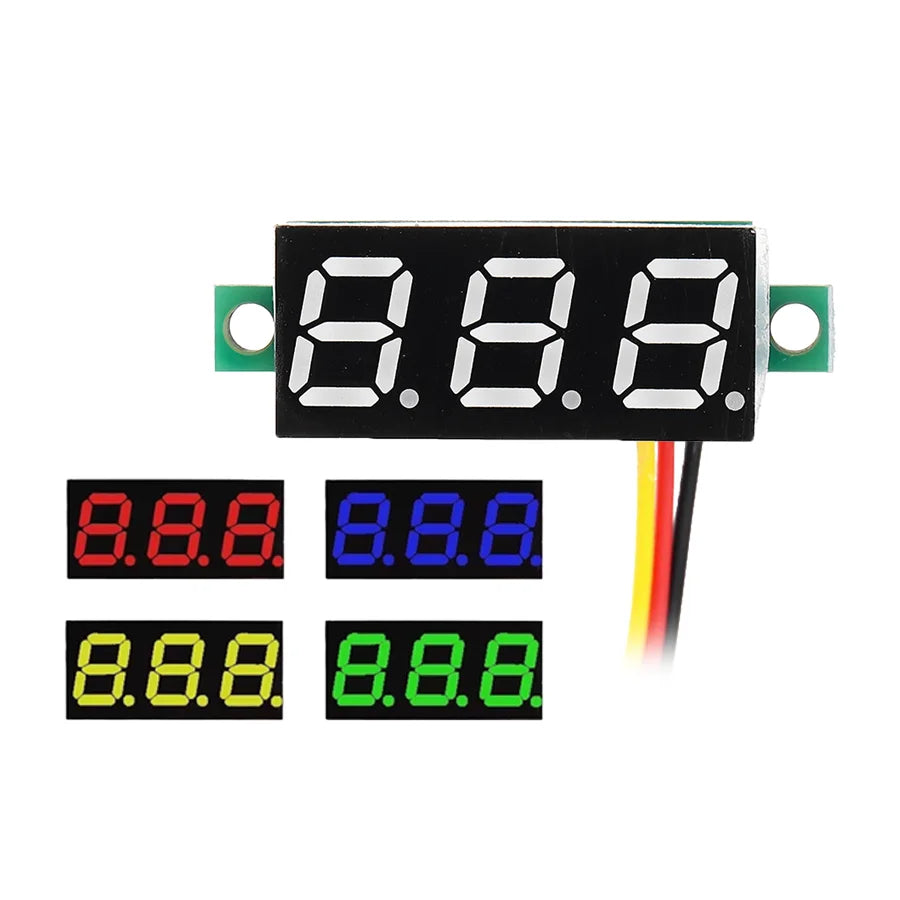

0.28" LED Digital Voltmeter 0¨C100V DC Panel Gauge with Red/Blue/Green/Yellow Display, Mini 3-Wire Voltage Meter for Car and DIY Projects
0.28" LED Digital Voltmeter 0¨C100V DC Panel Gauge with Red/Blue/Green/Yellow Display, Mini 3-Wire Voltage Meter for Car and DIY Projects
Couldn't load pickup availability
- ★Product Description
- ★About us
- ★Custom cable
SPECIFICATIONS
Application: Computer
Brand Name: SPLENDID
Choice: yes
Condition: New
Dimensions: 0.28 inch
Dissipation Power: 1
High-concerned chemical: None
Lead wire length: 10m
Model Number: 0.28 Inch LED Digital Voltmeter
Operating Temperature: -10+65
Origin: Mainland China
Package: SOP
Physical size: 30 x 12 x 8.5 mm
Quantity: 1
Supply Voltage: 0-100V
Type: Voltage Regulator
is_customized: Yes
semi_Choice: yes
update rate: About 500 ms/time

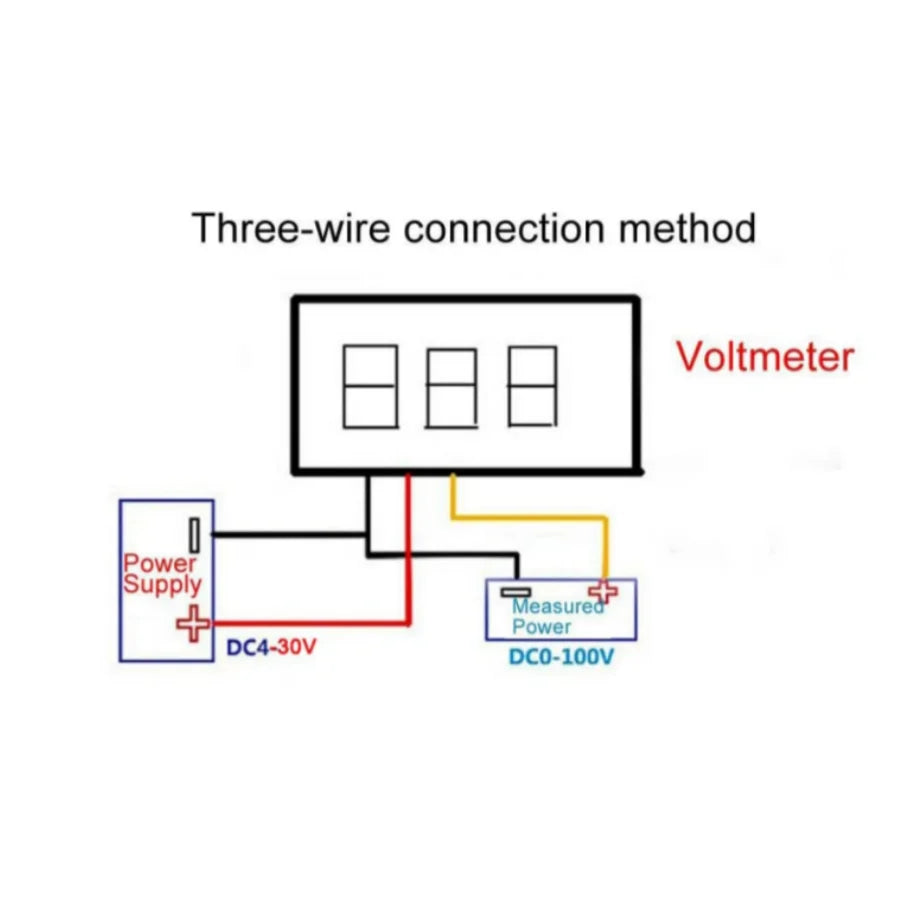

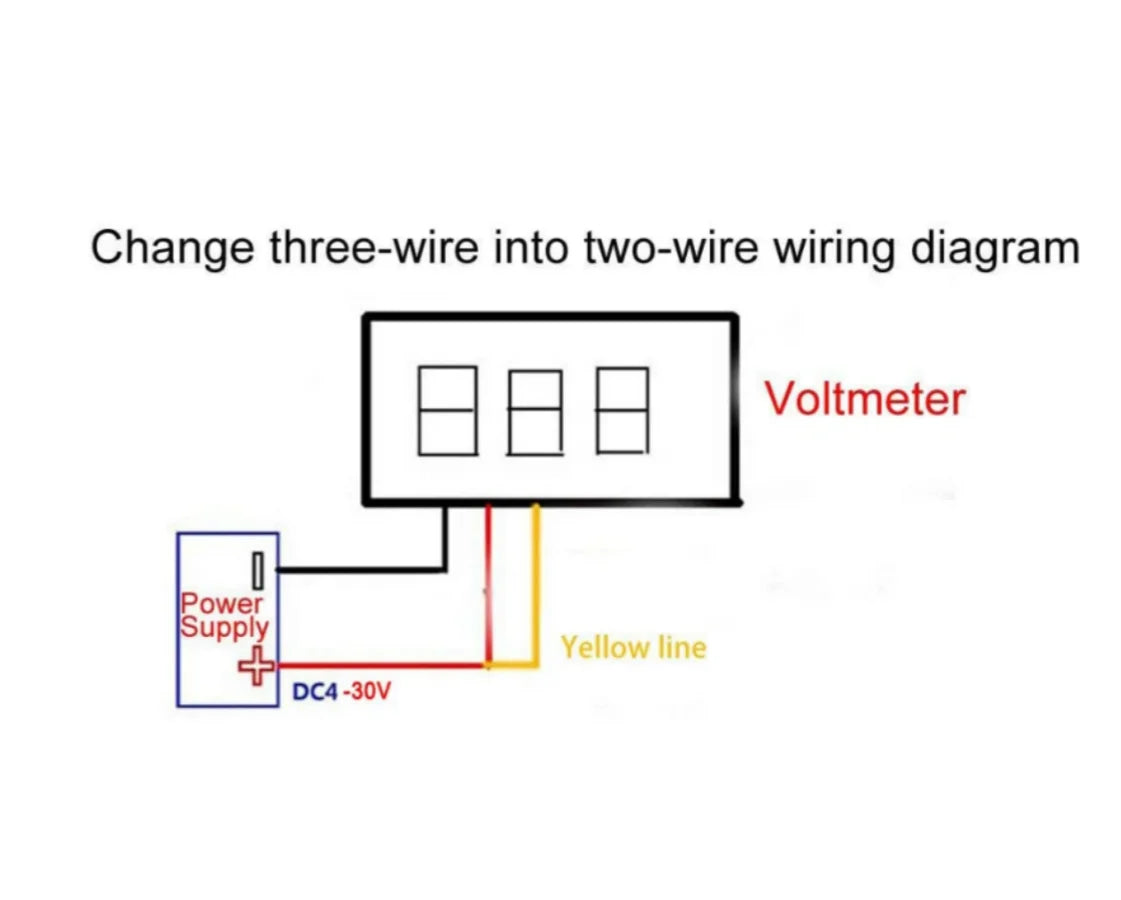

This voltmeter has a range of DC 0-100V, compatible with both 2-wire and 3-wire configurations. It breaks the conventional voltmeter design with a new version that works directly in circuits with 5V, 9V, 12V, 24V, etc., without the need for voltage regulation. It comes with three connection wires, making it easy to integrate into automotive, electric scooter, or motorcycle circuits, and features reverse polarity protection¡ªwiring it incorrectly won't cause damage. It is ideal for monitoring battery voltage and keeping track of the battery's voltage status, as well as for measuring voltage in other products. Note: The input voltage should not exceed 30V to avoid the risk of damage.
Specifications:
Measuring range: three-wire DC 0~100V
Working voltage: 4~40V (with reverse connection protection), higher than 40V may be damaged
Test accuracy: ¡À1% >10V error positive and negative 0.2V <10V positive and negative 0.03V
Input impedance: 50K¦¸
Working current: <30mA
Refresh rate: about 100mS once
Display specifications: three wire 0.28" LED digital tube
Lead length: default 15cm
Shape ruler: 33 x 11.5 x 9 mm
Mounting hole: 23*10 mm
Opening size: hole distance: 26mm hole diameter: 2.2mm
Working temperature: -10 ~ +65 ¡ãC
Working humidity: 10 ~ 80%
Working pressure: 80 ~ 106kPa

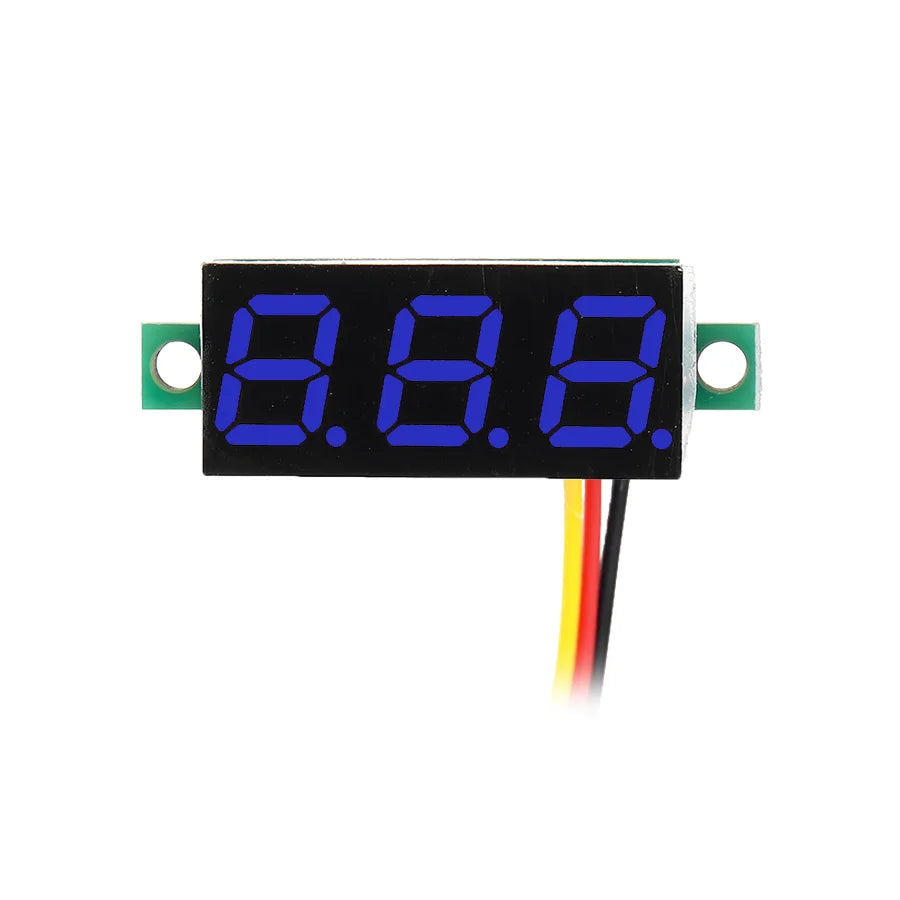

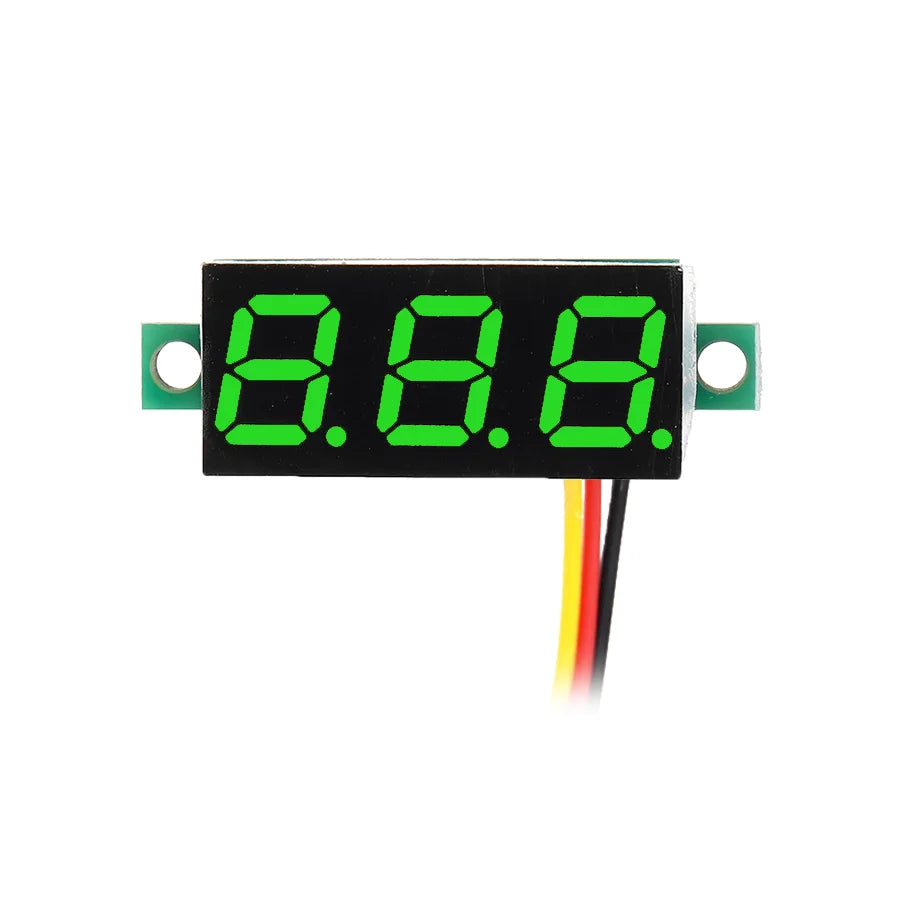

LED Color:Red/Blue/Green/Yellow
¡¤ Compact and Clear Display:
This 0.28-inch digital voltmeter features a bright LED display in red, blue, green, and yellow, perfect for easily monitoring voltage levels in cars, DIY projects, and more.
¡¤ Wide Voltage Range:
Supports DC voltage readings from 0 to 100V, providing precise and reliable measurements for a variety of applications, including automotive, battery systems, and power supplies.
¡¤ Easy Installation:
Designed with 3 wires for easy connection, this mini voltmeter is simple to integrate into your projects. Ideal for use in cars, motorcycles, or as a power meter in electronic setups.
¡¤ Durable and Reliable:
Built to withstand the demands of daily use, this voltmeter features high-quality components ensuring accuracy and long-lasting performance. A must-have tool for technicians and hobbyists.
¡¤ Versatile Applications:
Whether you¡¯re working on DIY electronics, checking battery voltage, or installing it in your vehicle, this mini voltmeter offers a convenient and efficient way to monitor voltage at a glance.
