0.96" OLED Display Module 128×64 I²C with 20cm Wire — Arduino, ESP32, STM32 (3-Pack)
0.96" OLED Display Module 128×64 I²C with 20cm Wire Arduino, ESP32, STM32 (3-Pack)
Regular price
$60.12 USD
Regular price
$90.18 USD
Sale price
$60.12 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
0.96" OLED Display Module 128×64 I²C — Arduino, ESP32, STM32 (3-Pack with 20cm Wire)
This 3-pack of 0.96" OLED display modules provides high-contrast 128×64 pixel displays with I²C interface and 20cm pre-wired cables for immediate use. OLED displays are self-luminous — each pixel generates its own light, resulting in perfect black levels, high contrast, and wide viewing angles without a backlight. Compatible with Arduino, ESP32, STM32, Raspberry Pi, and any I²C-capable microcontroller. Works with the Adafruit SSD1306 library.

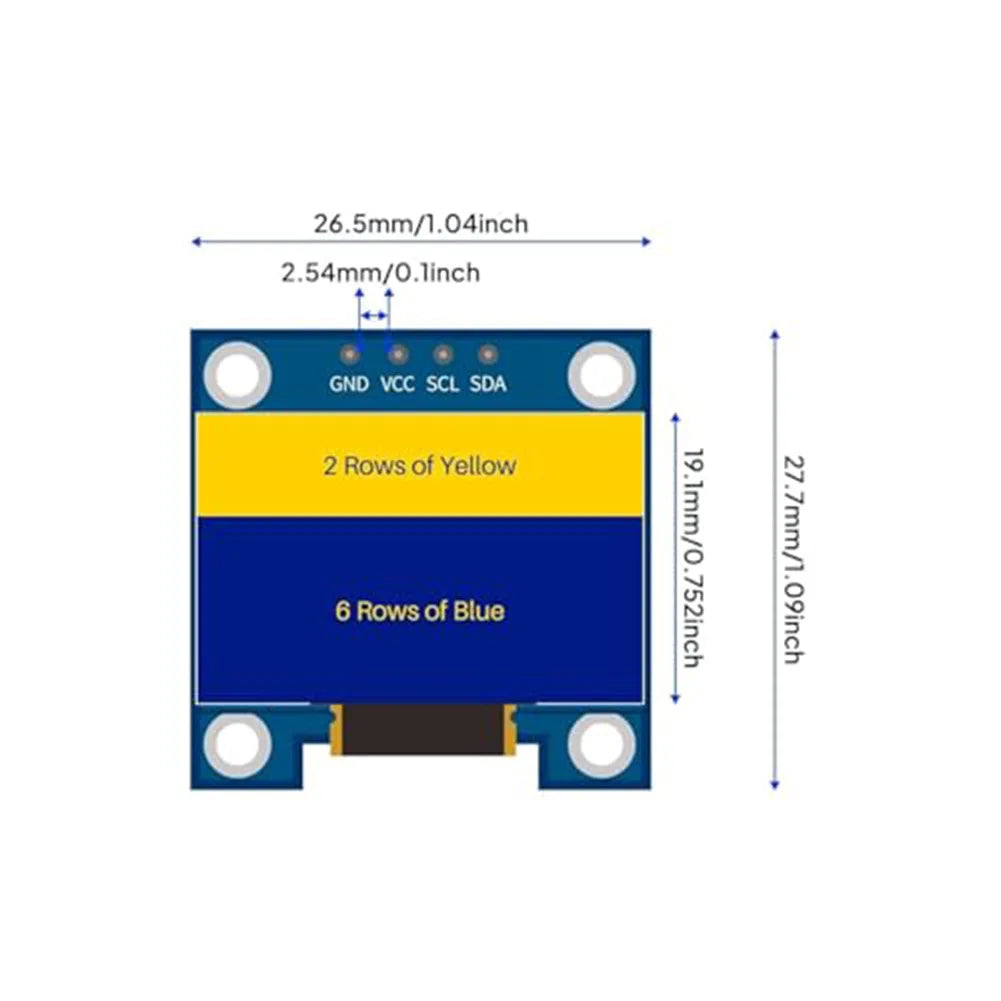

Display Specifications
- Display Size: 0.96 inch diagonal
- Resolution: 128 × 64 pixels
- Controller: SSD1306 (or compatible)
- Interface: I²C (address: 0x3C or 0x3D)
- Supply Voltage: 3.3V – 5V
- Display Type: OLED — self-luminous, no backlight
- Viewing Angle: >160°
- Colors: Blue, white, or yellow-blue (select version)

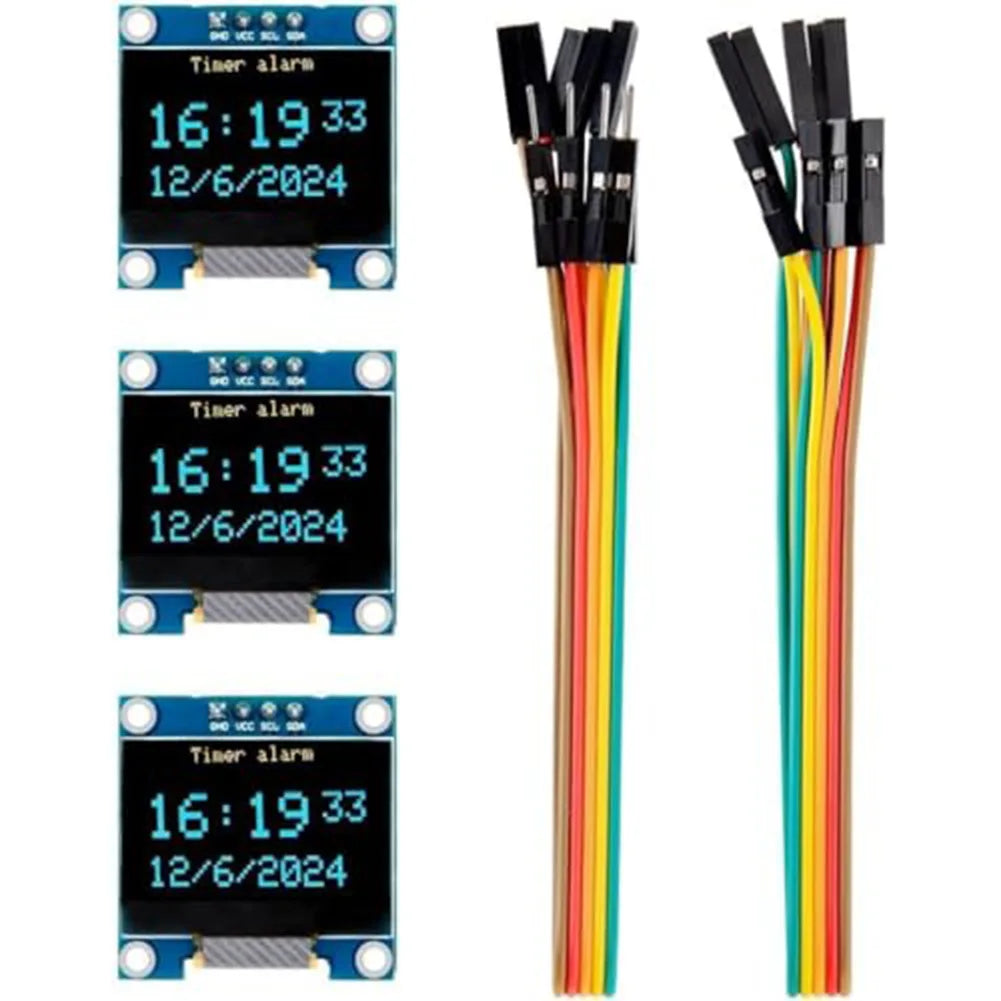

- Cable: 20cm pre-wired (included)
- Pack Quantity: 3 modules
Arduino Wiring (I²C)
- VCC → 3.3V or 5V | GND → GND
- SDA → Arduino A4 | SCL → Arduino A5
- Install Adafruit SSD1306 + Adafruit GFX libraries
- I²C address: 0x3C (most common)
OLED vs LCD — Why Choose OLED?
- OLED: Perfect blacks, high contrast, wide viewing angle, low power in dark scenes, no backlight
- LCD: Backlight always on, lower contrast, narrower viewing angle, lower cost
Typical Applications

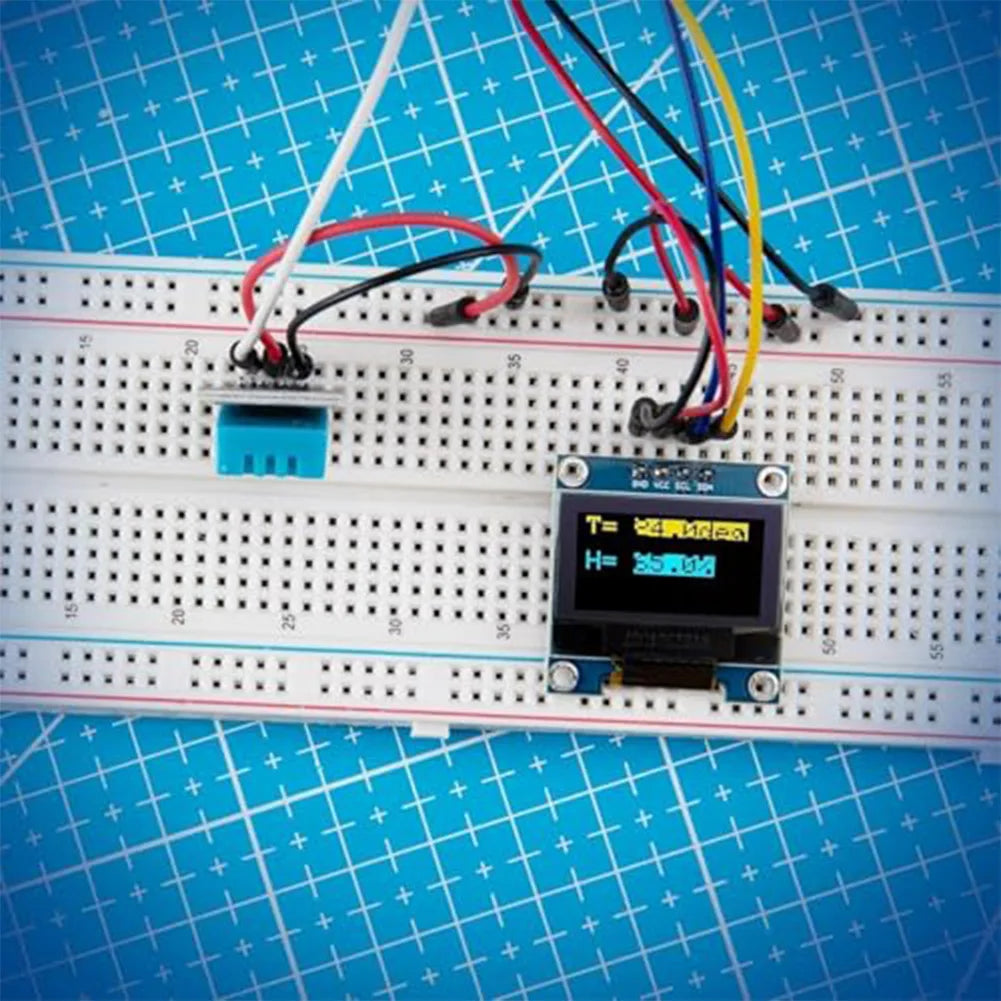

- Sensor data readout (temperature, humidity, pressure)
- IoT device status display
- Mini clock or timer display
- Menu navigation display for rotary encoder projects
3-pack of 0.96" OLED 128×64 I²C modules with 20cm cables — high contrast, self-luminous, Arduino/ESP32/STM32 compatible for sensor readout and IoT projects.
