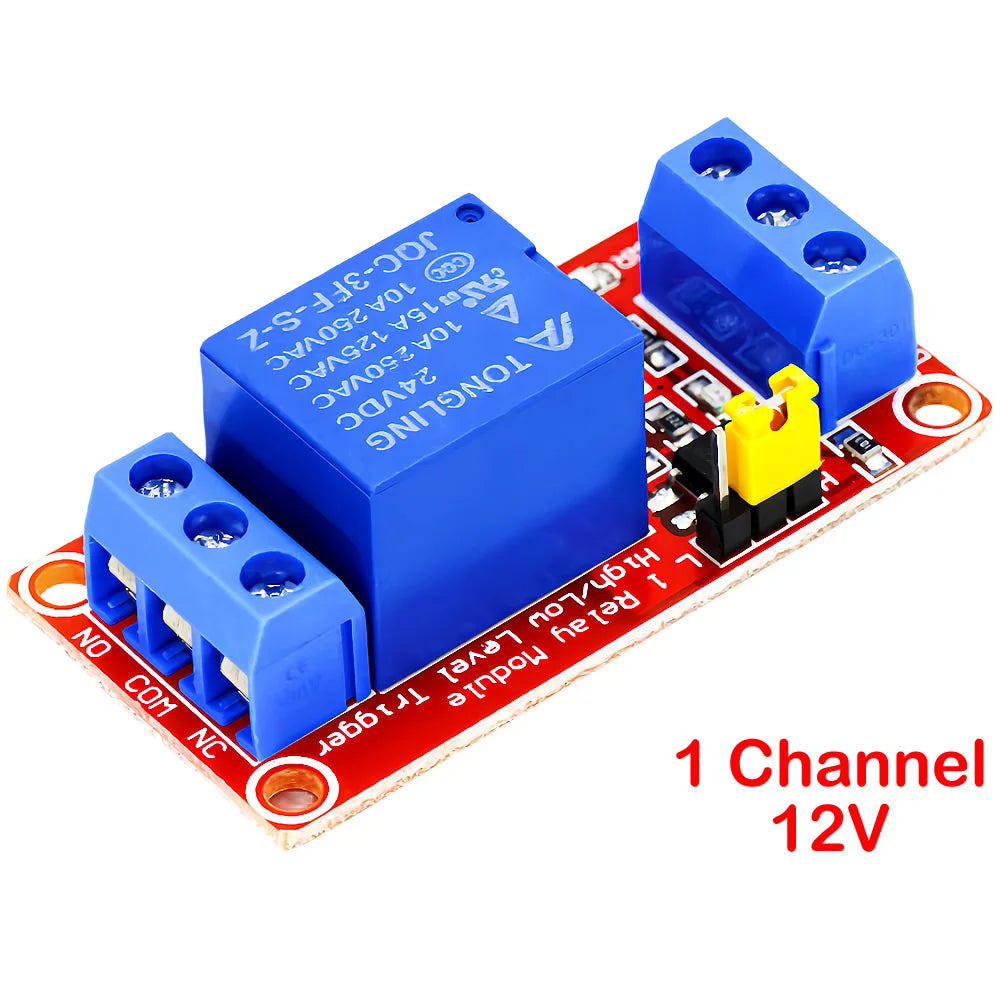

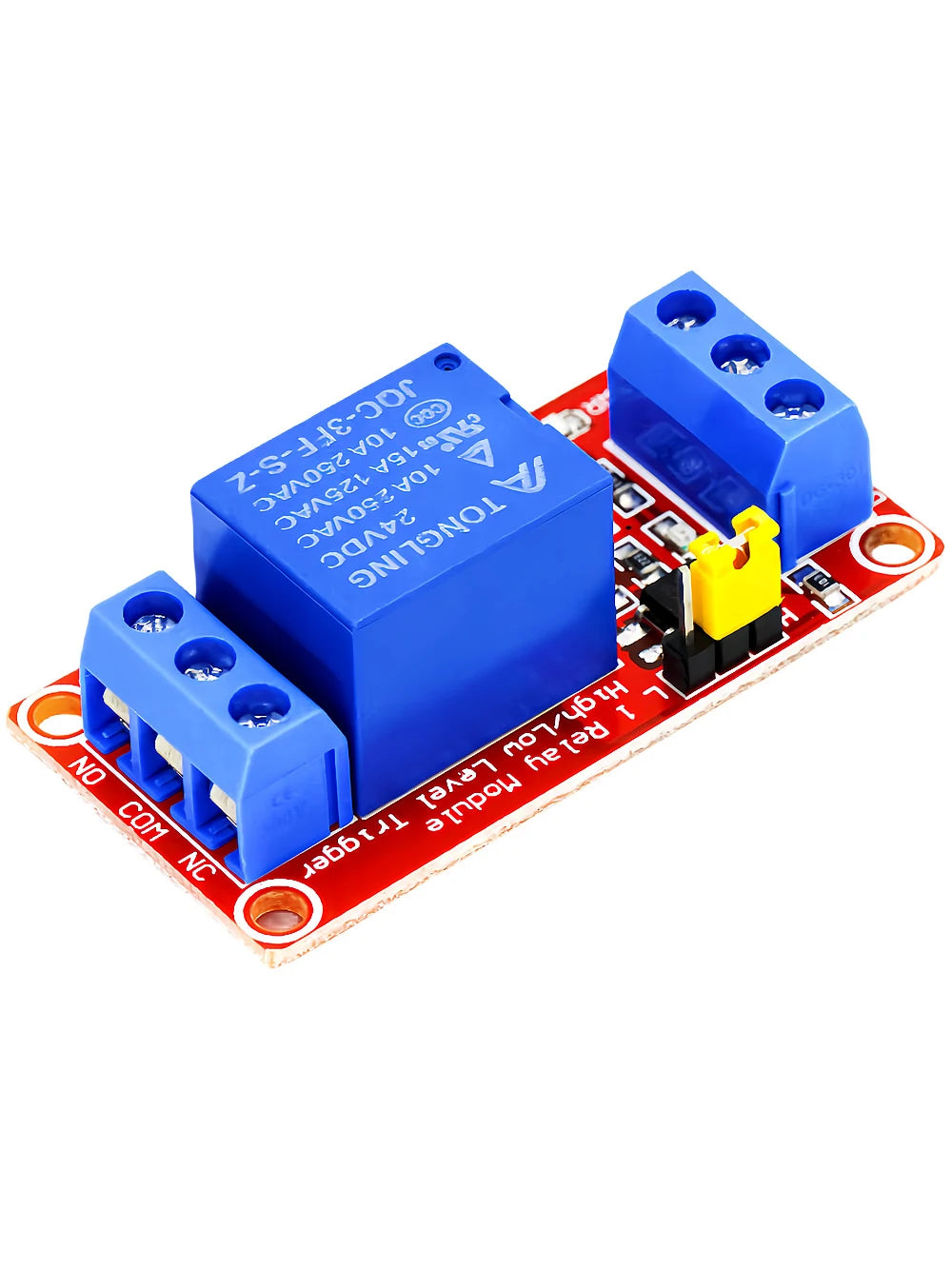

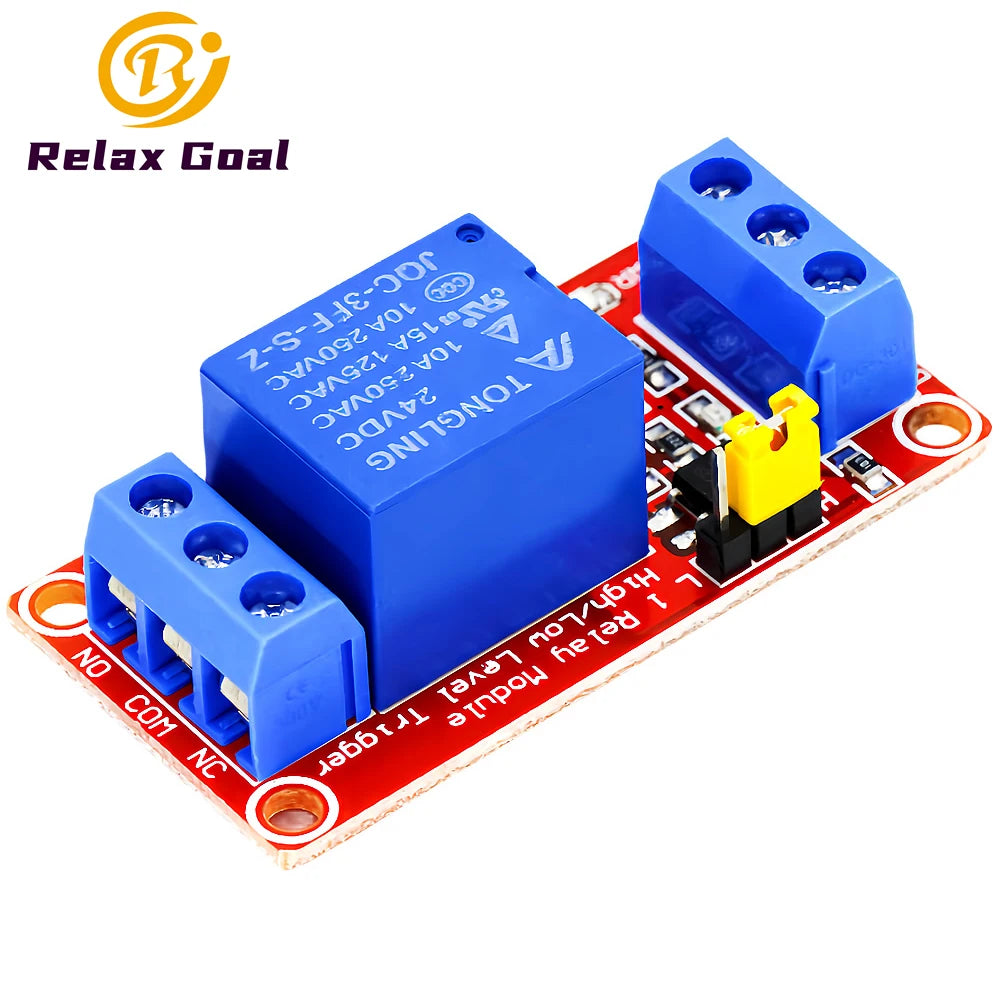

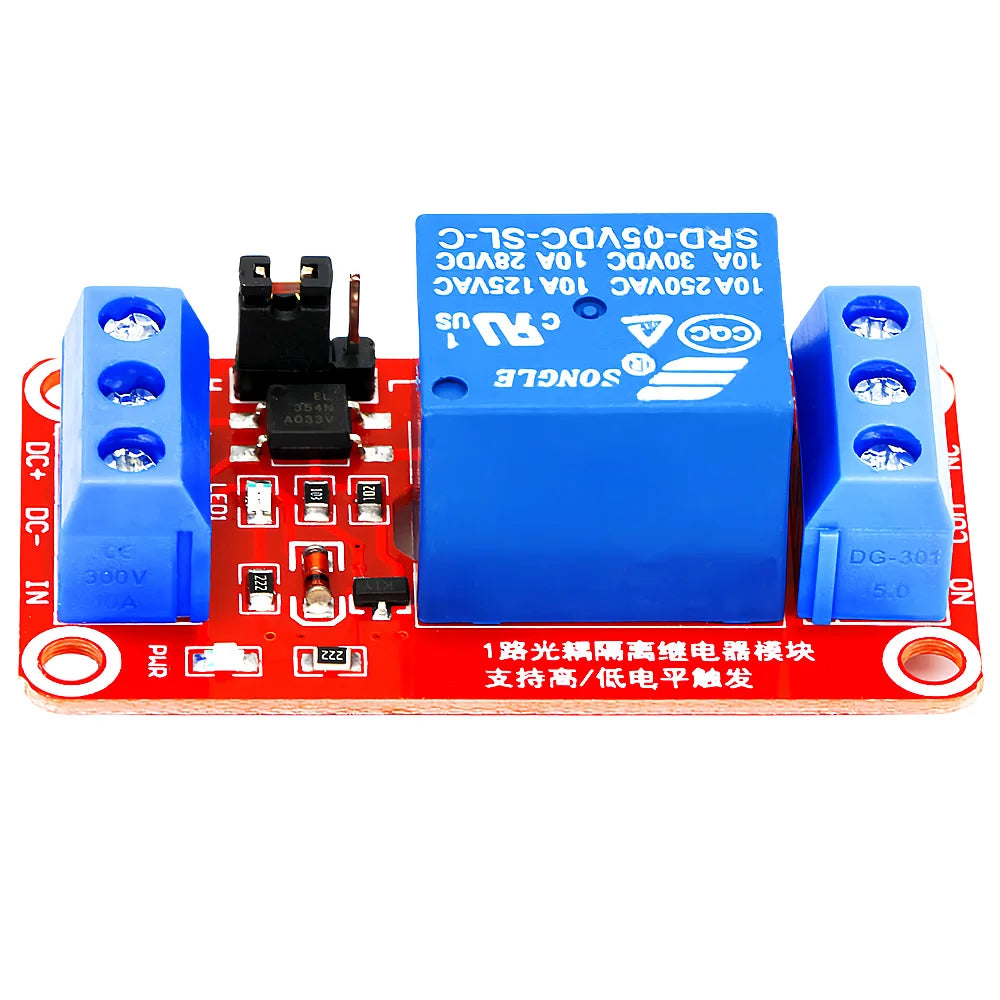

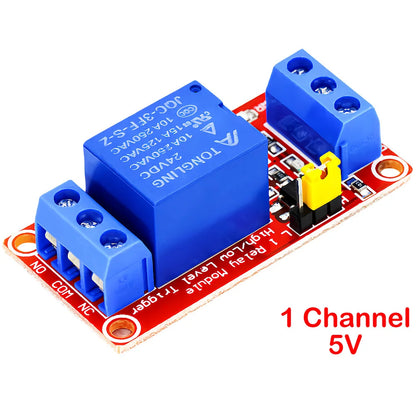

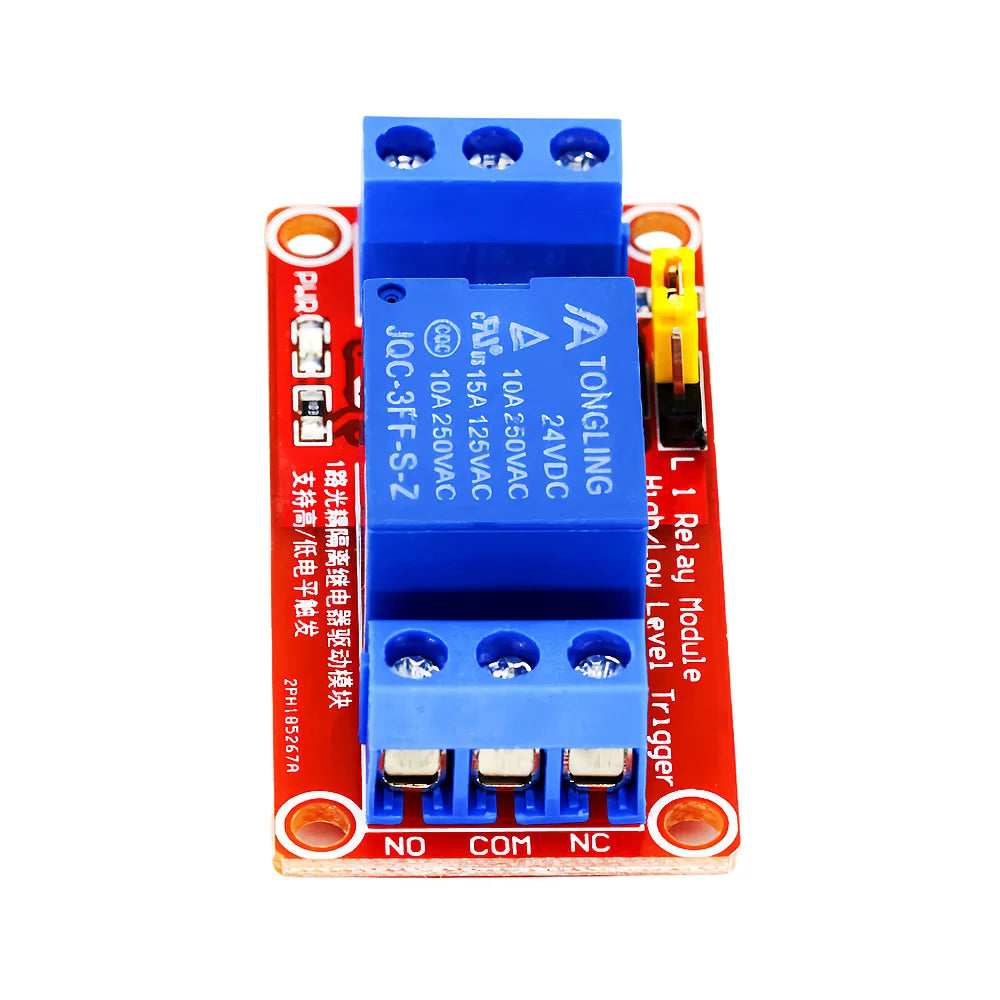

Relay Module 1 Channel 5V 12V 24V Board Shield With Optocoupler Isolation Support High and Low Level Trigger for Arduino

Warm Tips:
Our store support wholesale, the more quantity the more discount.
If you want to bulk order, please feel free to contact seller for wholesale price, looking forward to receive your inquiry, thanks! ^_^

Description:
1. The module uses genuine quality relay normally open interface Maximum load: AC 250V/10A, DC 30V/10A;
2. Adopt SMD optocoupler isolation, strong driving ability and stable performance; trigger current 5mA;
3. The working voltage of the module is 5V/12V/24V;
4. The module can be set to trigger high or low by jumper;
5. Fault-tolerant design, even if the control line is broken, the relay will not operate;
6. Power indicator (green), relay status indicator (red)
7. Humanized interface design, all interfaces can be directly connected to terminal leads, which is very convenient
8. Module size: 51mm*25.5mm (L*W)

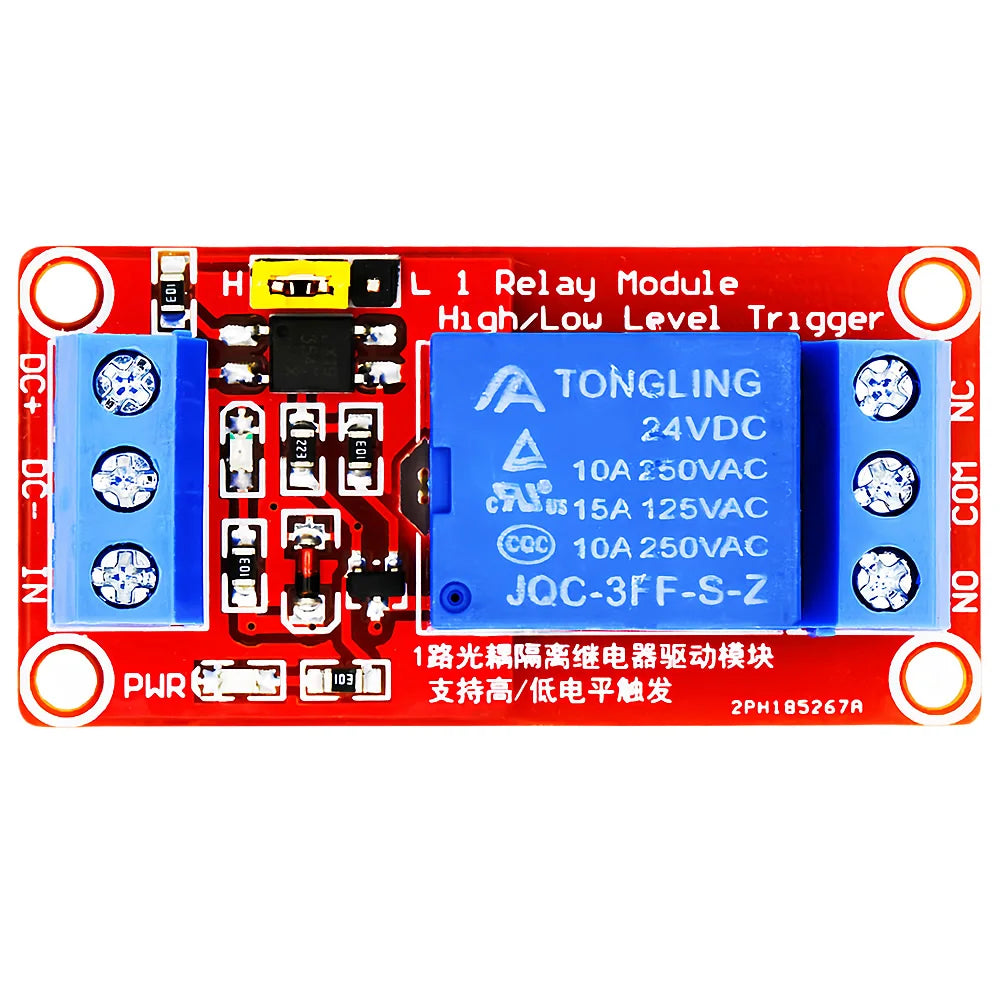

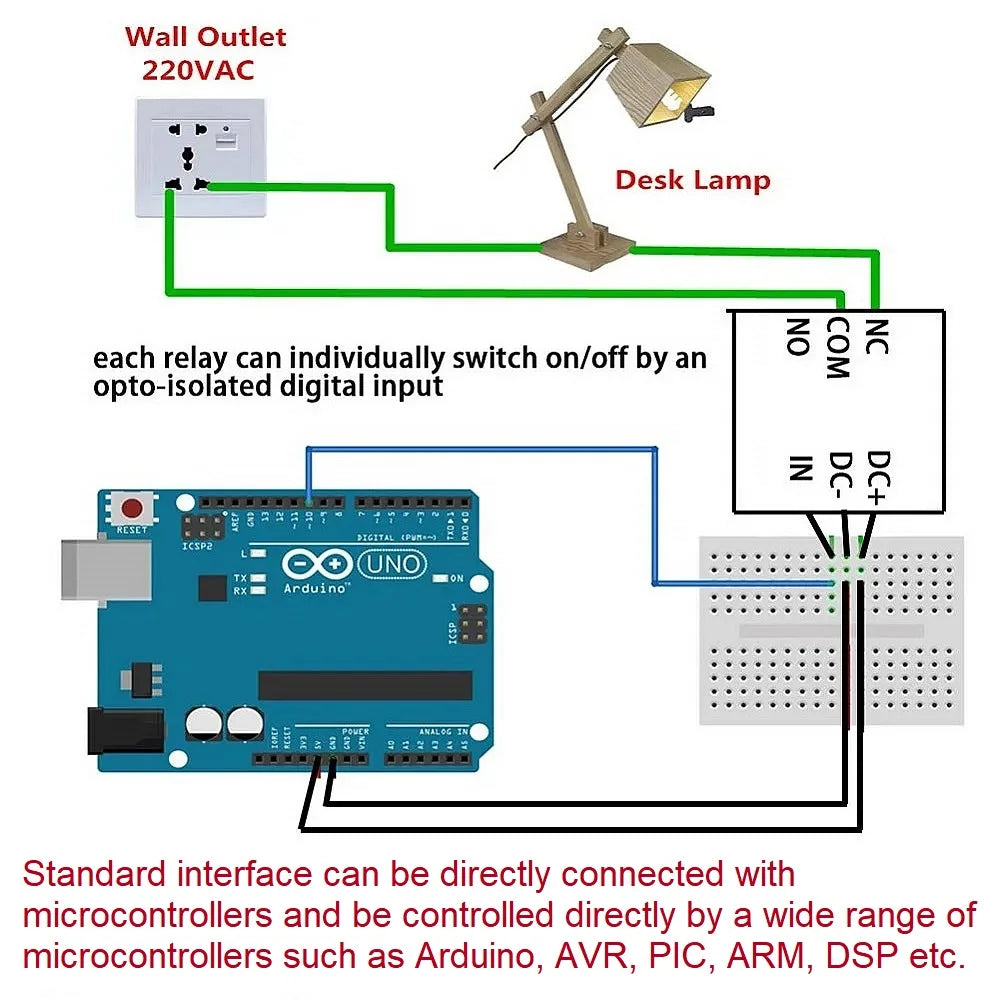

Module Interface:
1.DC+: Positive power supply (VCC)
2. DC-: Negative power supply (GND)

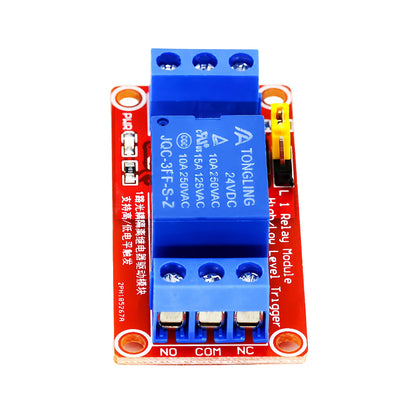

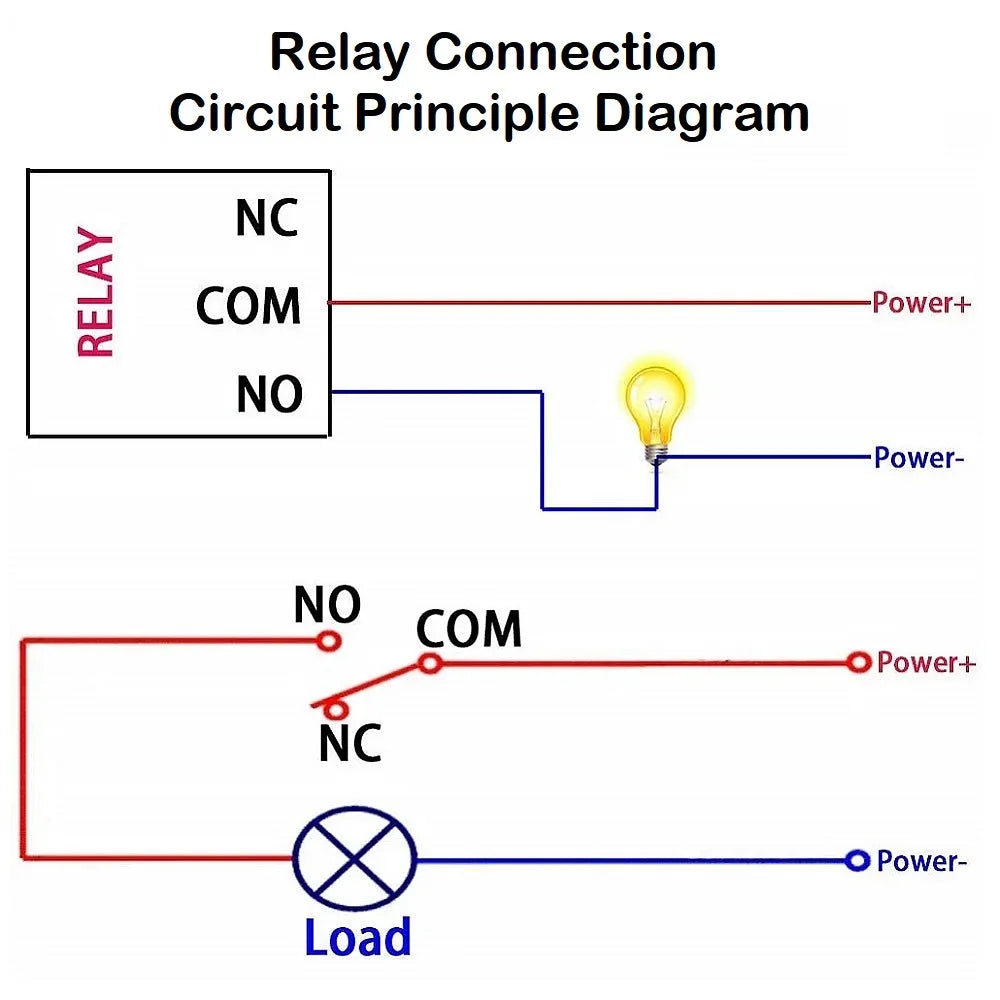

Relay Output:

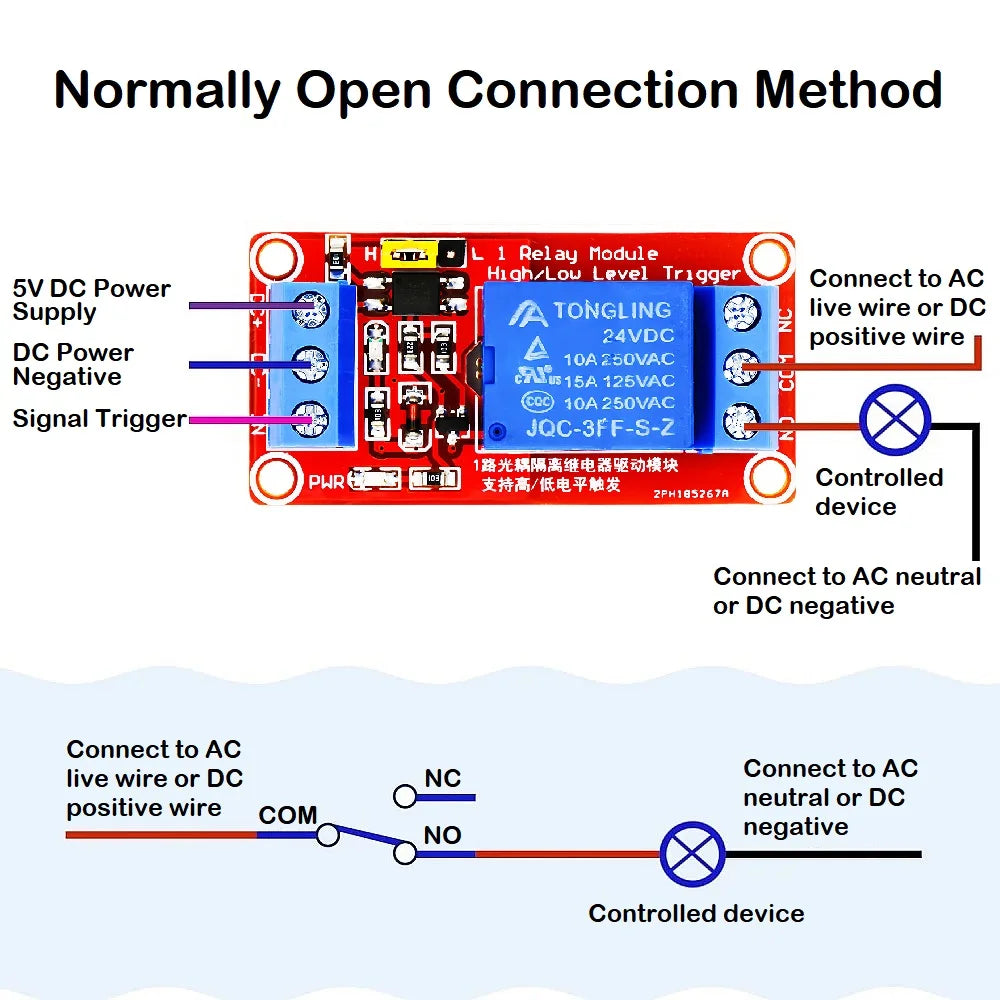

1. NO: relay normally open interface
2. COM: Common Interface Relay

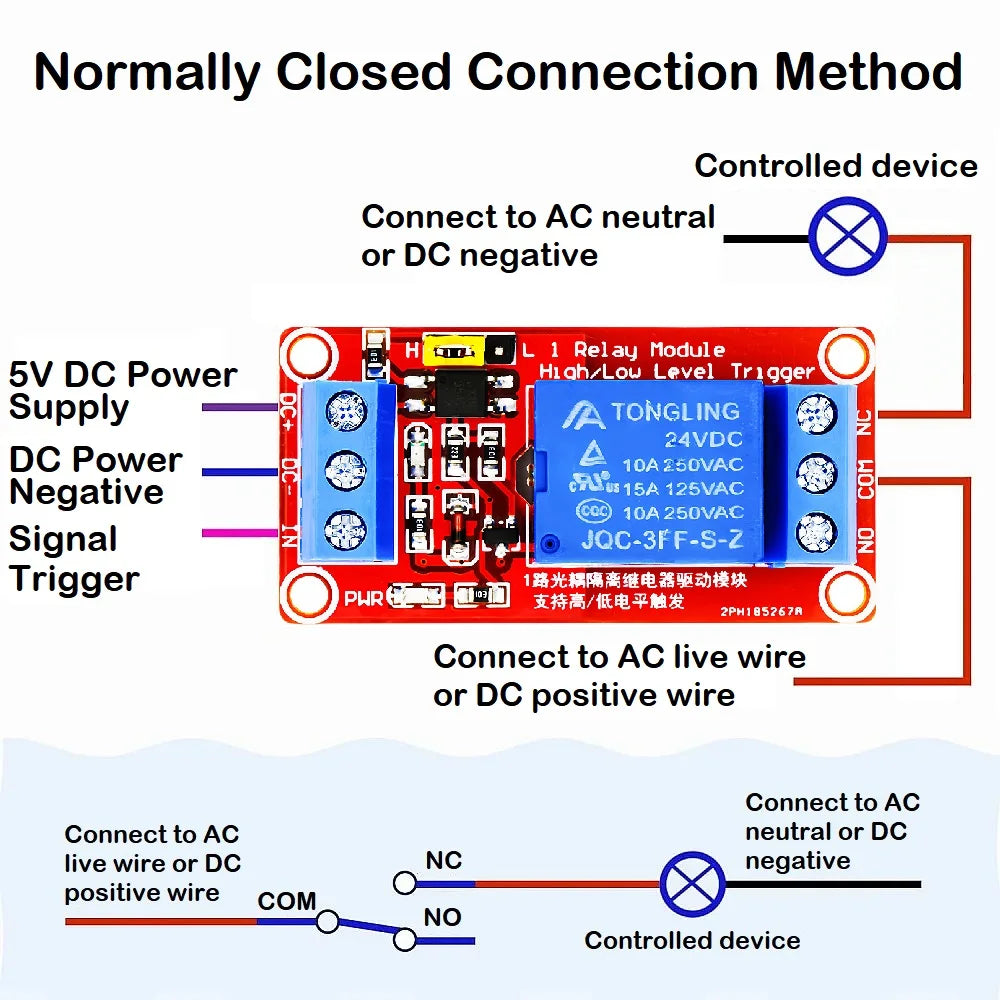

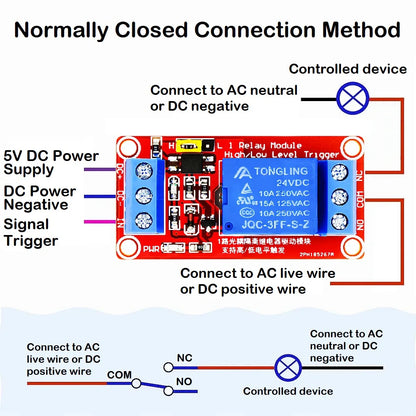

3. NC: relay normally closed interface

High and Low Level Trigger Options:
1. It is low-level triggered when the jumper is connected to the LOW pin
2. It is HIGH triggered when the jumper is connected to the HIGH pin
