10 Pin Automotive Headlight Connector HP406-10021 HP481-10021 Waterproof Electrical Auto Socket for Kia Car

10-Pin Waterproof Automotive Headlight Connector — HP406-10021 / HP481-10021 for Kia

OEM-compatible 10-pin waterproof electrical connector for Kia vehicle headlight modules. This connector set is designed as a direct replacement for damaged or corroded headlight wiring harness plugs, matching the original HP406-10021 (female/socket) and HP481-10021 (male/plug) specifications used in Kia headlight assemblies.

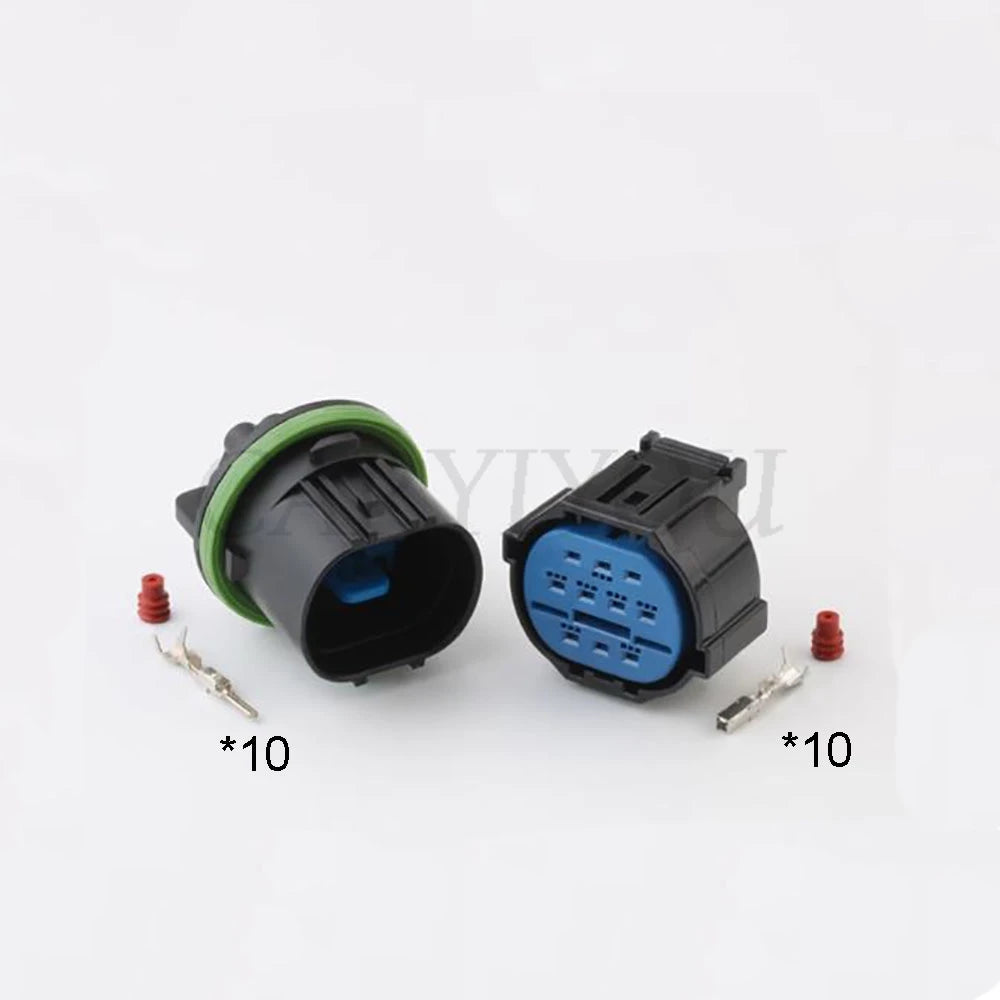

Available as a female set or male set, each including the housing, 10 brass crimp terminals, and 10 individual rubber wire seals for a fully waterproof IP67-rated connection.

Specifications

• Pin Count: 10-pin

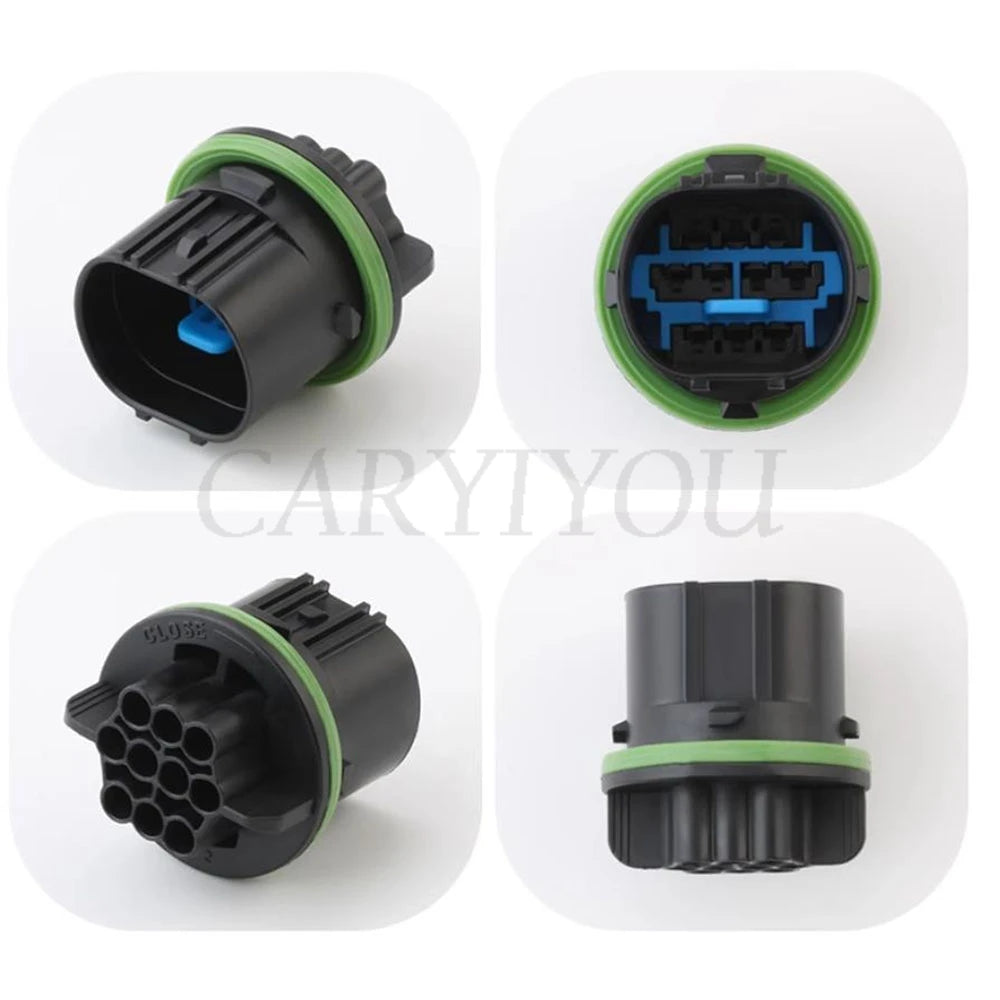

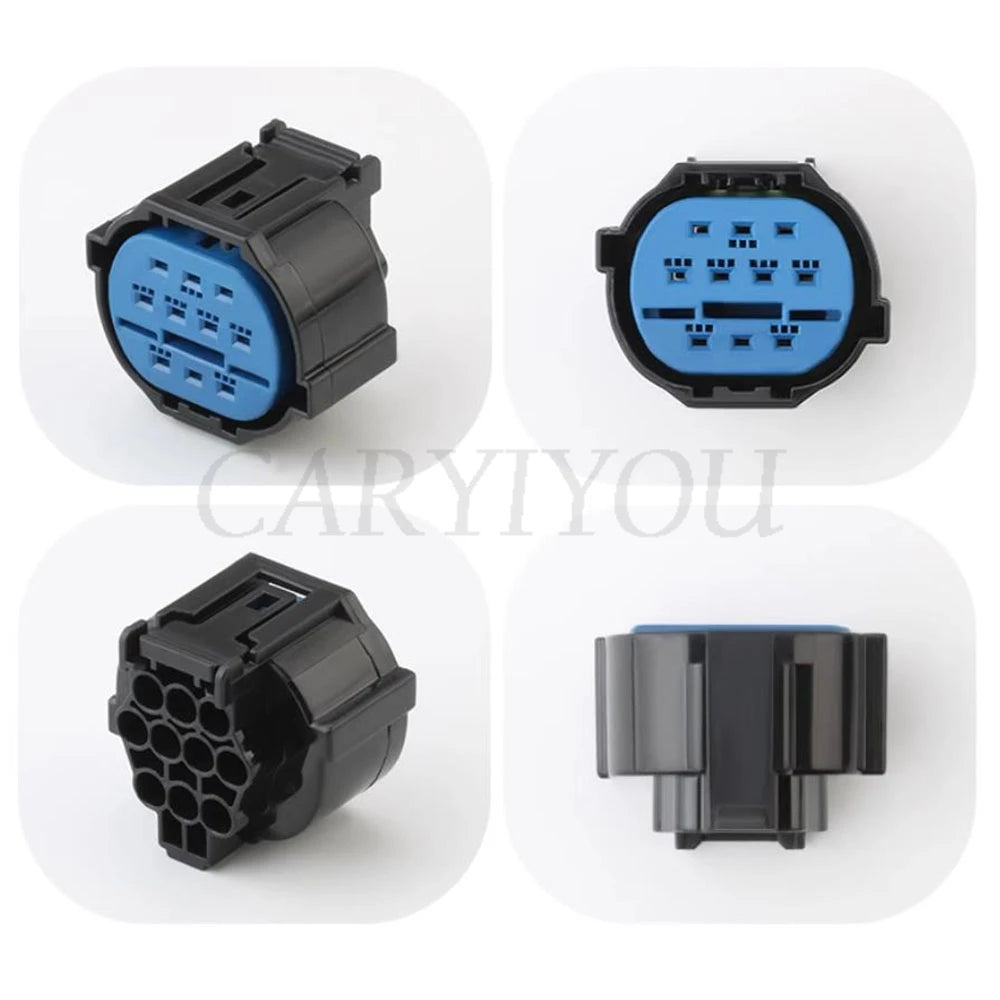

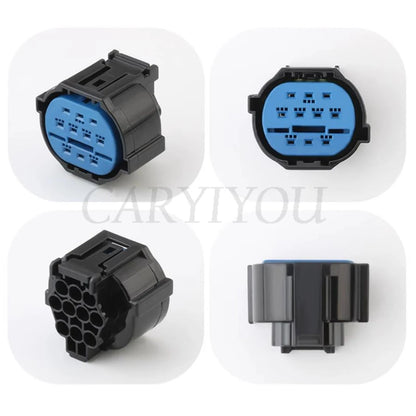

• OEM Part Numbers: HP406-10021 (female socket) / HP481-10021 (male plug)
• Also Referenced As: DJ7102-1.5-11 (male) / DJ7102-1.5-21 (female)
• Housing Material: PA66 nylon (high-temperature, flame-retardant)

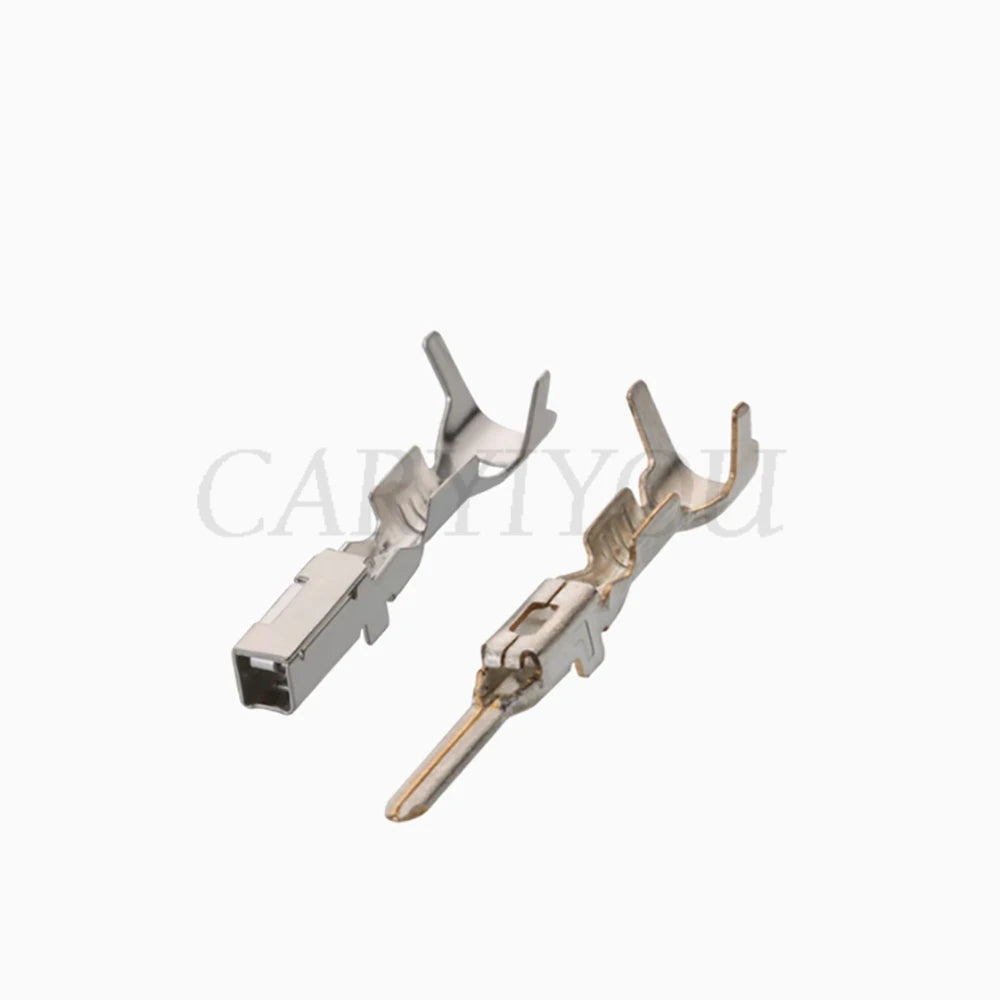

• Terminal Material: Brass with tin plating
• Terminal Size: 1.5mm series
• Seal Type: Individual rubber wire seals (one per pin)
• Waterproof Rating: IP67 (with seals properly installed)
• Wire Gauge: Compatible with 0.5–1.5mm² (AWG 20–16)
• Certification: CE

Available Variants

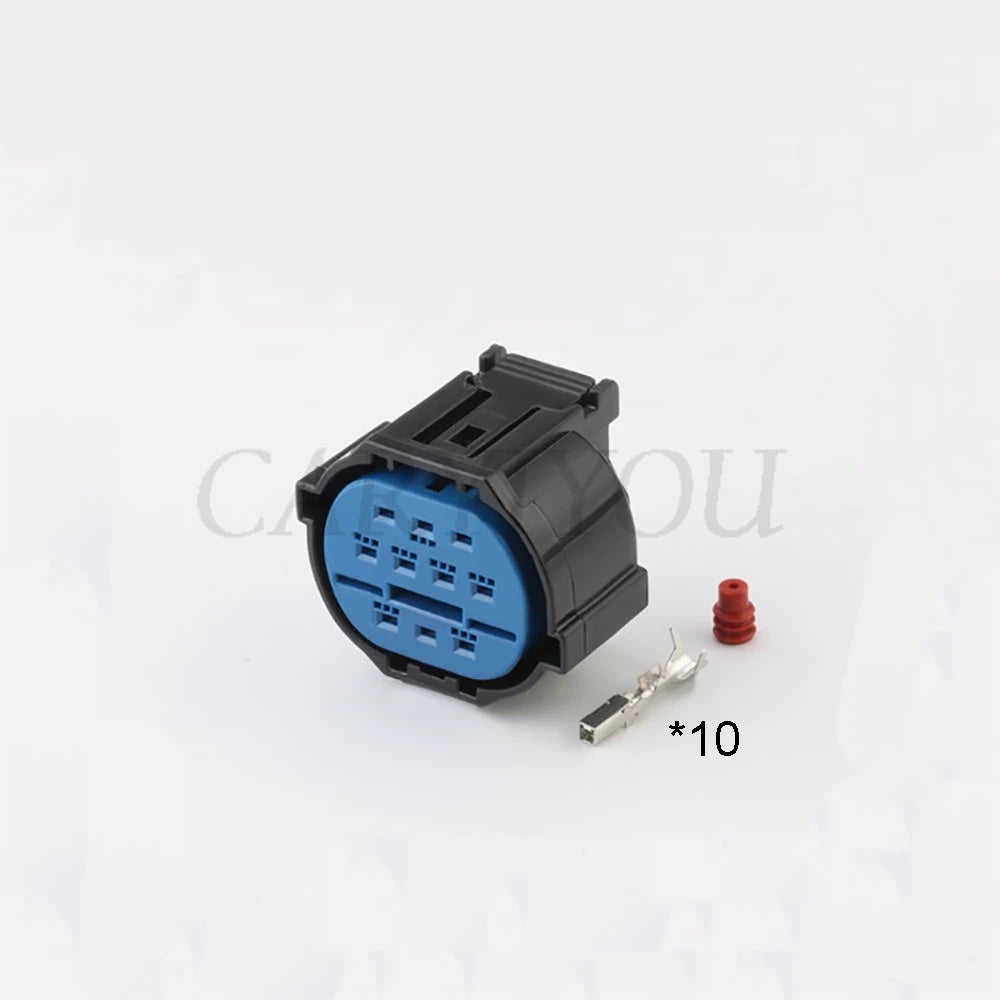

• Female set — 1 × female (socket) housing + 10 × terminals + 10 × rubber seals

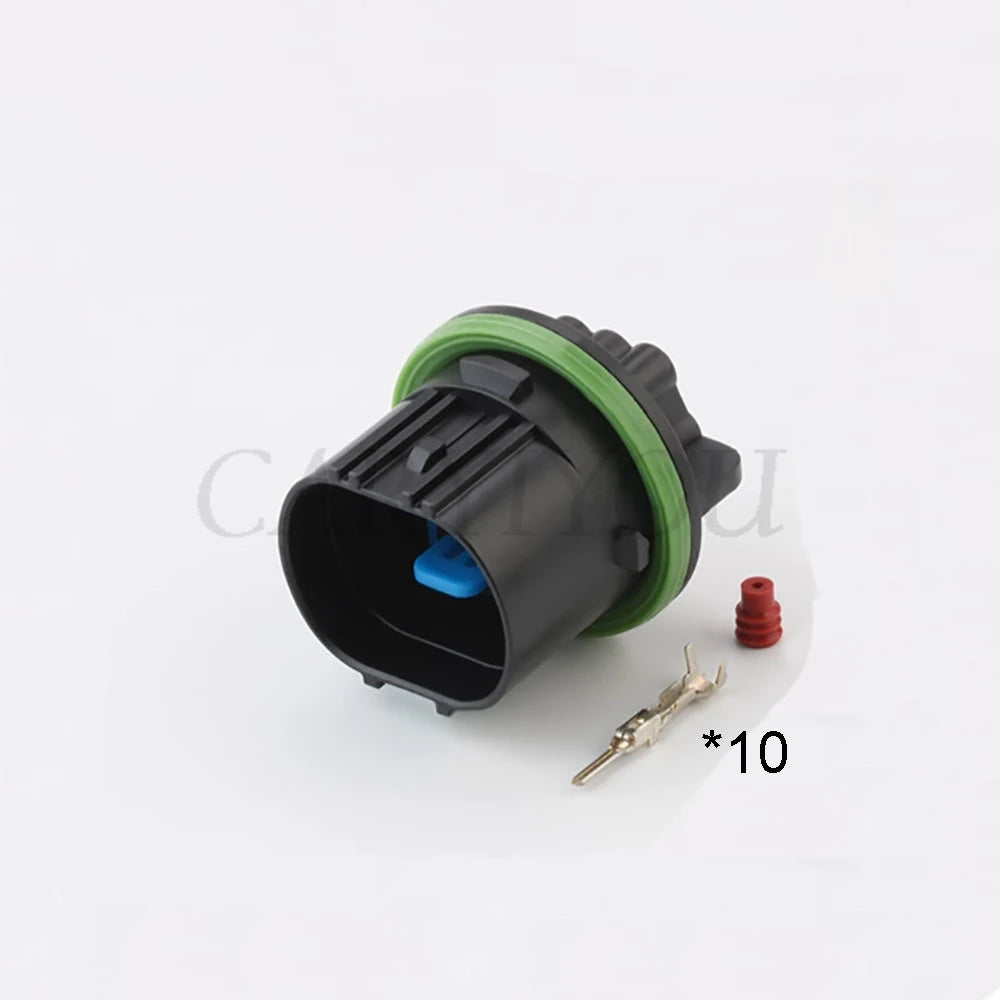

• Male set — 1 × male (plug) housing + 10 × terminals + 10 × rubber seals

Compatible Vehicles

• Kia vehicles using HP406-10021 / HP481-10021 headlight connectors
• Applications using DJ7102-1.5-11 / DJ7102-1.5-21 connector standard

Typical Applications

• Headlight module wiring harness repair and replacement
• Automotive lighting connector restoration
• OEM connector replacement for corroded or damaged plugs
• Custom automotive lighting harness fabrication

Installation Notes

• Requires a ratcheting automotive crimping tool for 1.5mm terminals (PA-09 or equivalent)
• Thread rubber seal onto wire before crimping terminal
• Insert crimped terminal into housing until audible click confirms locking
• Verify all 10 pins are fully seated before mating connectors

Package Contents

• 1 × connector housing (male or female, as selected)
• 10 × brass crimp terminals
• 10 × rubber wire seals
