Description

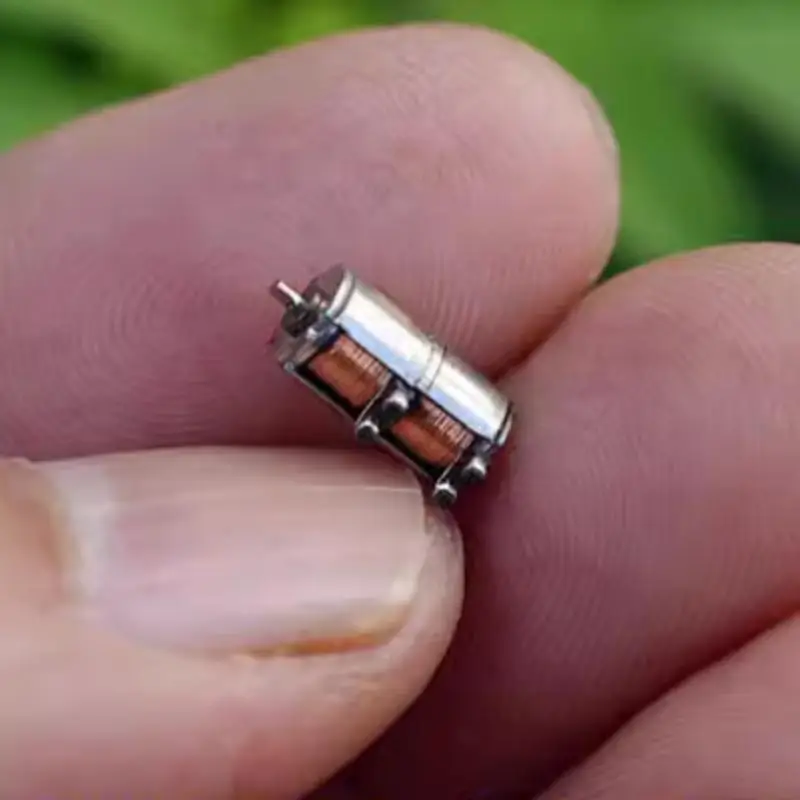

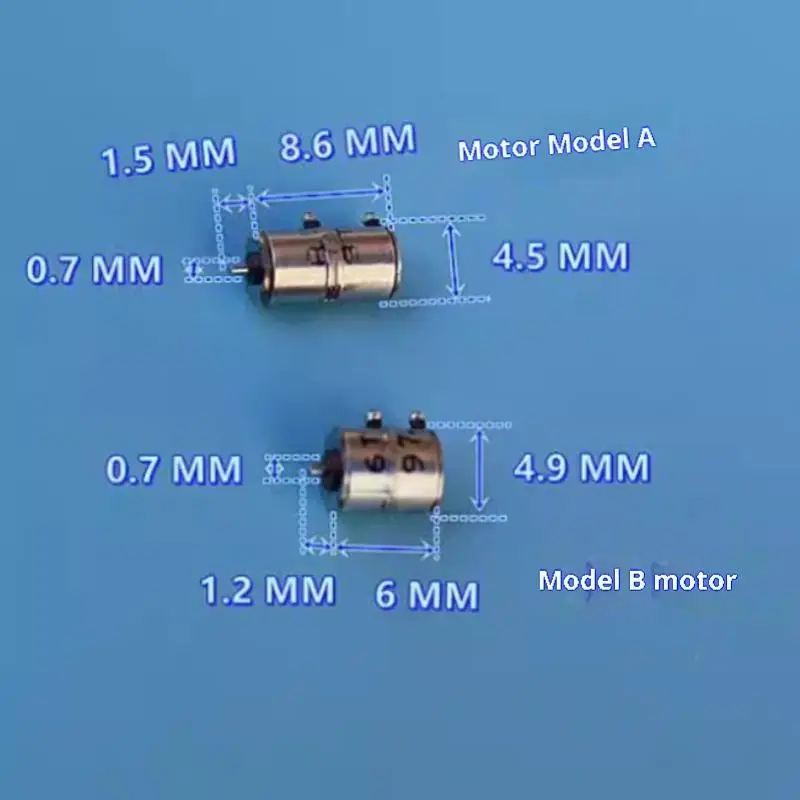

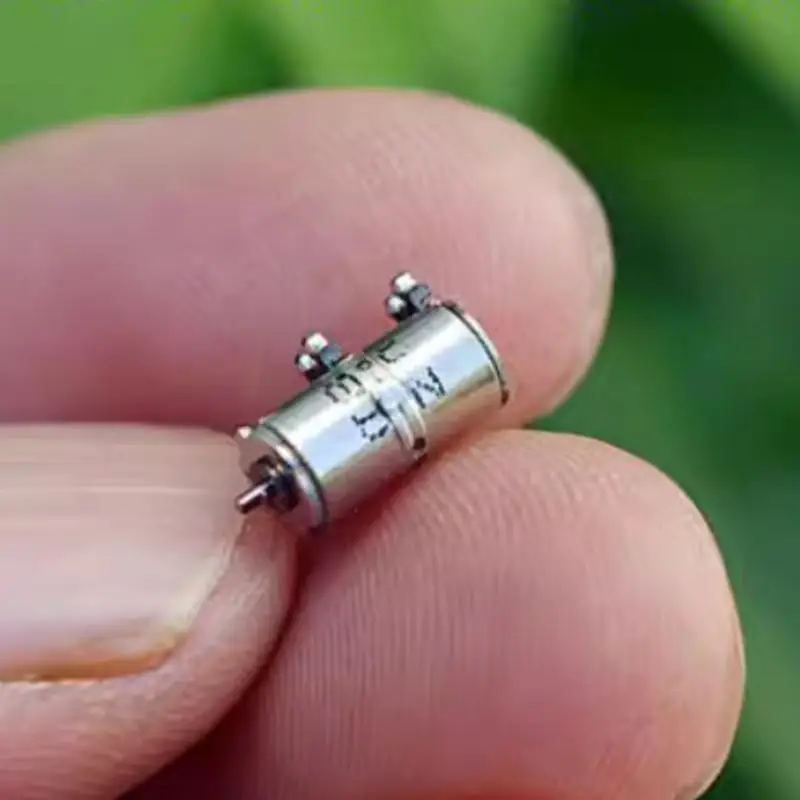

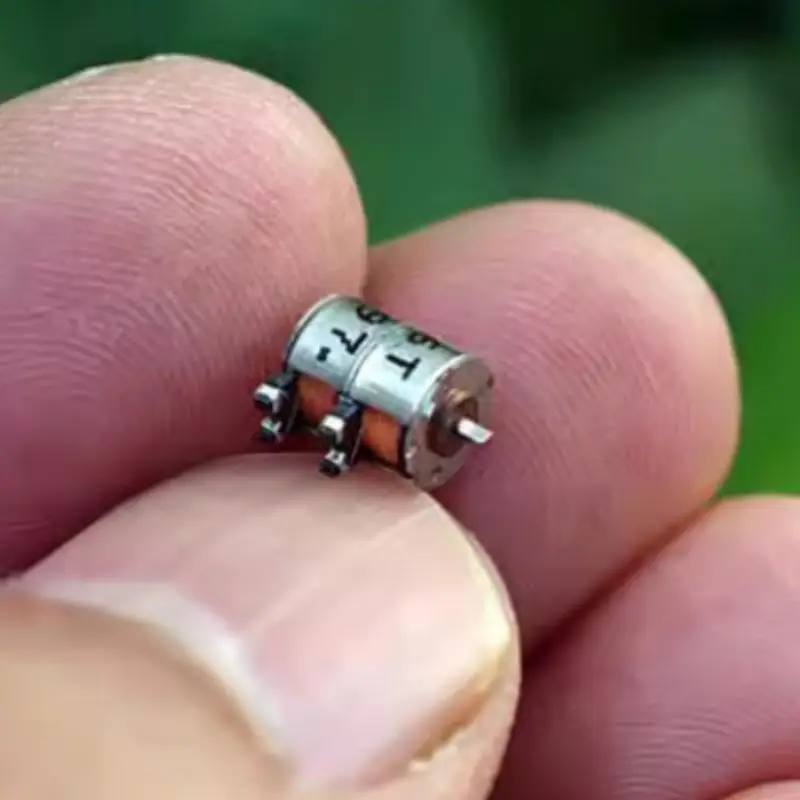

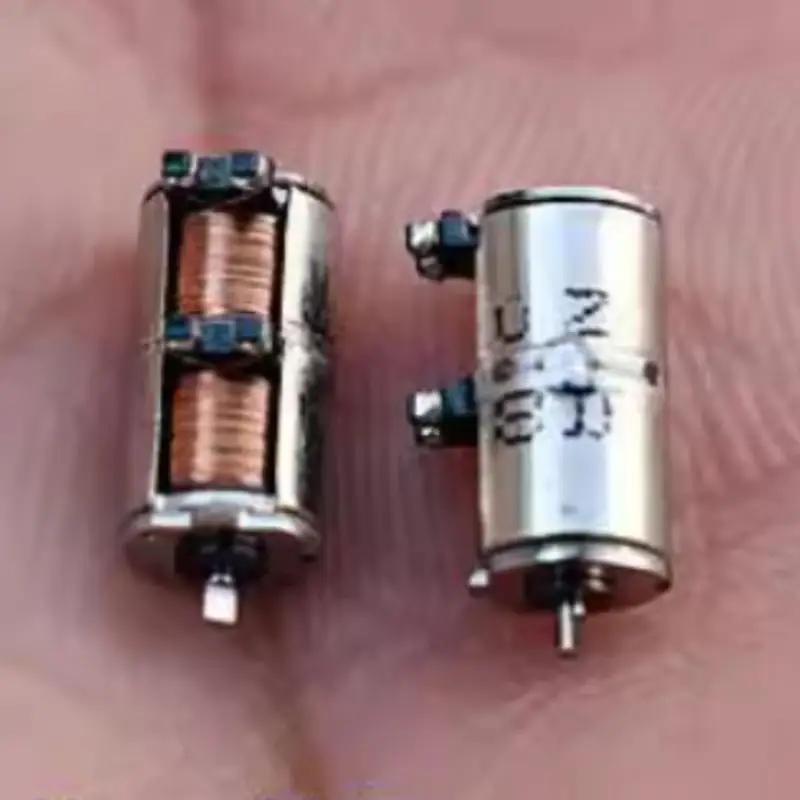

Model A: 4.5mm Stepper Motor

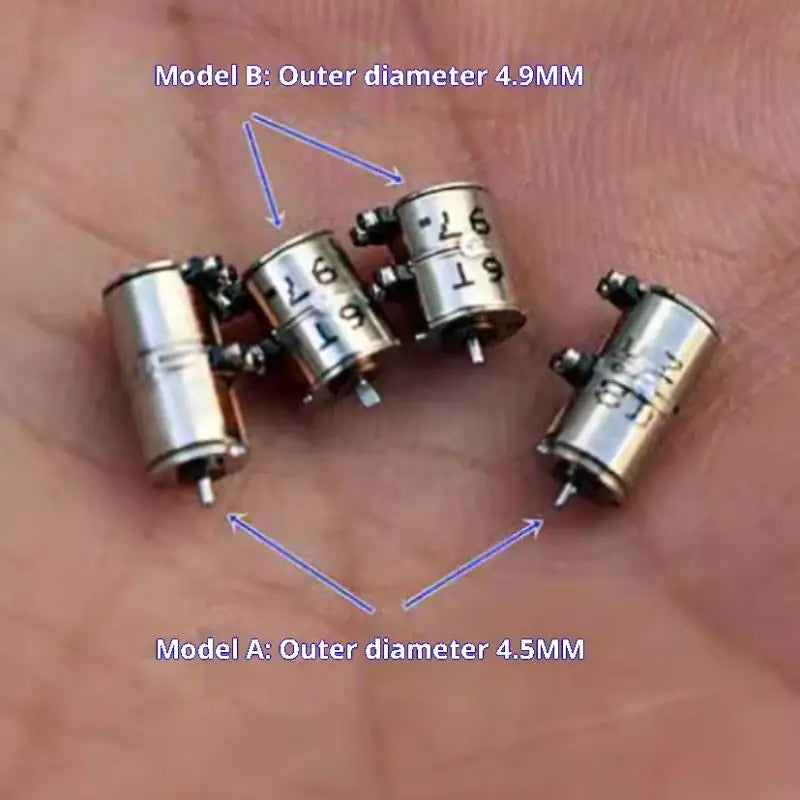

1.Motor outer diamer: 4.5 mm

2.Motor height: 8.6 mm

3.Motor shaft diamer: 0.7 mm (flat position 0.5 mm)

4.Output shaft length: 1.5 mm

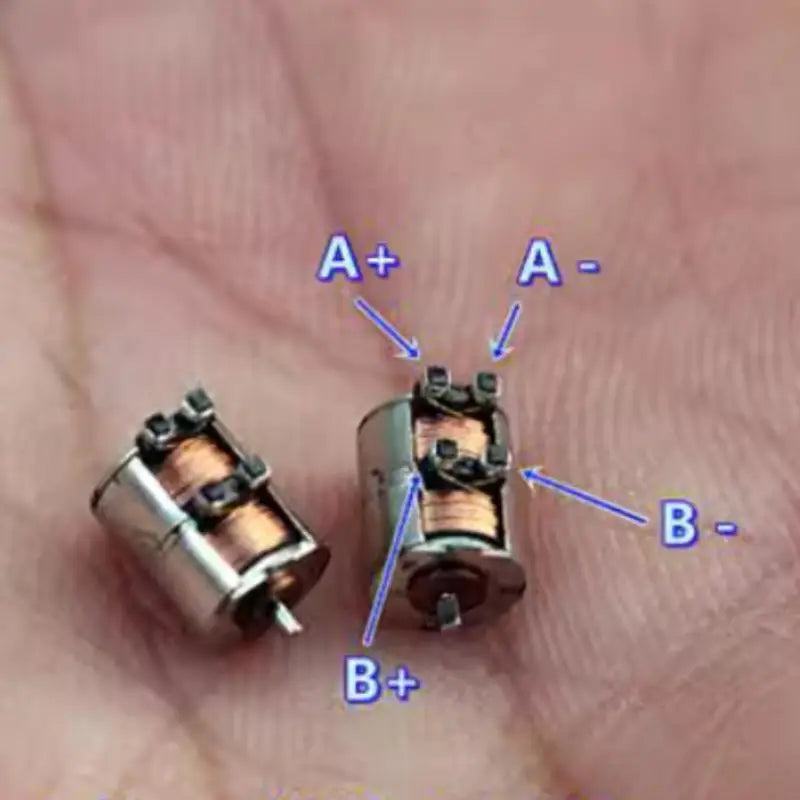

5.Motor type: 2-phase 4-wire

6.Driving voltage: DC 5V (estimated)

7.Internal resistance: About 12.1 Ω

8.5V short circuit current: 0.32A

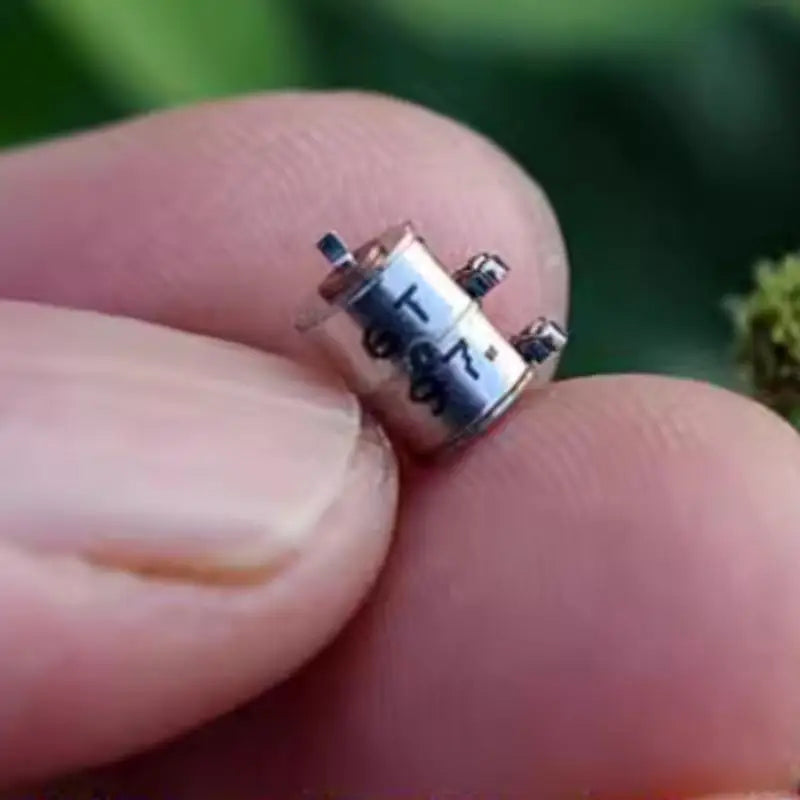

Model B: 4.9mm Stepper Motor

1.Motor outer diamer: 4.9 mm

2.Motor height: 6 mm

3.Motor shaft diamer: 0.7 mm (flat position 0.5 mm)

4.Output shaft length: 1.2 mm

5.Motor type: 2-phase 4-wire

6.Driving voltage: DC 5V (estimated)

7.Internal resistance: About 14.8 Ω

8.5V short circuit current: 0.27A

9.Material: Mal

Package inculding:

10pcs * Mini Stepper Motor

Note:

1. This is 2-phase 4-wire stepper motor, it needs an additional 2-phase 4-wire stepper motor driver to operate.

2.The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received.

3. Please allow slight manual measurement deviation for the data.
