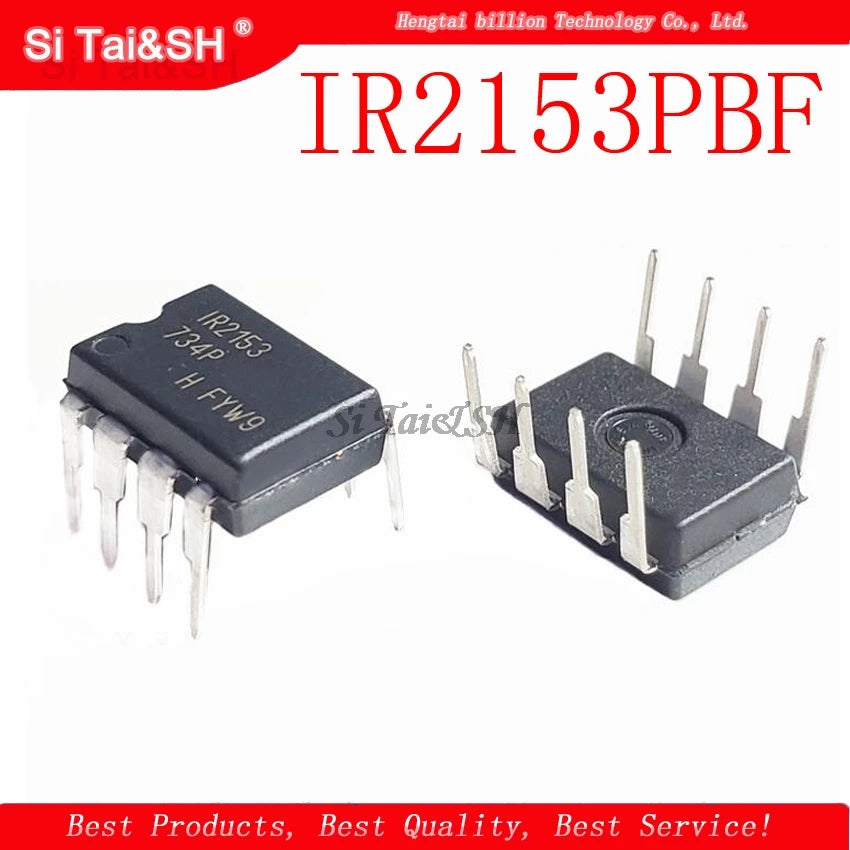

IR2153 DIP-8 Self-Oscillating Half-Bridge Gate Driver IC — 5 Pieces
The IR2153 (IR2153PBF) is a self-oscillating half-bridge gate driver IC from International Rectifier (Infineon), combining a high-voltage level-shifting gate driver with a built-in deadtime-controlled oscillator in a single DIP-8 package. Unlike IR2104 or IR2106 which require an external PWM signal, the IR2153 generates its own switching frequency using just one external resistor (RT) and one capacitor (CT) — making it ideal for fixed-frequency resonant converters, electronic ballasts, and DIY inverter circuits where no microcontroller is available.
Key Specifications
- Package: DIP-8 (through-hole, 2.54mm pitch)
- Offset Voltage Rating: 600V (high-side bootstrap)
- VCC Supply: 10–20V
- High-Side Output Current: 250mA source / 500mA sink
- Low-Side Output Current: 250mA source / 500mA sink
- Oscillator Frequency: f ≈ 1 / (1.4 × RT × CT)
- Deadtime: Fixed internal deadtime prevents shoot-through
- Propagation Delay: ~130ns (matched high/low side)
- Under-Voltage Lockout (UVLO): Yes (VCC and VBS)
- Operating Temperature: −40°C to +125°C
- Quantity: 5 pieces per pack
DIP-8 Pinout
- Pin 1 (VCC): Logic supply (10–20V)
- Pin 2 (RT): Oscillator timing resistor
- Pin 3 (CT): Oscillator timing capacitor
- Pin 4 (COM): Ground reference
- Pin 5 (LO): Low-side gate drive output
- Pin 6 (VS): High-side floating supply return
- Pin 7 (HO): High-side gate drive output
- Pin 8 (VB): High-side floating supply (bootstrap)
Oscillator Frequency Formula
f ≈ 1 / (1.4 × RT × CT)
Example: RT = 22kΩ, CT = 10nF → f ≈ 3.25kHz. For 50kHz: RT = 10kΩ, CT = 1.4nF.
Bootstrap High-Side Operation
A bootstrap capacitor (typically 100nF ceramic) between VB and VS charges through an external fast-recovery diode during the low-side on-time, providing the floating supply needed to drive the high-side N-channel MOSFET gate above the bus voltage. No isolated power supply required.
IR2153 vs. IR2153S
- IR2153 (DIP-8): Through-hole package — this listing. Ideal for prototyping and breadboard development.
- IR2153S (SOP-8): SMD package for PCB production. Same electrical specifications.
Typical Applications
- Electronic fluorescent lamp ballasts (T5, T8, CFL)
- LLC series resonant converters
- DIY half-bridge inverters (12V→220V)
- Induction heater driver circuits
- Class-D audio amplifier half-bridge stage
- Switch-mode power supply half-bridge topology
- Tesla coil and ZVS driver circuits
Package Contents
- 5 × IR2153 (IR2153PBF) DIP-8 gate driver IC
