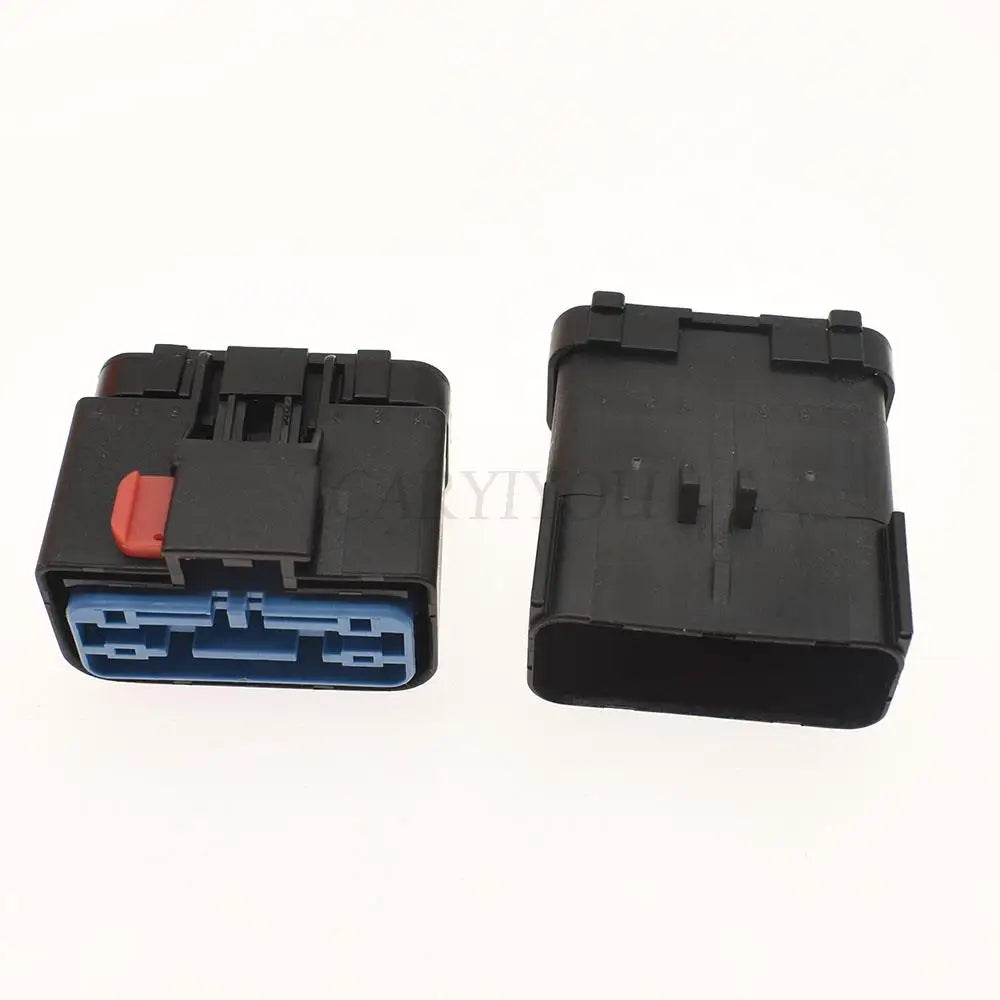

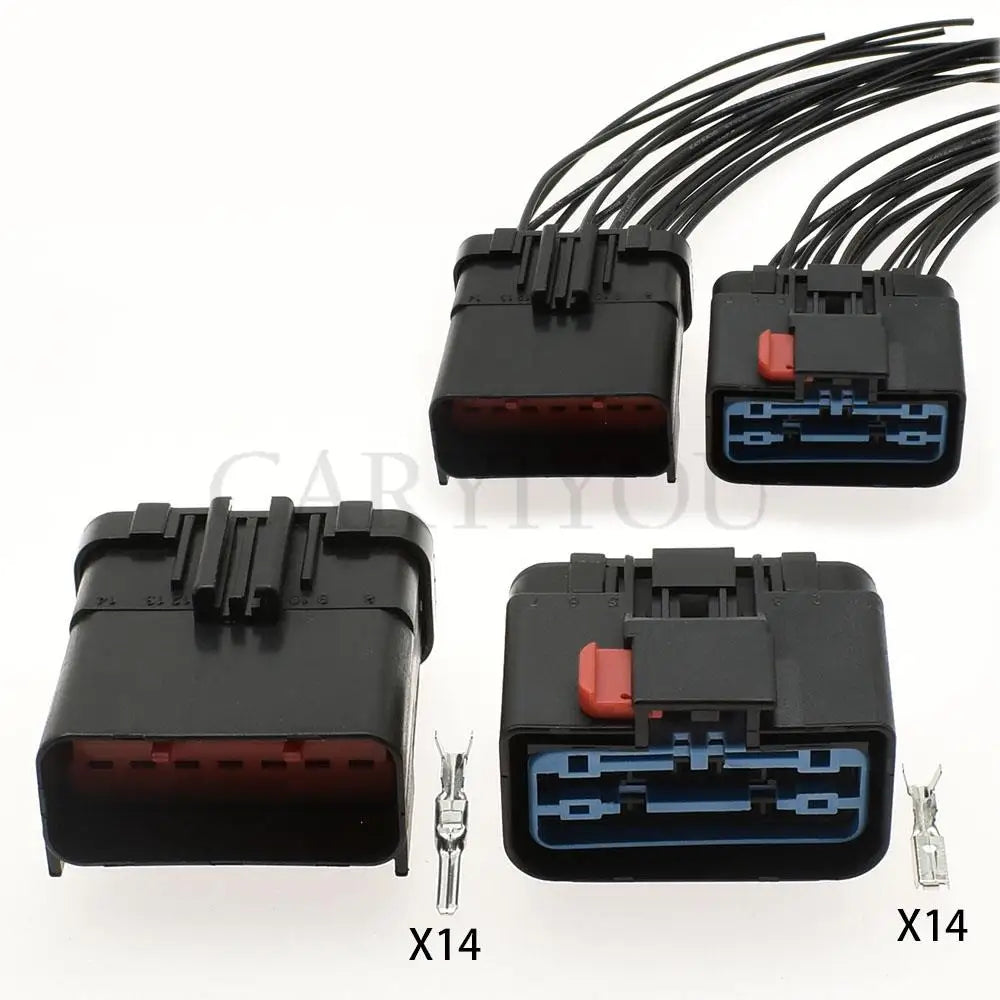

14-Pin 2.8mm Auto Waterproof Connector — Female / Male, Rear Lamp & Headlight, 54201411 / 54201415

OEM-specification 14-pin waterproof automotive connector in 2.8mm pitch, cross-referencing part numbers 54201411 (female receptacle) and 54201415 (male plug). Designed for rear lamp cluster, headlight assembly, and multi-function lighting wiring harness applications where a high pin-count waterproof connector is required in a compact footprint. PA66 housing with integrated rubber seals provides IP67 moisture and dust protection for underbody and exterior lighting installations.

Part Number Cross-Reference

Part Number	Side	Description

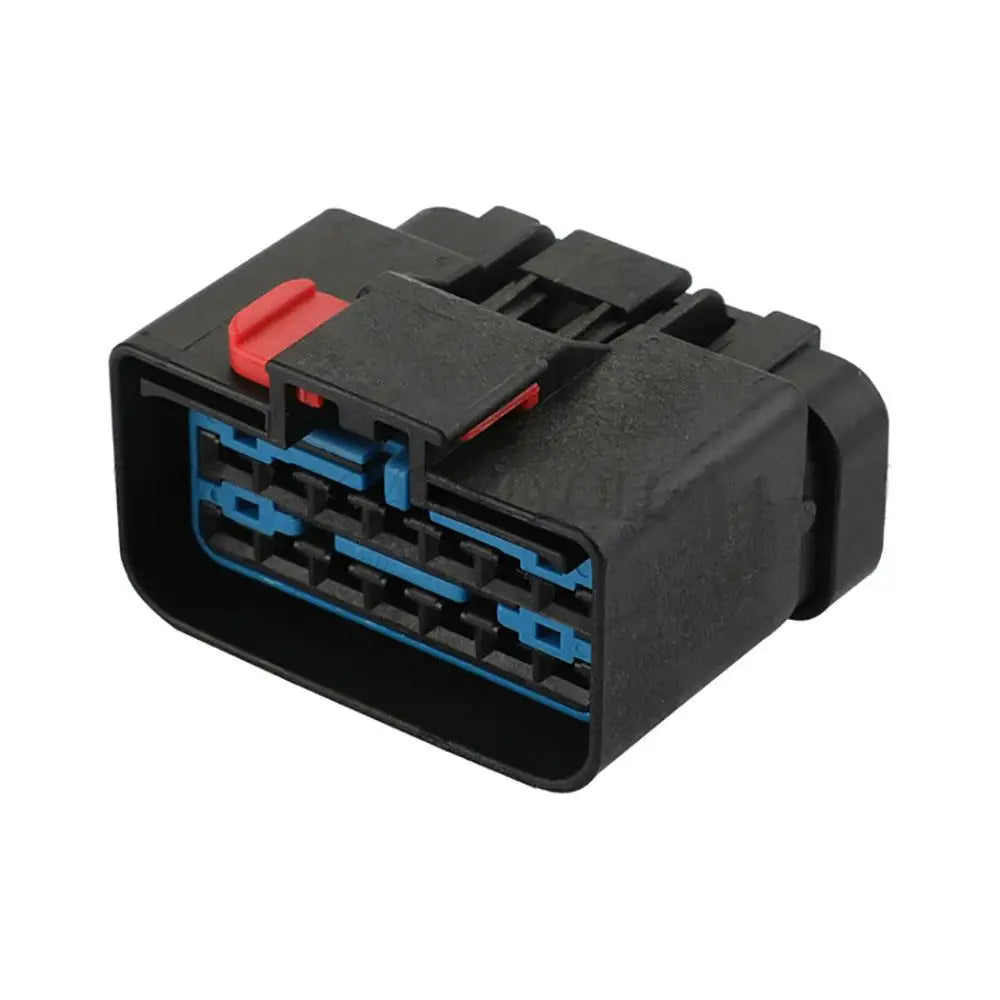

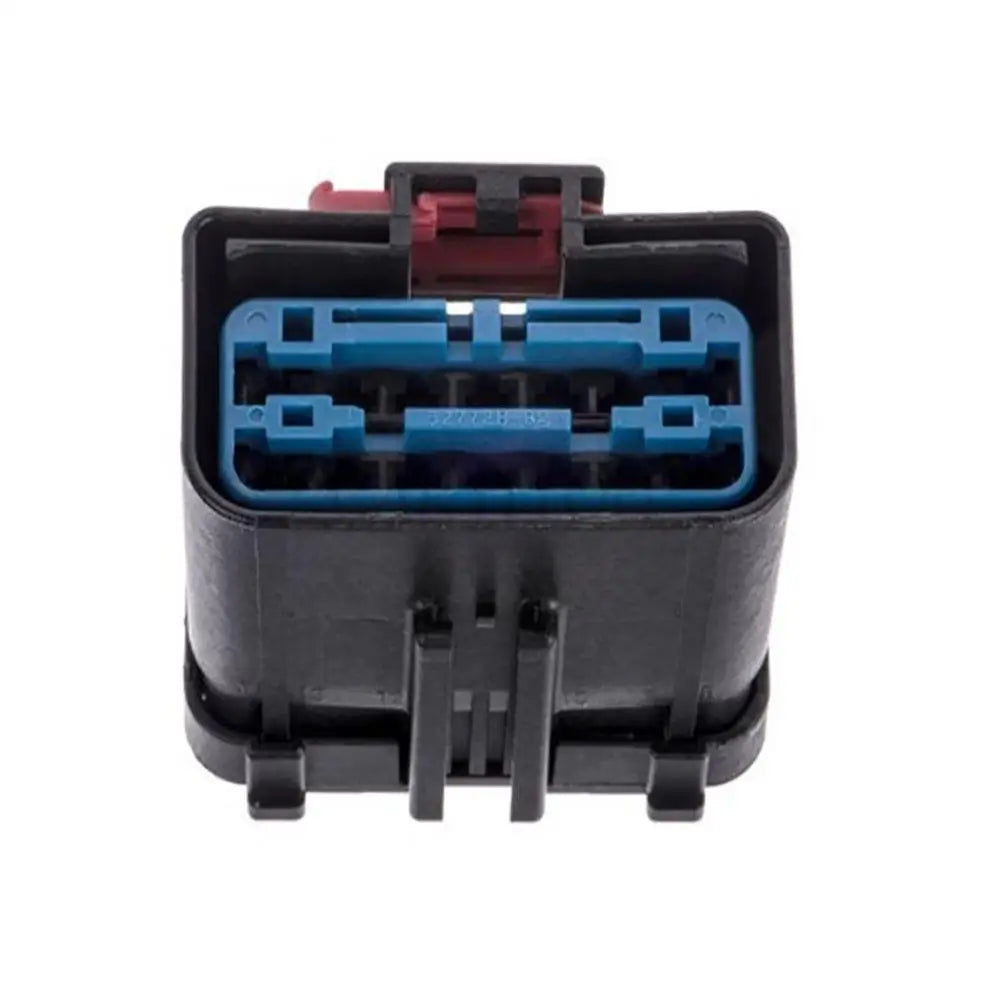

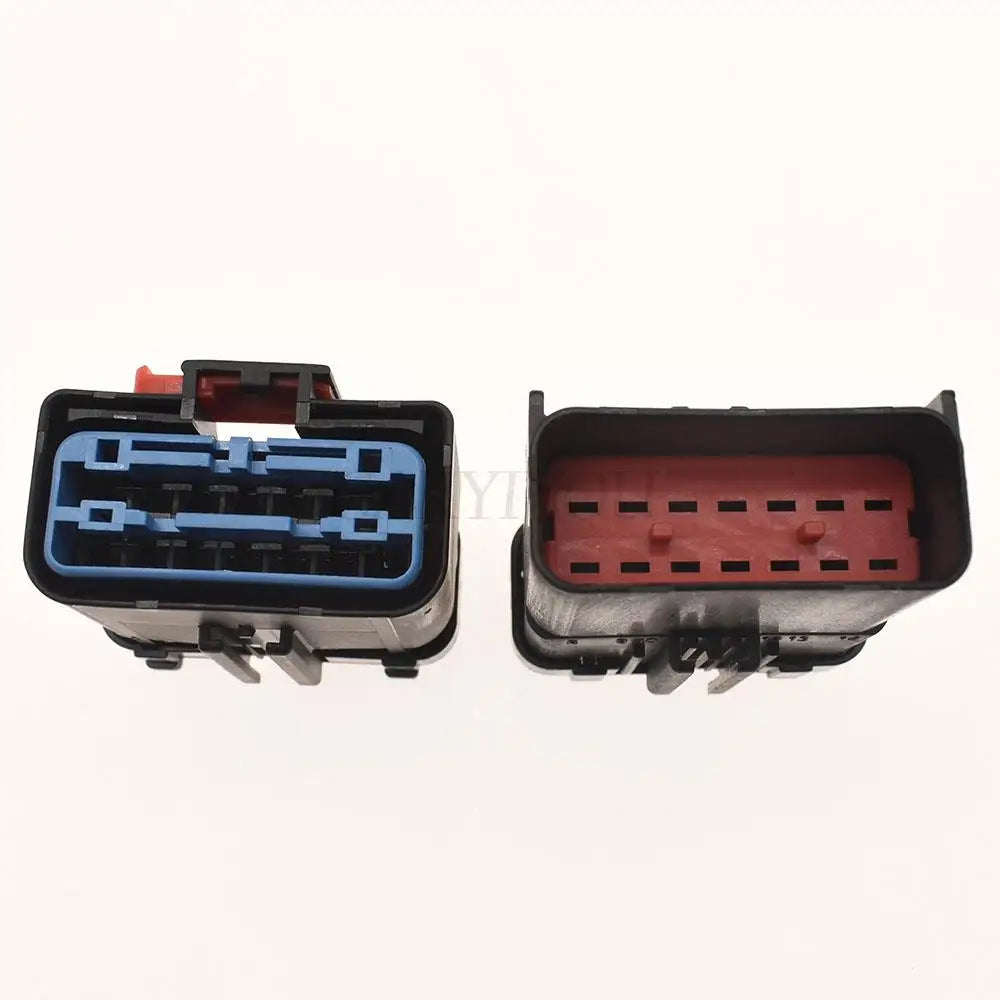

54201411	Female (receptacle)	14-pin female housing, 2.8mm pitch

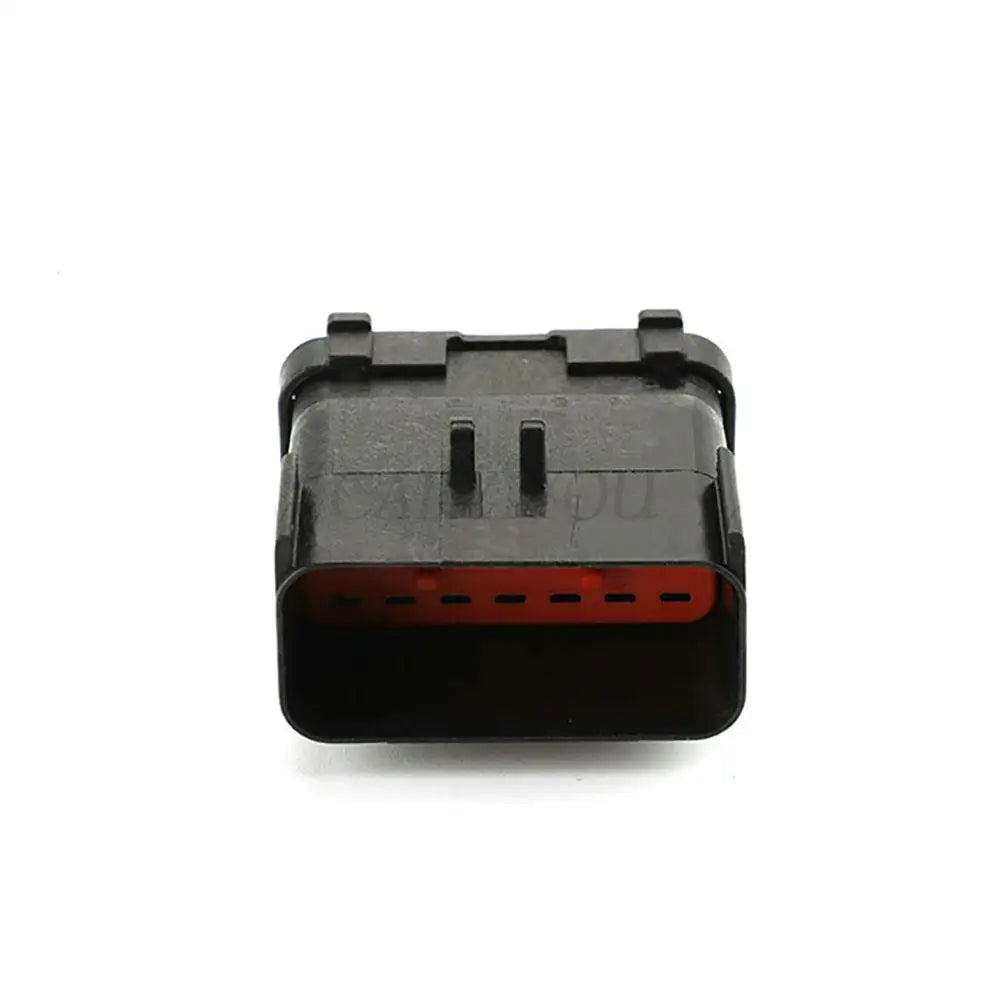

54201415	Male (plug)	14-pin male housing, 2.8mm pitch

Technical Specifications

Parameter	Value
Pin Count	14
Pitch	2.8mm
Housing Material	PA66 (Nylon 66), UL94 V-0
Seal Rating	IP67 (1m / 30 min)
Rated Voltage	12V / 24V DC
Rated Current	≤5A per pin
Operating Temperature	−40°C to +125°C
Terminal Material	Copper alloy, tin-plated
Wire Range	0.5–1.5mm² (AWG 20–16)

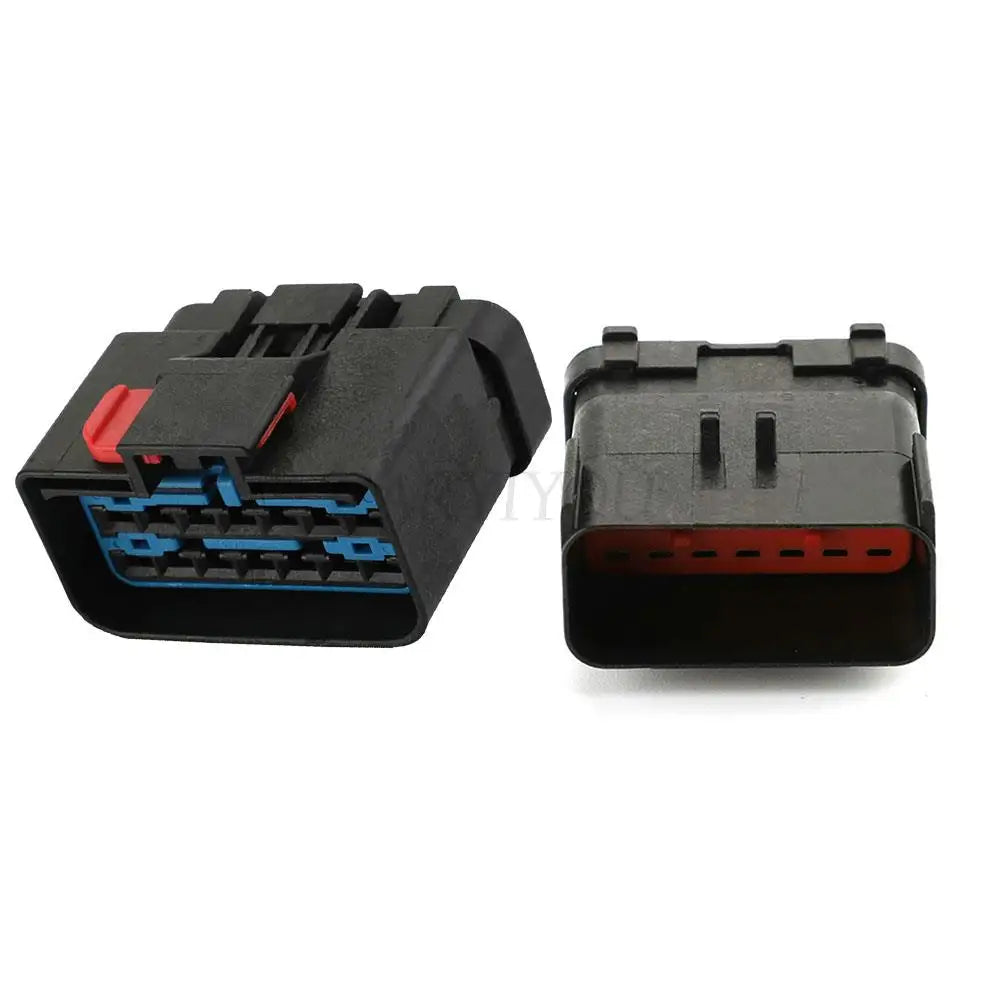

Locking	Positive latch with secondary lock
Certification	CE, RoHS

Typical Applications

Rear Lamp Cluster: Multi-function rear lamp connector combining tail light, brake light, reverse light, turn signal, and fog light circuits in a single 14-pin waterproof connector
Headlight Assembly: High pin-count headlight connector for modern multi-function headlight units with DRL, low beam, high beam, turn signal, and position light circuits
Trailer Wiring: 14-pin trailer connector for European-standard trailer lighting harnesses (ISO 11446 compatible configurations)
Body Control Module (BCM) Harness: Multi-circuit connector for BCM sub-harness connections in exterior lighting control systems
Aftermarket Lighting Retrofit: Replacement connector for damaged OEM rear lamp or headlight connectors in vehicle restoration and repair

FAQ

Q: Are terminals included with this connector?

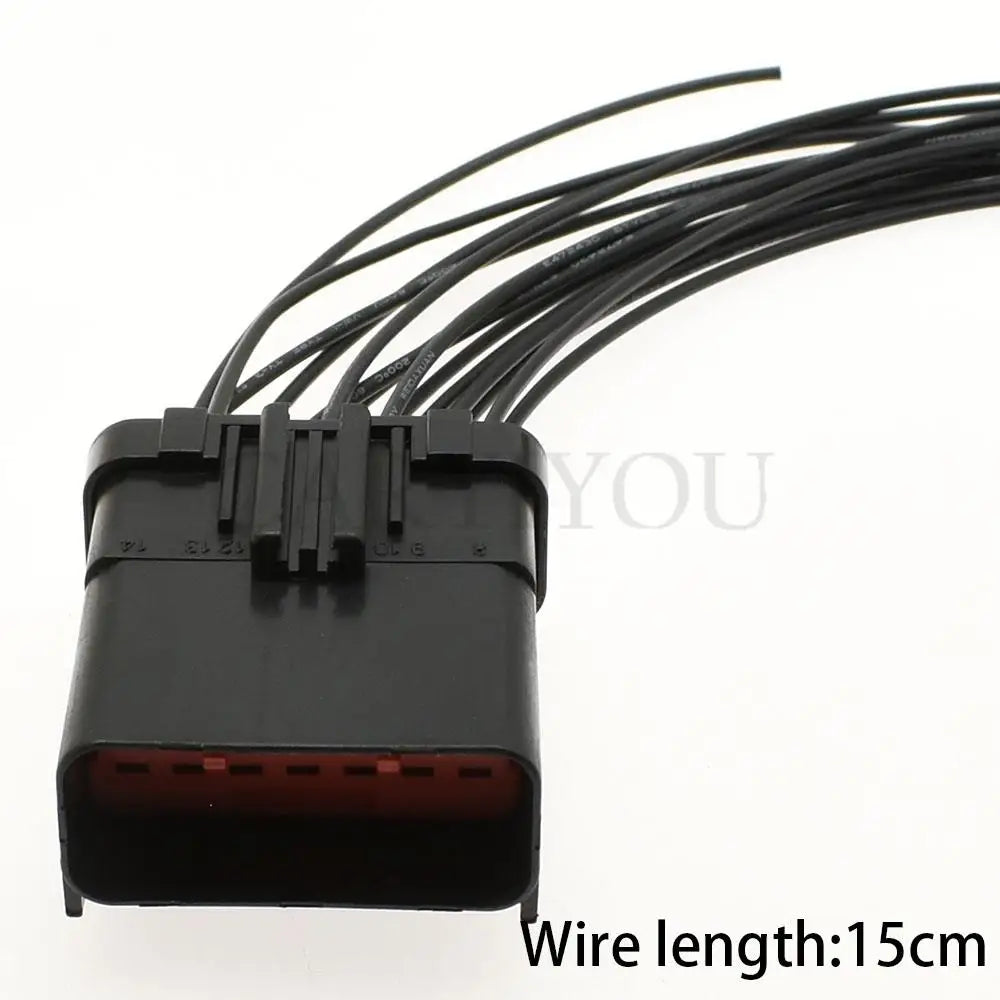

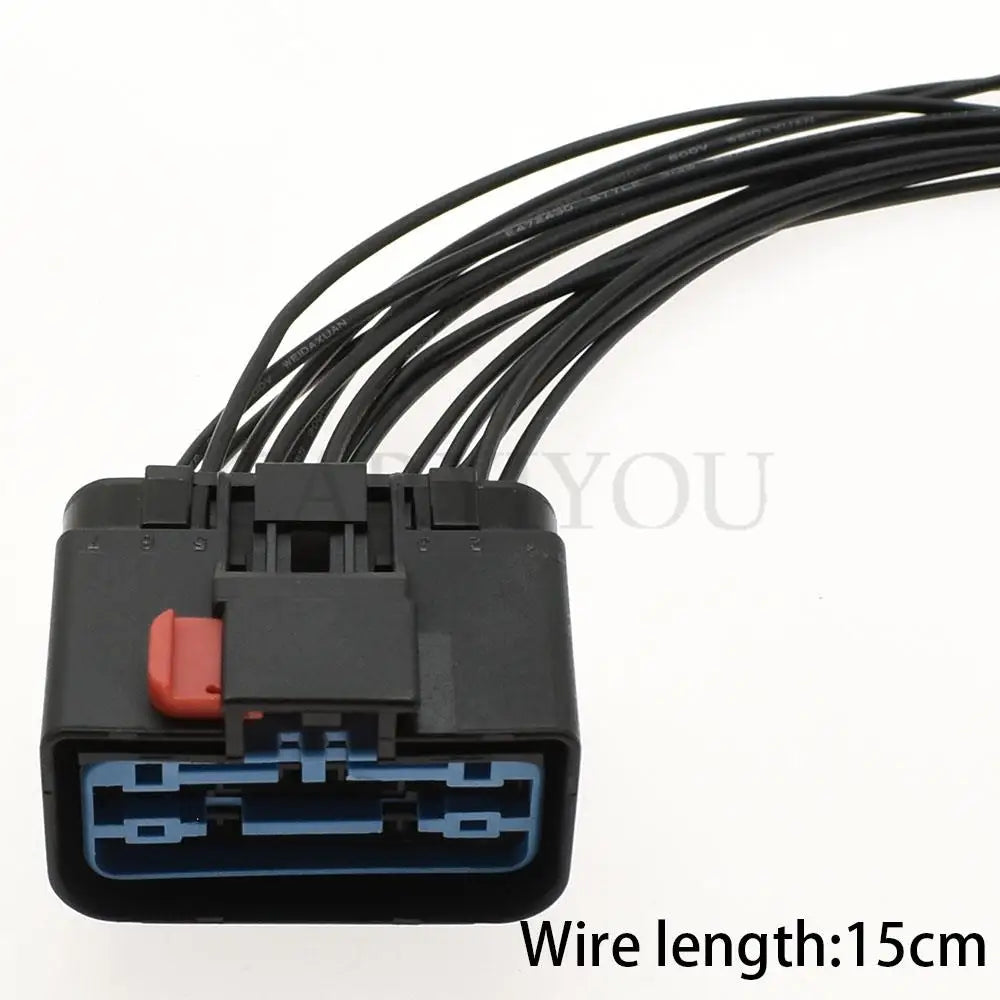

A: The housing is supplied without pre-crimped terminals. Compatible 2.8mm terminals must be crimped onto the wire and inserted into the housing. Specify the terminal part number when ordering for your application.

Q: What vehicles use the 54201411 / 54201415 connector?
A: This connector is used across multiple European and Asian OEM vehicle platforms for rear lamp and headlight harness applications. Verify your OEM part number against the vehicle wiring diagram before ordering.

Q: Is this connector compatible with 24V truck lighting systems?
A: Yes. The connector is rated for 12V and 24V DC, making it suitable for both passenger vehicle (12V) and commercial vehicle / truck (24V) lighting harness applications.
