1J0973737 / 1J0973837 Automotive 14-Pin Waterproof Connector — VW Xenon Headlight Lamp Socket
1J0973737 / 1J0973837 Automotive 14-Pin Waterproof Connector VW Xenon Headlight Lamp Socket
Couldn't load pickup availability
1J0973737 / 1J0973837 Automotive 14-Pin Waterproof Connector — VW Xenon Headlight

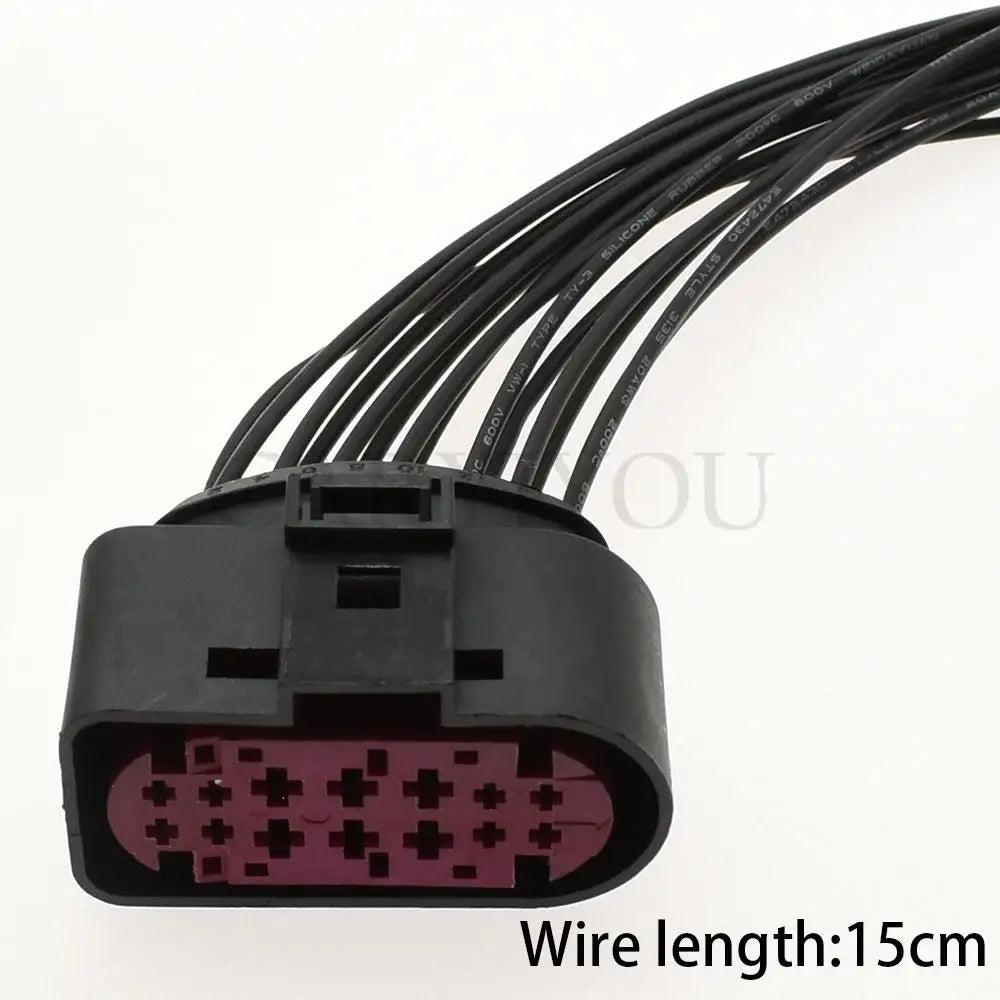

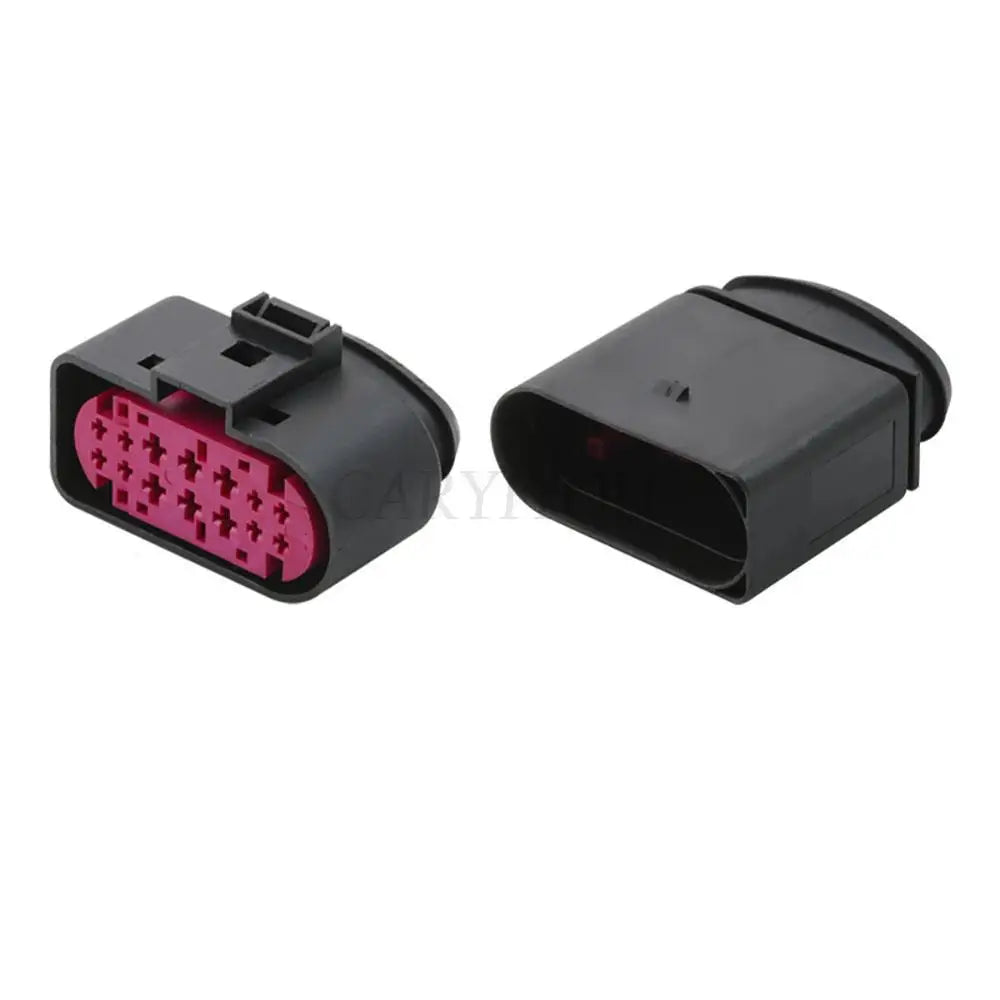

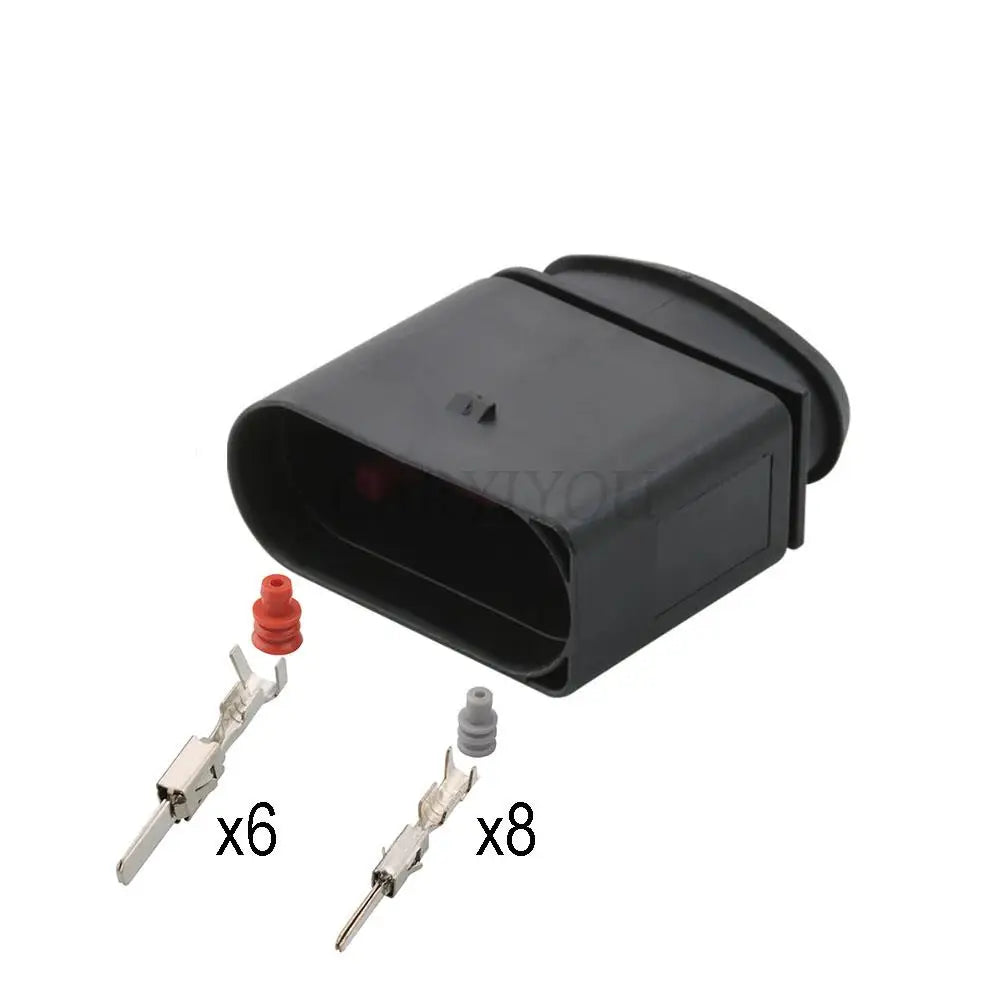

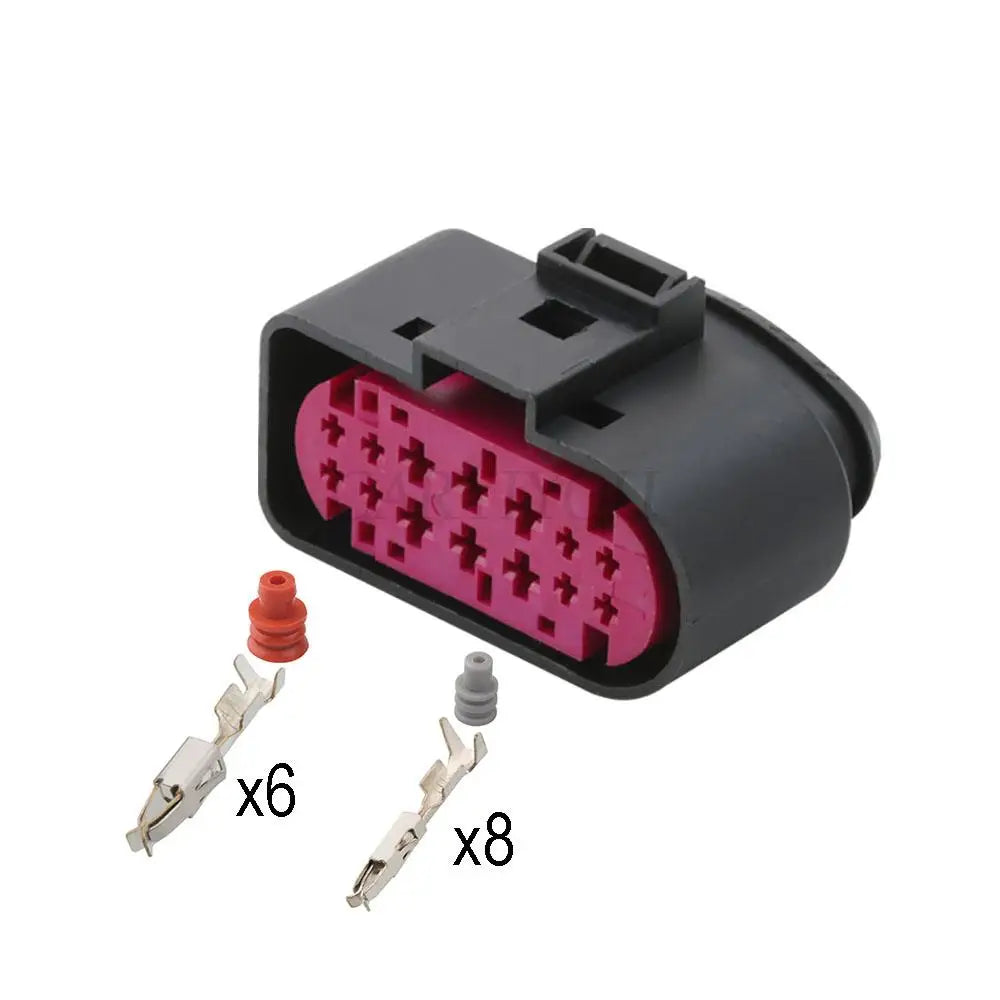

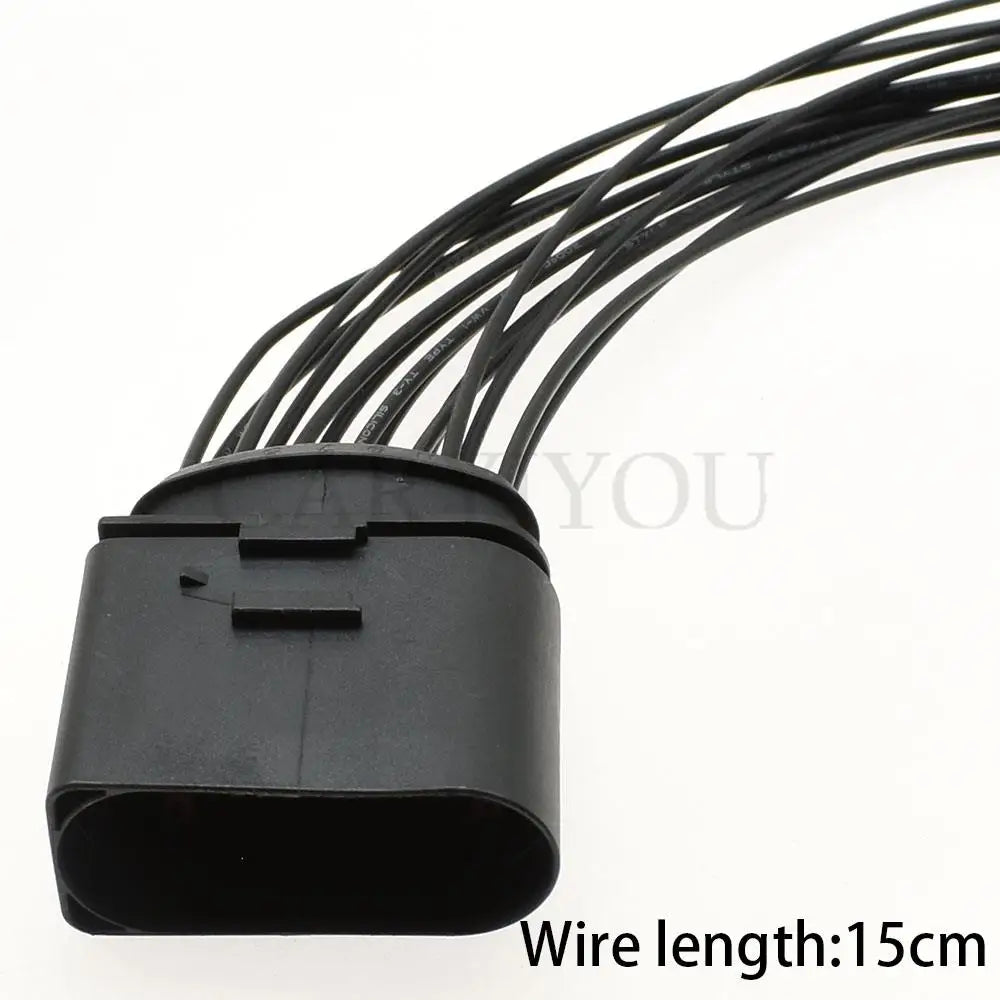

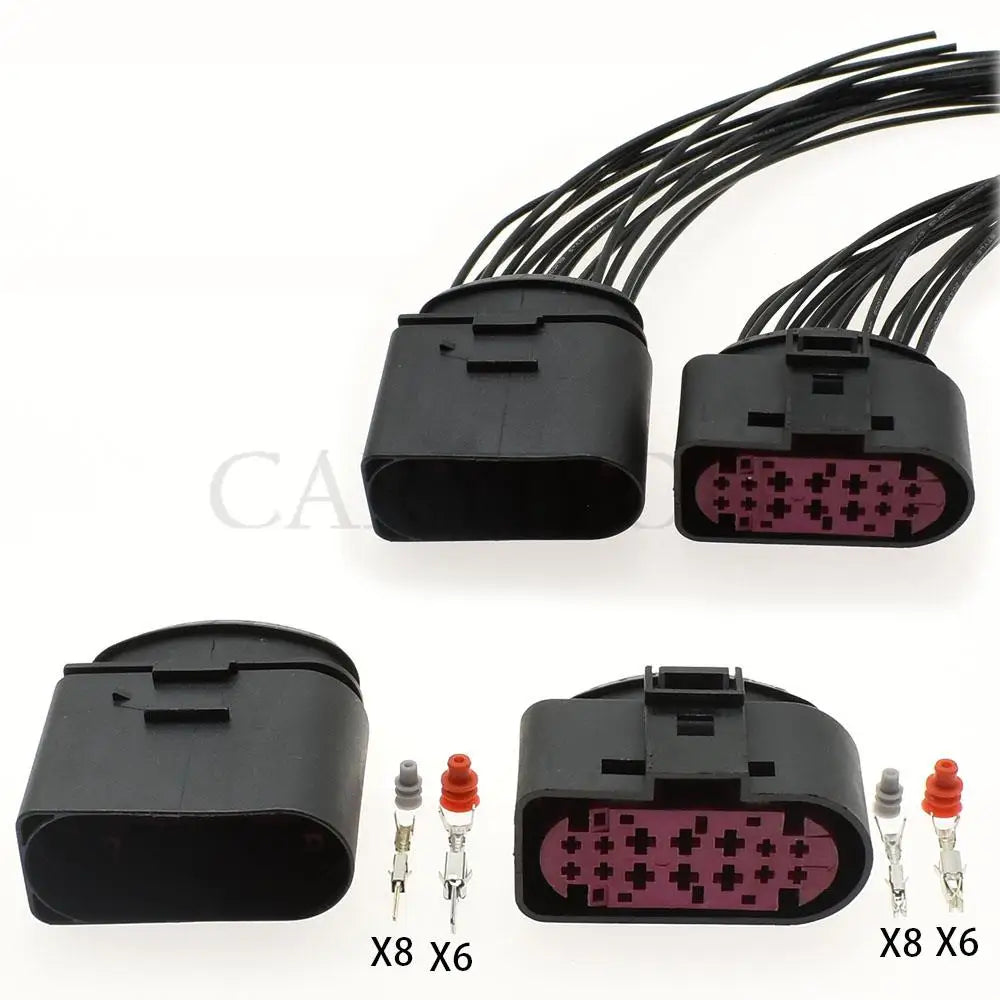

The 1J0973737 (female socket) and 1J0973837 (male plug) are 14-pin waterproof automotive connectors for Volkswagen xenon (HID) headlamp assembly wiring harnesses. The 1J0 prefix identifies these as VW Group OEM parts used across Golf Mk4/Mk5, Passat B5/B6, Polo 9N, and related platforms equipped with factory xenon headlamps. The 14-pin sealed configuration accommodates the complete xenon headlamp circuit: HID ballast power, igniter trigger, leveling motor, position sensor, and LIN bus communication circuits.
Xenon headlamp connector failure is a well-documented issue on VW Group vehicles — the connector sits in the headlamp housing and is subject to moisture from condensation inside the headlamp, heat from the HID ballast, and vibration from the front suspension. A corroded connector is the most common cause of xenon headlamp failure, HID flickering, and headlamp warning lights on VW vehicles — and is frequently misdiagnosed as a failed HID ballast or bulb.
Key Specifications
| Parameter | Value |
|---|---|
| OEM Part Numbers | 1J0973737 (female) / 1J0973837 (male) |
| VW Format | 1J0 973 737 / 1J0 973 837 |
| Pin Count | 14-pin |
| Application | Xenon (HID) headlamp assembly connector |
| Sealing | Waterproof (sealed) |
| Housing Material | PA66 glass-filled nylon |
| Terminal Material | Tin-plated copper alloy |
| Operating Temperature | -40°C to +125°C |
| Compatible Platforms | VW Golf Mk4/Mk5, Passat B5/B6, Polo 9N, Bora, Jetta Mk4/Mk5 |
| Compliance | RoHS |
Compatible VW Models
| Model | Generation | Notes |
|---|---|---|
| Golf | Mk4 (1J), Mk5 (1K) | Xenon headlamp option |
| Passat | B5 (3B/3BG), B6 (3C) | Xenon headlamp option |
| Polo | 9N / 9N3 | Xenon headlamp option |
| Bora / Jetta | Mk4 (1J), Mk5 (1K) | Xenon headlamp option |
| Touran | Mk1 (1T) | Xenon headlamp option |
Xenon Headlamp Connector — Circuit Breakdown
- HID ballast power (pins 1–2) — 12V supply and ground for the HID ballast module; corrosion here causes complete headlamp failure
- Igniter trigger (pins 3–4) — high-voltage igniter trigger signal from the ballast to the HID bulb; corrosion causes HID flickering or failure to strike
- Leveling motor (pins 5–7) — stepper motor and position sensor circuits for automatic headlamp leveling (AFS)
- LIN bus (pins 8–9) — LIN bus communication between the headlamp module and BCM for adaptive lighting control
- Position light / turn signal (pins 10–12) — integrated position light and turn signal circuits
- Spare / ground (pins 13–14) — additional ground and spare circuits
Frequently Asked Questions
Q: My VW xenon headlamp flickers or fails to start — is it the connector or the ballast?
Flickering is the classic symptom of a connector fault rather than a failed ballast. A failed ballast typically causes complete headlamp failure (no light at all), while a corroded connector causes intermittent contact that produces flickering, delayed startup, or random shutdown. Before replacing the ballast (€80–€200), disconnect the 1J0973737 connector and inspect all 14 terminals for green/white corrosion. Clean with electrical contact cleaner and reconnect — if the flickering stops, the connector was the fault. If flickering continues, measure ballast output voltage with a multimeter.
Q: How do I access the xenon headlamp connector on VW Golf Mk4/Mk5?
The 1J0973737 connector is located at the rear of the headlamp assembly, accessible from the engine bay. On Golf Mk4, remove the headlamp assembly (3 bolts) for full access. On Golf Mk5, the connector is accessible without removing the headlamp — reach behind the headlamp from the engine bay, release the locking tab, and pull the connector straight out. Clean the connector area with brake cleaner before disconnecting to prevent contamination of the terminals.
Q: Do I need to recalibrate the xenon headlamp leveling after replacing the connector?
If the leveling motor circuit was interrupted by the connector fault, the leveling motor may have lost its reference position. After replacing the connector and clearing DTCs, perform a headlamp leveling calibration using VCDS (VAG-COM) or equivalent VW diagnostic software. Navigate to the headlamp control module and run the “Basic Settings” procedure to reset the leveling motor reference position. Failure to calibrate may result in incorrect headlamp beam alignment and a recurring leveling fault code.
