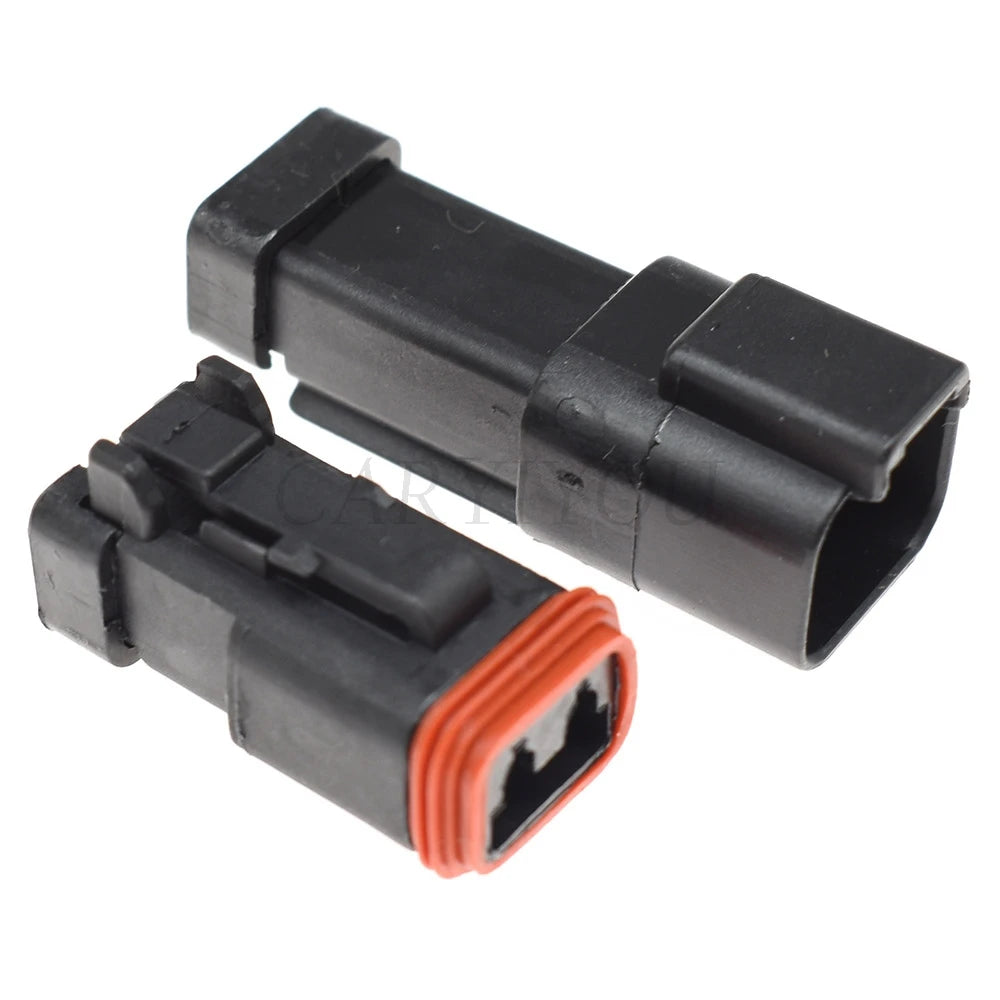

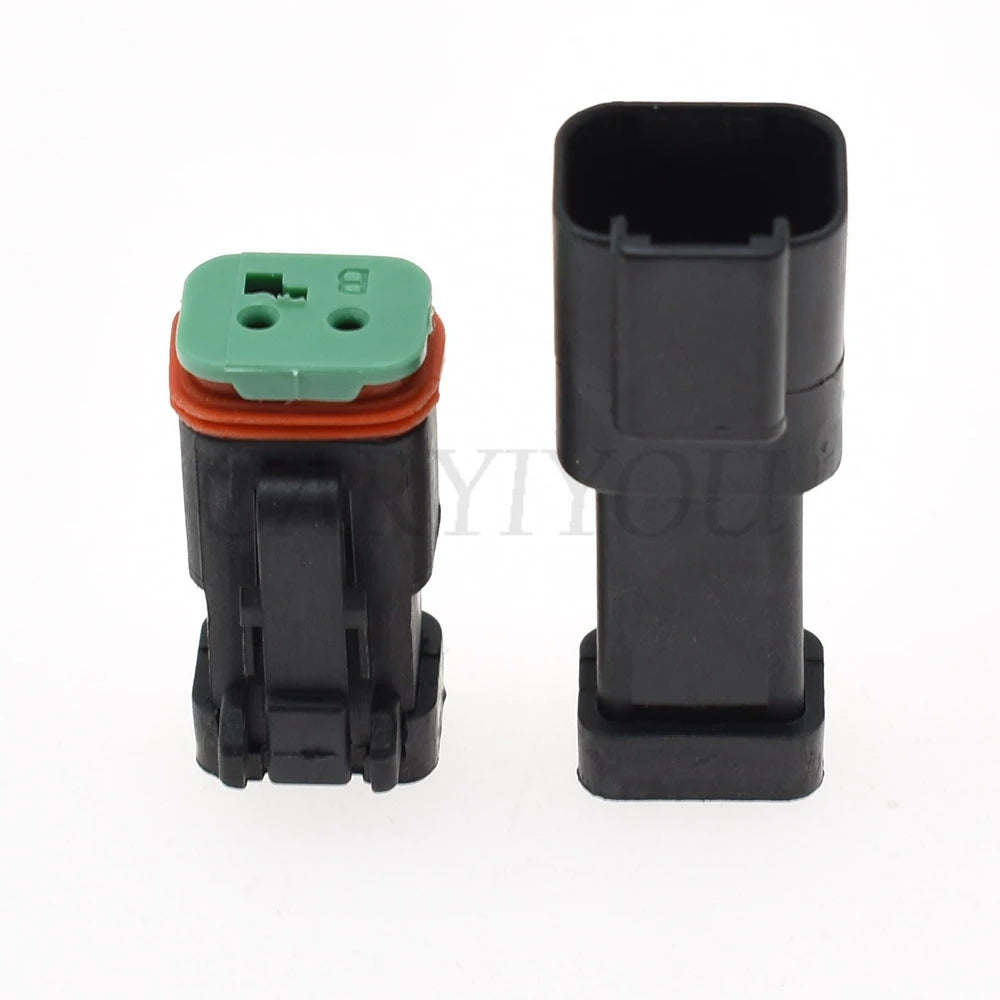

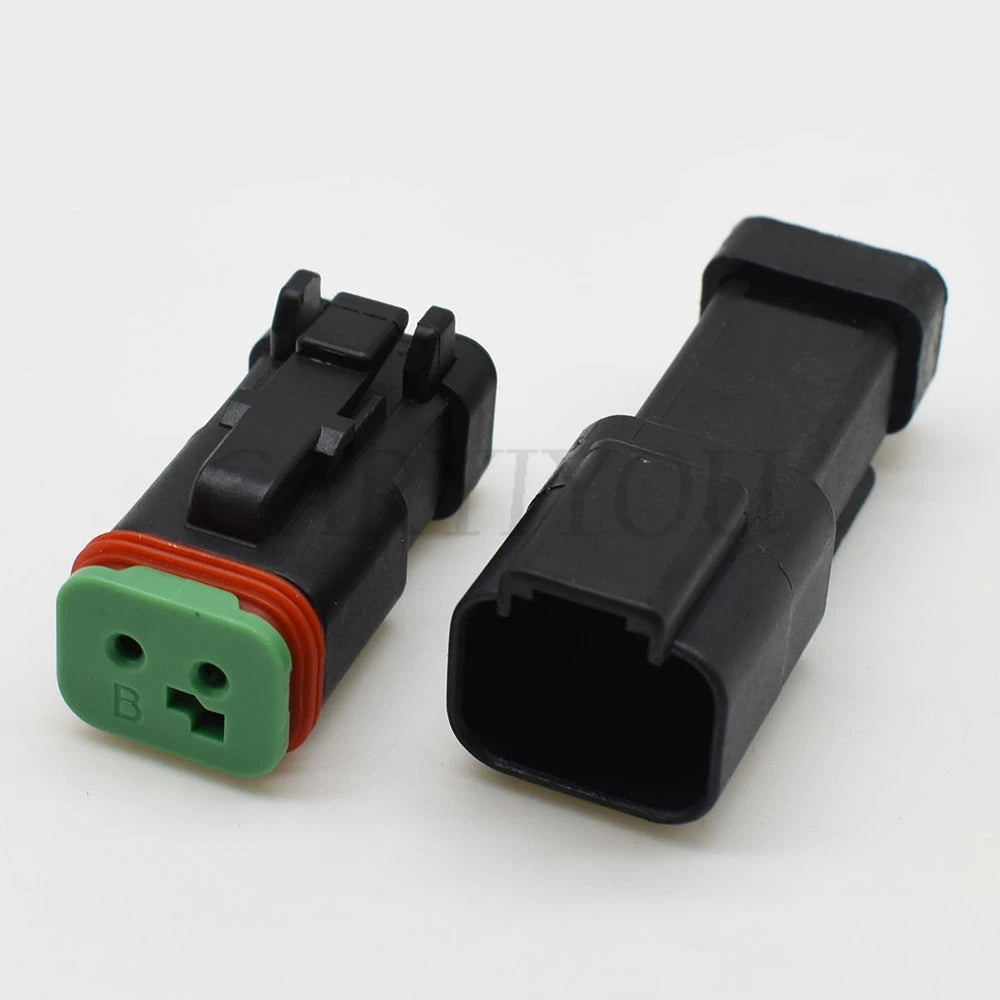

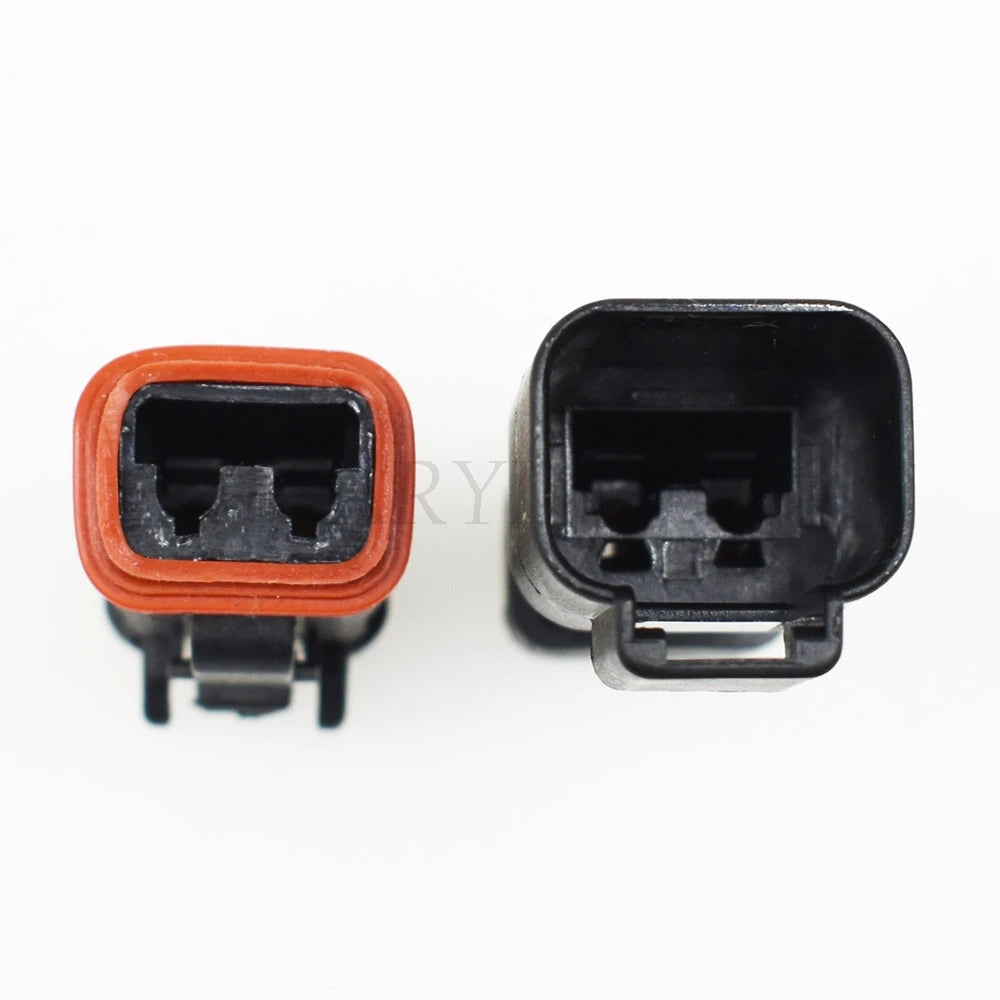

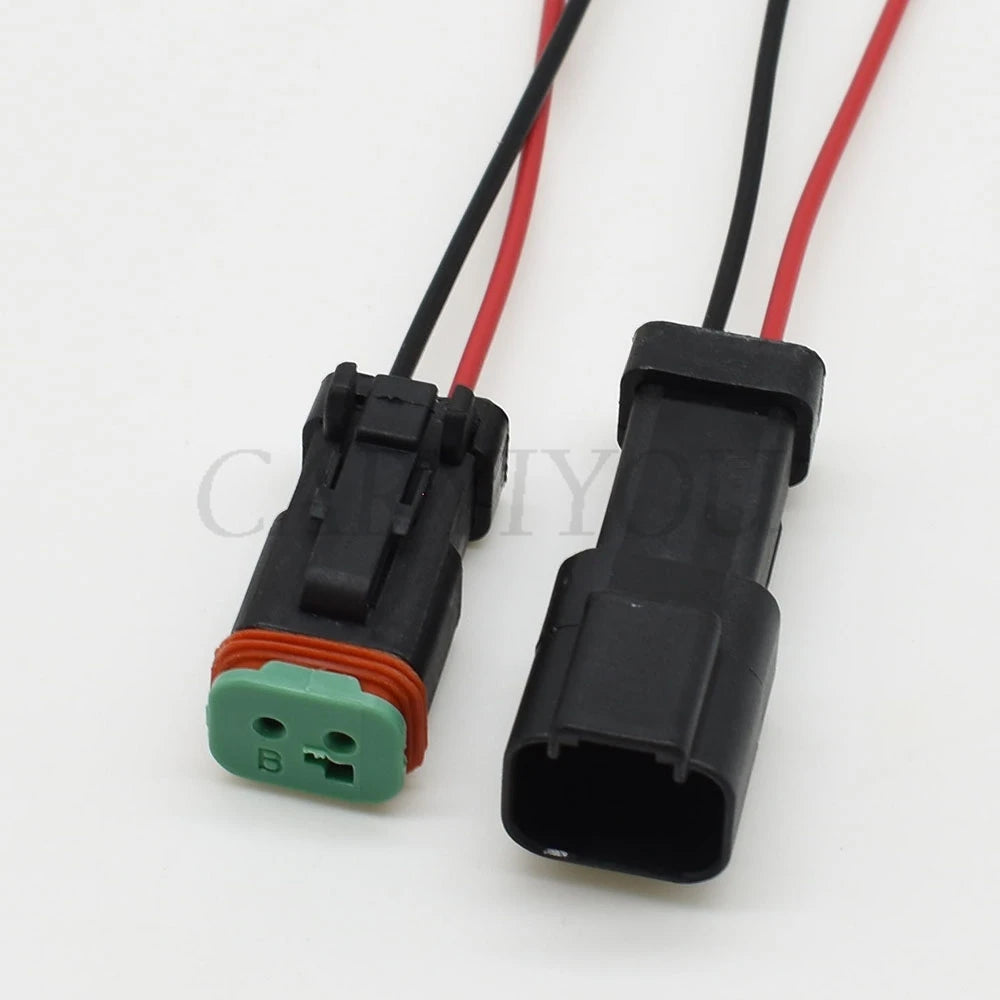

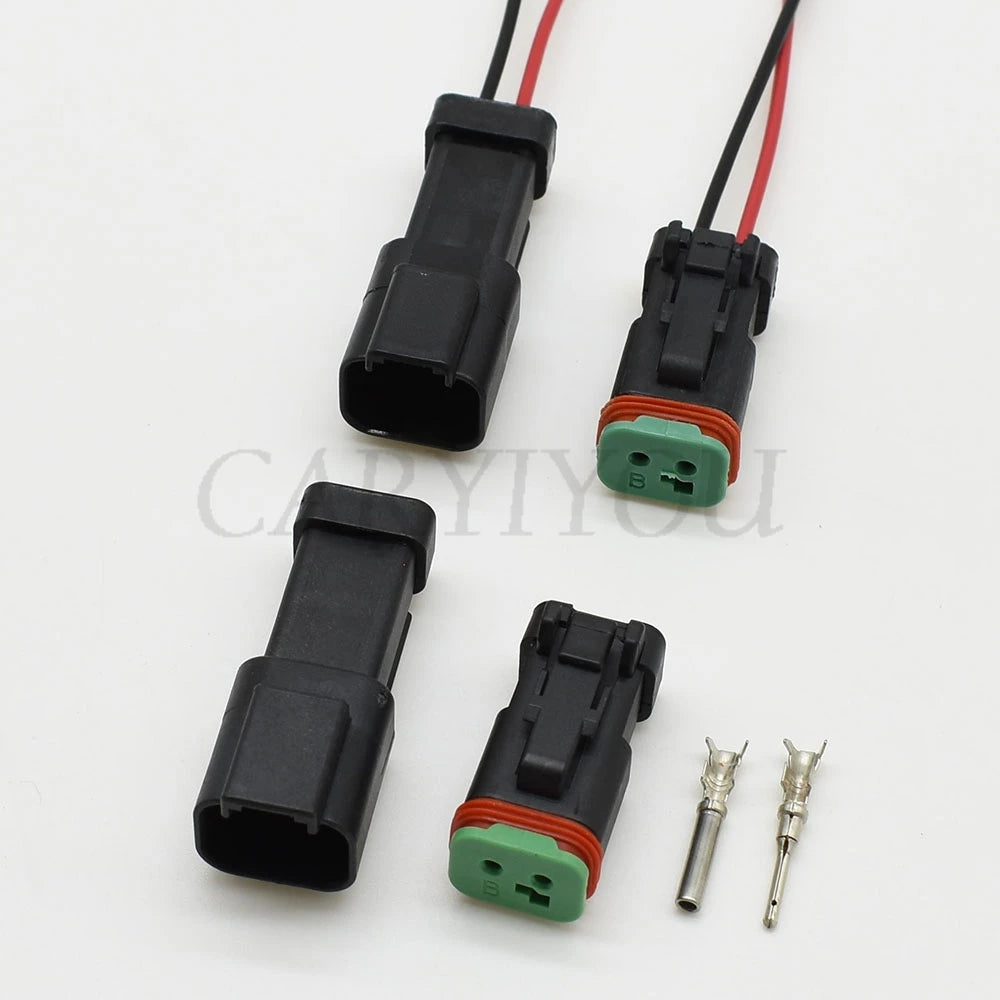

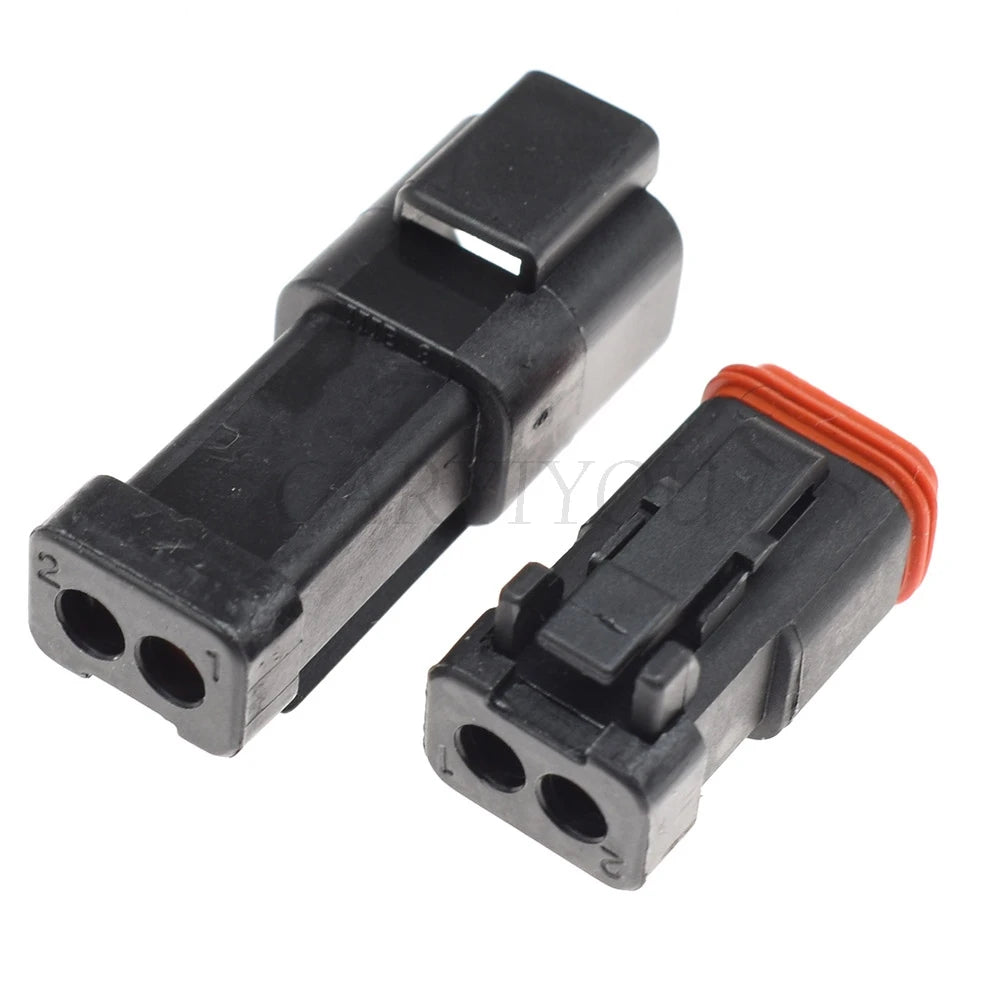

2-Pin DT Series Waterproof Automotive Connector — Male & Female, Mazda DT04-2P-E005 / DT06-2S-EP06
OEM-specification 2-pin DT series waterproof automotive connector in male plug (DT04-2P-E005) and female socket (DT06-2S-EP06) configuration, compatible with Deutsch DT series connector systems used in Mazda and universal automotive wiring harness applications. The DT series is an industry-standard heavy-duty connector system widely used in automotive, marine, agricultural, and industrial equipment wiring where vibration resistance and IP67 waterproofing are required.
Part Number Cross-Reference
| Part Number | Side | Description |
|---|---|---|

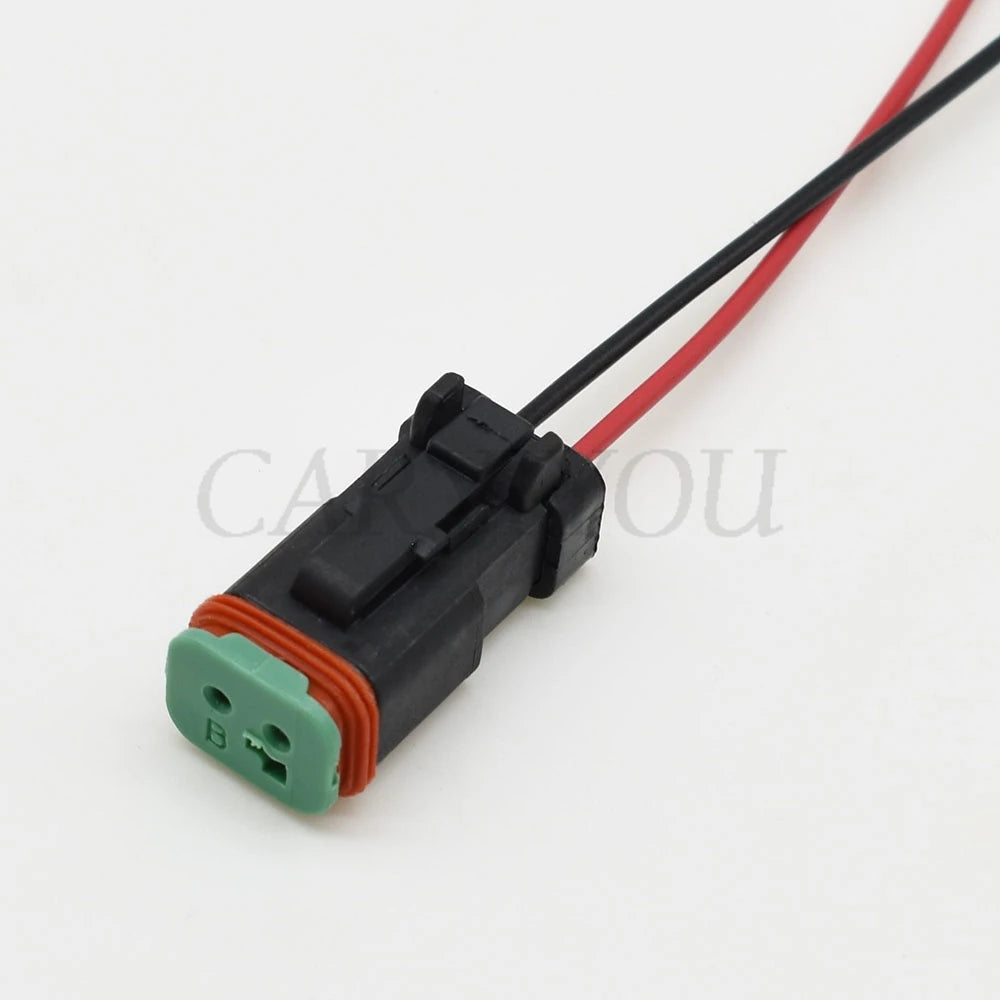

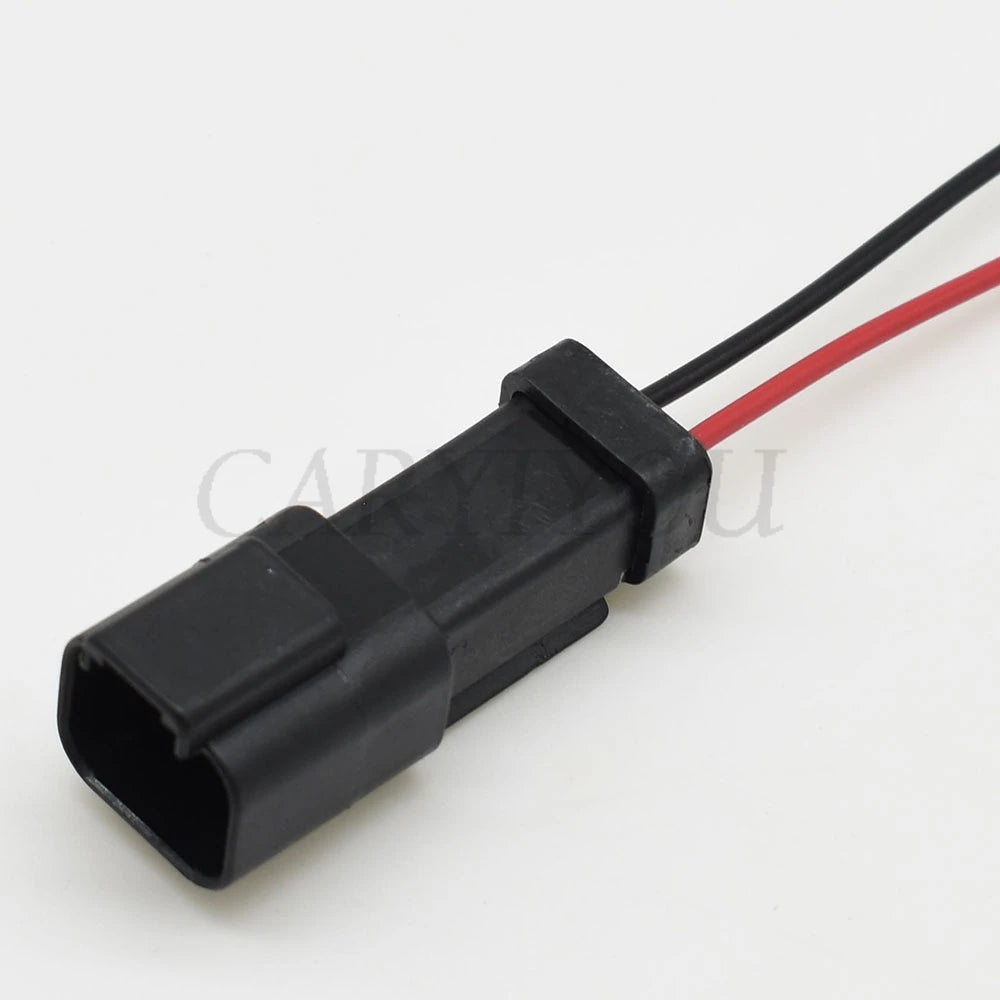

| DT04-2P-E005 | Male (plug) | 2-pin DT male plug housing, grey, E005 wedge lock |
| DT06-2S-EP06 | Female (socket) | 2-pin DT female socket housing, grey, EP06 wedge lock |
Technical Specifications
| Parameter | Value |
|---|---|
| Pin Count | 2 |
| Series | Deutsch DT (compatible) |
| Housing Material | PA66 (Nylon 66), UL94 V-0 |
| Seal Rating | IP67 (1m / 30 min) |
| Rated Voltage | 12V / 24V DC |
| Rated Current | 13A per pin (with 12 AWG wire) |
| Operating Temperature | −55°C to +125°C |
| Wire Range | 0.5–3.0mm² (AWG 20–12) |
| Locking | Wedge lock secondary retention |
| Certification | CE, RoHS |
Typical Applications
- Mazda Wiring Harness: OEM-compatible replacement connector for Mazda vehicle wiring harness repairs using DT series connector positions
- Automotive Accessory Wiring: Waterproof 2-pin connector for automotive accessory installation (driving lights, winches, compressors) requiring a robust, vibration-resistant connection
- Marine Wiring: IP67-rated 2-pin connector for marine electrical systems, bilge pump wiring, navigation light circuits, and outboard motor accessories
- Agricultural & Construction Equipment: Heavy-duty 2-pin connector for tractor, harvester, and construction equipment sensor and actuator wiring in harsh outdoor environments
- Trailer & Caravan Wiring: Waterproof 2-pin connector for trailer brake controller, electric brake, and auxiliary power wiring
- Off-Road & 4WD Accessories: Robust connector for winch, light bar, air compressor, and recovery equipment wiring on off-road vehicles
FAQ
Q: Are these connectors compatible with genuine Deutsch DT terminals?
A: Yes. These housings are dimensionally compatible with Deutsch DT series terminals (0462-201-16141 for male, 0460-202-16141 for female). Genuine Deutsch or compatible aftermarket terminals can be used.
Q: What wire gauge is recommended for 13A applications?
A: For 13A continuous current, use 12 AWG (3.0mm²) wire. For lower current applications (≤8A), 16 AWG (1.5mm²) is sufficient. Always match the terminal crimp size to the wire gauge.

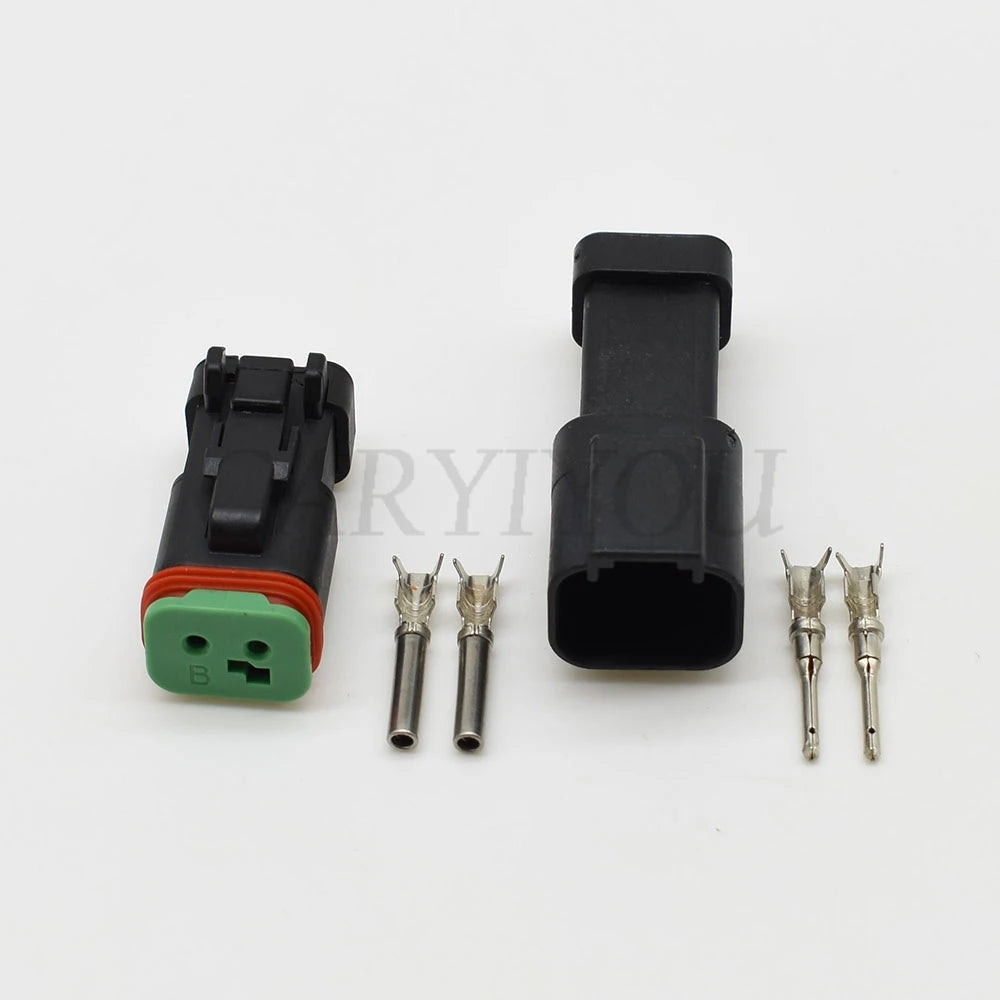

Package Contents

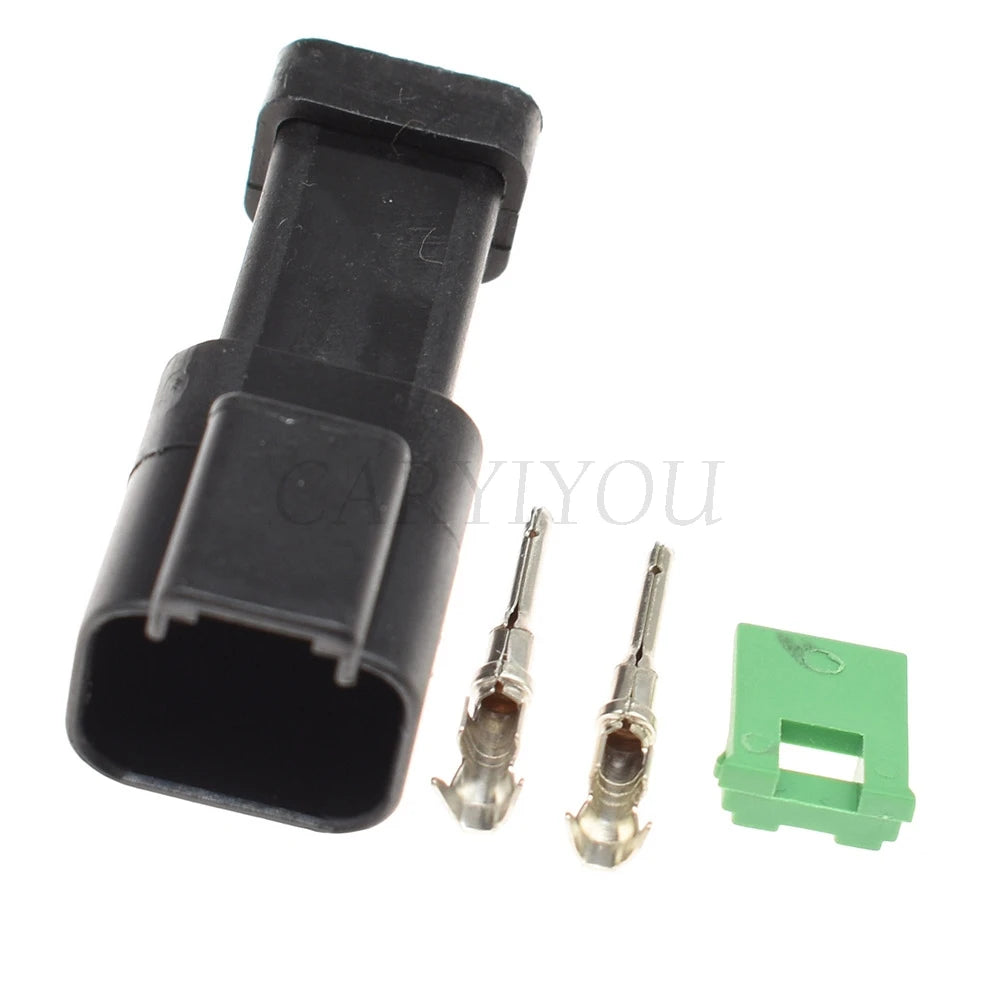

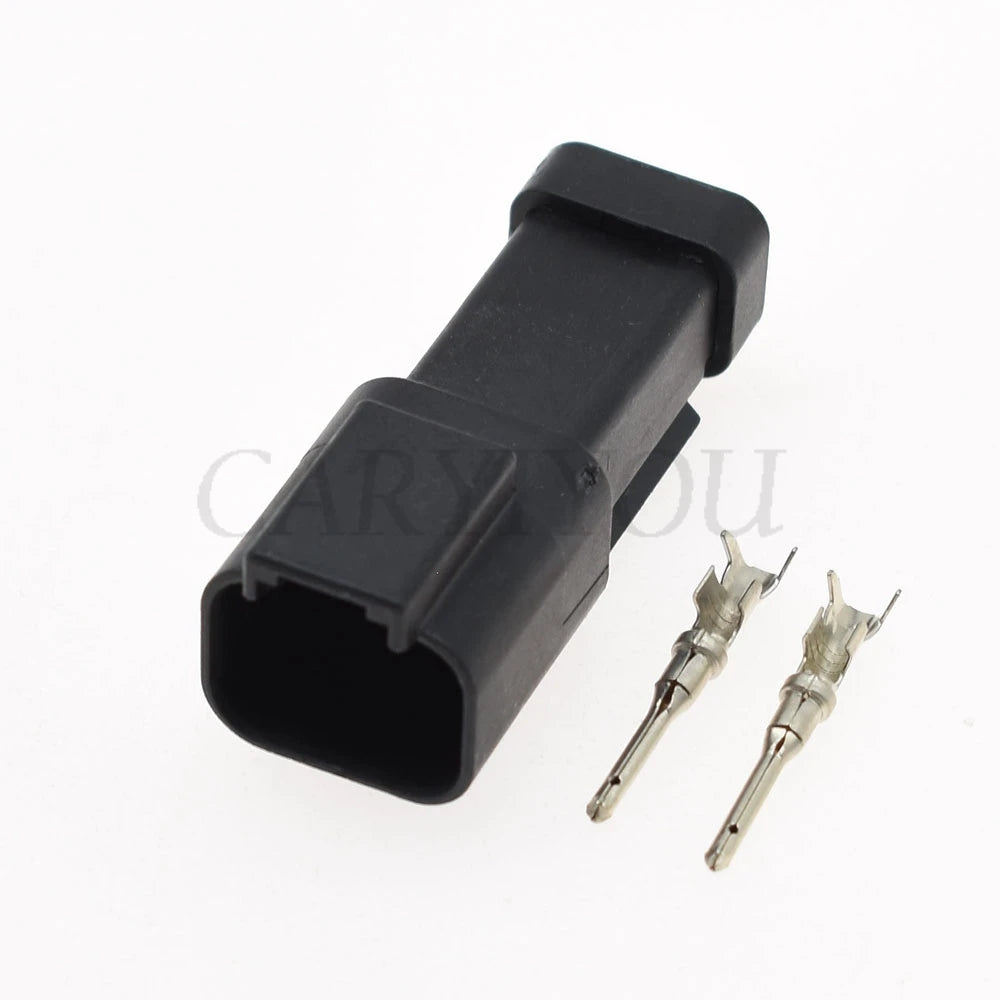

- 1 × DT04-2P-E005 male plug housing

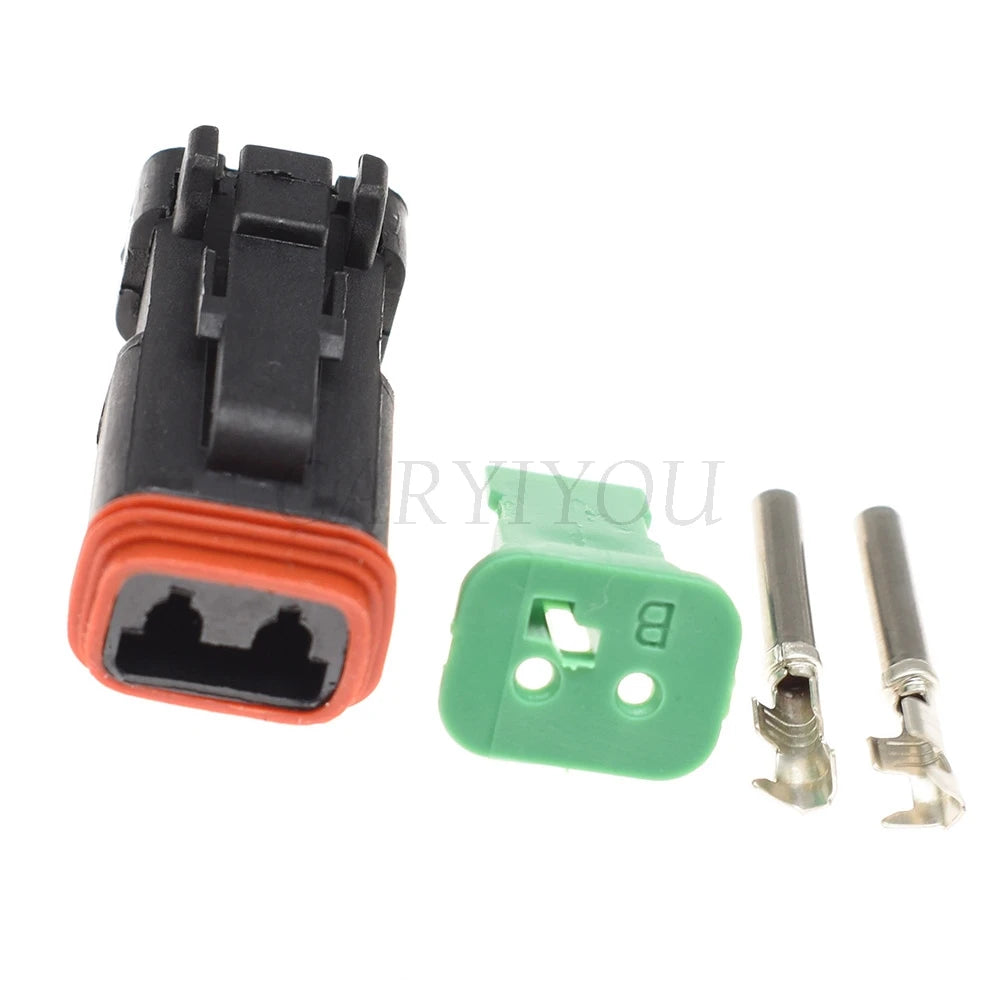

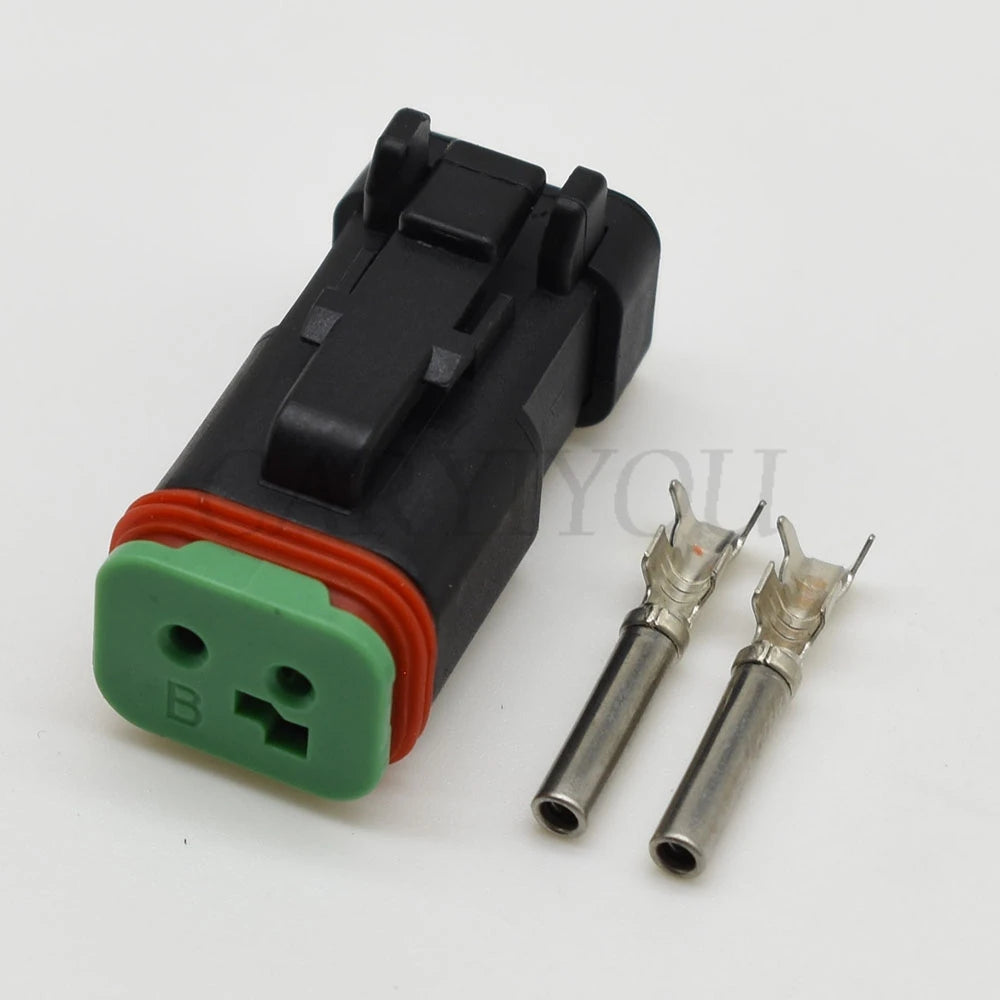

- 1 × DT06-2S-EP06 female socket housing
- Wedge locks (E005 + EP06)
