1 Set 22 Pin Automobile Instrument Connector Car Central Control Plug Socket IL-AG5-22P-D3C1 IL-AG5-22S-D3C1 For Honda Volvo JAE
1 Set 22 Pin Automobile Instrument Connector Car Central Control Plug Socket IL-AG5-22P-D3C1 IL-AG5-22S-D3C1 For Honda Volvo JAE
Couldn't load pickup availability

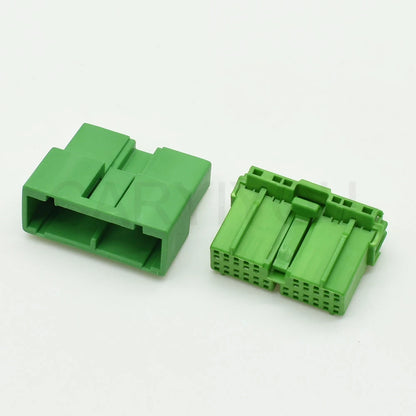

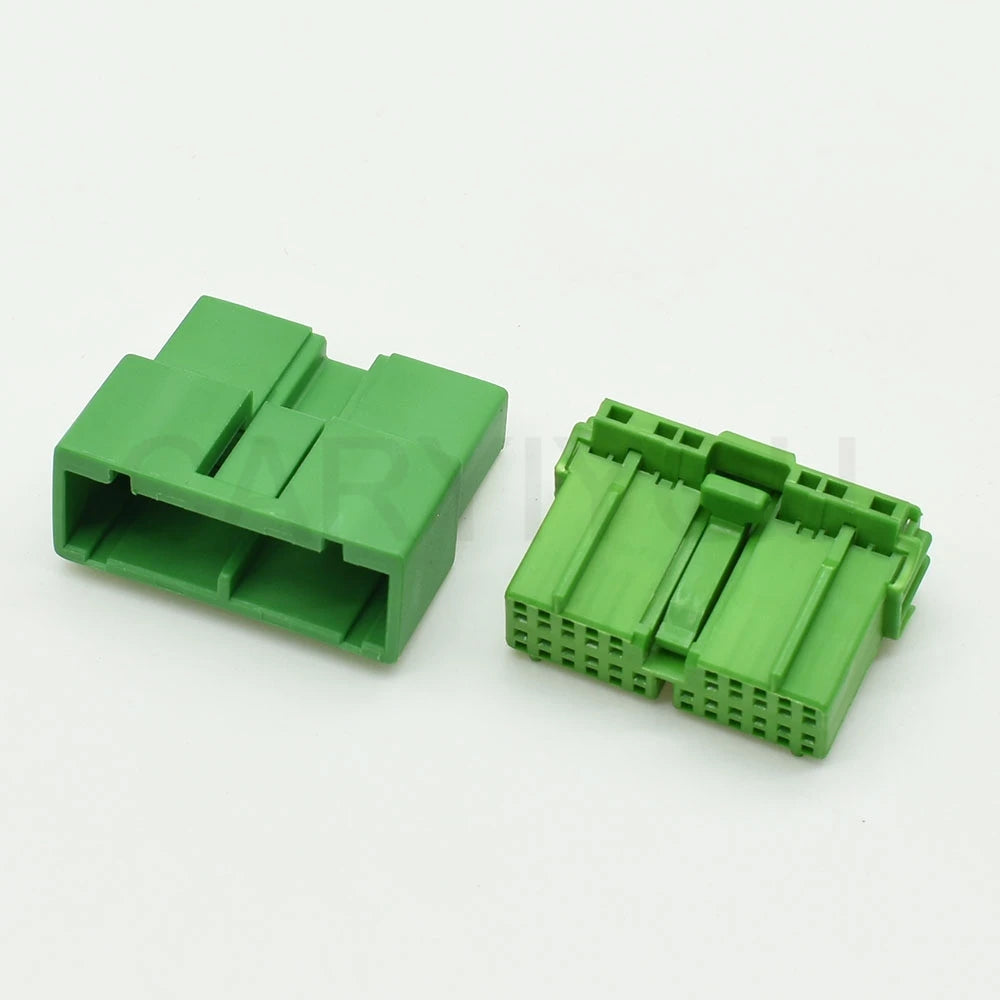

22-Pin Automobile Instrument Connector — IL-AG5-22P-D3C1 / IL-AG5-22S-D3C1, Honda & Volvo, JAE
OEM-specification 22-pin automobile instrument cluster and central control connector in JAE IL-AG5-22 series, available in male plug (IL-AG5-22P-D3C1) and female socket (IL-AG5-22S-D3C1) configuration. Used in the instrument cluster, central control module, and dashboard wiring harness of Honda and Volvo vehicles. The IL-AG5 series is a Japan Aviation Electronics (JAE) automotive connector widely used in Japanese and European vehicle instrument and infotainment wiring applications.
Part Number Cross-Reference
| Part Number | Configuration | Application |
|---|---|---|

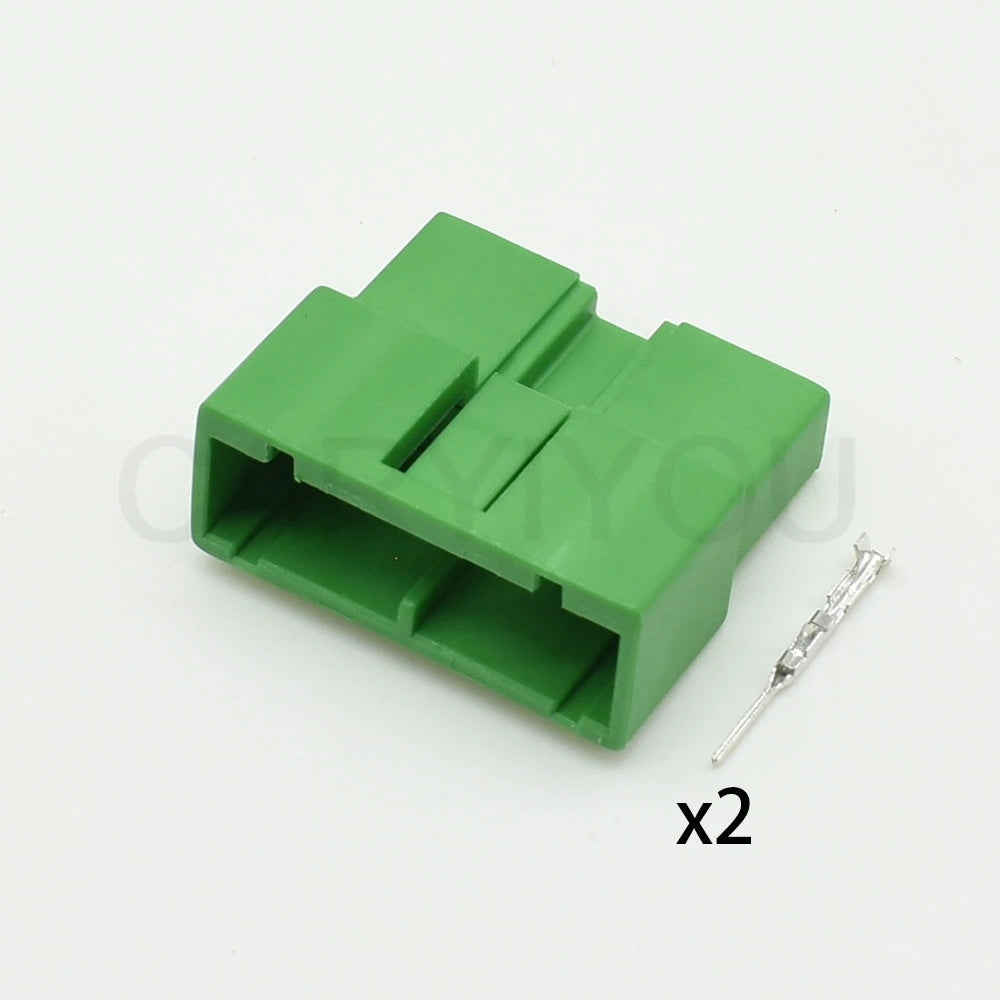

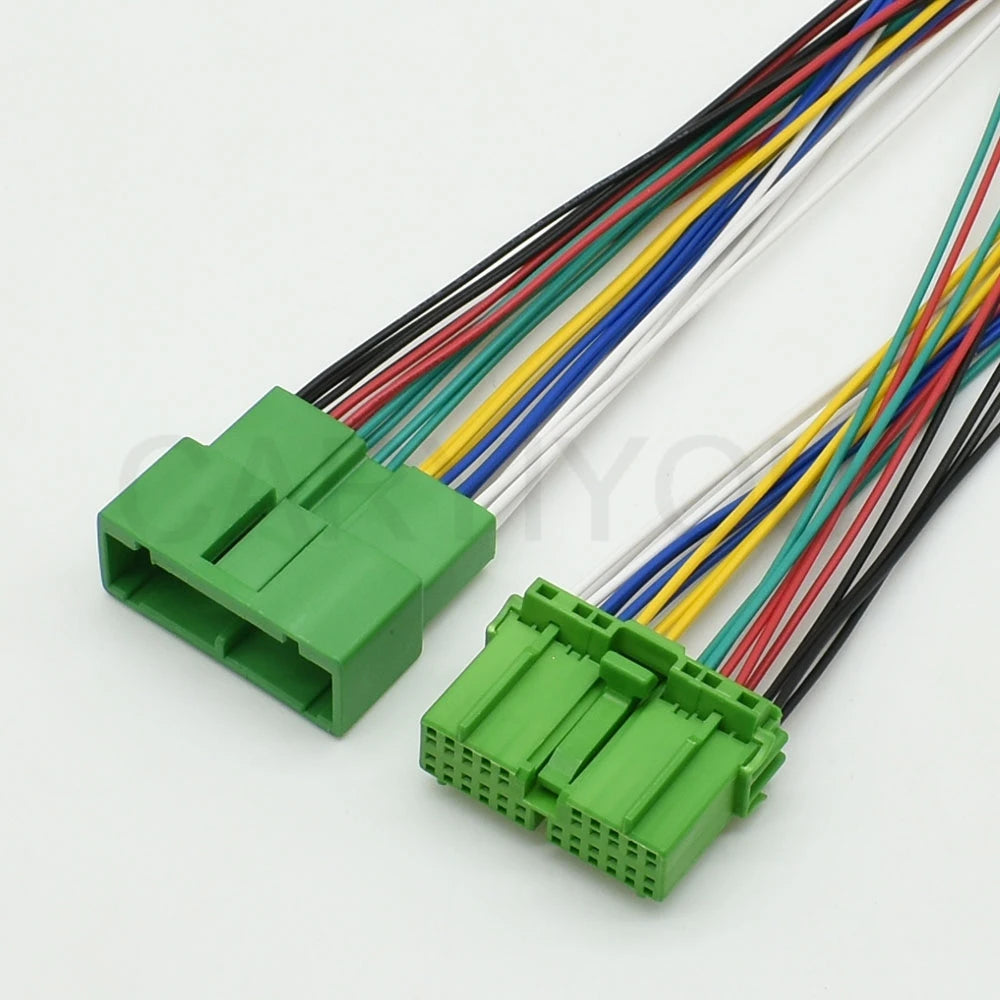

| IL-AG5-22P-D3C1 | Male plug (22-pin) | Honda / Volvo instrument cluster harness |

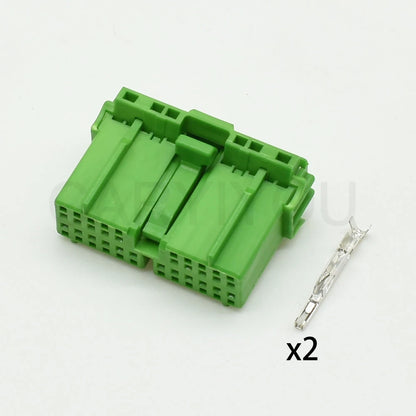

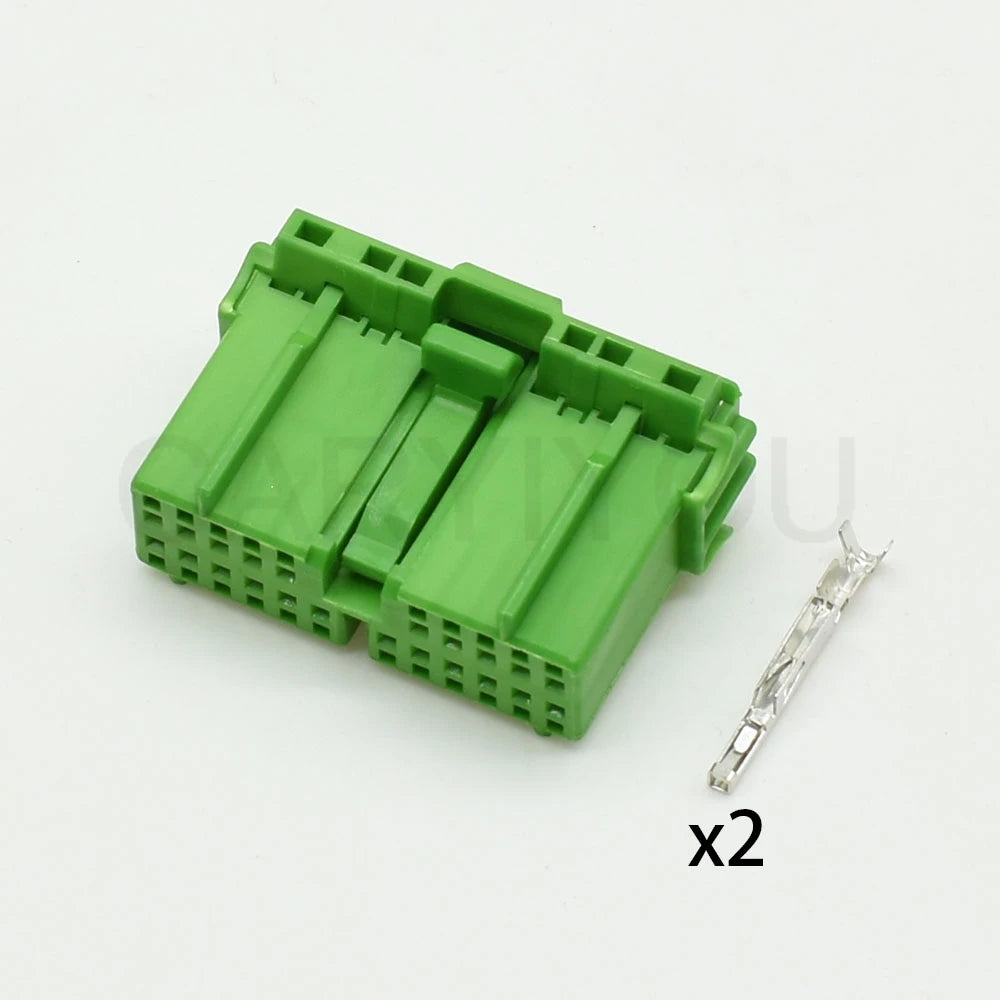

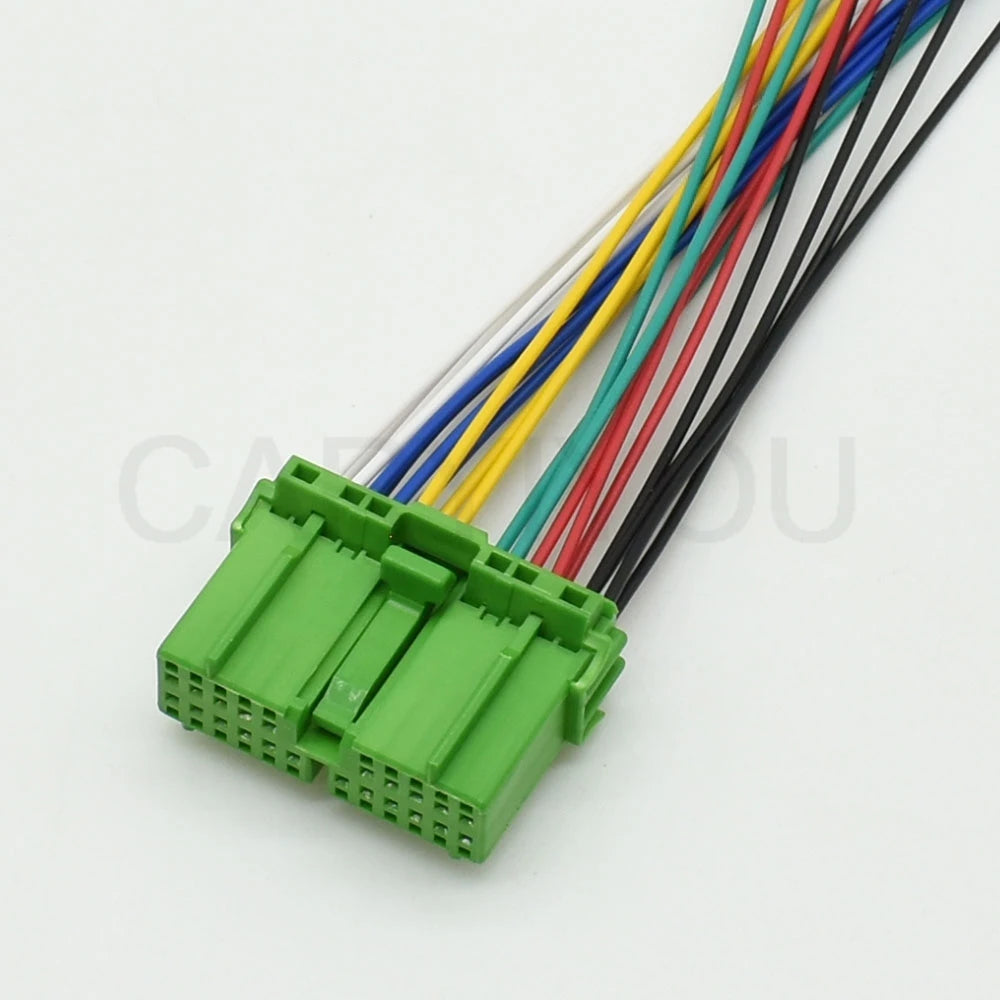

| IL-AG5-22S-D3C1 | Female socket (22-pin) | Honda / Volvo instrument cluster harness |
Technical Specifications
| Parameter | Value |
|---|---|
| Pin Count | 22 |
| Series | JAE IL-AG5 |
| Housing Material | PA66 (Nylon 66) |
| Terminal Material | Copper alloy, gold-plated (signal contacts) |
| Rated Voltage | 12V DC |
| Rated Current | Up to 3A per pin |
| Operating Temperature | −40°C to +105°C |
| Locking | Positive latch |
| Certification | CE, RoHS |
Typical Applications
- Instrument Cluster Wiring: Replace damaged or corroded 22-pin instrument cluster connector on Honda Civic, Accord, CR-V, and Volvo S40, V50, C30 vehicles
- Central Control Module: Repair central control module wiring harness connector for dashboard electronics, HVAC control, and infotainment system wiring
- Dashboard Restoration: Restore instrument cluster wiring harness connectors during dashboard restoration and interior renovation
- Custom Harness: Build custom instrument cluster wiring extensions and adapters using OEM-spec JAE IL-AG5 connectors
FAQ
Q: Which Honda and Volvo models use the IL-AG5-22 connector?
A: The IL-AG5-22 series is used across multiple Honda and Volvo models. Verify against your vehicle’s wiring diagram and parts manual before ordering to confirm compatibility with your specific model year and variant.
Q: Are terminals included?
A: Terminals are not included unless specified. Compatible JAE IL-AG5 series terminals must be crimped onto the wire and inserted into the housing.
Package Contents

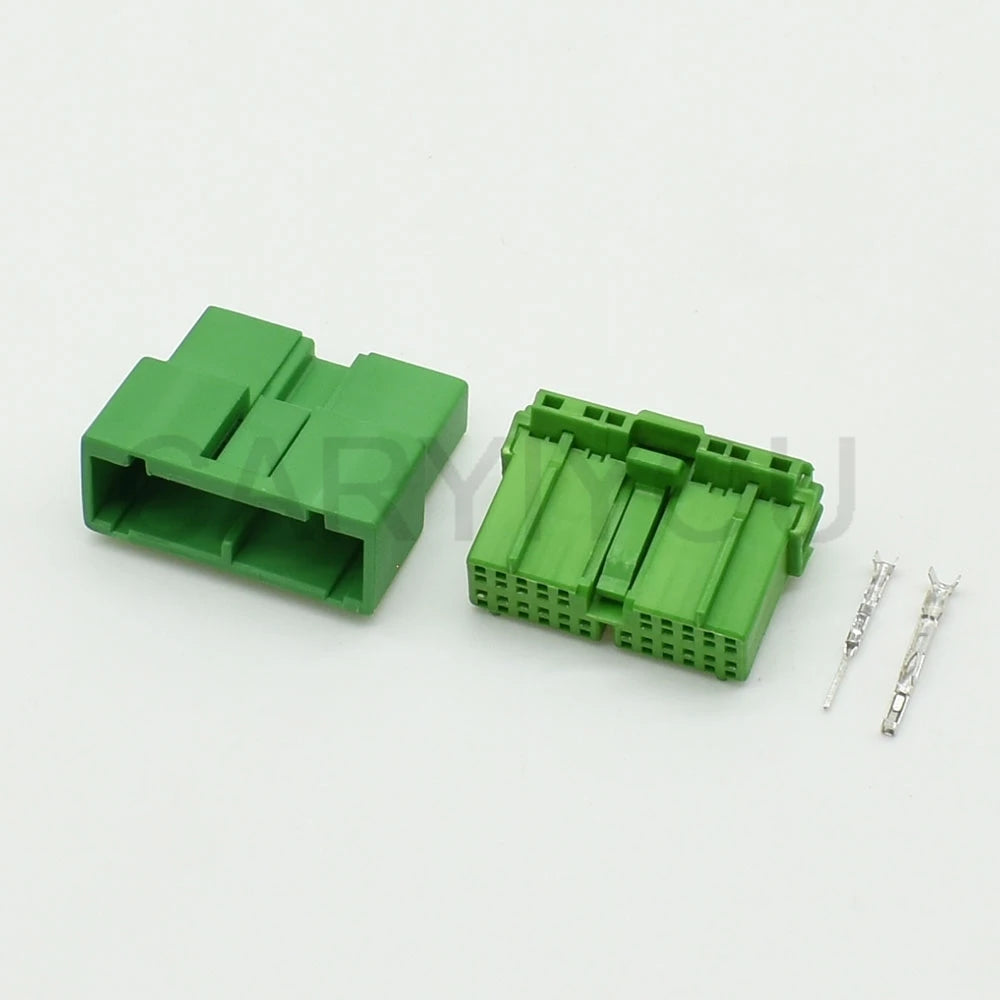

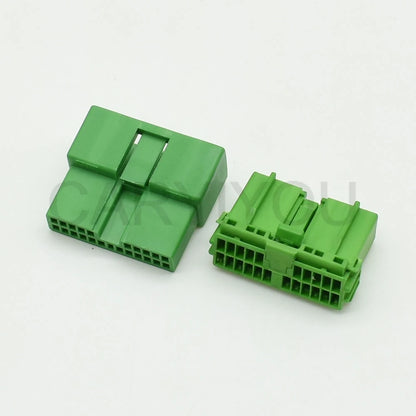

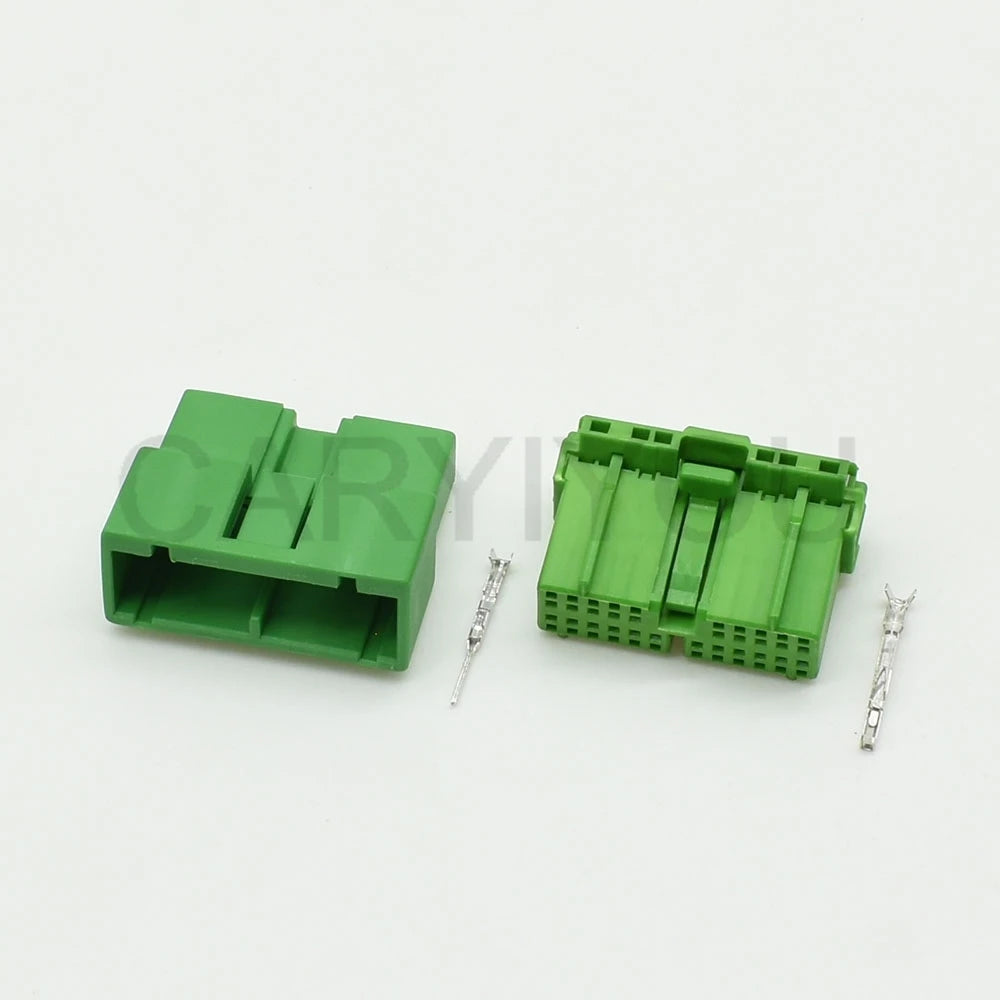

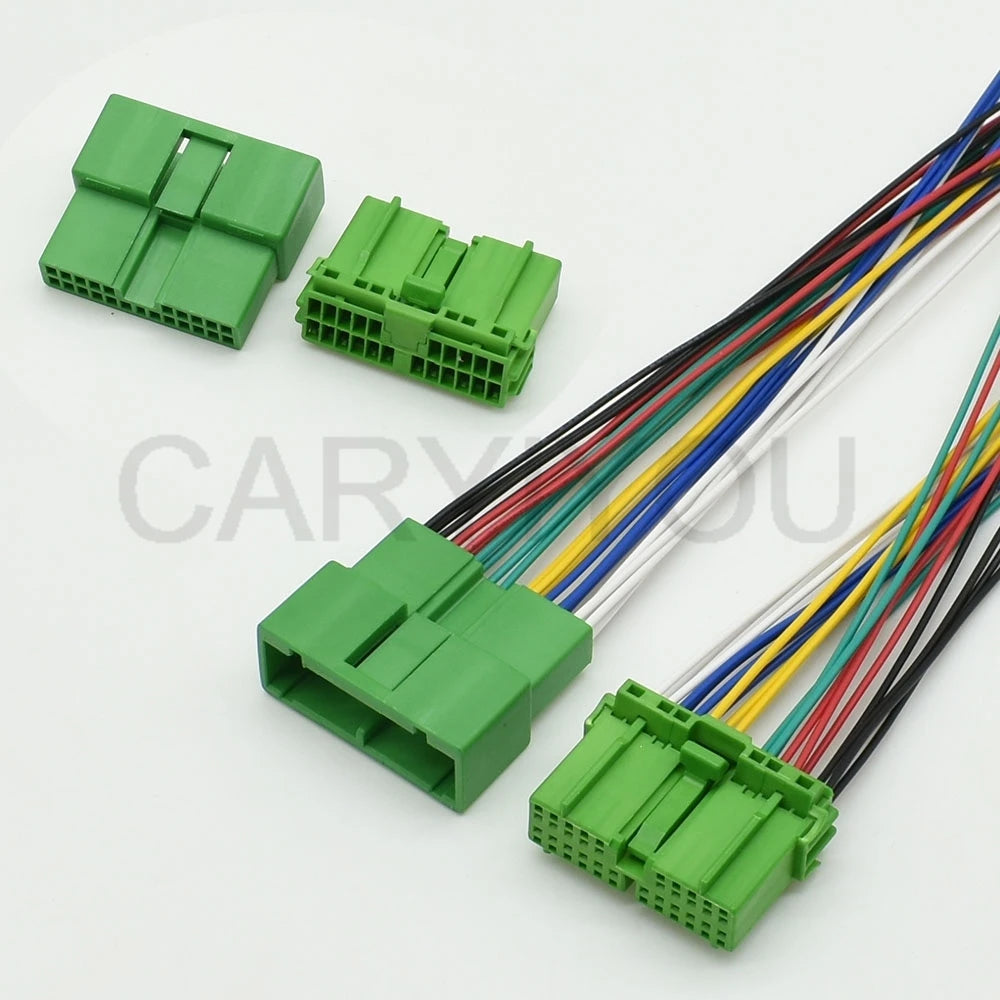

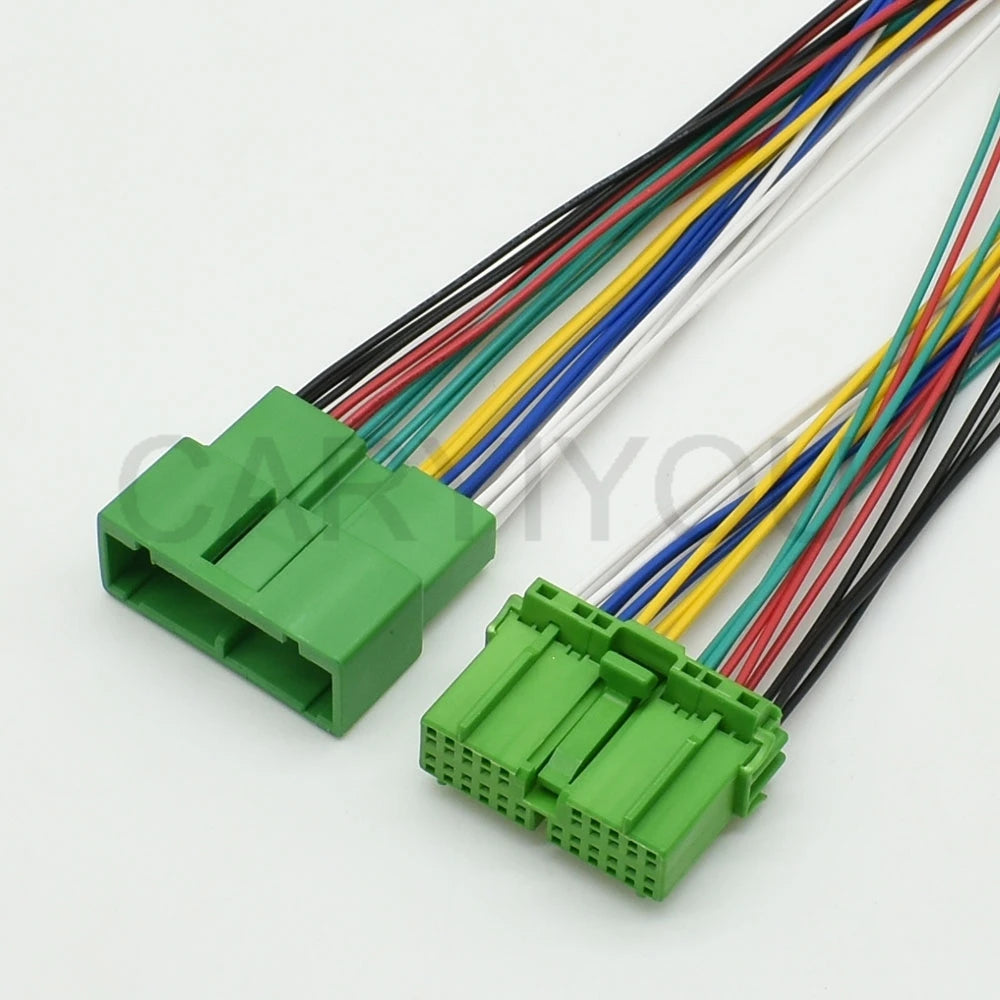

- 1 set × 22-pin JAE IL-AG5 connector (male plug IL-AG5-22P-D3C1 + female socket IL-AG5-22S-D3C1)
