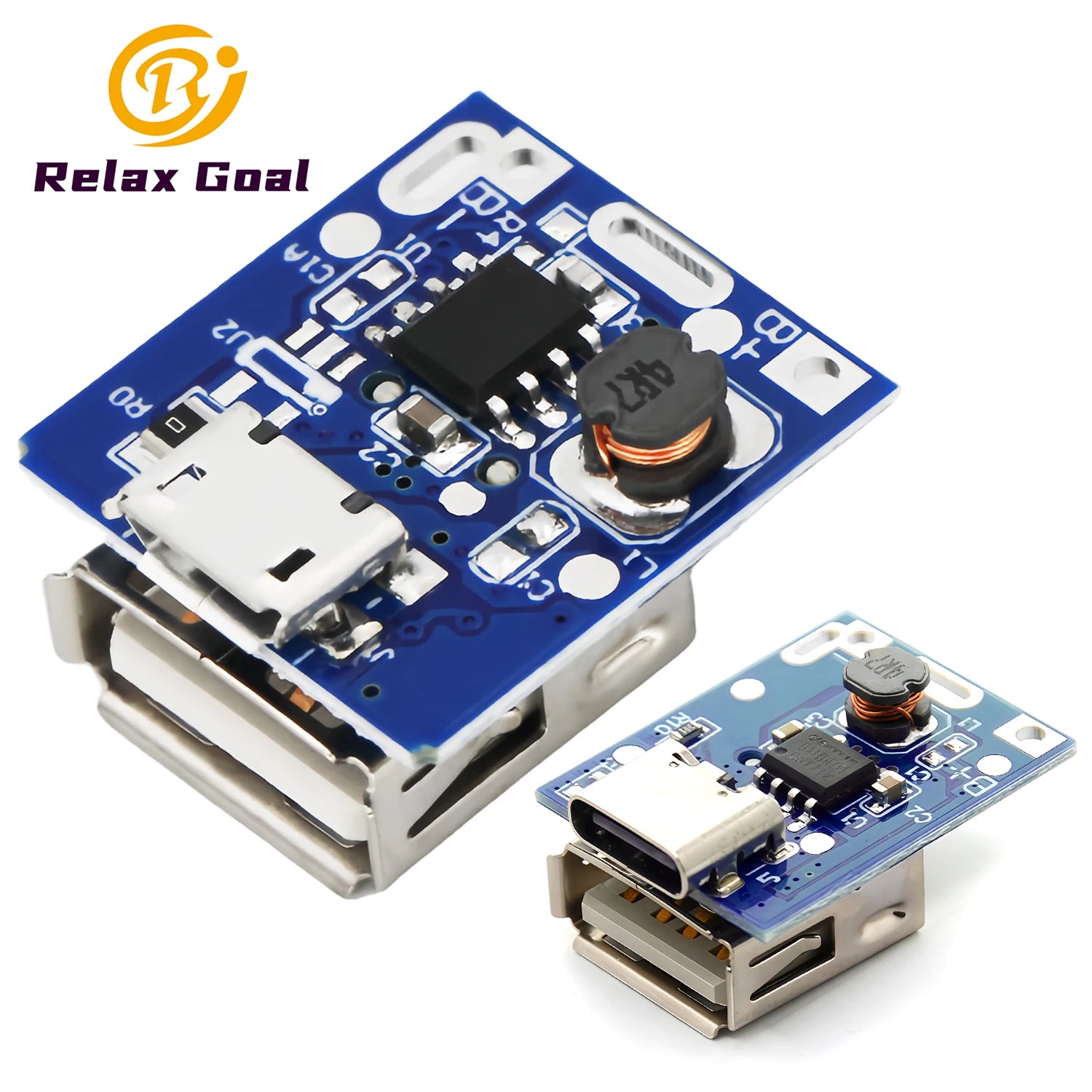

3-5PCS 5V 1A Boost Step Up Power Module Lithium LiPo Battery Charging Protection Board LED Display USB for DIY Charger 134N3P
3-5PCS 5V 1A Boost Step Up Power Module Lithium LiPo Battery Charging Protection Board LED Display USB for DIY Charger 134N3P
Couldn't load pickup availability
SPECIFICATIONS
Application: Computer
Brand Name: Keszoox
Condition: New
Dissipation Power: 5V 1A
High-concerned chemical: None
Operating Temperature: --
Origin: Mainland China
Package: other
Supply Voltage: 5V
Type: Voltage Regulator
is_customized: Yes
Warm Tips:
Our store support wholesale, the more quantity the more discount.
If you want to bulk order, please feel free to contact seller for wholesale price, looking forward to receive your inquiry, thanks! ^_^
Features:
1. Charge and discharge status indication
2. Built-in charging and discharging power MOS
3. Integrated charge management and discharge management
4. Intelligent temperature control and over temperature protection
5. Integrated output overvoltage protection, short circuit protection, heavy duty protection
6. Integrated overcharge and over discharge protection
7. Supports turbulence mode and zero voltage charging
Application: Batteries like Polymer ,18650 Lithium ,Cell Phone ,Tablet and MP3 Battery ect.
Note:
The step up charging board can be connected to a lithium battery and connected in multiple sections of lithium batteries, as long as the voltage is 3.7-4.2V in parallel(only be connected in parallel, not in series)
Specification:
1. Input voltage: 3.7V~5.5V
2. Charging current: up to 1A

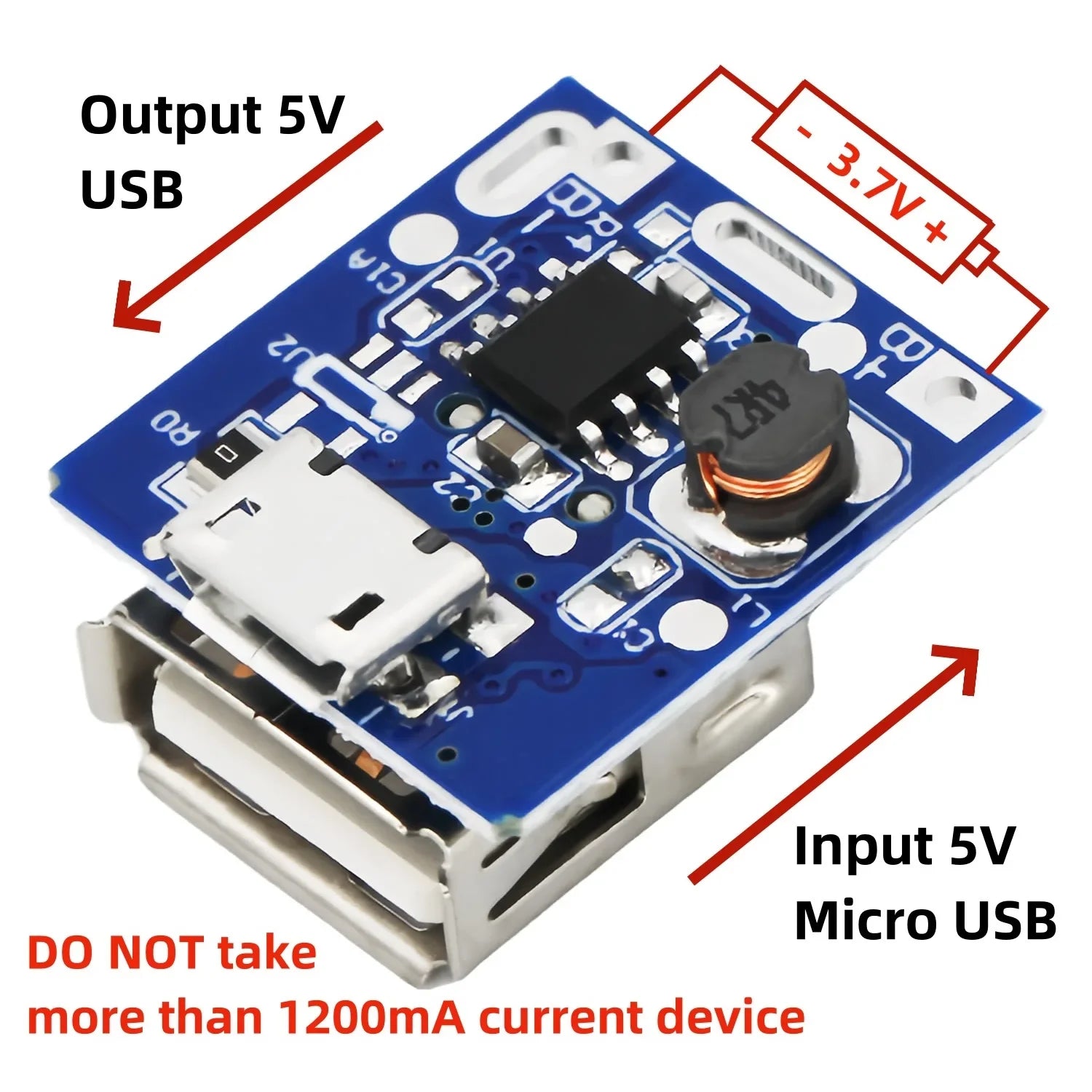

3. Output current: up to 1A (please do not take longer than 1200mA current device)
4. Output voltage: 5V
5. BAT discharge termination voltage: 2.9V
6. Preset 4.2V charging voltage with an accuracy of ±1%
7. Discharge efficiency: 85% (input 3.7V, output 5V/1A)
8. Maximum 8uA standby current
