3.7V/4.2V to 5V/9V 2A Adjustable Step-Up Charger Module for 18650 Lithium Li-ion Battery
3.7V/4.2V to 5V/9V 2A Adjustable Step-Up Charger Module for 18650 Lithium Li-ion Battery
Regular price
$3.80 USD
Regular price
$0.00 USD
Sale price
$3.80 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- ★Product Description
- ★About us
- ★Custom cable
SPECIFICATIONS
Application: MOBILE PHONE
Brand Name: OLNYLO
Condition: New
High-concerned chemical: None
Model Number: 3.7V 4.2V to 9V 5V 2A
Origin: Mainland China
Package: SMD
Supply Voltage: 3.7V 4.2V to 9V 5V 2A
Type: Voltage Regulator
is_customized: Yes
3.7V 4.2V to 9V 5V 2A Charge Discharge Integrated Step Up Module Adjustable 18650 Lithium Li-ion Battery Charger Module

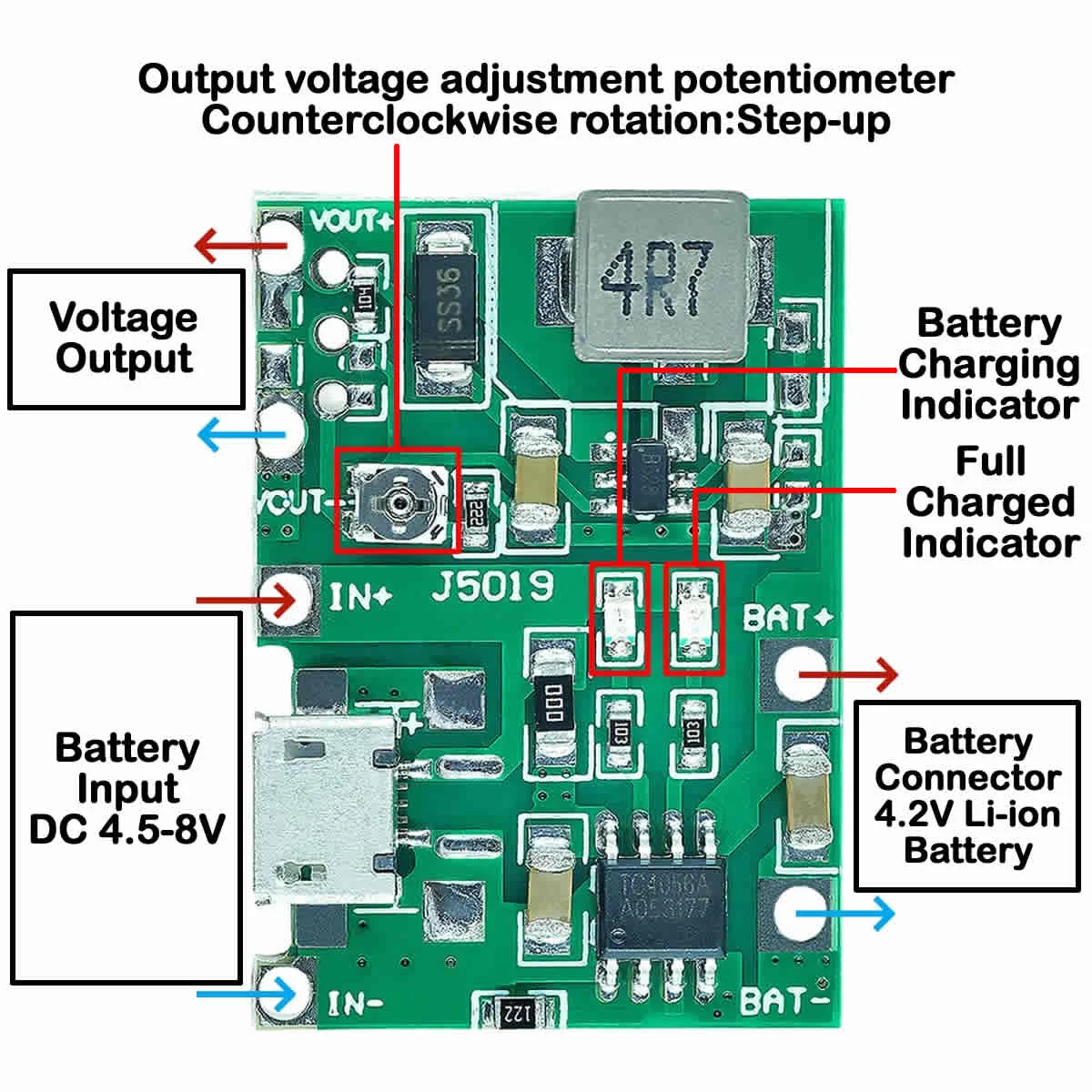

1.Before use, before debugging, the default output is about 9V.
2. Input voltage 4.5-8V
3. The output voltage can be continuously adjusted 4.3-27V
(4.3V or more, 27V or less, any voltage can be output, you can adjust the voltage counterclockwise)
4. Charging voltage 4.2V Charging current is 1A
5. Discharge current 2A output current to calculate
6. Output reference maximum current 5V 1.4A , 9V 0.8A, 12V 0.6A
7. Static current is about 0.5 mA
8. Overshoot protection Overdischarge protection None
(it can be said that there is 2V cut-off boost, but there is still 2V without blocking the output)
9. Cut-off boost 2V, depending on the situation, whether to add a protection board
For example:
VIN+ termination 5V solar panel BAT+ terminal can output 4.2V to 3.7V 18650 battery charging OUT+ terminal can output an adjustable voltage How much you need to adjust
Can be used for multimeters, modified lithium battery charging
1.Before use, before debugging, the default output is about 9V.
2. Input voltage 4.5-8V
3. The output voltage can be continuously adjusted 4.3-27V
(4.3V or more, 27V or less, any voltage can be output, you can adjust the voltage counterclockwise)
4. Charging voltage 4.2V Charging current is 1A
5. Discharge current 2A output current to calculate
6. Output reference maximum current 5V 1.4A , 9V 0.8A, 12V 0.6A
7. Static current is about 0.5 mA
8. Overshoot protection Overdischarge protection None
(it can be said that there is 2V cut-off boost, but there is still 2V without blocking the output)
9. Cut-off boost 2V, depending on the situation, whether to add a protection board
For example:
VIN+ termination 5V solar panel BAT+ terminal can output 4.2V to 3.7V 18650 battery charging OUT+ terminal can output an adjustable voltage How much you need to adjust
Can be used for multimeters, modified lithium battery charging
