3-Pin Auto Connector 31067-1040 31067-1010 1393367-1 for Door Tweeter Horn & Atmosphere Lamp Ford Focus Mondeo
3-Pin Auto Connector 31067-1040 31067-1010 1393367-1 for Door Tweeter Horn & Atmosphere Lamp Ford Focus Mondeo
Couldn't load pickup availability

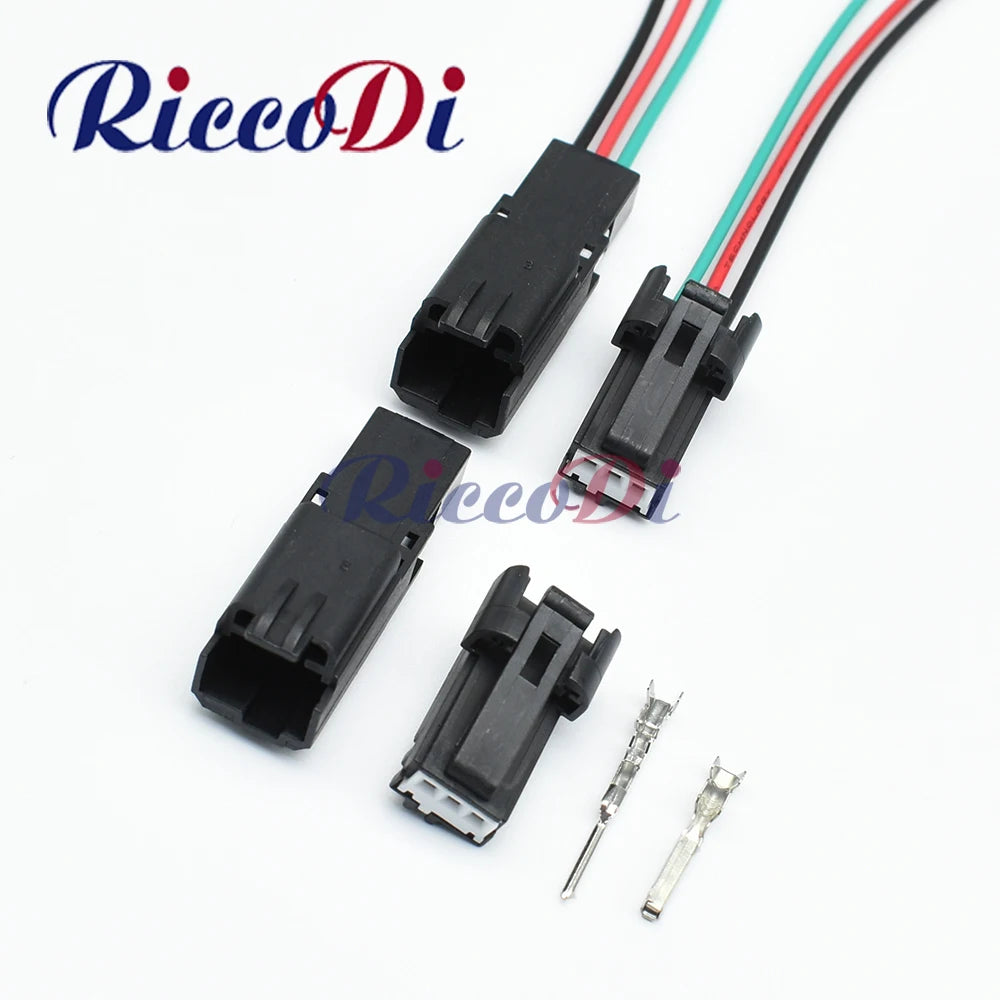

3-Pin Auto Connector — 31067-1040 / 31067-1010 / 1393367-1 for Ford Focus & Mondeo Door Tweeter, Horn & Atmosphere Lamp
OEM-specification 3-pin automotive connector for door tweeter speaker, horn, and atmosphere lamp wiring on Ford Focus (Mk2/Mk3) and Ford Mondeo (Mk4/Mk5). Cross-references TE Connectivity / AMP part numbers 31067-1040 (male) and 31067-1010 / 1393367-1 (female). Direct plug-and-play replacement for damaged or corroded OEM connectors without harness modification.
Part Number Cross-Reference
| Standard | Part Number | Side |
|---|---|---|
| TE Connectivity / AMP | 31067-1040 | Male (plug) |
| TE Connectivity / AMP | 31067-1010 | Female (receptacle) |
| TE Connectivity / AMP | 1393367-1 | Female (alternate) |
Technical Specifications
| Parameter | Value |
|---|---|
| Pin Count | 3 |
| Housing Material | PA66, UL94 V-0 |
| Rated Voltage | 12V DC |
| Rated Current | ≤5A per pin |
| Operating Temperature | −40°C to +105°C |
| Terminal Material | Copper alloy, tin-plated |
| Wire Range | 0.5–1.5mm² (AWG 20–16) |

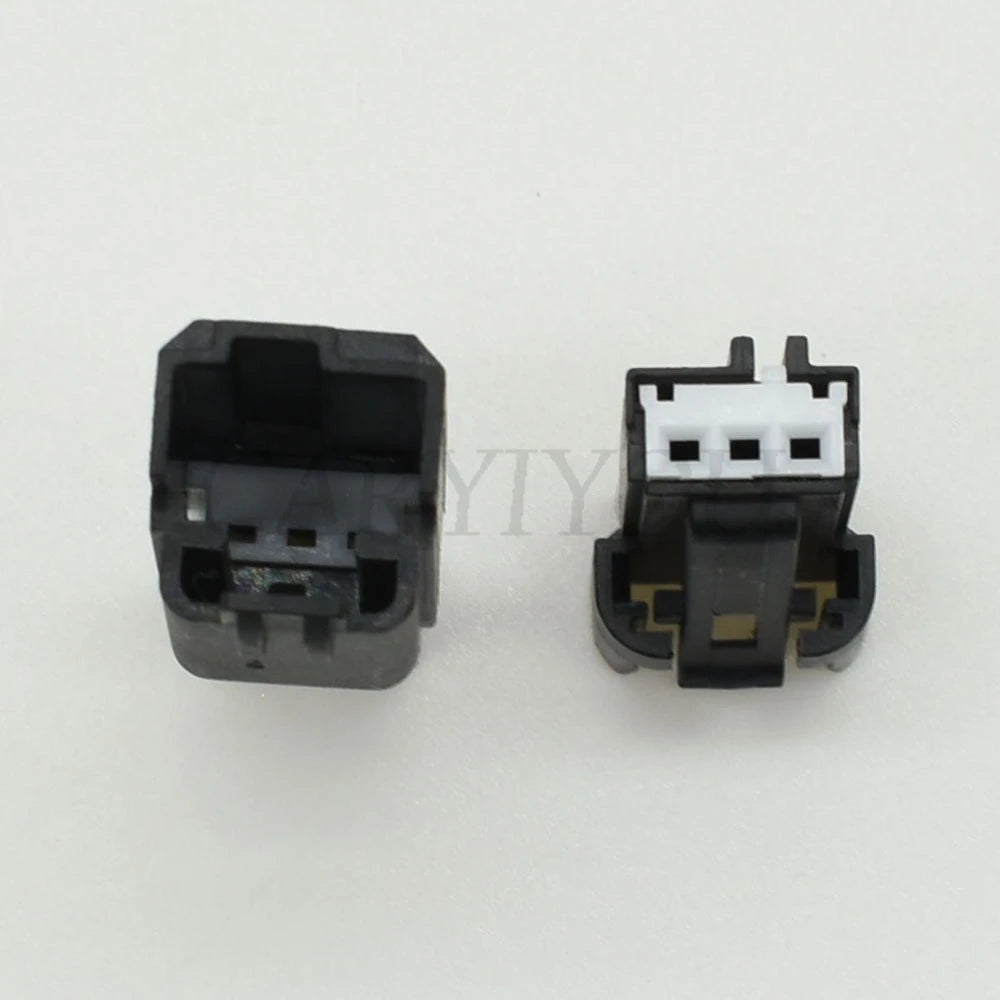

| Locking | Positive latch |
| Certification | CE, RoHS |
Typical Applications
- Door Tweeter Speaker: Replacement connector for the door-mounted tweeter wiring on Ford Focus Mk2 (2004–2011) and Mk3 (2011–2018) with Sony or standard audio systems
- Horn Wiring: Connector for the steering wheel horn circuit and external horn relay wiring on Ford Mondeo Mk4/Mk5
- Atmosphere Lamp: Ambient interior lighting connector for Ford Focus and Mondeo with factory atmosphere lamp packages
- Audio Upgrade: Used when retrofitting aftermarket tweeters or component speaker systems into Ford OEM door card locations
- Harness Repair: Restore damaged or melted connectors caused by short circuits in the door speaker or horn circuit
Compatible Vehicles
- Ford Focus Mk2 (2004–2011) — door tweeter & horn
- Ford Focus Mk3 (2011–2018) — door tweeter & atmosphere lamp
- Ford Mondeo Mk4 (2007–2014) — horn & interior lamp
- Ford Mondeo Mk5 (2014–2022) — door speaker & atmosphere lamp
- Ford C-Max (select models with same harness spec)
FAQ
Q: Does this connector fit both the tweeter and horn circuits?
A: Yes. The 31067-1040 / 31067-1010 housing is used across multiple 3-pin low-current circuits in Ford Focus and Mondeo, including door tweeter, horn relay, and atmosphere lamp wiring. Verify your OEM part number before ordering.
Q: Are terminals included?

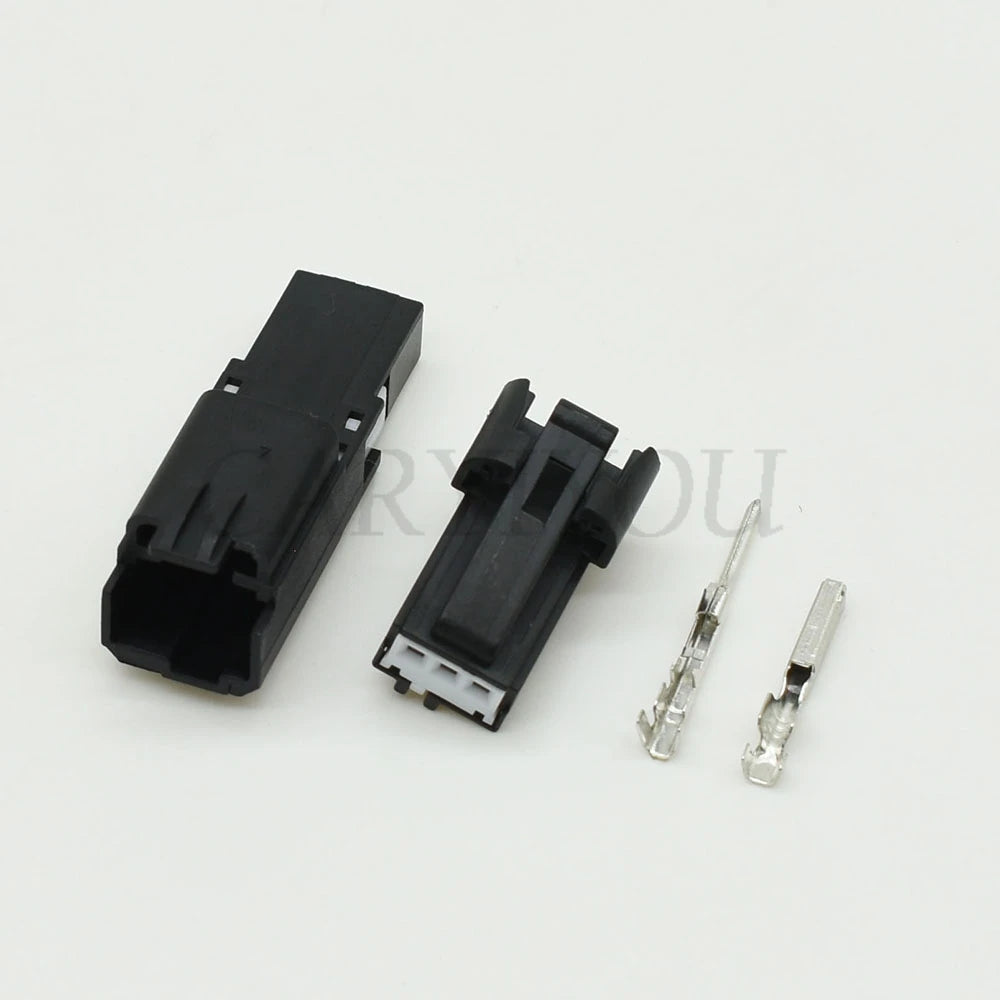

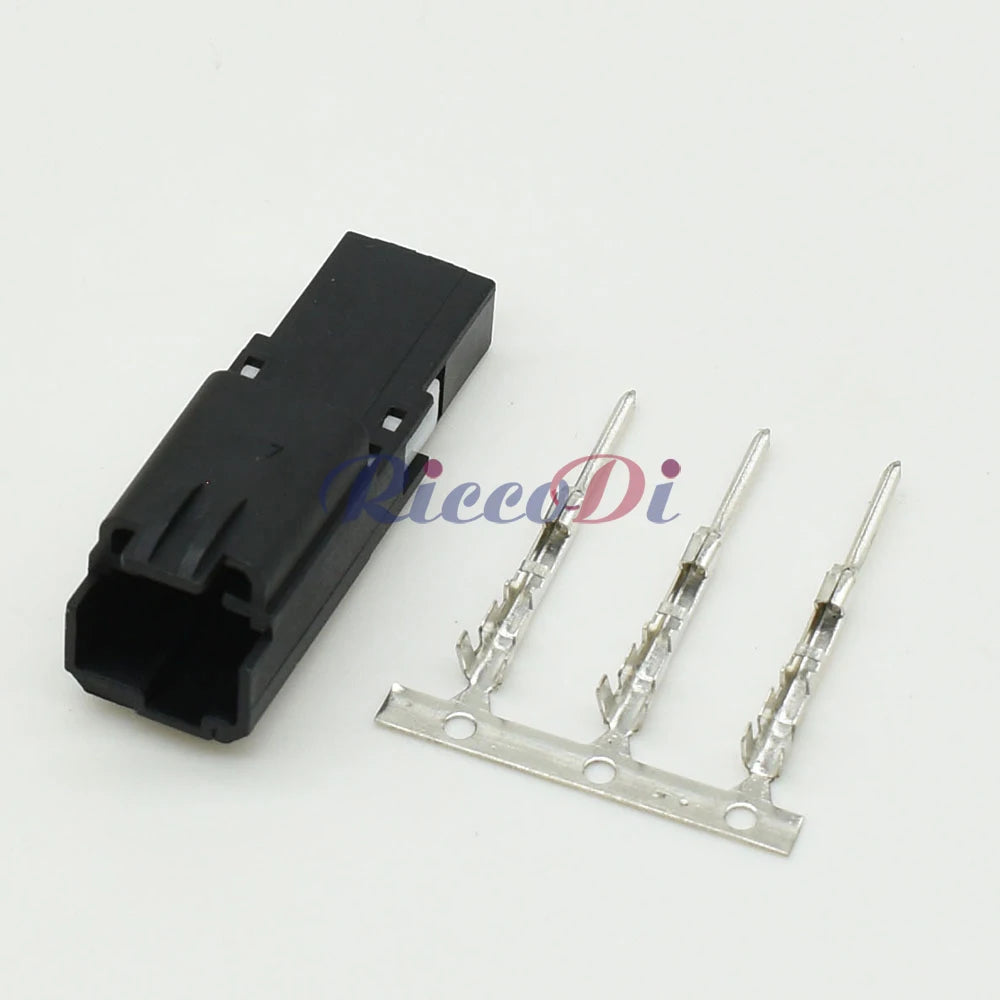

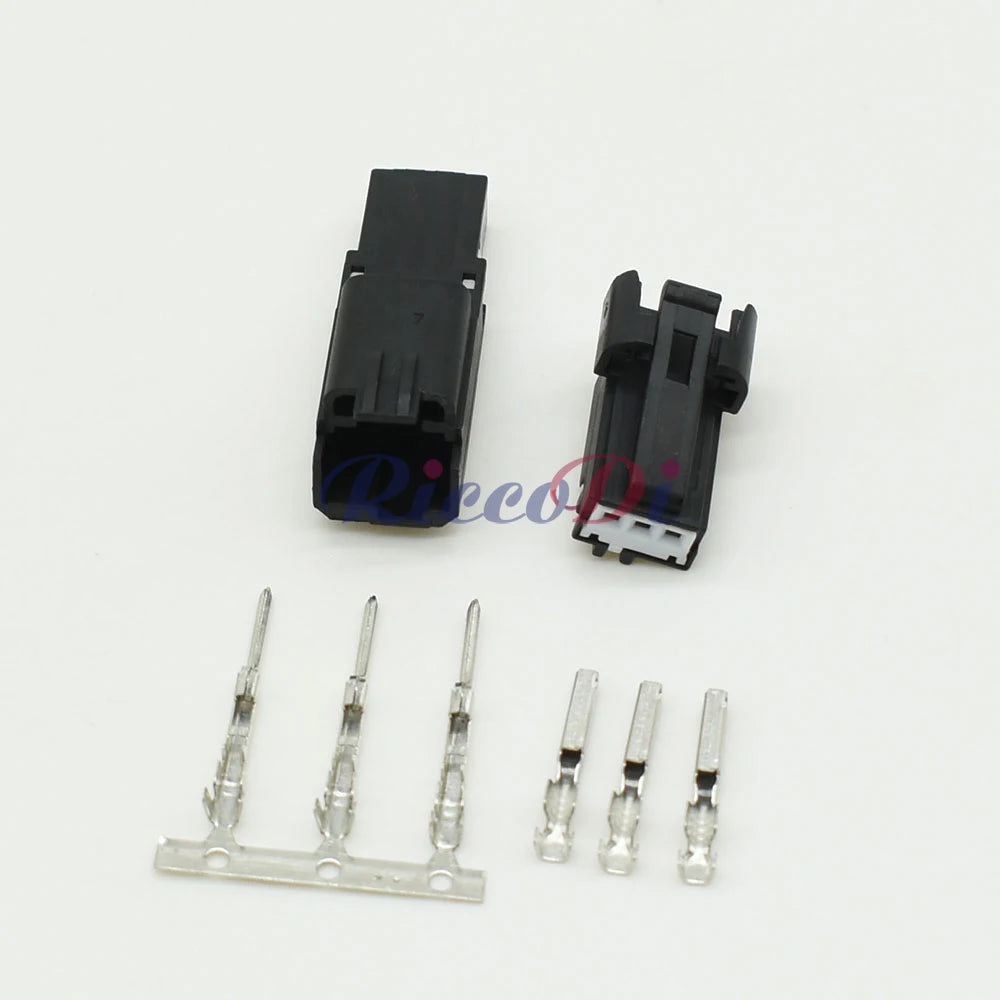

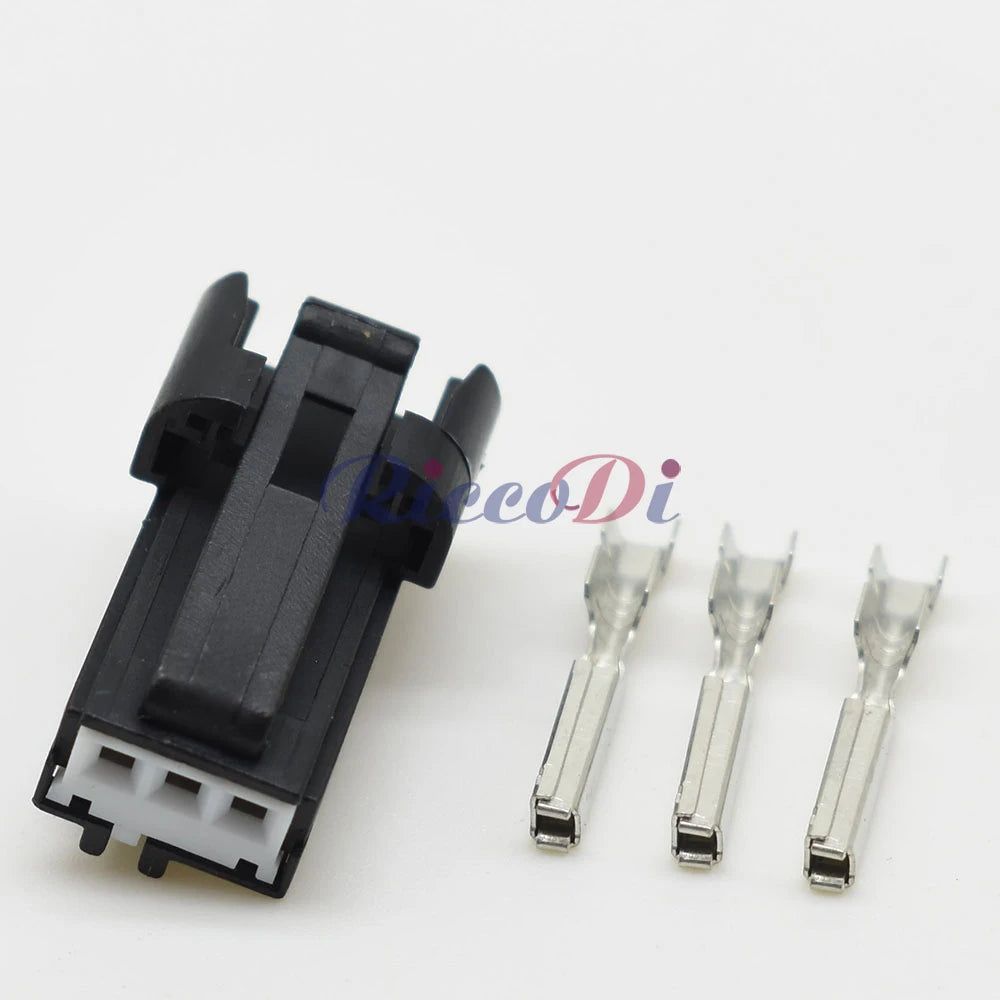

A: The housing is supplied without pre-crimped terminals. Compatible terminals (TE 1-968853-1 or equivalent) must be crimped onto the wire and inserted into the housing.
Q: Will this work on a right-hand-drive (RHD) Ford Focus?
A: Yes. The connector is identical across LHD and RHD variants of the Focus and Mondeo.
Package Contents

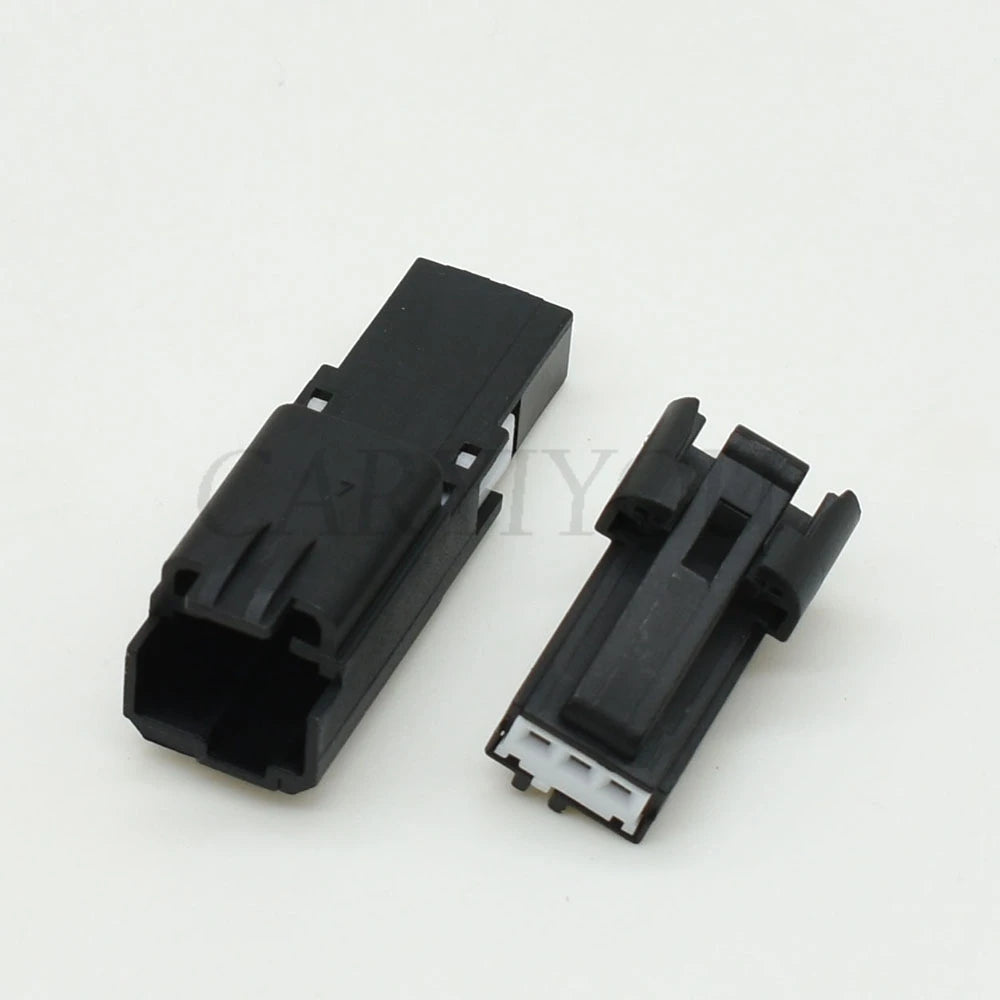

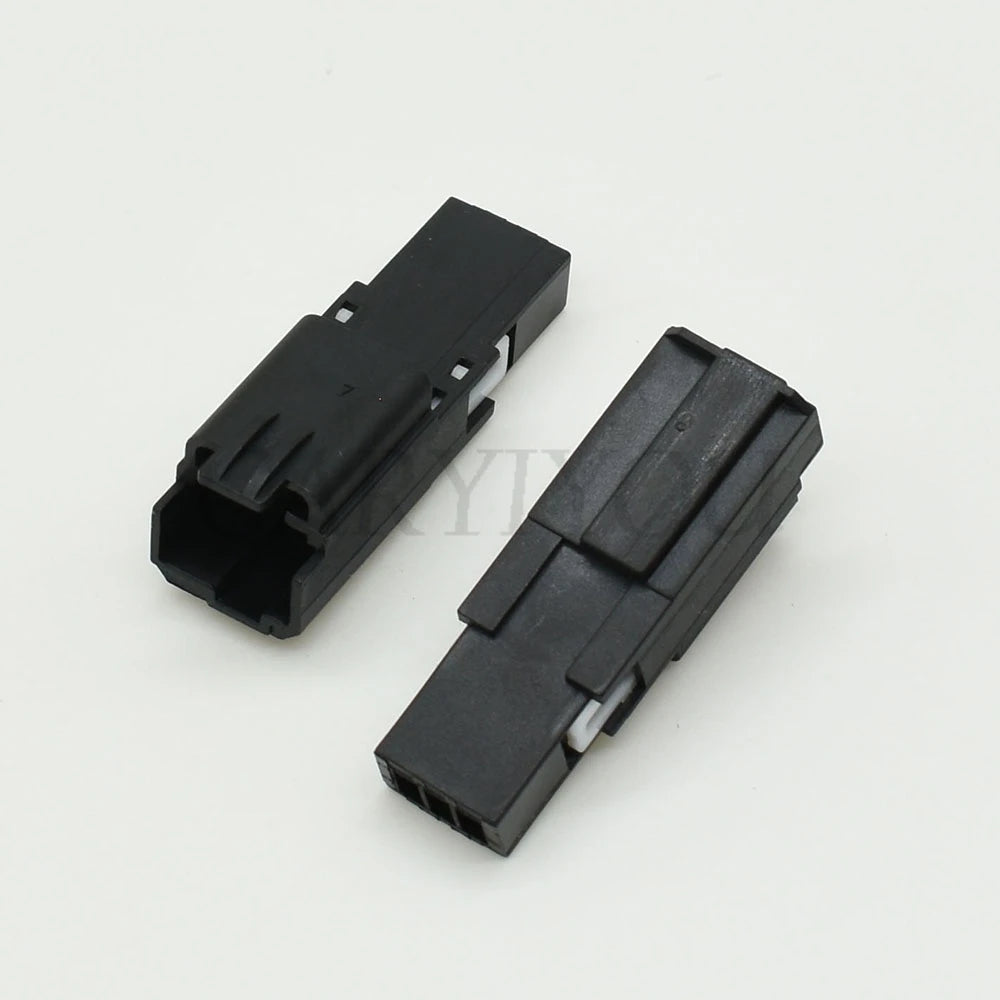

- 1 × Male connector housing (31067-1040)
- 1 × Female connector housing (31067-1010 / 1393367-1)
