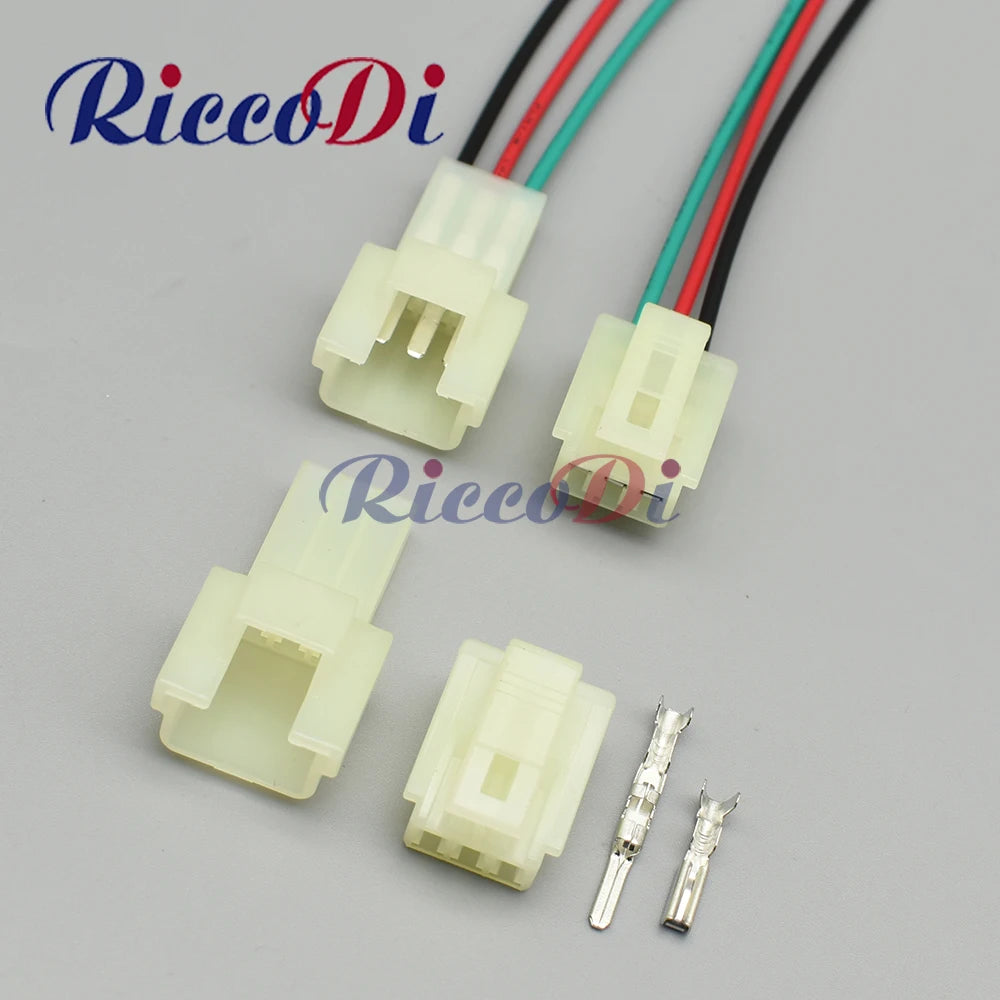

3-Way AC Assembly Car Cable Connector — 6090-1131 / 6090-1136 with 15cm Wire Pigtail
OEM-compatible Honda/Yazaki-spec 3-way connector pre-wired with 15cm pigtail leads for automotive AC assembly and body electrical wiring harnesses. Cross-references 6090-1131 (female) and 6090-1136 (male) — used across Honda and related platforms for AC control, interior lighting, and body electrical circuits. The pre-wired pigtail enables fast splice-in harness repair without terminal crimping tools.
Specifications
| Parameter | Value |
|---|---|
| Pin Count | 3 |
| OEM Part Numbers | 6090-1131 (female) / 6090-1136 (male) |
| Connector Family | Honda / Yazaki AC assembly series |
| Housing Material | PA66 (Nylon 66) |
| Sealing | Non-sealed (interior / protected routing) |

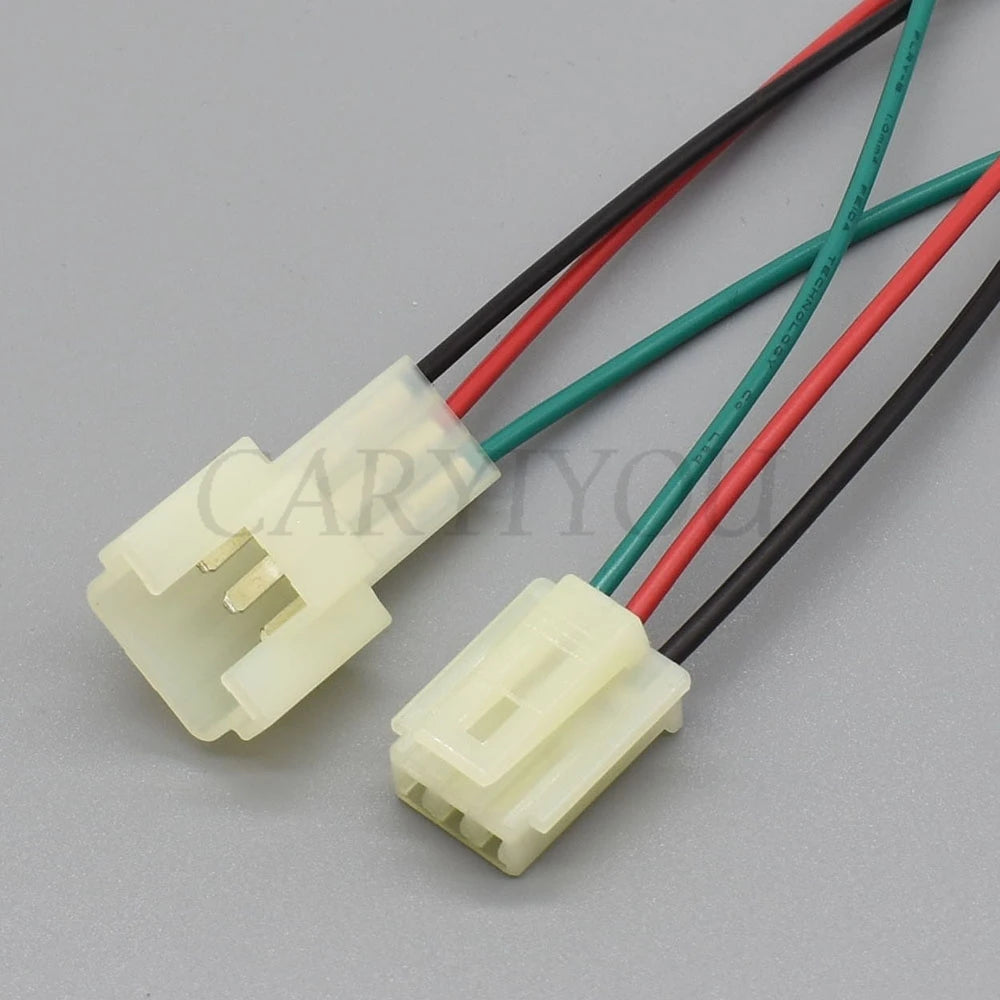

| Wire Length | 15 cm pre-wired pigtail |
| Wire Gauge | 0.5mm² (AWG 20) |

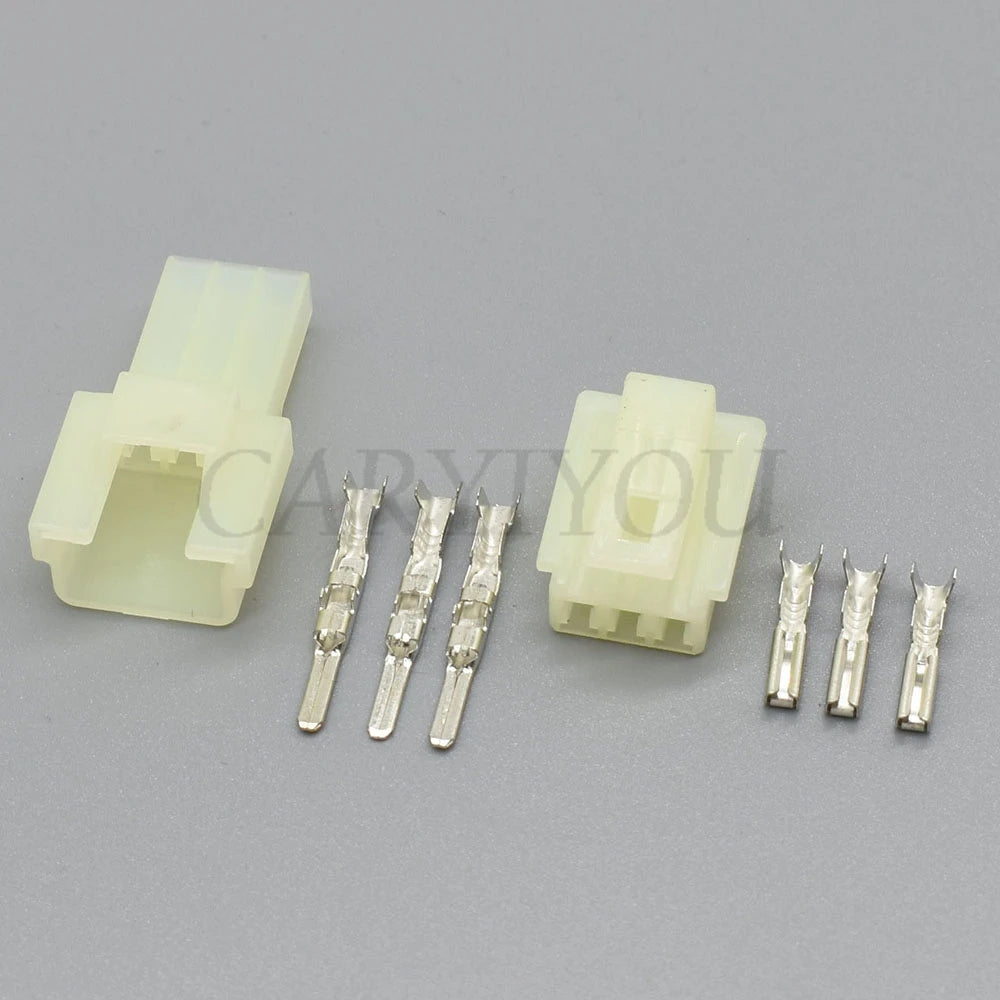

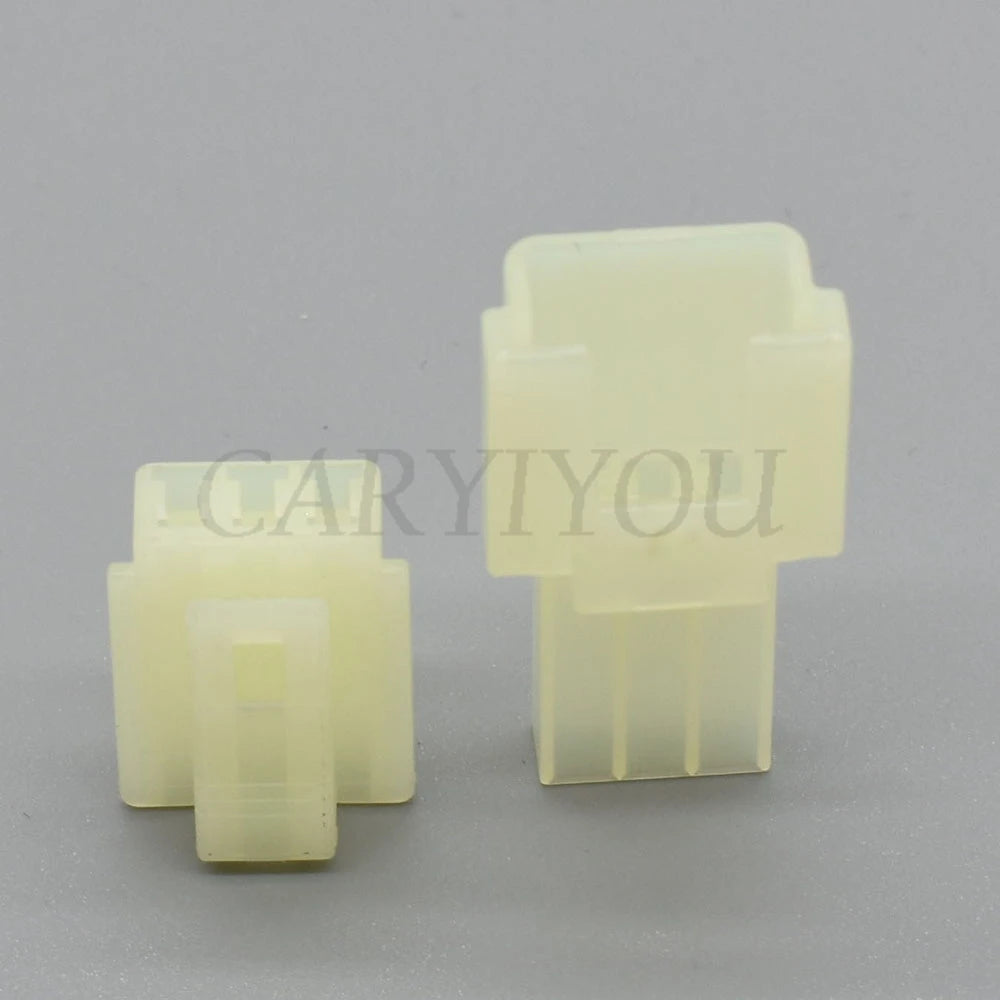

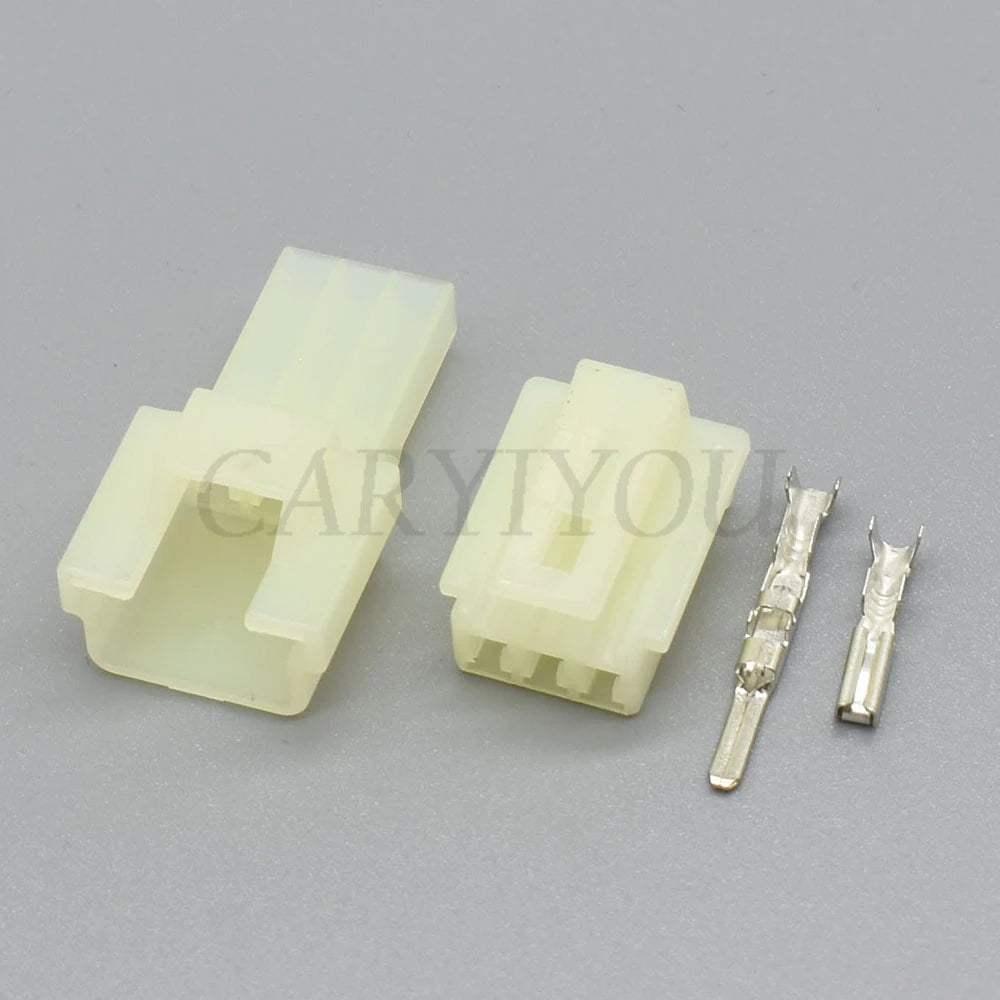

| Gender | Male (6090-1136) + Female (6090-1131) |
| Operating Temperature | -40°C to +105°C |
| Application | AC assembly, interior lighting, body electrical |
| Certification | CE |
Compatible Vehicles & Applications
- Honda Civic / Accord / CR-V — AC assembly and interior wiring harness connectors
- Honda Fit / Jazz / HR-V — body electrical and AC control connectors
- Honda Odyssey / Pilot — interior and AC assembly sub-harness repair
- General Honda / Acura vehicles using Yazaki 6090-series connectors
- Aftermarket AC control and interior wiring requiring pre-wired 3-pin pigtail connectors
Why Choose This Connector?
- ✅ Pre-wired 15cm pigtail — no terminal crimping required, splice directly into harness
- ✅ Honda/Yazaki OEM-spec geometry — direct replacement for factory AC assembly harness
- ✅ Male + female pair — complete connector set for both harness sides
- ✅ PA66 housing — durable for interior temperature range
- ✅ CE certified — meets EU automotive electrical standards
Application Scenarios
- AC assembly connector replacement on Honda Civic FD / FB during HVAC repair
- Interior wiring harness pigtail repair on Honda Accord CL9 / CR6
- Body electrical connector restoration on Honda CR-V RD / RE after door panel removal
- Aftermarket AC control wiring using pre-wired pigtail for clean integration
FAQ
Q: What is the difference between 6090-1131 and 6090-1136?
A: 6090-1131 is the female connector (socket/receptacle side). 6090-1136 is the male connector (plug/pin side). Both come pre-wired with 15cm leads for direct splice-in installation.
Q: Is this connector waterproof?
A: No. The 6090-series is an unsealed connector designed for interior and protected routing applications (AC assembly, door panels, dashboards). For engine bay or exterior use, a sealed variant is required.
Q: Do I need a crimping tool to install this connector?
A: No. The pigtail leads are pre-crimped and ready to splice. Simply strip the wire ends and connect using butt connectors or solder + heat shrink.
Package Contents

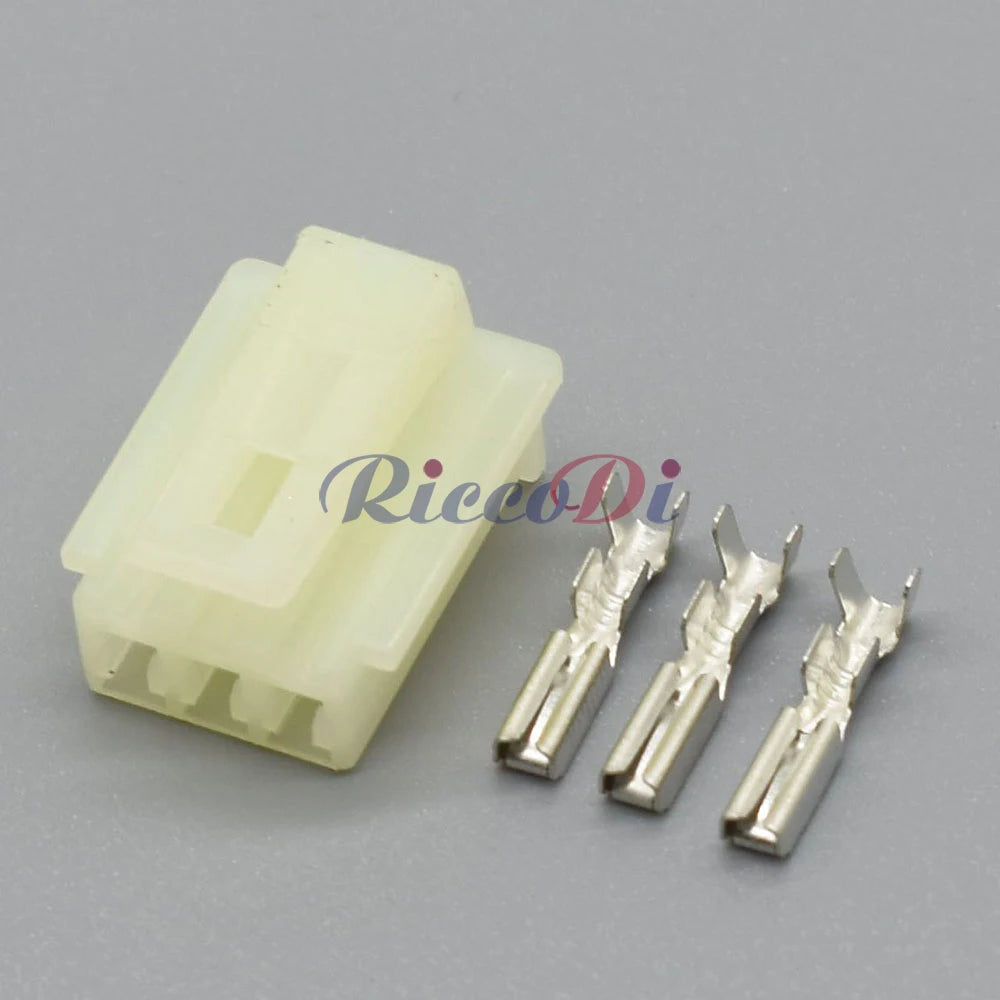

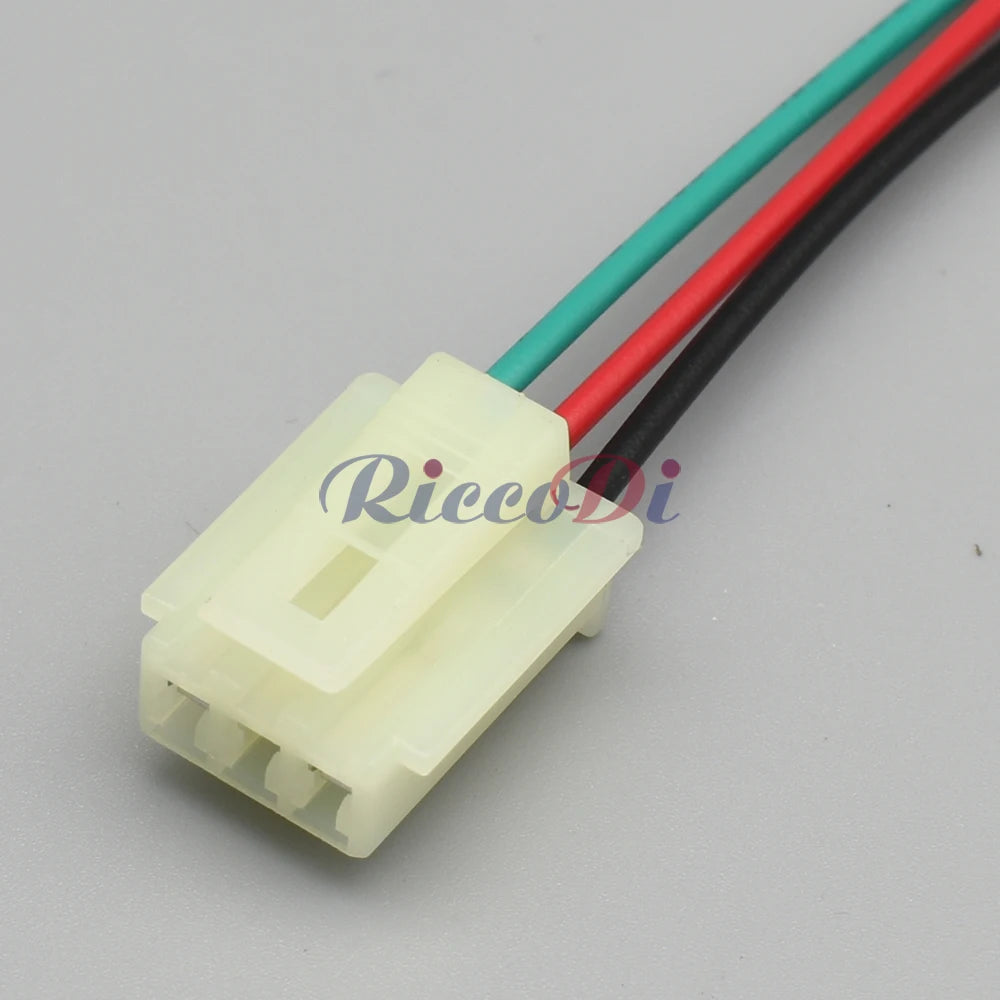

- 1× Female Connector (6090-1131) with 15cm pre-wired pigtail

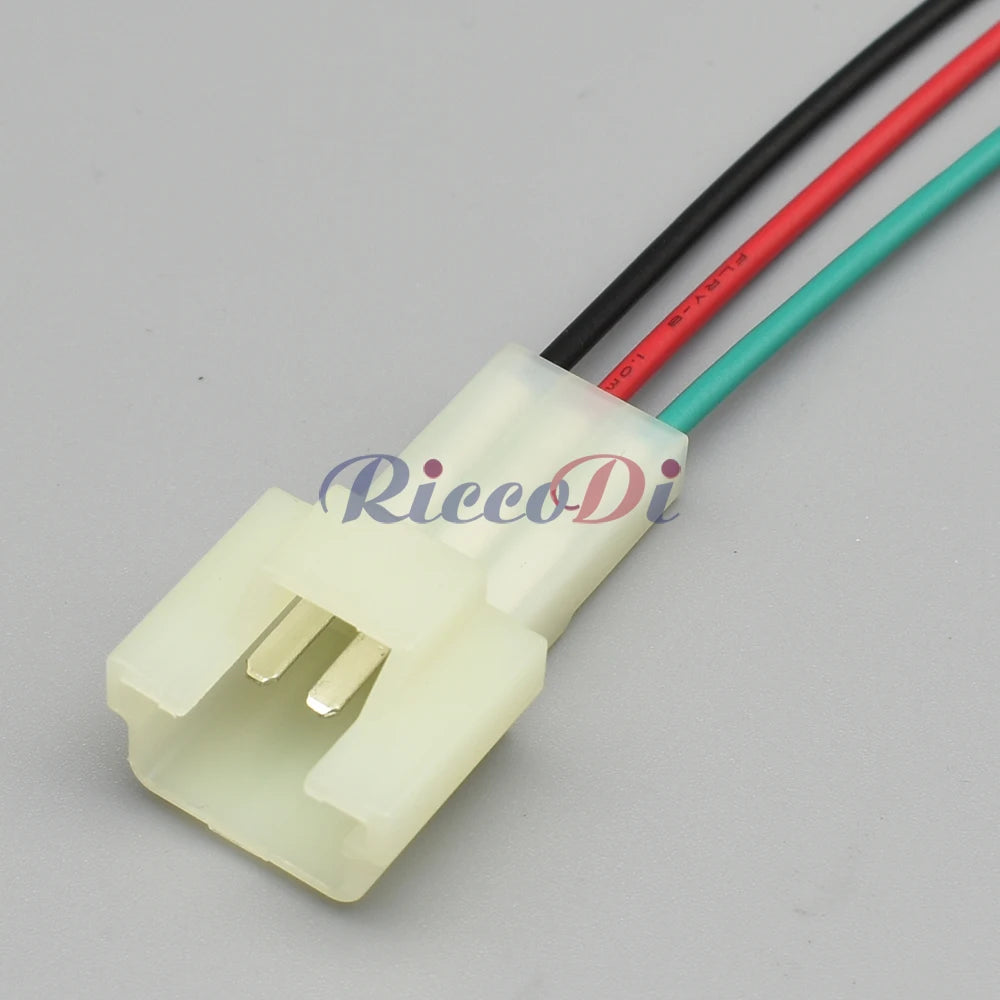

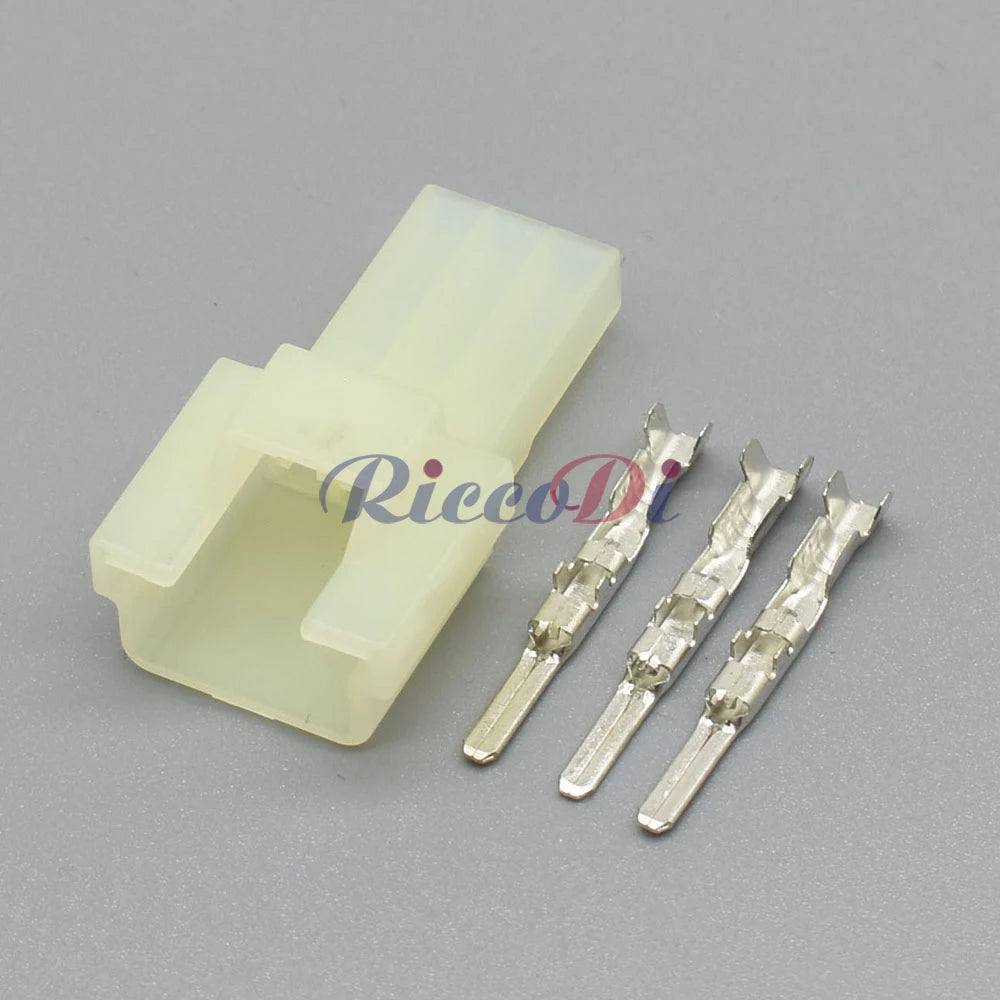

- 1× Male Connector (6090-1136) with 15cm pre-wired pigtail
