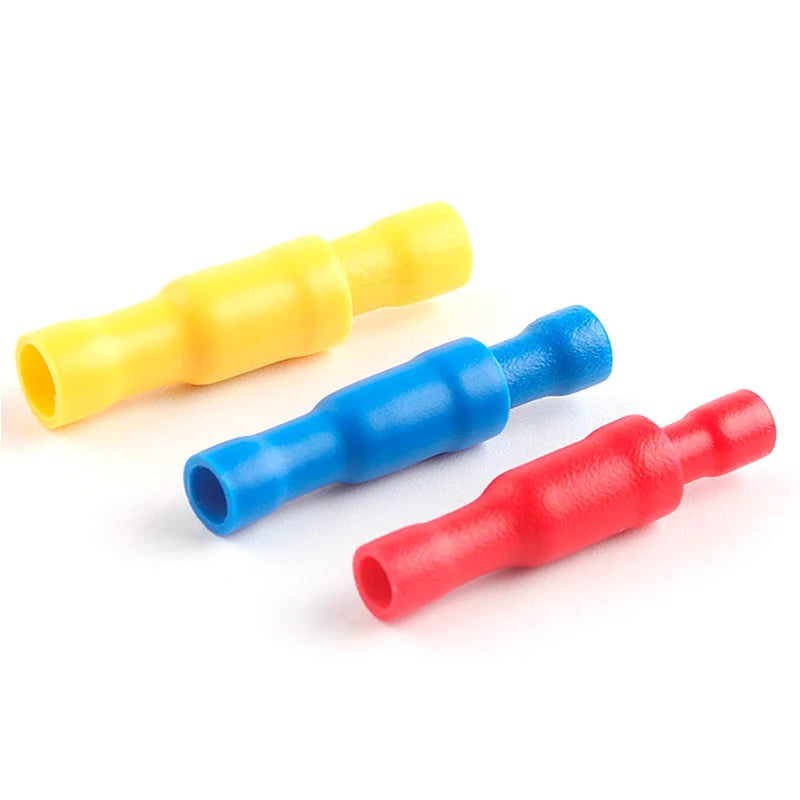

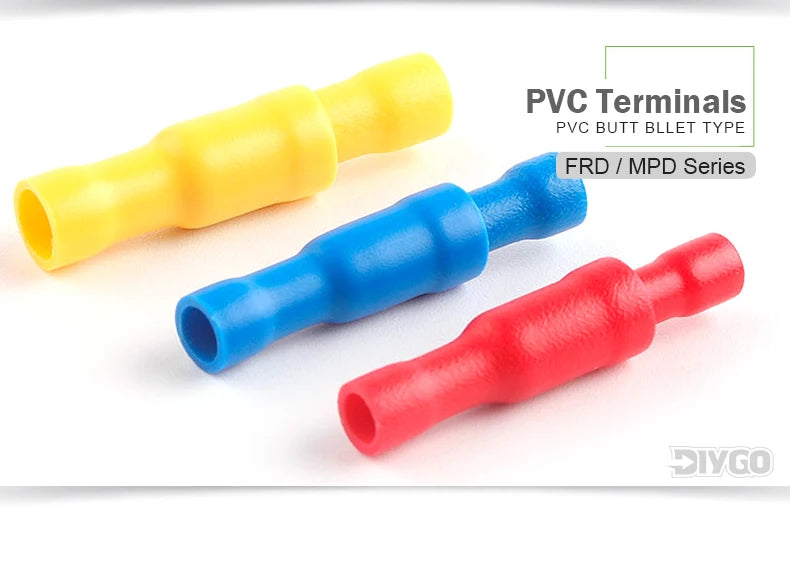

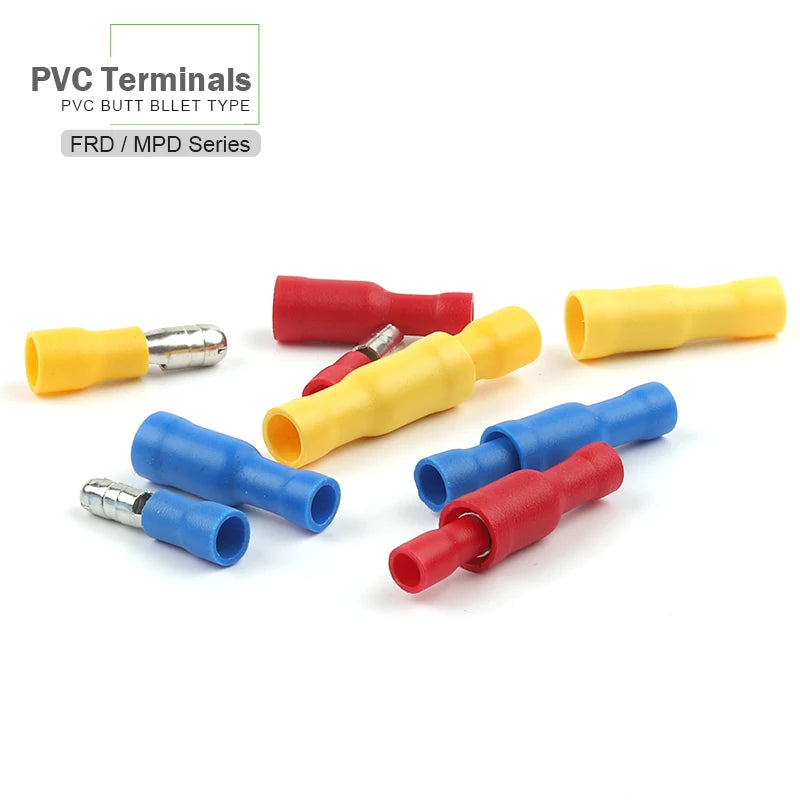

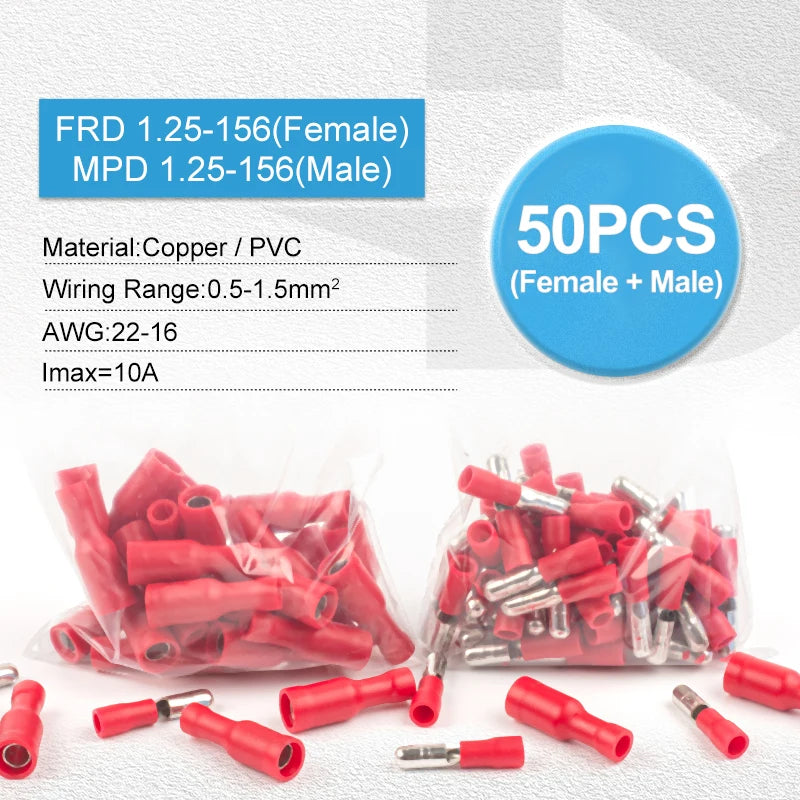

Bullet Shaped Female & Male Butt Crimp Connectors — MPD / FRD PVC Insulated, 50PCS (25 Sets)
A 50-piece set (25 matched male/female pairs) of PVC-insulated bullet-shaped butt crimp connectors in MPD (male pin) and FRD (female receptacle) configuration. The bullet profile provides a secure, vibration-resistant inline wire splice that is easy to connect and disconnect by hand, making it ideal for automotive wiring, audio speaker connections, and electrical harness repair where a solderless, reusable inline connector is required.
Technical Specifications
| Parameter | Value |
|---|---|
| Connector Type | Bullet (inline butt) — MPD male + FRD female |

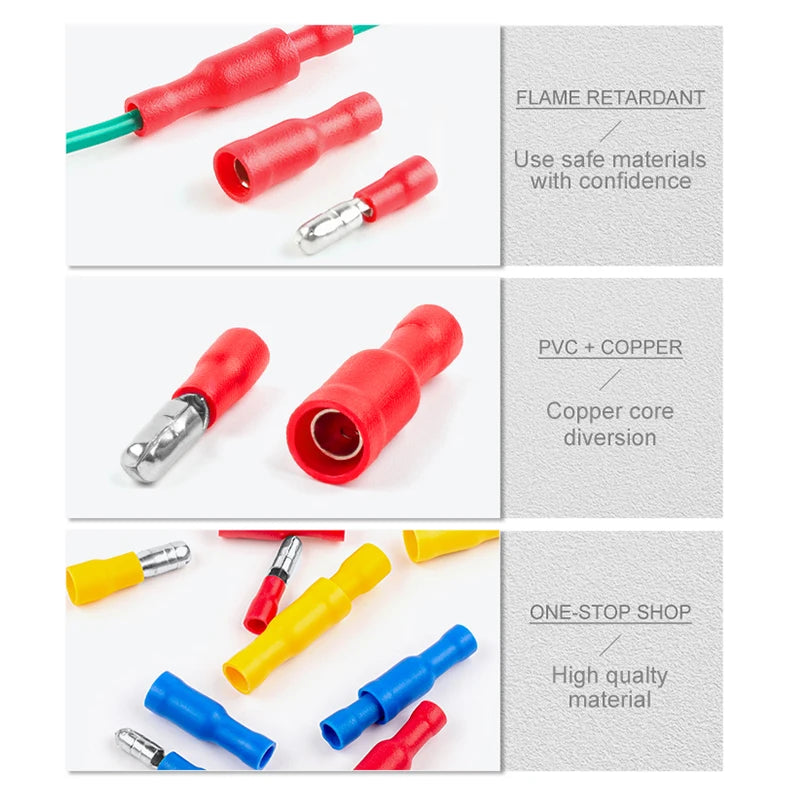

| Insulation Material | PVC (polyvinyl chloride), colour-coded |
| Terminal Material | Copper alloy, tin-plated |
| Wire Range | Typically 18–22 AWG (0.5–1.0mm²) — verify by colour code |
| Termination Method | Crimp (ratchet or plier-type crimping tool) |
| Rated Voltage | 600V AC/DC |
| Rated Current | Up to 15A (depending on wire gauge) |
| Operating Temperature | −40°C to +105°C |
| Pack Contents | 50pcs total (25 male MPD + 25 female FRD) |
| Certification | CE, RoHS |

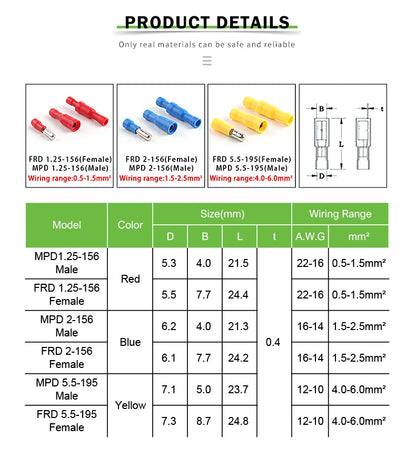

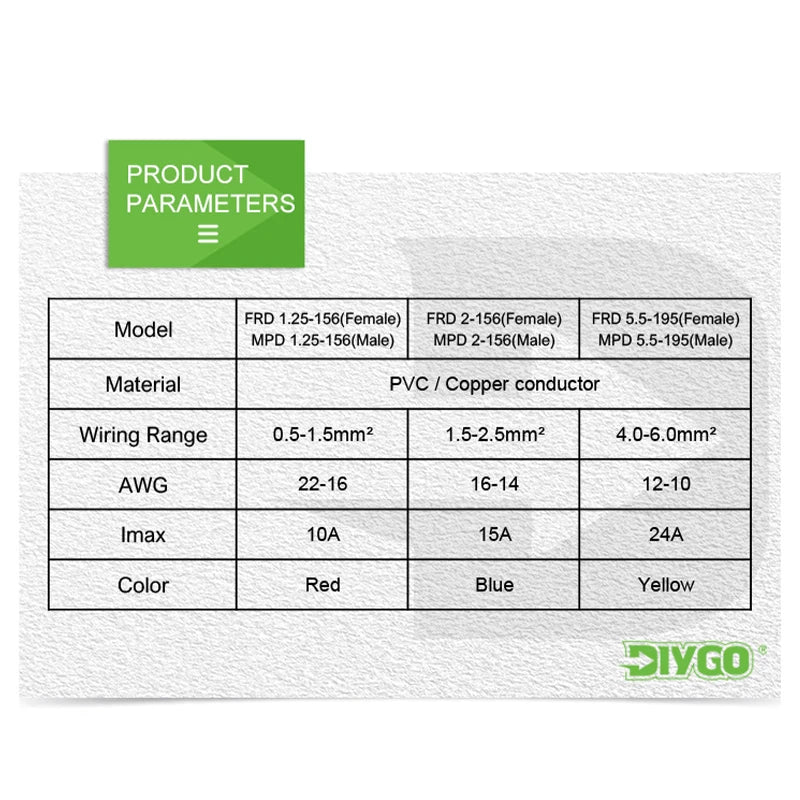

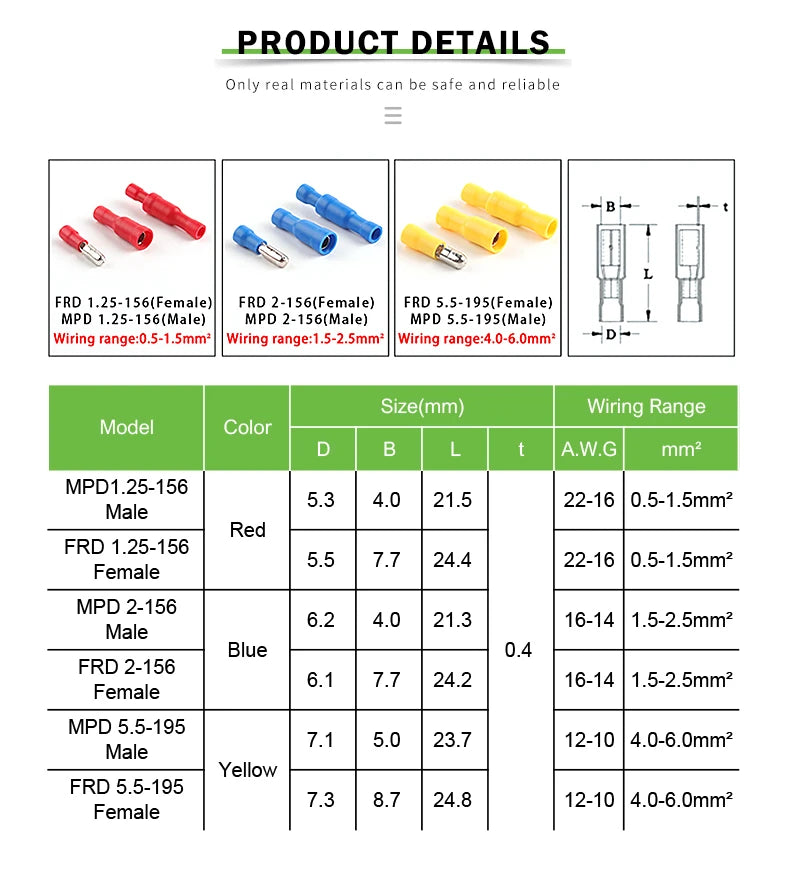

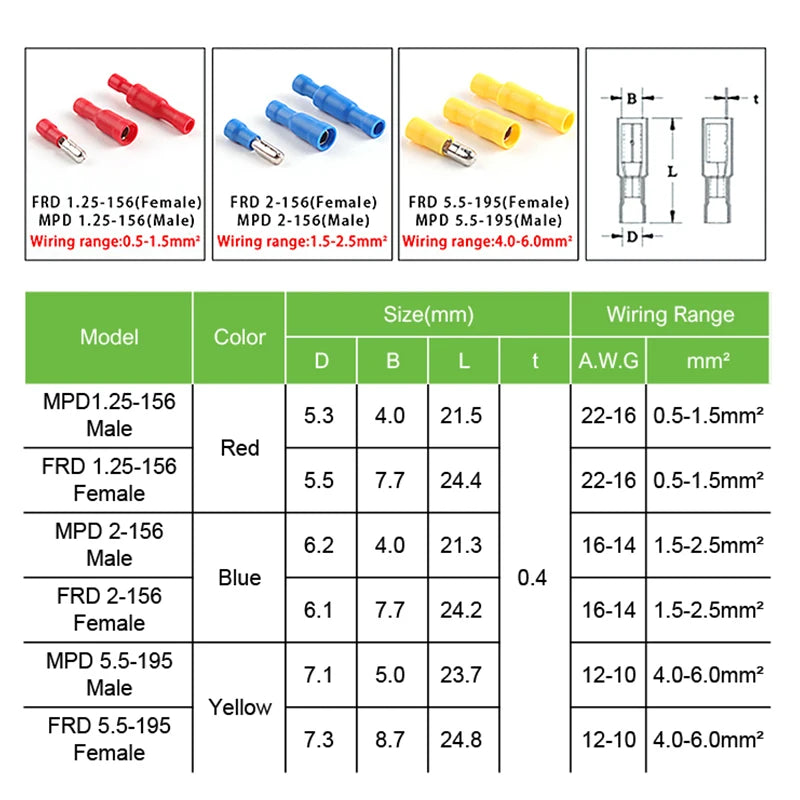

Colour Code Guide (PVC Insulation)
| Colour | Wire Gauge | Current Rating |
|---|---|---|

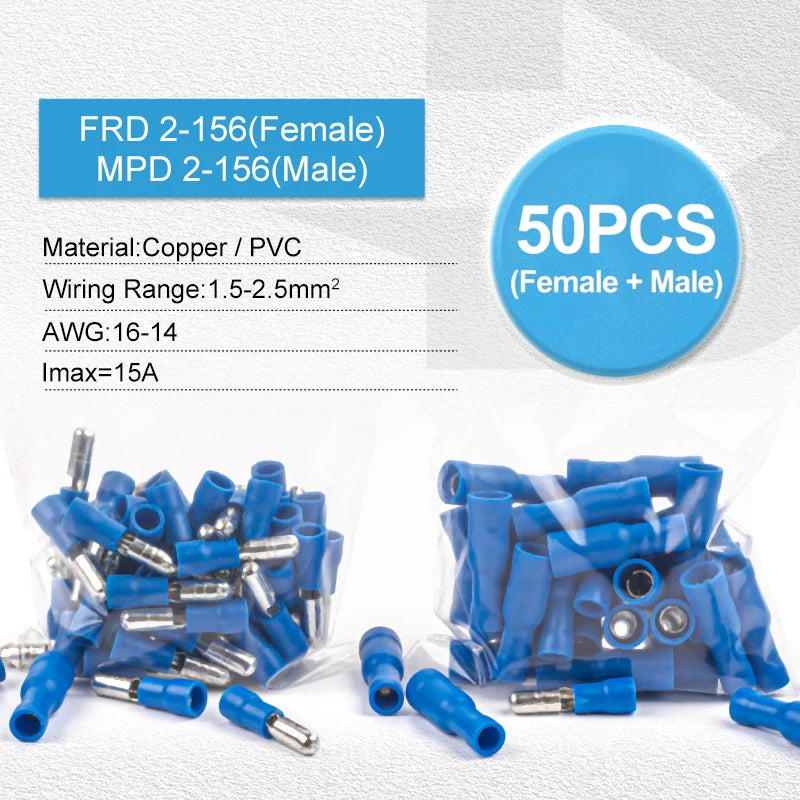

| Blue | 14–16 AWG (1.5–2.5mm²) | Up to 15A |

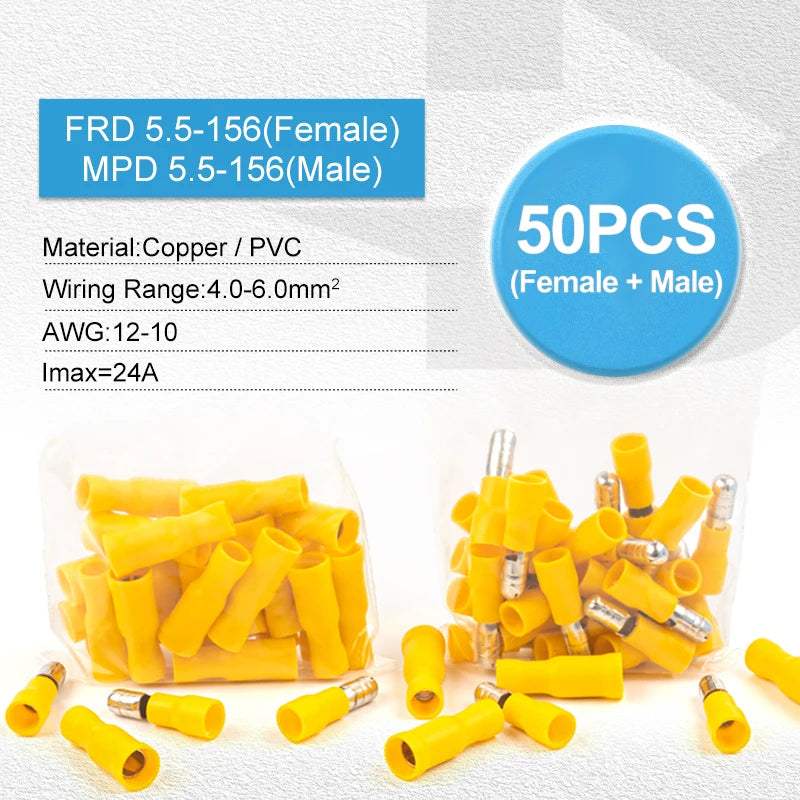

| Yellow | 10–12 AWG (4–6mm²) | Up to 30A |
| Red | 18–22 AWG (0.5–1.0mm²) | Up to 10A |
Typical Applications
- Automotive Wiring: Inline wire splices for car audio speaker wiring, accessory harness extensions, and trailer wiring connections
- Audio Speaker Connections: Solderless speaker wire termination for home audio, car audio, and PA system speaker connections
- Electrical Harness Repair: Quick-disconnect inline splice for repairing cut or damaged wiring harnesses without soldering
- Motorcycle & Marine Wiring: Vibration-resistant inline connectors for motorcycle accessory wiring and marine electrical systems
- DIY Electronics: Reusable inline connectors for LED strip power connections, battery pack wiring, and power distribution harnesses

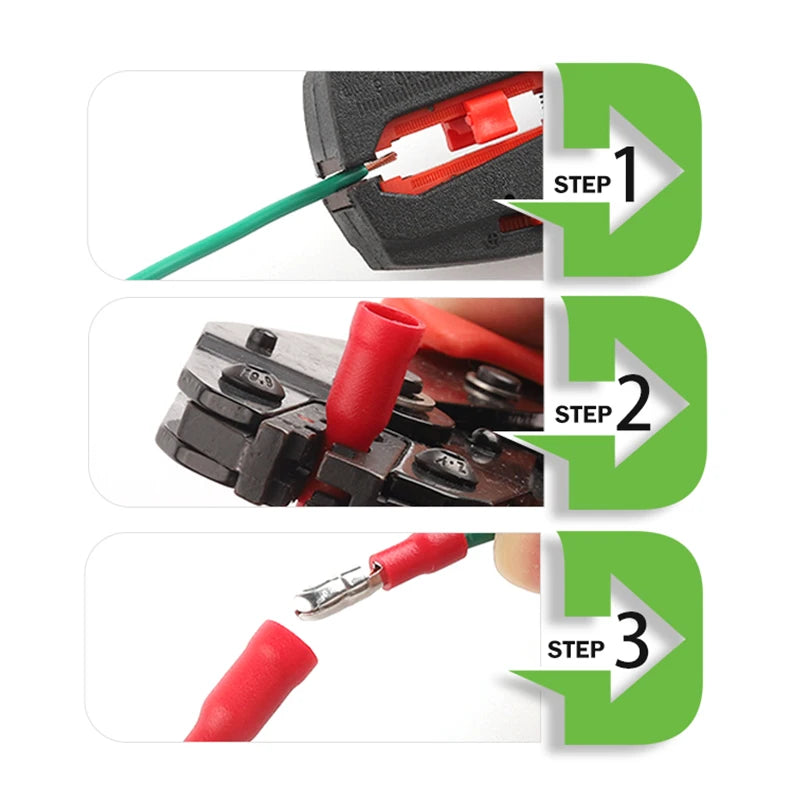

How to Crimp
- Strip wire insulation 8–10mm from the end
- Insert stripped wire into the crimp barrel of the MPD or FRD terminal
- Crimp with a ratchet crimping tool (AWG-matched jaw) for a gas-tight connection
- Slide the PVC insulation sleeve over the crimped terminal until it clicks into place
- Connect male MPD to female FRD by pushing together until the bullet locks
FAQ
Q: Can I use pliers instead of a crimping tool?
A: A dedicated ratchet crimping tool is strongly recommended for a reliable gas-tight crimp. Pliers may produce an inconsistent crimp that can cause high resistance, overheating, or pull-out under vibration.
Q: Are these connectors waterproof?
A: Standard PVC bullet connectors are not waterproof. For outdoor, marine, or underbody automotive applications, use heat-shrink lined waterproof bullet connectors instead.
Package Contents
- 25 × MPD male bullet crimp terminals
- 25 × FRD female bullet crimp terminals
- Total: 50pcs (25 matched pairs)
