0-1418438-1 / 1-1418479-1 / 1670364-1 / 1-1564512-1 HDSCS Series 8-Pin Waterproof Automotive Connector — Electric Wiring Cable Plug
0-1418438-1 / 1-1418479-1 / 1670364-1 / 1-1564512-1 HDSCS Series 8-Pin Waterproof Automotive Connector Electric Wiring Cable Plug
Couldn't load pickup availability
0-1418438-1 / 1-1418479-1 / 1670364-1 / 1-1564512-1 HDSCS Series 8-Pin Waterproof Automotive Connector — Electric Wiring Cable Plug
The TE Connectivity HDSCS (Heavy Duty Sealed Connector System) series is engineered for the most demanding automotive and commercial vehicle wiring harness applications — delivering IP67-rated sealed connections in powertrain, chassis, and body electronics circuits where vibration, moisture, and temperature extremes are constant. The 0-1418438-1 / 1-1418479-1 / 1670364-1 / 1-1564512-1 HDSCS 8-pin waterproof automotive connector provides OEM-specification sealed electrical connections for heavy-duty automotive and commercial vehicle wiring harness applications.
With a sealed IP67-rated housing, positive wedge lock secondary retention, and tin-plated copper alloy contacts, the HDSCS 8-pin connector delivers the vibration resistance, sealing integrity, and contact retention force required for reliable long-term performance in powertrain, chassis, and body electronics wiring harness applications. Whether you're repairing a commercial vehicle harness or fabricating a custom heavy-duty wiring loom, the HDSCS series provides the dimensional accuracy and sealing performance of the original TE Connectivity specification.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Numbers | 0-1418438-1 / 1-1418479-1 / 1670364-1 / 1-1564512-1 |
| Series | TE Connectivity HDSCS (Heavy Duty Sealed Connector System) |
| Pin Count | 8 pins |
| IP Rating | IP67 (sealed, waterproof) |
| Connector Type | Heavy-duty sealed automotive wiring cable plug |
| Housing Material | Glass-filled thermoplastic (high-temp rated) |
| Contact Material | Tin-plated copper alloy |
| Locking | Positive wedge lock secondary retention |
| Certification | CE |
| Origin | Mainland China |
Key Features
- ✅ IP67 waterproof rating — fully sealed against dust ingress and temporary water immersion; suitable for underbody, chassis, powertrain, and exterior heavy-duty wiring harness positions
- ✅ HDSCS series compatibility — dimensionally compatible with TE Connectivity HDSCS-series contacts, wire seals, and wedge locks for seamless integration into existing HDSCS harnesses
- ✅ Positive wedge lock secondary retention — prevents contact back-out under vibration and mechanical stress; critical for heavy-duty powertrain and chassis circuit applications

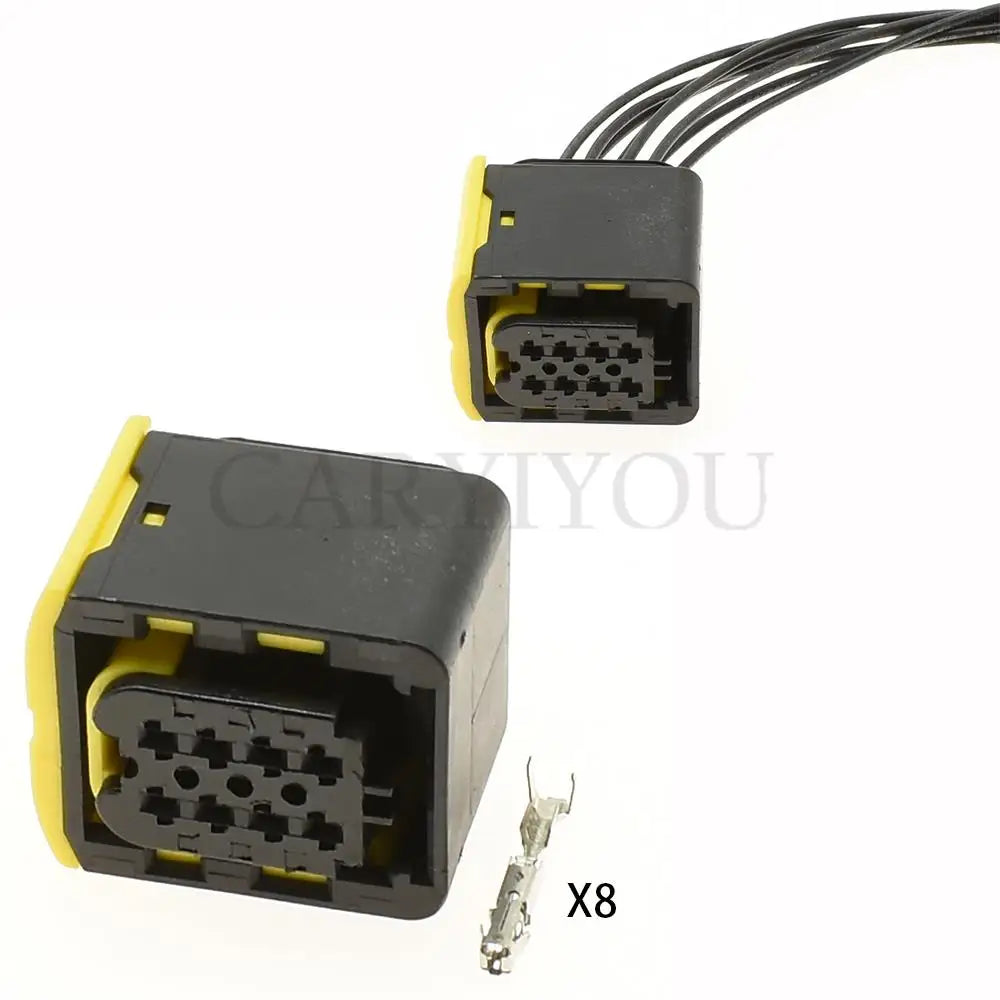

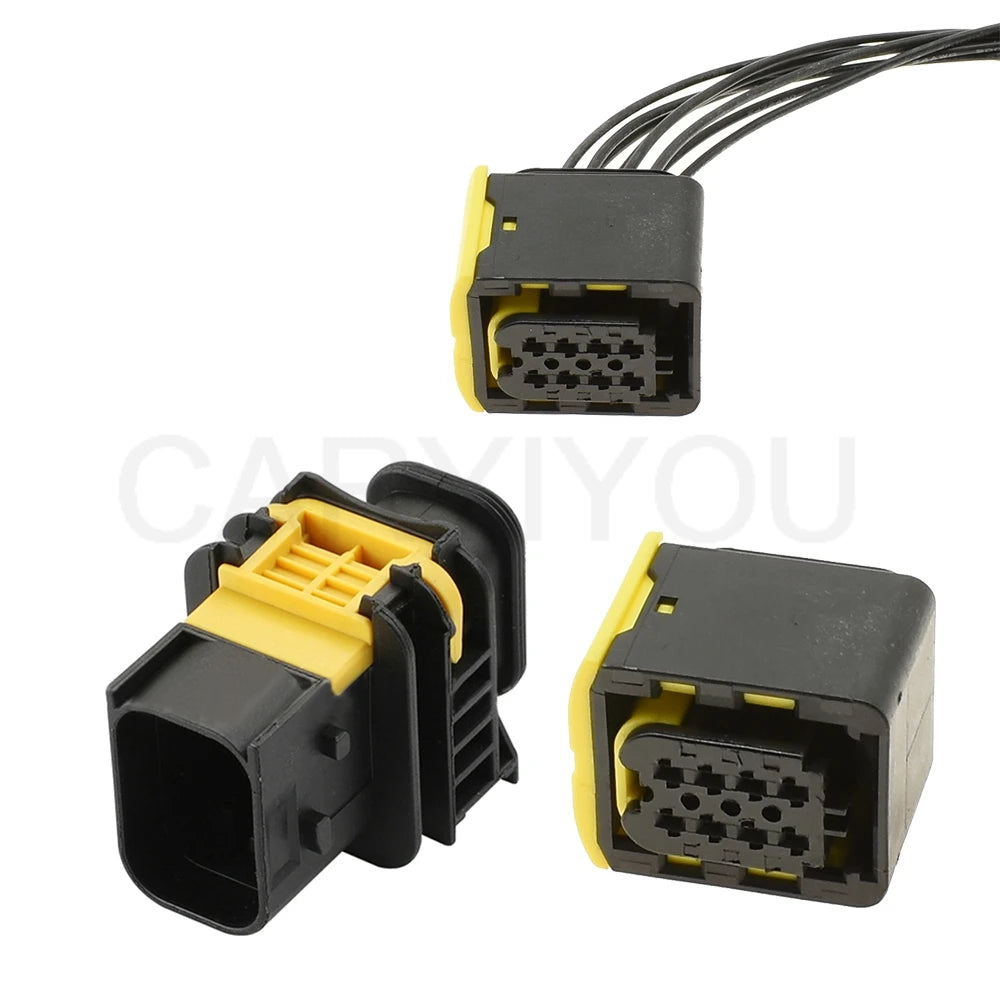

- ✅ Multi-part number coverage — 0-1418438-1 / 1-1418479-1 / 1670364-1 / 1-1564512-1 cover multiple HDSCS 8-pin connector positions across commercial vehicle and automotive platforms
- ✅ Glass-filled thermoplastic housing — dimensionally stable under thermal cycling; resists fuel, oil, coolant, and automotive cleaning chemicals in heavy-duty environments
- ✅ Tin-plated copper alloy contacts — low contact resistance for reliable power and signal transmission in heavy-duty circuit applications; resists oxidation in sealed connector environments
- ✅ CE certified — meets European automotive and commercial vehicle electrical component standards
Common Applications
- Commercial vehicle and heavy-duty truck powertrain wiring harness connector repair
- Automotive chassis and underbody sealed wiring harness connector replacement
- Agricultural machinery and construction equipment wiring harness repair
- Custom heavy-duty sealed wiring harness fabrication for automotive and commercial vehicle applications
- HDSCS series wiring harness repair for TE Connectivity connector positions on commercial vehicle platforms
FAQ
Q: Are HDSCS contacts and wedge locks included?
A: Contact and wedge lock inclusion depends on the variant selected. Complete kits including HDSCS-series contacts and wedge locks are available — check the product options before ordering.
Q: What wire gauge is compatible with HDSCS contacts?
A: HDSCS-series contacts are available for multiple wire gauge ranges. Standard HDSCS contacts are compatible with 0.5–2.5mm² (AWG 20–14) automotive wire, depending on the contact size selected.
Q: Is this connector compatible with genuine TE Connectivity HDSCS contacts?
A: Yes. This connector is dimensionally compatible with standard TE Connectivity HDSCS-series contacts and wedge locks.
Package Contents

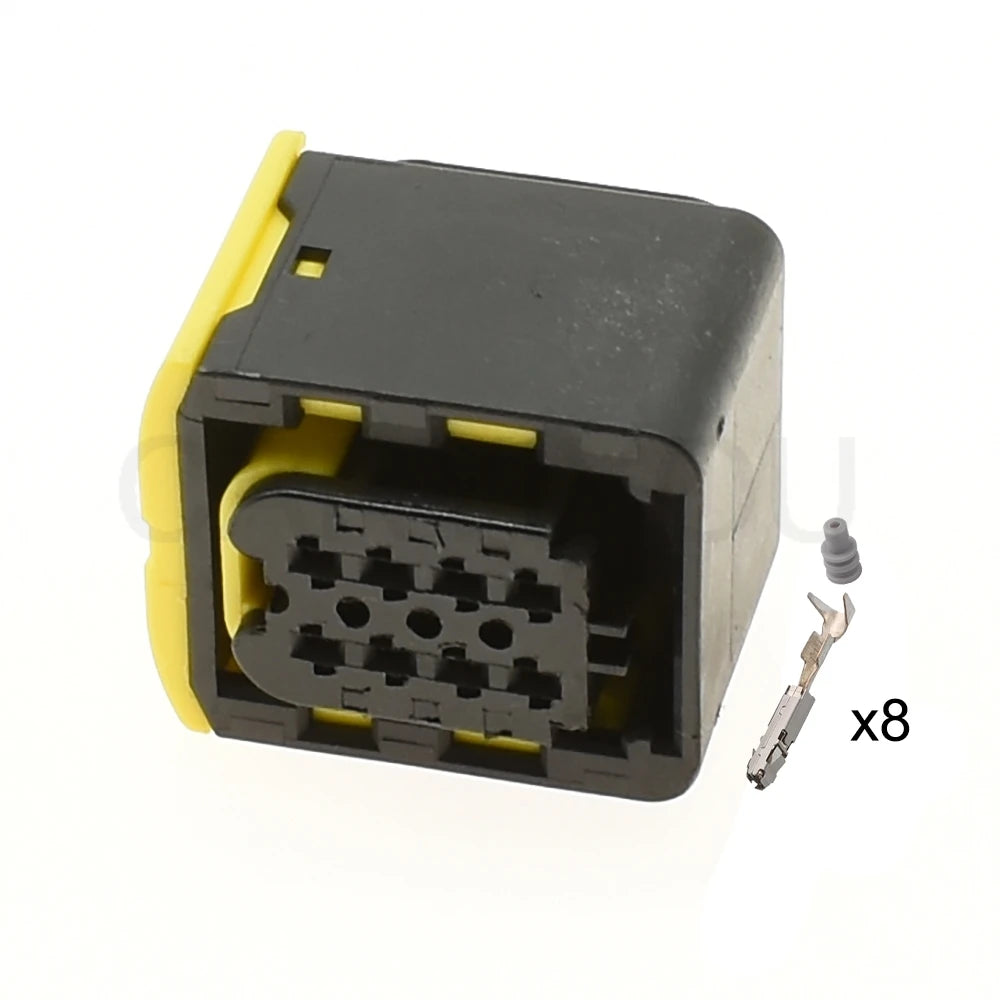

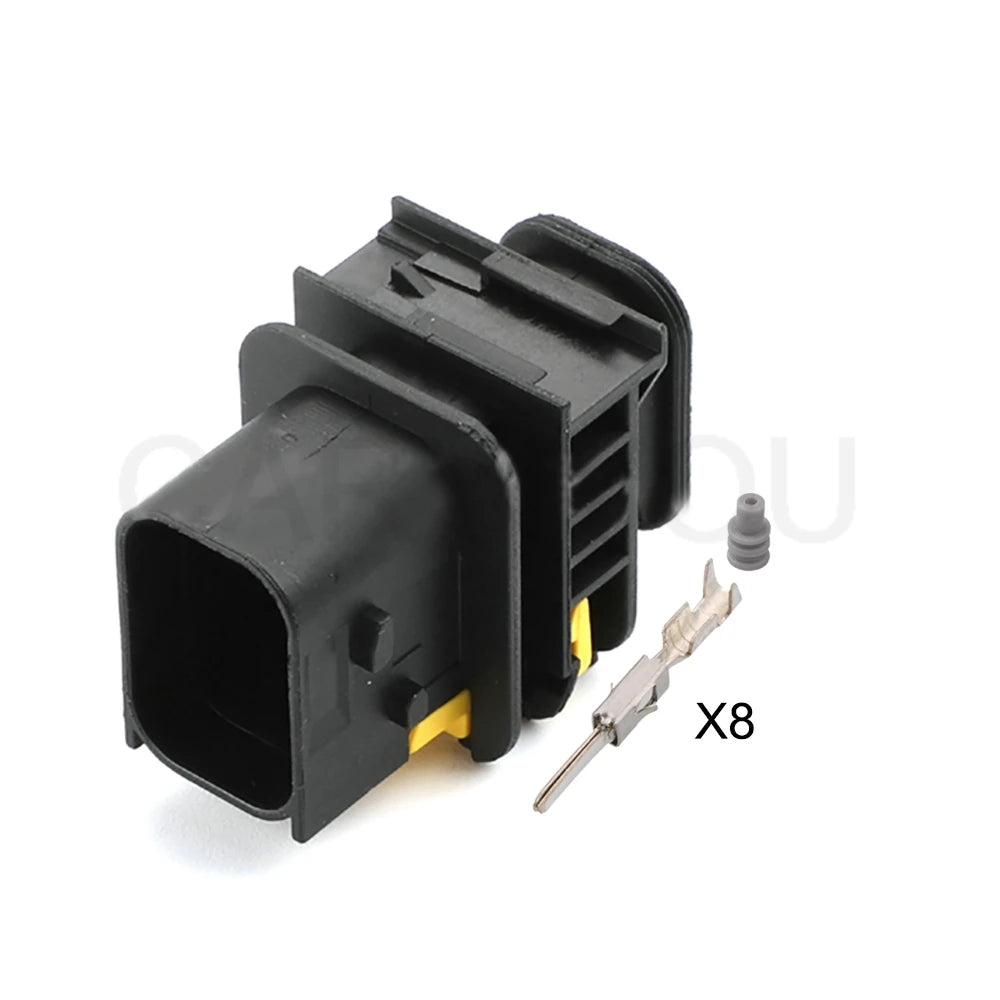

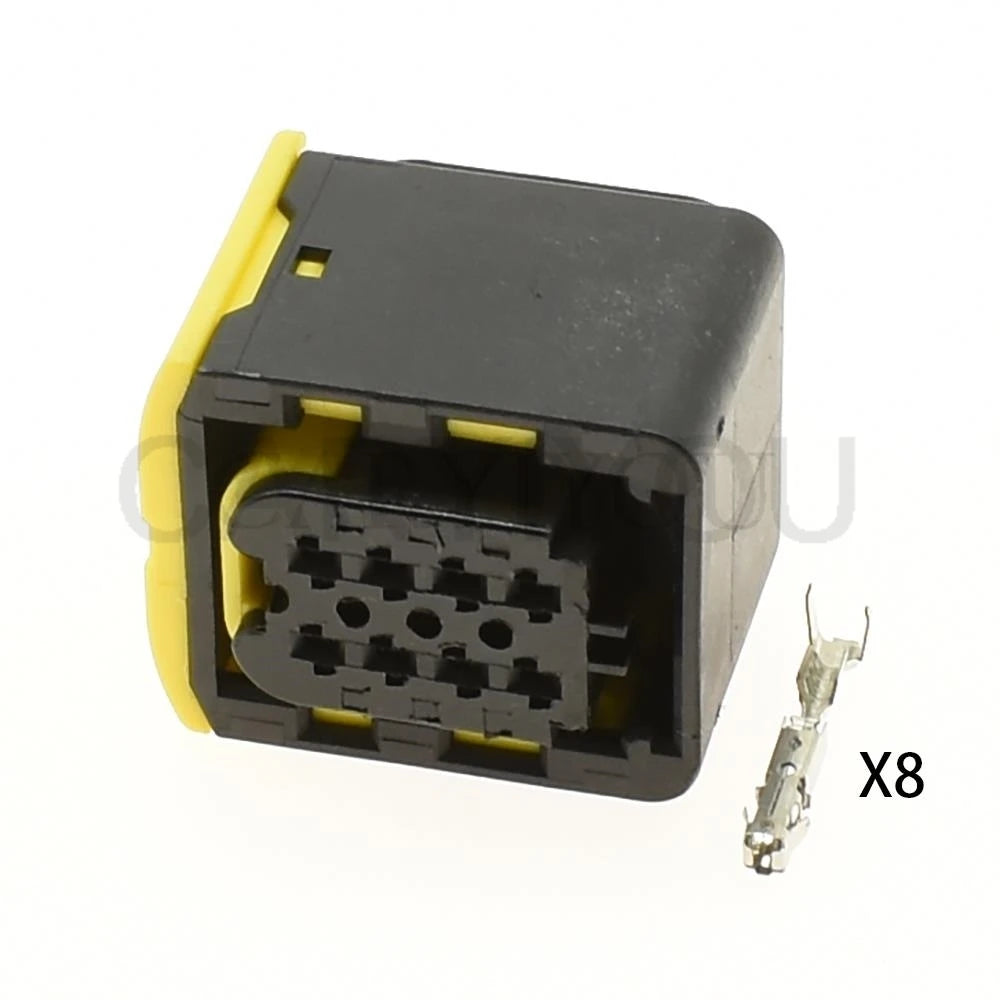

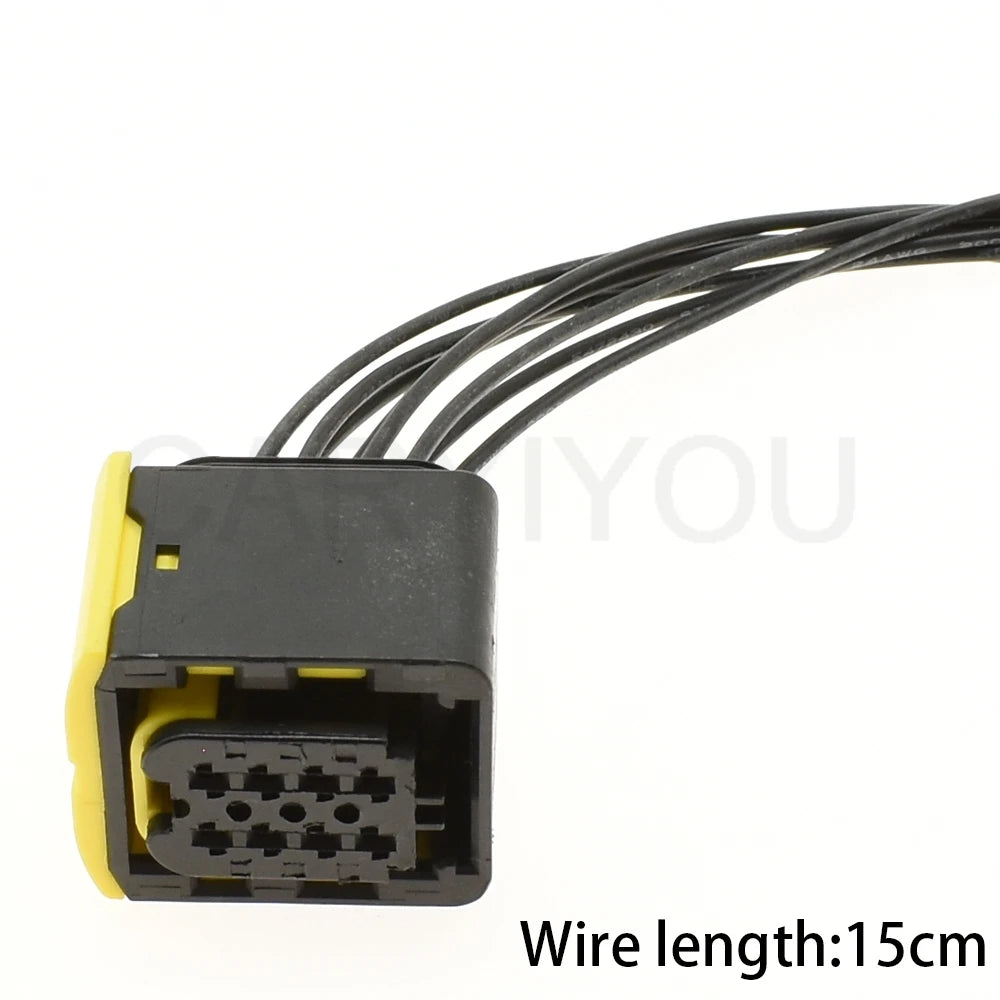

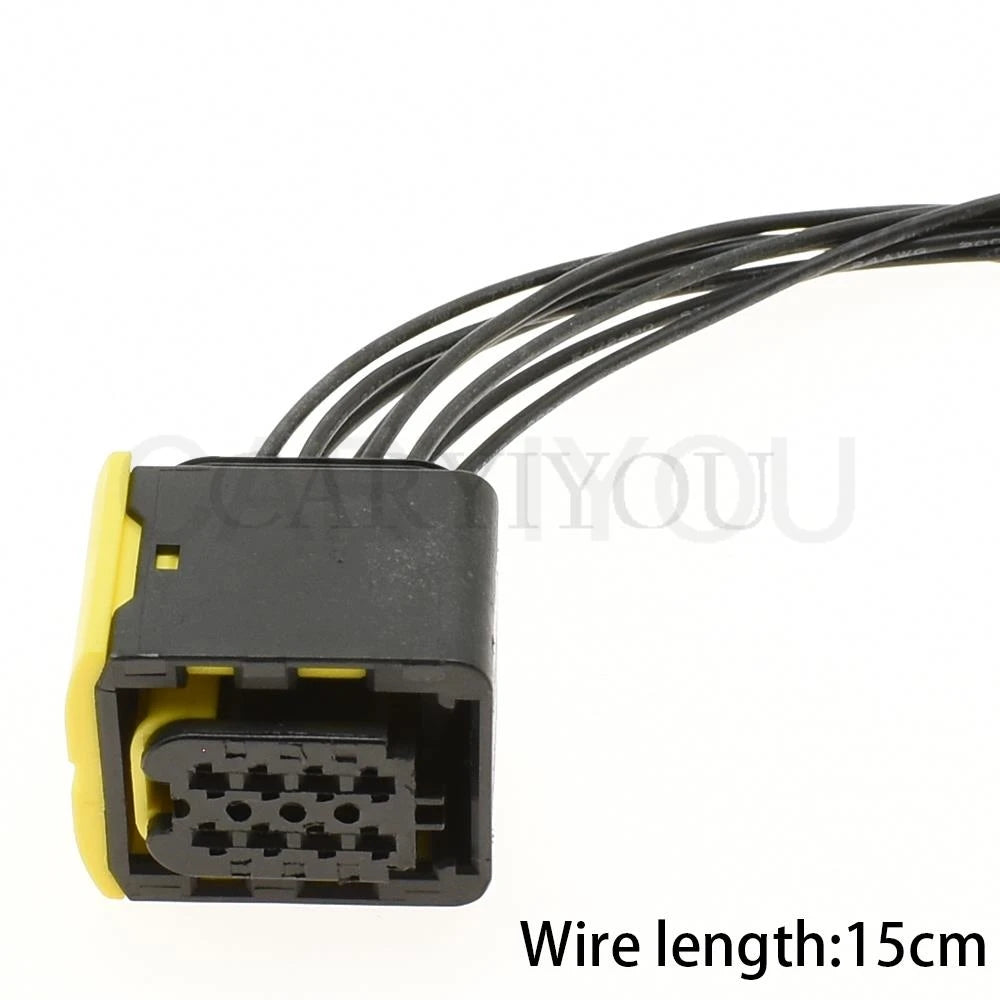

- 1× 0-1418438-1 / 1-1418479-1 / 1670364-1 / 1-1564512-1 HDSCS 8-Pin Waterproof Automotive Connector Housing
- HDSCS contacts and wedge lock included in complete kit variants
