Keszoox

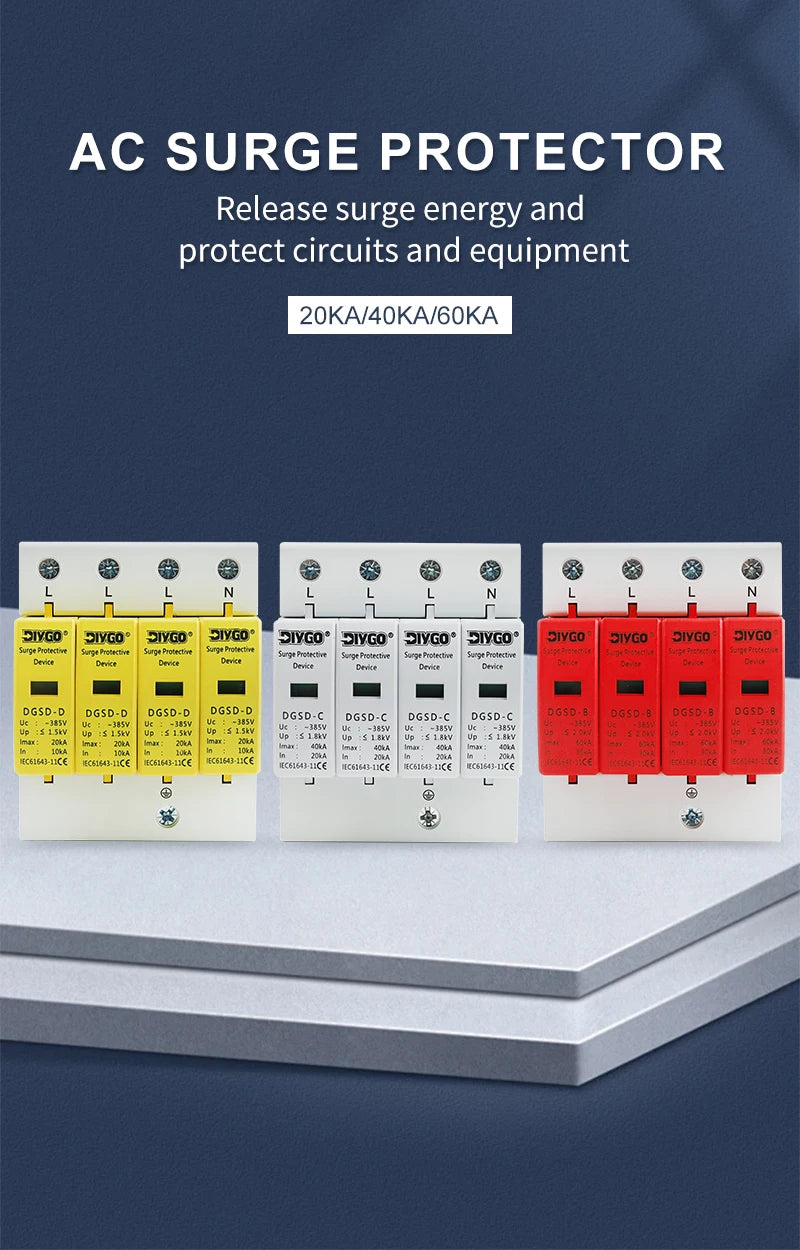

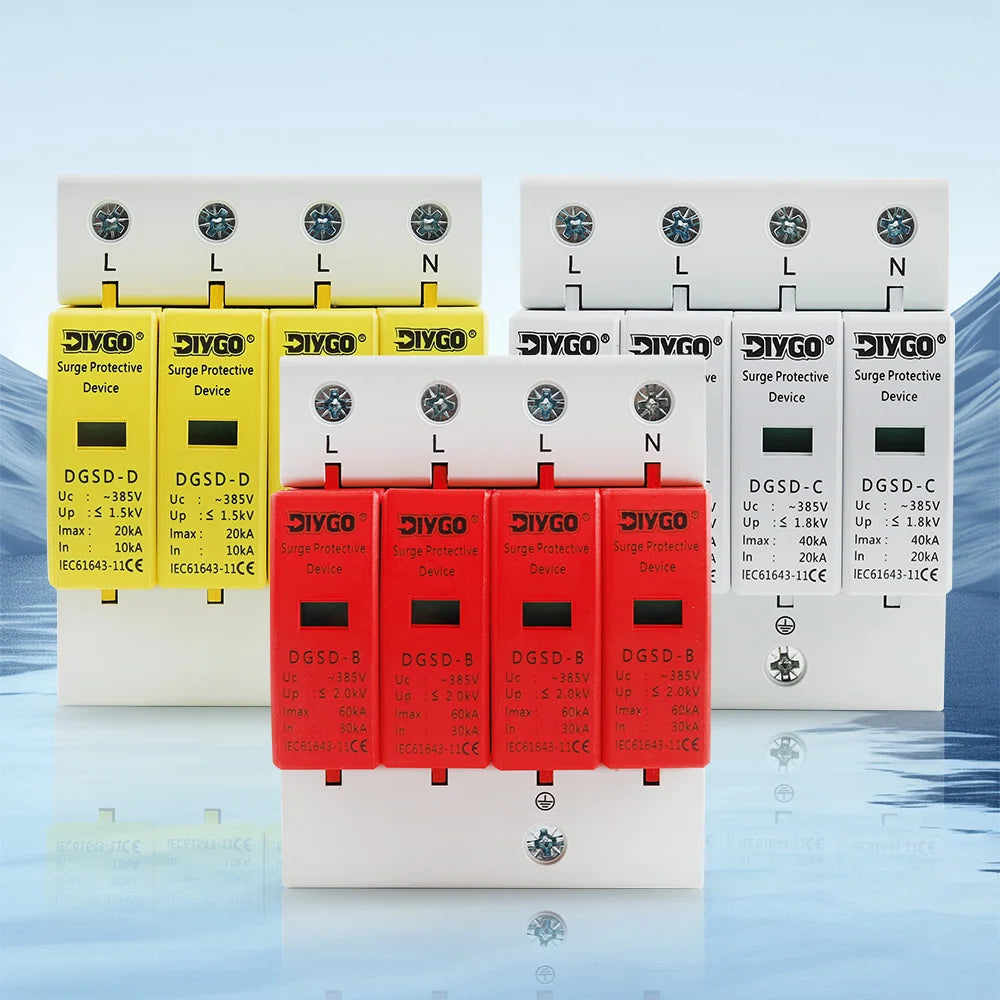

AC SPD 4P House Lightning Surge Protector 10-20KA 20-40KA 30-60KA 385V Solar PV Low-Voltage Arrester 3P+N

AC SPD 4P House Lightning Surge Protector 10-20KA 20-40KA 30-60KA 385V Solar PV Low-Voltage Arrester 3P+N

Regular price $39.24 USD
Regular price $67.26 USD Sale price $39.24 USD
Save 41% Sold out
Taxes included. Shipping calculated at checkout.
Rated Current
Poles Number

SPECIFICATIONS

Brand Name: Keszoox

Certification: CE

Choice: yes

High-concerned chemical: None

Is Smart Device: No

Model Number: 4P DGSD-D/DGSD-C/DGSD-B

Origin: Mainland China

Rated Voltage: 220V

Type: Mini

is_customized: Yes

AC Surge Protective Device (SPD) :Professional solutions for protecting your electrical systems and on-load apparatus from lightning and transient over-voltage.

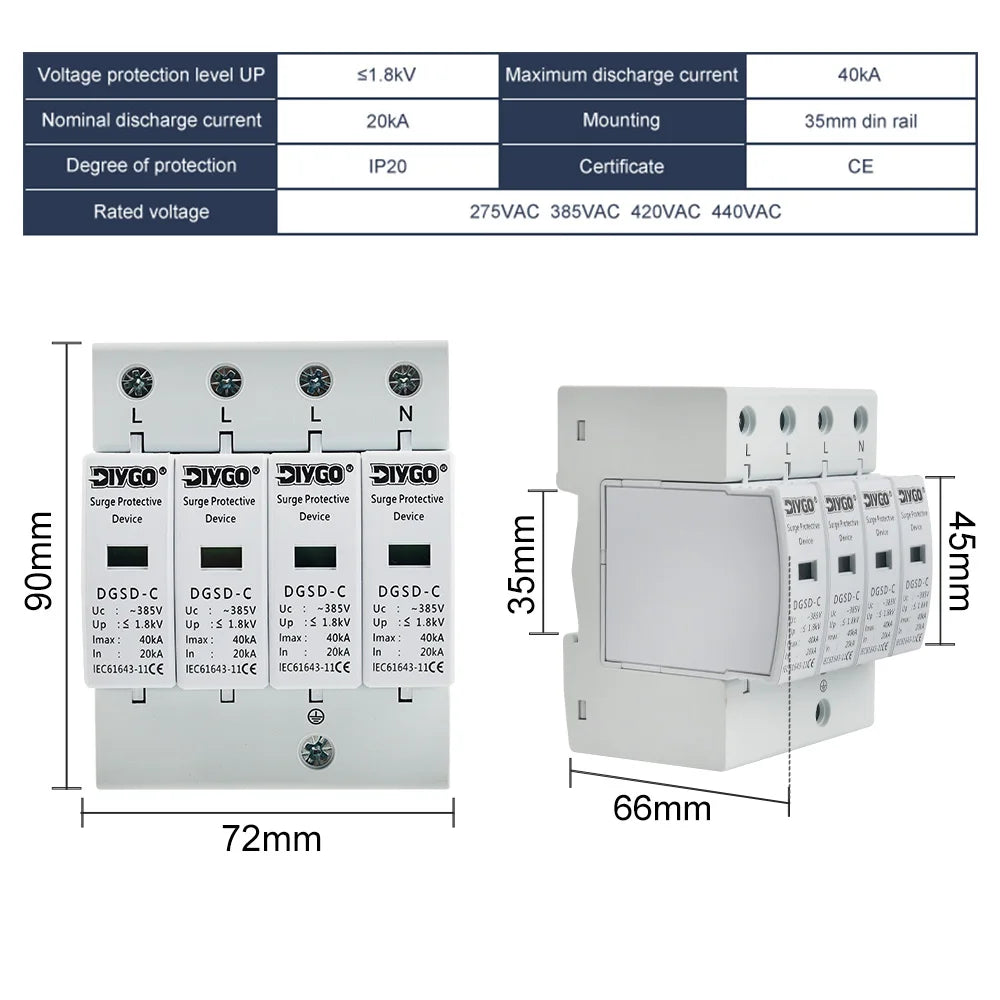

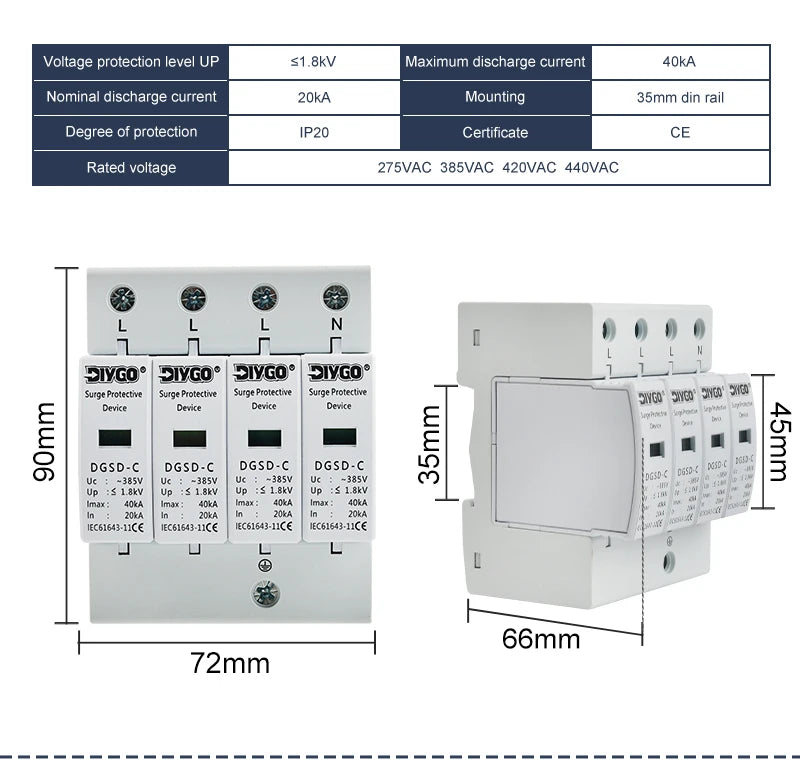

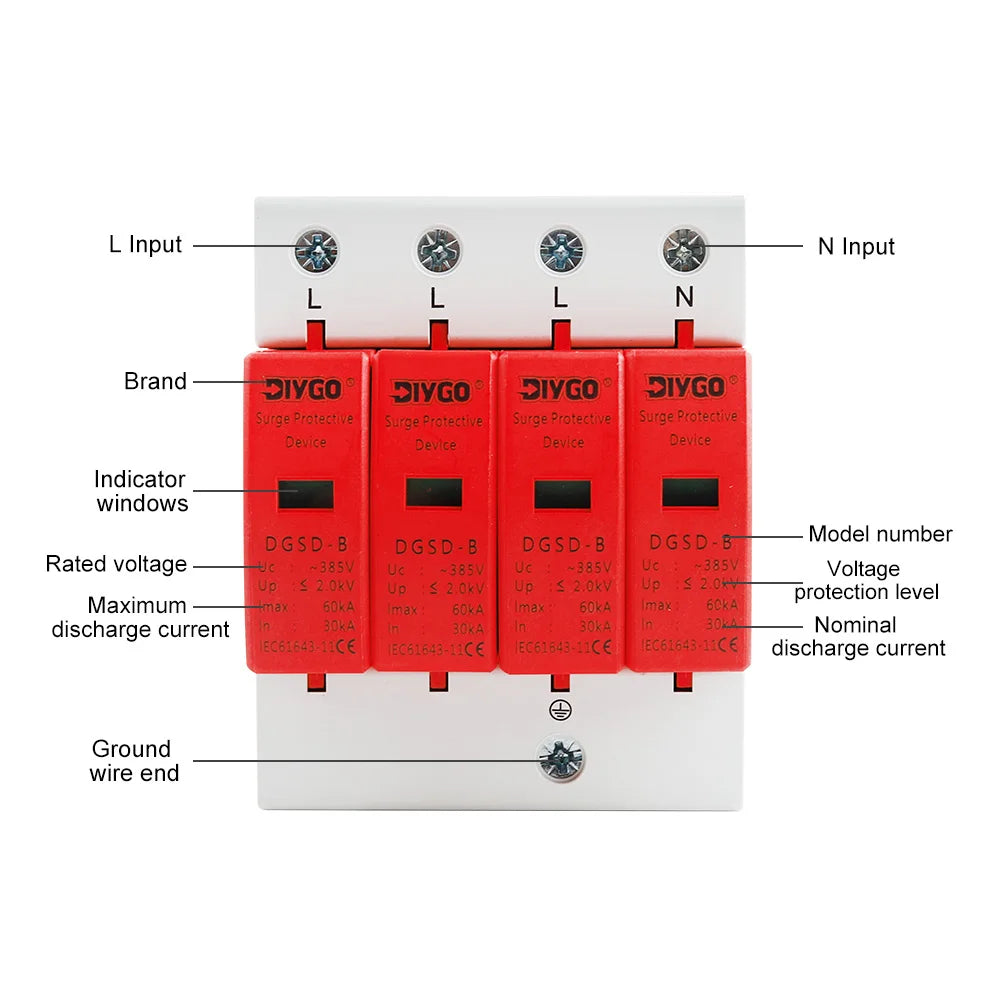

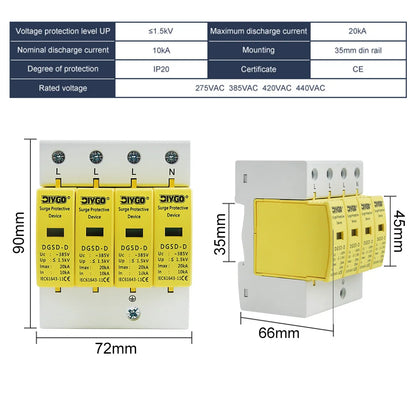

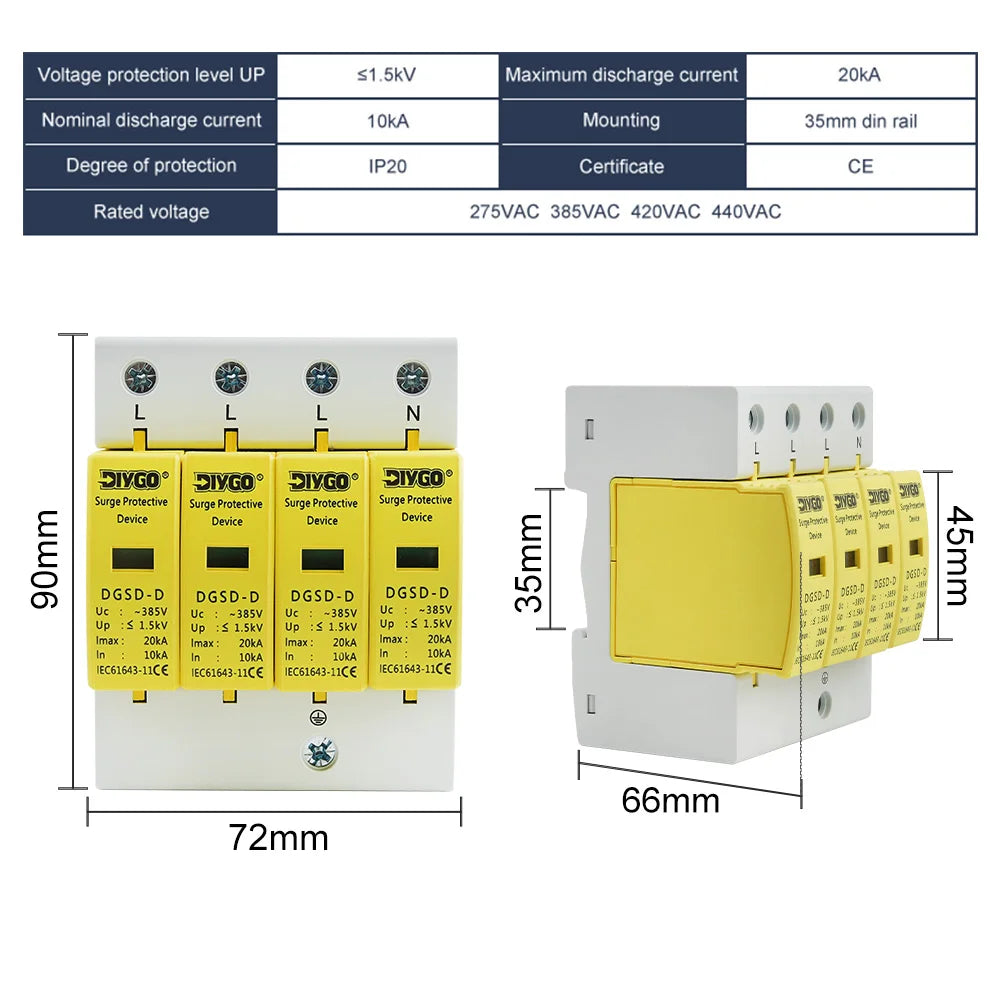

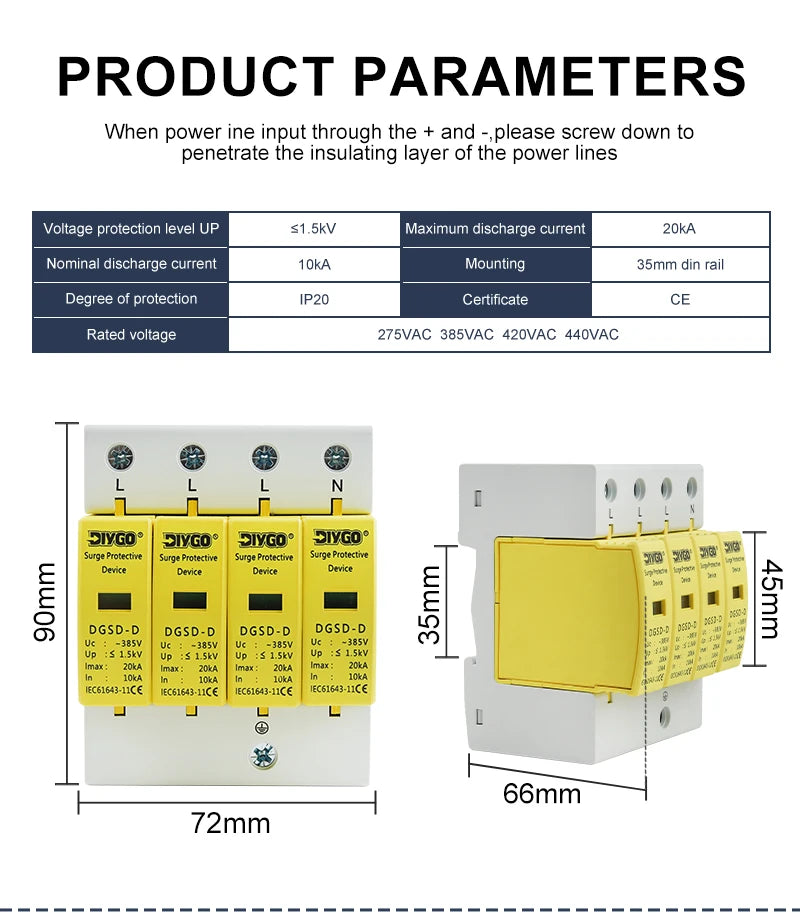

Parameter

Model:DGSD-D

Model:DGSD-C

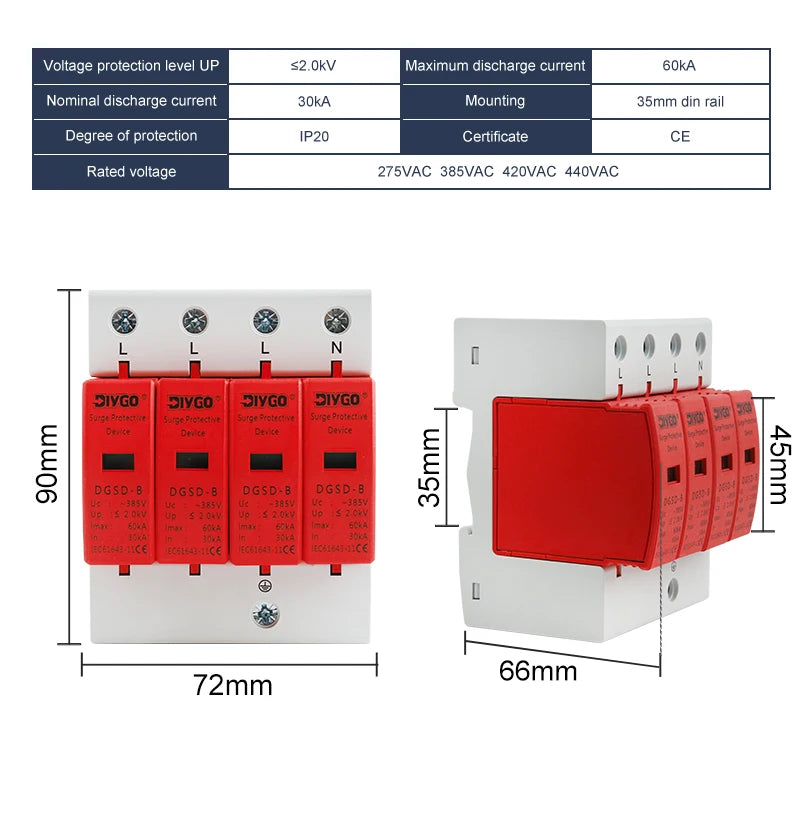

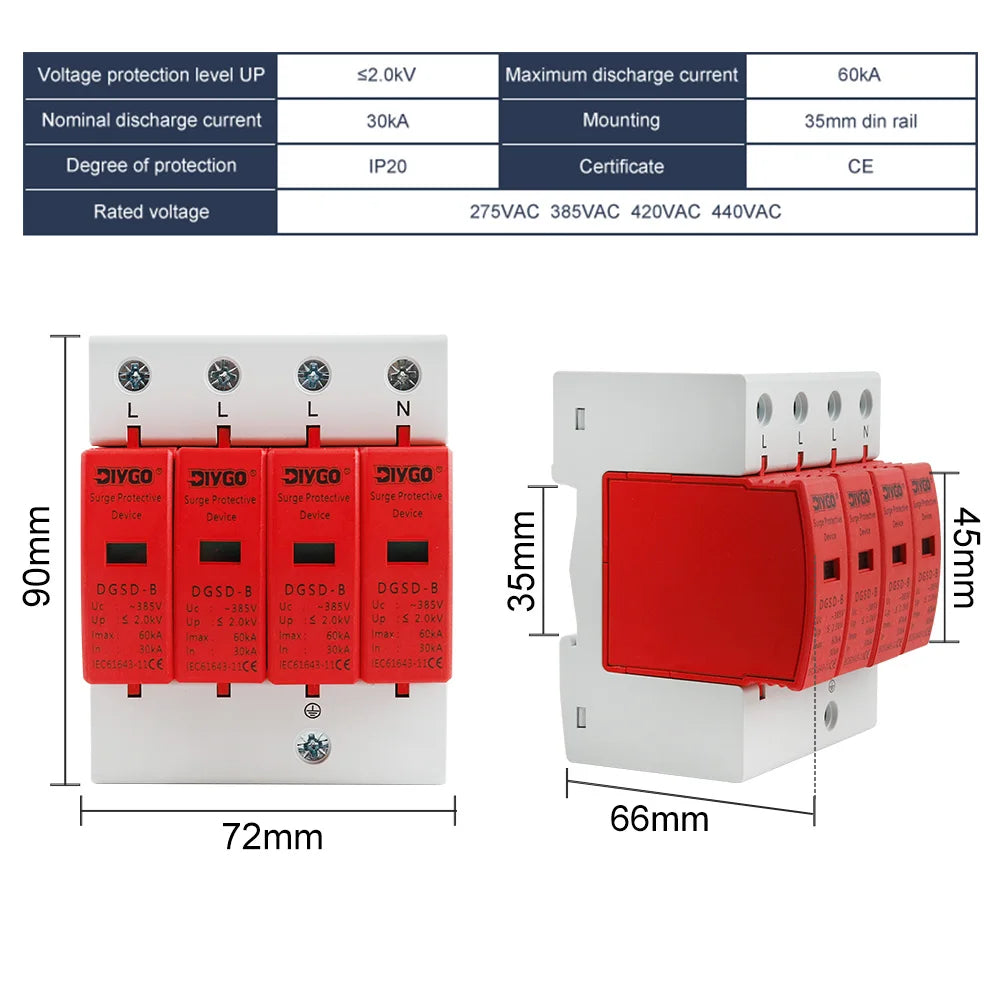

Model:DGSD-B

Nominal Discharge Current

10 kA

20 kA

30 kA

Max Discharge Current

20 kA

40 kA

60 kA

Rated Operating Voltage

275VAC/385VAC/420VAC/440VAC

Rated Frequency

50/60 Hz

Voltage protection level

≤1.5KA

≤1.8KA

≤2.0KA

Standard Compliance

IEC/EN 61643-11

Number of Poles

1/2/3/4P

Certification

CE

Protection level

IP20

Installation method

35mm Din Rail
