Convenient for connecting AC power to screw terminal power connections.
DESCRIPTION

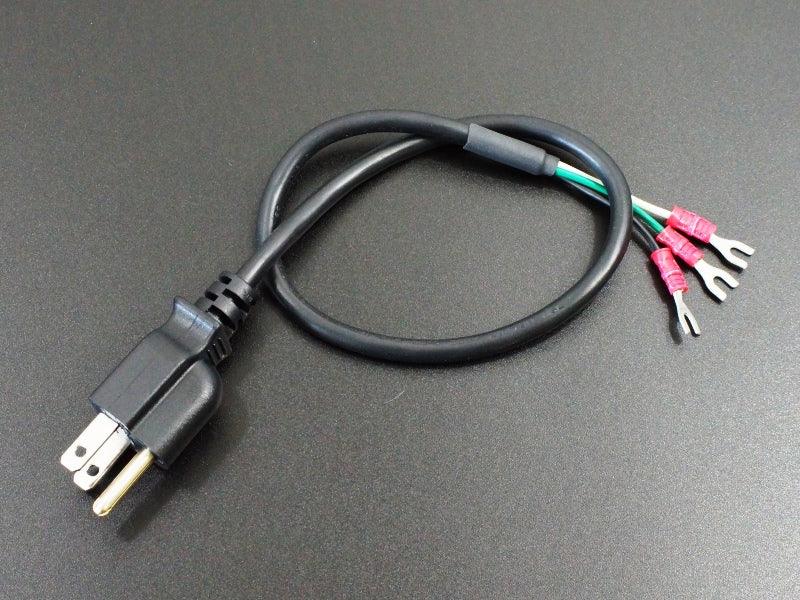

The AC to spade terminal 18AWG, 10A Power cord is convenient for connecting AC power to power supplies or terminal strips with screw terminal power connections. This short 18″ version is useful for keeping things tidy when working with short wiring requirements.
PACKAGE INCLUDES:
- AC to Spade Terminal Power Cord, 18AWG, 18″
KEY FEATURES OF AC TO SPADE TERMINAL POWER CORD:
- Standard molded 3-prong NEMA 5-15P power plug
- Spade terminals crimped to other end of wires
- 18AWG wire
- SVT cable jacket
- Rated for 10A
- 18″ long

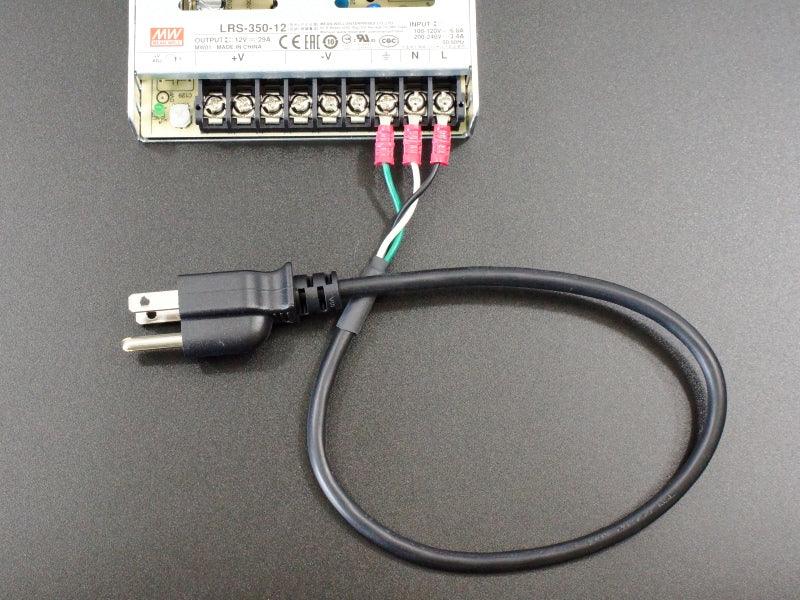

When hooking up a power supply with screw terminal connections to an AC outlet, invariably you need to find an AC power cable, cut the female end off of it and crimp some spade terminals onto the wires or try to get the bare wires to stay under the screw terminals. Not a big deal if you have the parts laying around, but it can be a hassle and get expensive if you need to buy the parts and build one from scratch.
Spade Terminal Size Comparison
As a service to our customers, we offer this medium duty high quality power cable to which we do the dirty work for you. These are constructed with 18AWG stranded copper wire and use the standard color coding:
- Green = Ground
- White – Neutral
- Black = Line (hot)
The cut end with individual wires is protected with a sleeve of 3M adhesive heat shrink.

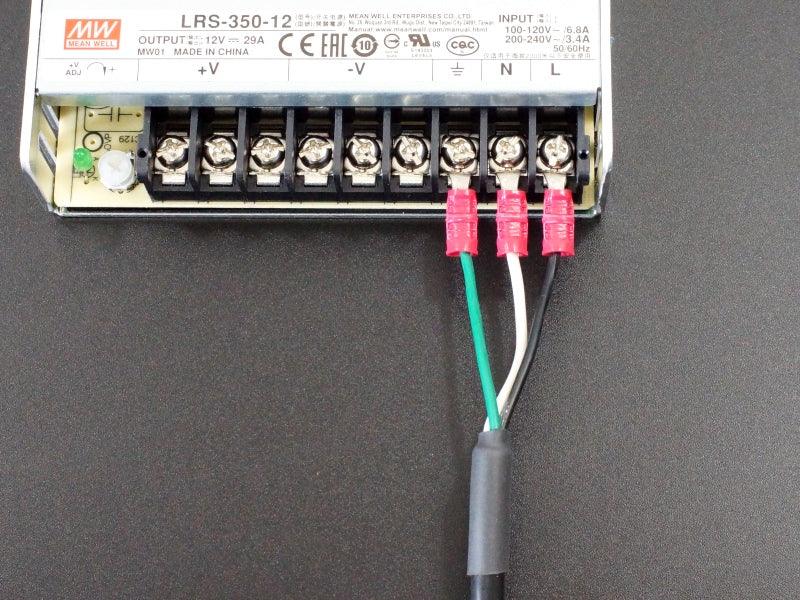

They come with Molex #6 22-18 AWG spade terminals standard. These terminals are 8mm wide and will fit snugly into the standard 8mm wide terminal strips found on most power supplies which helps to keep them locked into place. If you have a power supply with narrower 7mm wide terminal strips as found on some multi-output power supplies, we can use a narrower spade lug that is about 6mm wide. The downside is that there is less ‘meat’ to the terminal, but that generally doesn’t create a problem.
If you would prefer narrow terminals be used on your cable, please make a note in the Order Notes section when you checkout.
Note:
- None
TECHNICAL SPECIFICATIONS
| Cable Length | 47 cm (18″) | |
| # Conductors | 3 | |
| Conductor Gauge | 18 AWG (41 * 0.16mm copper strands) | |
| Max Current | 10A | |
| Cable Jacket | SVT 75°C, 300V, UL Listed (0.25″ diameter) | |
| Shielding | None | |
| Terminations | Input | Standard molded NEMA 5-15P |
| Output | Crimped spade terminals #6 |
