AMS1117 Voltage Regulator Power Supply Module — 1.2V/1.5V/1.8V/2.5V/3.3V/5V (2pcs)
AMS1117 Voltage Regulator Power Supply Module 1.2V/1.5V/1.8V/2.5V/3.3V/5V (2pcs)
Couldn't load pickup availability

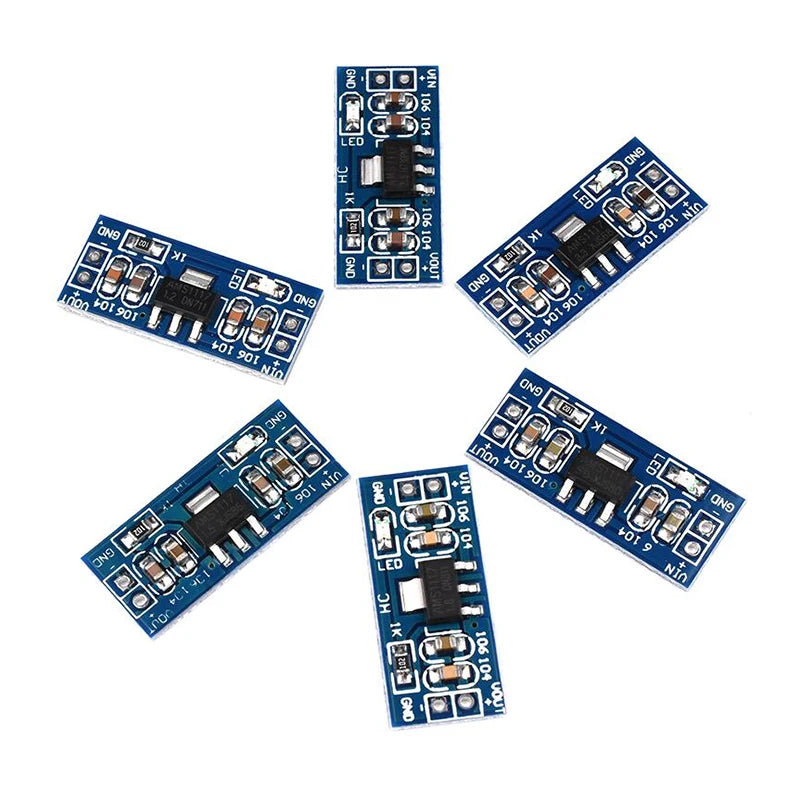

AMS1117 LDO Voltage Regulator Power Supply Module

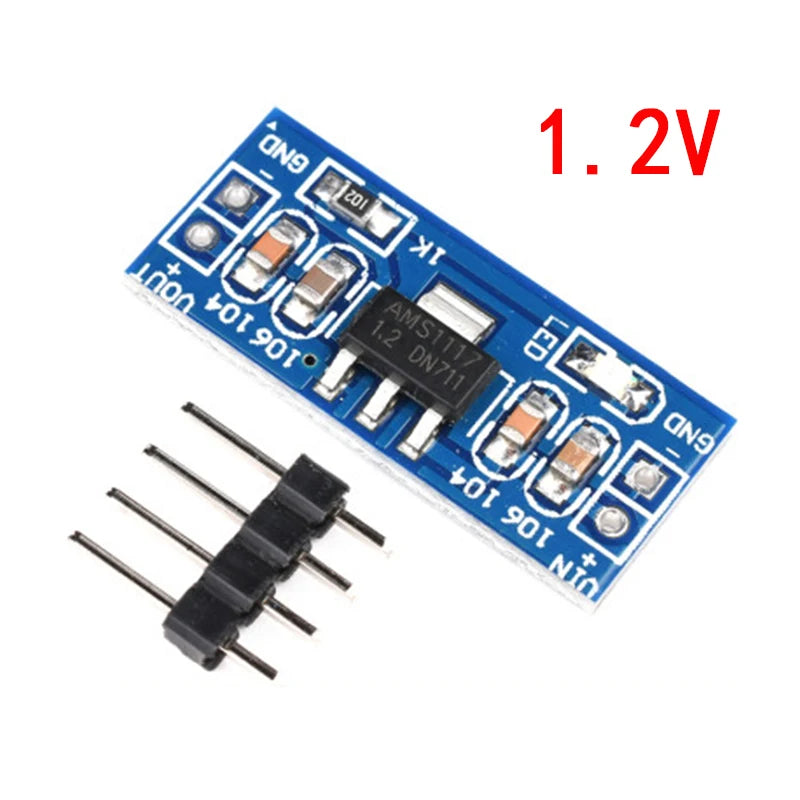

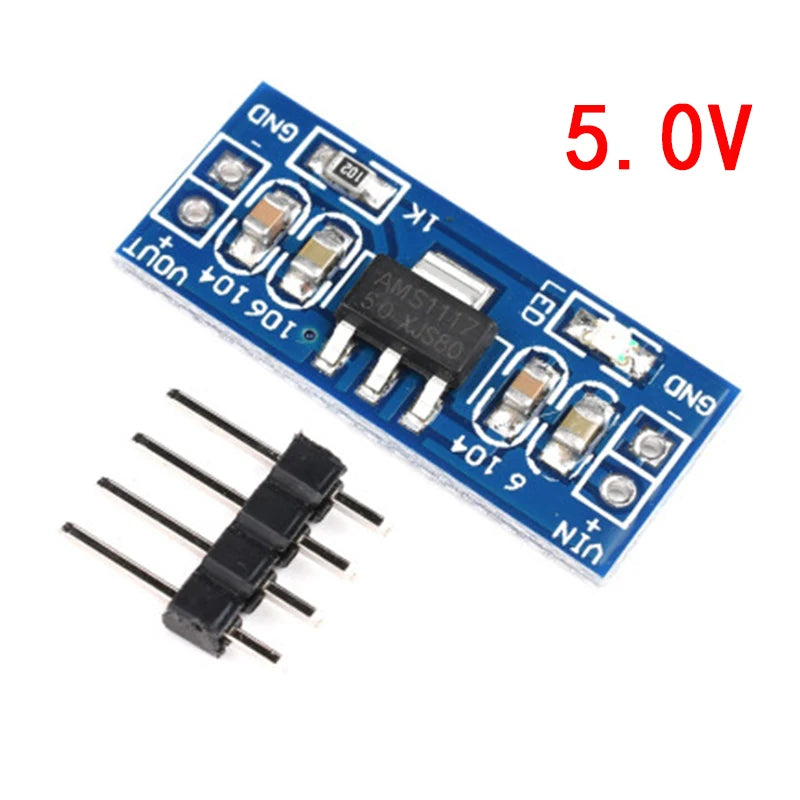

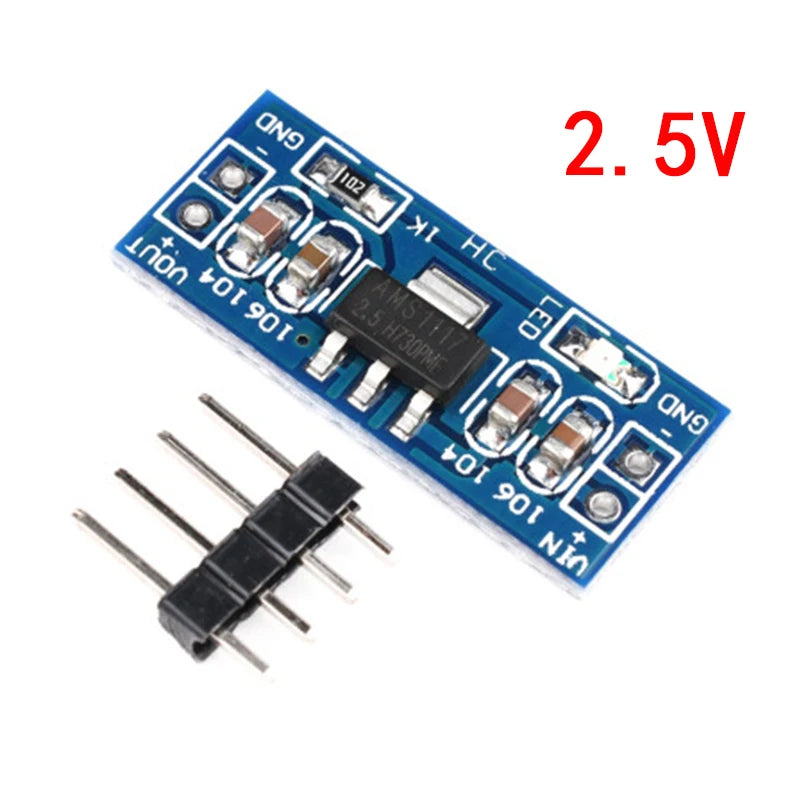

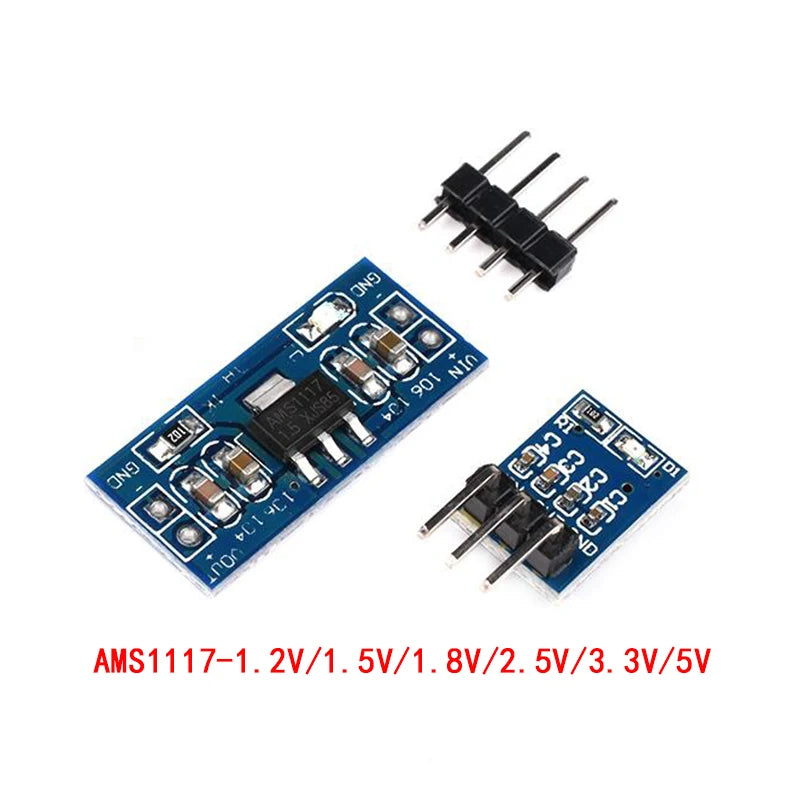

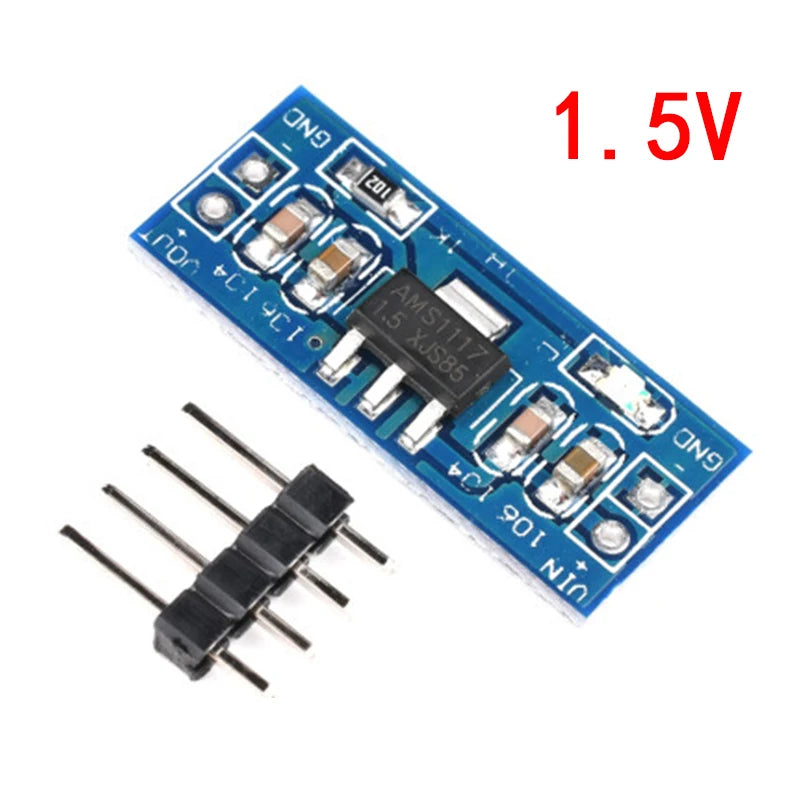

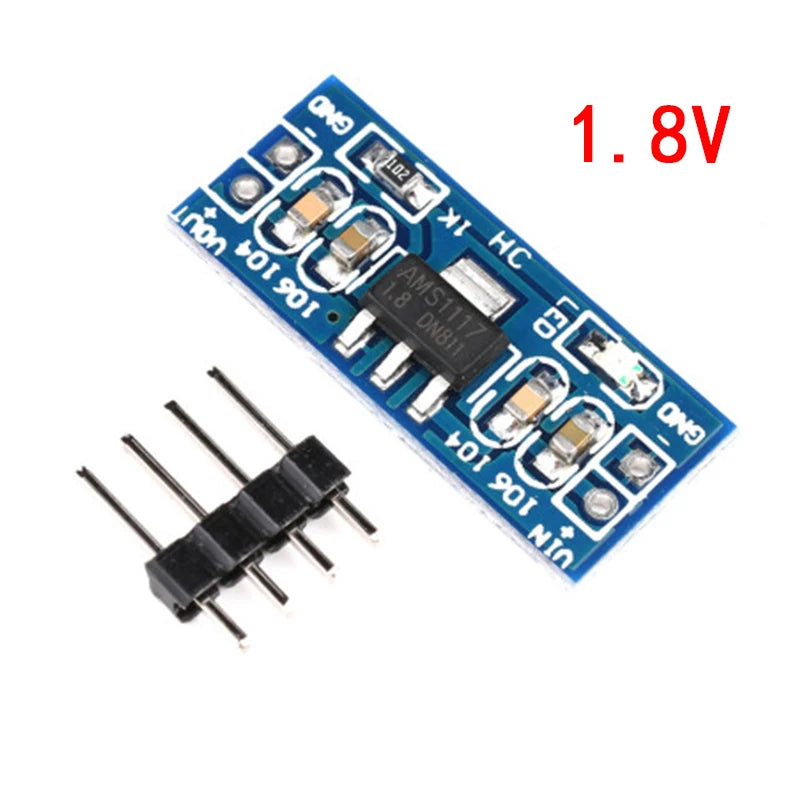

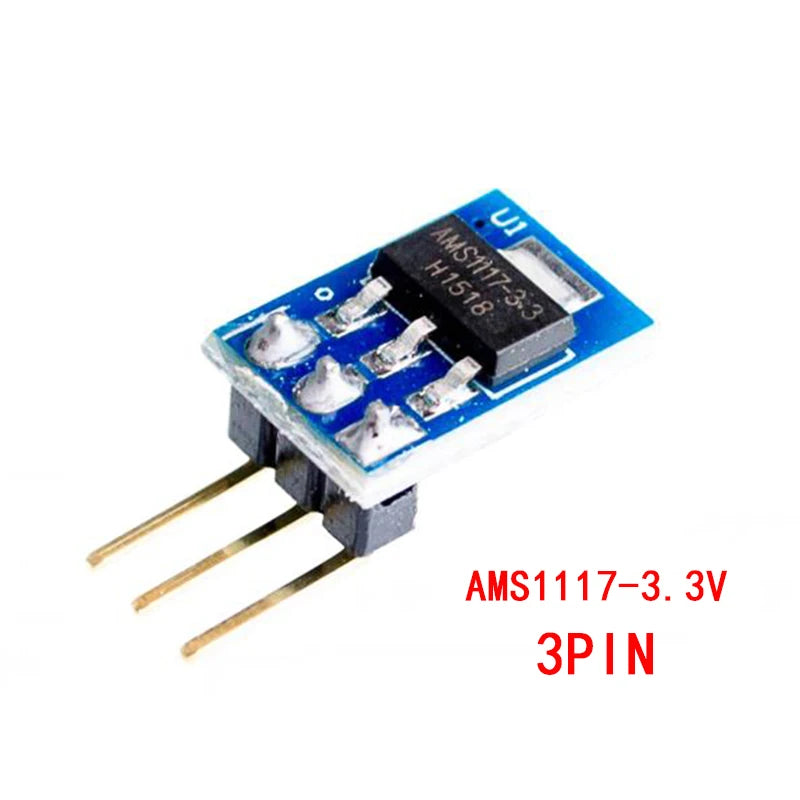

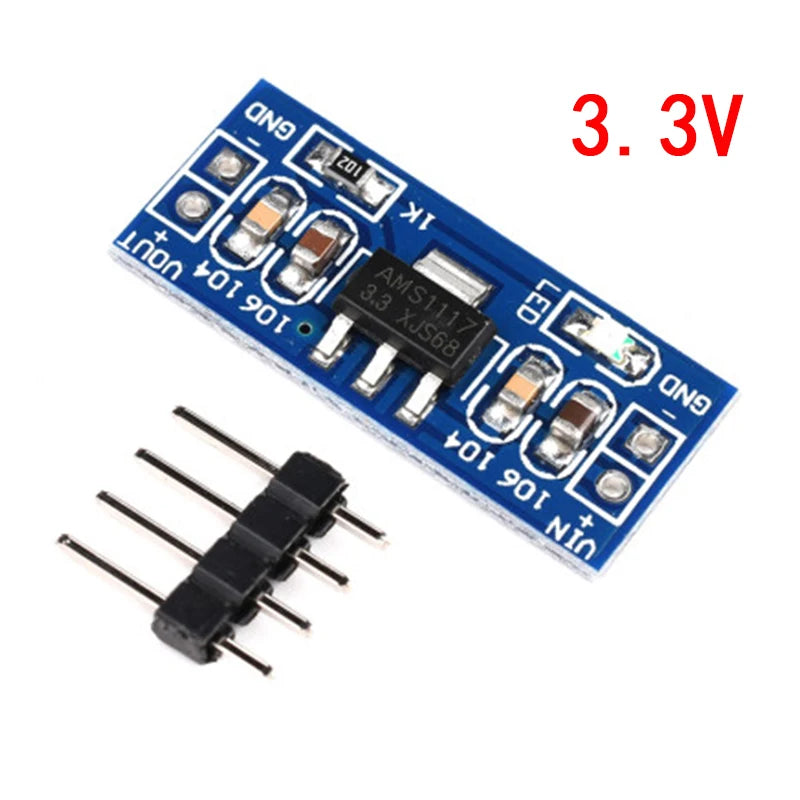

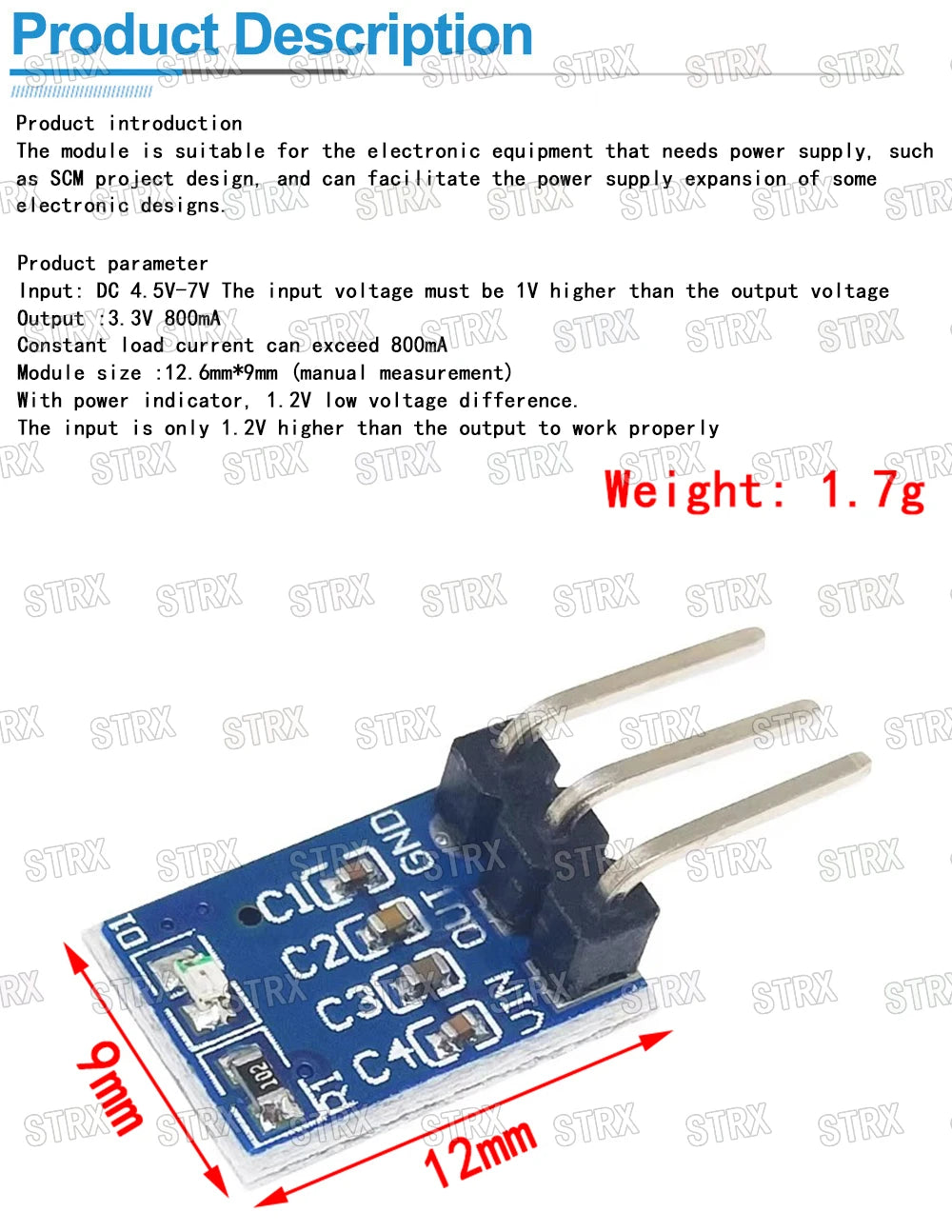

A compact and ready-to-use AMS1117 LDO (Low Dropout) voltage regulator module with screw terminal input/output connections. Available in fixed output voltages: 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5V. Ideal for powering microcontrollers, sensors, and logic circuits from higher-voltage sources. Comes in a 2-piece pack.
Key Specifications

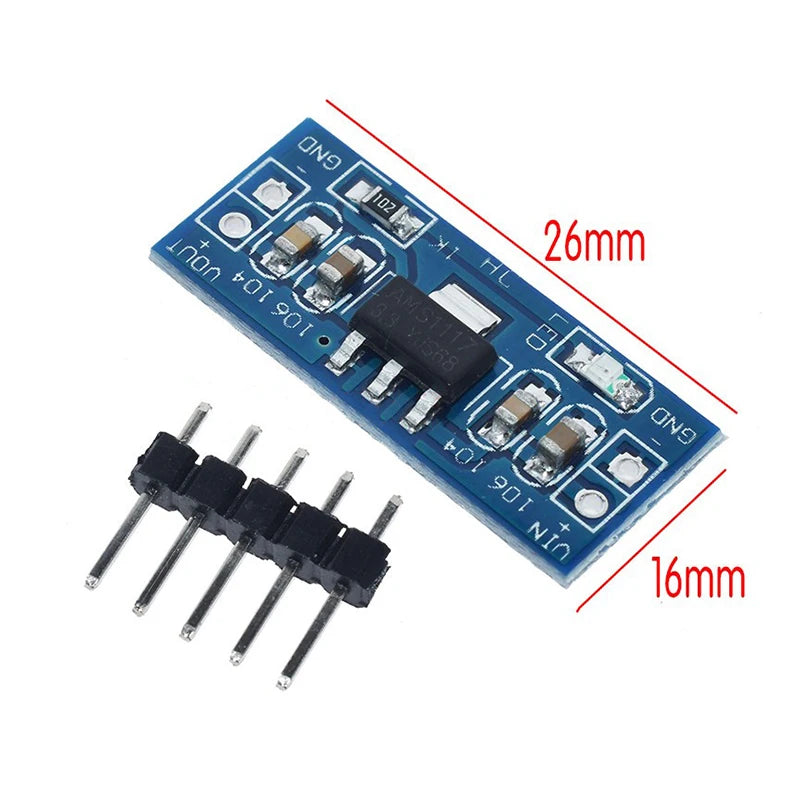

| Parameter | Value |
|---|---|
| IC | AMS1117 (SOT-223) |
| Output Voltage Options | 1.2V / 1.5V / 1.8V / 2.5V / 3.3V / 5V (fixed) |
| Output Current | 800mA (max) |
| Input Voltage Range | Vout + 1.3V to 15V |
| Dropout Voltage | ~1.3V (at 800mA) |
| Output Accuracy | ±1% |
| Protection | Thermal shutdown, current limiting |
| Connection | Screw terminals (IN+, IN-, OUT+, OUT-) |
| Quantity | 2 PCS |
Why Choose This Module?
- ✅ Ready-to-use — screw terminals, no soldering required for quick prototyping
- ✅ AMS1117 SOT-223 — better thermal performance than TO-92 LDO regulators
- ✅ 6 voltage options — select the exact output for your project
- ✅ Built-in protection — thermal shutdown and current limiting prevent damage
- ✅ 2-pack value — one for prototyping, one for the final build
Compatible With / Works With
- Arduino UNO/Nano/Pro Mini (3.3V or 5V supply)
- ESP8266 / ESP32 (3.3V, up to 500mA peak)
- Raspberry Pi Pico (3.3V logic supply)
- STM32 Blue Pill (3.3V from 5V USB)
- Sensors: DHT22, BMP280, MPU-6050 (3.3V supply)
Typical Applications
- 3.3V Supply for ESP32/ESP8266 — regulate 5V USB to 3.3V for WiFi modules
- 5V from 9V/12V Adapter — power Arduino from wall adapter
- 1.8V for SD Card Interface — level-compatible supply for 1.8V SD cards
- Sensor Power Rail — clean regulated supply for I²C/SPI sensors
- Breadboard Power Supply — stable voltage rail for prototyping
FAQ
Q: Can AMS1117-3.3 power an ESP32 with WiFi active?
A: The ESP32 can draw up to 500mA peak during WiFi transmission. The AMS1117 is rated at 800mA, so it can handle this — but ensure adequate input voltage (min 4.6V for 3.3V output) and add a 100μF capacitor on the output for stability.
Q: What is the minimum input voltage for AMS1117-5V?
A: Minimum input = 5V + 1.3V dropout = 6.3V. Use a 7.5V–12V source for reliable 5V output.
Q: Can I use AMS1117-ADJ for adjustable output?
A: This listing is for fixed-output modules. For adjustable output, use the AMS1117-ADJ IC with external resistors (Vout = 1.25V × (1 + R2/R1)).
Package Contents
- 2× AMS1117 Voltage Regulator Power Supply Module (voltage per variant selected)
