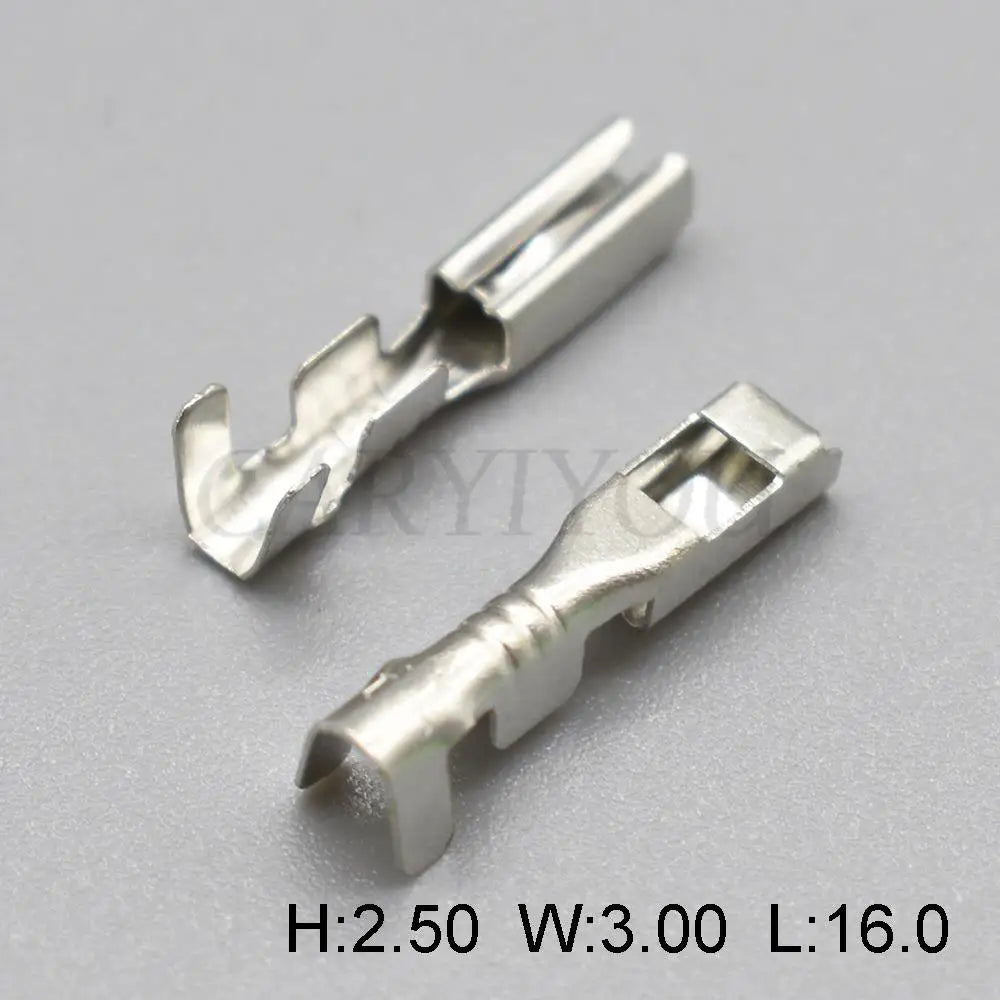

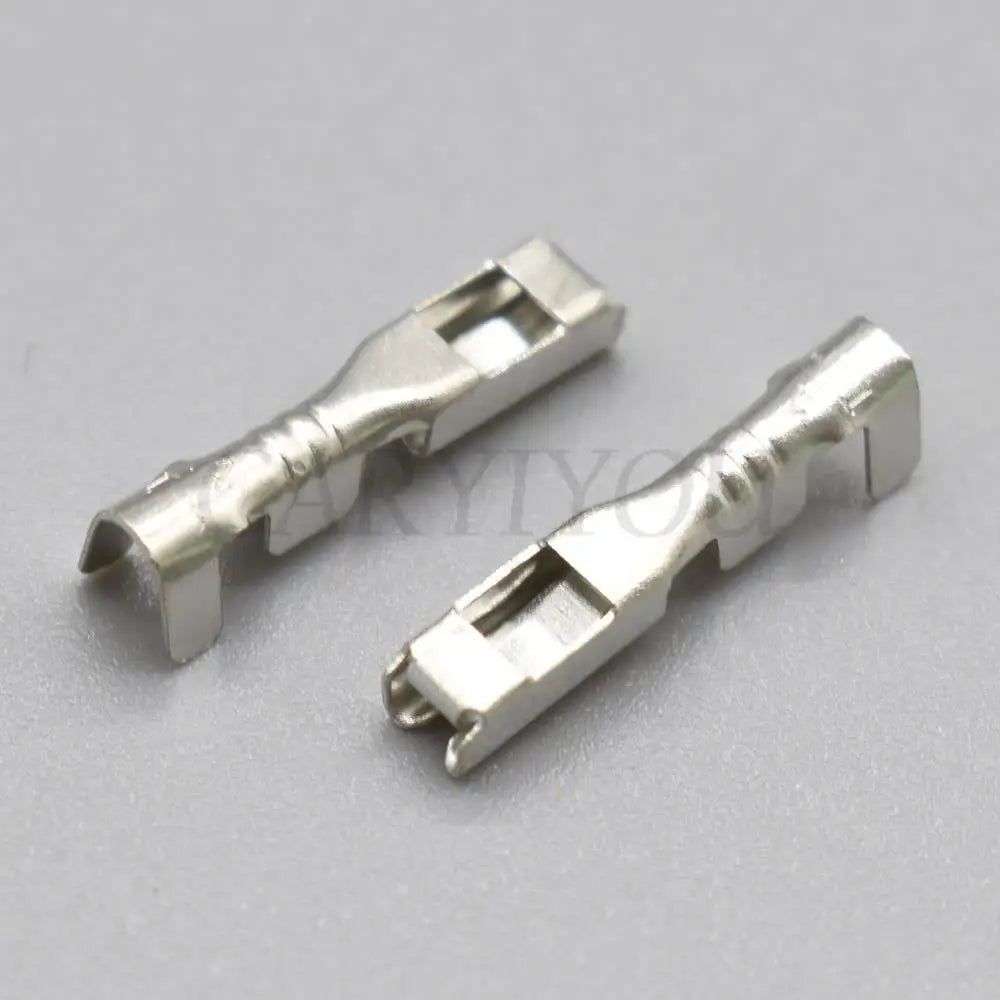

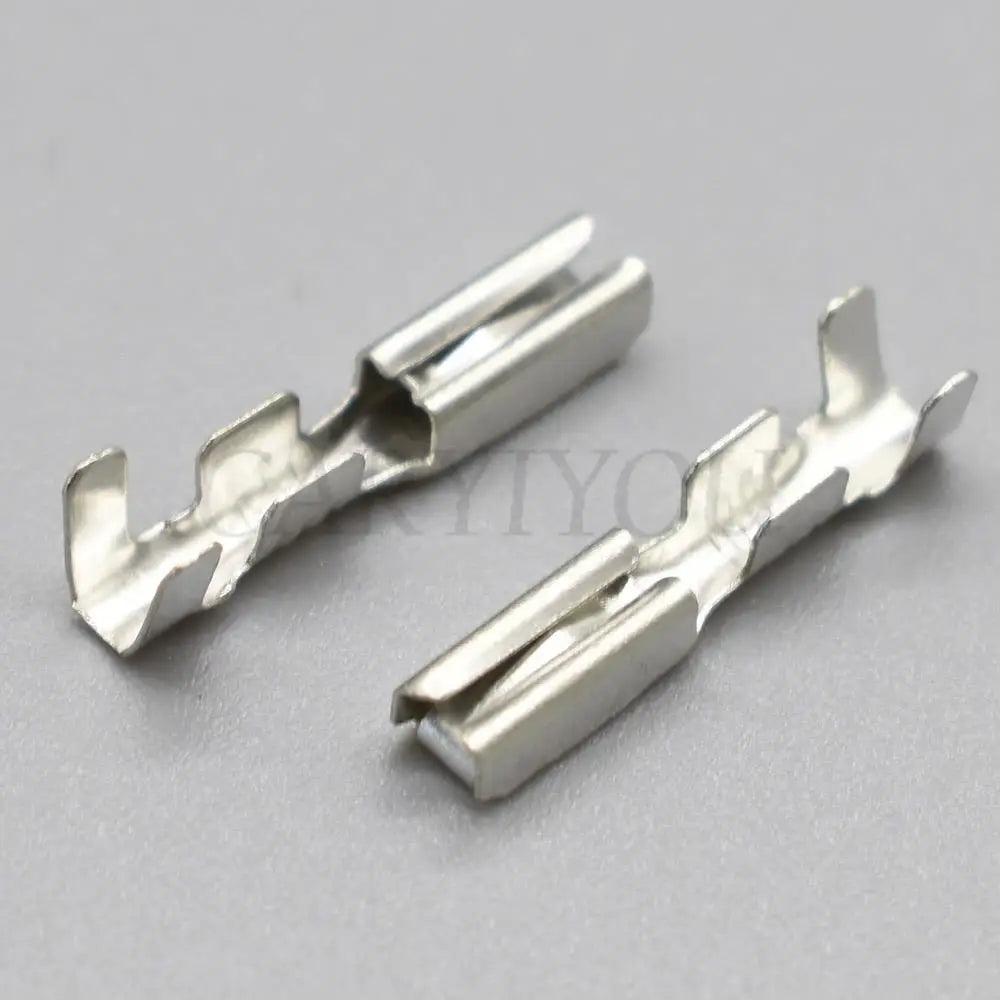

1500-0106 / 1500-0110 Sumitomo Auto Splice Terminal — Female Crimp Pins
The 1500-0106 and 1500-0110 are Sumitomo Electric female crimp terminal splice pins for automotive wire connector housings. Sumitomo Electric is one of the world’s largest automotive wiring harness manufacturers, supplying OEM harnesses to Toyota, Honda, Nissan, Mazda, Subaru, and many other vehicle brands. These terminals are the standard consumable for Sumitomo connector systems — the metal contact crimped onto the wire and inserted into the Sumitomo plastic housing to complete the electrical connection.
Key Specifications
| Parameter | Value |
|---|---|
| Part Numbers | 1500-0106 / 1500-0110 |
| Manufacturer | Sumitomo Electric |
| Terminal Type | Female crimp splice pin (open-barrel) |
| Material | Tin-plated copper alloy |
| Compatible Connectors | Sumitomo automotive connector housings |
| Operating Temperature | -40°C to +125°C |
| Compliance | RoHS |
| Origin | Mainland China |
Sumitomo Terminal System — Key Facts
- OEM harness standard — Sumitomo supplies wiring harnesses to Toyota, Honda, Nissan, Mazda, Subaru, Mitsubishi, and many other OEMs; these terminals appear in millions of vehicles worldwide
- 1500-series terminal family — the 1500 series covers a range of wire gauges and terminal configurations within the Sumitomo connector system; 1500-0106 and 1500-0110 are specific variants within this family
- Tin-plated copper — corrosion-resistant plating maintains low contact resistance in underhood environments over the vehicle’s service life
- Open-barrel crimp design — allows visual inspection of wire insertion before crimping; ensures all wire strands are captured for a reliable gas-tight crimp
Typical Applications
- Sumitomo connector terminal replacement on Toyota / Honda / Nissan vehicles
- Sensor, actuator, and ECU connector wiring harness repair
- OEM wiring harness repair requiring Sumitomo terminals
- Workshop terminal stock for Japanese vehicle maintenance
Frequently Asked Questions
Q: What is the difference between 1500-0106 and 1500-0110?
The two part numbers are variants within the Sumitomo 1500 terminal series, differing in wire barrel dimensions to accommodate different wire gauges. 1500-0106 is typically for finer wire gauges (0.3–0.5mm²), while 1500-0110 accommodates slightly heavier gauges (0.5–1.0mm²). Select the variant that matches your wire gauge for a proper gas-tight crimp.
Q: How do I identify which Sumitomo terminal my connector uses?
The terminal part number is typically stamped on the terminal body (requires magnification). Alternatively, look up the connector housing part number in the Sumitomo connector catalog or your vehicle’s wiring diagram — the compatible terminal part number is listed alongside the housing specification.
