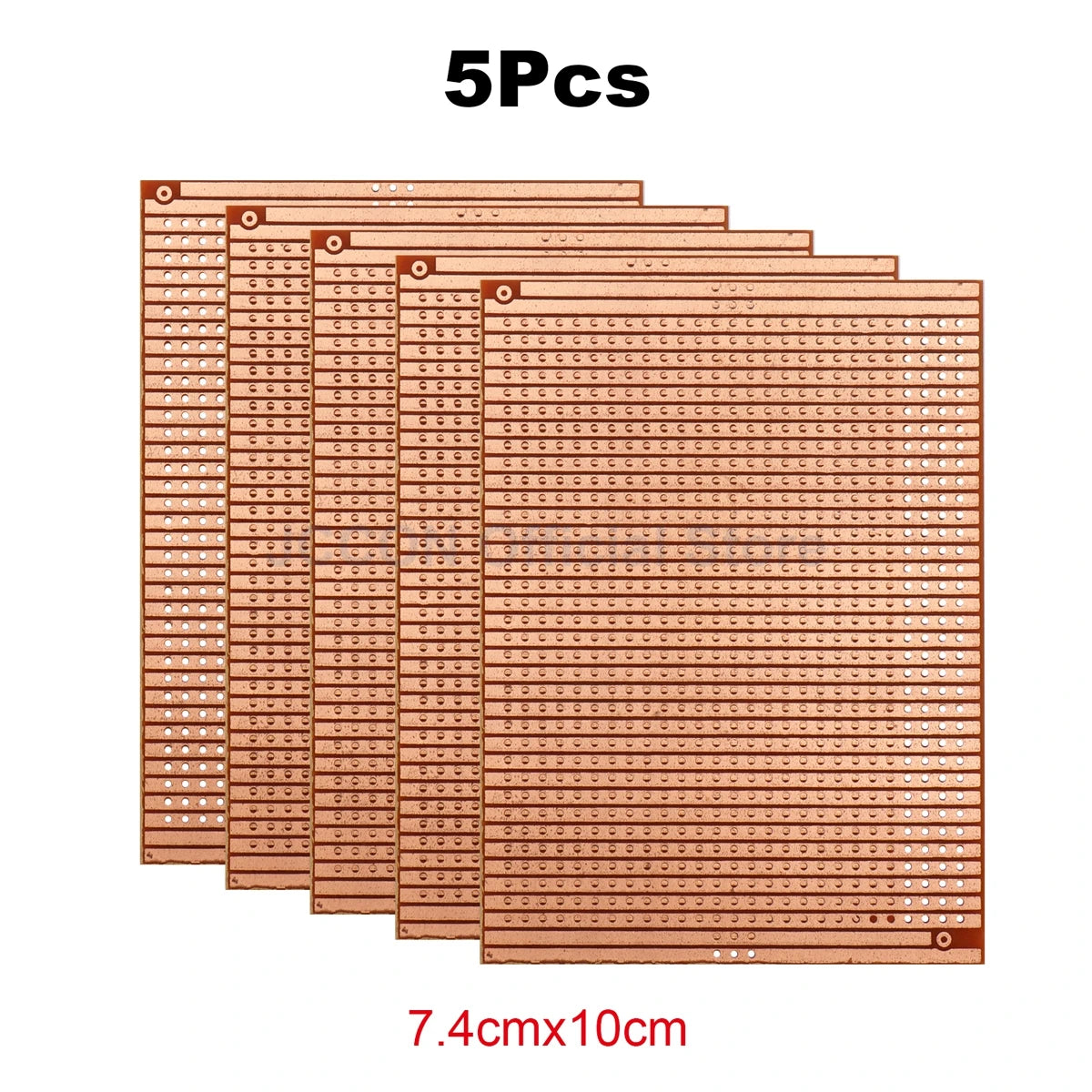

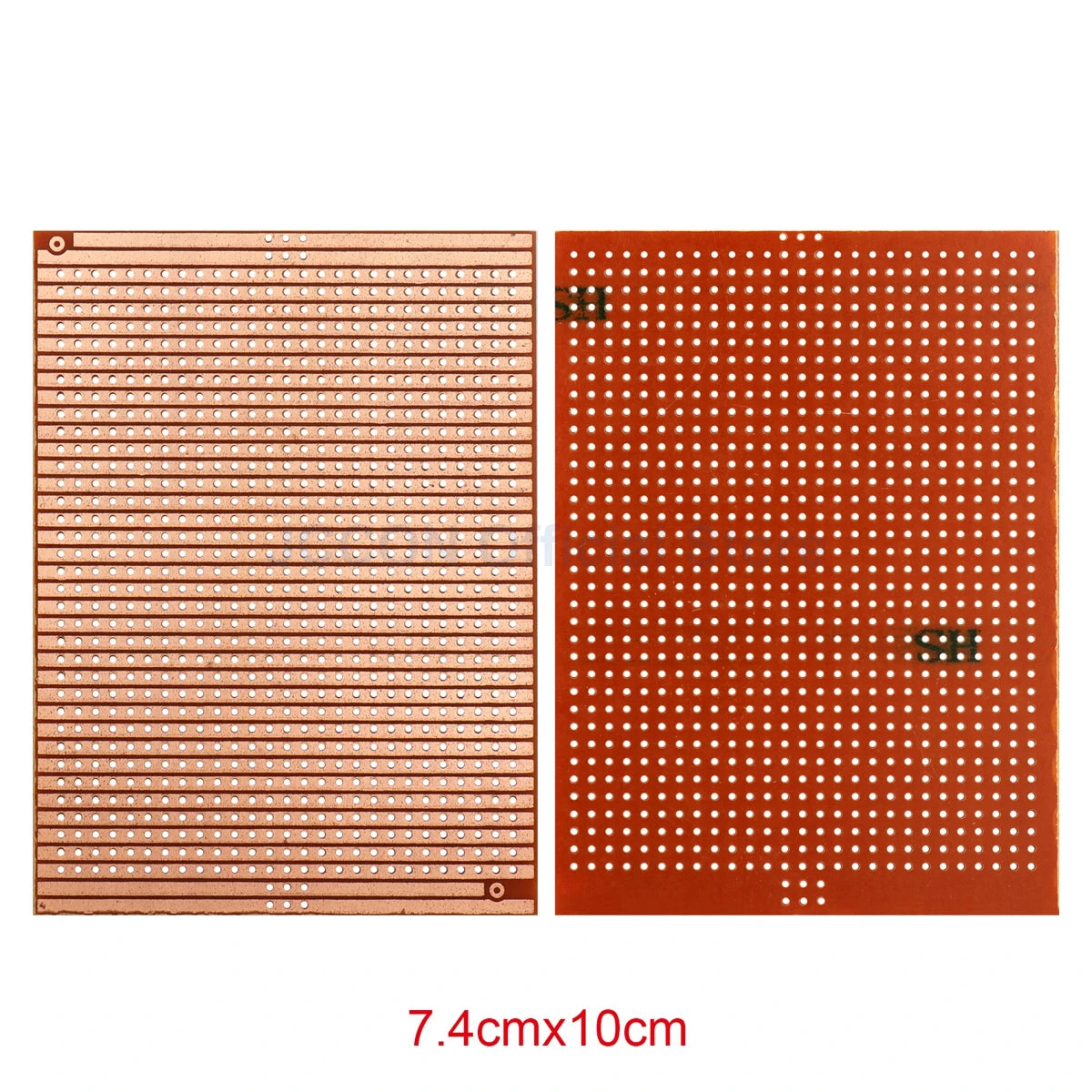

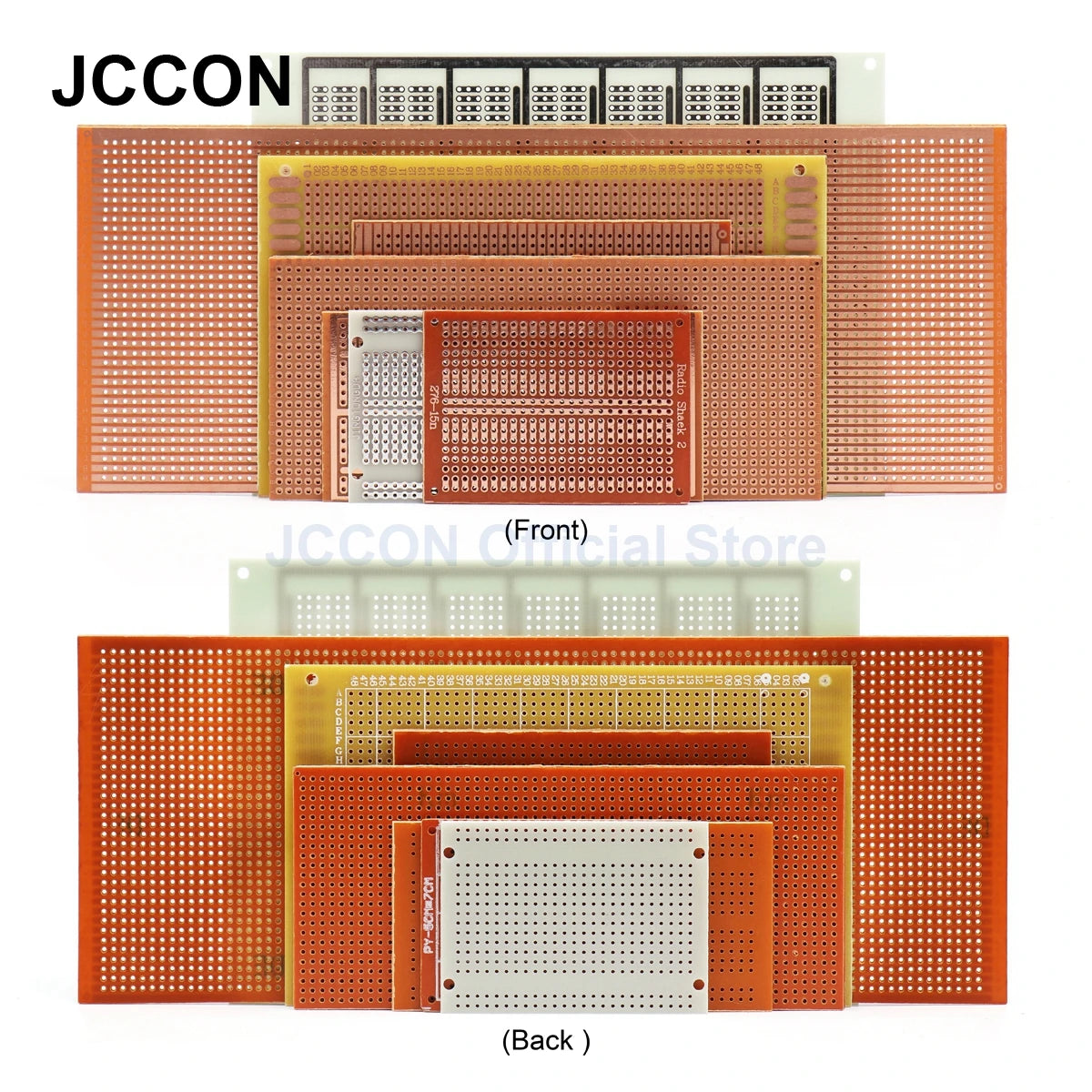

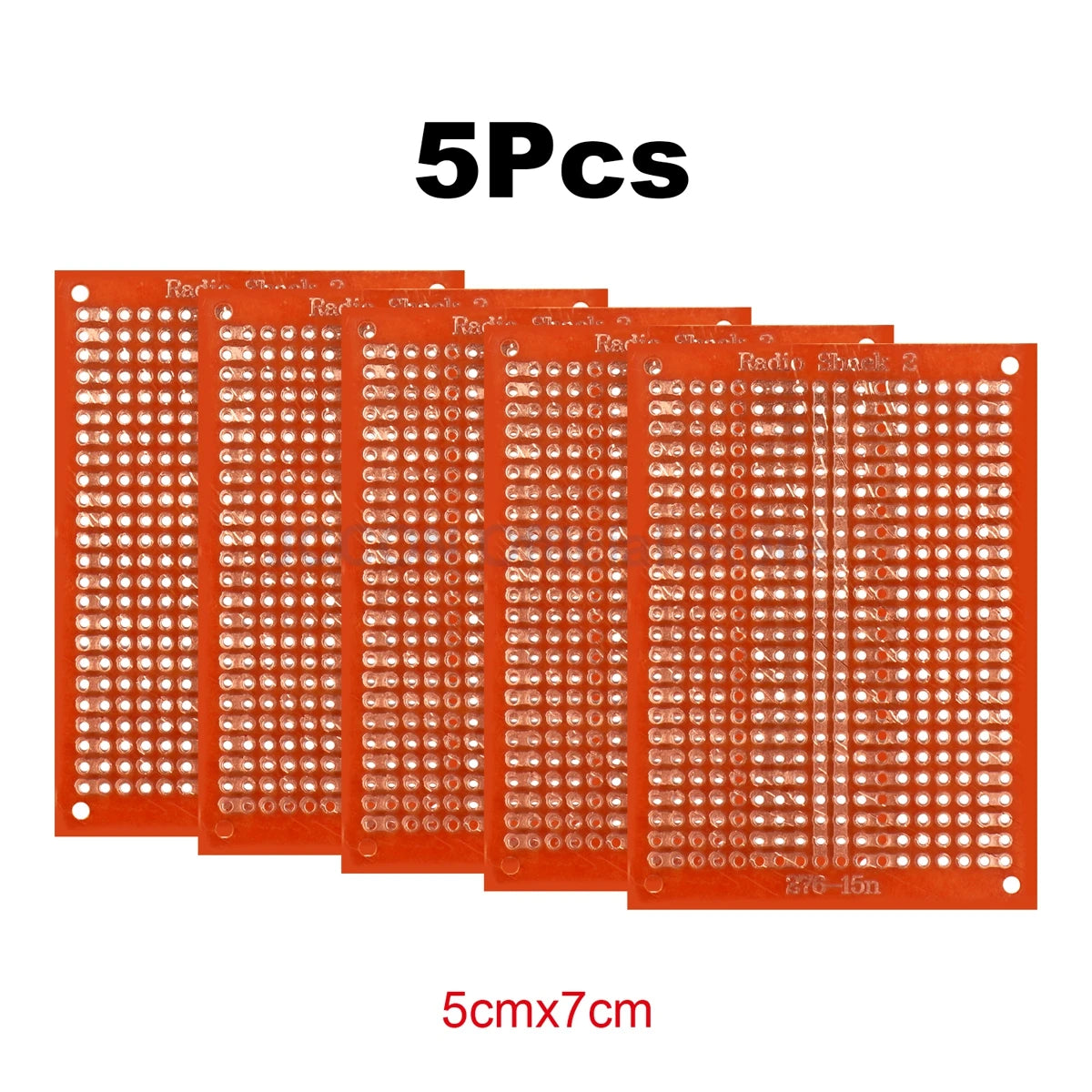

5Pcs PCB Prototype Board Bakelite Circuit Protoboard Experimental Copper Plate Circuirt Board Yellow Single Side 5x7 5x10 6.5x14.5

Description:

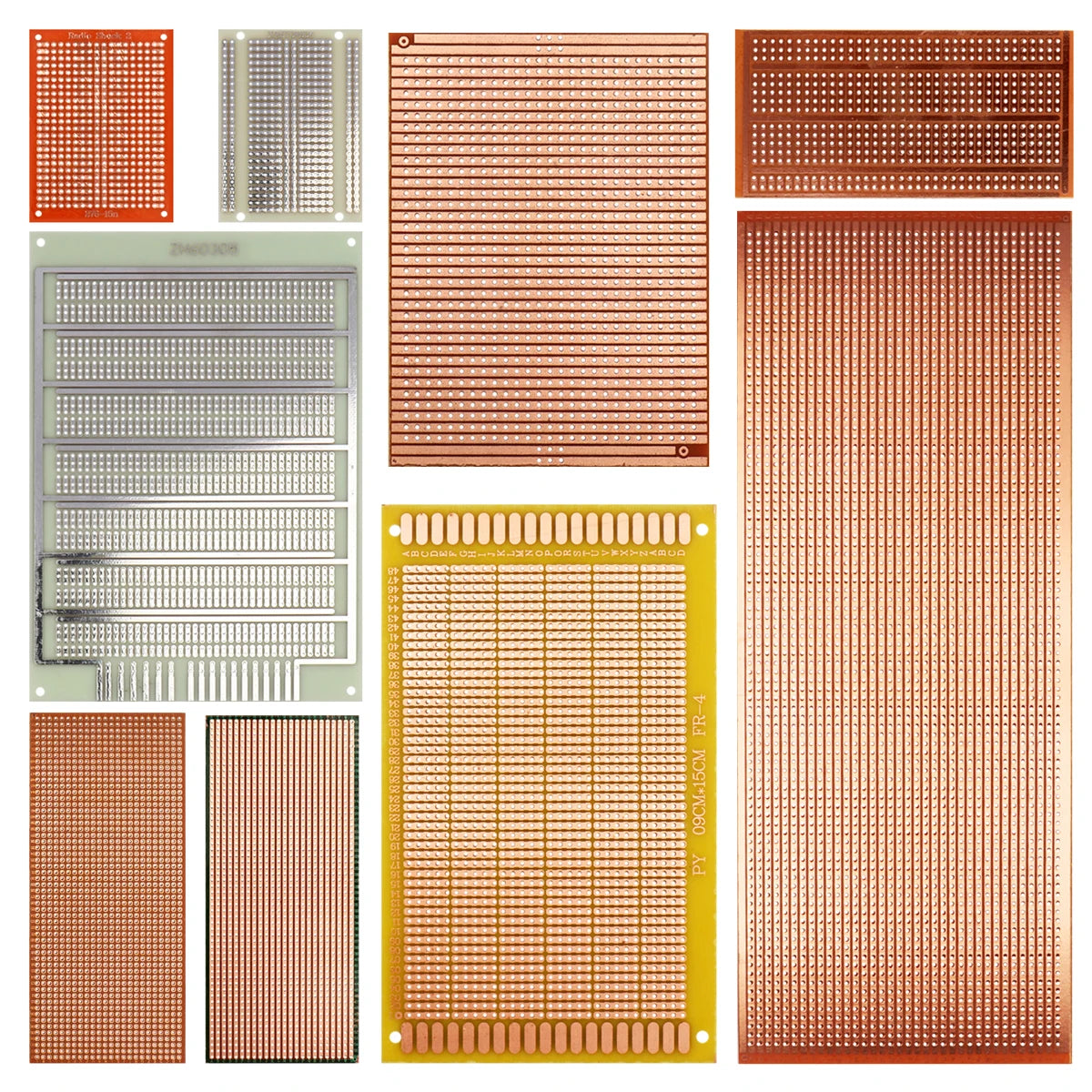

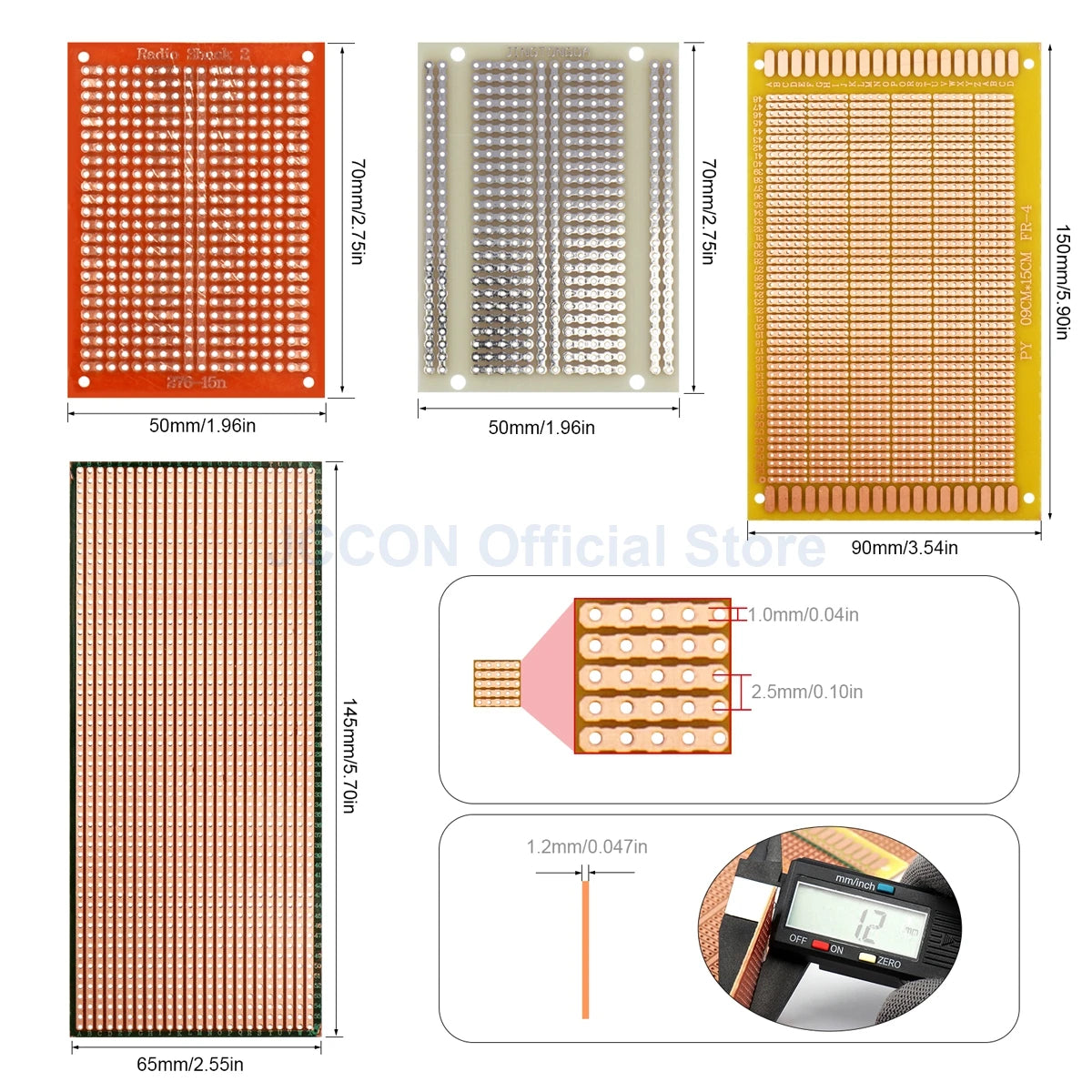

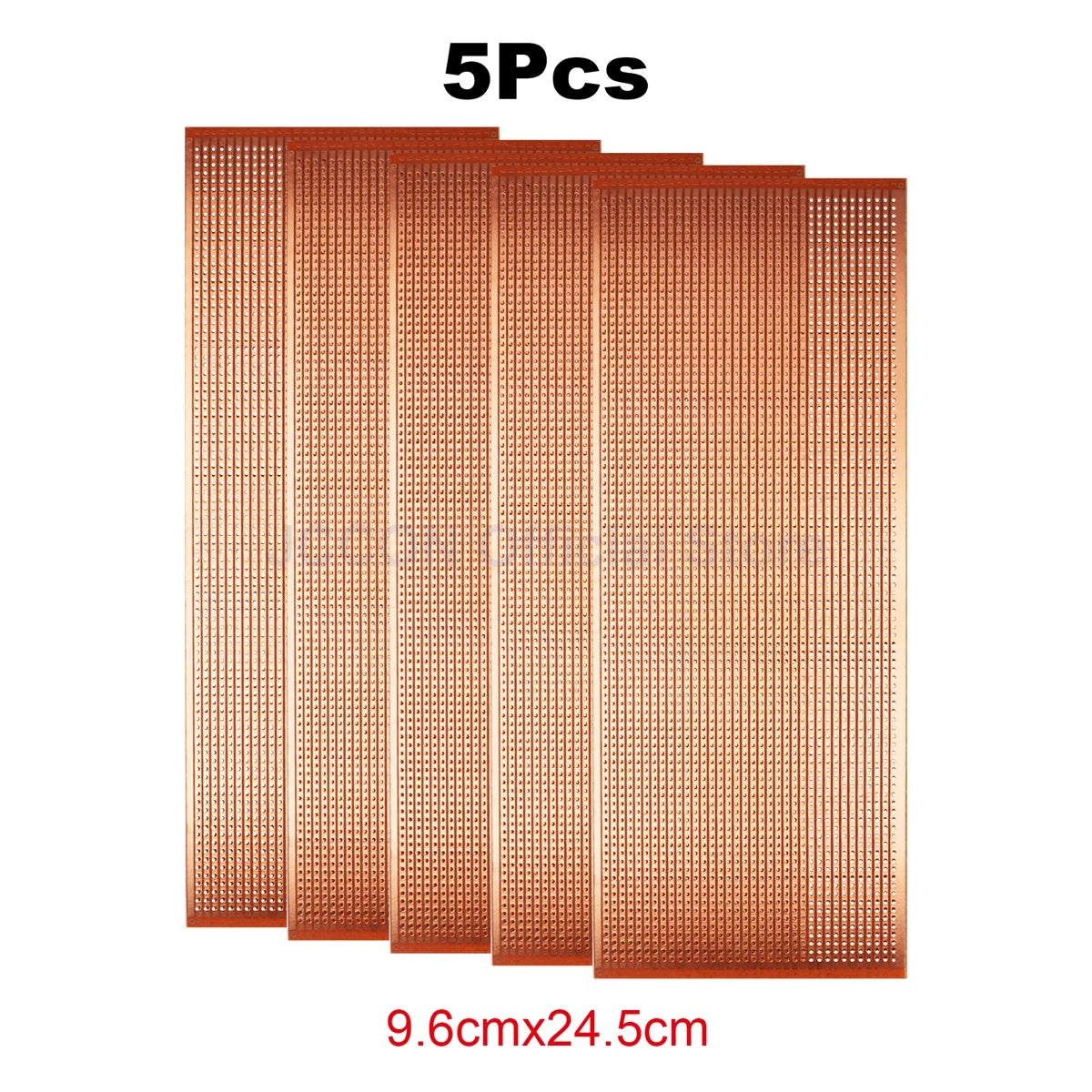

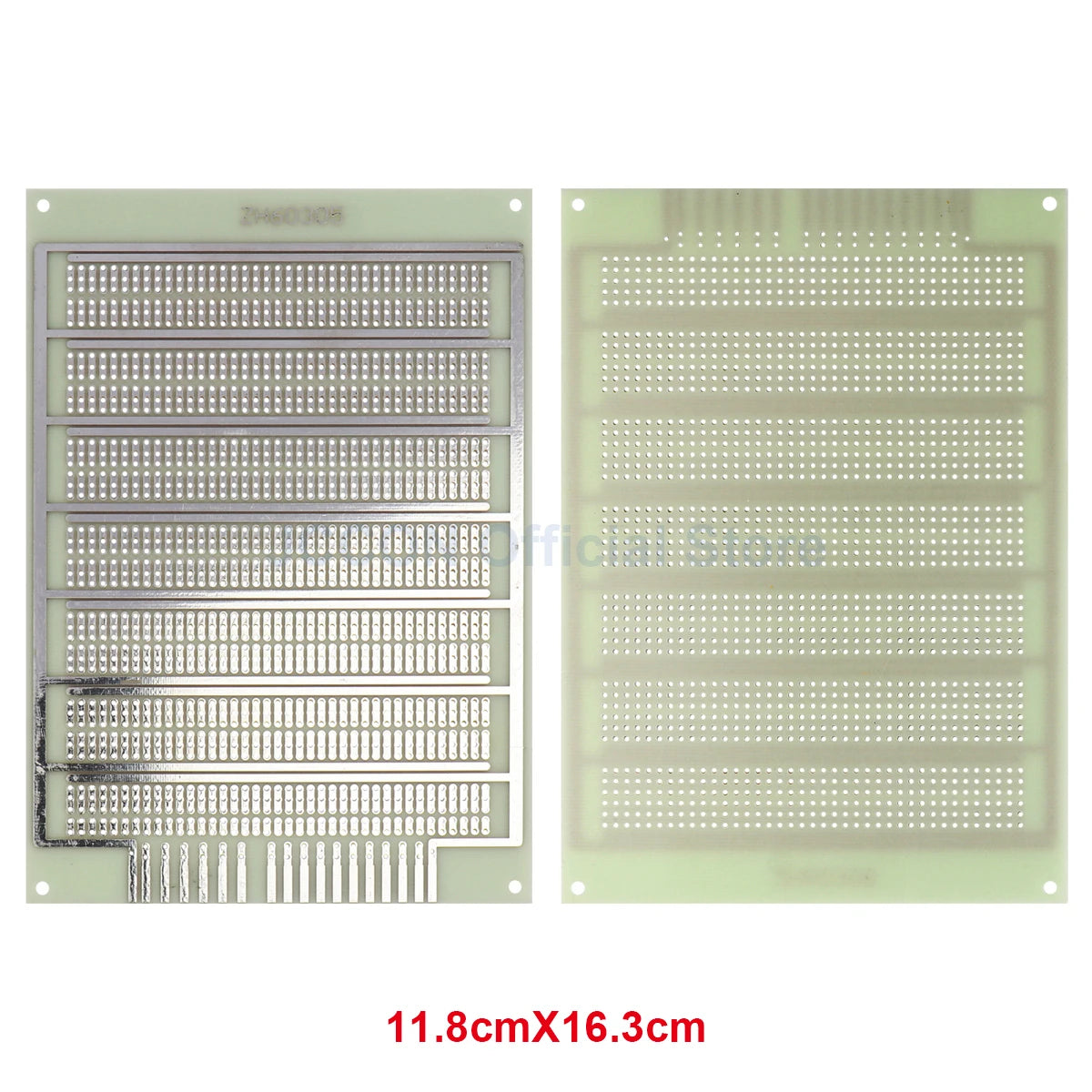

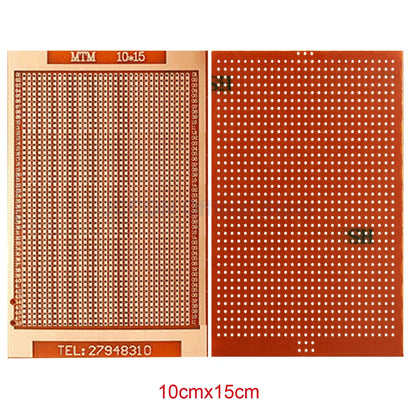

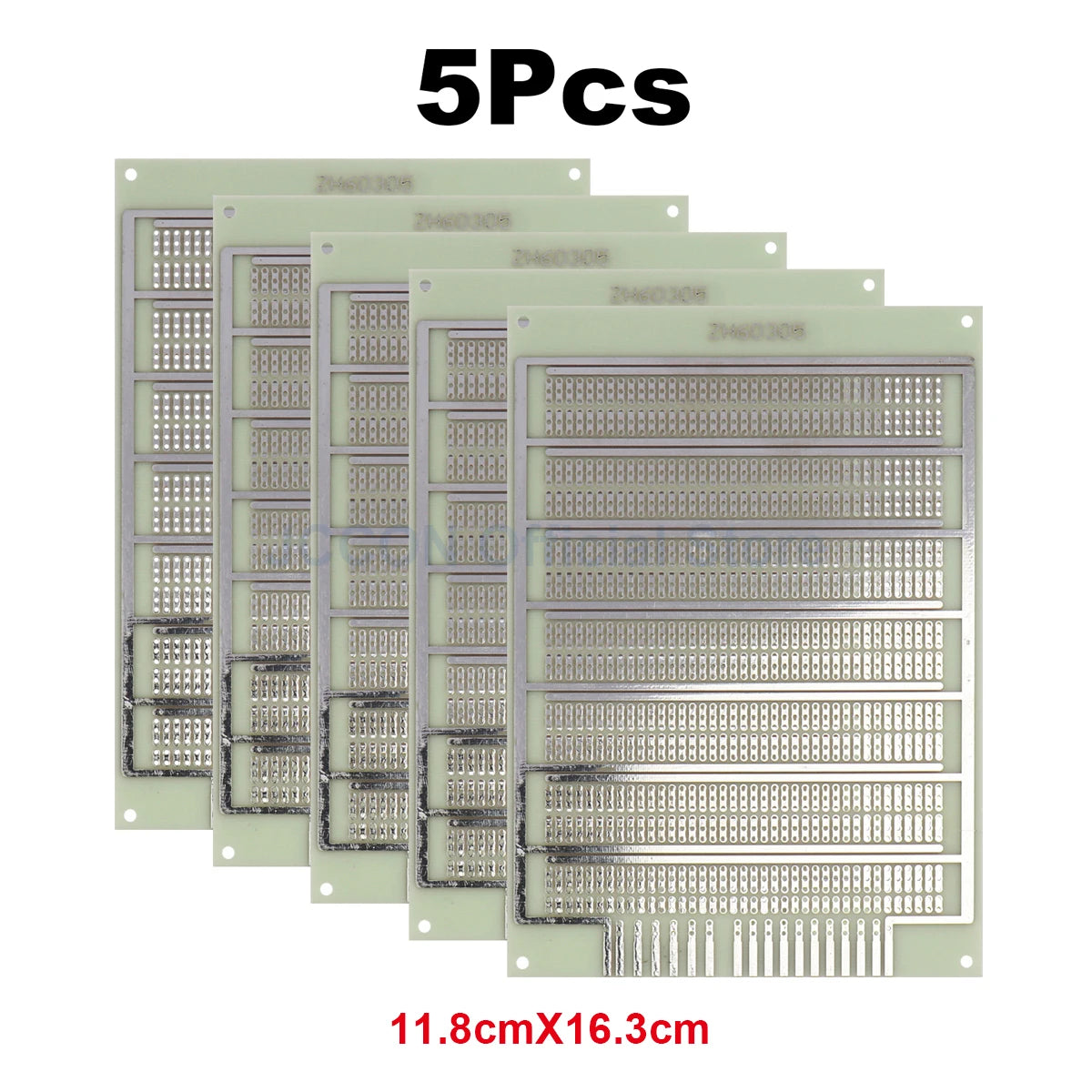

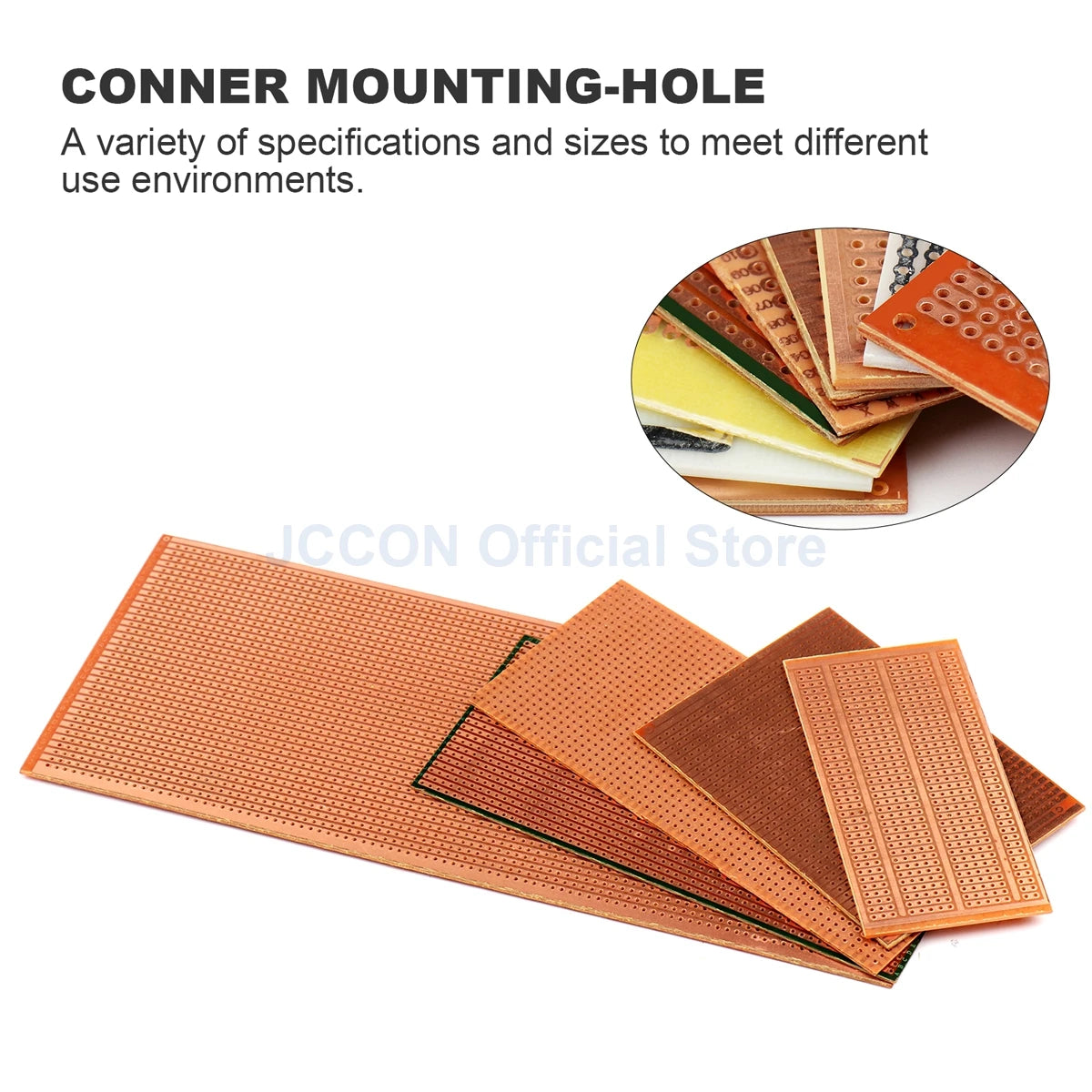

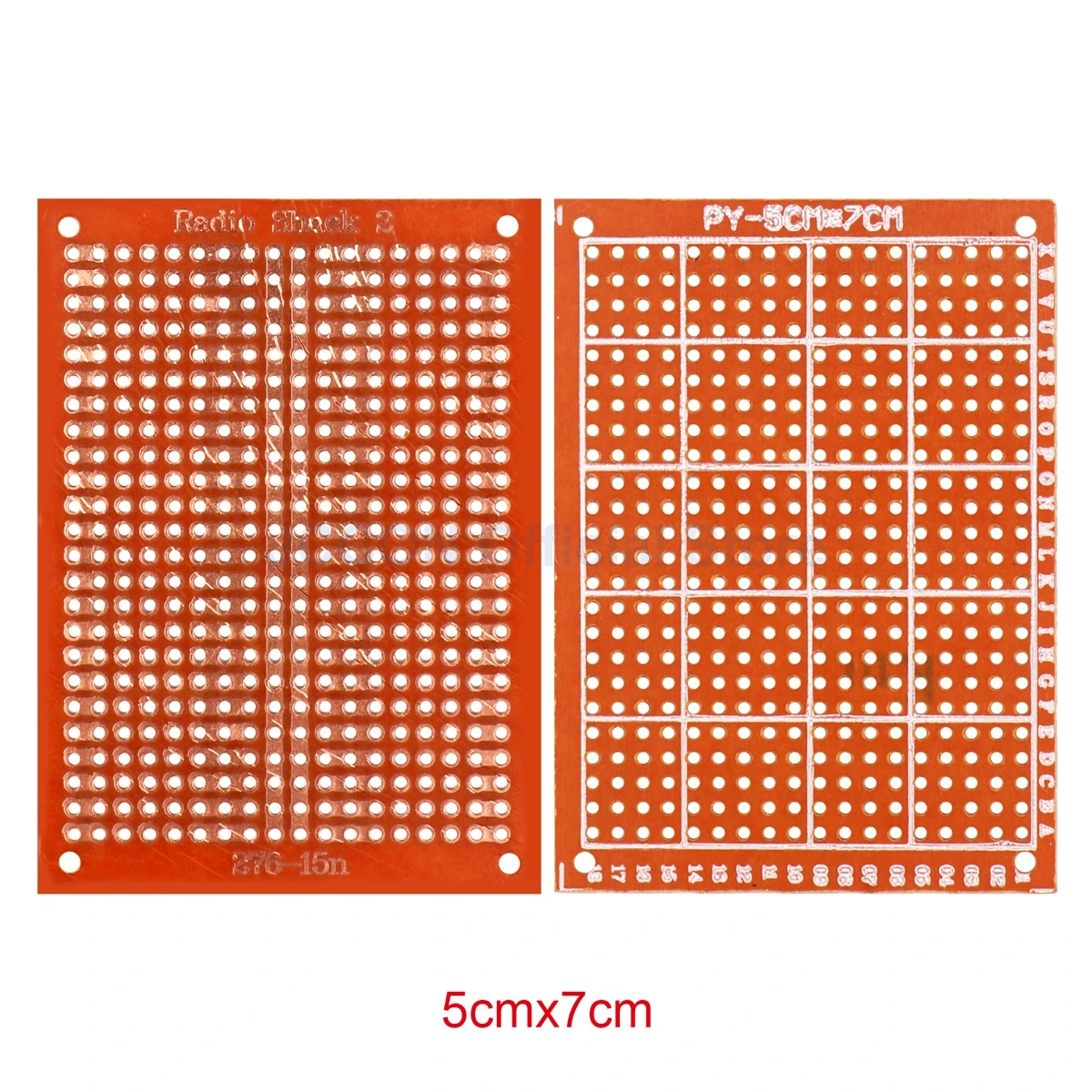

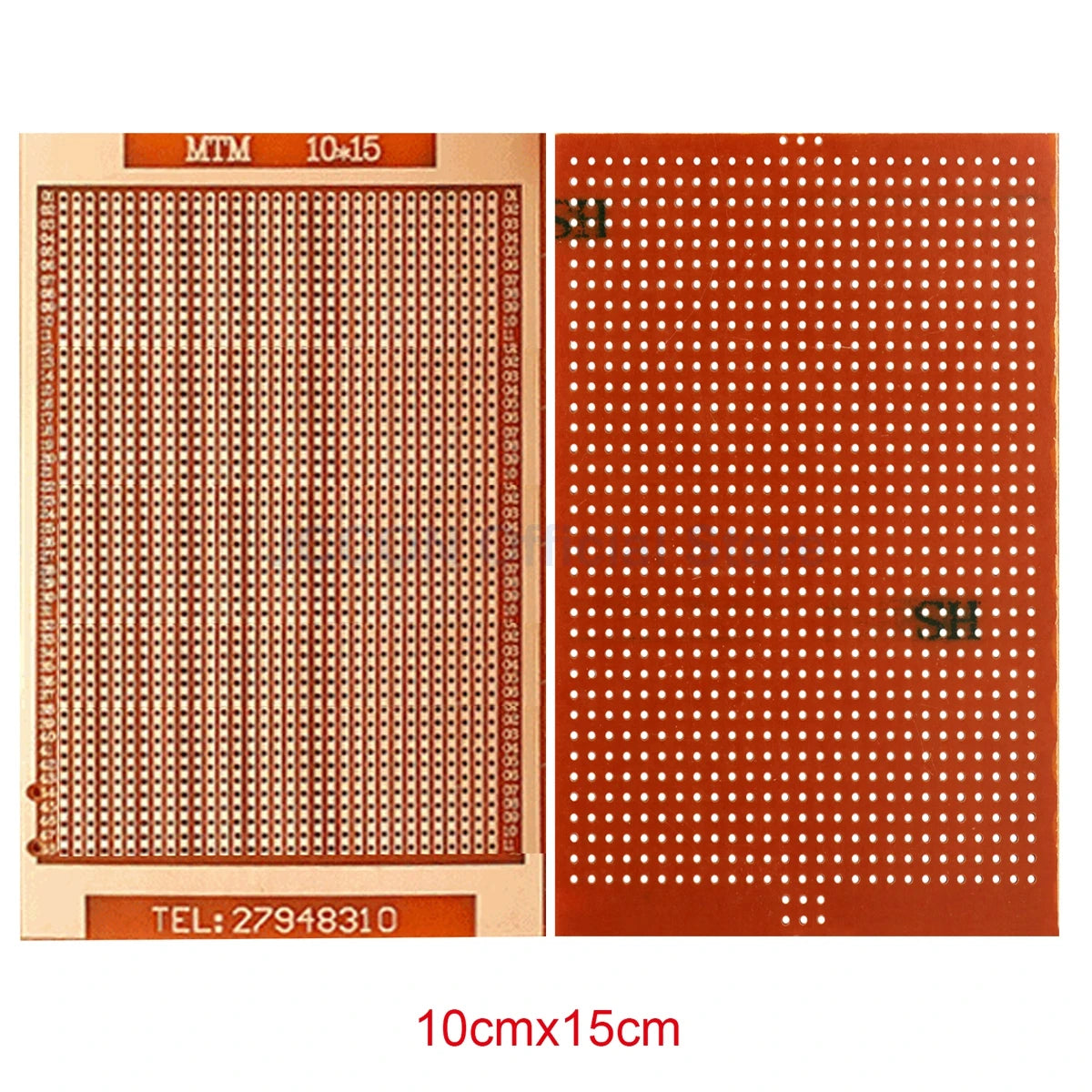

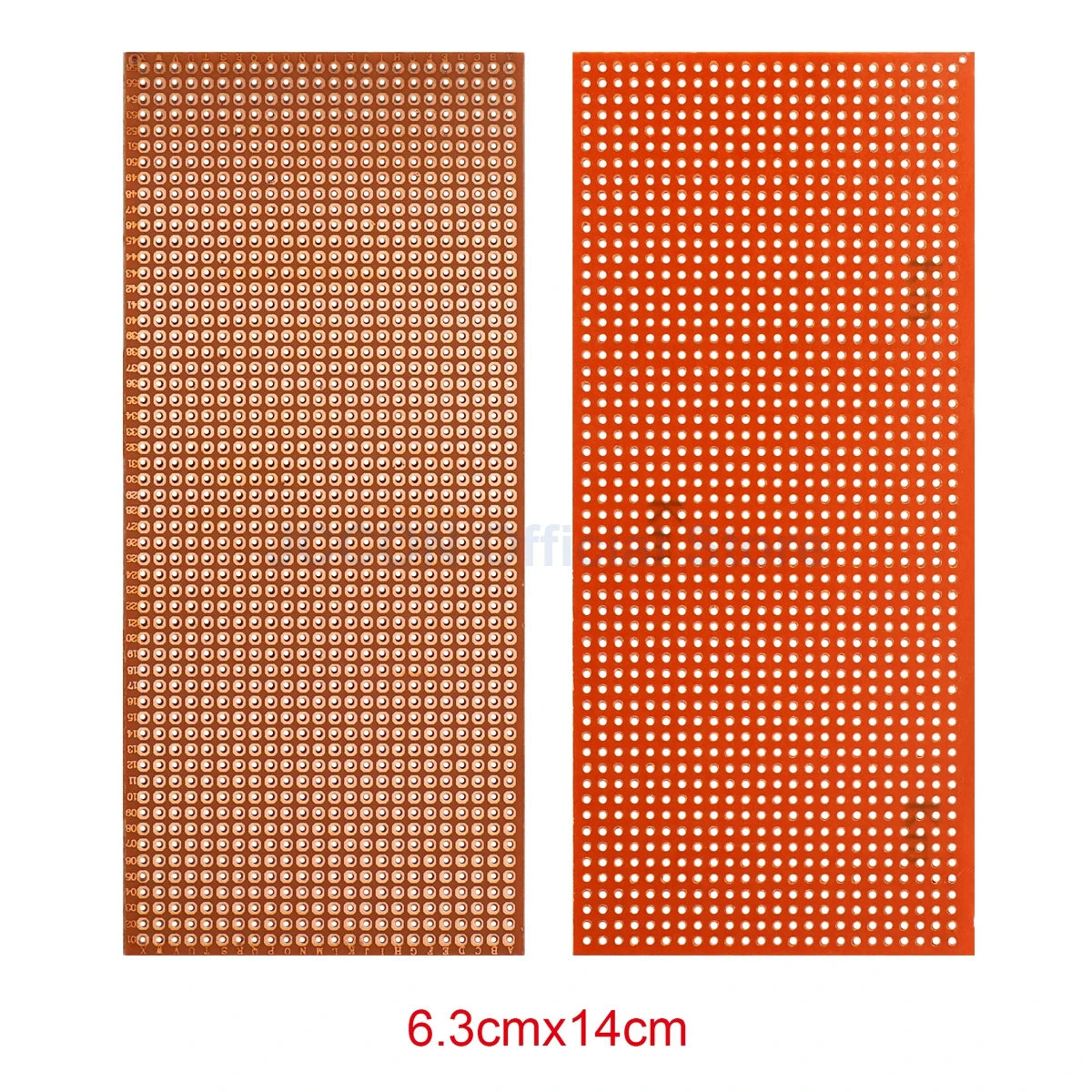

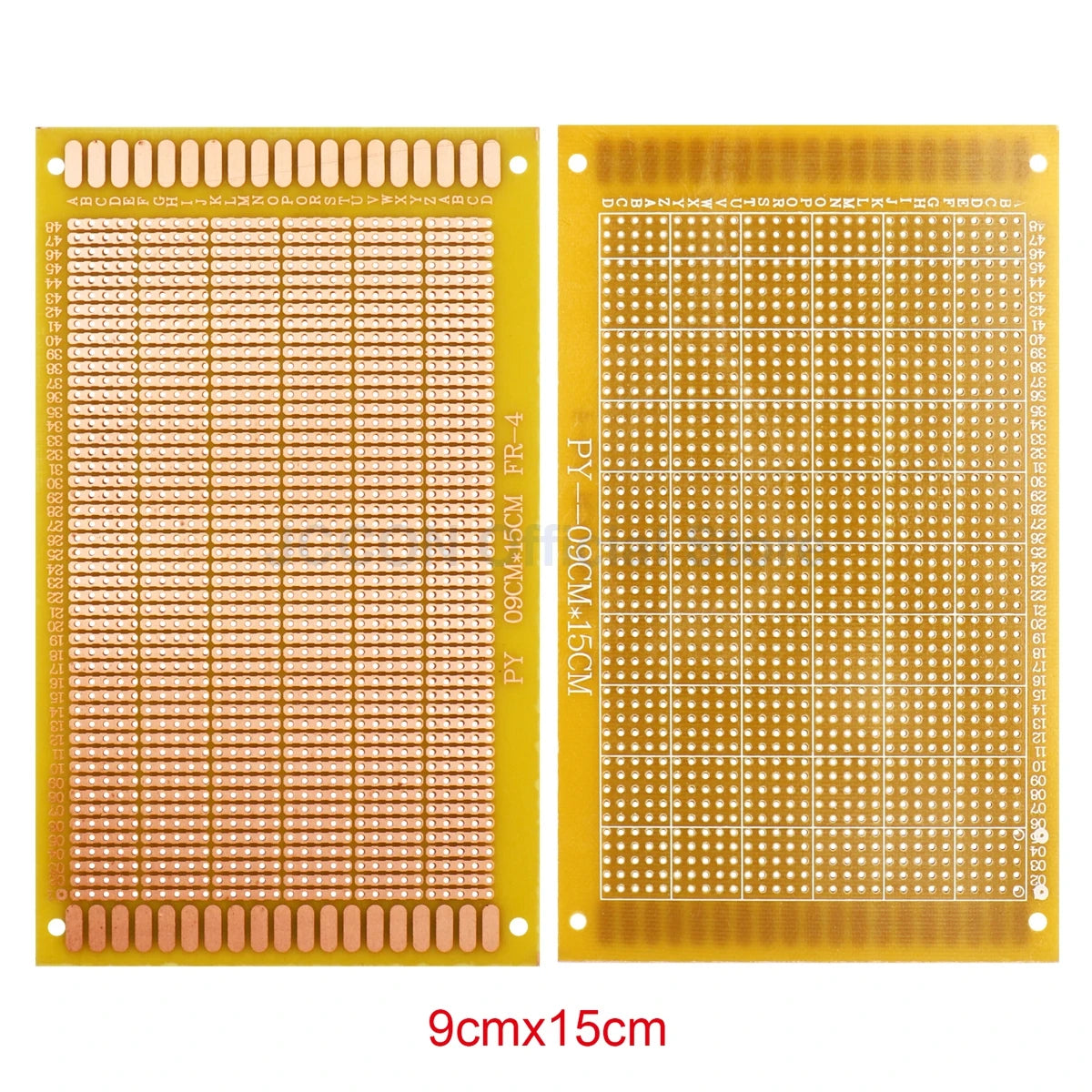

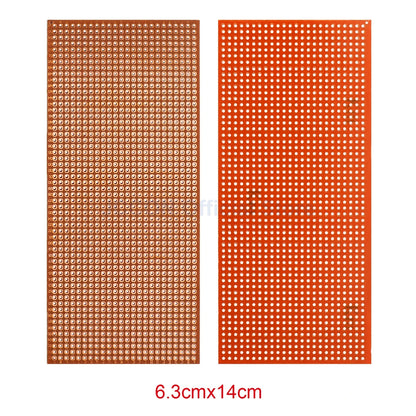

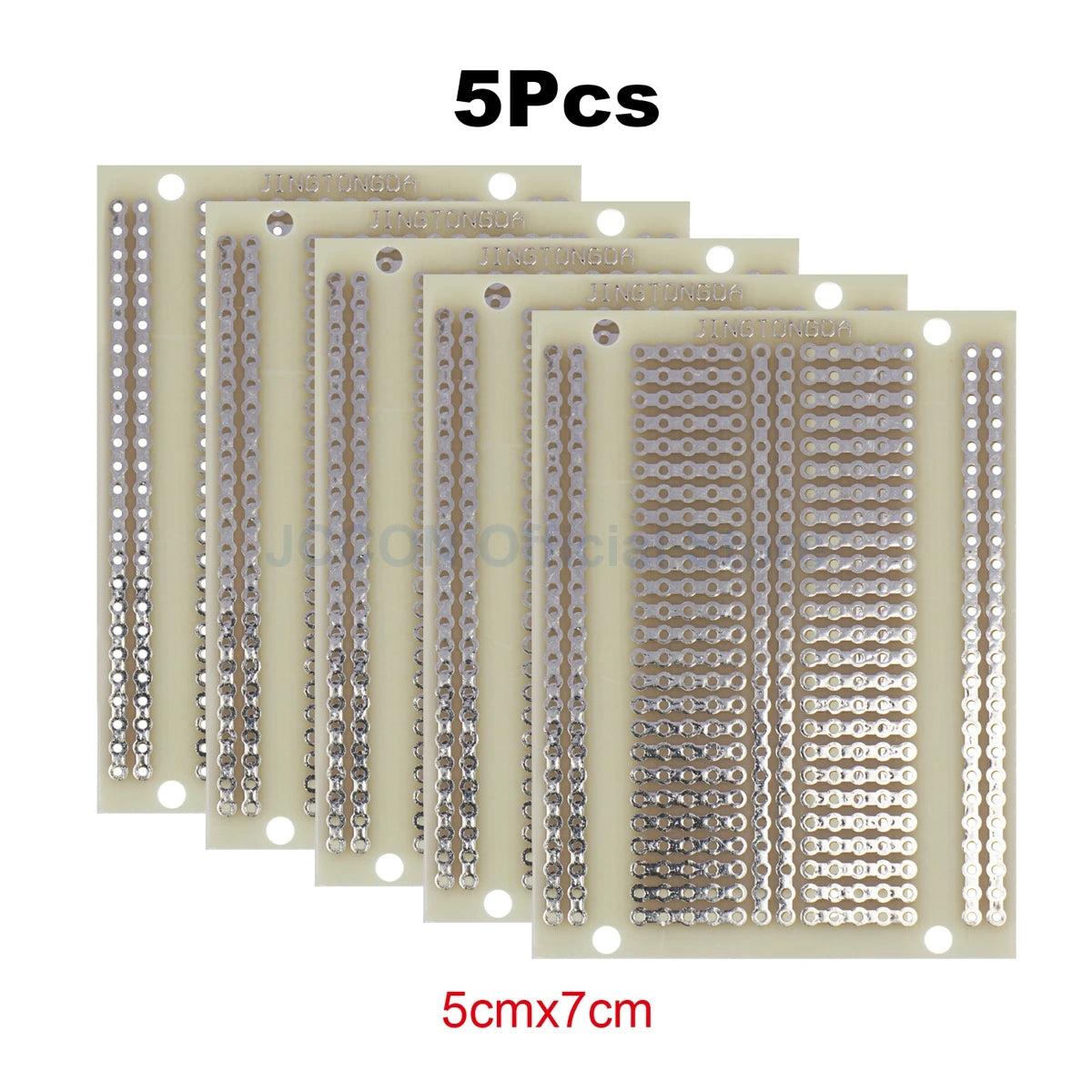

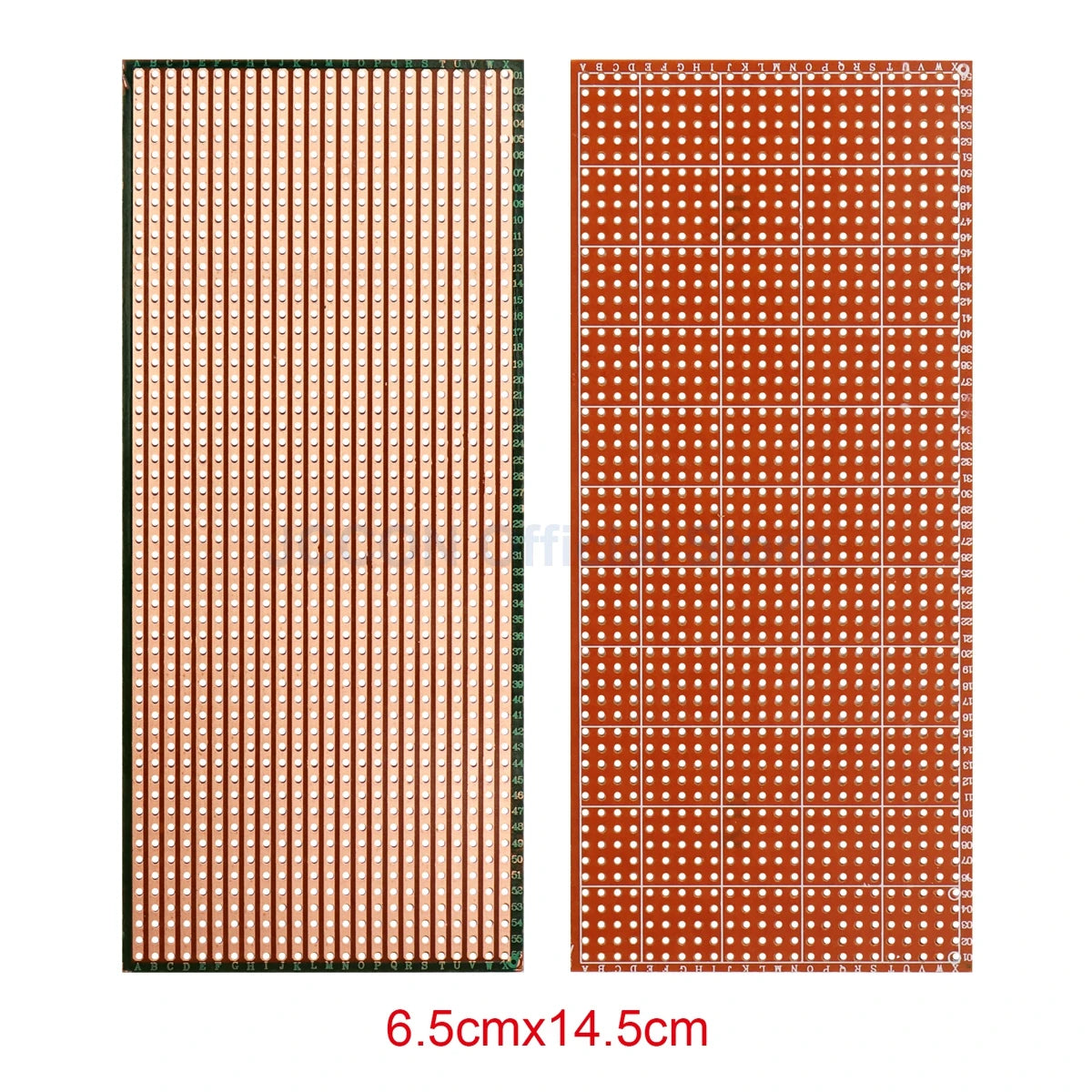

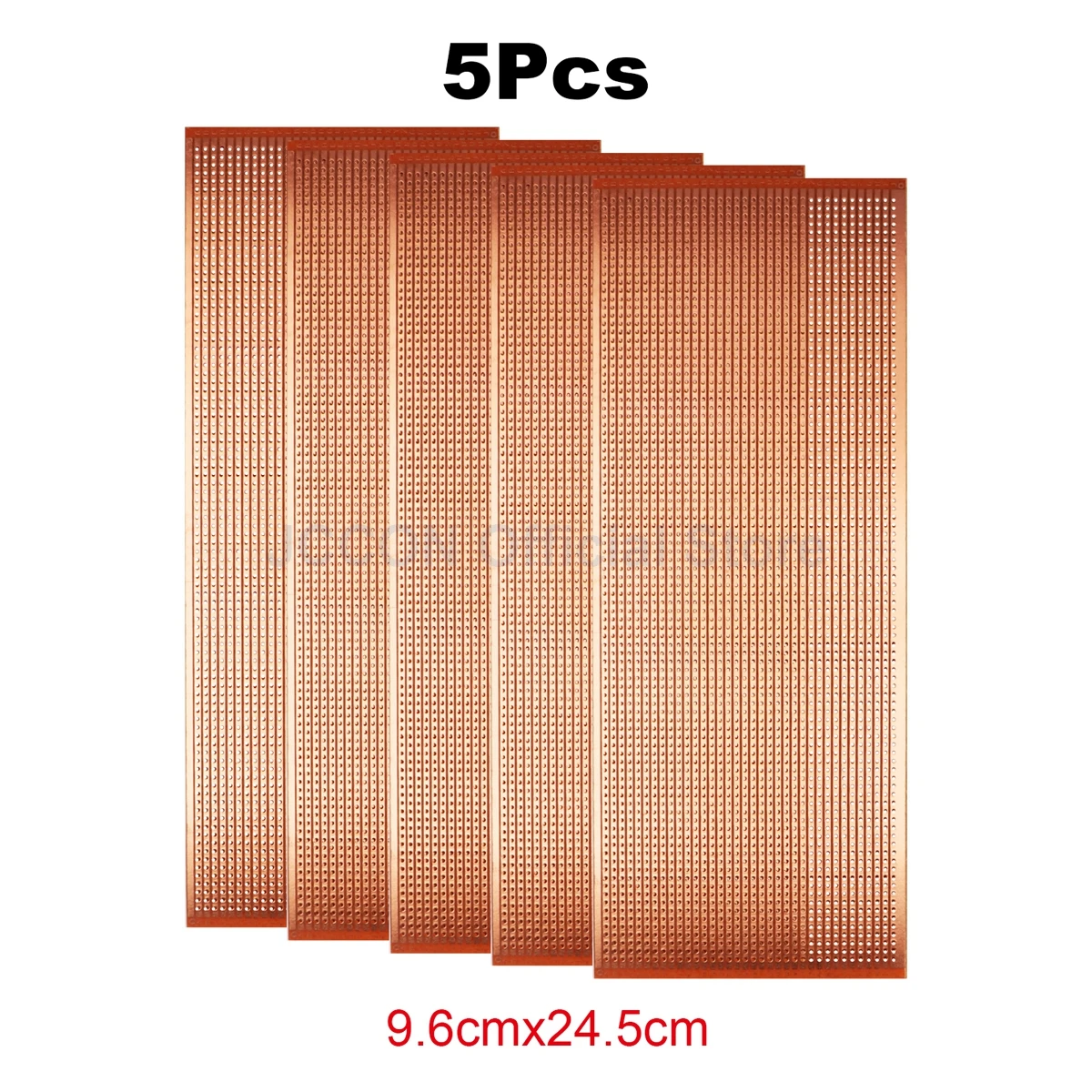

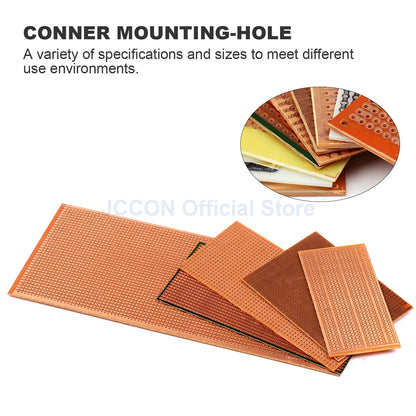

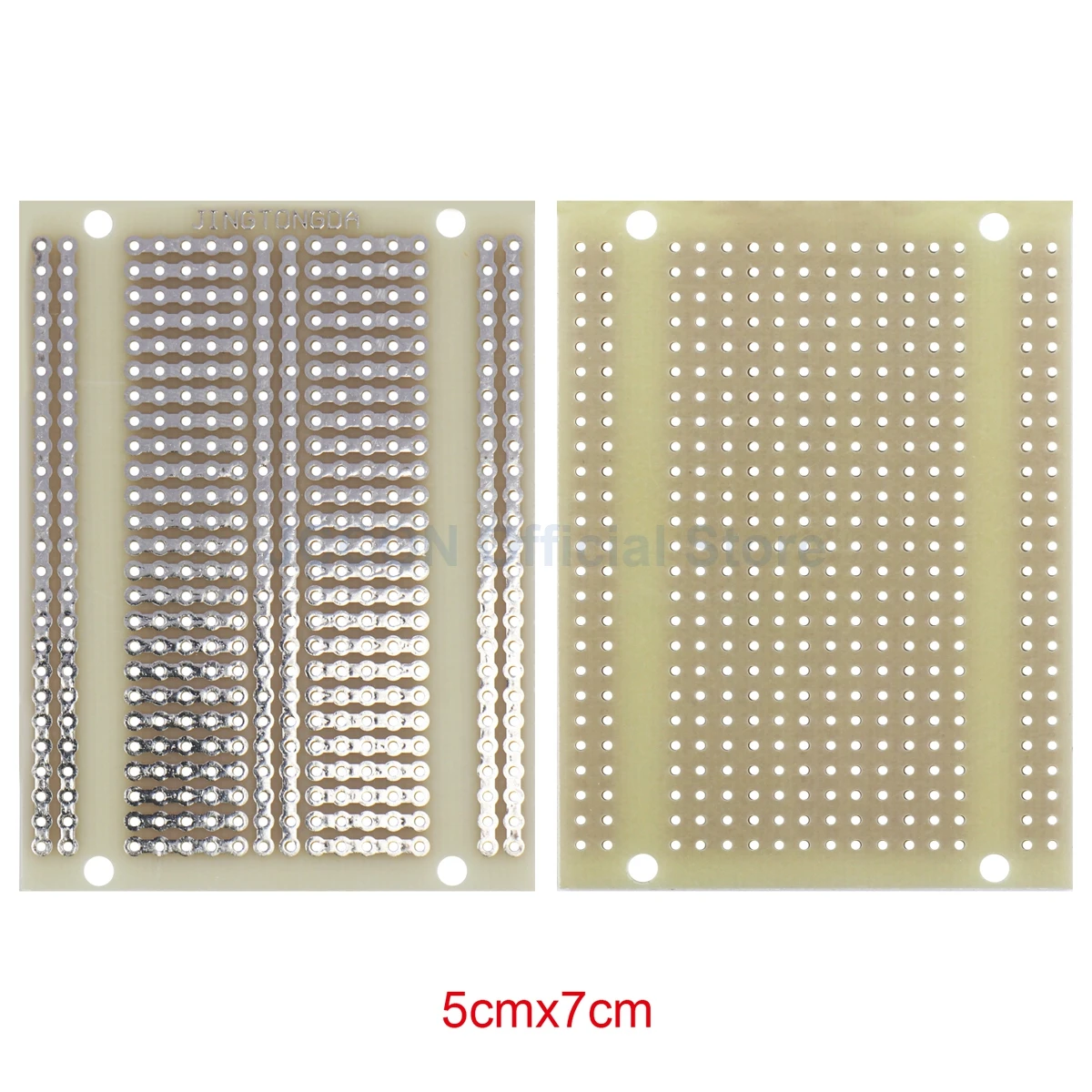

Dimension: 5X7 5X7 Hole 5X10 6.5X14.5 7.4X10 9.6X24.5 9X15 10X15 11.8X16.3 6.3x14

Plate: Bakelite

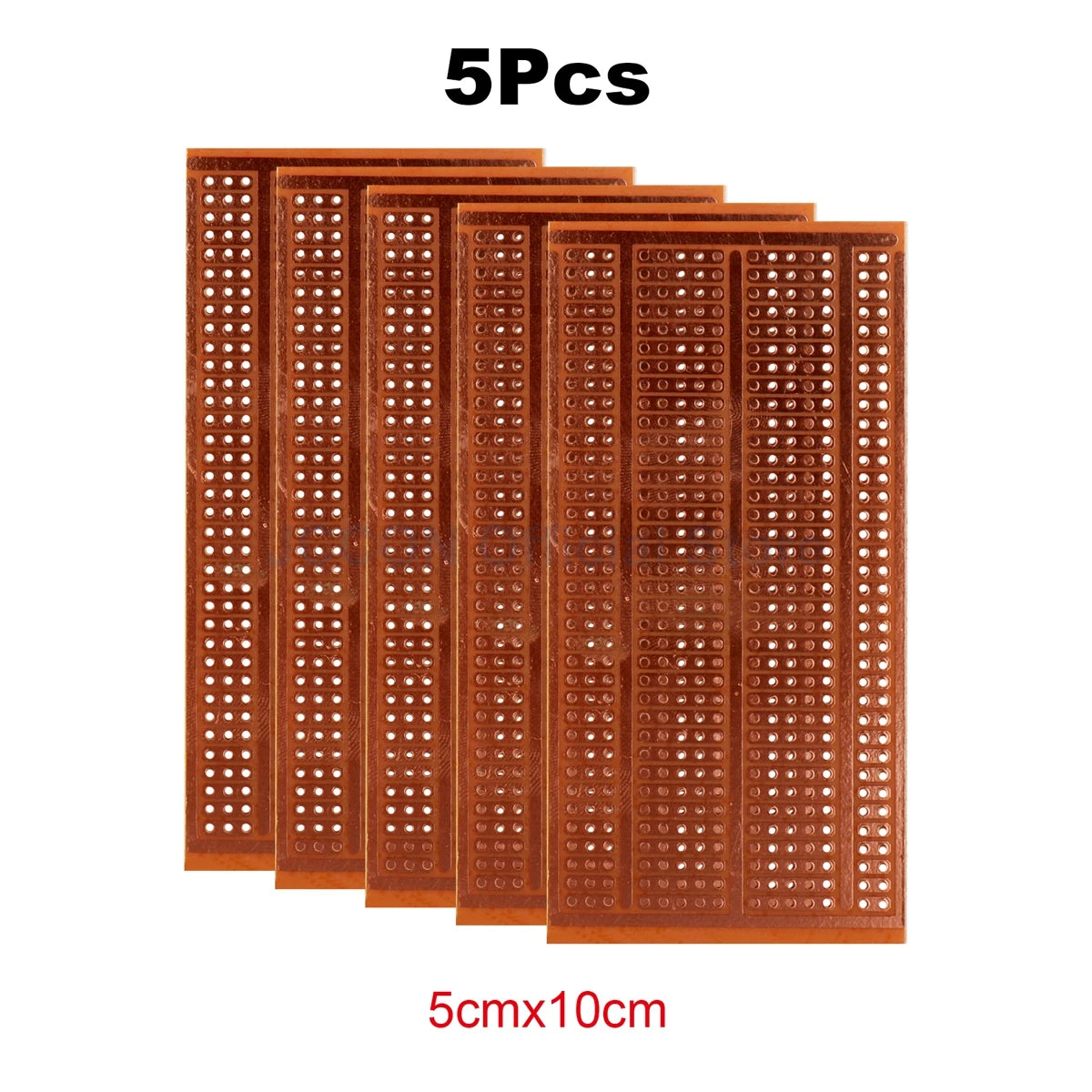

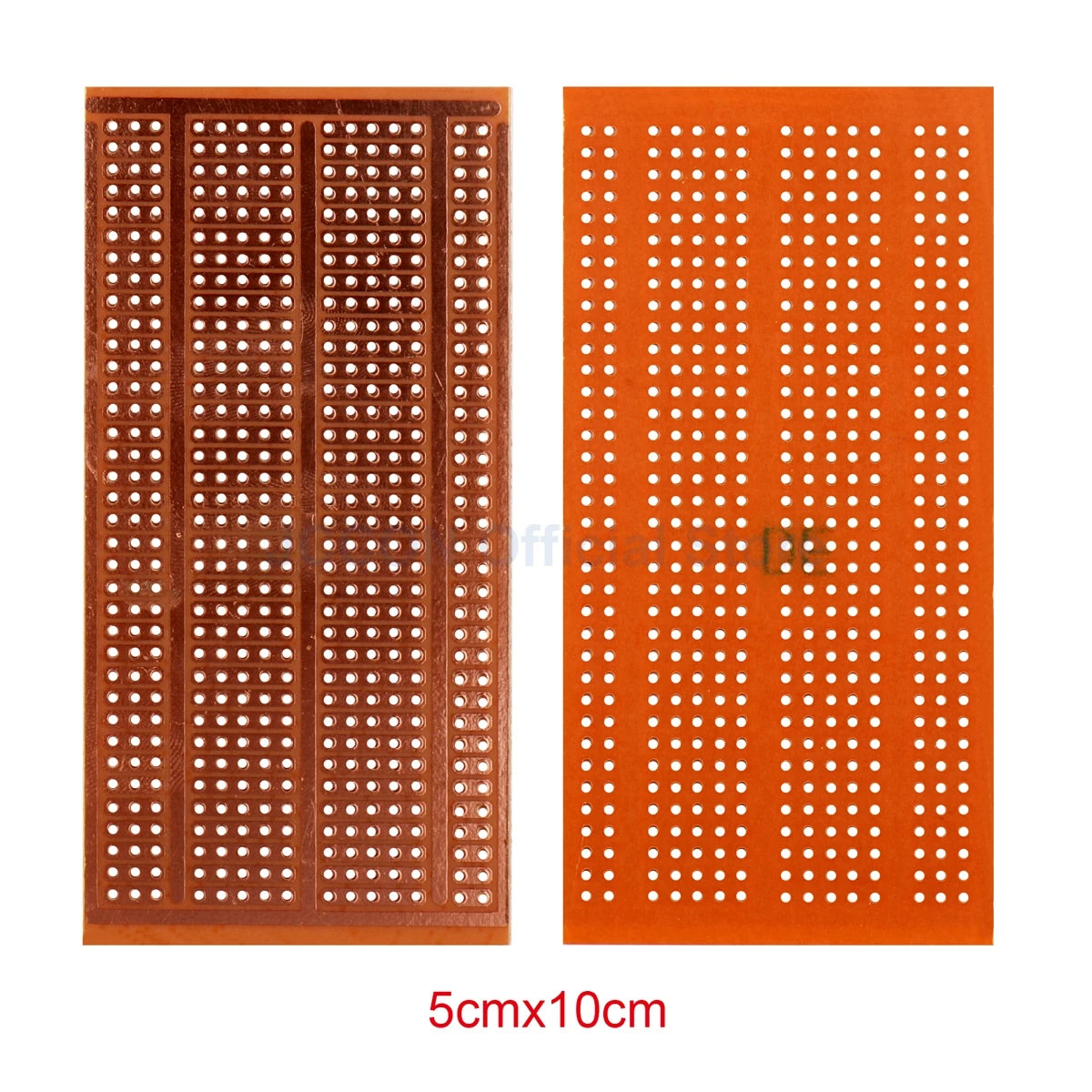

Size: 5×10cm

Aperture: 1.0mm

Hole distance: 2.54mm

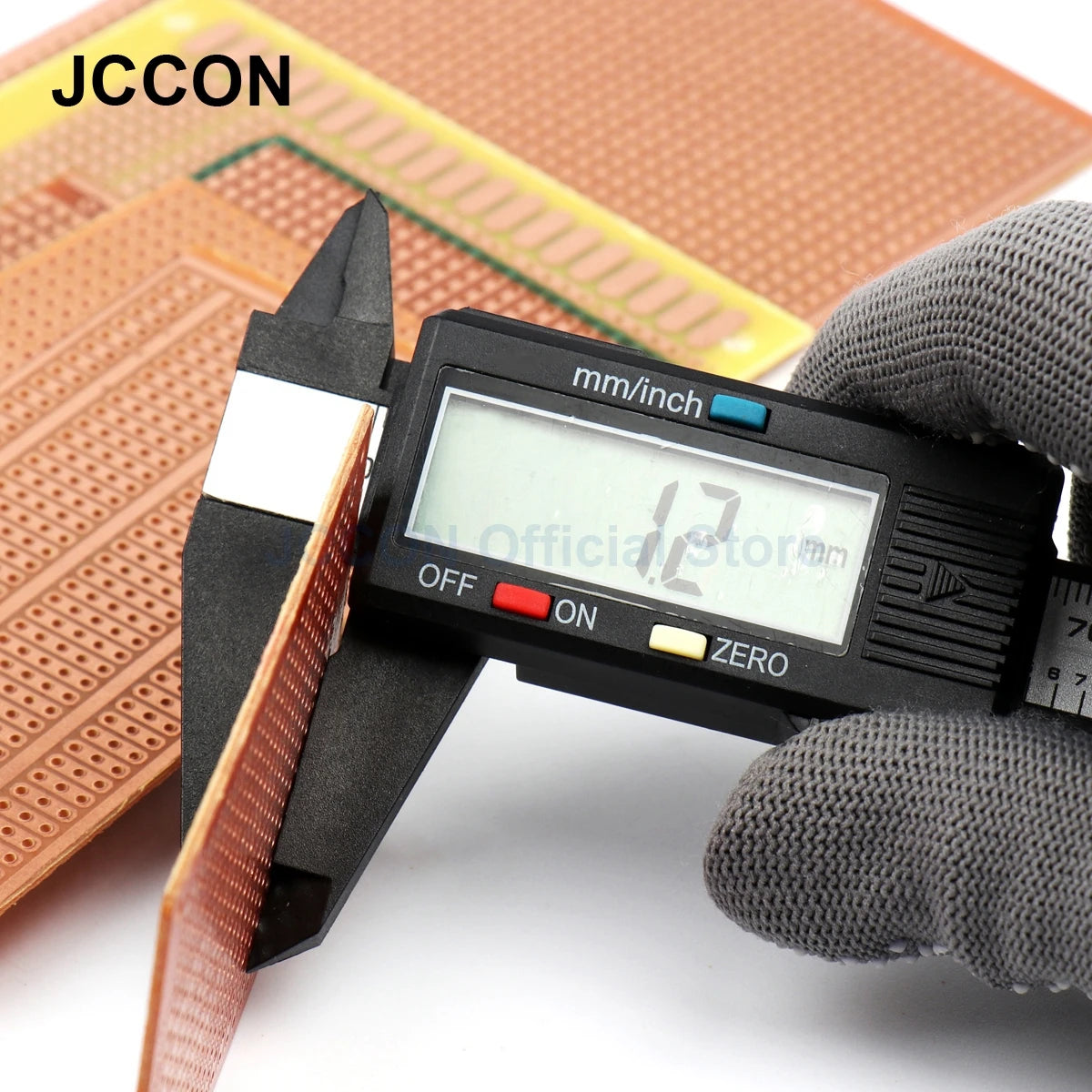

Board thickness: 1.3mm

Process: Anti-oxidation process

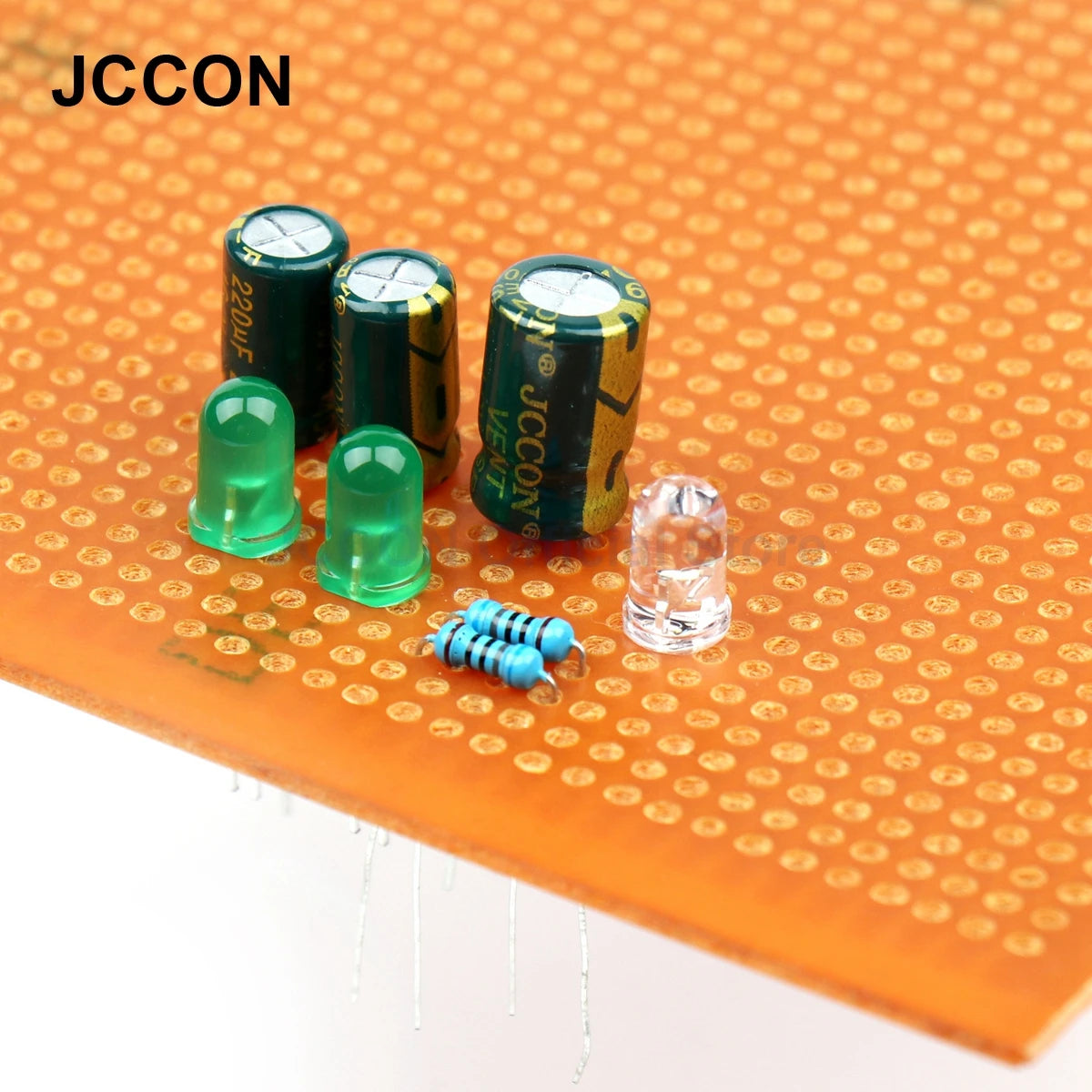

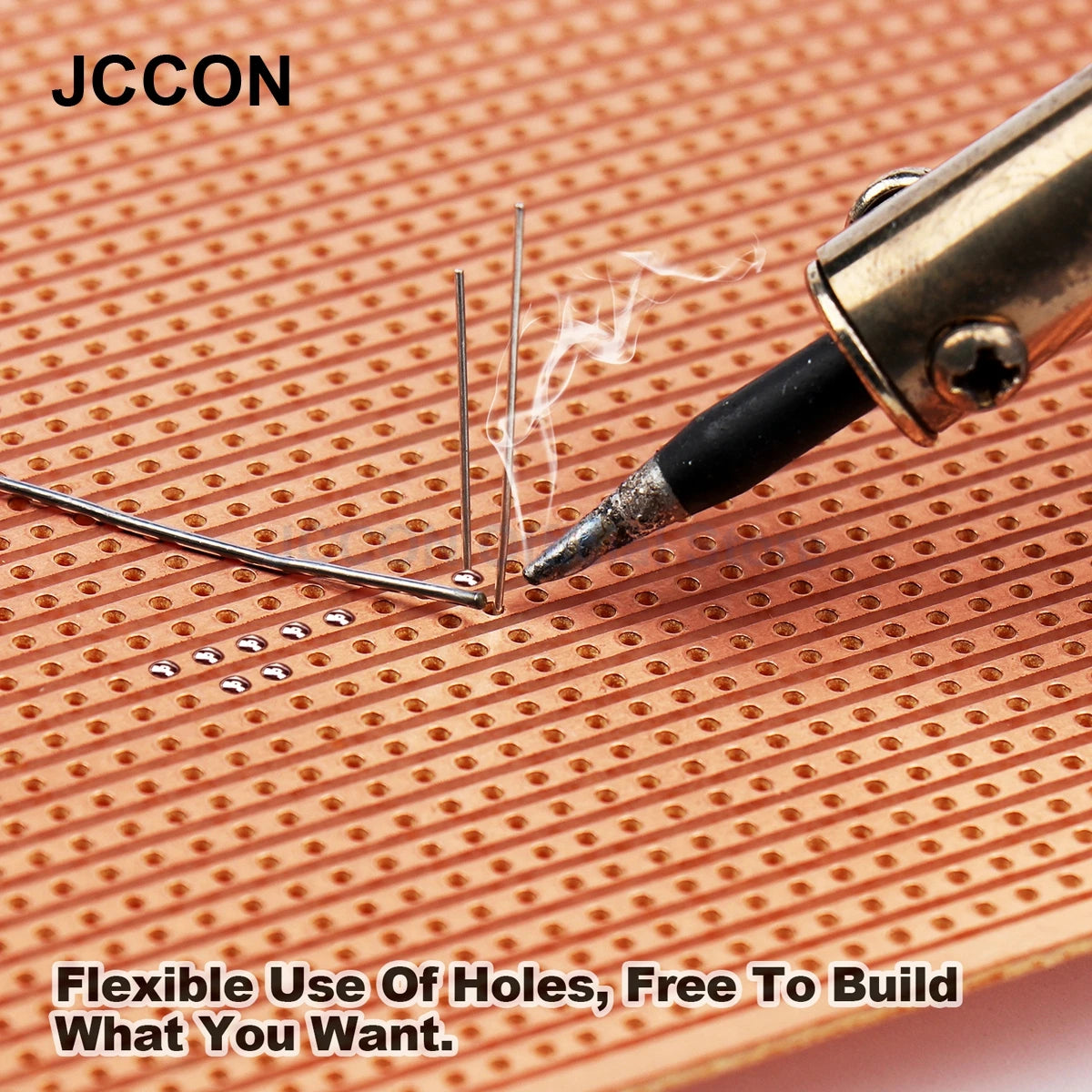

For DIY soldering For arduino

Welding skills:

1. Preliminarily determine the layout of power and ground wires

2. Good at using component pins

3. Good at setting jumper spears

4. Good at arranging needles

5. Partition the copper foil when needed

Suitable for applicable people:

College students/engineers/technicians/factories/personal DIY/electronic enthusiasts, etc.

Feature:

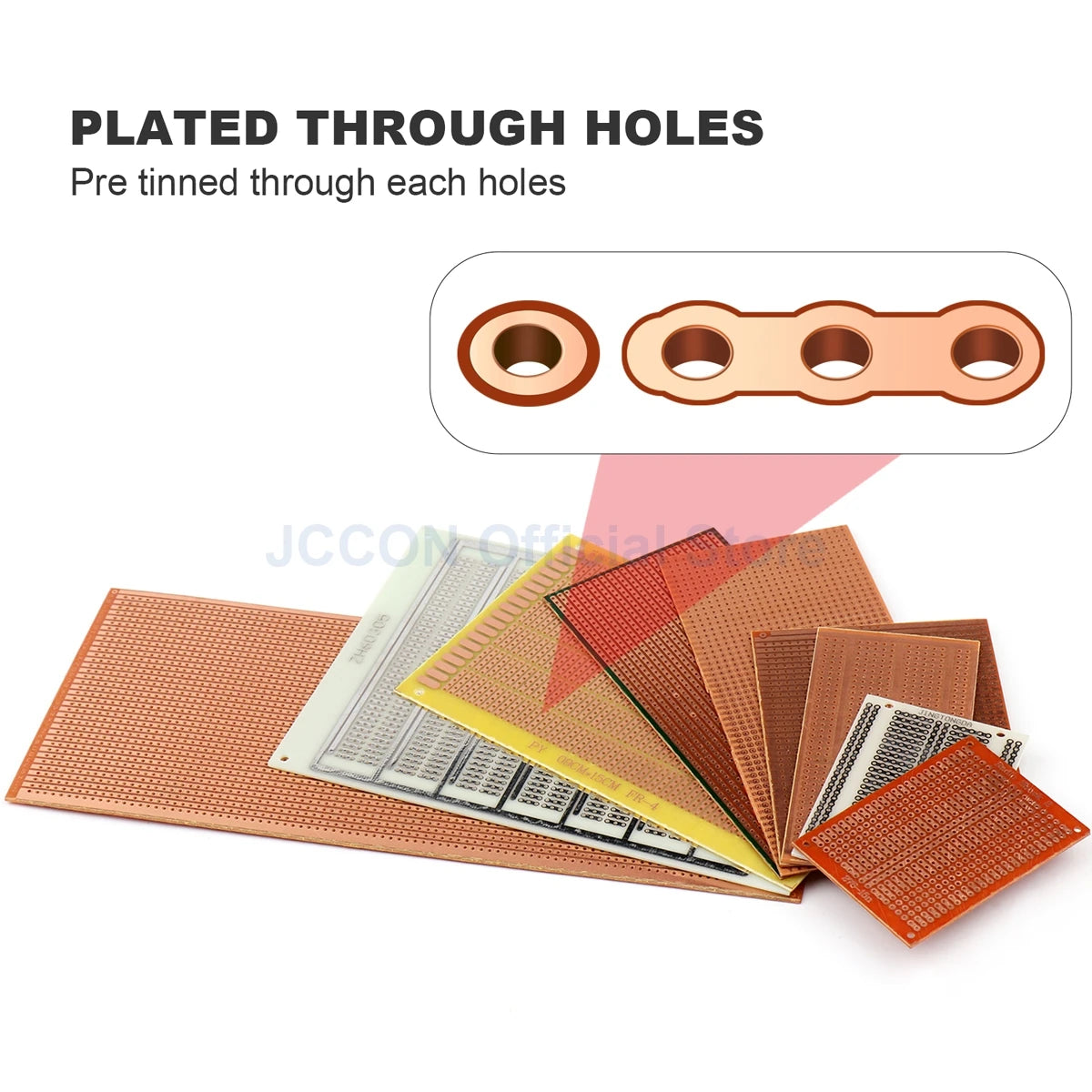

1. Each pad of the double-sided board can be used as a via to flexibly connect the front and back electrical appliances.

2. The universal board can weld components freely, which is suitable for temporary or less demanding products. For example, in student electronic design competitions, works usually need to be completed within a few days of race against time, so holes are usually used.

3. The universal board is a printed circuit board that is filled with pads according to the standard IC pitch (2.54MM), and can be inserted and connected according to your own wishes. Compared with professional PCB manufacturing, the hole-hole board has the following advantages: low threshold for use, low cost, easy to use and flexible to expand.

Packgae Include:

1Pcs/lot PCB Bakelite Prototype Board

Model: As your choice!!

Quantity: As your choice!!

(We have a lot of Stocks, if you need more, please contact us.)
