Solid nickel plated brass body supports up to 24A
DESCRIPTION
These panel mount banana jack binding posts have a solid nickel plated brass body and can support up to 24A
PACKAGE INCLUDES:
- Qty 1 – Banana Jack Binding Post, Panel Mount, 24A – Red
- Qty 1 – Banana Jack Binding Post, Panel Mount, 24A – Black
KEY FEATURES OF BANANA JACK BINDING POST, PANEL MOUNT, 24A:
- 4mm barrel fits standard size banana plugs
- Nickle plated threaded brass body with M4 nuts
- ABS plastic body
- Mounts in 3/8″ hole in panels up to 3/8″ thick
- Up to 24A current capability

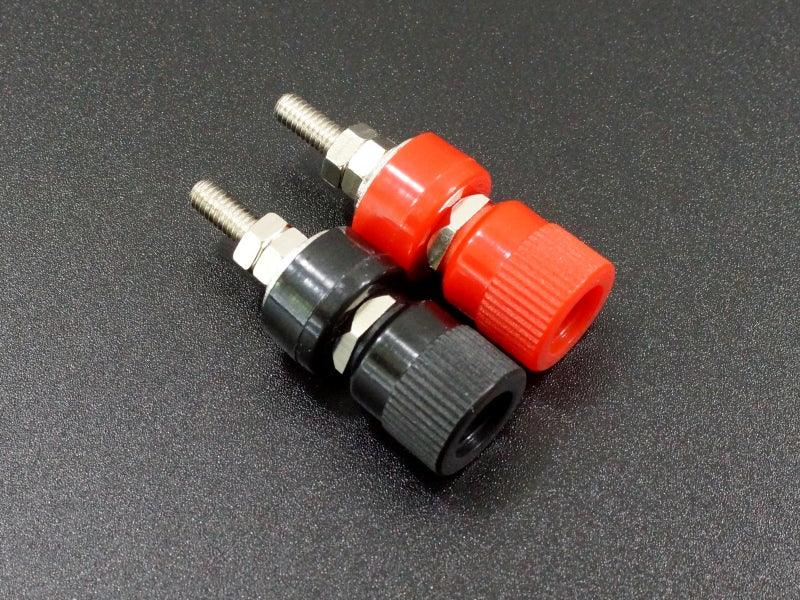

These nice quality panel mount banana jacks come in a 2-pack with both red and black jacks.

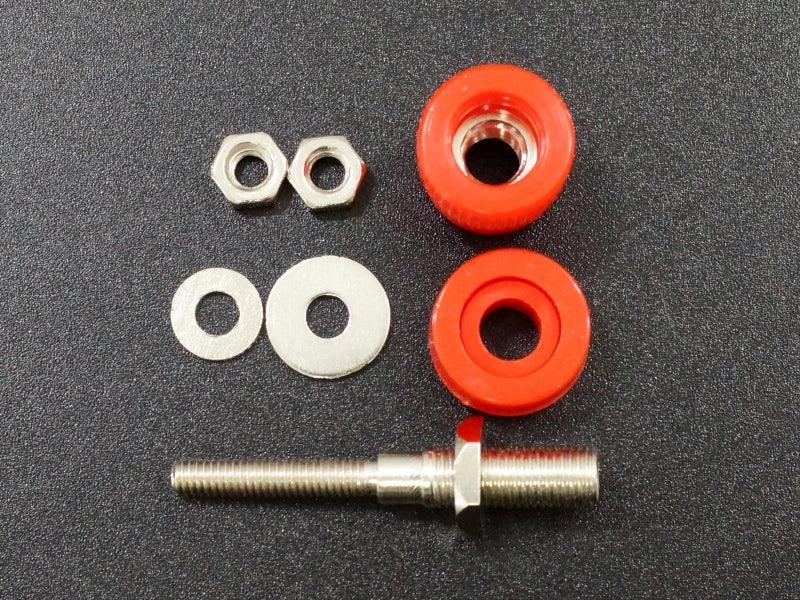

Unlike some inexpensive banana jacks, the 4mm female socket is formed directly into shaft for best electrical contact rather than in the threaded top piece. The shaft and threads are all nickle plated brass and attachment hardware is M4 nuts.
The top of the banana jack accepts a standard 4mm banana plug or it can be tightened down a larger 1/4″ ring or spade terminal. Wire attachment on the bottom portion of of the jack can be made using a ring terminal under the locking nuts. Note that there is no pass-thru hole for clamping down onto a bare wire.
These jacks are a medium duty type and handy for making logic connections or medium power custom power supplies or test fixtures.
Notes: None
TECHNICAL SPECIFICATIONS
| Color | 2 different | Red / Black |
| Plastic | ABS | |
| Connection Types | Top | Male banana plug, ring or spade terminal |
| Bottom | Ring or spade terminal | |
| Max Current | 24A | |

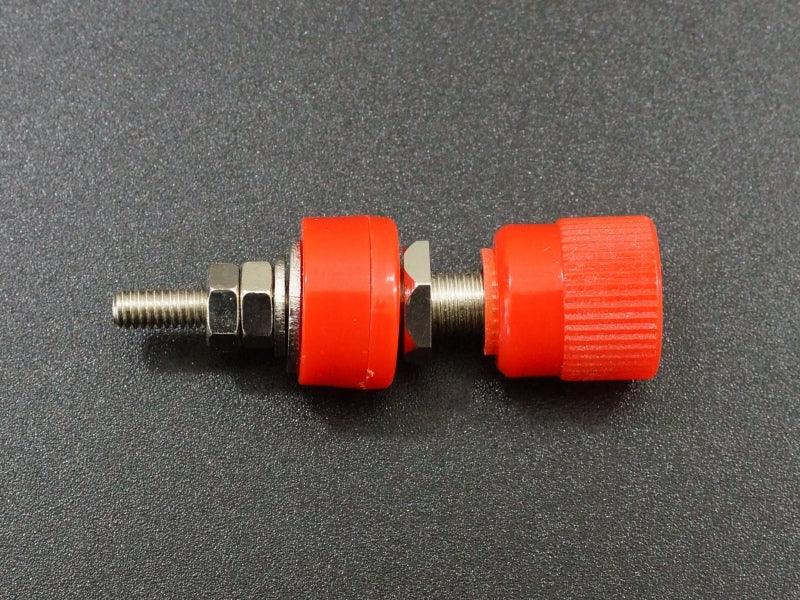

| Dimensions | Total Length | 43.5mm (1.7″ ) |
| Length above panel | 20.5mm (0.81″) | |
| Length below panel | 23.5mm (0.93″ ) | |
| Width at base | 15mm (0.59″ ) | |
| Mounting Hole | 9.5mm (0.375″ ) | |
| Country of Origin | China |
