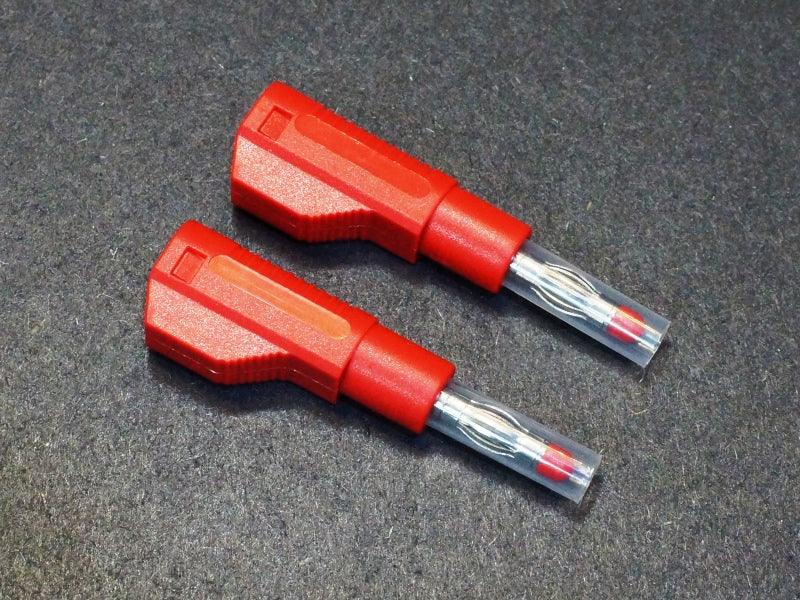

Banana Plug, Stackable, Insulated, Red (2-Pack)

These stackable and fully insulated banana plugs have a nickel plated brass body with nickle plated beryllium...
Vendor: Keszoox
$2.49
$4.49
$2.49

Shipping

The shipping fee depends on your address

Standard: 9-15 business days,fee is down to $3.99

Express: 4-7 business days,fee is down to $5.99

Support Customization

WE'RE READY TO BUILD A CUSTOM PRODUCT FOR YOU.

If you're looking for a custom product, we can help. Kindly contact us via email support@keszoox.com and send us the details for your need, then we'll let you know how we can deliver the right solution.

Built And process your order

We make into production usually Within 1 - 3 Bussiness Days.

Expect customization orders.
Banana Plug, Stackable, Insulated, Red (2-Pack)

Banana Plug, Stackable, Insulated, Red (2-Pack)

$4.49 $2.49

Banana Plug, Stackable, Insulated, Red (2-Pack)

$4.49 $2.49

These stackable and fully insulated banana plugs have a nickel plated brass body with nickle plated beryllium copper spring

DESCRIPTION

These stackable and fully insulated banana plugs have a nickel plated brass body with nickle plated beryllium copper spring

PACKAGE INCLUDES:

  • Qty 2 – Banana Plug, Stackable, Insulated – Red

KEY FEATURES OF BANANA PLUG, STACKABLE, INSULATED:

  • 4mm barrel fits standard size banana jacks
  • Stackable in-line
  • Nickle plated brass body w/ beryllium copper spring
  • PA plastic body
  • Supports up to 4mm cable OD
  • Solder connection
  • Up to 600V / 24A current capability

These high quality stackable and insulated  4mm banana plugs come in a 2-pack.

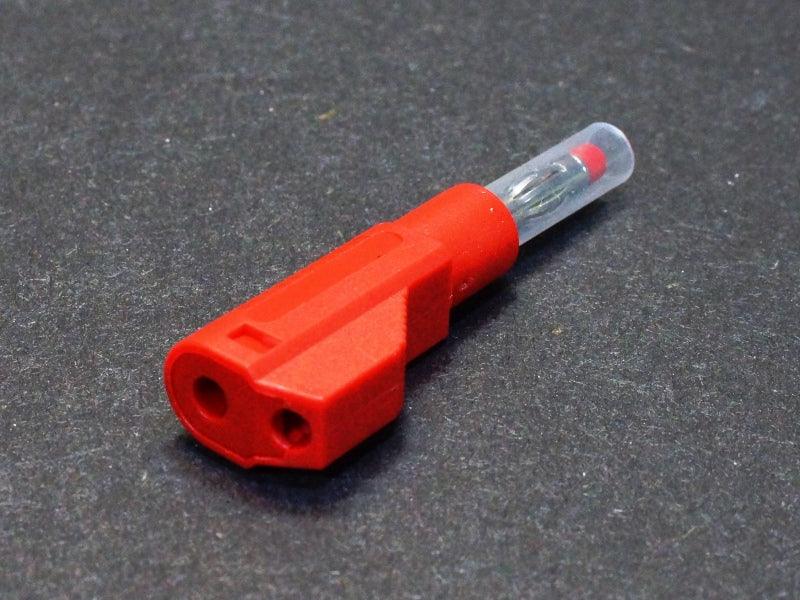

The banana plugs are designed for use with standard size 4mm banana jacks and are stackable in-line.  The retractable clear sleeve provides a fully insulated connection.

Wire attachment is by soldering to the outside of the upper barrel as shown in the example below.  The inside hole is used by any stacking banana plug and solder should be kept out of the hole.  The maximum wire outside diameter is 4mm.

Banana Plug, Stackable, Insulated - Soldering

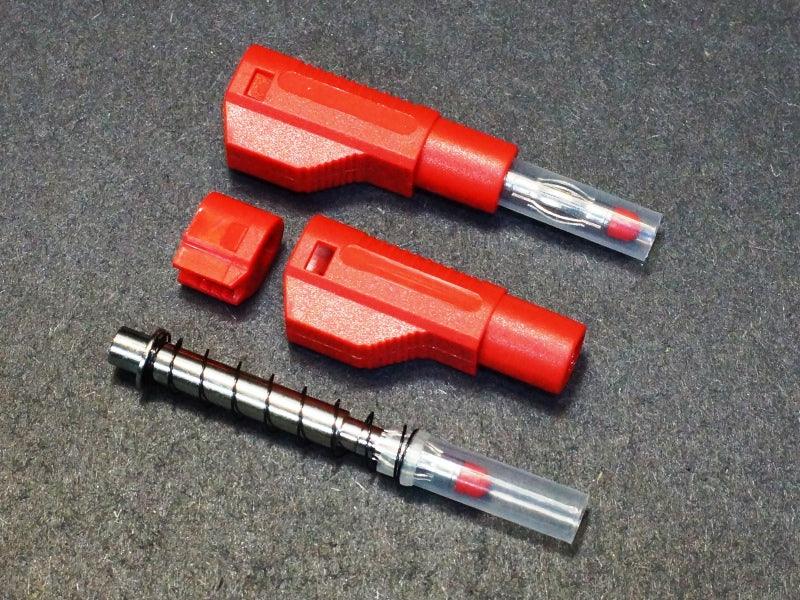

After the wire is soldered, the spring and safety sleeve are added and the assembly is then inserted into the top of the plug housing.  The top cap is then inserted into the top of the housing which snaps into place and captures the lead wire.Banana Plug, Stackable, Insulated - Assy

These plugs are a medium duty type and handy for making custom test cables and in low to medium power routing applications.  Maximum current will typically depend on the gauge of wire used with the plug.

Banana Plug, Stackable, Insulated - Dimensions

Notes: Plastic body of plug may vary in shape slightly from illustrations.


TECHNICAL SPECIFICATIONS

 Color Red
 Plastic PA (nylon)
Connection Types  Top Socket 4mm male banana Jack
 Bottom Jack 4mm female banana Socket
Max Current 24A
Dimensions Total Length 56mm  (2.2″ )
Plug Length 20mm  (0.79″)
Plug width 4mm
Stacking Socket width 4mm
Country of Origin China
