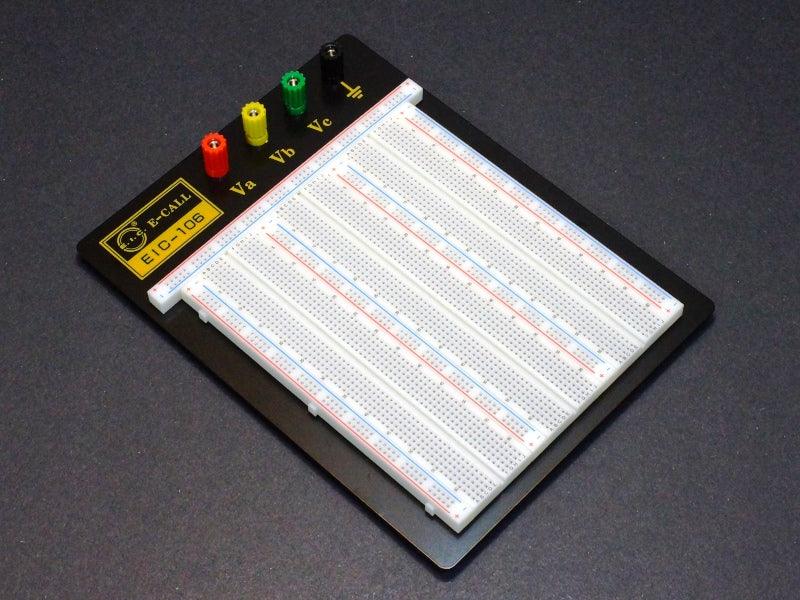

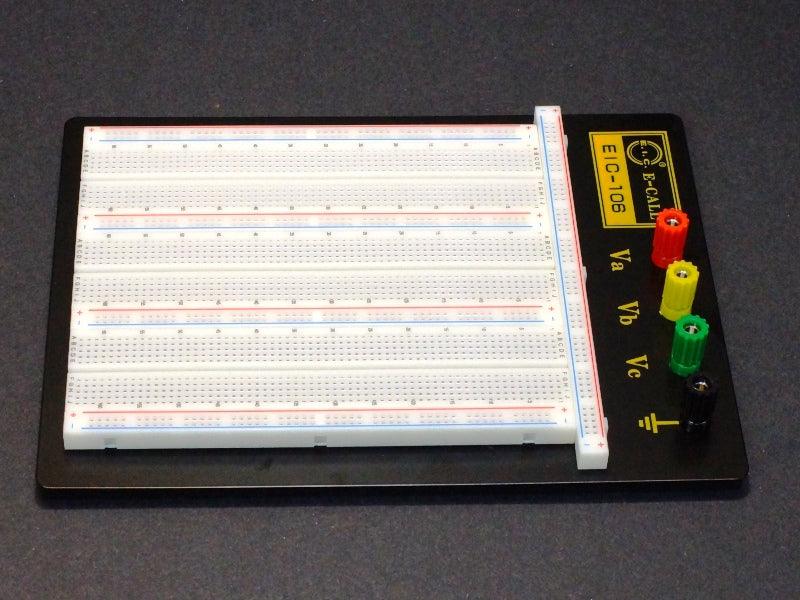

Solderless Breadboard Assembly 2390 — Pro Series with Jumper Wires

Solderless Breadboard Assembly 2390 — Pro Series with Jumper Wires

An extra-large 2390-point solderless breadboard assembly from the Pro Series, bundled with a jumper wire kit. The Pro Series features premium phosphor bronze contacts with a binding force exceeding 80g per contact — delivering more secure component retention, lower contact resistance, and a longer rated service life than standard Hobby Line breadboards.

With nearly three times the tie-point count of a standard 830-point breadboard, the 2390-point layout gives you the space to build the most complex multi-IC circuits, multi-module Arduino projects, and large-scale electronics experiments — with the contact reliability that professional and intensive use demands.

What's Included

• 1× 2390-point solderless breadboard (Pro Series)
• Jumper wire kit — assorted lengths and colors
• Multiple integrated power rails — dedicated + and − bus strips

Key Specifications

• Tie points: 2390 | Series: Pro Series (premium contacts)
• Contact material: Premium phosphor bronze | Binding force: >80g per contact
• Wire gauge: AWG #20–#29 | Pitch: 2.54mm (0.1")
• Max voltage: 300V | Max current: 3A per contact
• Operating temperature: −20°C to +80°C | RoHS compliant

Pro Series vs Hobby Line — Why Upgrade?

• ✅ Higher binding force (>80g vs >60g) — components stay seated, fewer intermittent connections
• ✅ Lower contact resistance — critical for sensitive analog, RF, and high-frequency circuits
• ✅ Longer service life — rated for significantly more insertion/removal cycles
• ✅ Better for professional environments — R&D labs, electronics benches, intensive classroom use

Why Choose the 2390-Point Pro Series?

• ✅ 2390 tie-points — ~3× the space of a standard 830-point board
• ✅ Premium Pro Series contacts — the most reliable solderless breadboard for demanding applications
• ✅ Multiple power rails — clean + and − power distribution across the full board length
• ✅ Jumper wires included — ready to prototype immediately out of the box
• ✅ Universal 2.54mm pitch — compatible with all DIP ICs, Arduino shields, and sensor modules

Typical Applications

• Professional electronics lab and R&D bench prototyping
• Complex multi-IC and multi-module Arduino Mega and ESP32 projects
• Sensitive analog and RF circuit development at scale
• IoT device development with many sensors and communication modules
• Advanced electronics education and STEM research (intensive use)
• High-cycle-count circuit iteration for large-scale projects
