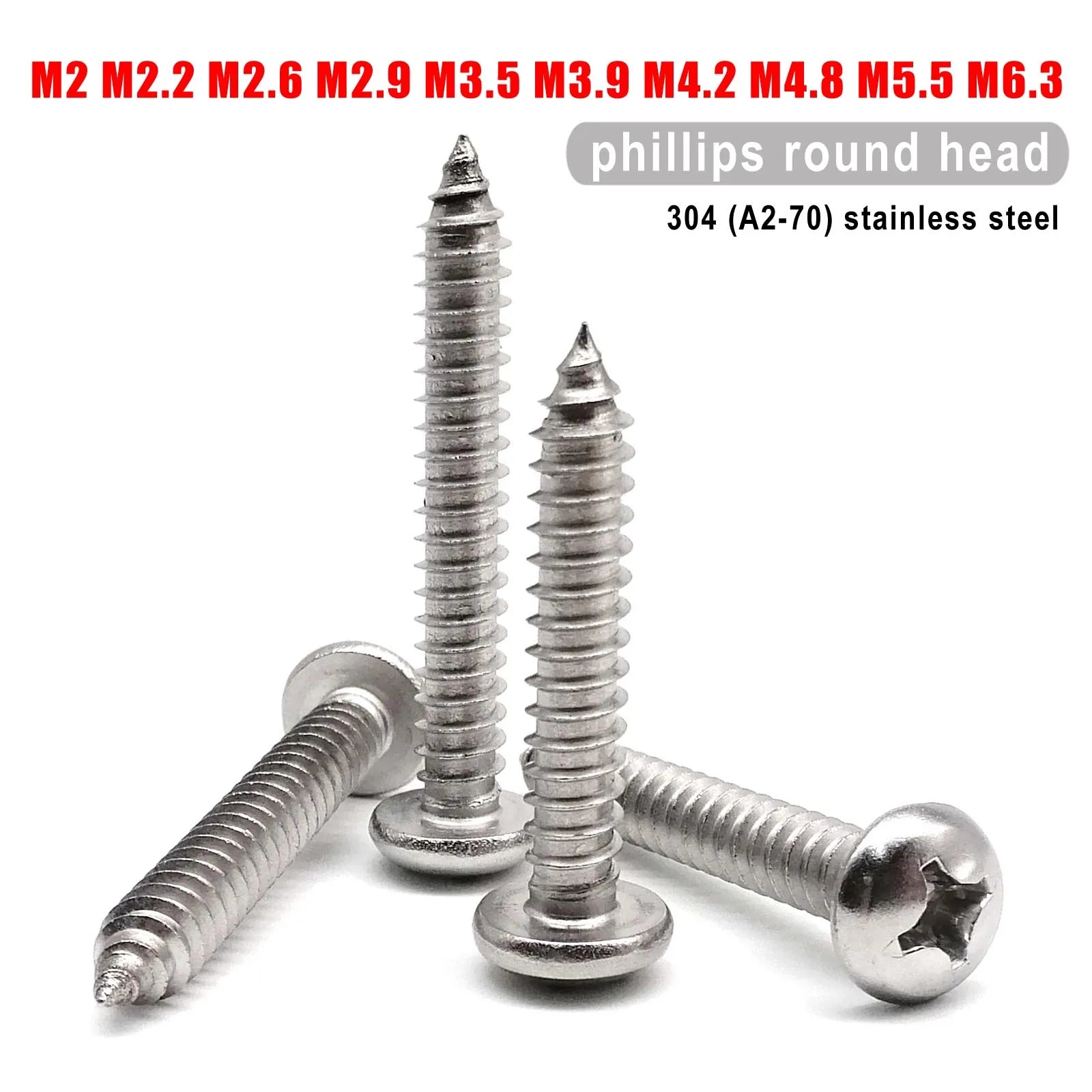

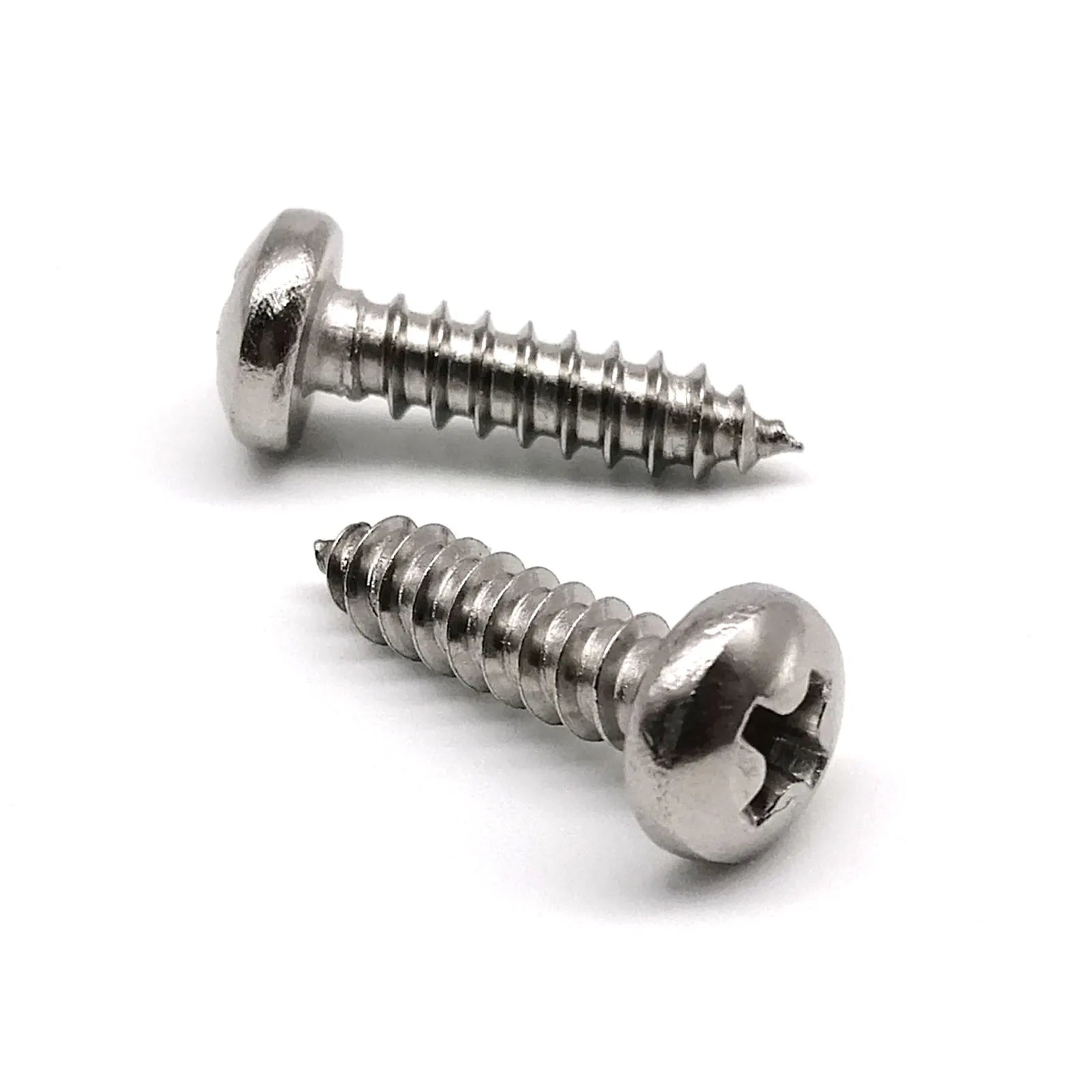

304 A2-70 Stainless Steel Cross Phillips Pan Round Head Self-Tapping Wood Screw — M2 to M6

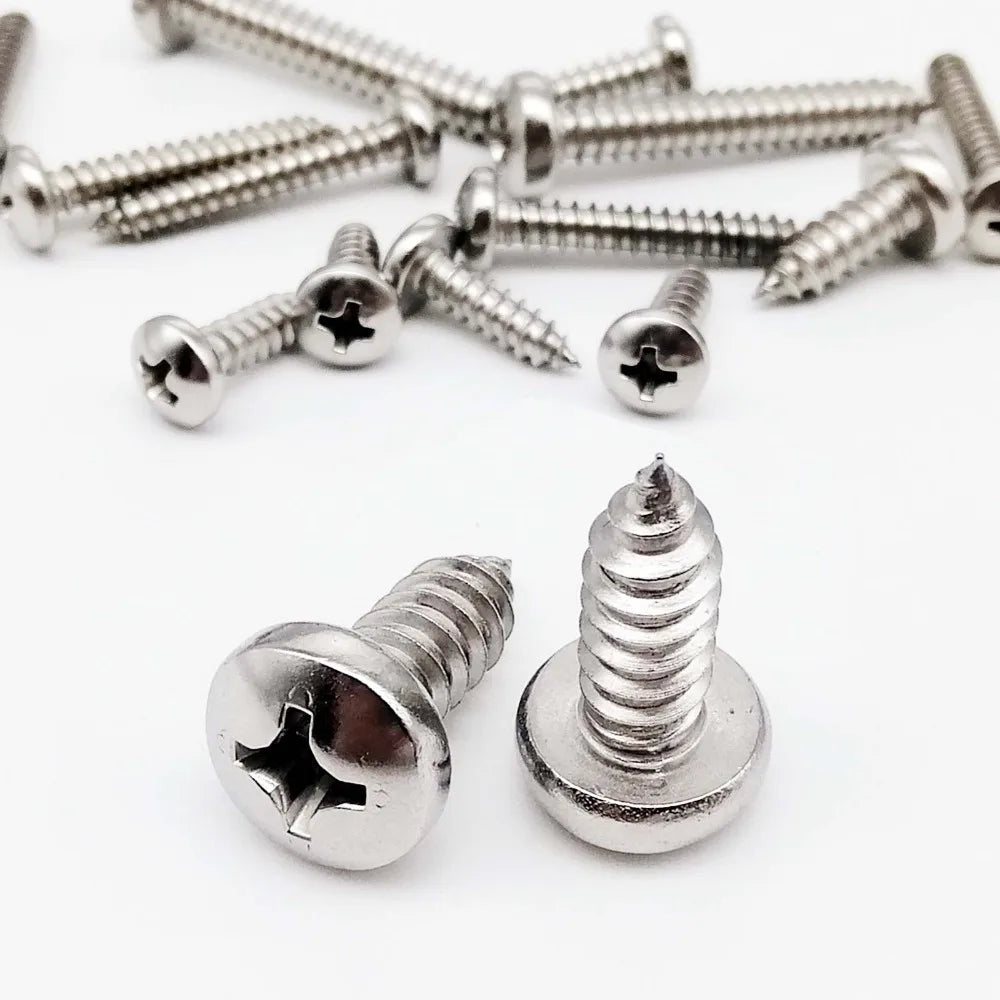

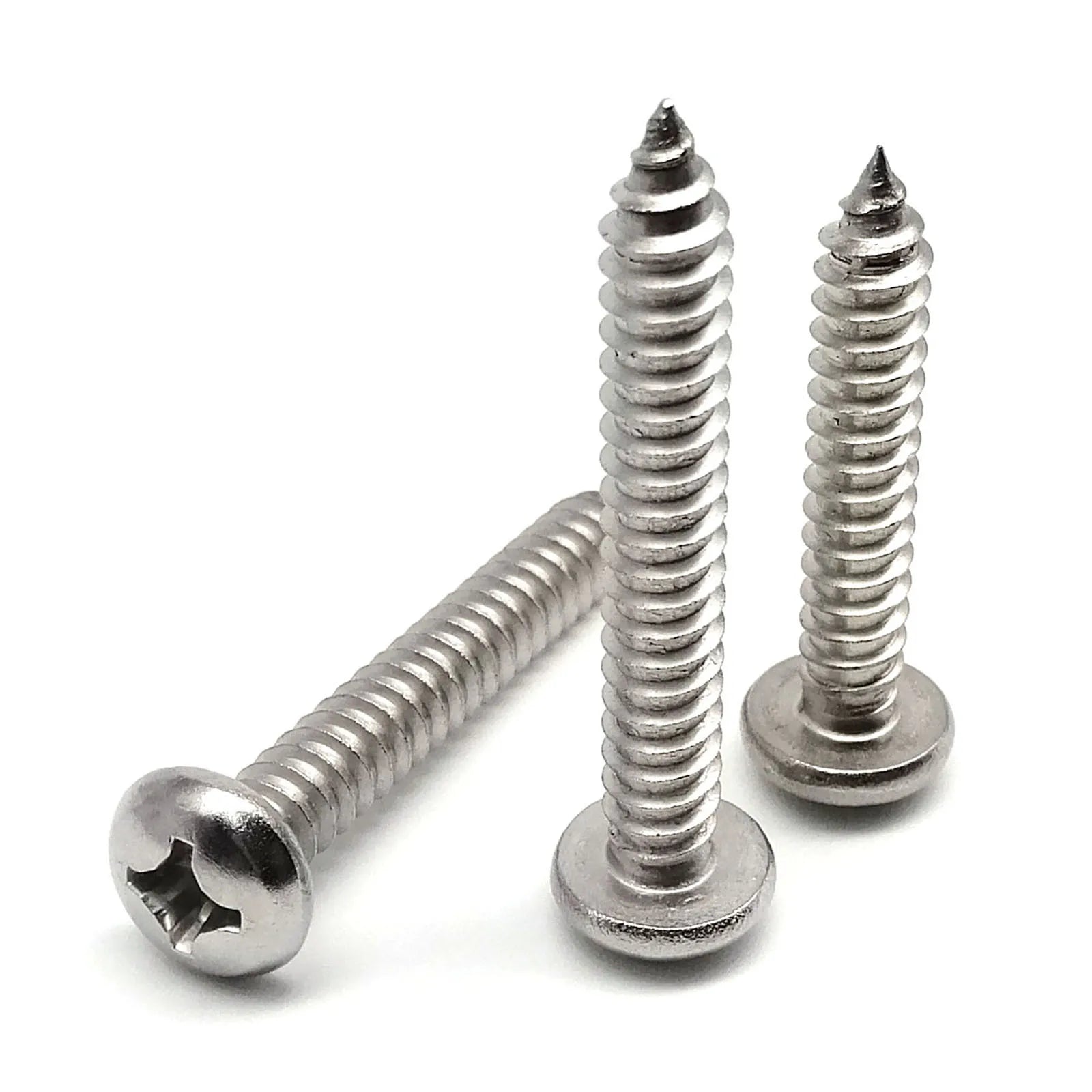

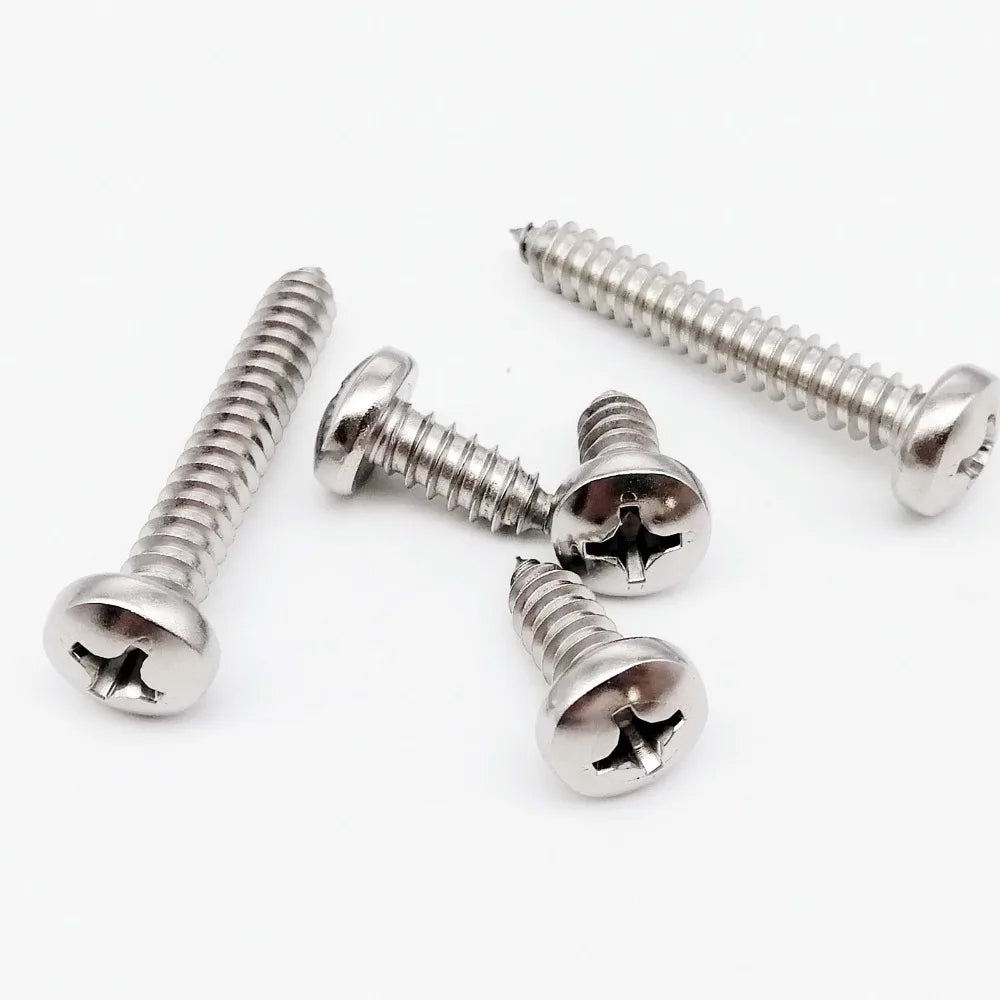

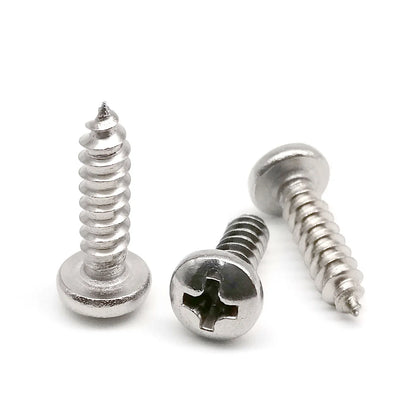

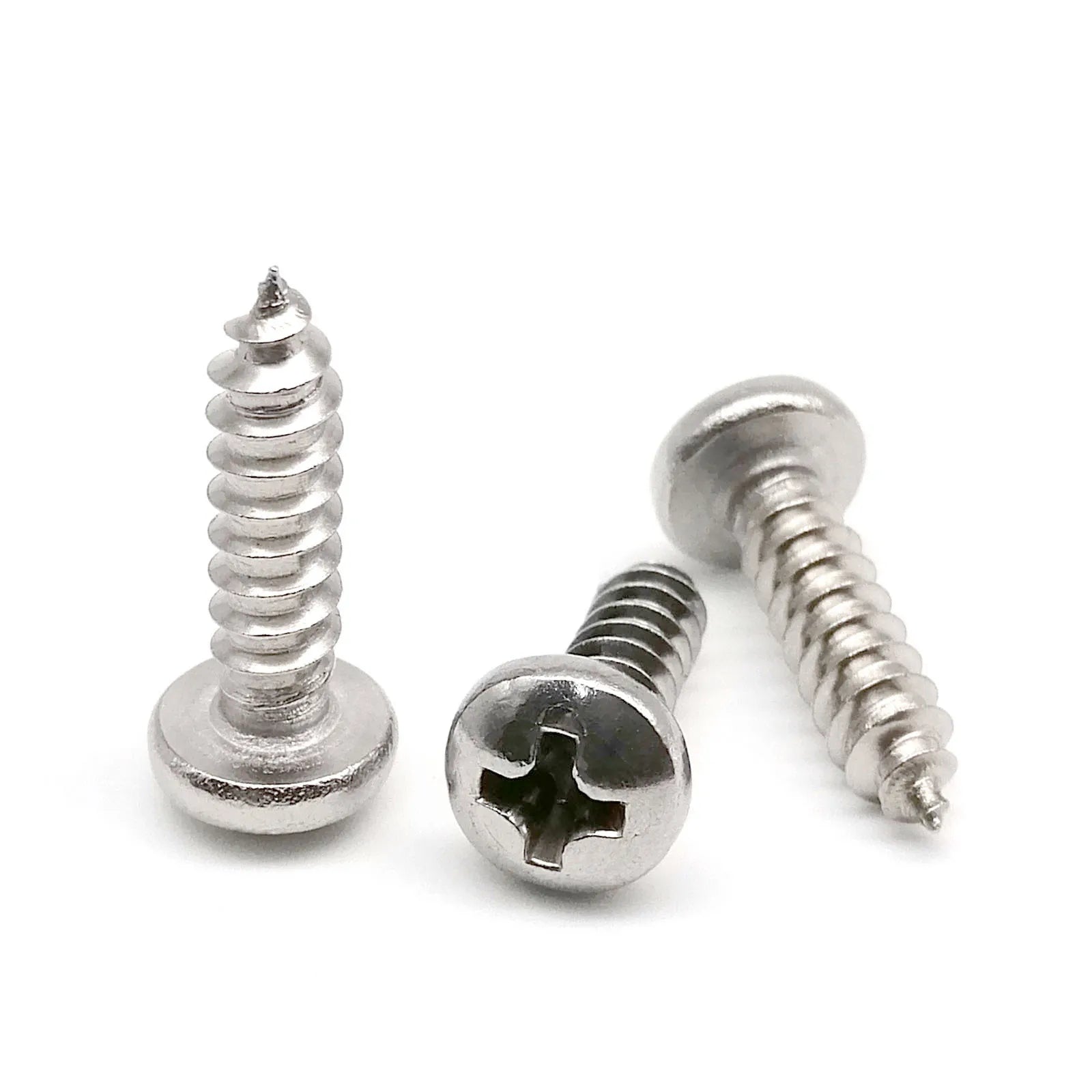

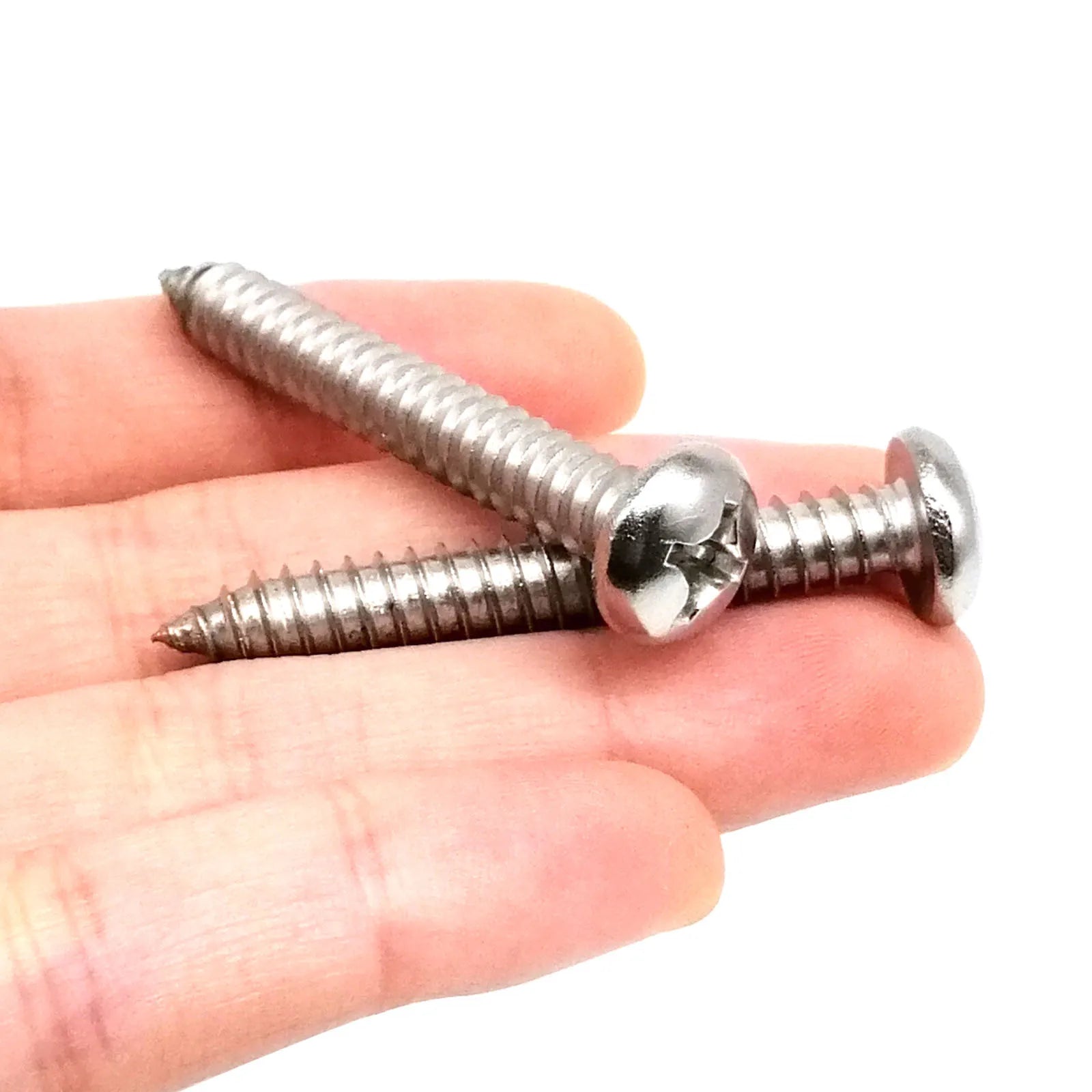

Cross (Phillips) drive pan round head self-tapping screws in 304 stainless steel (A2-70 grade), available in M2 through M6 metric thread sizes and a range of lengths. The self-tapping thread cuts its own mating thread in wood, MDF, chipboard, and soft plastics without pre-tapping, making these screws ideal for furniture assembly, cabinet making, and general woodworking applications. The 304 stainless steel construction provides excellent corrosion resistance for indoor and outdoor applications. The pan round head provides a large bearing surface and a clean, finished appearance.

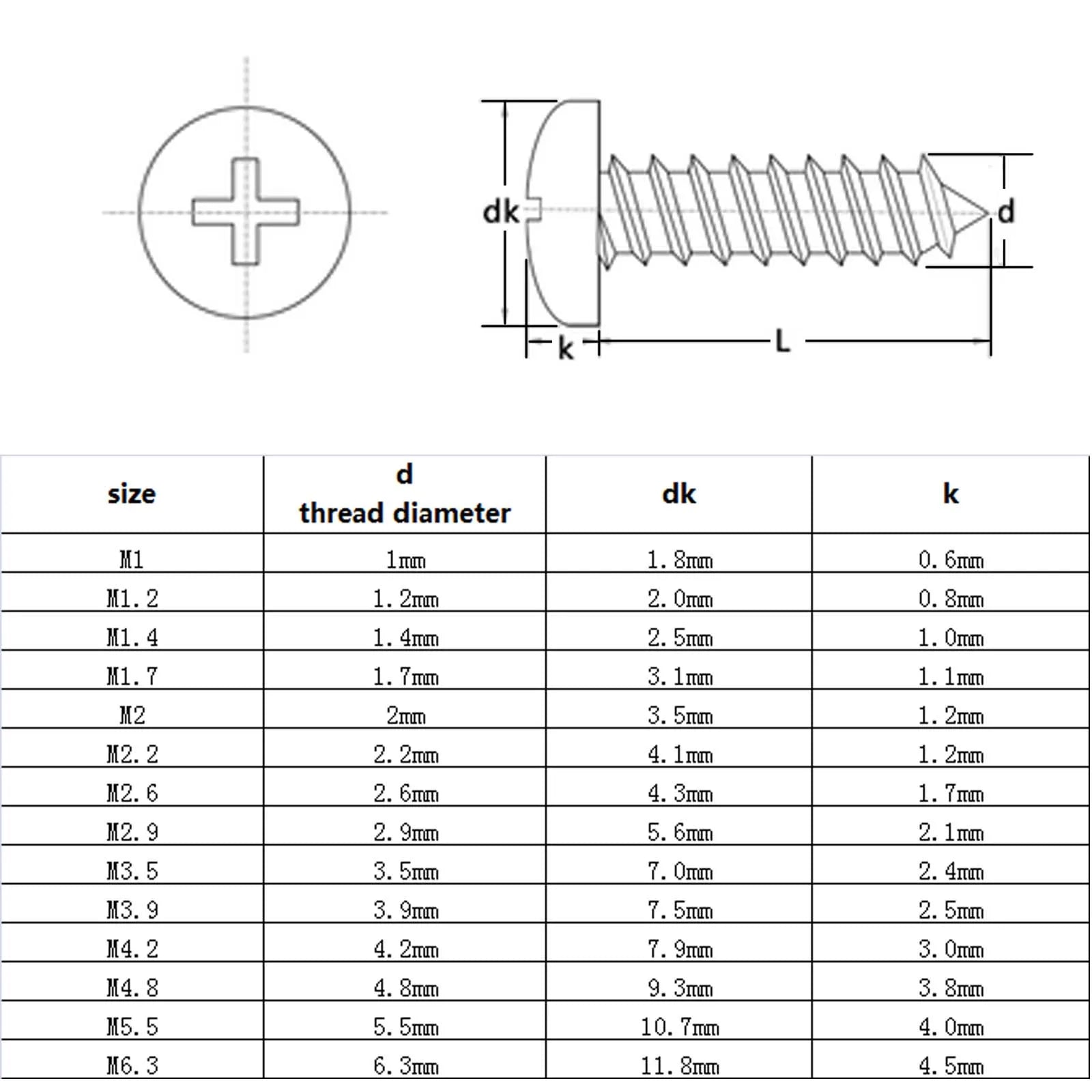

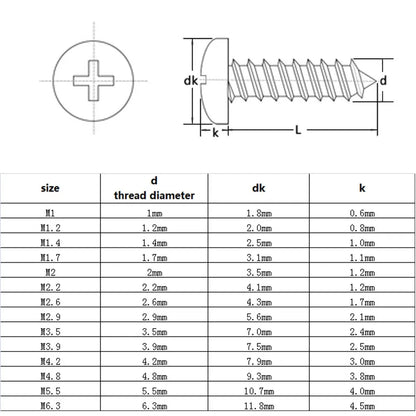

Technical Specifications
| Parameter | Value |
|---|---|
| Material | 304 Stainless Steel (A2-70) |
| Drive Type | Cross / Phillips (PH2 for M3–M6) |
| Head Type | Pan round head |
| Thread Type | Self-tapping (Type AB / ST) |
| Thread Sizes | M2, M2.5, M3, M4, M5, M6 |
| Tensile Strength | 700 MPa (A2-70 grade) |
| Corrosion Resistance | Excellent (304 SS, passivated) |
| Certification | RoHS |
Pilot Hole Guide
| Screw Size | Pilot Hole (Softwood) | Pilot Hole (Hardwood / MDF) |
|---|---|---|
| M2 | 1.2mm | 1.5mm |
| M2.5 | 1.5mm | 1.8mm |
| M3 | 2.0mm | 2.3mm |
| M4 | 2.5mm | 3.0mm |
| M5 | 3.2mm | 3.8mm |
| M6 | 4.0mm | 4.5mm |
Typical Applications
- Furniture Assembly: M3–M6 pan head self-tapping screws for flat-pack furniture, cabinet assembly, and shelving unit construction
- Cabinet Making: Stainless steel self-tapping screws for kitchen cabinet, wardrobe, and bathroom cabinet assembly where moisture resistance is required
- Outdoor Woodwork: 304 SS corrosion resistance for outdoor furniture, decking, and garden structure assembly
- Electronics Enclosures: M2–M3 self-tapping screws for securing PCBs and components in plastic and thin-sheet metal enclosures
- Sheet Metal: Self-tapping into thin sheet metal (0.5–1.5mm) for electrical panel, HVAC duct, and automotive body panel assembly
FAQ
Q: Do I need to pre-drill a pilot hole?
A: A pilot hole is recommended for hardwood, MDF, and chipboard to prevent splitting and ensure straight driving. In softwood, self-tapping screws can be driven without a pilot hole for M3 and smaller sizes, but a pilot hole improves accuracy and reduces splitting risk.
Q: Is 304 stainless steel suitable for outdoor use?
A: Yes. 304 SS (A2) provides excellent corrosion resistance in most outdoor environments. For coastal or marine environments with salt spray, use 316 SS (A4) for superior chloride corrosion resistance.
Package Contents
- 304 A2-70 SS Phillips pan head self-tapping screws (size and quantity as selected)
