DC 12V-36V Charger Module with Digital LED Display and Over-Discharge Protection for Lithium Battery Modules
DC 12V-36V Charger Module with Digital LED Display and Over-Discharge Protection for Lithium Battery Modules
Regular price
$8.16 USD
Regular price
$0.00 USD
Sale price
$8.16 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- ★Product Description
- ★About us
- ★Custom cable
SPECIFICATIONS
Application: Computer
Brand Name: OLNYLO
Condition: New
Dissipation Power: 1.5W
High-concerned chemical: None
Model Number: XH-M609
Operating Temperature: -40-+85
Origin: Mainland China
Package: SMD
Supply Voltage: DC 12V-36V
Type: Voltage Regulator
is_customized: Yes
XH-M609 DC 12V-36V Charger Module Voltage Digital LED Display OverDischarge Battery Protection for Lithium Battery Module Board
Scope of application
1. Suitable for electric two wheeled tricycle batteries within all applicable voltage ranges;
2. Discharge protection for car batteries and new energy electric vehicle batteries;
3. Over discharge protection for various types of batteries;
4. Power supply systems such as solar and wind energy.
1. Product name: Battery Overdischarge Protection Module
2. Model: XH-M609
3. Power supply voltage: DC12V - 36V
4. Output voltage: Equal to power supply voltage
5. Control precision: 0.1 V
6. Power consumption: Less than 1.5 W
7. Scope of application: Various storage batteries, lithium batteries
8. Net weight: 28 g

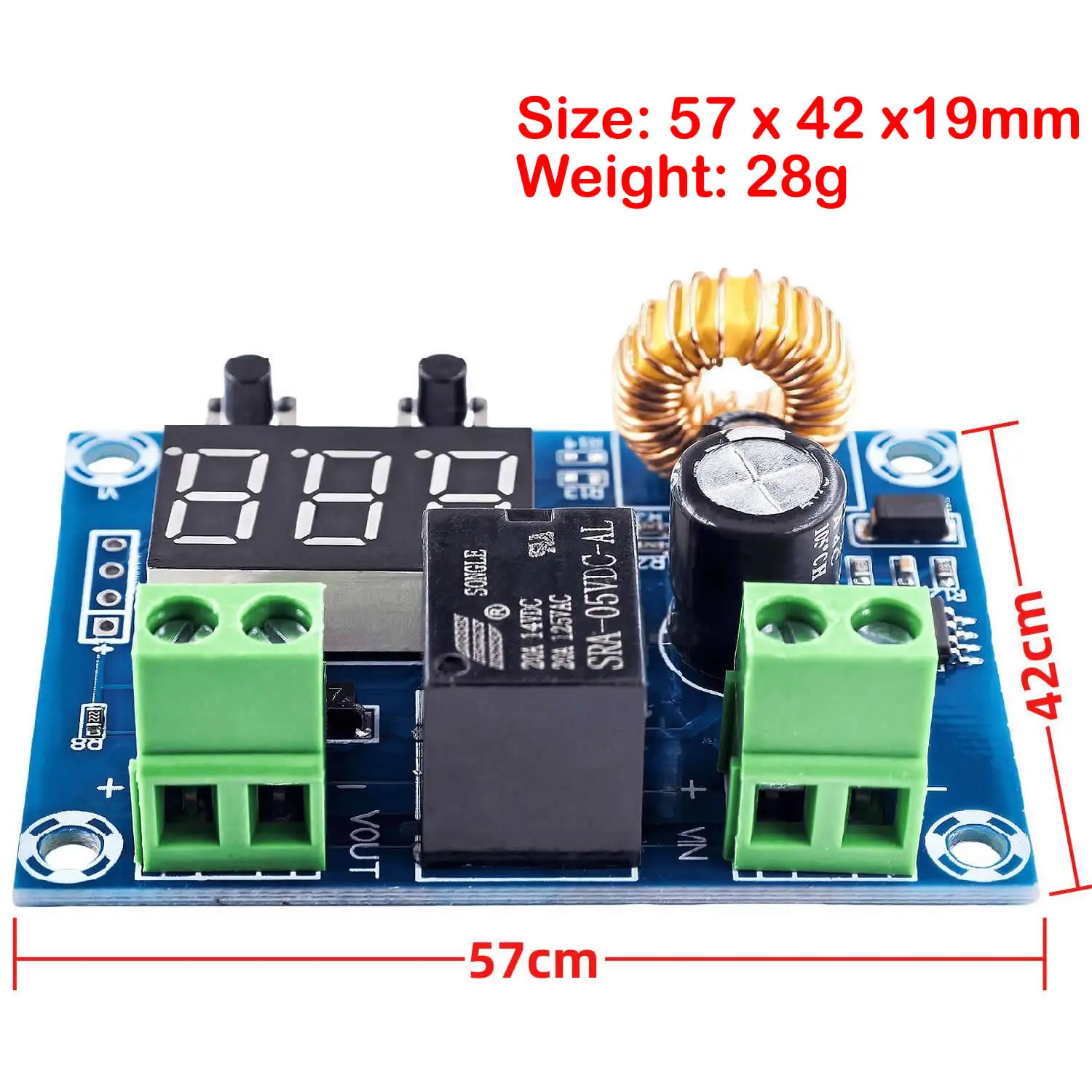

9. Size: 57 * 42 * 19 mm
Scope of application
1. Suitable for electric two wheeled tricycle batteries within all applicable voltage ranges;
2. Discharge protection for car batteries and new energy electric vehicle batteries;
3. Over discharge protection for various types of batteries;
4. Power supply systems such as solar and wind energy.
1. SET TO STOP BELOW 12.5V AND START ABOVE 14V:

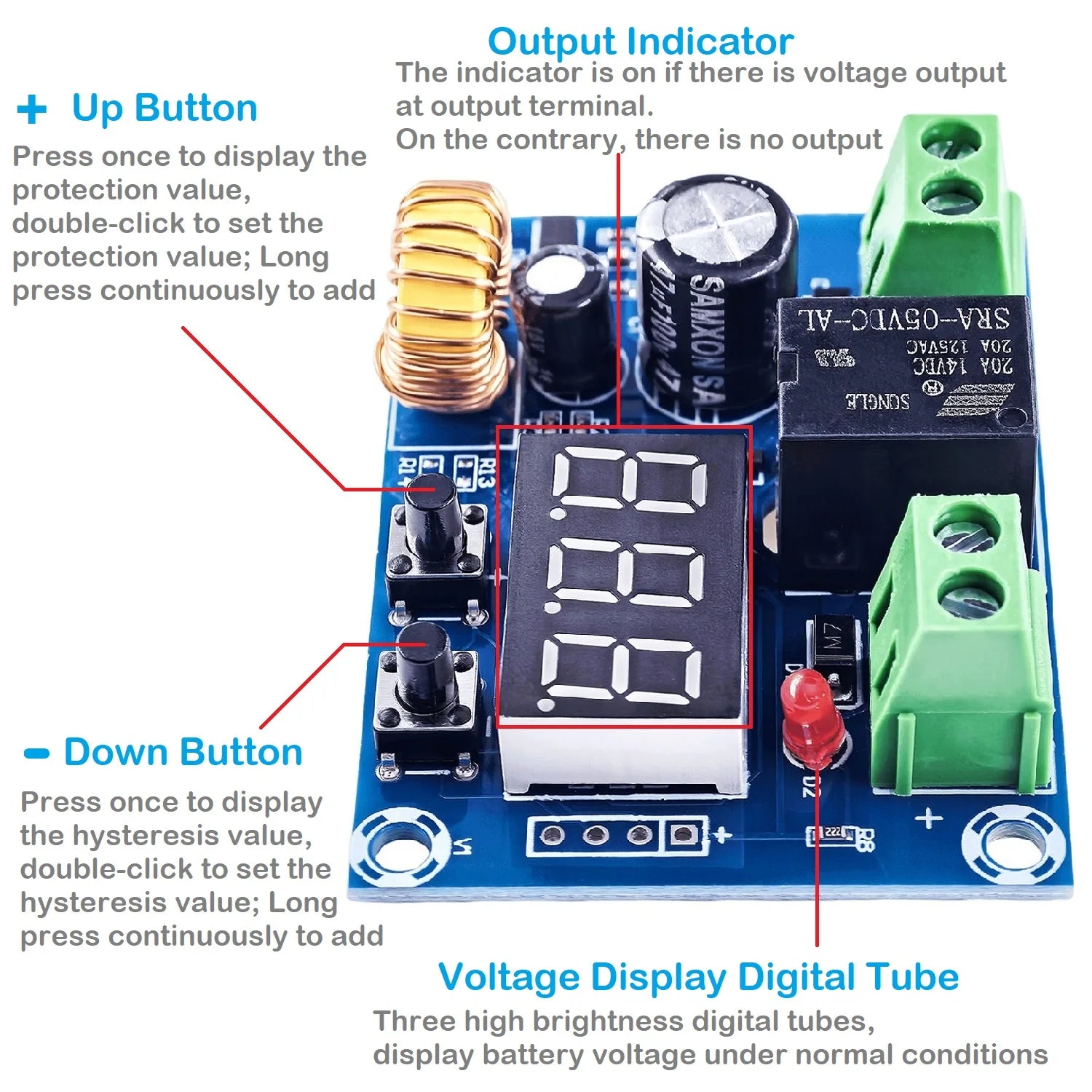

1) Set protection value: Press the "+" once to display the protection value, double-click the "+", the decimal point will flash, and then press the "+" or "-" to change the value to 12.5. If there is no operation for 3 seconds, the module will automatically save and exit the setting mode.
2) Set hysteresis value: Press the "-" once to display the hysteresis value, double-click the "-", the decimal point flashes, and then press the "+" or "-" to change the value to 1.5. If there is no operation for 3 seconds, the module will automatically save and exit the setting mode.
2. SET TO STOP BELOW 10V AND START ABOVE 15.5V:
1) Set protection value: Press the "+" once to display the protection value, double-click the "+", the decimal point will flash, and then press the "+" or "-" to change the value to 12.5. If there is no operation for 3 seconds, the module will automatically save and exit the setting mode.
2) Set hysteresis value: Press the "-" once to display the hysteresis value, double-click the "-", the decimal point flashes, and then press the "+" or "-" to change the value to 1.5. If there is no operation for 3 seconds, the module will automatically save and exit the setting mode.
3. RESTORE FACTORY SETTINGS:
1) When the power is disconnected, press and hold both buttons at the same time, and then turn on the power. At this time, the screen displays "888" to indicate that the factory settings have been successfully restored.
2) Factory set protection value: 12V, hysteresis value: 2V
