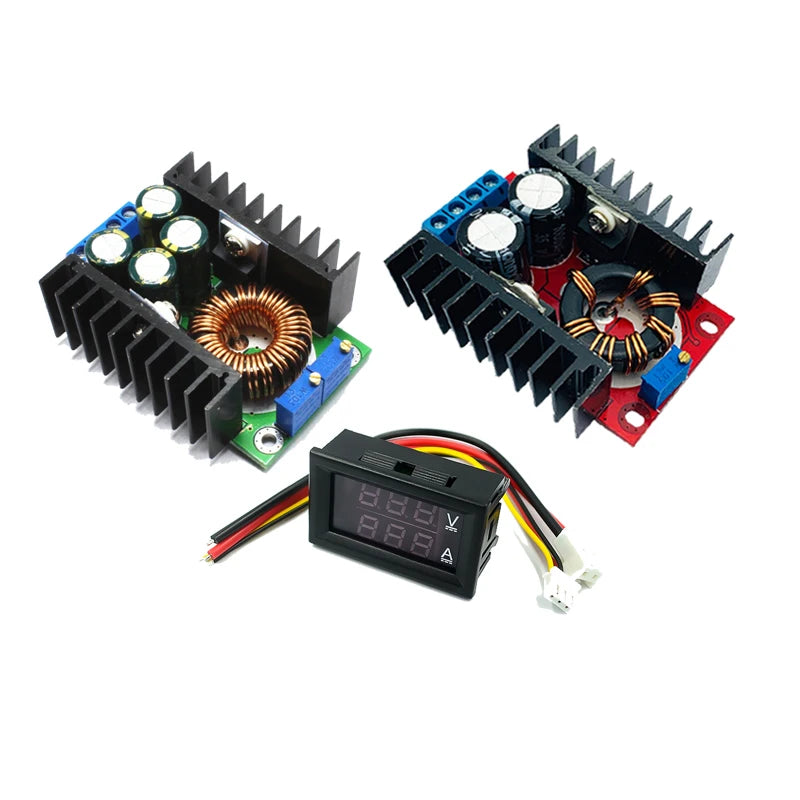

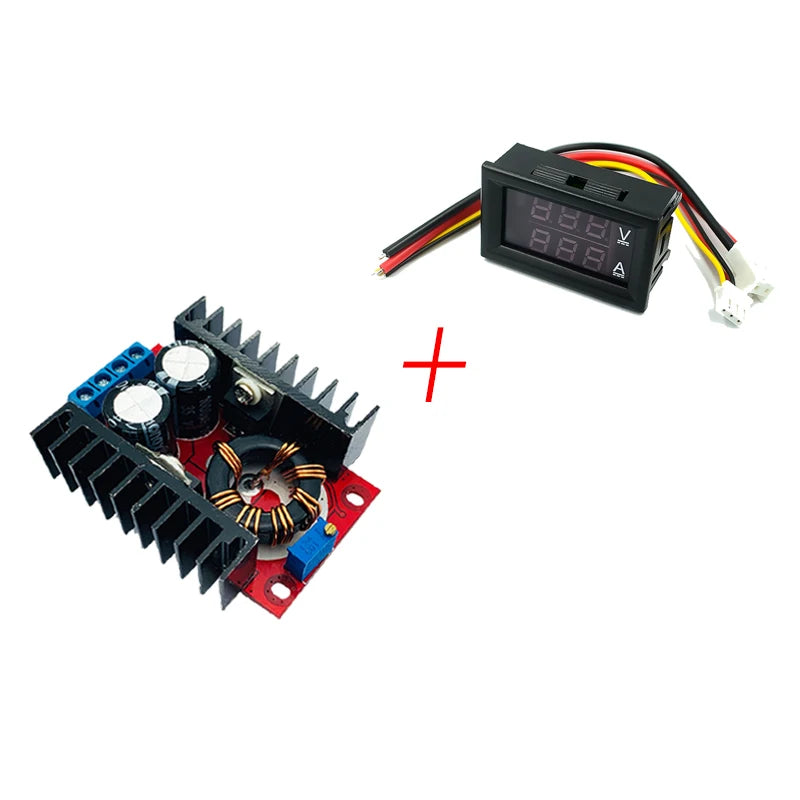

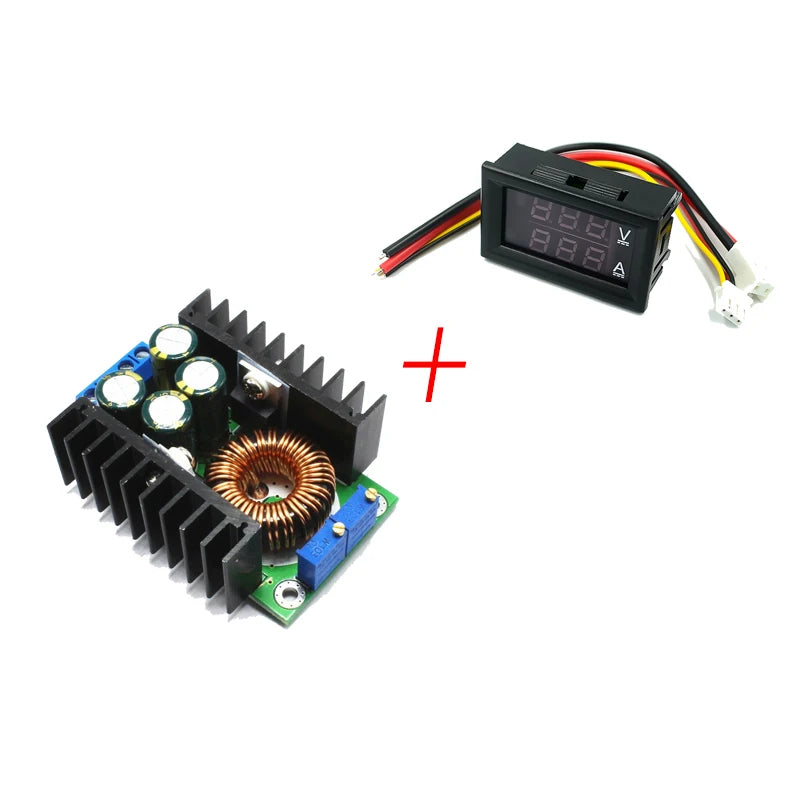

DC-DC Adjustable Boost & Buck Converter 0-100V 10A with Dual Digital Voltmeter and Ammeter
DC-DC Adjustable Boost & Buck Converter 0-100V 10A with Dual Digital Voltmeter and Ammeter
Regular price
$19.52 USD
Sale price
$19.52 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
Application: standard
Brand Name: Keszoox
Condition: New
Dissipation Power: International Standard
High-concerned chemical: None
Operating Temperature: International Standard
Origin: Mainland China
Package: SMD
Supply Voltage: International Standard
Type: Voltage Regulator
is_customized: Yes

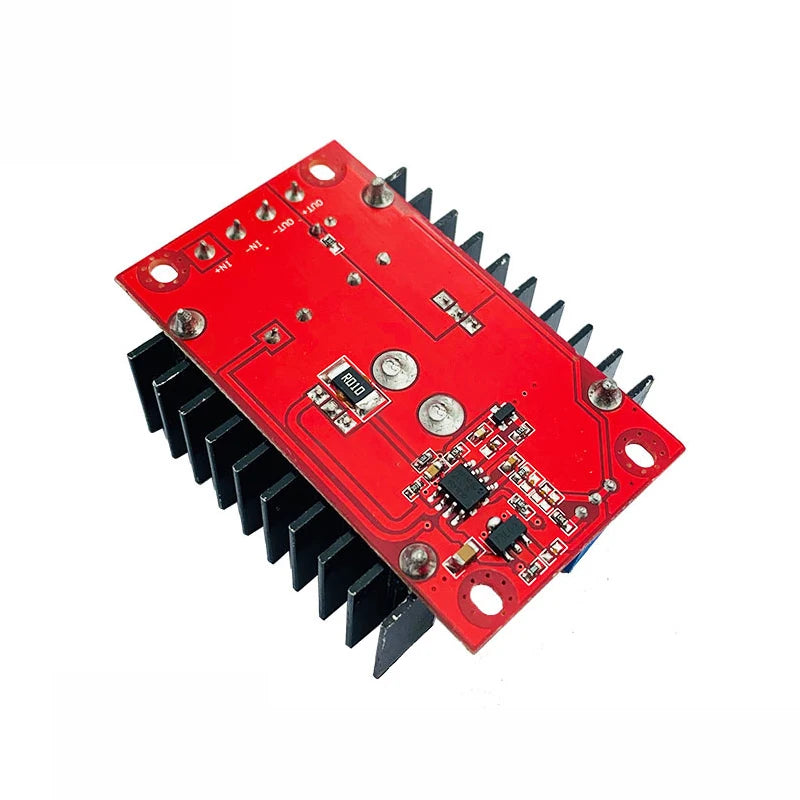

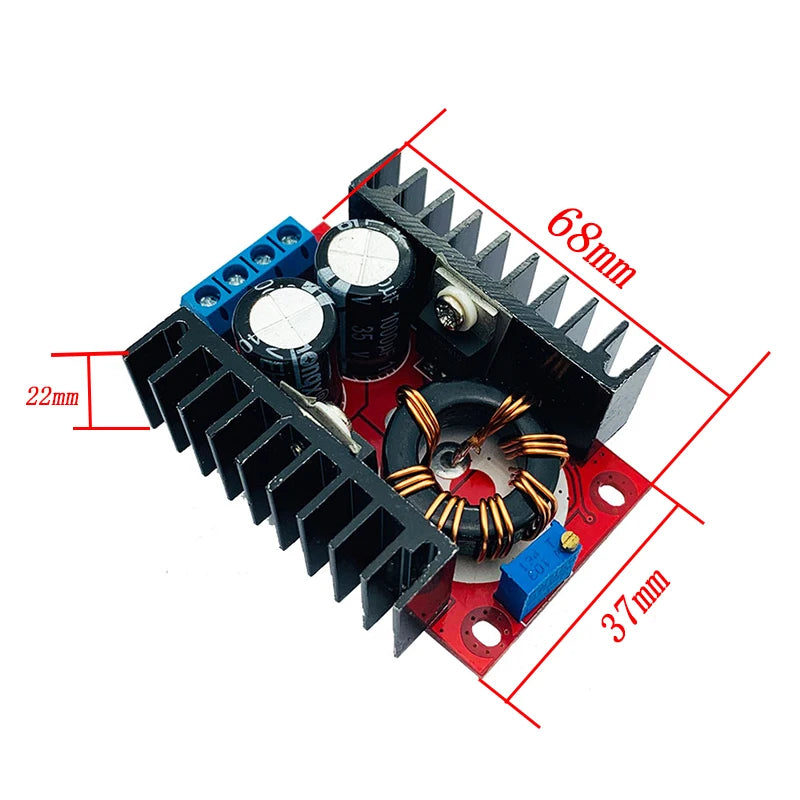

150W Module:
Input voltage : DC 10 - 32 V
Output Voltage : DC 12-35 V(Adjustable)
Output Current : 6A(MAX)
Input current : 10A (MAX) (more than 10A please strengthen heatsink)
Output Power : natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
Conversion efficiency : 94% (when Input 19V 2.5A Output 16V, Reference)
Output ripple : 2% (MAX)
Working Temperature : industrial (- 40 ° c to +85 °c) ( environmental temperature, more than 40 degrees, please reduce power to use, or - enhance cooling).
Full-Load temperature : 45 degrees
No-load current : 25mA typical
Voltage regulation : ± 0.5%
Load regulation : ± 0.5%
Dynamic response speed : 200uS 5%
Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
Size : 65*23*56.3 mm

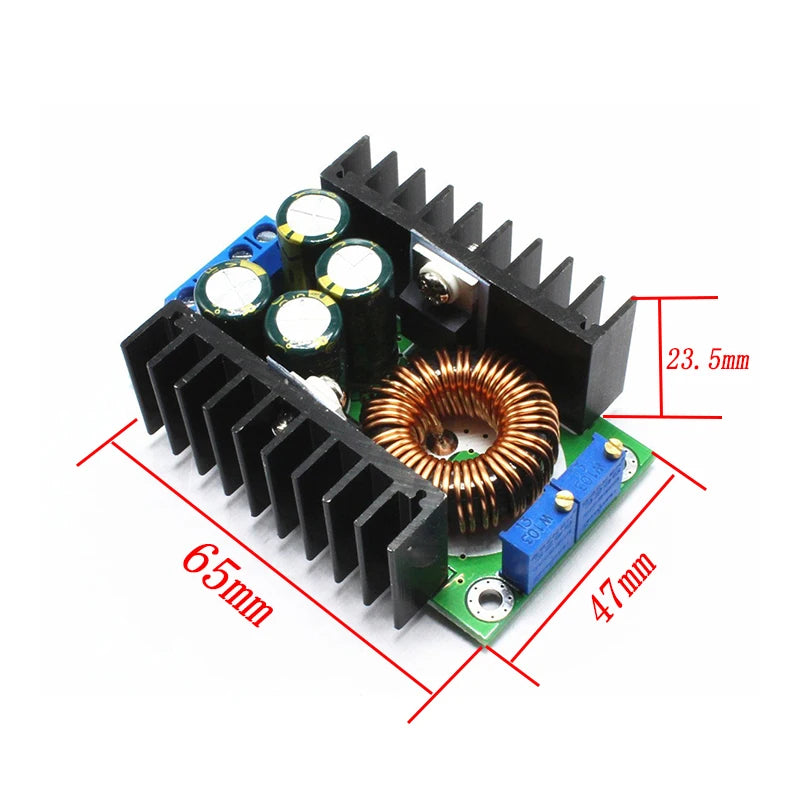

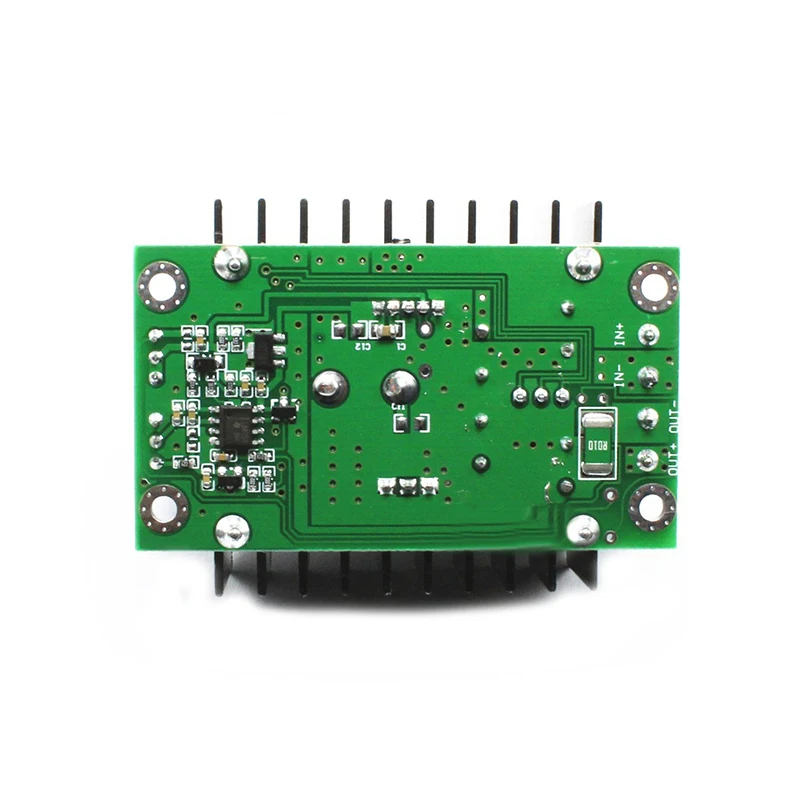

300W Module:
Material: PCB board and electronic component
Color: as the pic shows
Input voltage: 5-40V
Output voltage: 1.2-35V (continuously adjustable)
Output Current: 9A (power tube temperature exceeds 65°C please add cooling fan)
Constant current range:0.2-9A ( adjustable )
Output Power: Maximum power is about 300W (power tube temperature exceeds 65°C please add cooling fan)
Size: Approx. 2.55*1.88*0.94inch / 6.5*4.8*2.4cm(Length*width*thickness)

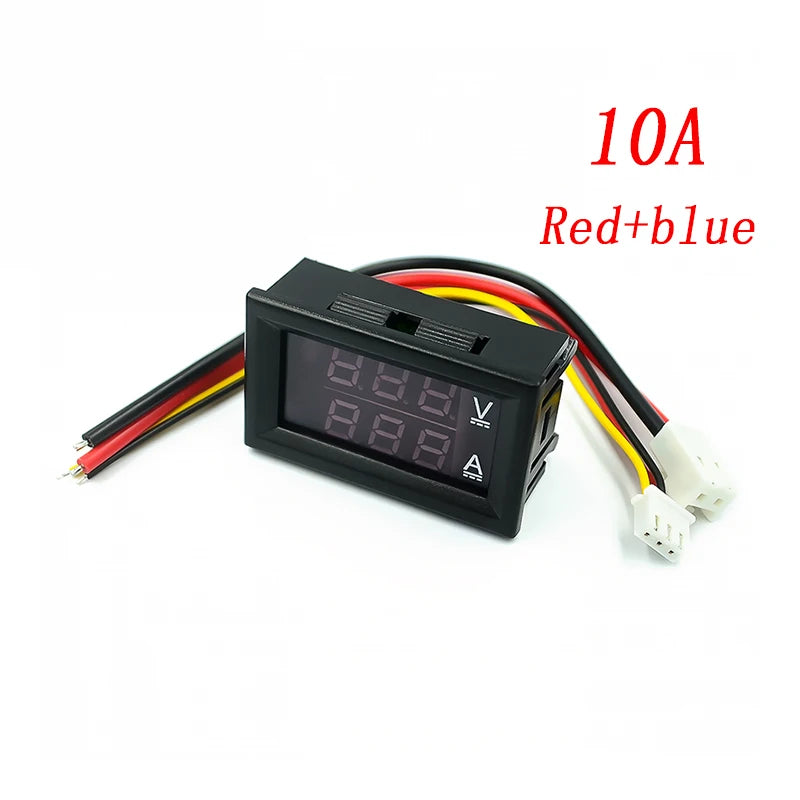

DC 0-100V 10A ( 0.28inch Red Blue LED ):
Features:
100% Brand New.
Size: 48mm x 29mm x 21mm.
Display color: Red & Blue LED (dual display).
Display: 0.28" LED digital.
Operating voltage: DC 4.5 ~ 30V.
Measure voltage: DC 0 ~ 100V.
Minimum resolution (V): 0.1V.
Refresh rate: ��500ms / times.
Measure accuracy: 1% (± 1 digit).
Minimum resolution (A): 0.01A.
Operating Current: <20mA.
Measure current: 10A (direct measurement, built-in shunt).
Operating temperature: -10 to 65°c.
Operating Humidity: 10 to 80% (non-condensing).
Mounting cutout: 45.5mm x 26.5mm
