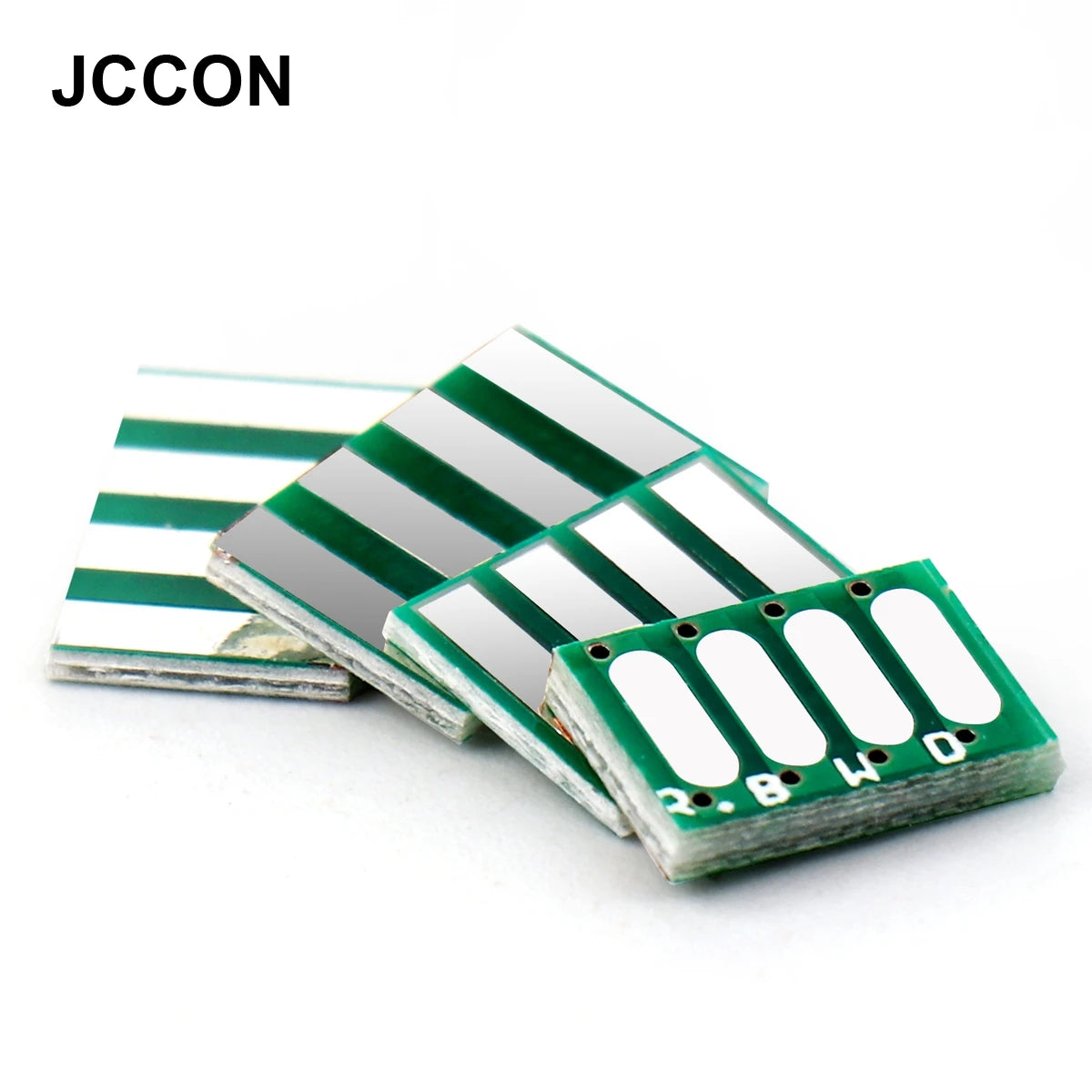

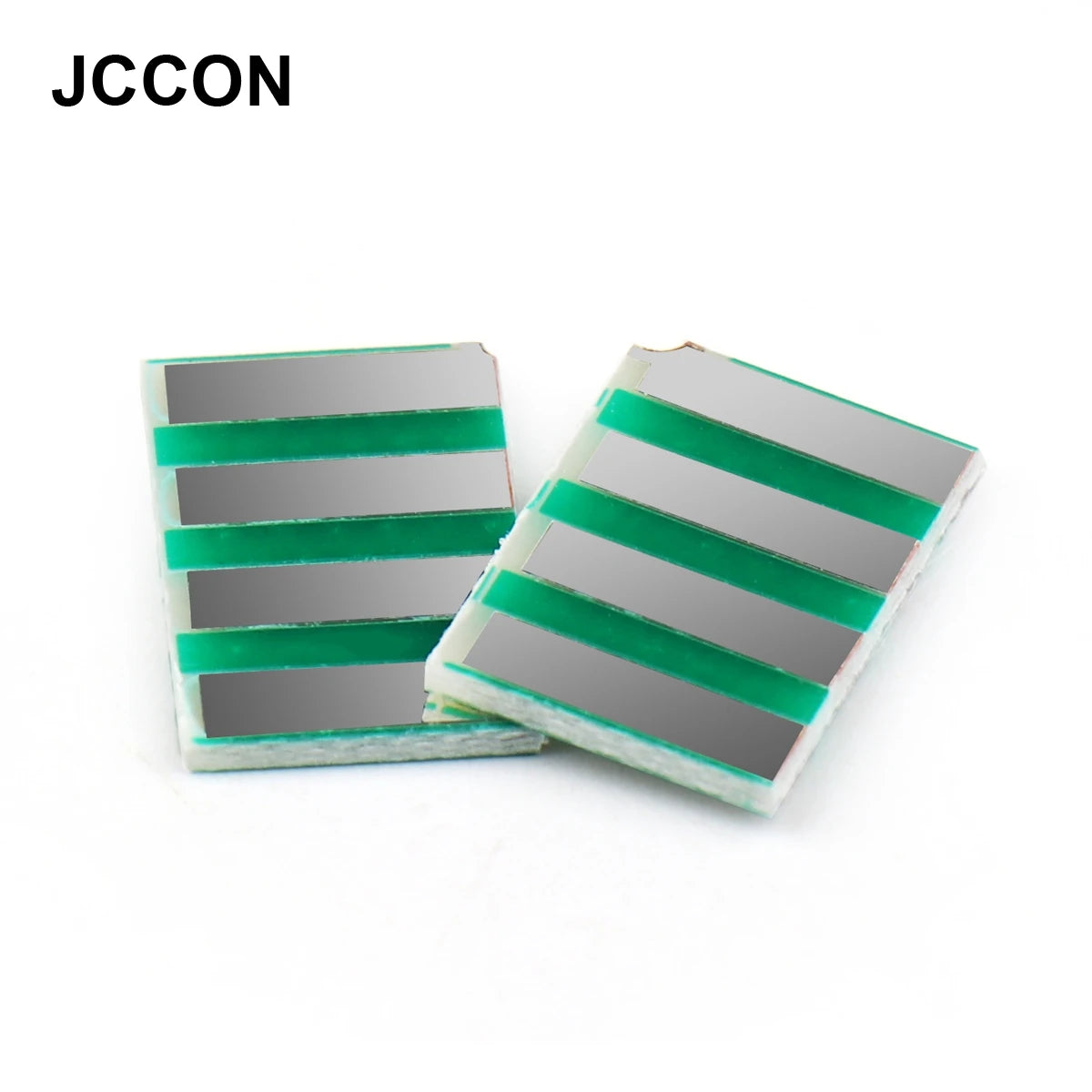

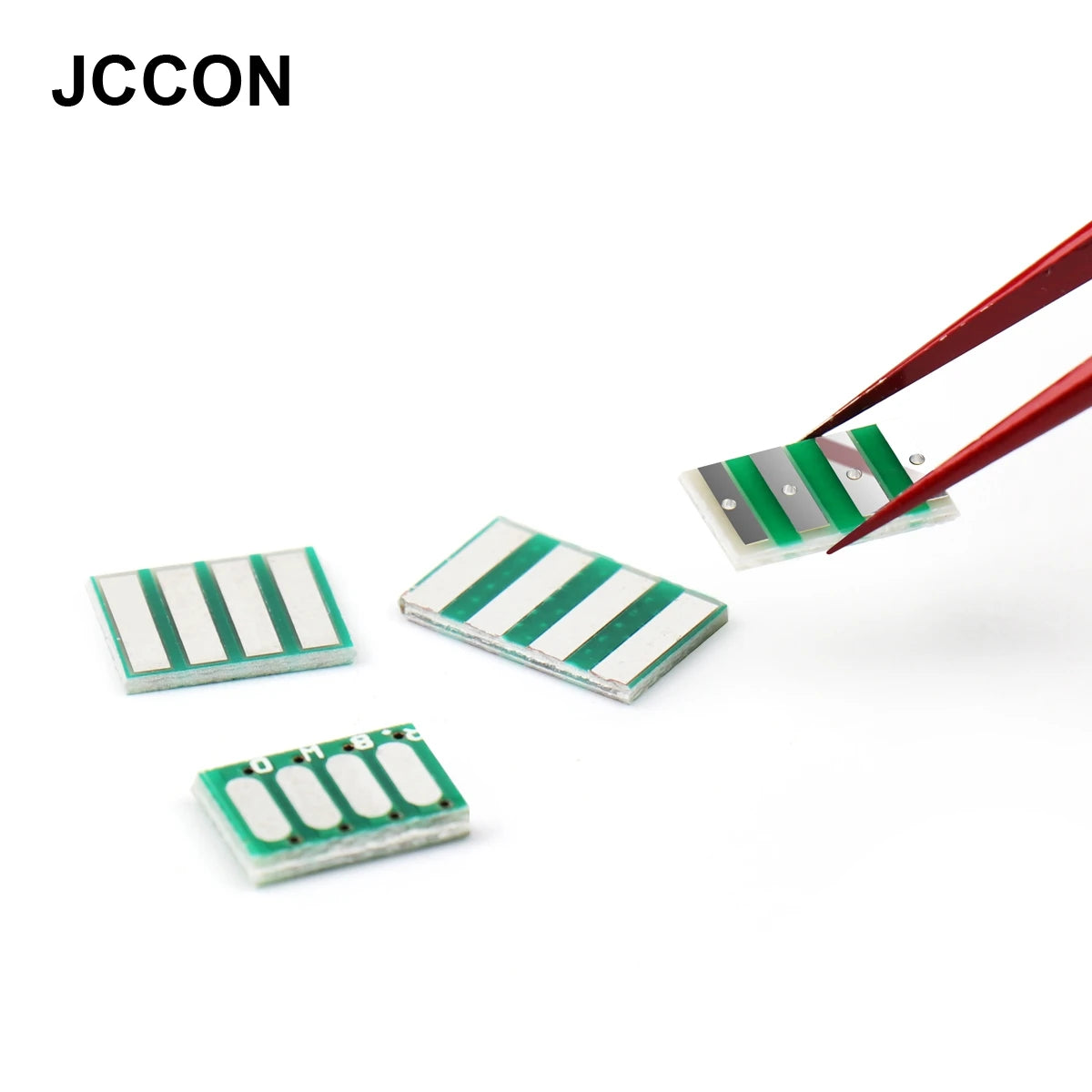

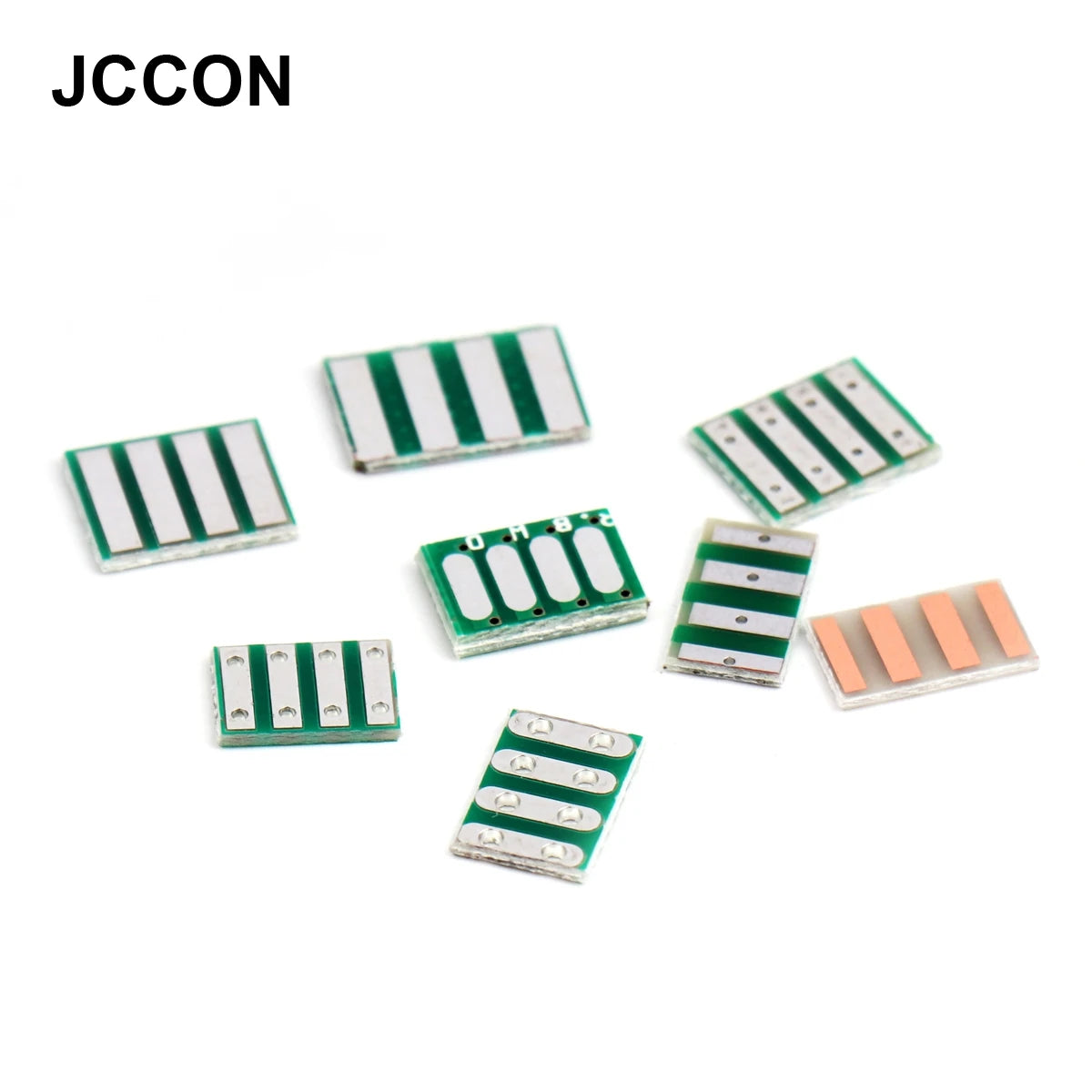

20Pcs PCB Board Double Sided Wiring Board Pitch Adapter Converter Plate Board Pinboard DIY 6x11 6x10 7x10 8x10 8x12 6.5x8.7 mm

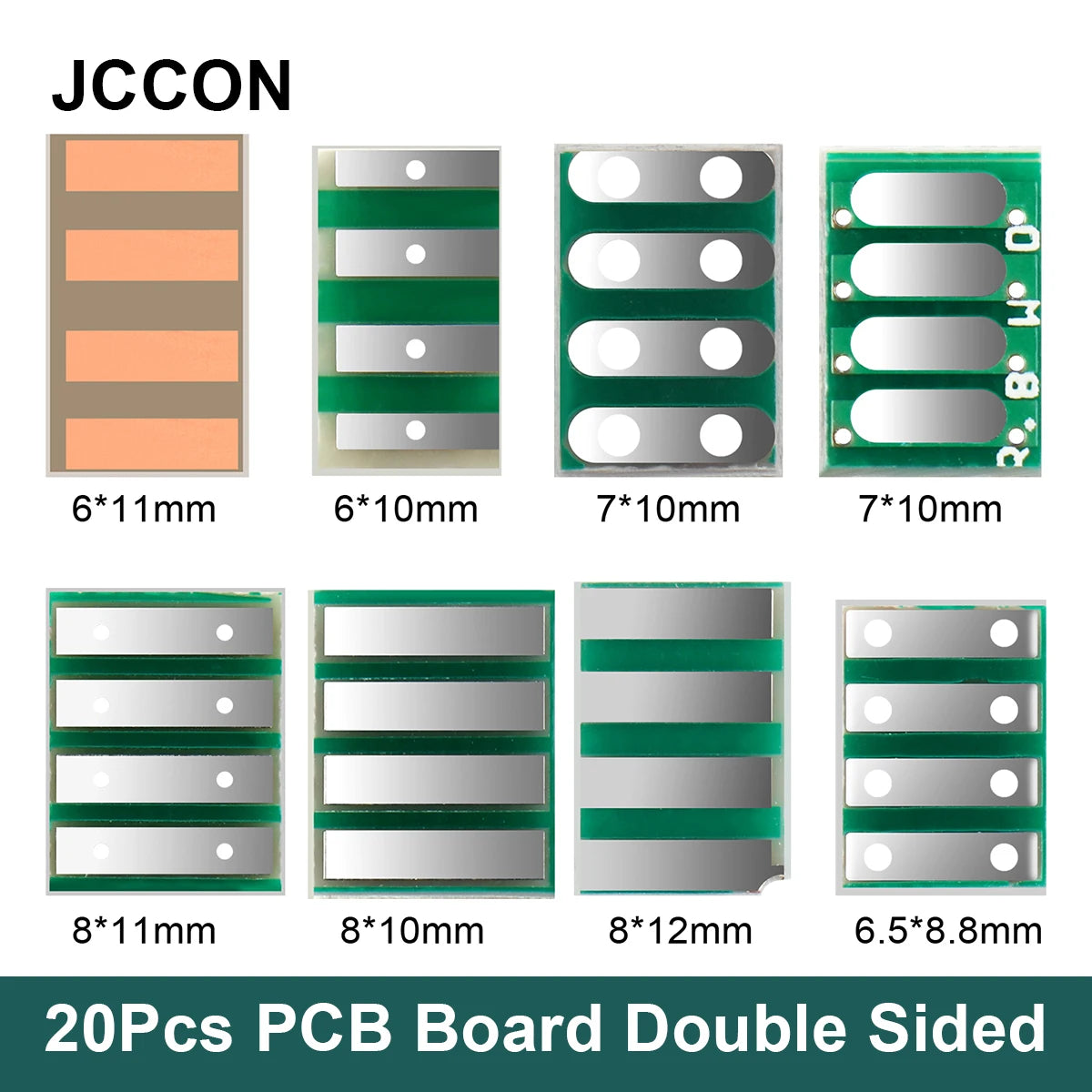

Dimension:

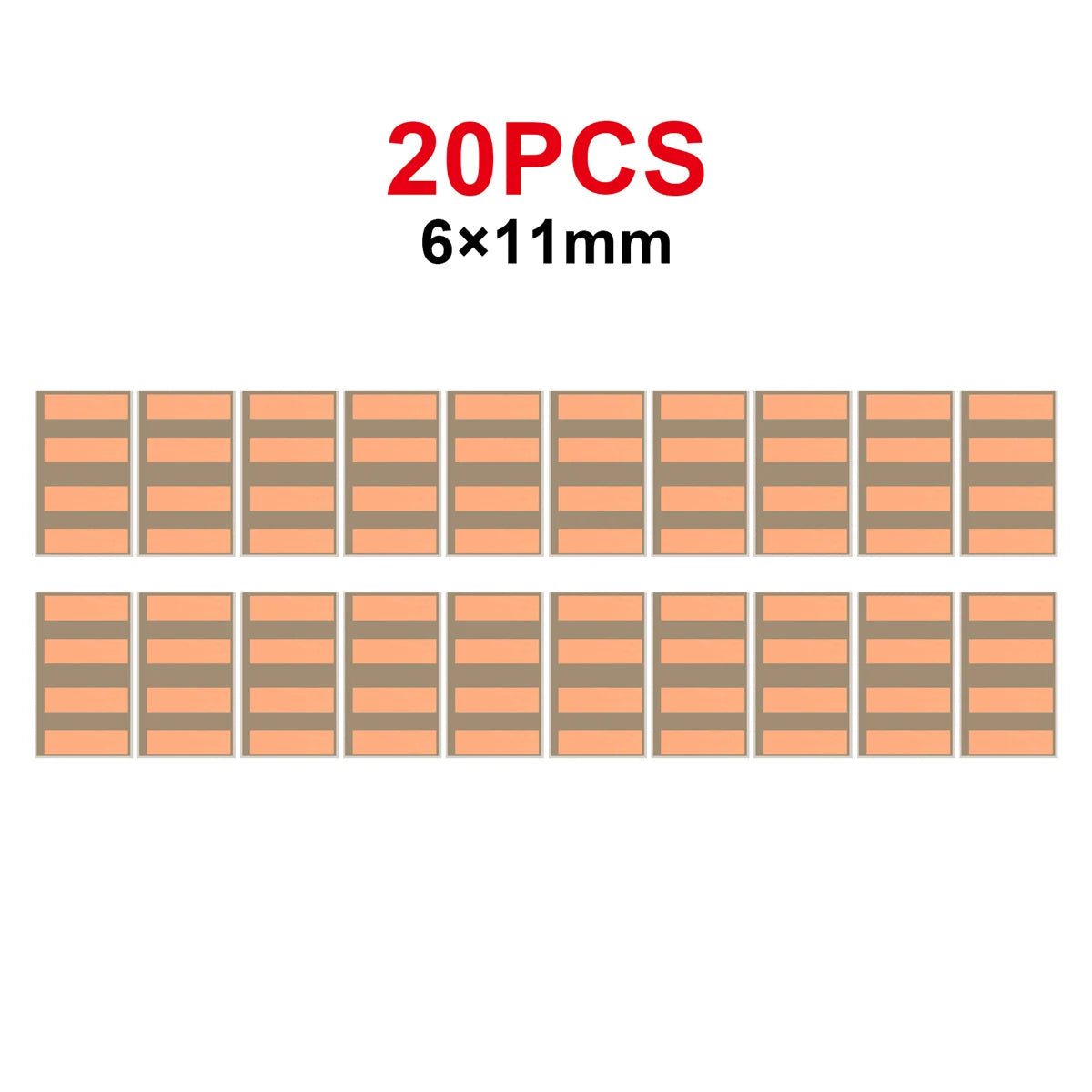

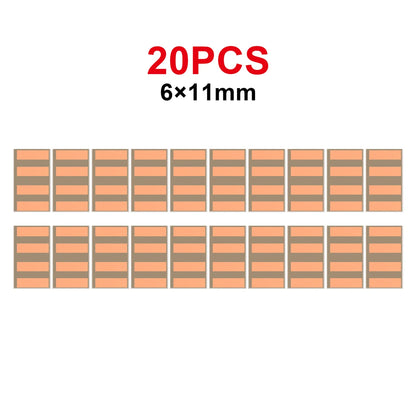

Front size: 6x11mm (Back panel thickness: 1.0mm)

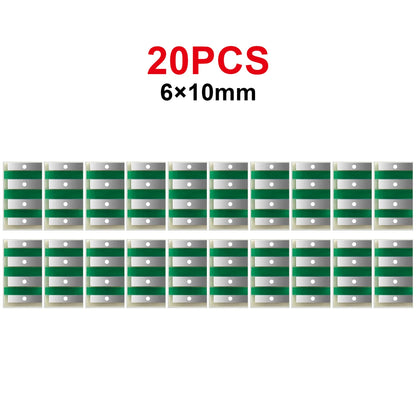

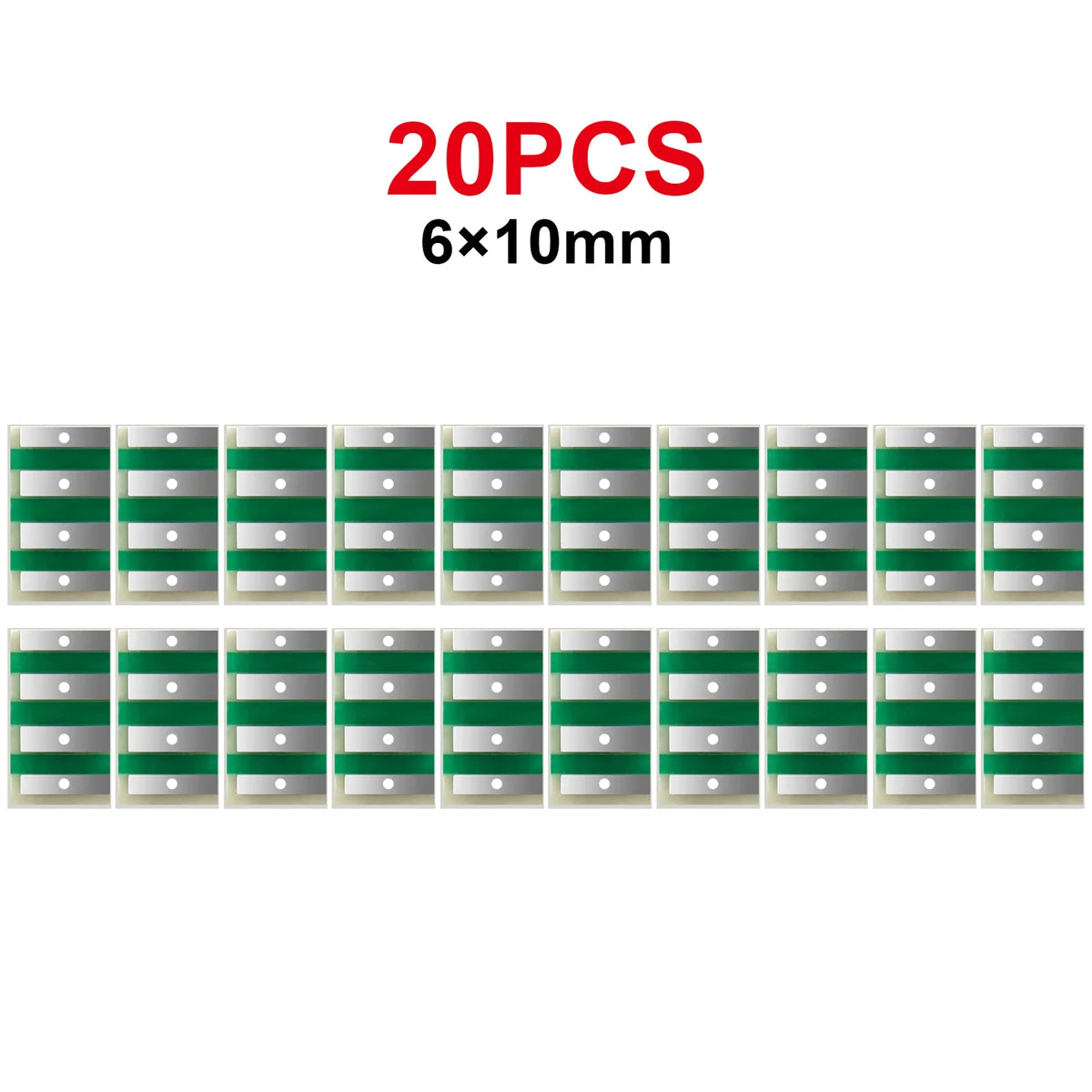

Front size: 6x10mm (Back panel thickness: 1.0mm)

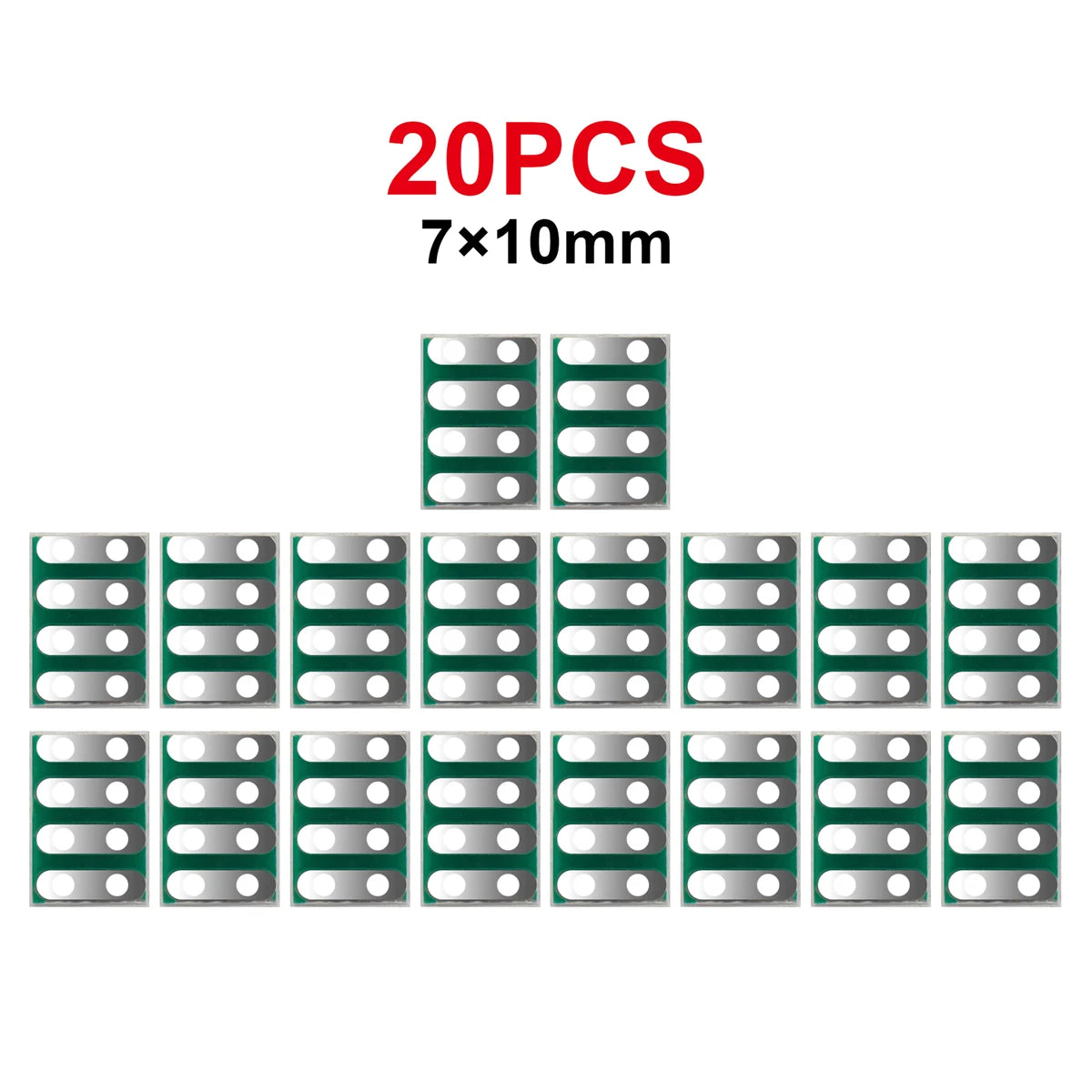

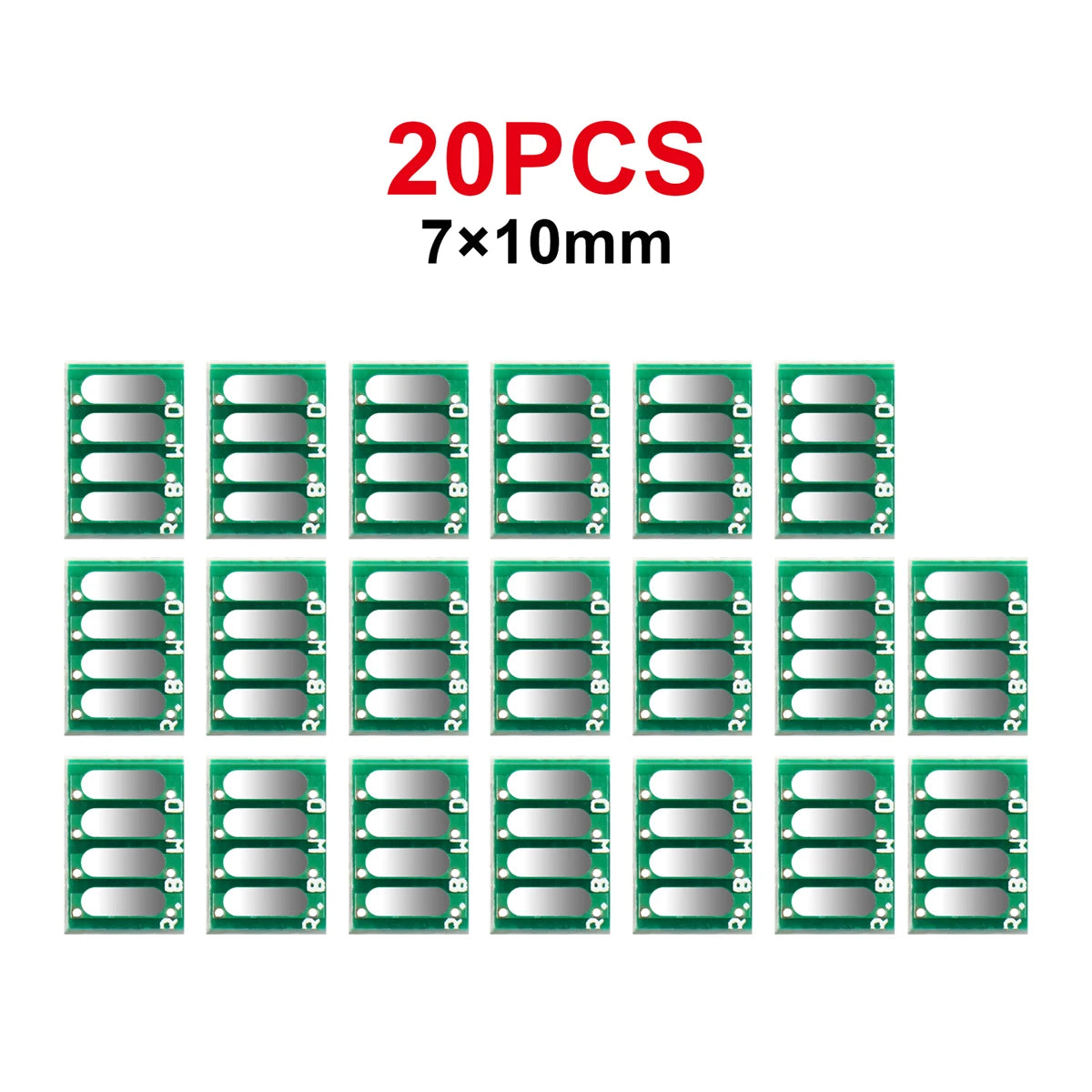

Front size: 7x10mm (Back panel thickness: 1.0mm)

Front size: 6x10mm (Back panel thickness: 1.6mm)

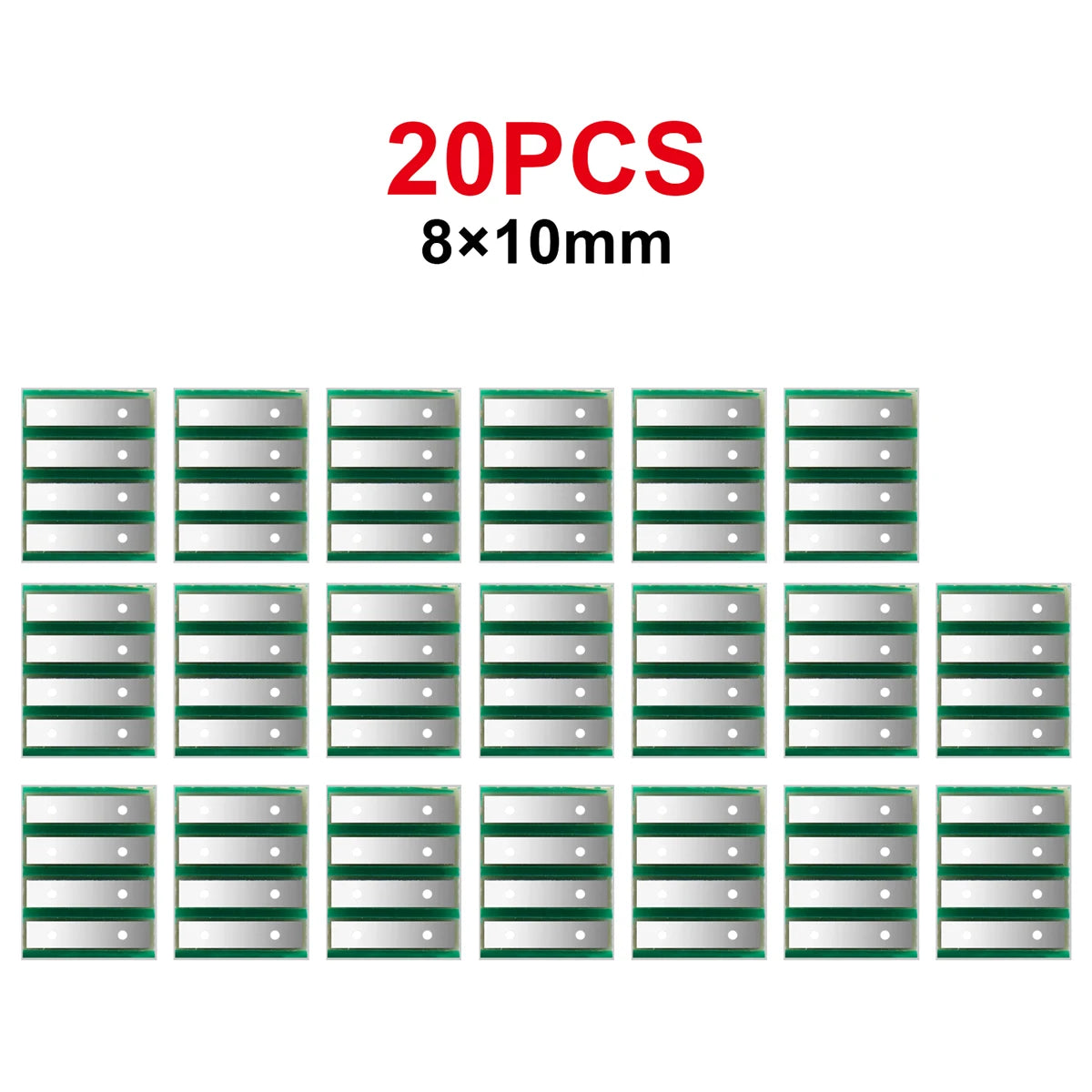

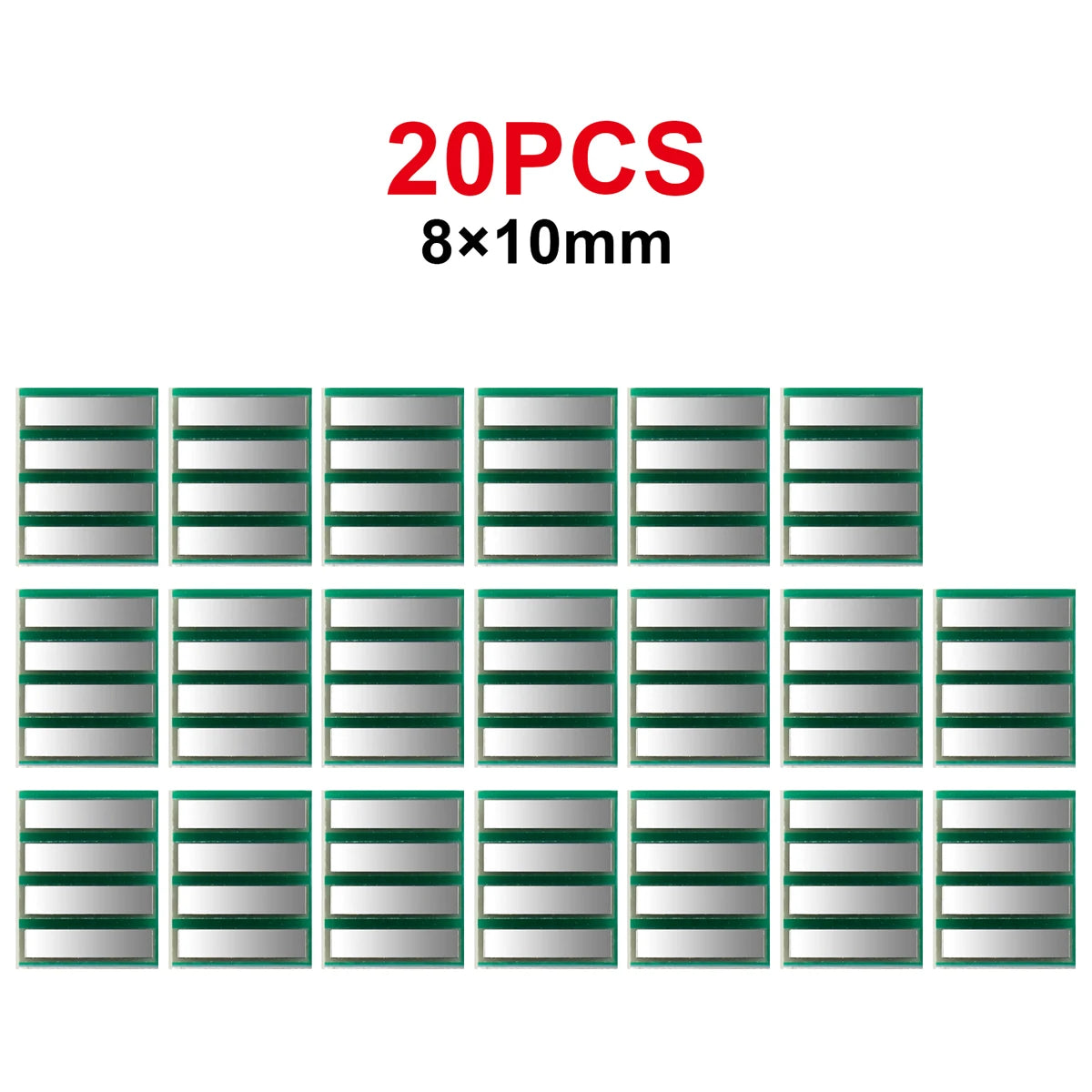

Front size: 8x10mm (Back panel thickness: 1.0mm)

Front size: 8x10mm (Back panel thickness: 1.0mm)

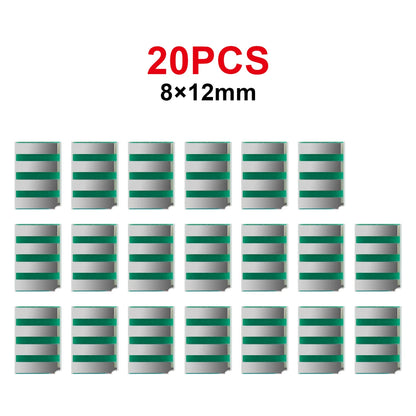

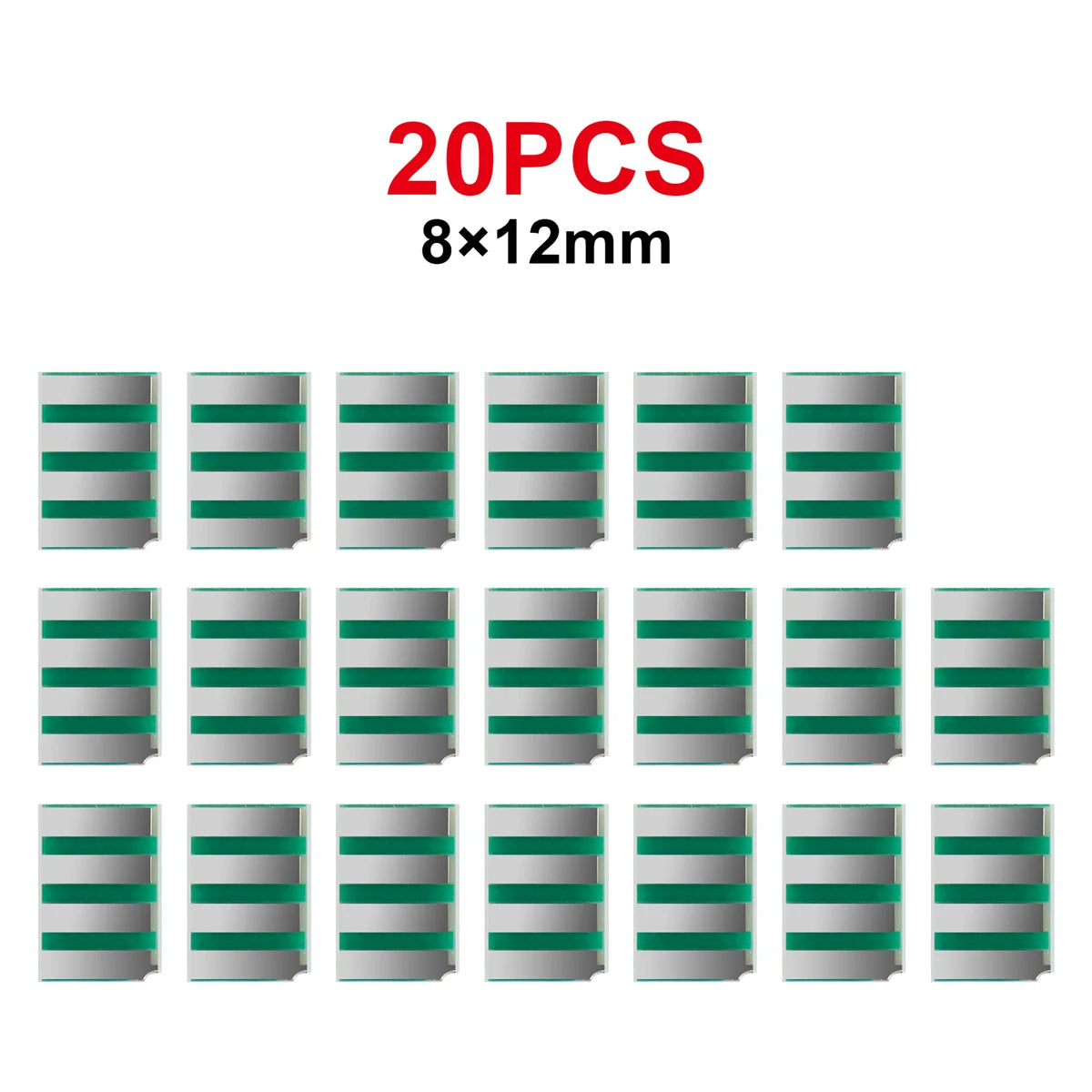

Front size: 8x12mm (Back panel thickness: 1.0mm)

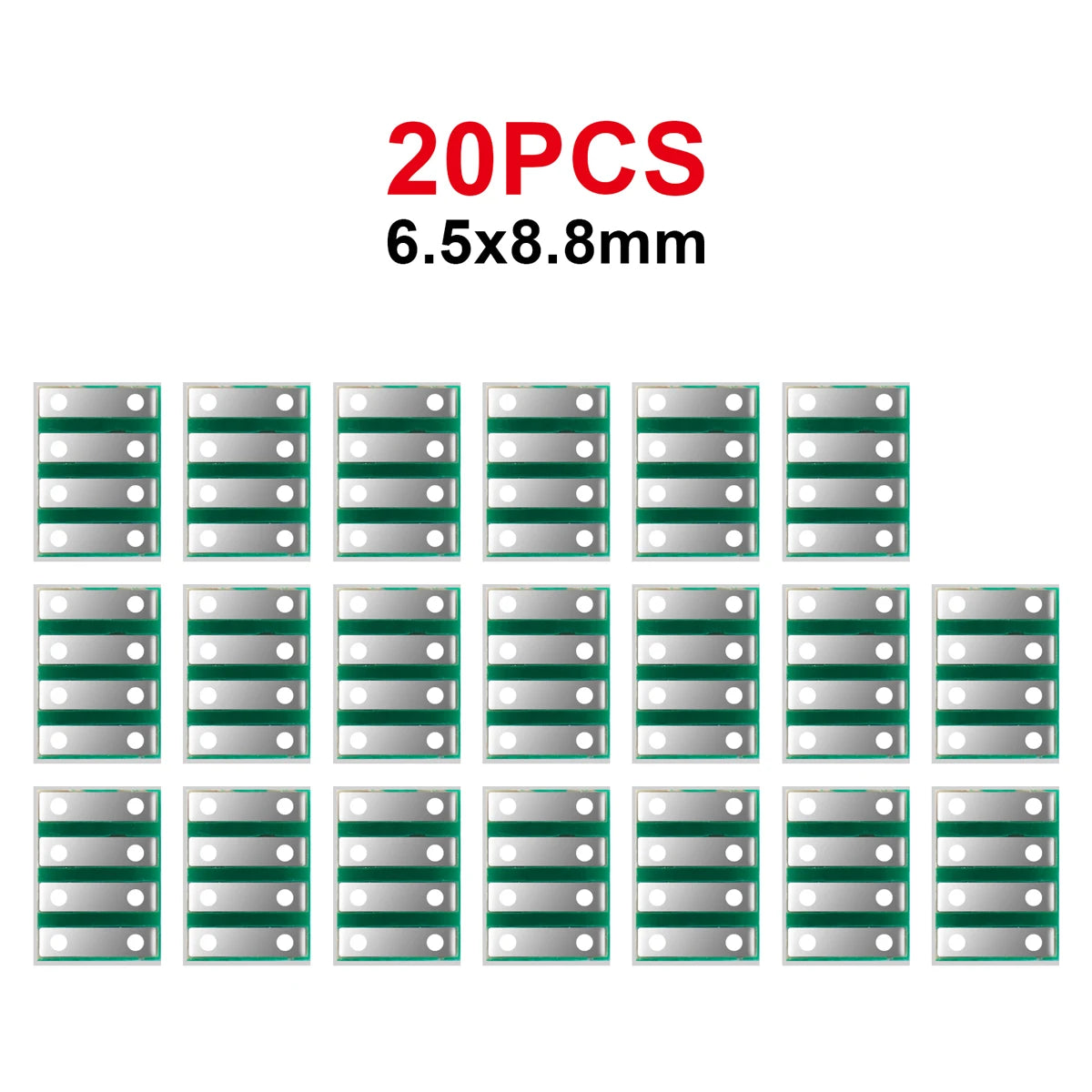

Front size: 8.8x6.5mm (Back panel thickness: 1.0mm)

Description:

Dimension: 6x11 6x10 7x10 8x10 8x12 6.5x8.7 cm

Material: PCB Prototype Board

Hole dimension: about 1mm

For DIY soldering For arduino

Welding skills:

1. Preliminarily determine the layout of power and ground wires

2. Good at using component pins

3. Good at setting jumper spears

4. Good at arranging needles

5. Partition the copper foil when needed

Suitable for applicable people:

College students/engineers/technicians/factories/personal DIY/electronic enthusiasts, etc.

Feature:

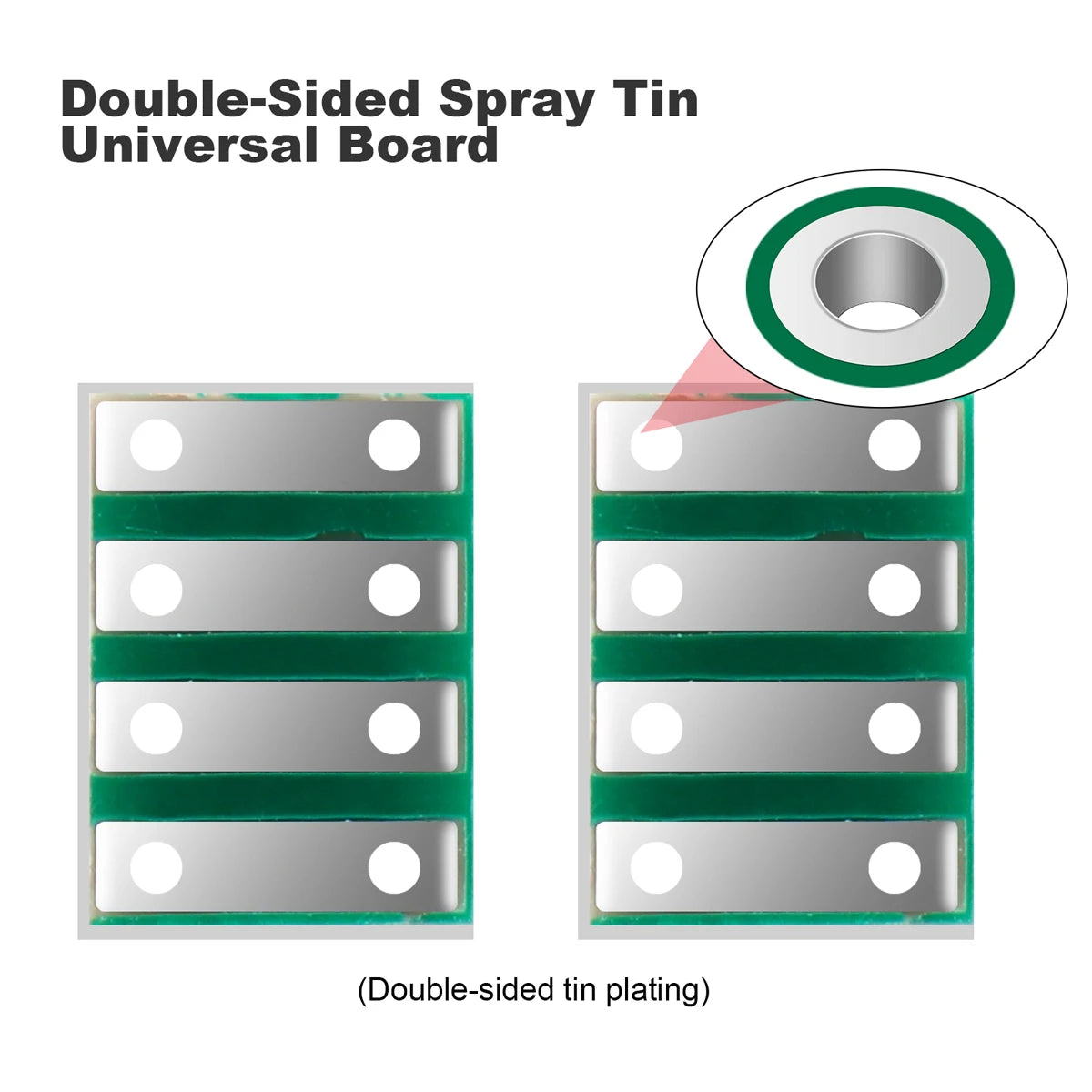

1. Each pad of the double-sided board can be used as a via to flexibly connect the front and back electrical appliances.

2. The universal board can weld components freely, which is suitable for temporary or less demanding products. For example, in student electronic design competitions, works usually need to be completed within a few days of race against time, so holes are usually used.

3. The universal board is a printed circuit board that is filled with pads according to the standard IC pitch (2.54MM), and can be inserted and connected according to your own wishes. Compared with professional PCB manufacturing, the hole-hole board has the following advantages: low threshold for use, low cost, easy to use and flexible to expand.

Packgae Include:

20Pcs/lot Double Sided Board

Model: As your choice!!

Quantity: As your choice!!

(We have a lot of Stocks, if you need more, please contact us.)
