Embedded Digital Hygrometer Temperature and Humidity Meter FY-12 with Wired Probe

FY-12 Embedded Digital Hygrometer & Thermometer — LED Display, Wired Probe

The FY-12 is a compact panel-mount digital hygrometer and thermometer designed for embedding into enclosures, incubators, terrariums, humidors, storage cabinets, and environmental monitoring equipment. The wired probe separates the sensing element from the display unit, allowing the probe to be placed in the measurement zone while the LED display remains visible on the panel exterior.

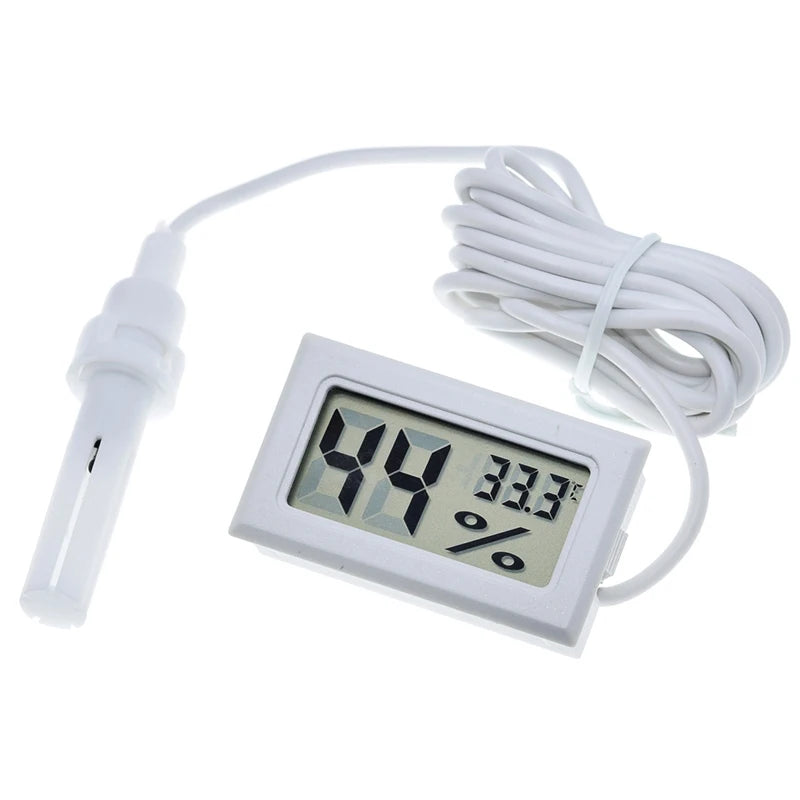

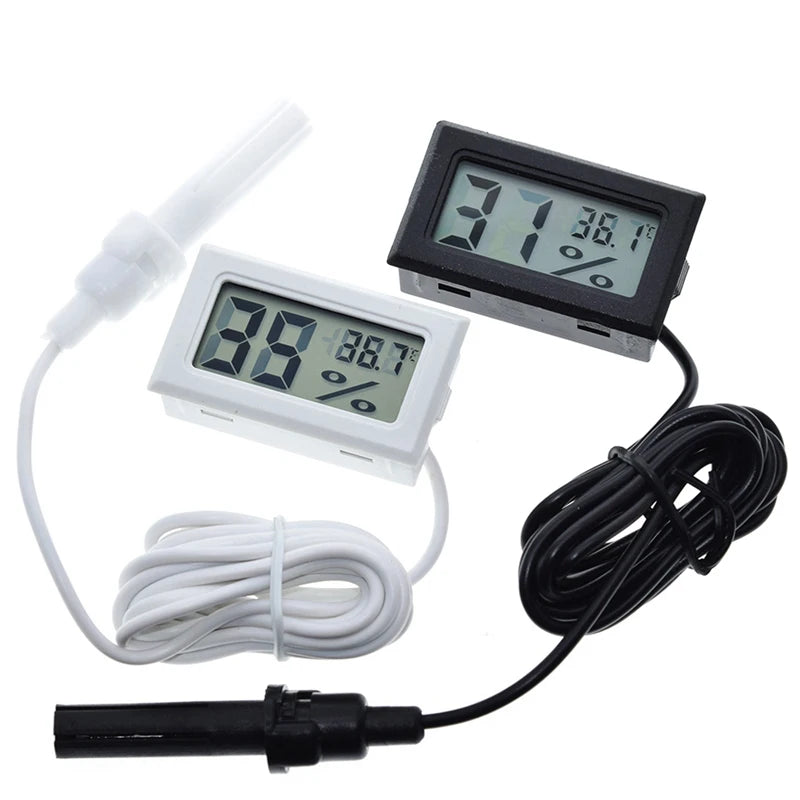

Available in white or black housing.

Specifications

• Display: LED, 35.7 × 16.8mm display area

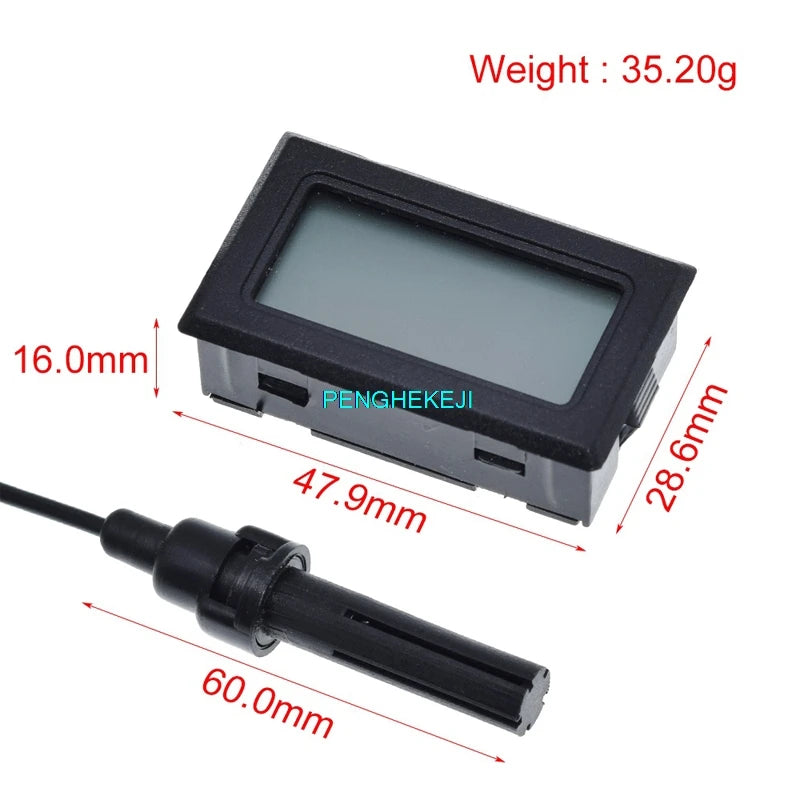

• Overall Size: 48 × 28.6 × 15.2mm
• Weight: 25g (without battery)
• Power Supply: DC 1.5V (2 × AG13 button cell batteries)
• Temperature Range: −50°C to +70°C
• Temperature Accuracy: ±1°C (at room temperature)
• Humidity Range: 10%RH – 99%RH
• Humidity Resolution: 1%RH
• Humidity Accuracy: ±5%RH
• Humidity Sampling Period: 10 seconds (display update ~1 minute)
• Operating Temperature: −40°C to +85°C
• Probe: Wired external probe (NTC thermistor + capacitive humidity sensor)
• Housing Color: White or Black (select variant)

Panel Cutout & Installation

The FY-12 is designed for flush panel mounting. Cut a rectangular hole matching the module body dimensions (approximately 46 × 27mm), insert from the front, and secure with the rear clips. Route the wired probe to the measurement location inside the enclosure.

Battery Notes

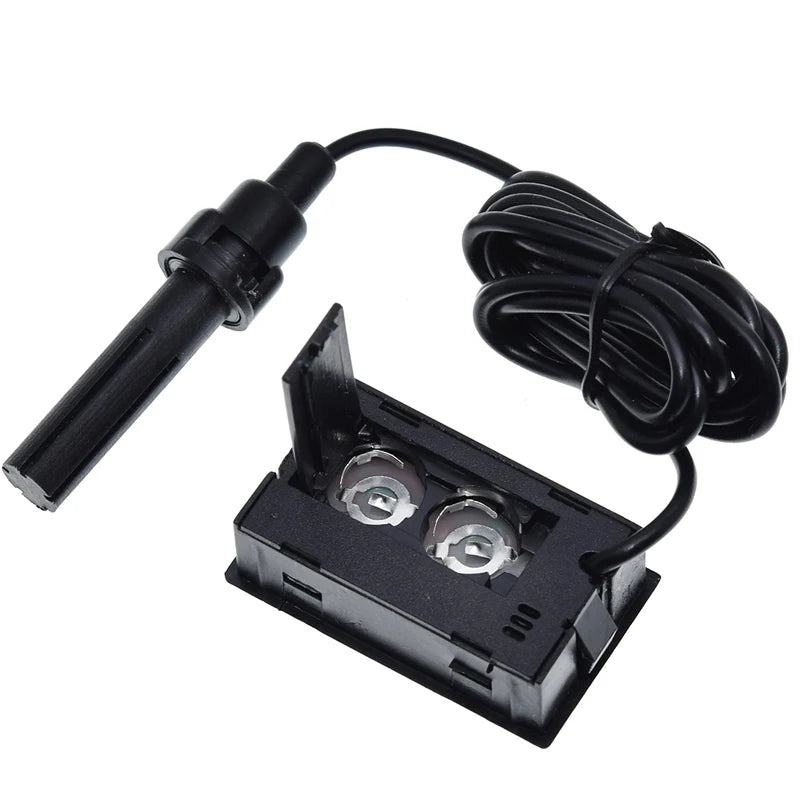

• Requires 2 × AG13 (LR44) 1.5V button cell batteries
• Batteries are not included
• Battery life depends on display brightness and ambient temperature; typically several months to 1 year

Typical Applications

• Egg incubator temperature and humidity monitoring
• Reptile terrarium and vivarium climate control
• Cigar humidor humidity display
• Seed germination chamber monitoring
• Wine cellar and food storage humidity tracking
• Server room and electronics storage environment monitoring
• DIY weather station panel display
• Greenhouse and grow tent climate monitoring

Package Contents

• 1 × FY-12 digital hygrometer/thermometer with wired probe (white or black, as selected)
• Batteries not included
