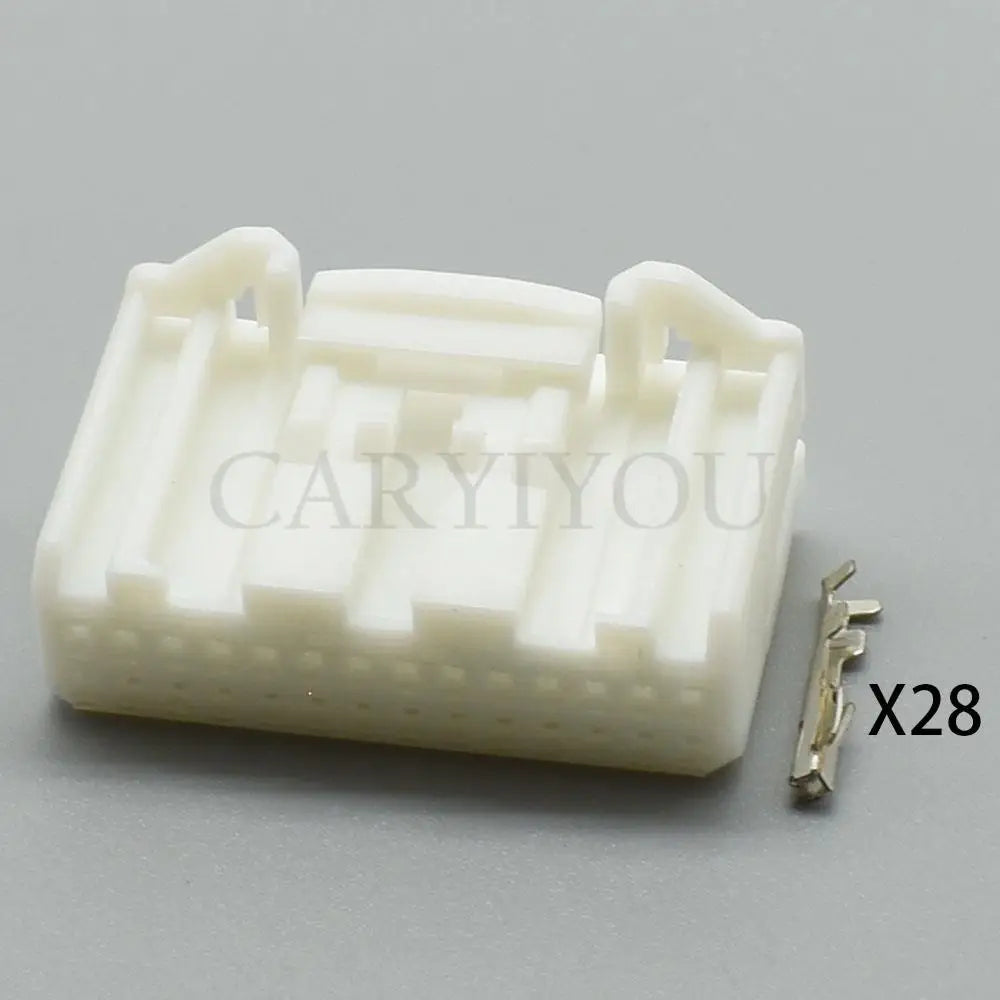

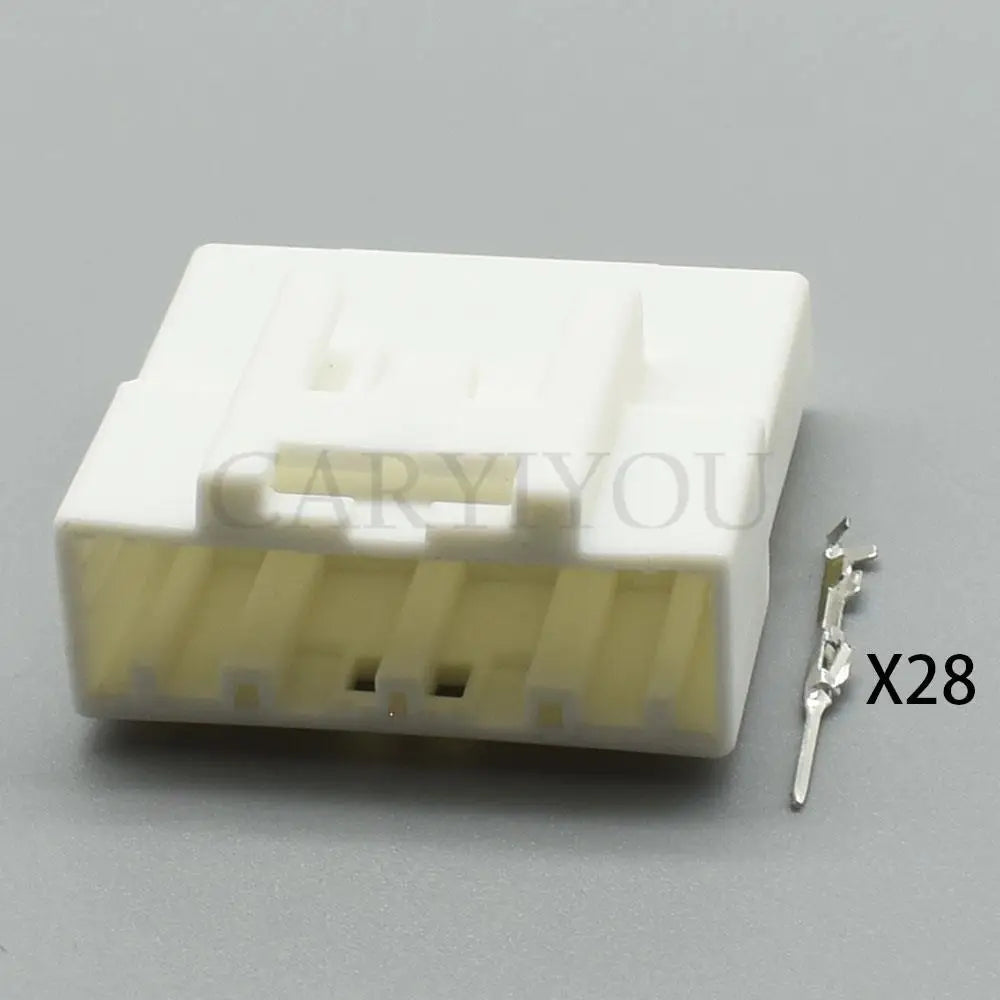

1717115-1 / 1565380-1 / 1565377-1 Automotive 28-Pin Unsealed Connector — Male Female Small Power Wire Socket
1717115-1 / 1565380-1 / 1565377-1 Automotive 28-Pin Unsealed Connector Male Female Small Power Wire Socket
Couldn't load pickup availability

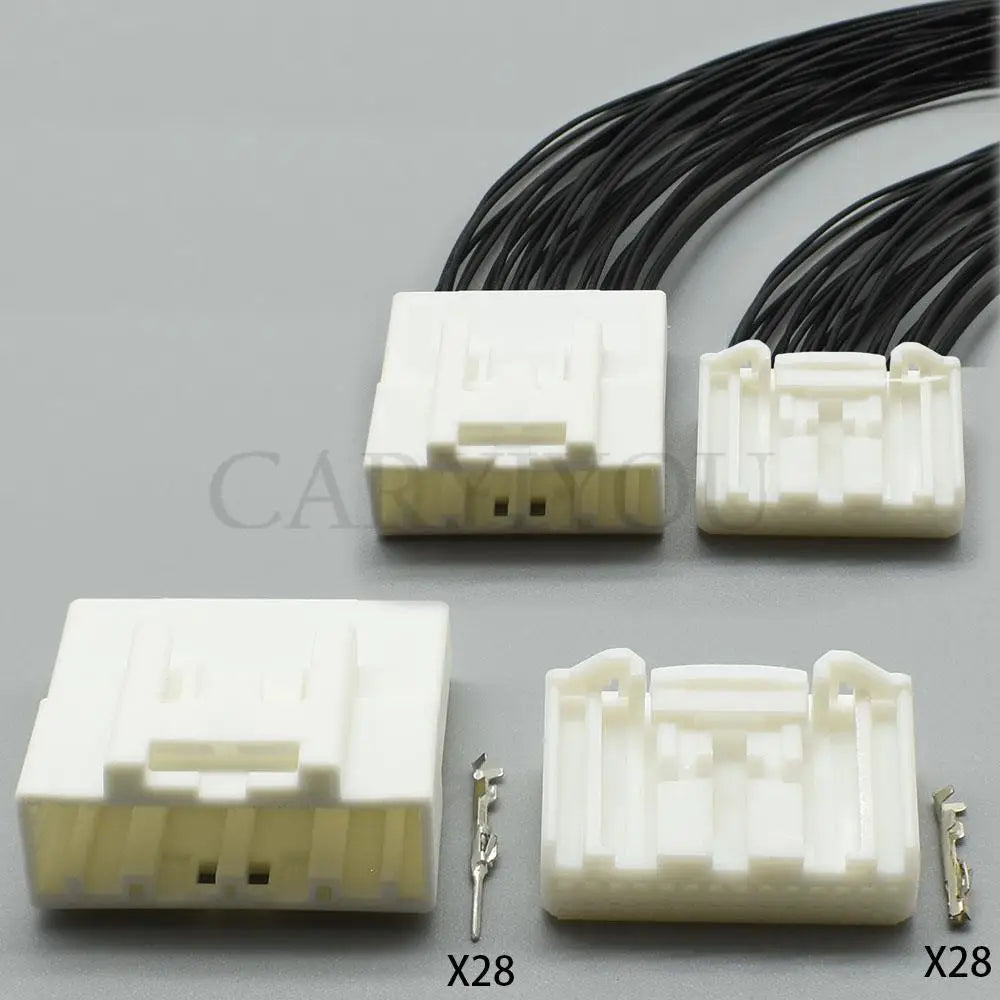

1717115-1 / 1565380-1 / 1565377-1 Automotive 28-Pin Unsealed Connector — Male & Female
The 1717115-1, 1565380-1, and 1565377-1 are 28-pin unsealed automotive connector housings for small power and signal wiring applications. These TE Connectivity-referenced part numbers are used in ECU, body control module, and instrument cluster wiring harnesses across multiple vehicle platforms. The 28-pin configuration provides a high circuit count for complex control module connections while maintaining a compact housing footprint.
Key Specifications
| Parameter | Value |
|---|---|
| Part Numbers | 1717115-1 / 1565380-1 / 1565377-1 |
| Pin Count | 28-pin |
| Sealing | Unsealed |
| Housing Material | PA66 glass-filled nylon |
| Terminal Material | Tin-plated copper alloy |
| Operating Temperature | -40°C to +125°C |

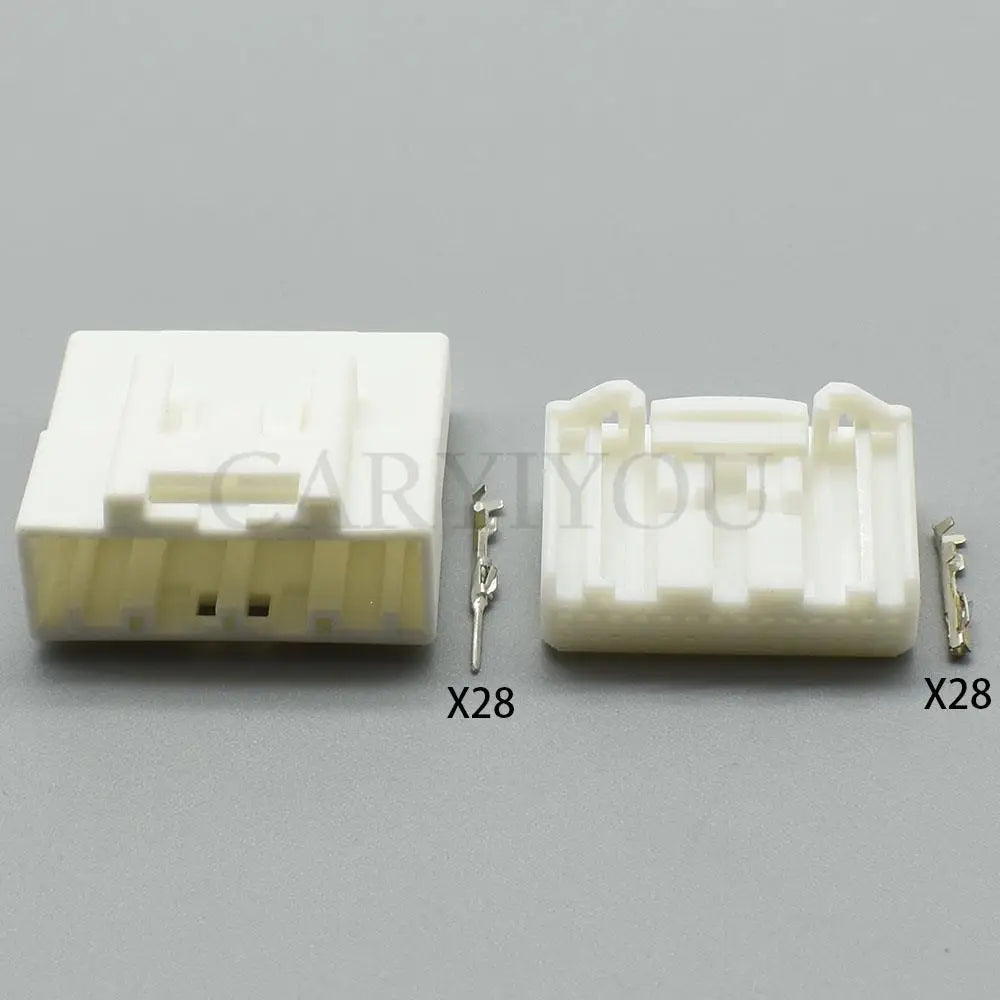

| Locking | Positive snap-latch |
| Compliance | RoHS |
Typical Applications
- ECU and BCM 28-pin connector repair
- Instrument cluster wiring harness replacement
- Small power distribution connector repair
- General 28-pin automotive connector replacement
Frequently Asked Questions

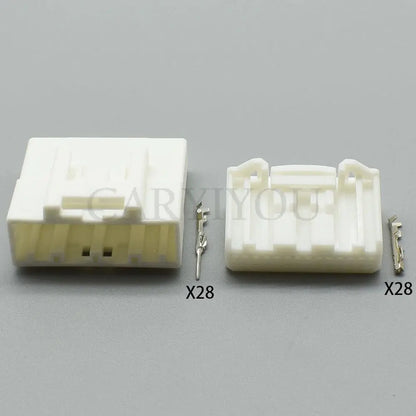

Q: What is the difference between 1565380-1 and 1565377-1?
These part numbers represent male and female variants (or minor dimensional variants) within the same 28-pin connector family. Verify the gender and housing configuration of your original connector before ordering. The 1717115-1 is typically the mating counterpart to one of the other variants.
Q: How do I prevent ECU connector damage during removal?
Always release the connector locking lever or tab fully before pulling. On multi-pin ECU connectors, the locking mechanism often requires pressing a release button while simultaneously pulling the connector body — never pull by the wires. Use a plastic trim tool to release stubborn locking tabs without damaging the housing.
