Heat Shrink Tube Kit 164pcs Polyolefin Insulation Sleeving for Wire and Cable

Heat Shrink Tube Kit — 164 Pieces, 8 Sizes (1–14mm), Polyolefin 2:1

A comprehensive polyolefin heat shrink tubing assortment covering eight inner diameter sizes from 1mm to 14mm, in four colors per size group. Polyolefin heat shrink tubing offers superior performance over PVC alternatives: lower shrink temperature (~70°C), higher operating temperature range (−55°C to +125°C), better chemical resistance, and no toxic fumes when heated. The 2:1 shrink ratio means each tube shrinks to half its supplied inner diameter when heat is applied, providing a tight, secure fit over wires, connectors, solder joints, and terminals.

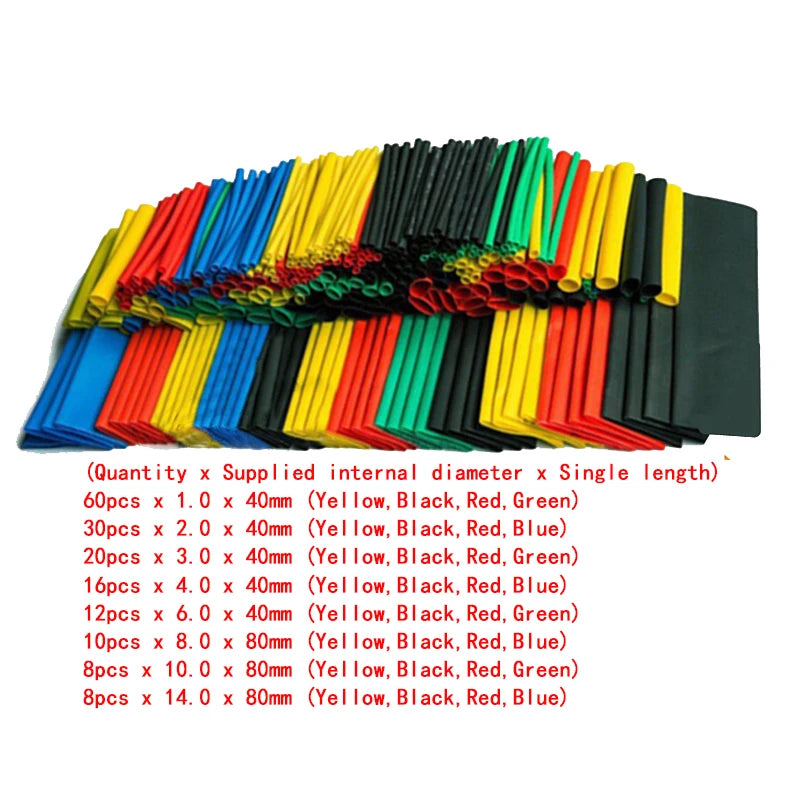

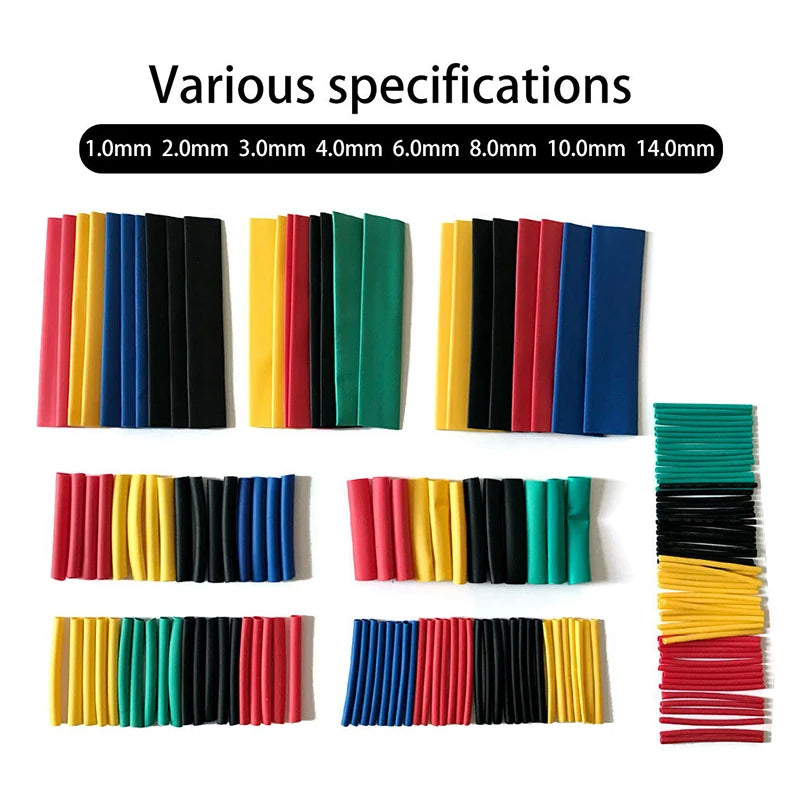

Kit Contents (164 Pieces Total)

• 60pcs × 1.0mm ID × 40mm: Yellow, Black, Red, Green (15pcs each)
• 30pcs × 2.0mm ID × 40mm: Yellow, Black, Red, Blue
• 20pcs × 3.0mm ID × 40mm: Yellow, Black, Red, Green
• 16pcs × 4.0mm ID × 40mm: Yellow, Black, Red, Blue
• 12pcs × 6.0mm ID × 40mm: Yellow, Black, Red, Green
• 10pcs × 8.0mm ID × 80mm: Yellow, Black, Red, Blue
• 8pcs × 10.0mm ID × 80mm: Yellow, Black, Red, Green
• 8pcs × 14.0mm ID × 80mm: Yellow, Black, Red, Blue
• Total weight: 35g

Wire Size Compatibility Guide

• 1.0mm ID: AWG 28–22 (0.08–0.5mm²) — signal wires, thin hookup wire
• 2.0mm ID: AWG 22–18 (0.5–1.0mm²) — standard hookup wire, JST/Dupont connector pins
• 3.0mm ID: AWG 18–16 (1.0–1.5mm²) — power wires, automotive wiring
• 4.0mm ID: AWG 16–14 (1.5–2.5mm²) — medium power wiring, battery leads
• 6.0mm ID: AWG 14–12 (2.5–4.0mm²) — heavy power wiring, XT30/XT60 connectors
• 8.0mm ID: AWG 12–10 (4.0–6.0mm²) — high-current wiring, motor leads
• 10.0mm ID: AWG 10–8 (6.0–10mm²) — heavy gauge cable, battery cables
• 14.0mm ID: AWG 8–6 (10–16mm²) — very heavy cable, cable bundle insulation

Material Specifications

• Material: Polyolefin (irradiated cross-linked)
• Shrink Ratio: 2:1 (shrinks to 50% of supplied inner diameter)
• Shrink Temperature: ~70°C (minimum activation)
• Full Shrink Temperature: ~110°C
• Operating Temperature Range: −55°C to +125°C
• Dielectric Strength: ≥15kV/mm
• Tensile Strength: ≥10.5 MPa
• Chemical Resistance: Resistant to oils, fuels, solvents, and mild acids
• Flame Retardant: Self-extinguishing (UL VW-1 equivalent)
• RoHS Compliant: Yes (no halogens, no toxic fumes when heated)

How to Apply

• Select a tube with supplied ID approximately 20–30% larger than the wire/connector diameter
• Slide tube over the wire before making the connection (cannot be applied after)
• Position tube over the joint or area to be insulated
• Apply heat evenly using a heat gun (recommended), lighter, or soldering iron tip (not recommended — uneven heating)
• Heat gun setting: 150–200°C, hold 5–10cm from tube, move slowly along the length
• Tube will shrink uniformly in 5–15 seconds; allow to cool before handling

Color Coding Convention

• Red: Positive / live / high voltage
• Black: Negative / ground / neutral
• Yellow: Warning / caution / signal
• Green: Earth / ground (European standard) / safe
• Blue: Neutral (European AC wiring) / signal / data

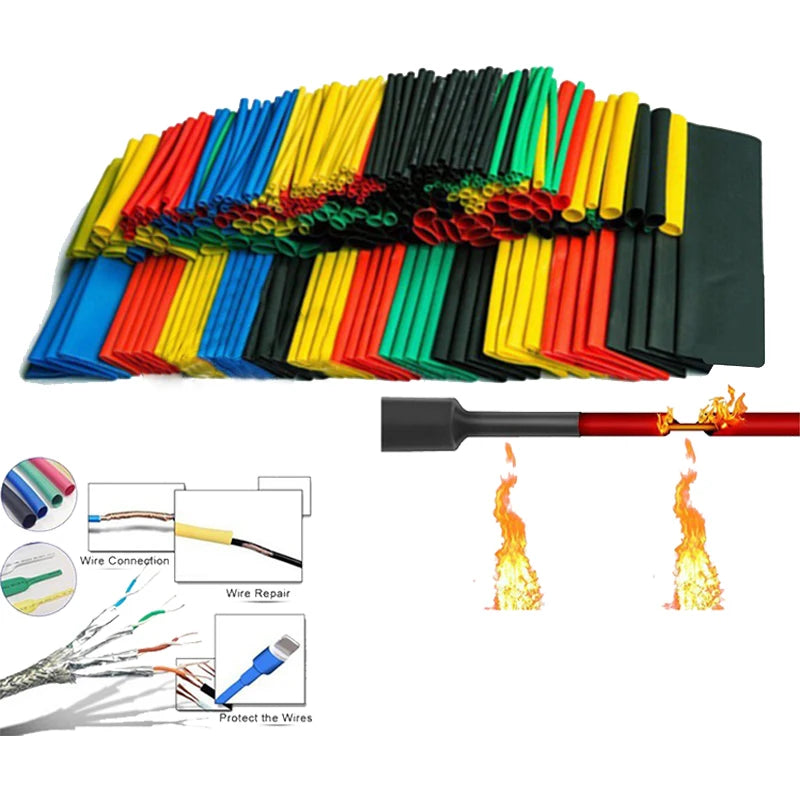

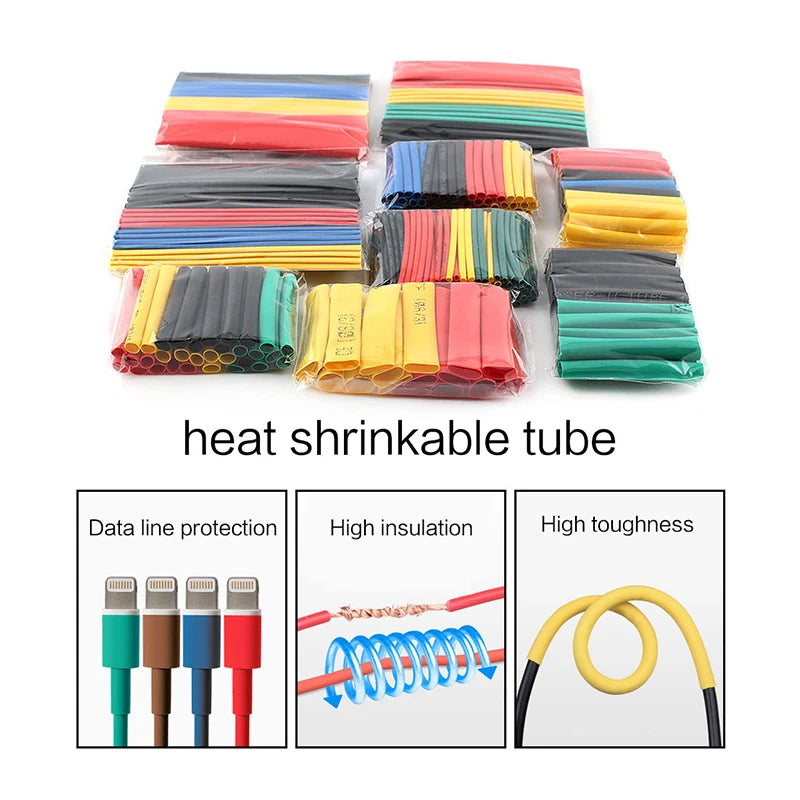

Typical Applications

• Wire splice and solder joint insulation
• Connector pin and terminal strain relief
• Cable bundle identification and color coding
• PCB component lead insulation
• Automotive wiring harness repair
• Battery pack wire insulation (LiPo, 18650)
• RC model motor and ESC wire protection
• Antenna coax connector weatherproofing
• Tool handle grip improvement

Package Contents

• 164 × polyolefin heat shrink tube pieces across 8 sizes and 4–5 colors (as detailed above)
