JST PH 2.0mm Connector Kit with 22AWG Pre-Crimped Cables — Housings, Headers & Terminals

JST PH 2.0mm Connector Kit with 22AWG Pre-Crimped Cables — Housings, Headers & Terminals

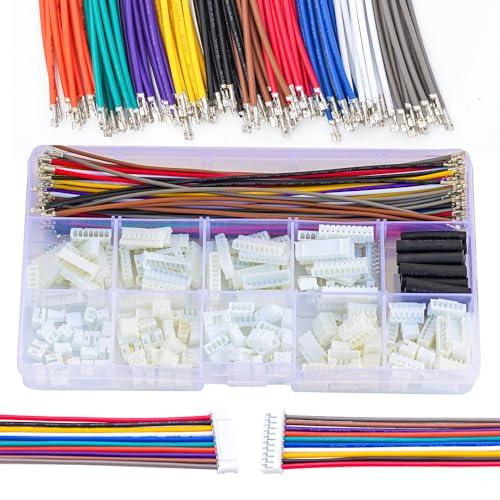

The complete JST PH 2.0mm connector kit for wire-to-board connections — includes PHR-NN female locking housings, B-PH through-hole PCB headers, SPH-002T-P0.5S crimp terminals, and 22AWG pre-crimped cable assemblies in assorted pin counts from 2P to 12P. The JST PH 2.0mm is the industry standard for LiPo battery balance leads, RC model wiring, and Arduino sensor connections. Rated 3A / 250V AC/DC.

Why Choose This Kit?

• ✅ Complete assortment — PHR housings, B-PH DIP headers, SPH-002T-P0.5S terminals and 22AWG cables in one pack
• ✅ JST PH 2.0mm standard — the most widely used JST wire-to-board connector for LiPo balance leads and RC wiring
• ✅ Pre-crimped 22AWG cables included — ready to insert, no crimping tool required
• ✅ Positive-latch locking housing — secure mating, resists accidental disconnection
• ✅ 3A / 250V AC/DC rated — suitable for signal and low-power wiring
• ✅ 2P–12P assortment — covers the most common pin counts for prototyping and production
• ✅ RoHS compliant — PA nylon housing, tin-plated copper contacts

Kit Contents

• PHR-NN Female Locking Housings — 2P to 12P assorted
• B-PH DIP PCB Headers — top-entry through-hole, tin-plated contacts
• SPH-002T-P0.5S Crimp Terminals — AWG #22–#28, phosphor bronze, tin-plated
• 22AWG Pre-Crimped Cable Assemblies — assorted pin counts

Key Specifications

• Series: JST PH | Pitch: 2.0mm | Pin counts: 2P–12P
• Current rating: 3A | Voltage: 250V AC/DC | Temperature: −25°C to +85°C
• Wire: 22AWG | Contact: SPH-002T-P0.5S, phosphor bronze, tin-plated
• Housing: PA nylon | Compliance: RoHS compliant

Typical Applications

• LiPo battery balance lead PCB connections
• RC model, drone and robot internal power wiring
• Arduino, ESP32 and development board wire-to-board connections
• 3D printer mainboard sensor and fan wiring
• IoT sensor and portable device PCB connections
