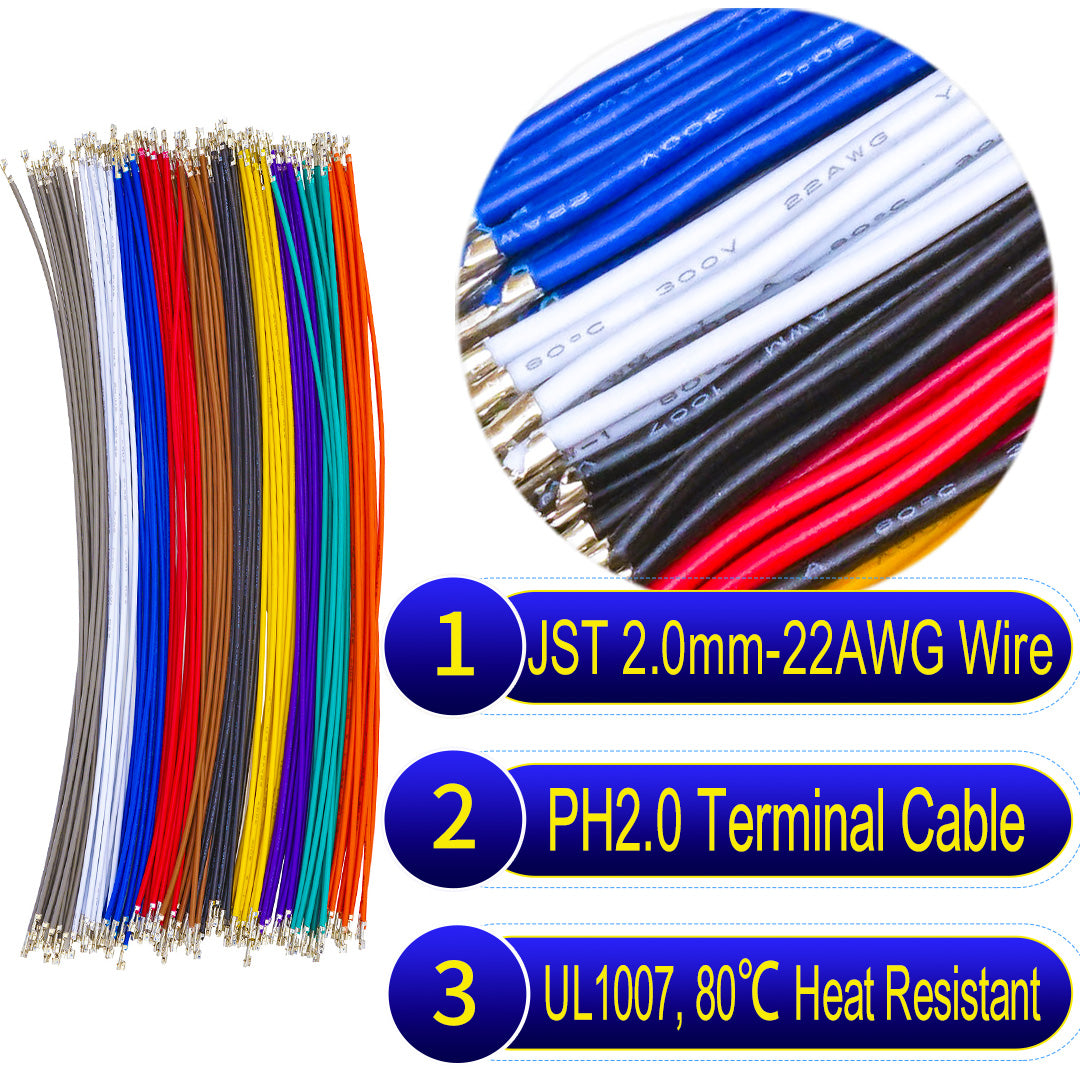

JST PH 2.0mm Female Pre-Crimped Terminal both sided Cable, 22AWG UL1007 PVC, 80℃ Heat Resistant
JST PH 2.0mm Female Pre-Crimped Terminal both sided Cable, 22AWG UL1007 PVC, 80℃ Heat Resistant
| Quantity | Discount | You Save |
|---|---|---|
| 1 – 9 pcs | — | — |
| 10 – 49 pcs | 3% OFF | Save 3% |
| 50 – 99 pcs | 7% OFF | Save 7% |
| 100+ pcs | 11% OFF | 🏆 Best Value |
✓ Discount applied automatically at checkout · No code needed
Couldn't load pickup availability

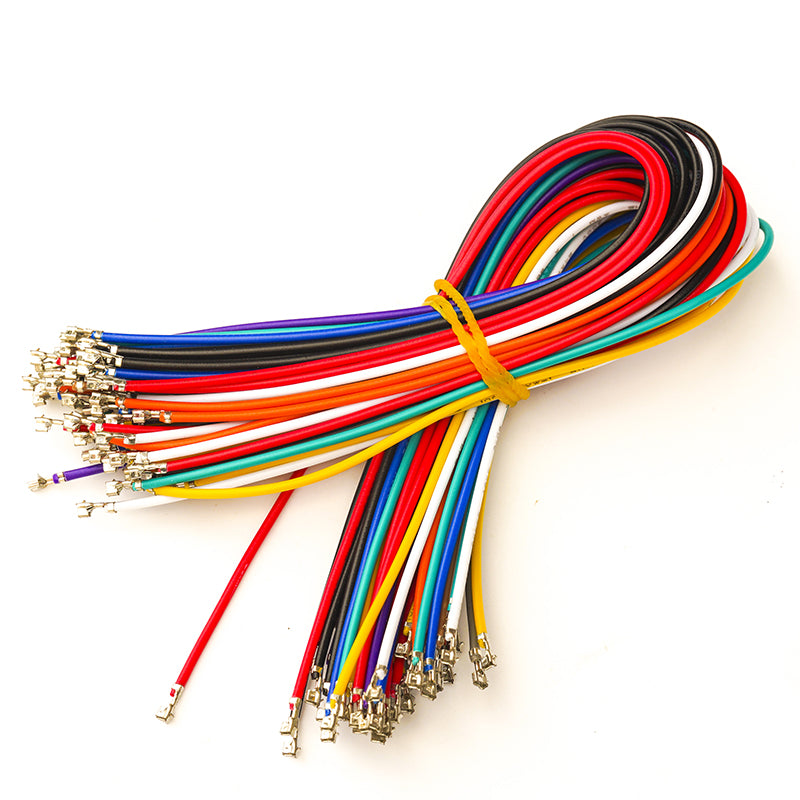

JST PH 2.0mm Female Both-Sided Pre-Crimped Terminal Cable — 22AWG UL1007

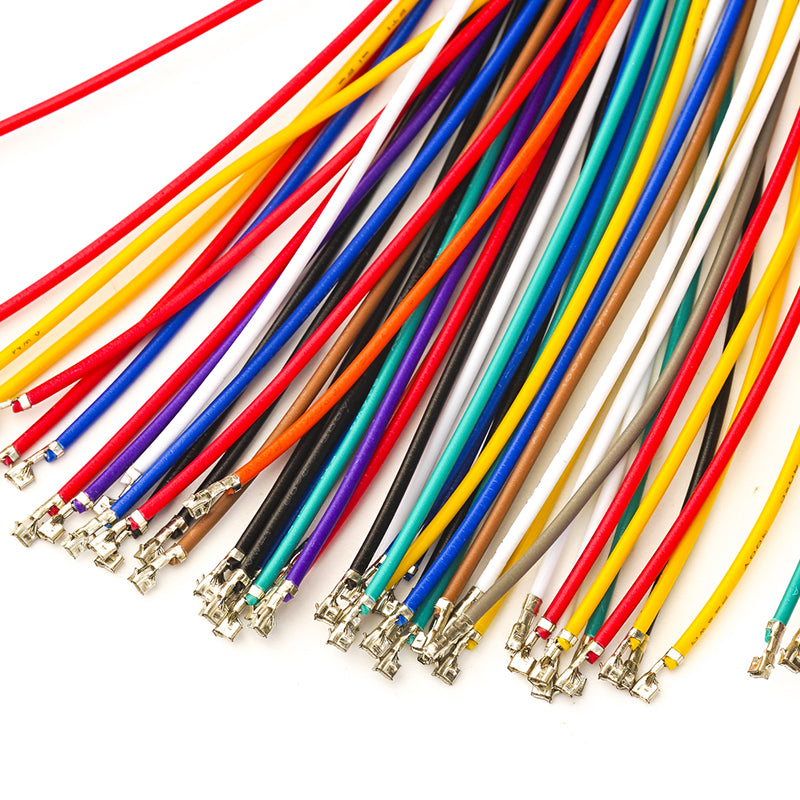

The JST PH 2.0mm female both-sided terminal cable features a bare SPH-002T-P0.5 female crimp terminal on each end — without a housing. This allows direct insertion into any JST PH housing or custom connector body, making it ideal for custom harness assembly, PCB pad soldering, and applications where the housing is already installed on the PCB or device.
Key Features
- Female SPH-002T-P0.5 crimp terminal both ends — no housing, for direct insertion into PH housings or custom connector bodies
- 22AWG UL1007 PVC — rated 80°C, 300V insulation, flexible and durable
- 2A / 100V rating — suitable for signal and low-current power lines
- Pre-crimped factory assembly — consistent, reliable crimp quality
- RoHS compliant
Typical Applications
- Custom JST PH harness assembly with pre-installed housings
- PCB pad soldering where bare terminal is preferred
- Replacement terminal cables for LiPo battery packs
- Automotive and industrial wiring where housing is pre-mounted
Technical Specifications
- Connector Series: JST PH
- Contact: SPH-002T-P0.5 (female, both ends)
- Wire Gauge: 22 AWG
- Insulation: UL1007 PVC, 300V
- Temperature Rating: 80°C
- Current Rating: 2A per contact
- RoHS Compliant: Yes
- Brand: Keszoox
- Origin: Mainland China
Frequently Asked Questions
Product & Compatibility
What is the difference between JST PH, XH, ZH, and SH connectors?
JST connectors differ primarily in pitch (pin spacing): SH = 1.0mm, ZH = 1.5mm, PH = 2.0mm, XH = 2.5mm. Smaller pitch connectors are used in compact electronics like drones and wearables, while larger pitch connectors suit general prototyping and power applications. Always verify pitch before ordering to ensure compatibility.
Are your connectors compatible with standard Arduino and Raspberry Pi projects?
Yes. Our DuPont 2.54mm connectors are the industry standard for Arduino, Raspberry Pi, and most development boards. JST PH 2.0mm is widely used for LiPo batteries in RC and robotics projects. We recommend checking your board's datasheet to confirm the exact connector type and pin count required.
What wire gauge (AWG) should I choose for my application?
Wire gauge depends on current load: 28–30 AWG suits signal lines up to 0.5A; 24–26 AWG handles 1–3A for moderate power; 22 AWG is suitable for up to 5A. For high-current applications, always use appropriately rated wire and connectors. Our product listings specify the AWG and rated current for each cable.
What is the difference between UL1007 and Silicone wire?
UL1007 is a PVC-insulated wire rated for 80°C and 300V, suitable for most indoor electronics applications. Silicone wire is rated for higher temperatures (up to 200°C), is more flexible, and performs better in harsh environments or high-vibration applications such as RC vehicles and industrial equipment.
