JST PH 2.0mm (PHR) & HY2.0 Male Female Connector Housing Kit with Pre-Crimped Cables

JST PH 2.0mm (PHR) & HY2.0 Male Female Connector Housing Kit with Pre-Crimped Cables

A combined kit covering both JST PH 2.0mm (PHR series) and HY2.0 (Yeonho SMH200) male and female connector housings with pre-crimped cable assemblies. Both series use 2.0mm pitch but serve different applications — the JST PH is the standard LiPo battery balance connector (2A / 100V), while the HY2.0 is a higher-current wire-to-wire connector (3A). This kit is ideal for builders who work with both connector types and want a single assorted pack.

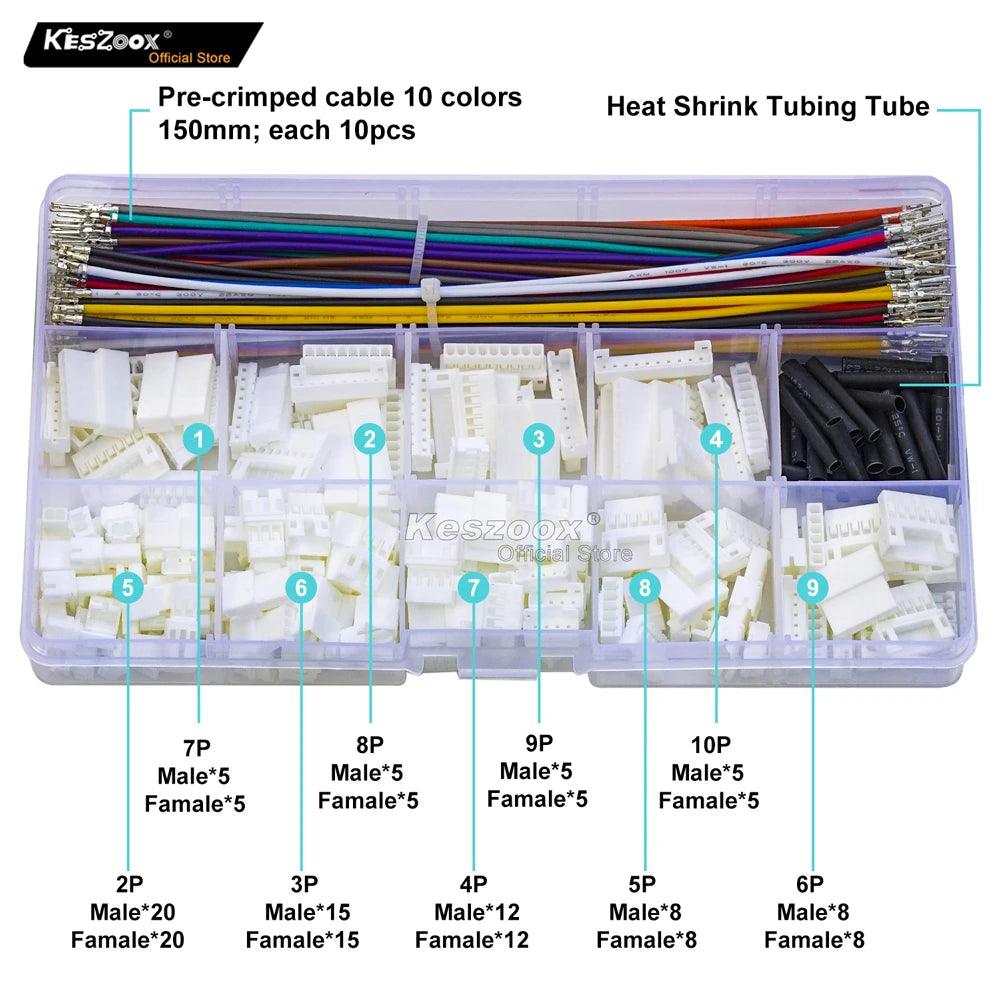

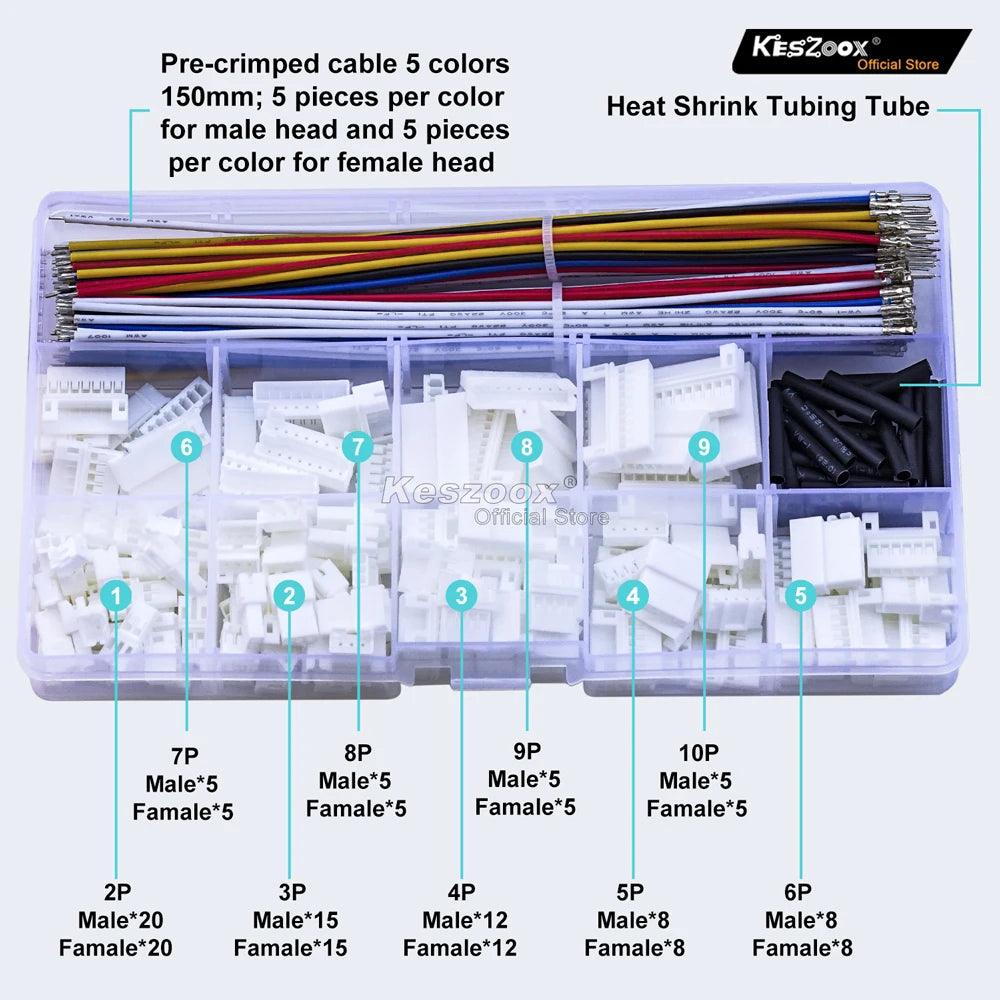

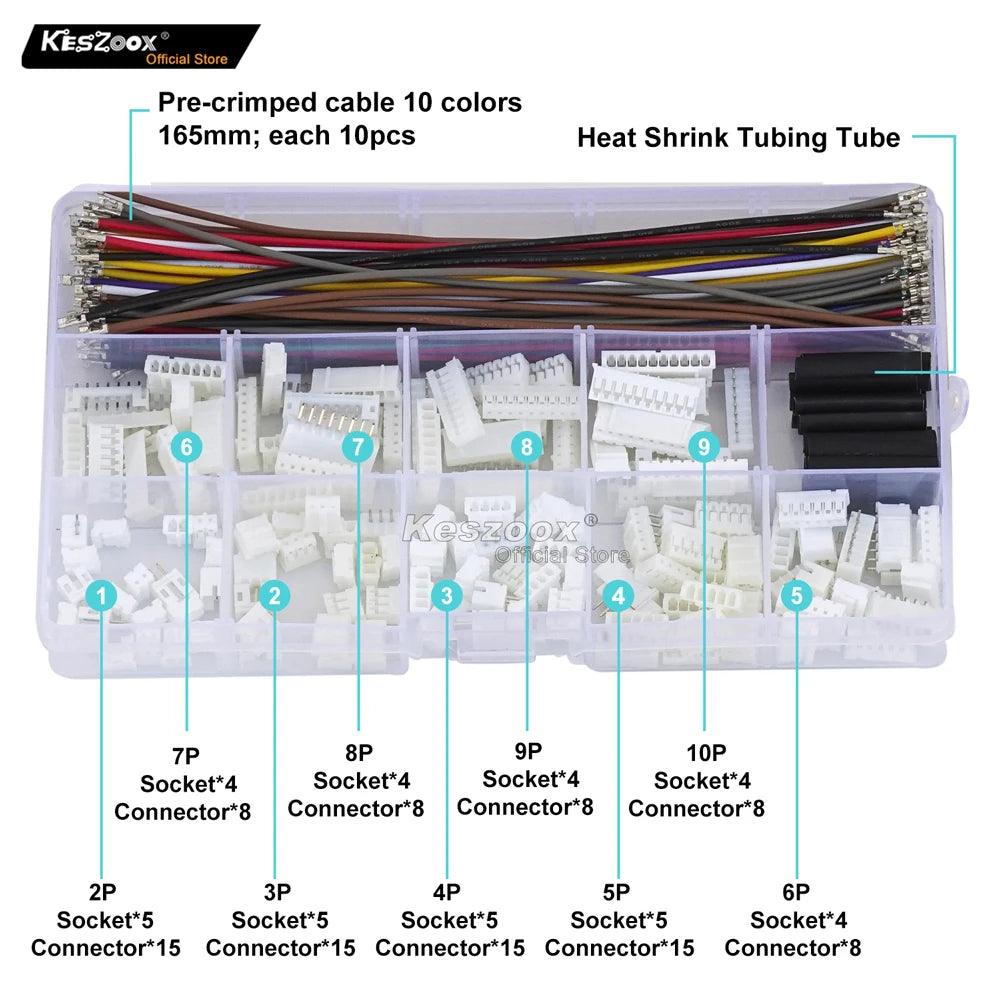

What’s Included

• JST PH 2.0mm (PHR) — male plug + female receptacle housings, SPH-002T-P0.5 contacts, 2A / 100V AC/DC
• HY2.0 (Yeonho SMH200) — male plug + female receptacle housings, 3A, wire-to-wire
• Pre-crimped cable assemblies for both series

JST PH vs. HY2.0 — Key Differences

• JST PH 2.0mm — 2A / 100V, wire-to-board, LiPo battery standard, mates with B-PH PCB headers
• HY2.0 (SMH200) — 3A, wire-to-wire, higher current capacity, does not mate with B-PH headers
• Both are 2.0mm pitch but use different housings and contacts — not cross-compatible

Key Specifications

• JST PH: Pitch 2.0mm | Contact SPH-002T-P0.5 | 2A / 100V AC/DC | RoHS2
• HY2.0: Pitch 2.0mm | 3A | RoHS

Typical Applications

• LiPo battery balance leads for RC models and drones (JST PH)
• RC vehicle and robotics power wiring (HY2.0)
• Arduino, ESP32 and development board wire-to-board connections
• Portable electronics and wearable device battery connections
• DIY electronics prototyping and repair
