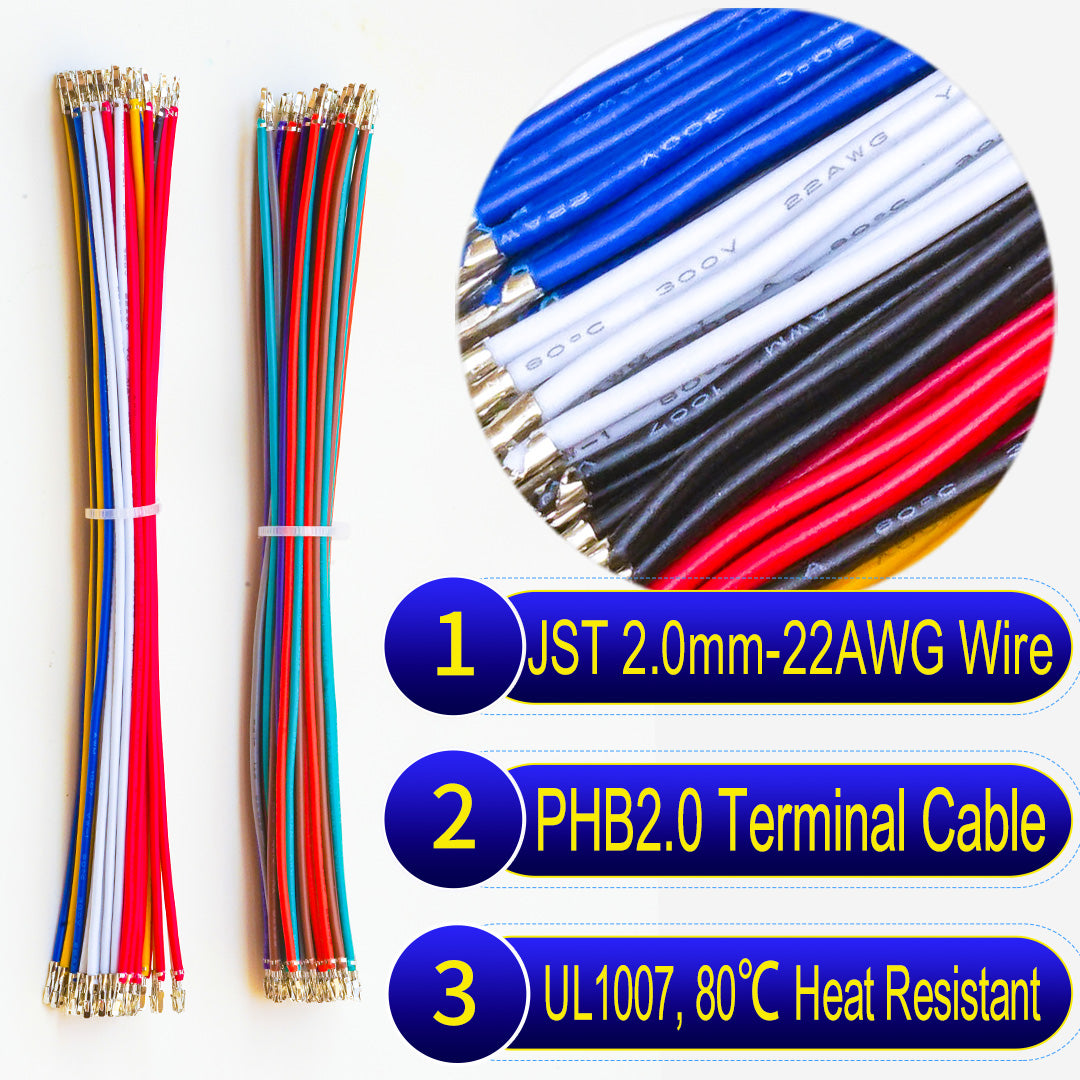

JST PHB Locking 2.0mm Pre-Crimped Terminal both sided Cable 22AWG UL1007 PVC 80℃ Heat Resistant
JST PHB Locking 2.0mm Pre-Crimped Terminal both sided Cable 22AWG UL1007 PVC 80℃ Heat Resistant
| Quantity | Discount | You Save |
|---|---|---|
| 1 – 9 pcs | — | — |
| 10 – 49 pcs | 3% OFF | Save 3% |
| 50 – 99 pcs | 7% OFF | Save 7% |
| 100+ pcs | 11% OFF | 🏆 Best Value |
✓ Discount applied automatically at checkout · No code needed
Couldn't load pickup availability
JST PHB 2.0mm Both-Sided Pre-Crimped Cable — 22AWG UL1007 PVC, 80°C, 300V, 3A

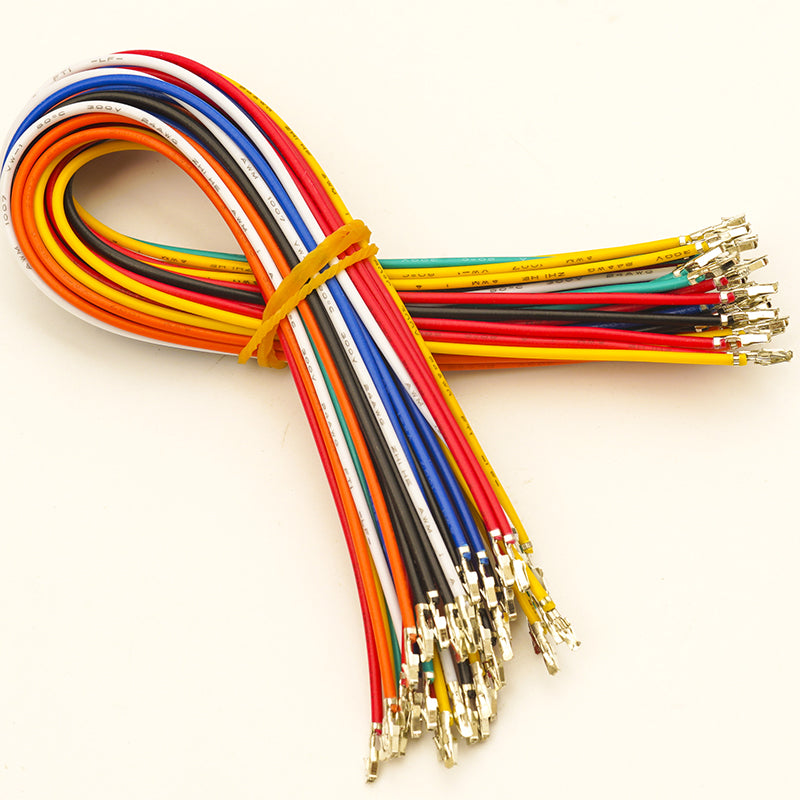

Skip the crimping step entirely. This JST PHB 2.0mm both-sided pre-crimped cable arrives with factory-crimped YST200-C terminals on both ends, ready to plug directly into JST PHB or Yeonho SMAW200 housings. Whether you're wiring a sensor array, building a prototype, or assembling a production harness, these cables deliver consistent, pull-tested connections every time — no tooling required on your end.
The 22AWG UL1007 PVC jacket is rated for 80°C continuous operation and 300V, providing reliable insulation for general-purpose PCB wiring, industrial control panels, and consumer electronics applications.
Key Specifications
- Connector System: JST PHB 2.0mm pitch (Yeonho SMAW200 compatible)
- Configuration: Both-sided — crimp terminals on both ends
- Wire Gauge: 22AWG
- Wire Standard: UL1007 PVC
- Temperature Rating: 80°C continuous
- Voltage Rating: 300V
- Current Rating: 3A
- Pitch: 2.0mm
- Locking Mechanism: Belt lock (positive retention)
- Housing: Not included — terminals only
- Pack Quantity: 10 PCS per pack
- Available Lengths: 10cm / 15cm / 20cm / 25cm / 30cm / 35cm / 40cm / 50cm / 80cm / 100cm
- Available Colors: Red, Black, Yellow, White, Blue, Green, Orange, Purple, Brown, Gray, Pink
The Efficiency of Both-Sided Termination
Both-sided cables are the fastest path from wire to working harness. With terminals pre-installed on both ends, you simply insert each end into your PHB housing and the assembly is complete. This eliminates one of the most time-consuming steps in harness production and ensures every connection meets the same factory crimp standard.
Typical Applications
- PCB-to-PCB and module interconnect cables
- Sensor and actuator harnesses
- Industrial control panel wiring
- Consumer electronics internal assemblies
- Automation and PLC signal cables
- Rapid prototyping and production harness assembly
Compatibility
Crimp terminals are compatible with JST PHB series housings (2.0mm pitch, belt-lock type) and Yeonho SMAW200 series connectors. Pair with matching PHB housings to complete your connector assembly.
Note: Housing/connector not included. This listing is for pre-crimped wire only.
Frequently Asked Questions
Product & Compatibility
What is the difference between JST PH, XH, ZH, and SH connectors?
JST connectors differ primarily in pitch (pin spacing): SH = 1.0mm, ZH = 1.5mm, PH = 2.0mm, XH = 2.5mm. Smaller pitch connectors are used in compact electronics like drones and wearables, while larger pitch connectors suit general prototyping and power applications. Always verify pitch before ordering to ensure compatibility.
Are your connectors compatible with standard Arduino and Raspberry Pi projects?
Yes. Our DuPont 2.54mm connectors are the industry standard for Arduino, Raspberry Pi, and most development boards. JST PH 2.0mm is widely used for LiPo batteries in RC and robotics projects. We recommend checking your board's datasheet to confirm the exact connector type and pin count required.
What wire gauge (AWG) should I choose for my application?
Wire gauge depends on current load: 28–30 AWG suits signal lines up to 0.5A; 24–26 AWG handles 1–3A for moderate power; 22 AWG is suitable for up to 5A. For high-current applications, always use appropriately rated wire and connectors. Our product listings specify the AWG and rated current for each cable.
What is the difference between UL1007 and Silicone wire?
UL1007 is a PVC-insulated wire rated for 80°C and 300V, suitable for most indoor electronics applications. Silicone wire is rated for higher temperatures (up to 200°C), is more flexible, and performs better in harsh environments or high-vibration applications such as RC vehicles and industrial equipment.
