JST PHB Locking 2.0mm Pre-Crimped Terminal single-head Cable 22AWG UL1007 PVC 80℃ Heat Resistant
JST PHB Locking 2.0mm Pre-Crimped Terminal single-head Cable 22AWG UL1007 PVC 80℃ Heat Resistant
| Quantity | Discount | You Save |
|---|---|---|
| 1 – 9 pcs | — | — |
| 10 – 49 pcs | 3% OFF | Save 3% |
| 50 – 99 pcs | 7% OFF | Save 7% |
| 100+ pcs | 11% OFF | 🏆 Best Value |
✓ Discount applied automatically at checkout · No code needed
Couldn't load pickup availability

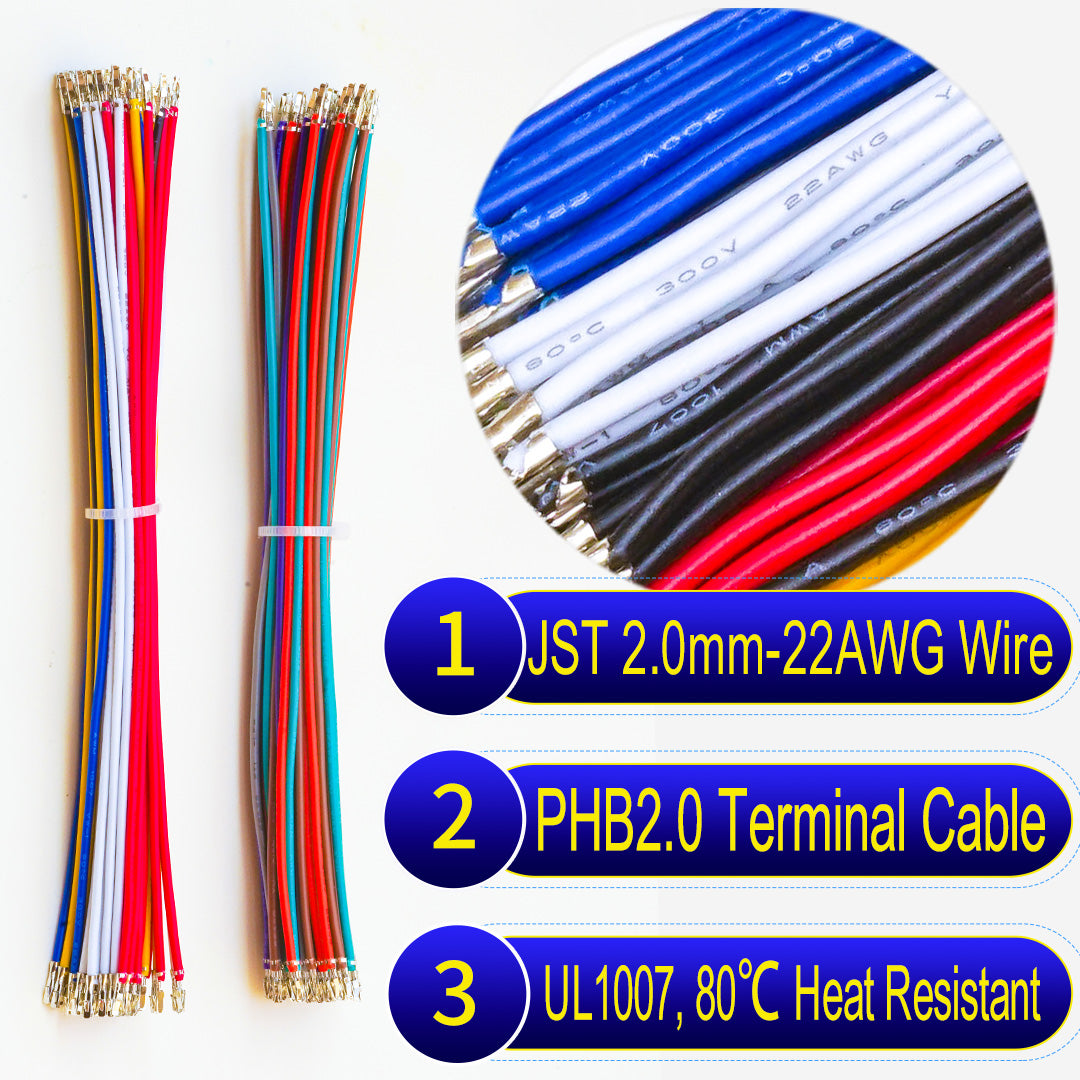

JST PHB 2.0mm Single-Head Pre-Crimped Cable — 22AWG UL1007 PVC, 80°C, 300V, 3A

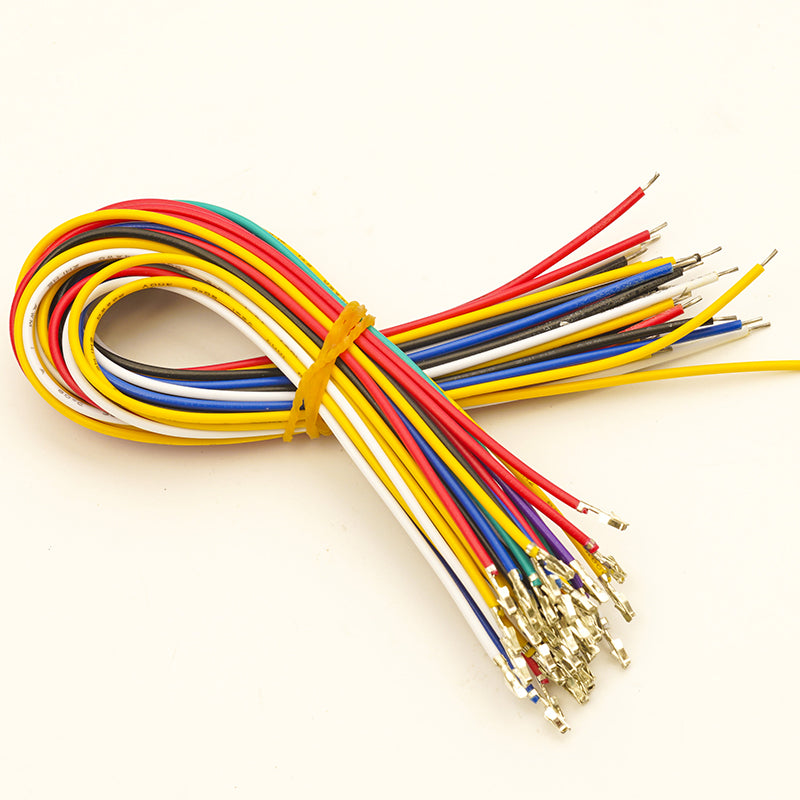

A precision-built single-head pre-crimped cable for JST PHB 2.0mm connector systems. One end carries a factory-crimped YST200-C terminal ready to insert into any JST PHB or Yeonho SMAW200 housing; the other end is left bare for direct soldering to PCB pads, terminal blocks, or custom connectors. Every crimp is machine-made to consistent pull-force standards — no cold joints, no loose contacts.
The 22AWG UL1007 PVC jacket is rated for 80°C continuous operation and 300V, making it the reliable workhorse for general-purpose PCB wiring, sensor leads, and industrial control panel harnesses where standard operating temperatures apply.
Key Specifications
- Connector System: JST PHB 2.0mm pitch (Yeonho SMAW200 compatible)
- Configuration: Single-head — crimp terminal one end, bare wire other end
- Wire Gauge: 22AWG
- Wire Standard: UL1007 PVC
- Temperature Rating: 80°C continuous
- Voltage Rating: 300V
- Current Rating: 3A
- Pitch: 2.0mm
- Locking Mechanism: Belt lock (positive retention)
- Housing: Not included — terminal only
- Pack Quantity: 10 PCS per pack
- Available Lengths: 10cm / 15cm / 20cm / 25cm / 30cm / 35cm / 40cm / 50cm / 80cm / 100cm
- Available Colors: Red, Black, Yellow, White, Blue, Green, Orange, Purple, Brown, Gray, Pink
UL1007 PVC — The Standard for General-Purpose Wiring
UL1007 is the most widely used hookup wire standard in electronics manufacturing. Its PVC insulation provides excellent abrasion resistance, good flexibility at room temperature, and reliable performance in environments up to 80°C — covering the vast majority of PCB and panel wiring applications at a cost-effective price point.
Typical Applications
- PCB prototyping and production wiring
- Sensor and actuator leads
- Industrial control panel harnesses
- Consumer electronics internal wiring
- Automation and PLC signal cables
- Custom cable harness assembly
Compatibility

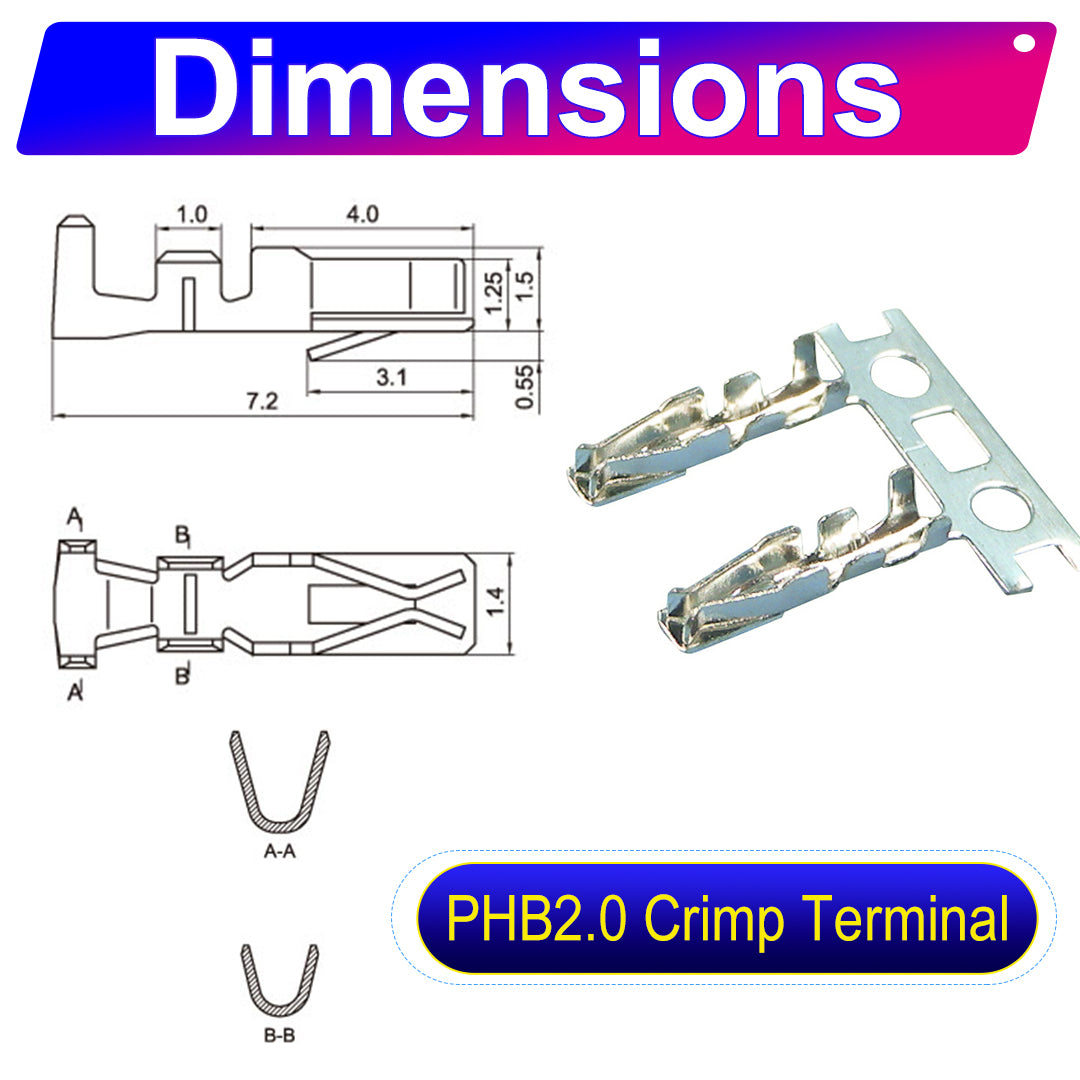

Crimp terminal is compatible with JST PHB series housings (2.0mm pitch, belt-lock type) and Yeonho SMAW200 series connectors. Pair with matching PHB housings to complete your connector assembly.
Note: Housing/connector not included. This listing is for pre-crimped wire only.
Frequently Asked Questions
Product & Compatibility
What is the difference between JST PH, XH, ZH, and SH connectors?
JST connectors differ primarily in pitch (pin spacing): SH = 1.0mm, ZH = 1.5mm, PH = 2.0mm, XH = 2.5mm. Smaller pitch connectors are used in compact electronics like drones and wearables, while larger pitch connectors suit general prototyping and power applications. Always verify pitch before ordering to ensure compatibility.
Are your connectors compatible with standard Arduino and Raspberry Pi projects?
Yes. Our DuPont 2.54mm connectors are the industry standard for Arduino, Raspberry Pi, and most development boards. JST PH 2.0mm is widely used for LiPo batteries in RC and robotics projects. We recommend checking your board's datasheet to confirm the exact connector type and pin count required.
What wire gauge (AWG) should I choose for my application?
Wire gauge depends on current load: 28–30 AWG suits signal lines up to 0.5A; 24–26 AWG handles 1–3A for moderate power; 22 AWG is suitable for up to 5A. For high-current applications, always use appropriately rated wire and connectors. Our product listings specify the AWG and rated current for each cable.
What is the difference between UL1007 and Silicone wire?
UL1007 is a PVC-insulated wire rated for 80°C and 300V, suitable for most indoor electronics applications. Silicone wire is rated for higher temperatures (up to 200°C), is more flexible, and performs better in harsh environments or high-vibration applications such as RC vehicles and industrial equipment.
