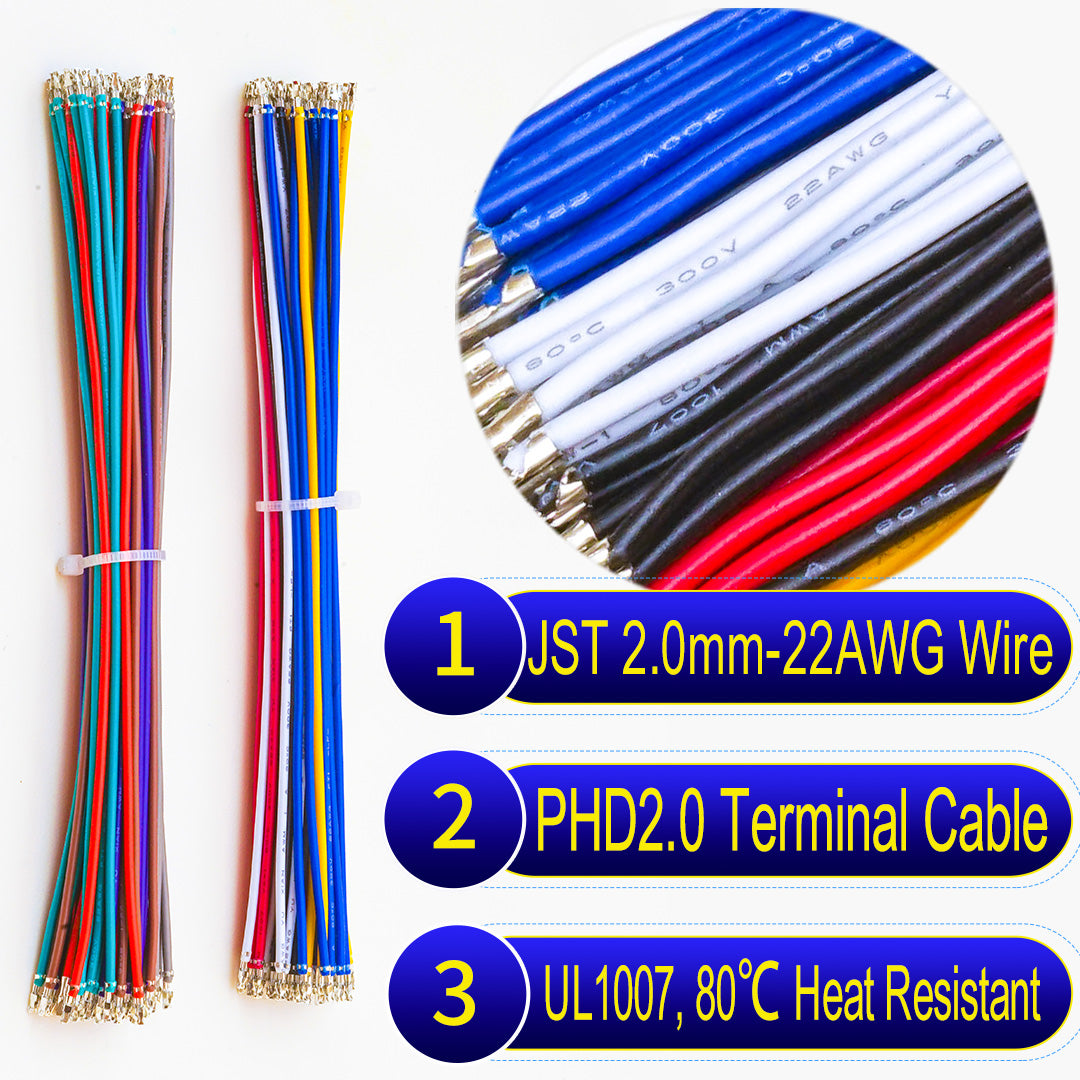

JST PHD 2.0mm Pre-Crimped Terminal both sided Cable, 22AWG UL1007 PVC

JST PHD 2.0mm Female Both-Sided Pre-Crimped Terminal Cable — 22AWG UL1007 PVC, 80°C

Pre-crimped terminal cable with a JST PHD 2.0mm dual-row PHDR female housing on both ends. Uses SPHD-002T-P0.5 contacts pre-crimped onto 22AWG UL1007 PVC wire (80°C / 300V rated). Rated 2A at 100V AC/DC. Connects two JST PHD-equipped PCBs or devices directly in high-density PCB, LED, and industrial control applications.

• Housing: JST PHD PHDR dual-row female housing — both ends

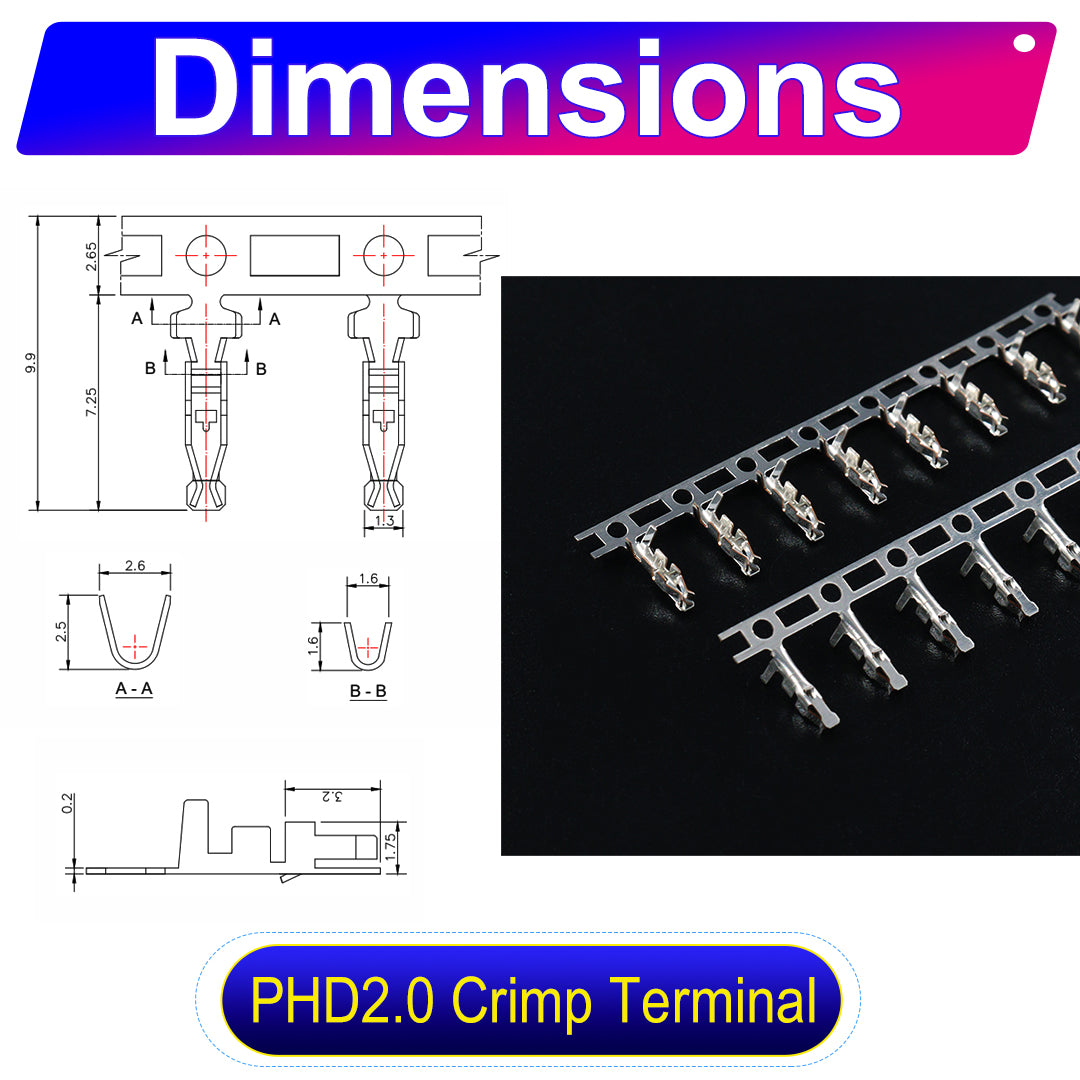

• Contact: SPHD-002T-P0.5, phosphor bronze, tin-plated
• Wire: 22AWG UL1007 PVC, 80°C / 300V, tinned copper conductor
• Orientation: Both-sided — PHDR dual-row housing on each end
• Pitch: 2.0mm | Rating: 2A / 100V AC/DC | −25°C to +85°C
• Compliance: UL1007 wire, RoHS2
