JST SH 1.0mm SMT Header Kit — Assorted 2–12Pin

JST SH 1.0mm SMT Header Kit — Assorted 2–12 Pin, BM Series

The JST SH 1.0mm SMT header kit provides the PCB-side counterpart to SH-series cables — the surface-mount headers that accept SH female housings on your custom PCB designs. With assorted 2–12 pin counts in a single kit, you have everything needed to design and populate SH-series connectors on FPV drone, wearable, and IoT PCBs.

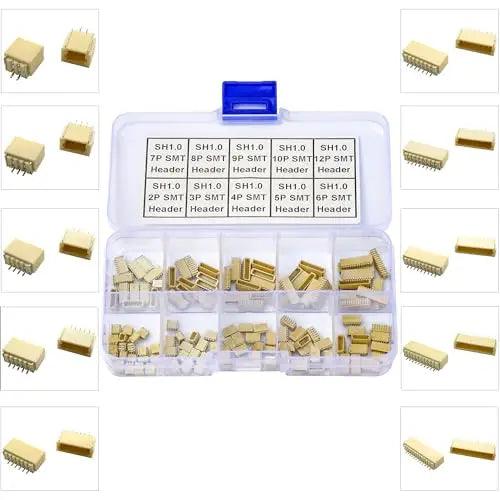

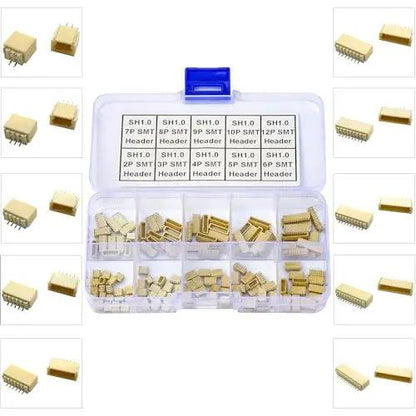

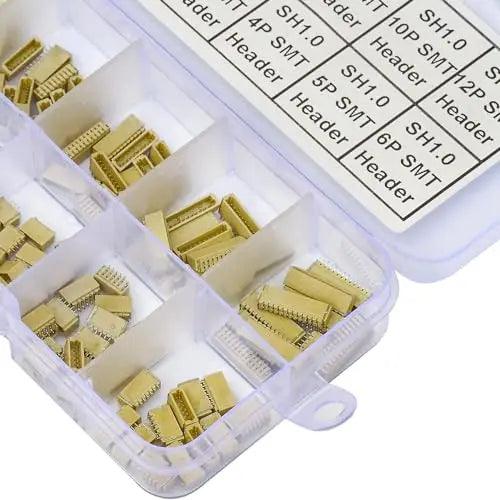

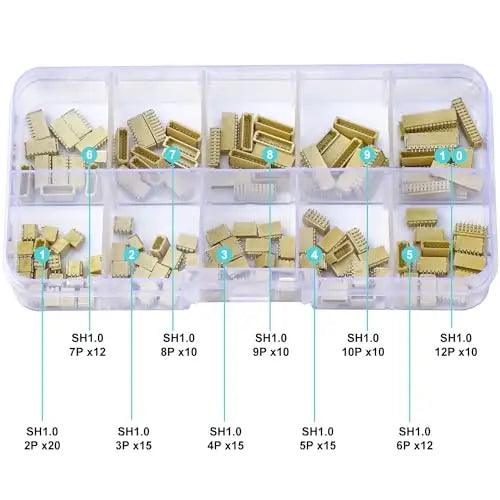

Kit Contents

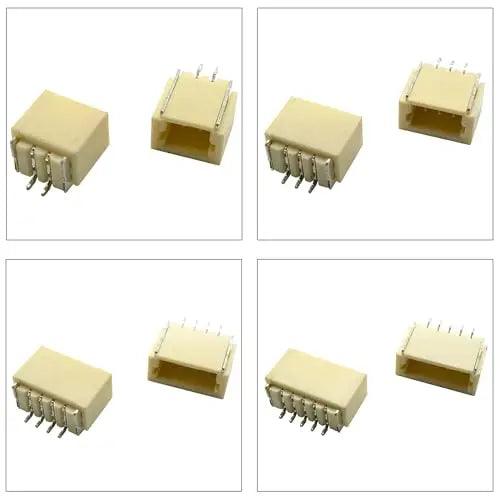

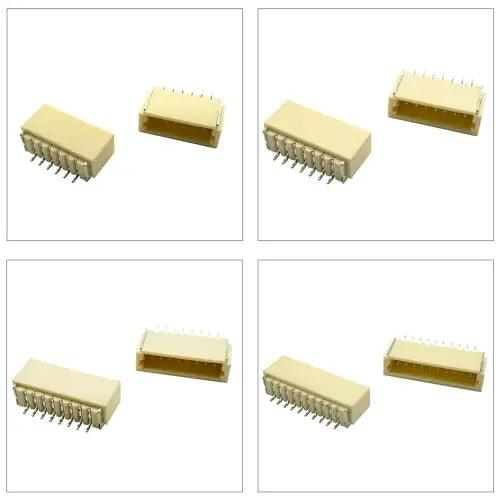

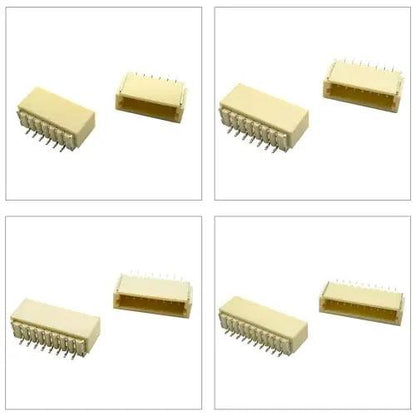

• BM02B–BM12B-SRSS-TB SMT headers — genuine JST BM series, assorted 2–12 pin counts
• Surface-mount, horizontal (side-entry) orientation

Key Features

• JST SH 1.0mm pitch — mates with all SH-series female housings and pre-crimped cables
• BM series SMT headers — genuine JST BM02B–BM12B-SRSS-TB, horizontal orientation
• Assorted 2–12 pin counts — covers all common SH-series PCB header configurations
• Reflow solder compatible — standard SMT reflow soldering process
• 1A / 50V rating — suitable for signal and low-current power lines
• Temperature Range: −25°C to +85°C
• RoHS compliant

Typical Applications

• FPV drone flight controller and ESC PCB design
• Wearable electronics and fitness device PCB design
• Miniature IoT sensor and module PCB design
• Custom PCB connector population for SH-series harnesses

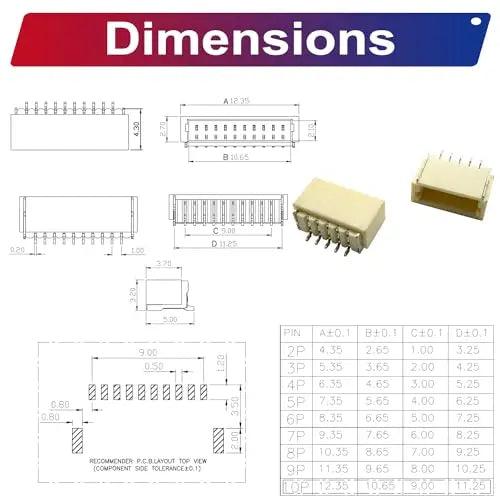

Technical Specifications

• Connector Series: JST SH / BM Series
• Part Numbers: BM02B–BM12B-SRSS-TB
• Pitch: 1.0 mm
• Pin Counts: 2–12 (assorted)
• Mount Type: SMT (Surface Mount)
• Orientation: Horizontal (side-entry)
• Voltage Rating: 50V
• Current Rating: 1A per contact
• Temperature Range: −25°C to +85°C
• RoHS Compliant: Yes
• Brand: Keszoox
• Origin: Mainland China
