JST VH 3.96mm DIP Header Connector Kit — VHR/B-VH Assorted, 2–10 Pin
JST VH 3.96mm DIP Header Connector Kit VHR/B-VH Assorted, 2–10 Pin
Regular price
$26.99 USD
Regular price
$51.99 USD
Sale price
$26.99 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

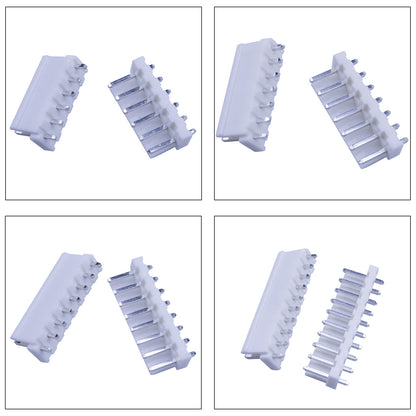

JST VH 3.96mm DIP Header Connector Kit — VHR Housings & B-VH Headers, 2–10 Pin
Everything you need to build or repair JST VH 3.96mm high-current wire-to-board connections in one kit. Includes assorted VHR-NN locking housings, B-VH through-hole PCB headers, and SVH-21T-P1.1 crimp terminals — the complete set for industrial power supply assembly, motor driver PCB connections, and 3D printer power rail prototyping. Connector rated 10A / 250V AC/DC.
Why Choose This Kit?
- ✅ Complete assortment — VHR housings, B-VH DIP headers and SVH-21T terminals in one pack
- ✅ 10A / 250V connector rating — highest current rating in the JST wire-to-board range
- ✅ Positive-latch locking housing — secure mating under vibration and mechanical stress
- ✅ DIP through-hole headers — compatible with standard PCB footprints for power supply and industrial boards
- ✅ 2–10 pin assortment — covers the most common pin counts for power and industrial applications
- ✅ RoHS2 / UL recognized compliant

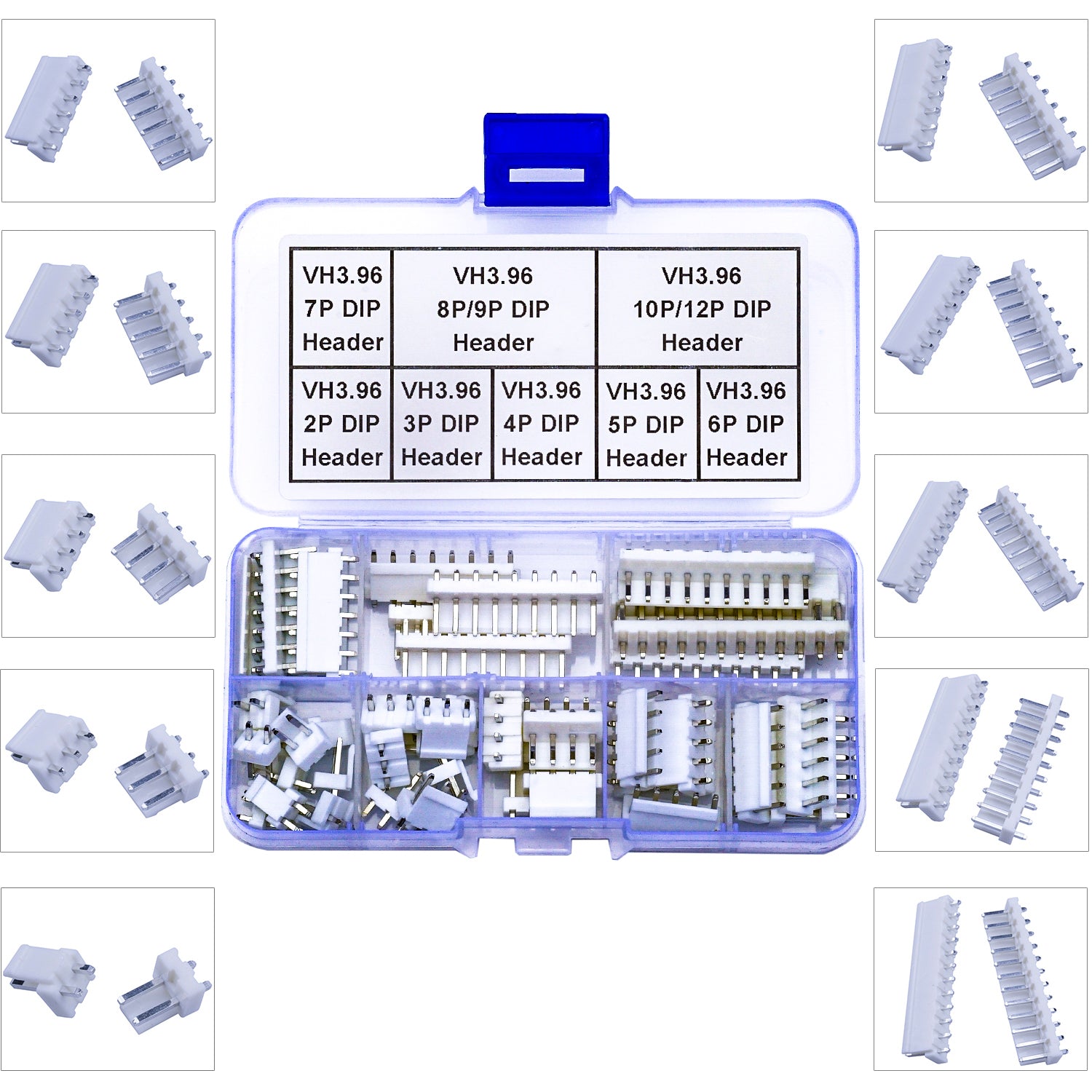

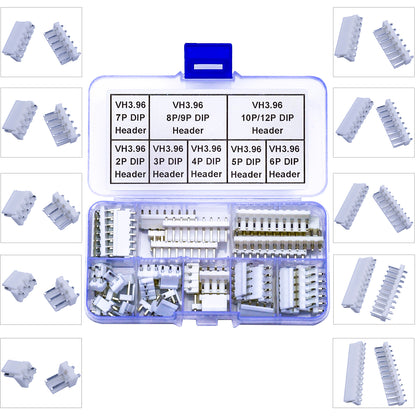

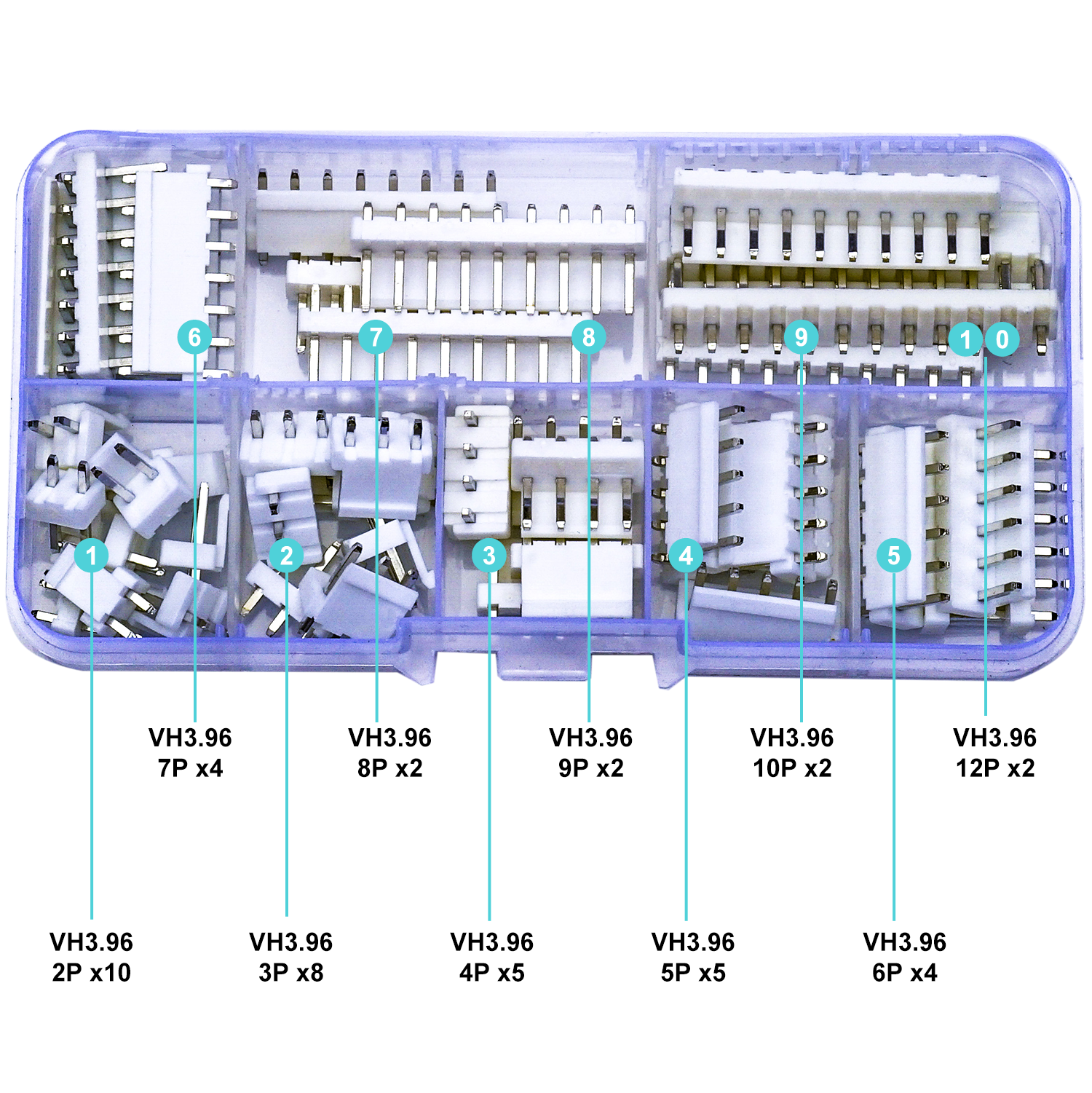

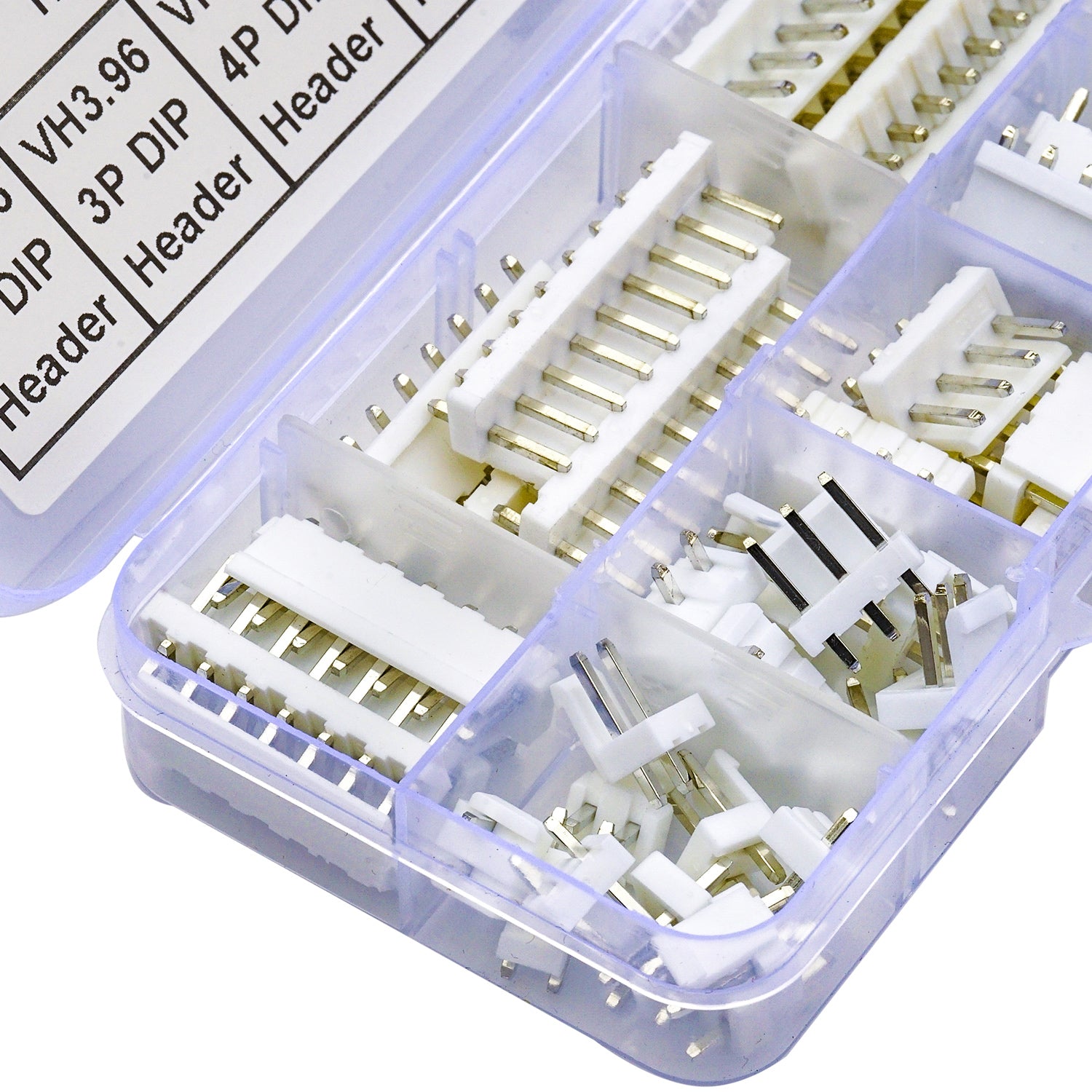

Kit Contents
- VHR-NN Locking Housings — Wire-side receptacle, 2–10 circuits, PA66 nylon, UL94V-0
- B-VH DIP PCB Headers — Top-entry through-hole headers, tin-plated contacts
- SVH-21T-P1.1 Crimp Terminals — AWG #18–#22, phosphor bronze, tin-plated

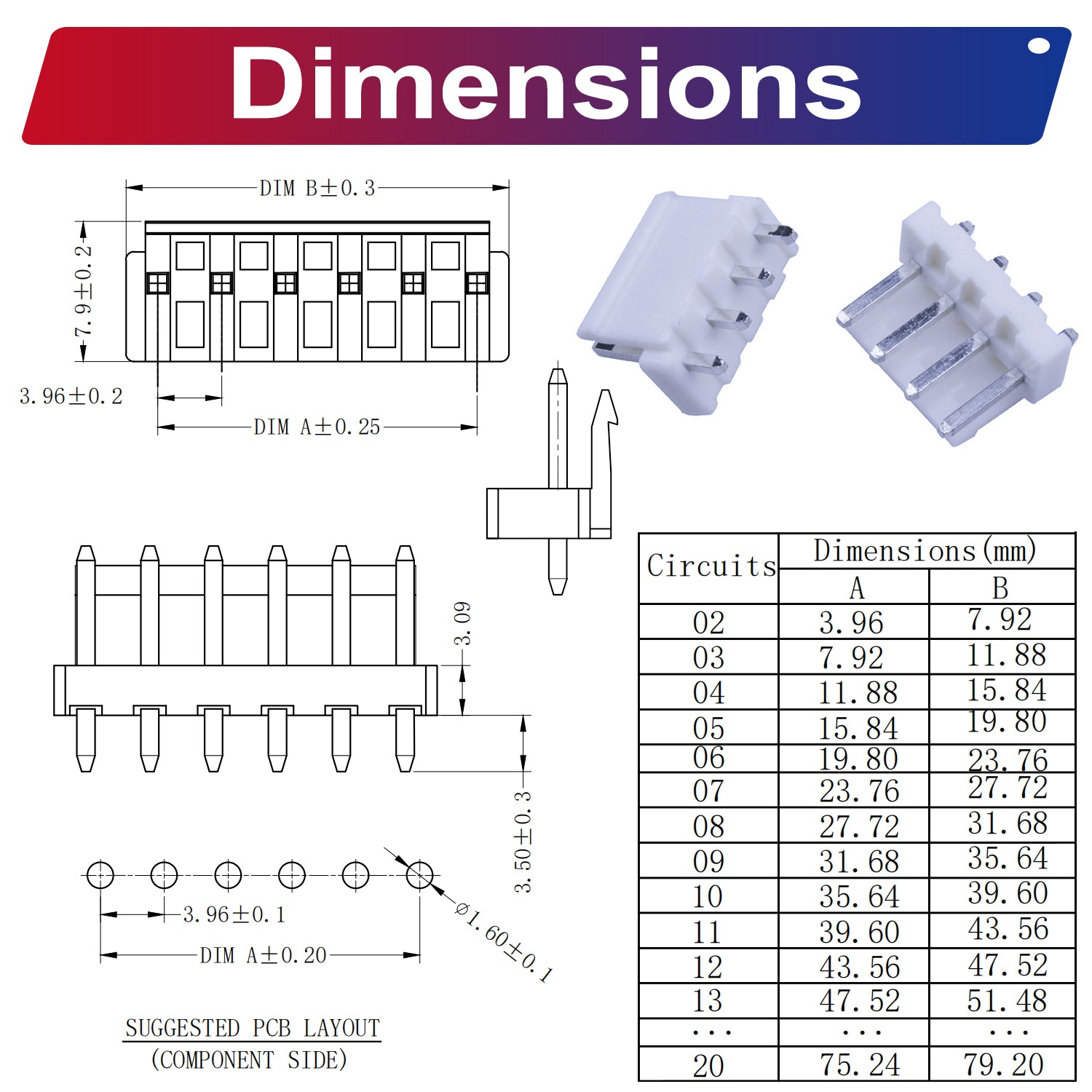

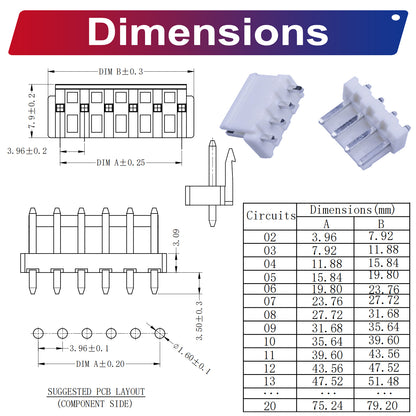

Key Specifications
- Pitch: 3.96mm | Circuits: 2–10 pin (assorted)
- Connector rating: 10A / 250V AC/DC | Operating temp: −25°C to +85°C
- Wire gauge: AWG #18–#22
- Contact: SVH-21T-P1.1, phosphor bronze, tin-plated | Housing: PA66 nylon, UL94V-0
- Compliance: UL recognized · RoHS2 compliant
Typical Applications
- Industrial power supply and control panel PCB assembly
- Motor driver, relay board and inverter PCB connections
- 3D printer power supply and heated bed PCB assembly
- Automotive accessory and sensor harness PCB connections
- RC battery and ESC power PCB wiring
- Robotics and CNC machine high-current power PCB connections
