JST XH 2.5mm 3-Pin Connector with 22AWG Pre-Crimped Cables — Housing, Header & Wire

JST XH 2.5mm 3-Pin Connector with 22AWG Pre-Crimped Cables — Housing, Header & Wire

A complete JST XH 2.5mm 3-pin connector set including XHP-3 female locking housing, B3B-XH PCB header, SXH-001T-P0.6 crimp terminals, and 22AWG pre-crimped cable assemblies. The JST XH 2.5mm is the standard connector for 3D printer mainboards, RC battery packs, and Arduino wire-to-board connections. The 3-pin configuration is ideal for thermistor, fan, and 3-wire sensor connections. Rated 3A / 250V AC/DC.

Why Choose This Set?

• ✅ 3-pin configuration — ideal for thermistors, fans, 3-wire sensors and servo signal connections
• ✅ Complete connector set — XHP housing, B-XH header, SXH-001T terminals and 22AWG pre-crimped cables in one pack
• ✅ JST XH 2.5mm standard — the most widely used connector in 3D printer mainboards and RC battery packs
• ✅ 22AWG pre-crimped cables — ready to insert, no crimping tool required
• ✅ 3A / 250V AC/DC rated — suitable for signal and low-power wiring
• ✅ RoHS compliant — PA nylon housing, tin-plated copper contacts

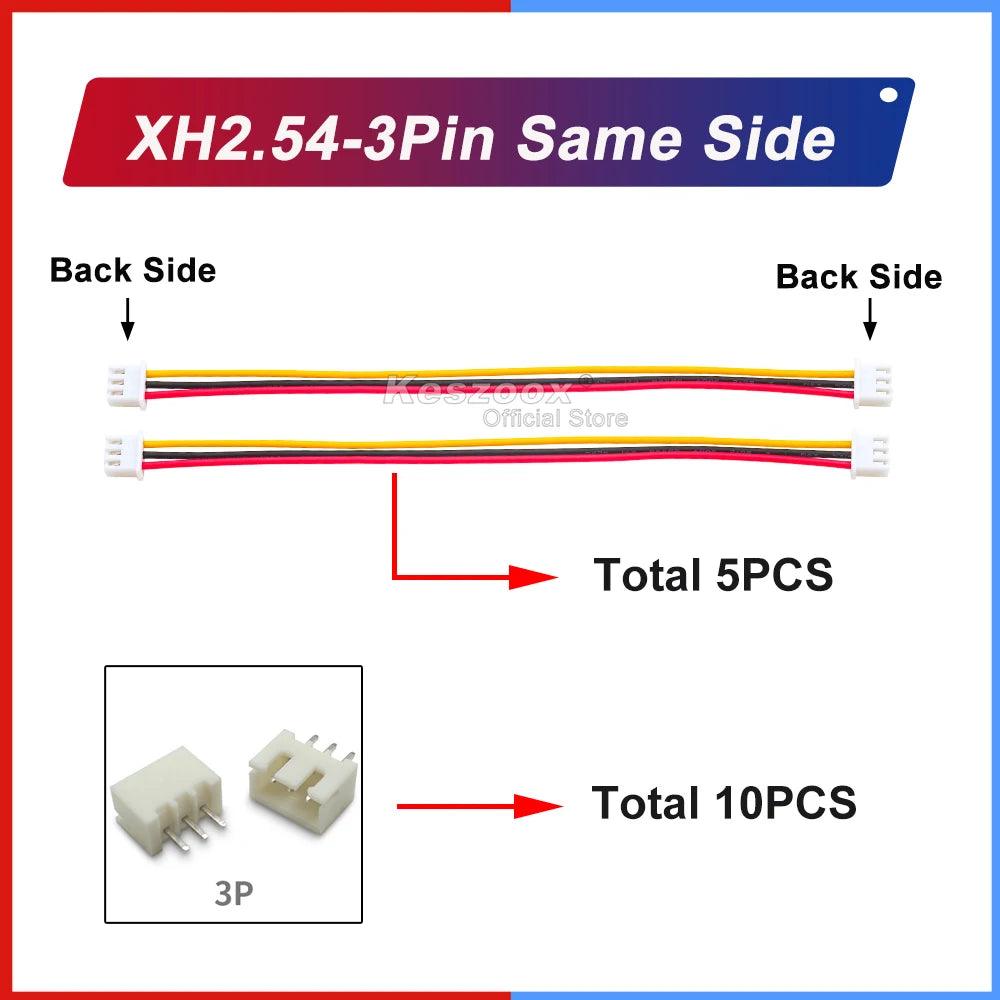

Kit Contents

• XHP-3 Female Locking Housing
• B3B-XH DIP PCB Header — top-entry through-hole
• SXH-001T-P0.6 Crimp Terminals — AWG #22–#28, phosphor bronze, tin-plated
• 22AWG Pre-Crimped Cable Assemblies — 3-pin

Key Specifications

• Series: JST XH | Pitch: 2.5mm | Pin count: 3P
• Current: 3A | Voltage: 250V AC/DC | Temperature: −25°C to +85°C
• Housing: PA nylon | Contact: SXH-001T-P0.6, phosphor bronze, tin-plated | Compliance: RoHS

Typical Applications

• 3D printer thermistor, fan and endstop connections
• RC battery pack and model internal wiring
• Arduino, ESP32 and development board 3-wire sensor connections
• Servo signal and power wiring
• IoT sensor and smart home device PCB connections
