SPECIFICATIONS

Brand Name: OLNYLO

Display Mode: ..

High-concerned chemical: None

Model Number: LCD12864B

Origin: Mainland China

Resolution: 128*64

Type: Character

is_customized: Yes

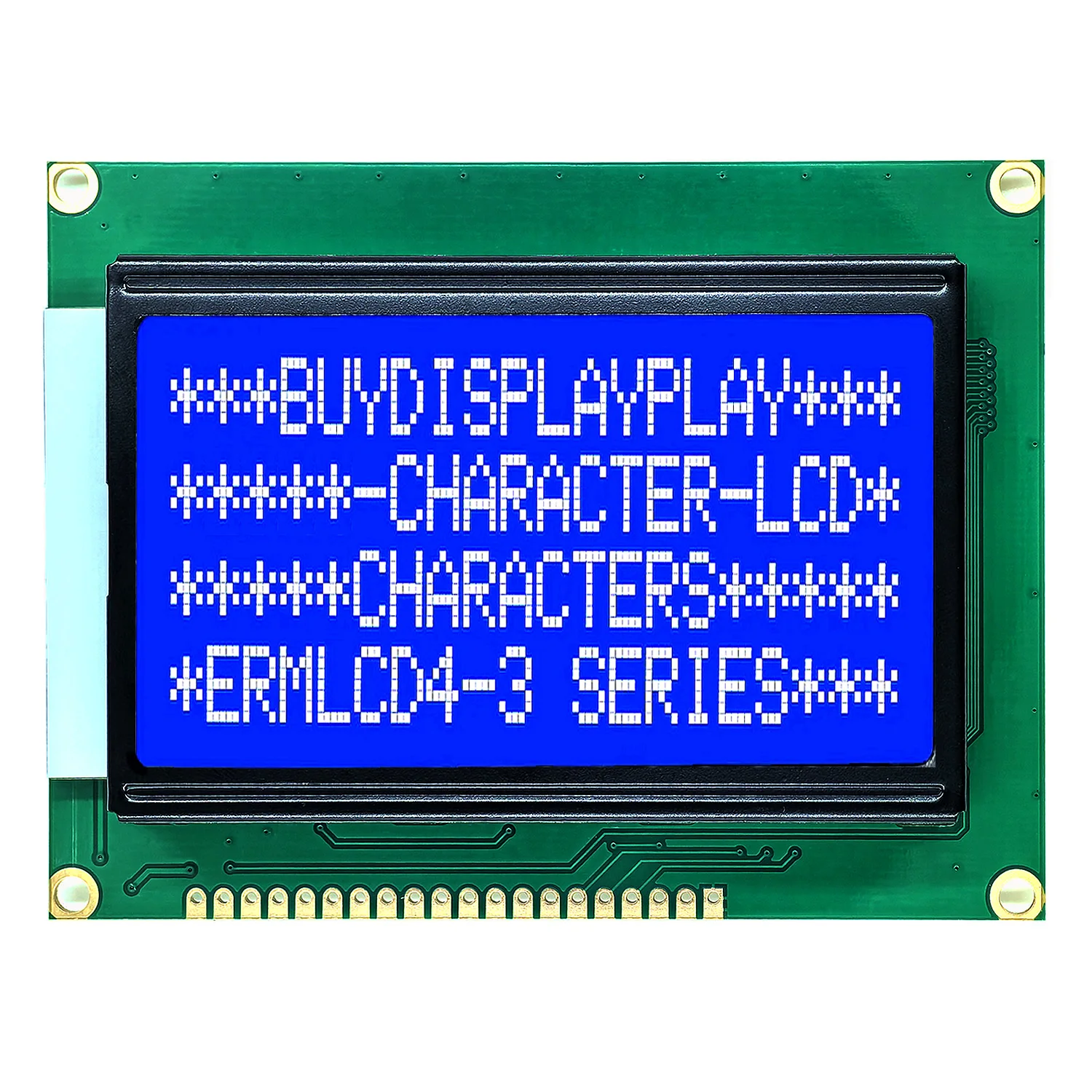

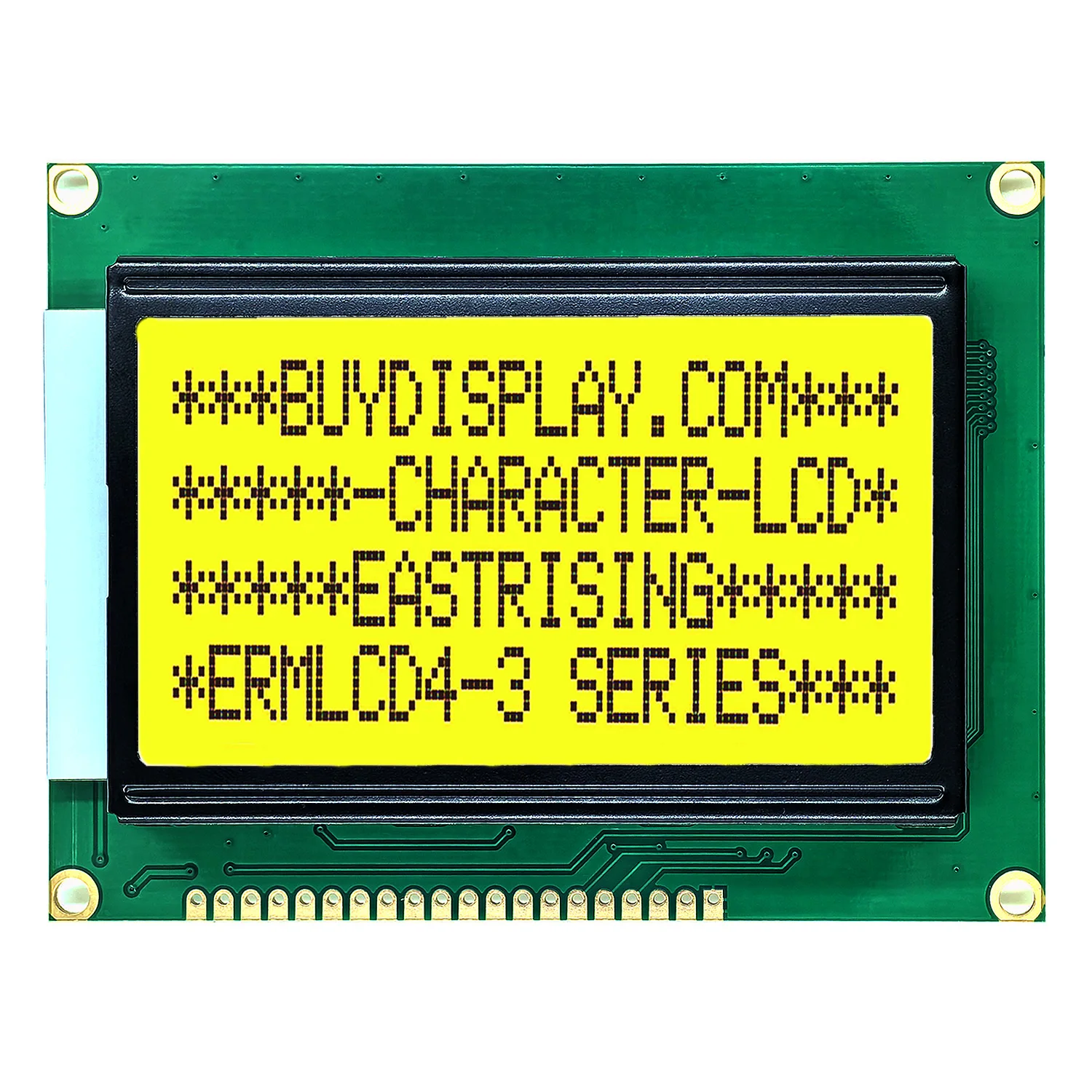

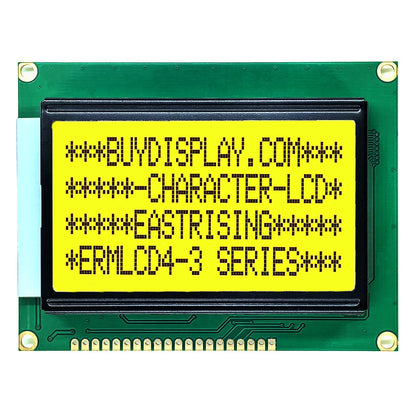

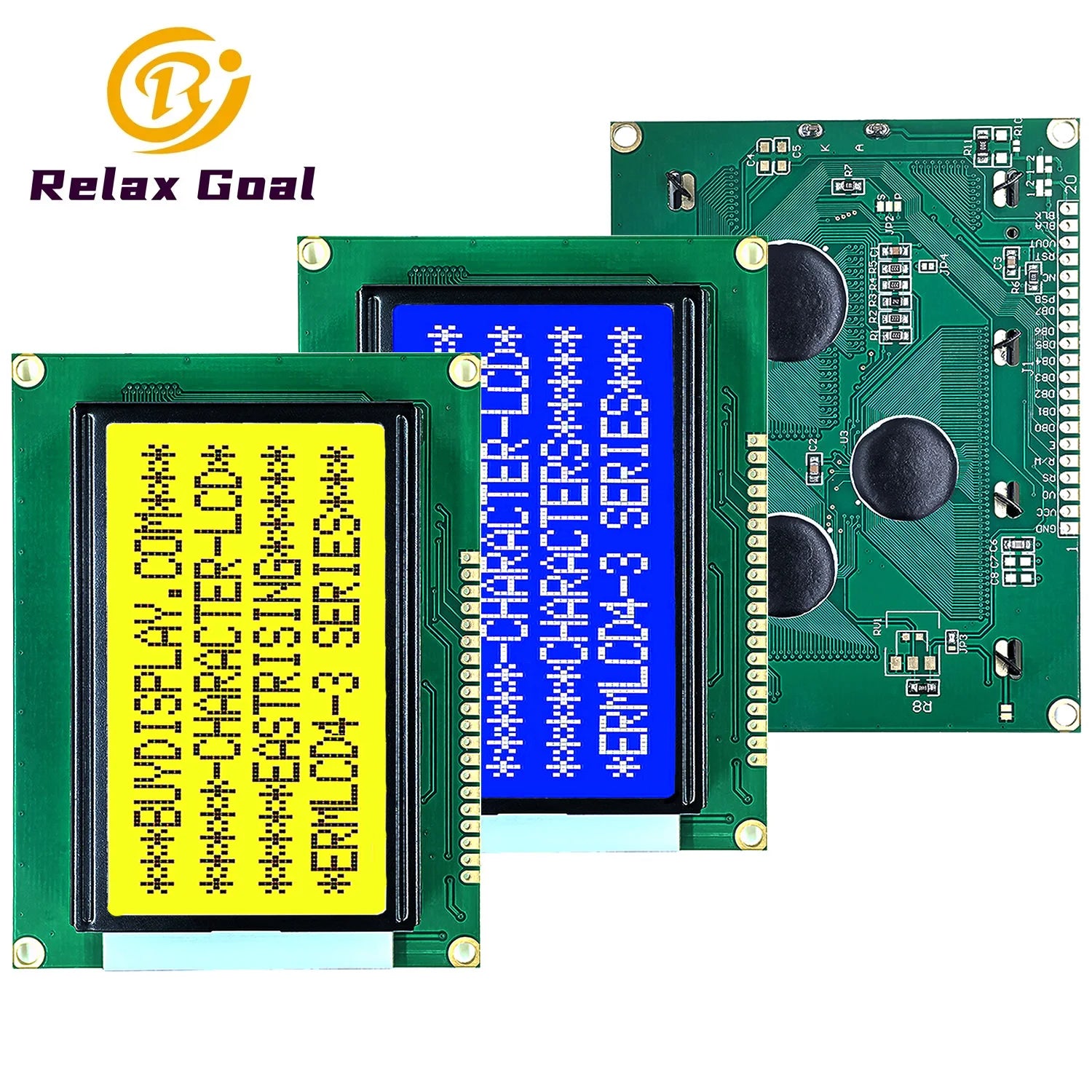

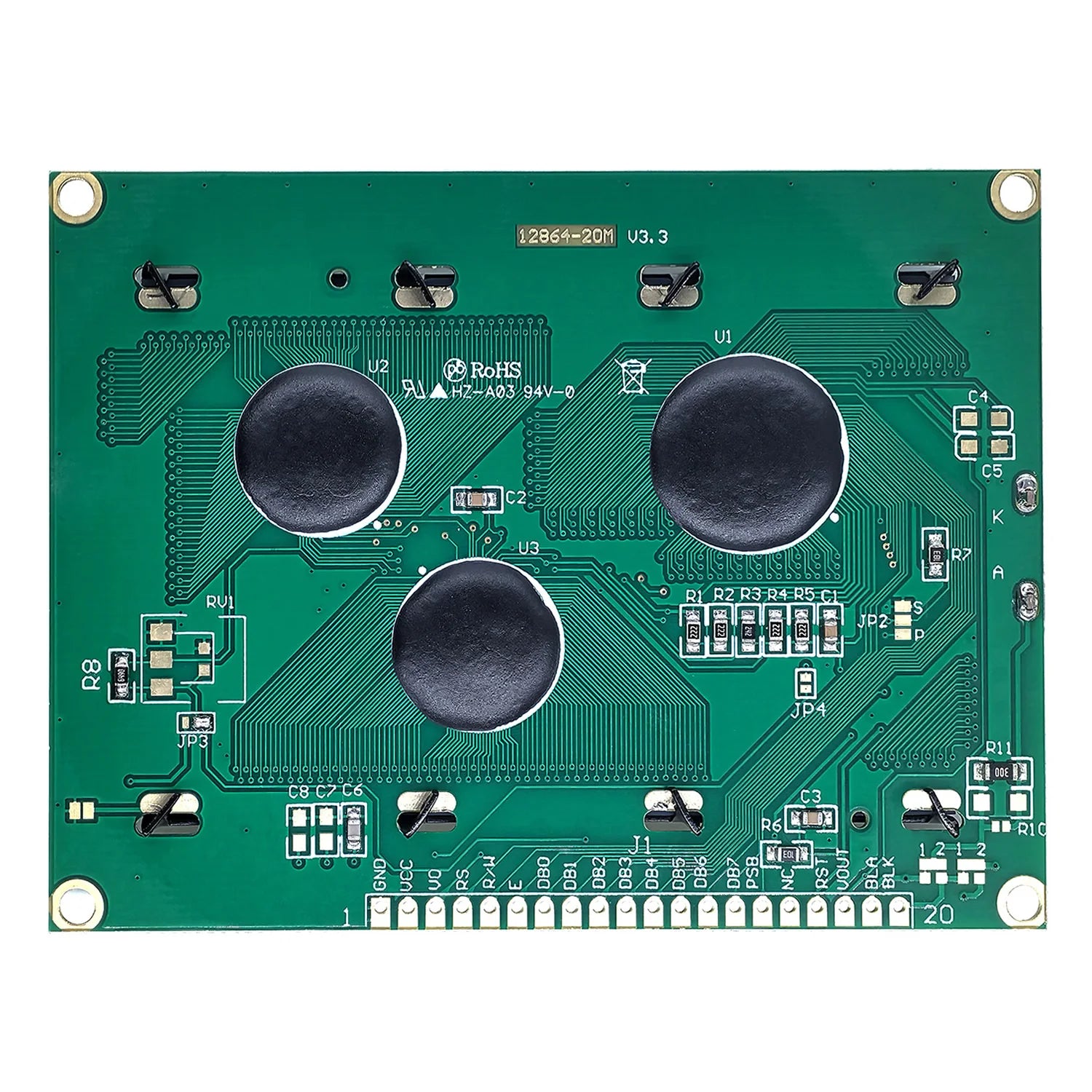

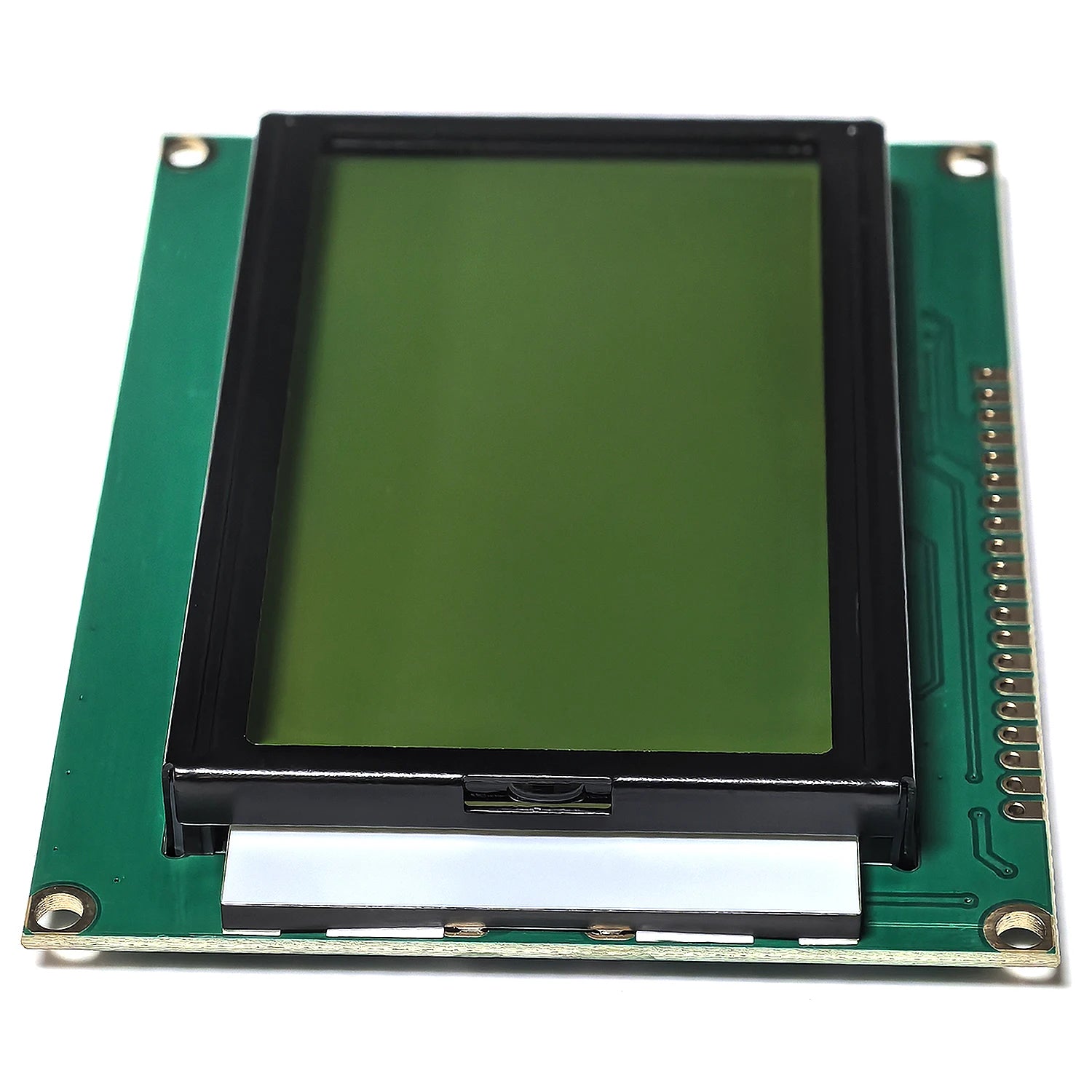

LCD12864B LCD Display Module 128*64 DOTS Character Display 5V LCM LCD with Backlight ST7920 Parallel Port For Arduino DIY Kit

1. Power supply: VDD 3.3V~+5V (built-in boost circuit, no negative pressure required);
2. Display content: 128 columns x 64 rows

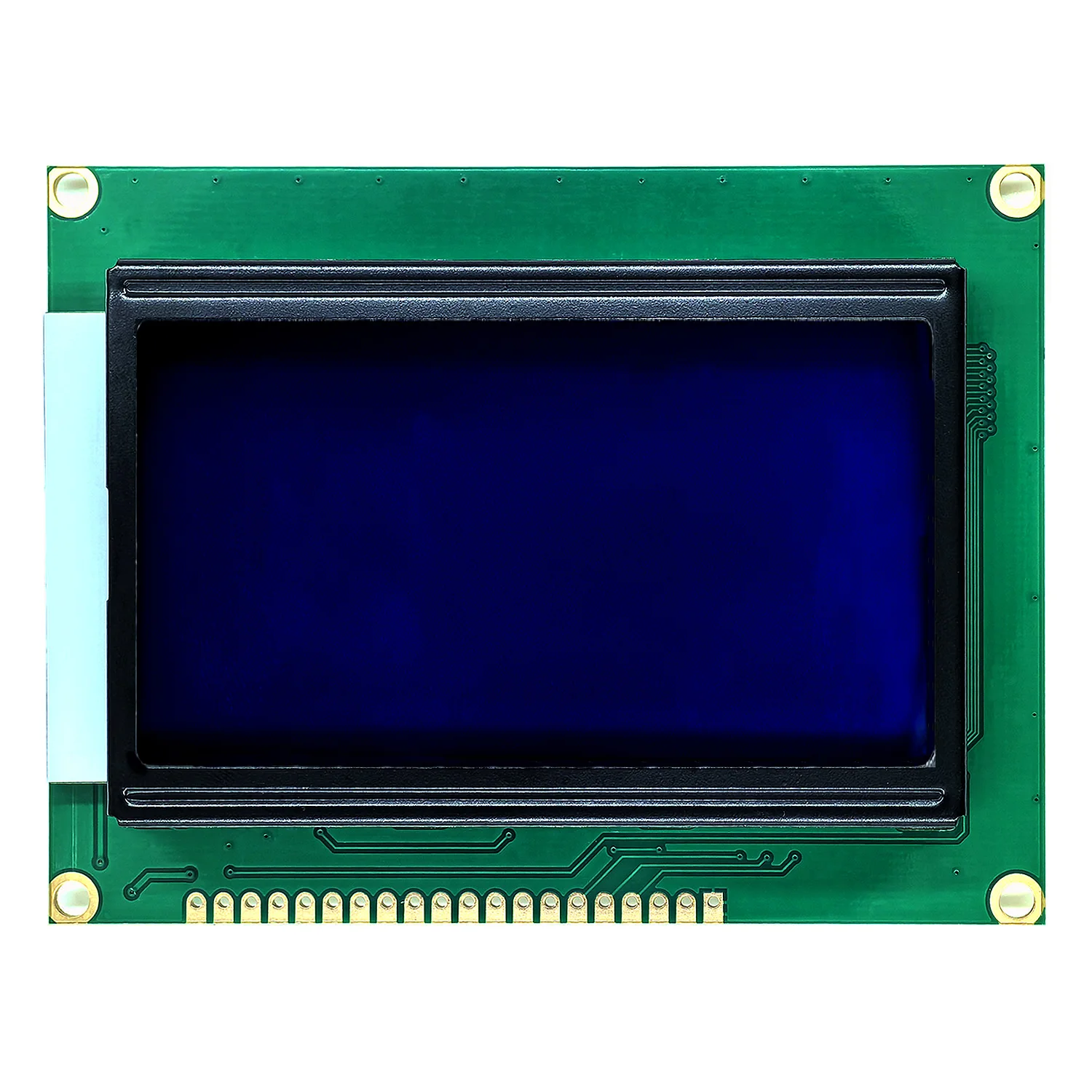

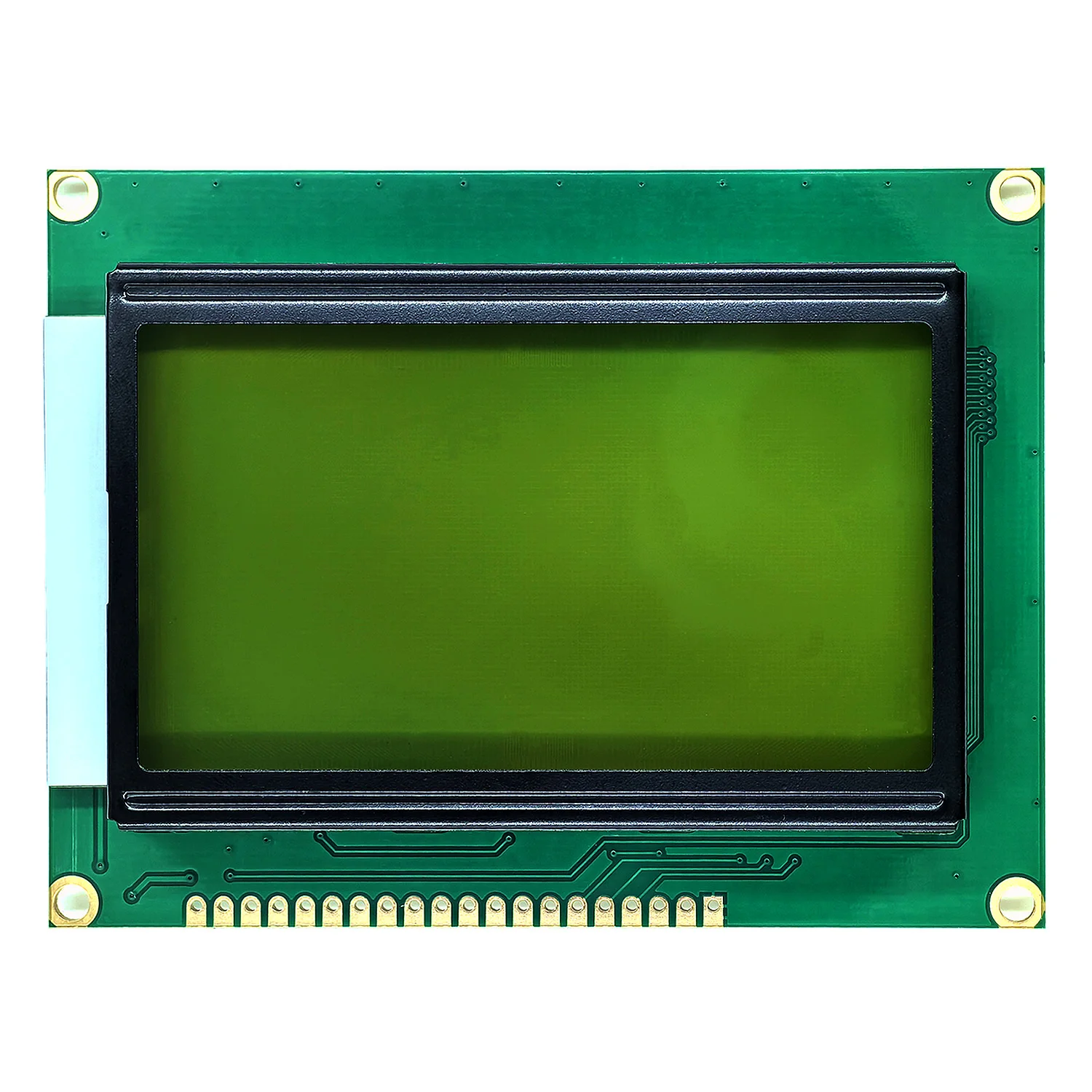

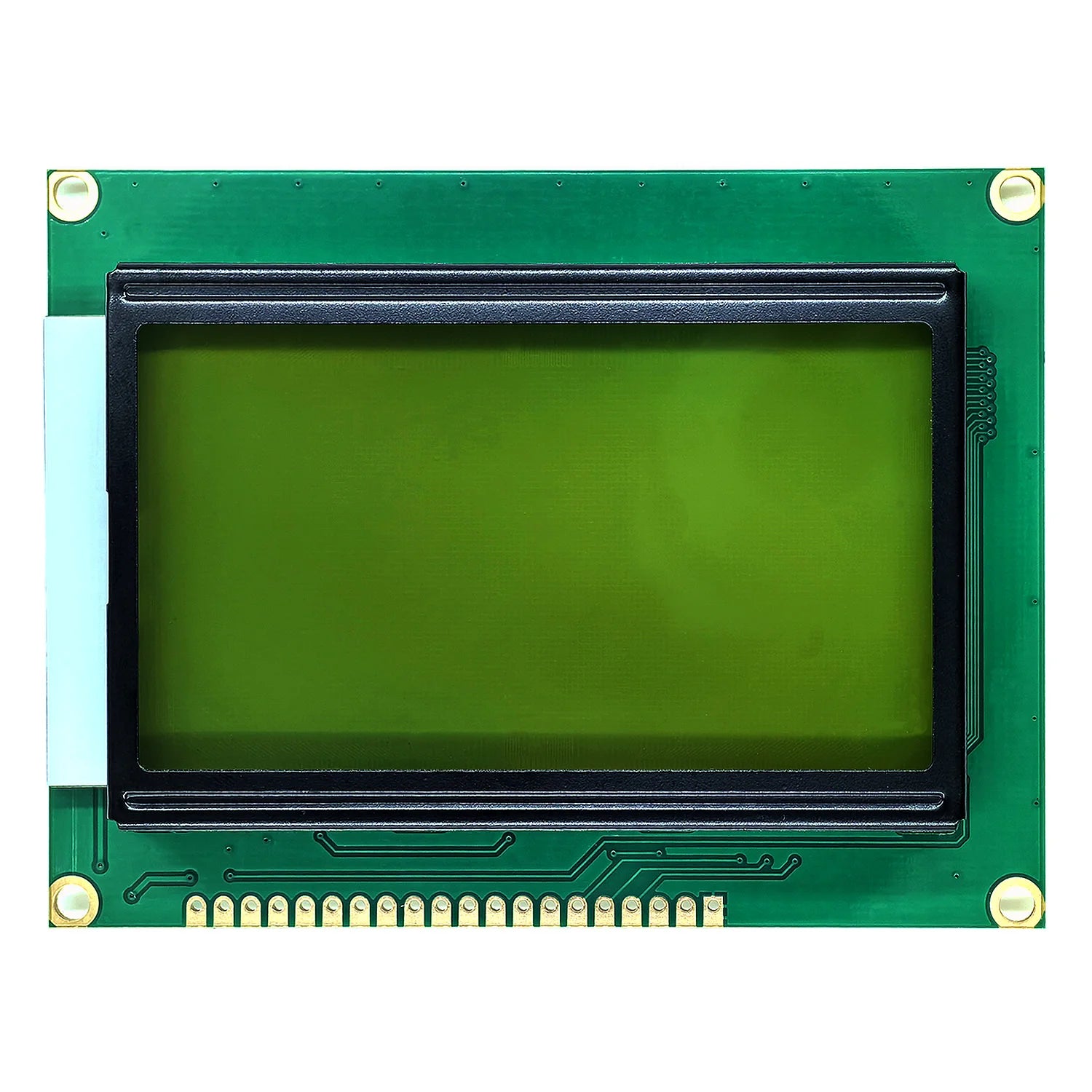

3. Display color: Blue/Green
4. Display angle: 6: 00 hours direct view
5. LCD type: STN
6. Interface with MCU: 8-bit or 4-bit parallel/3-bit serial
7. Configuring LED backlighting
8. A variety of software features: cursor display, screen shift, custom characters, sleep mode, etc.

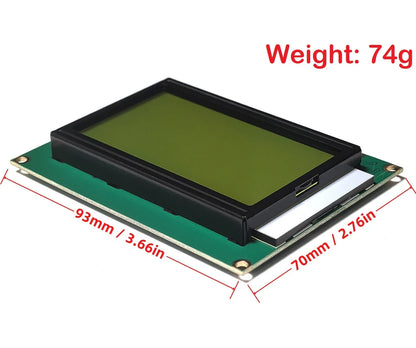

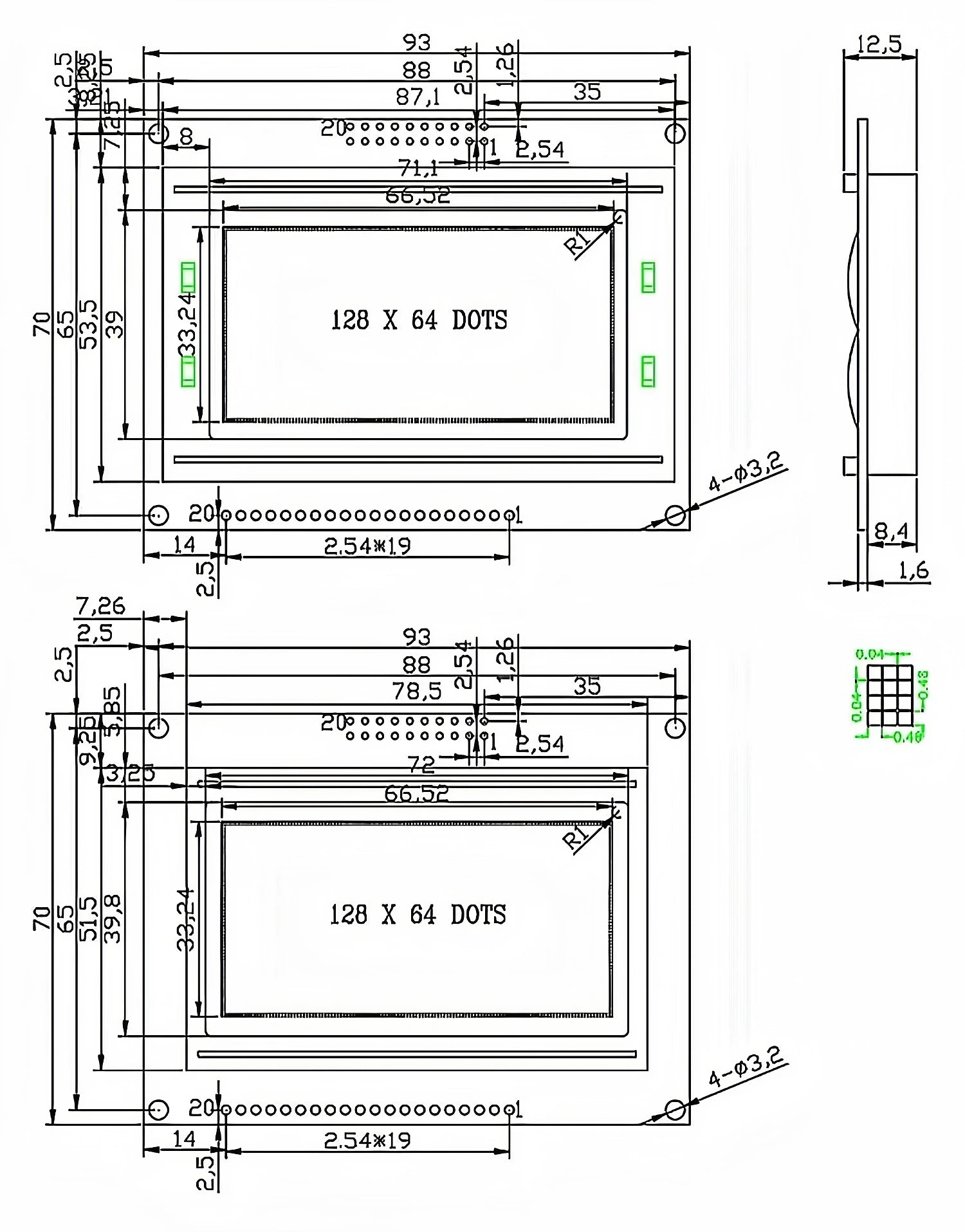

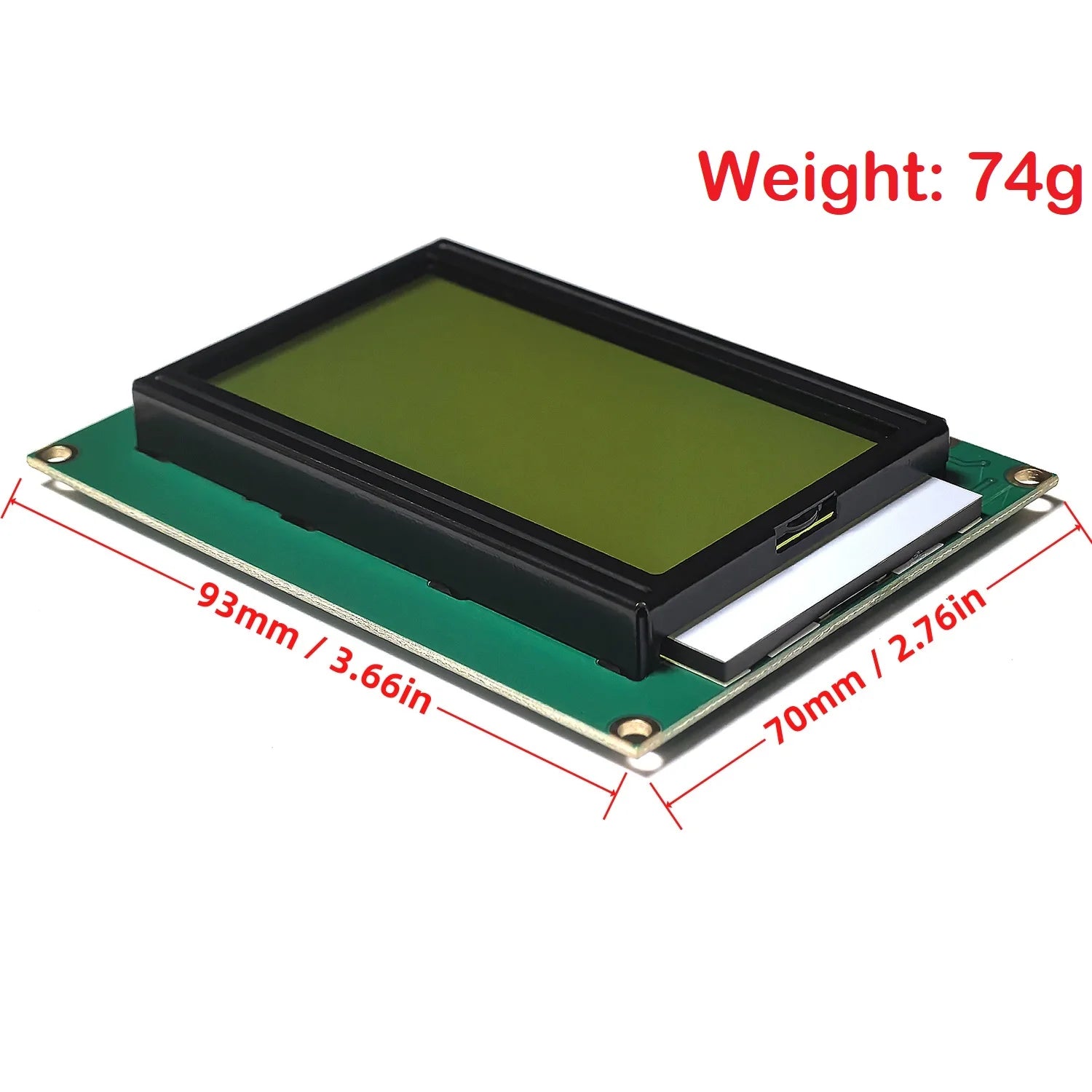

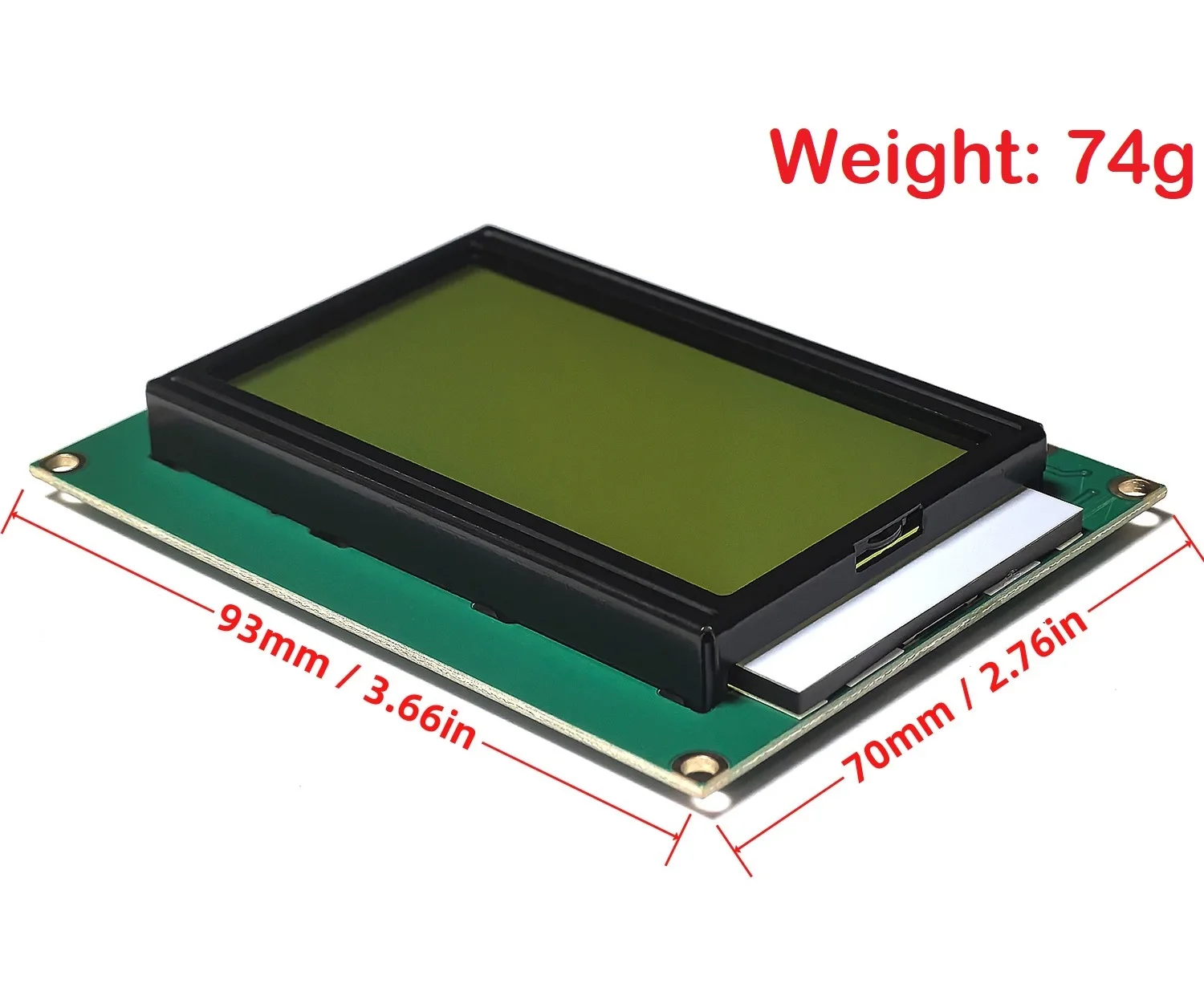

9. Board dimensions: 93x70x 12.5mm
10. Sight Size: 73 x 39mm


1) The two-dimensional drawing buffer space of up to 256*64 dots can be controlled.With 4-bit/8-bit parallelism (suitable for With M6800 timing), 2-wire or 3-wire serial interface methods. Various LCD manufacturers offer

2) Almost all LCD12864 modules or compatible modules with the same specifications are also used.

3) Compatible lCs, so the characteristics are basically the same; of course many manufacturers provide different character color, backlight color and other display modules.

LCD12864 is mainly composed of LCD display (LCD PANEL), controller

controller),driver (driver) and bias voltage generation circuit.
