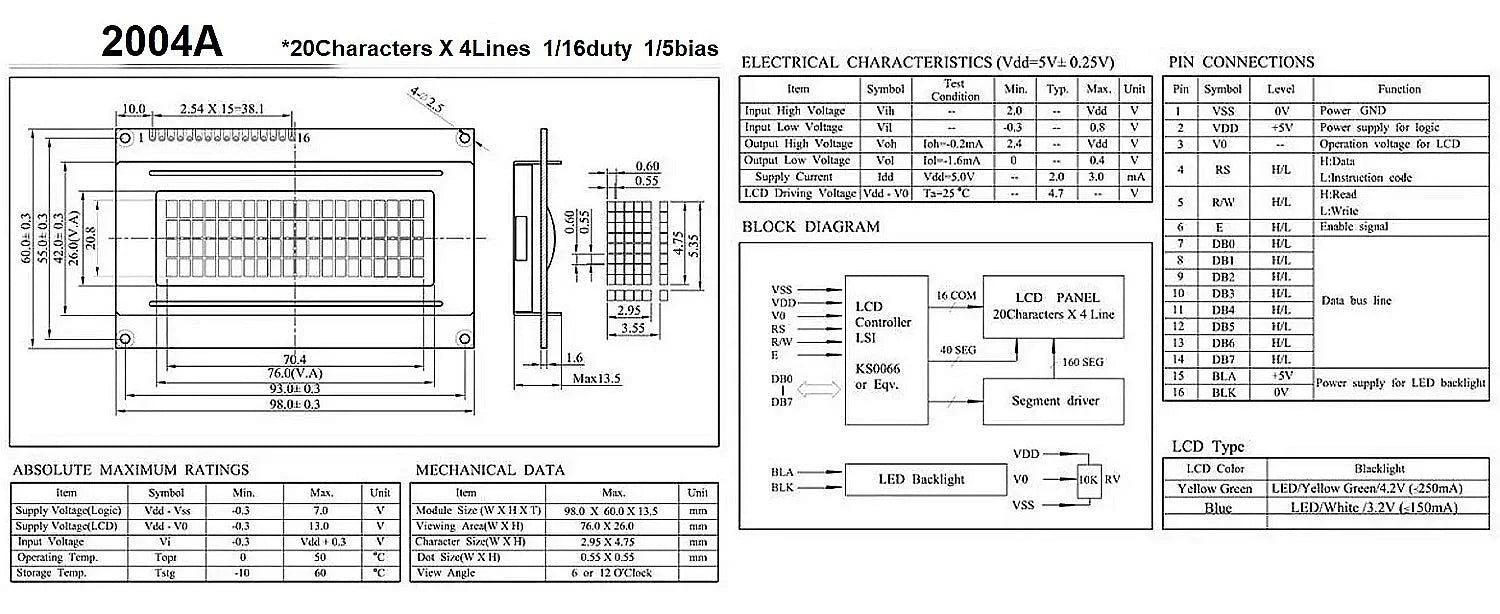

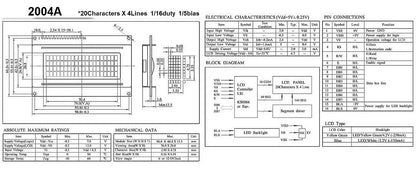

SPECIFICATIONS

Brand Name: OLNYLO

Display Mode: 2004A

High-concerned chemical: None

Model Number: LCD2004 I2C

Module 1: Green/Blue 2004

Module 2: HD44780 LCD2004

Module 3: 20x4 Character

Module 4: Arduino Blue /Green Screen

Module 5: IIC/I2C

Module 6: Module Hd44780-Controller Lcd Display

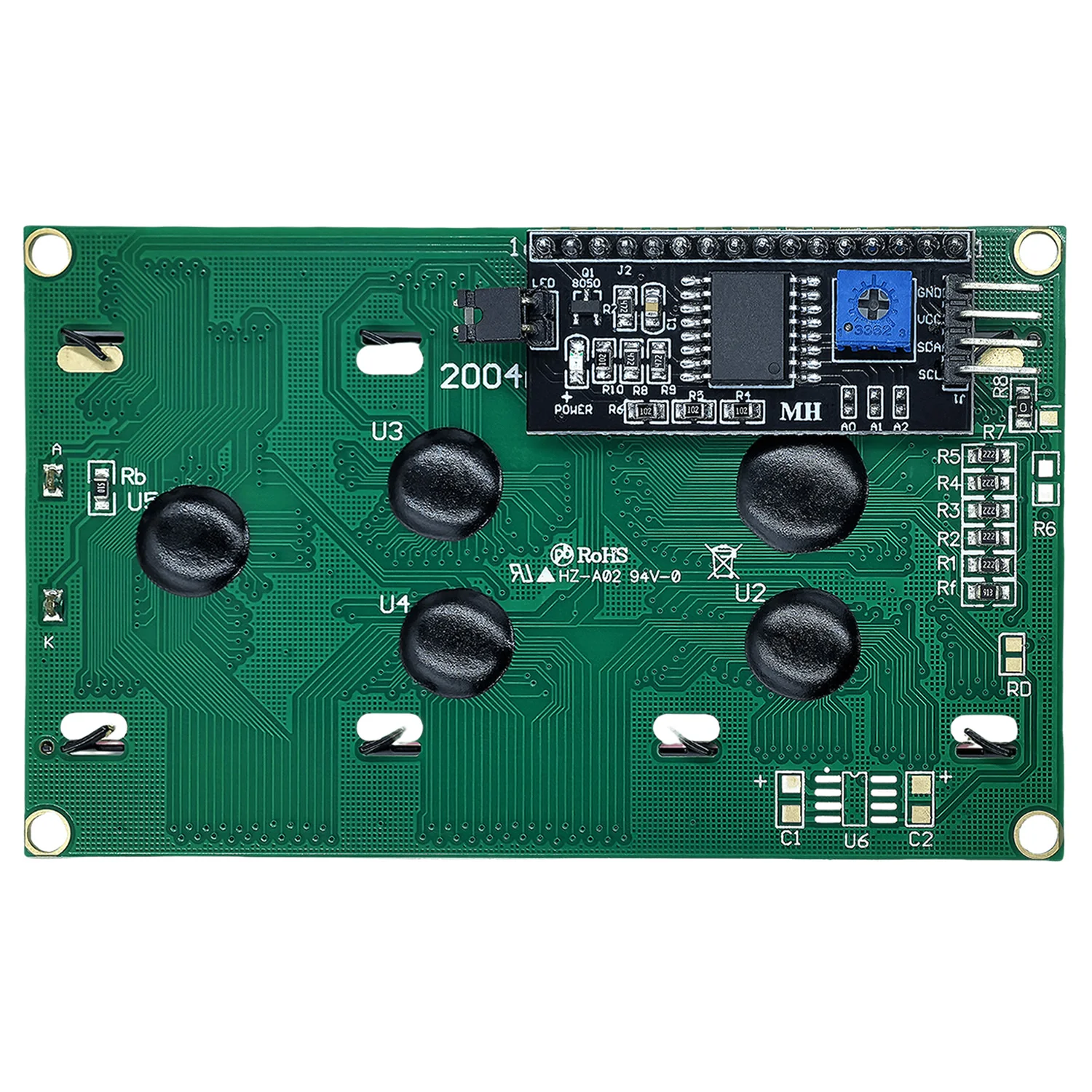

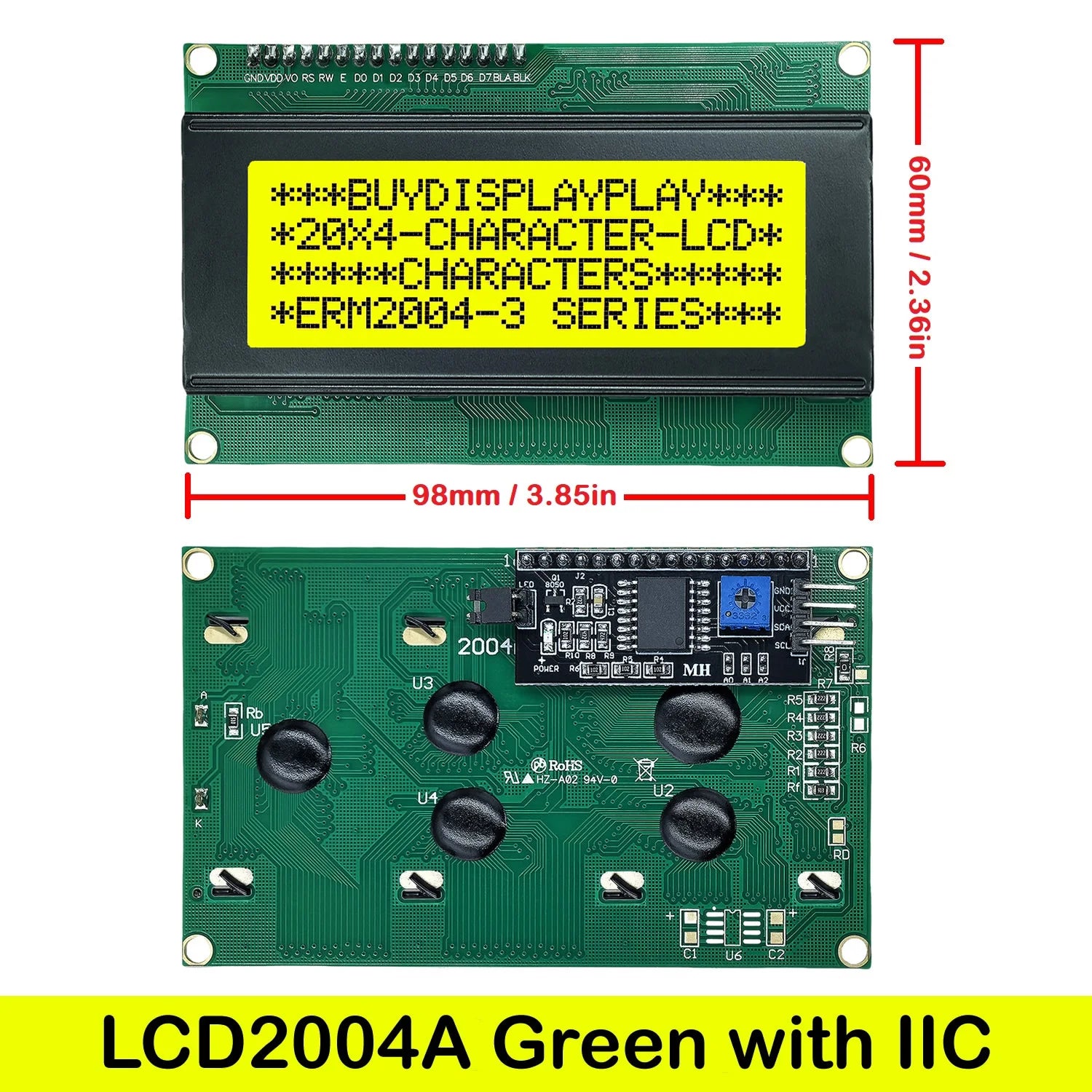

Module 7: Adapter-Module Serial-Interface

Origin: Mainland China

Resolution: 20*4

Type: Standard

is_customized: Yes

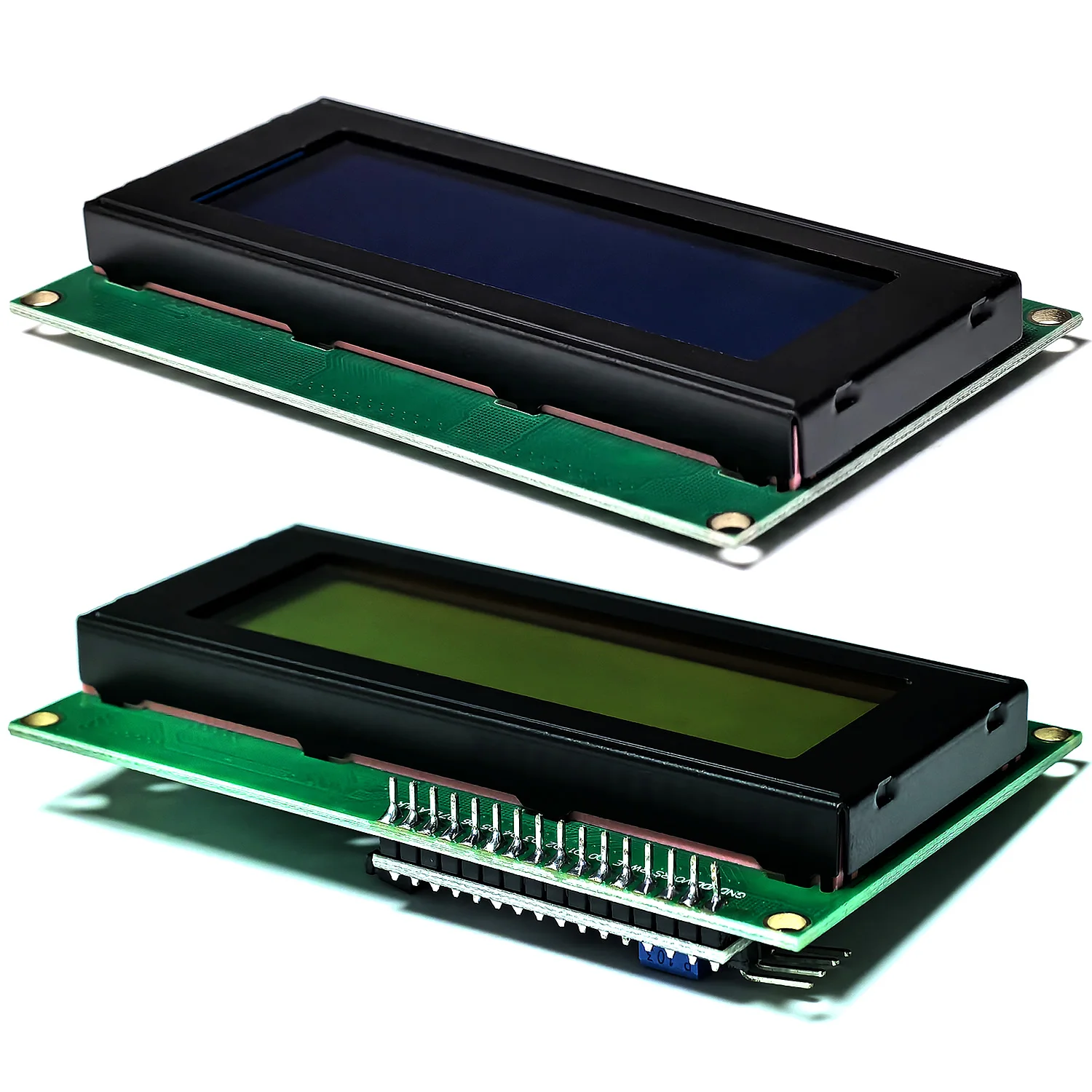

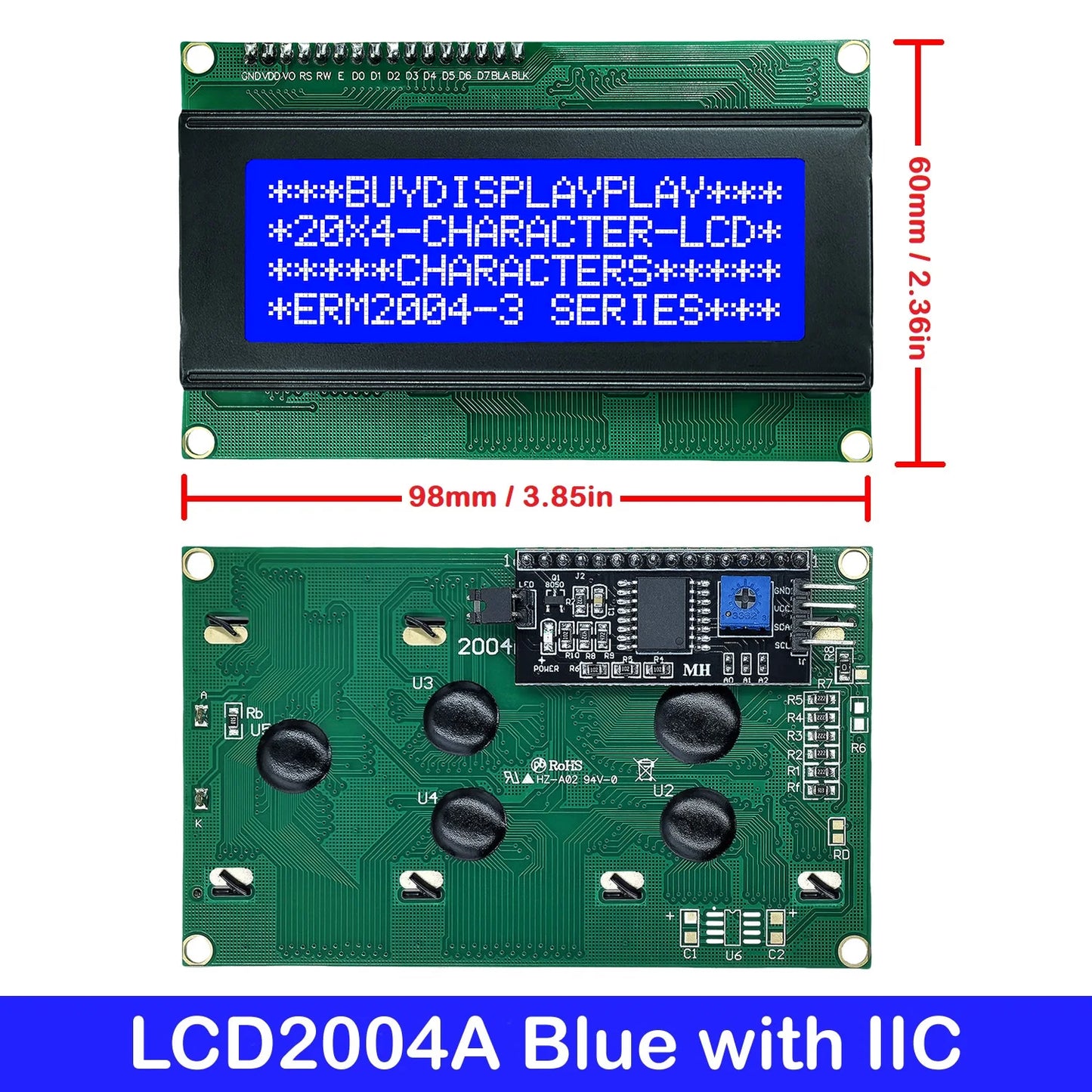

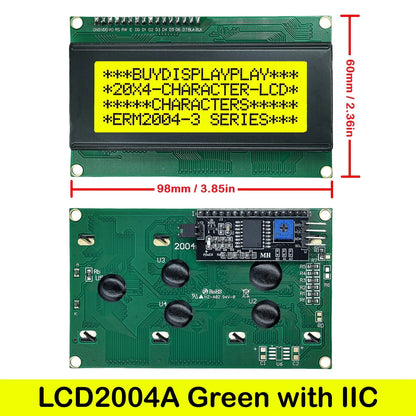

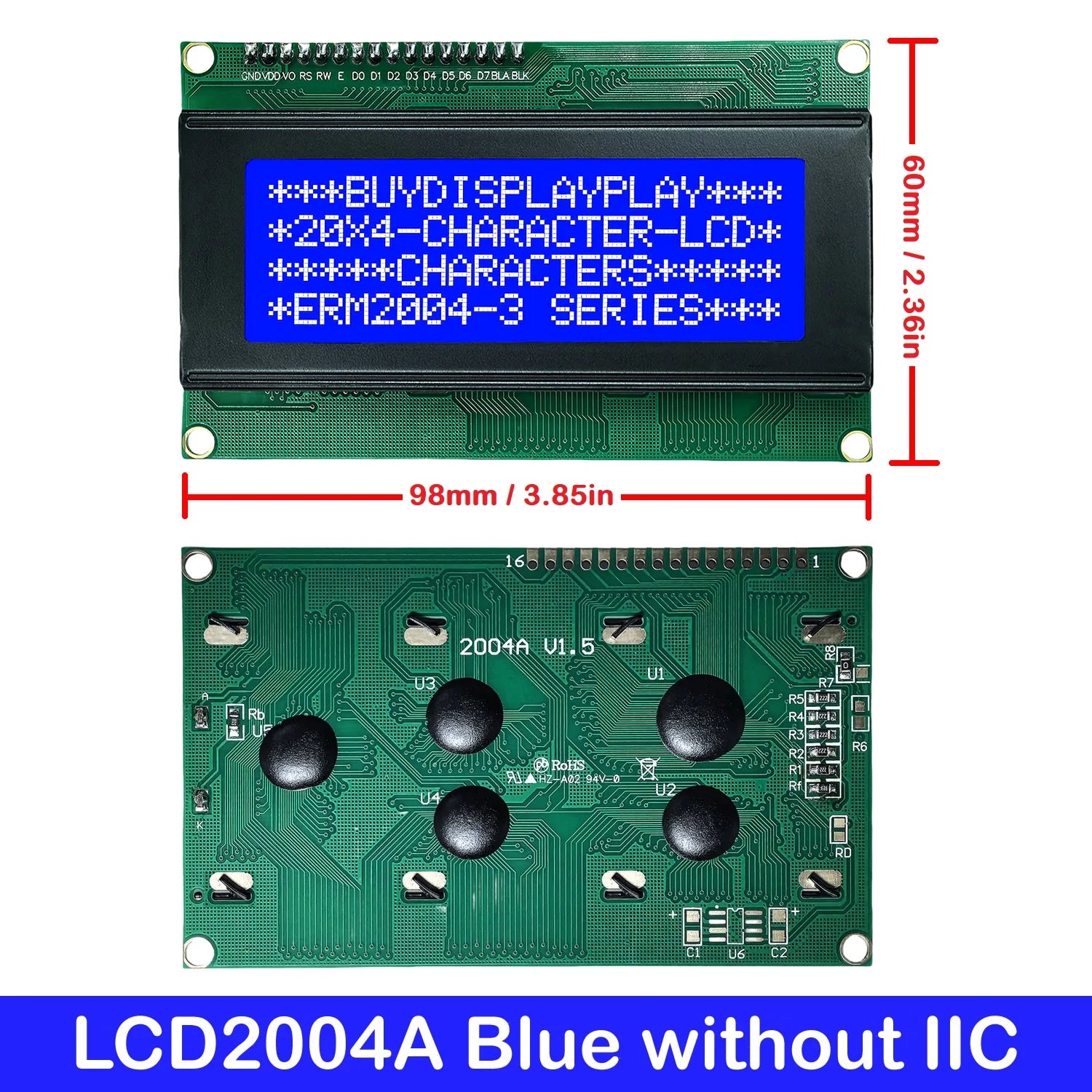

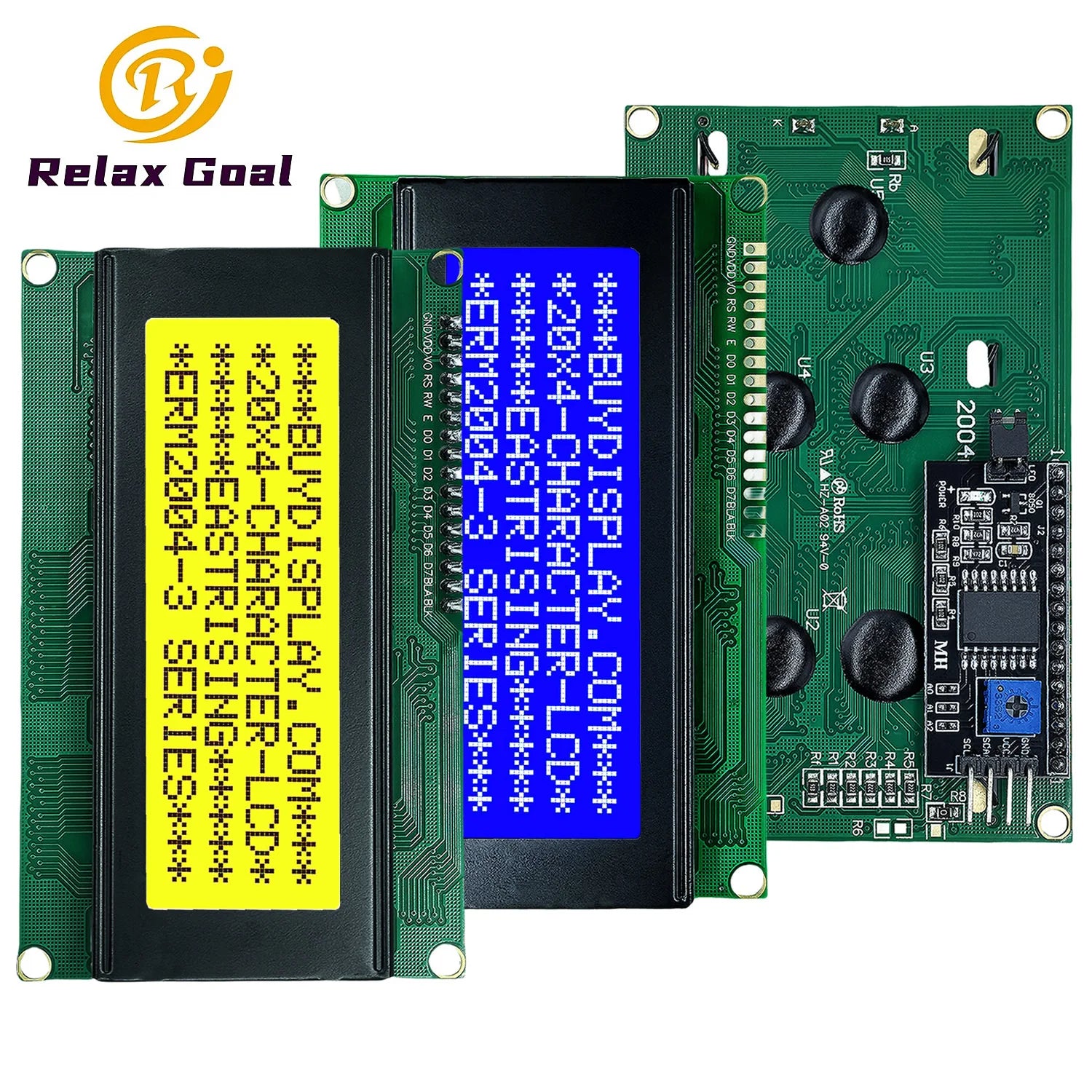

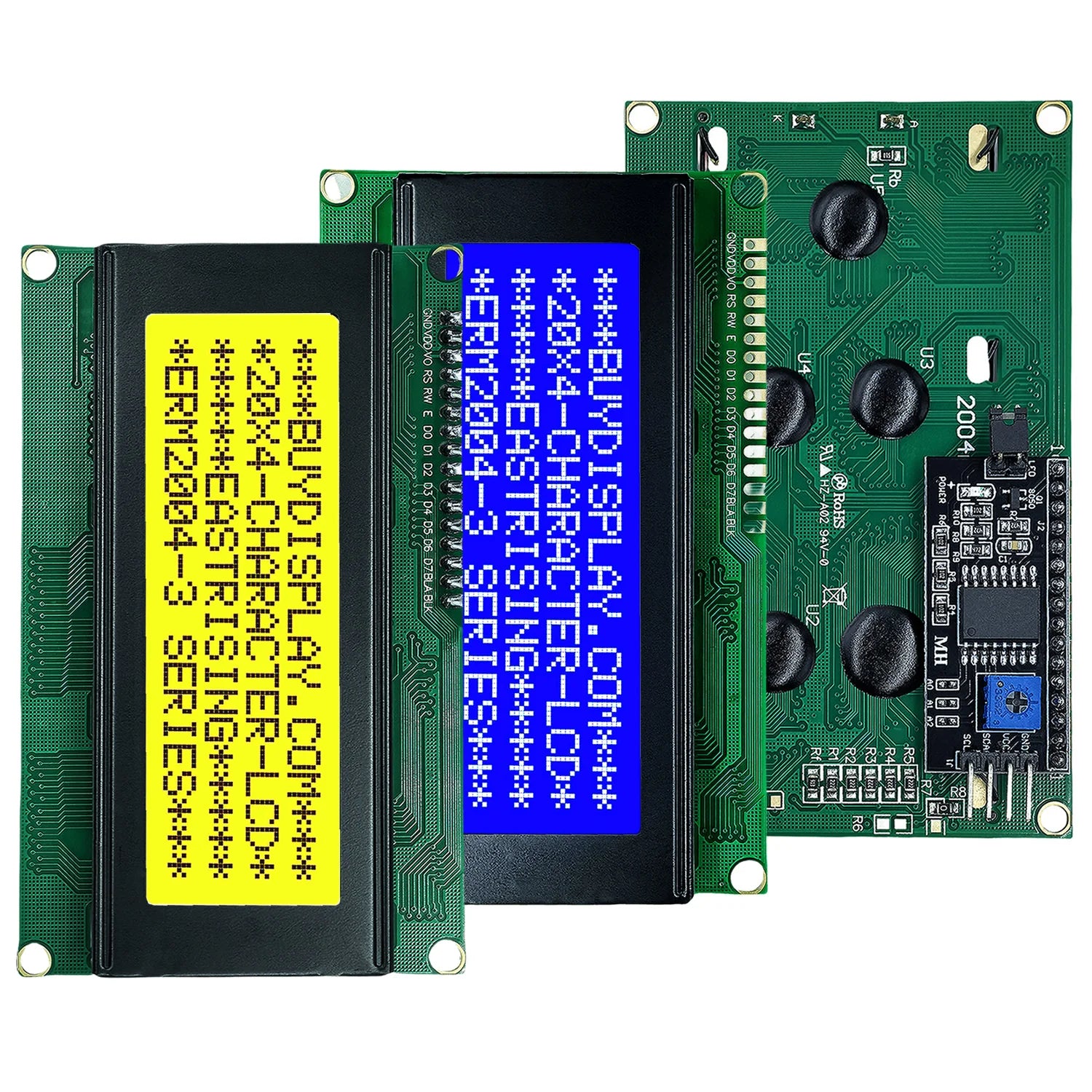

LCD2004A IIC/I2C LCD Display Module 20x4 Character 2004A HD44780 LCD I2C Serial Interface Adapter Blue/Green Screen for Arduino

Warm Tips:
Our store support wholesale, the more quantities the more discount.
If you want to bulk order, please feel free to contact seller for wholesale price, looking forward to receive your inquiry, thanks!

1. LCD2004A character dot matrix liquid crystal display module is widely used becauseof its small size, light weight, low power consumption, rich display content and othercharacteristics.

2. It uses liquid crystal after processing to change the direction of lightpropagation, and uses current to stimulate liquid crystal molecules to produce points, lines and surfaces, and forms a picture with backlight.
3. The LCD controller used in LCD2004 module is HD44780, and all kinds of LCD manufacturers provide 1602 moduleor compatible module with almost the same specification, and basically adopt IC compatible with it, so the characteristics are basically the same;
4. Many manufacturers provide display modules with different character colors and backlightcolors.
LCD2004 is mainly composed of LCD panel, controller, driver and bias

FEATURES
Condition: 100% Brand New

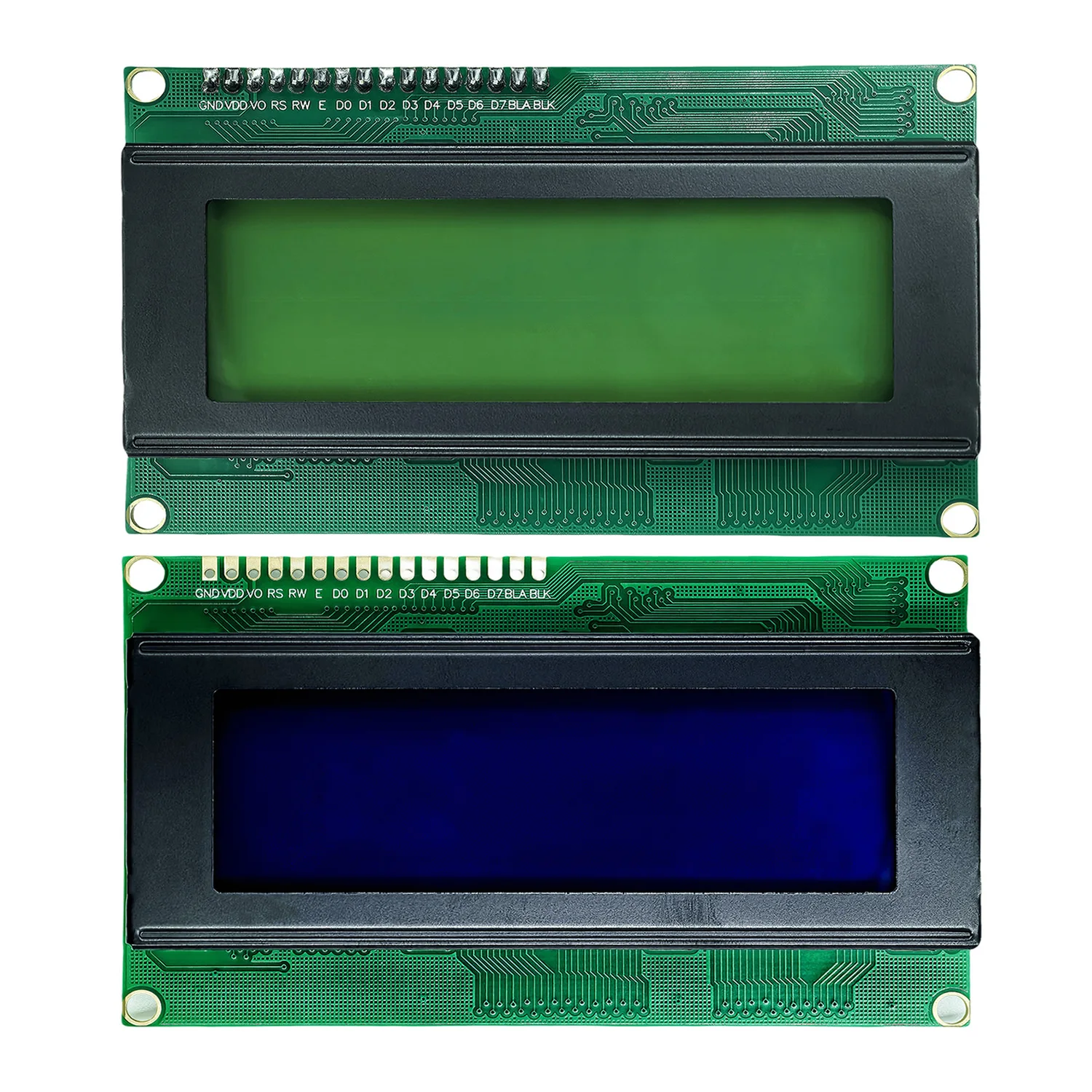

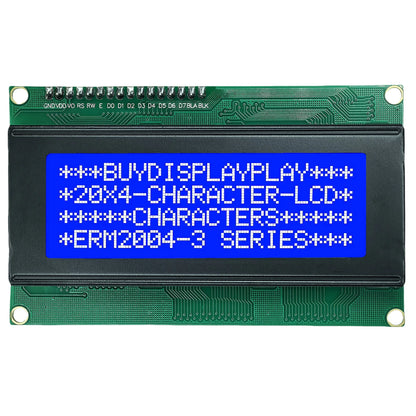

Display Screen: Blue / Green
Working Temperature: - 10 ℃ ~+60 ℃
Controller: SPLC780
Storage Temperature: - 20 ℃ ~+ 70 ℃
Working Current: (excluding backlight) 2.0ma(5V)

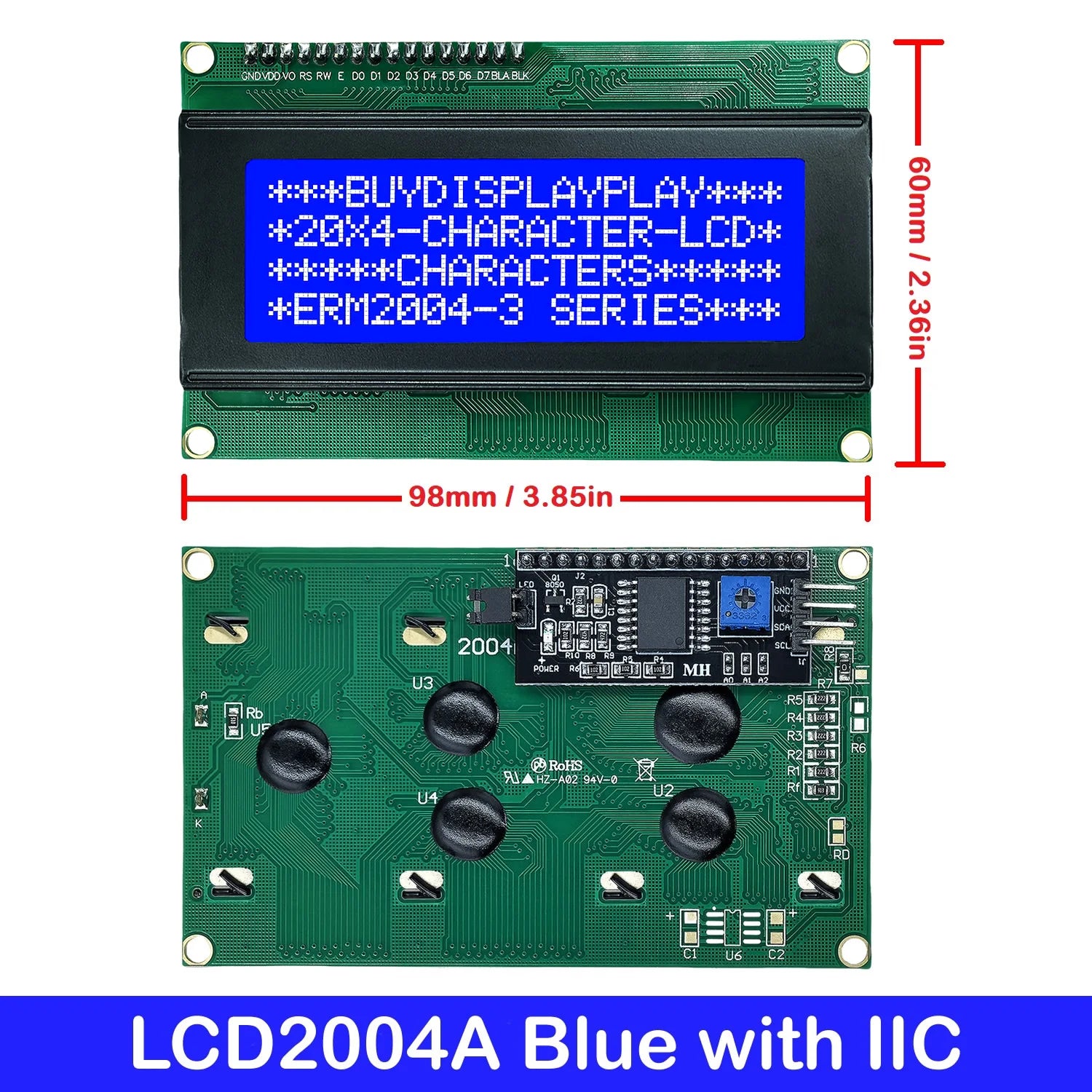

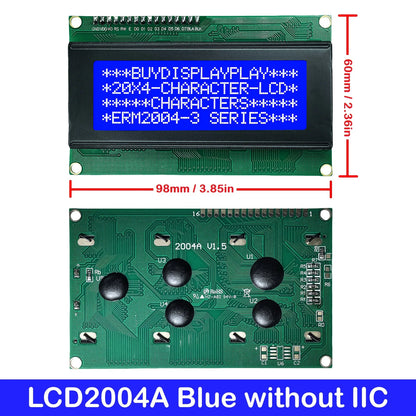

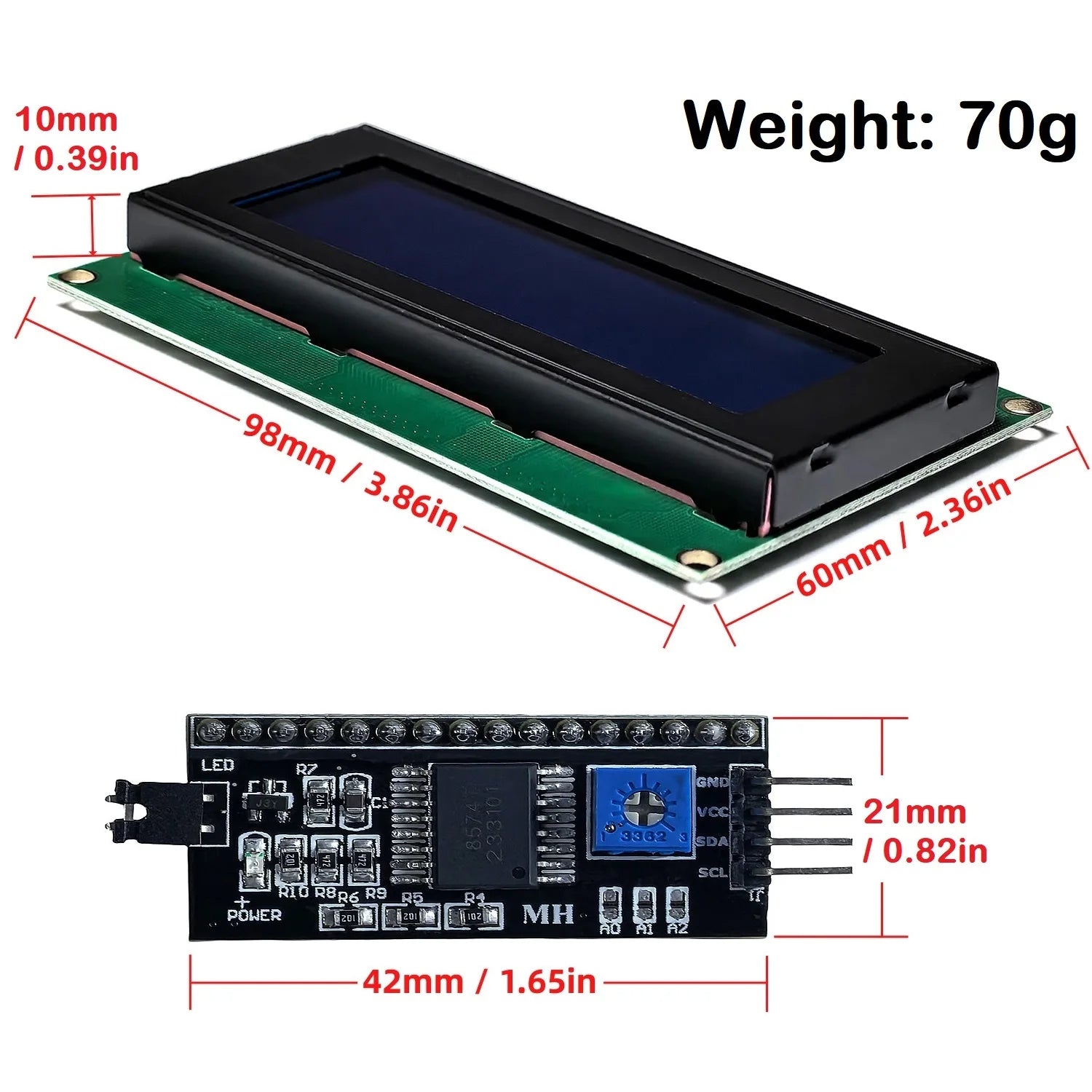

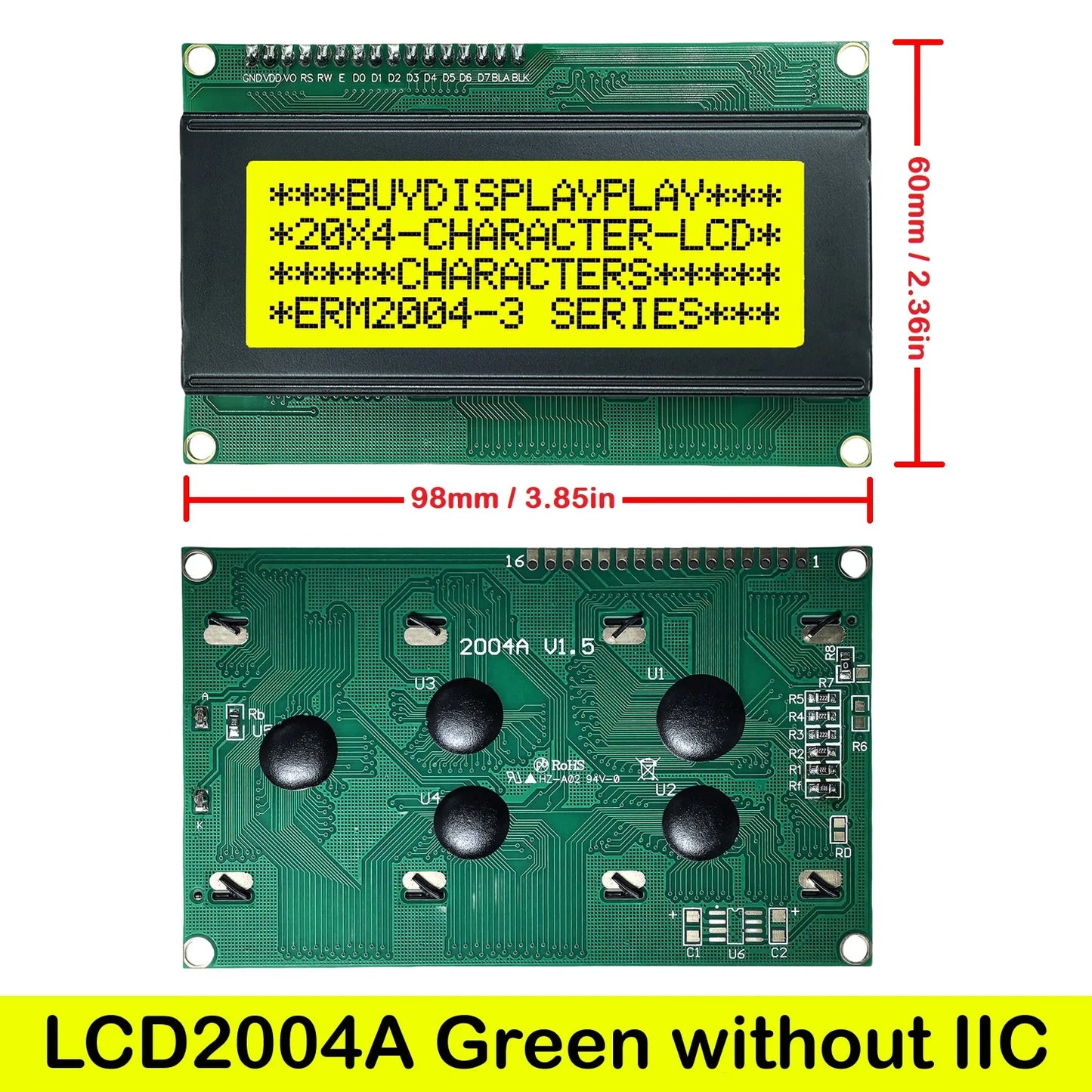

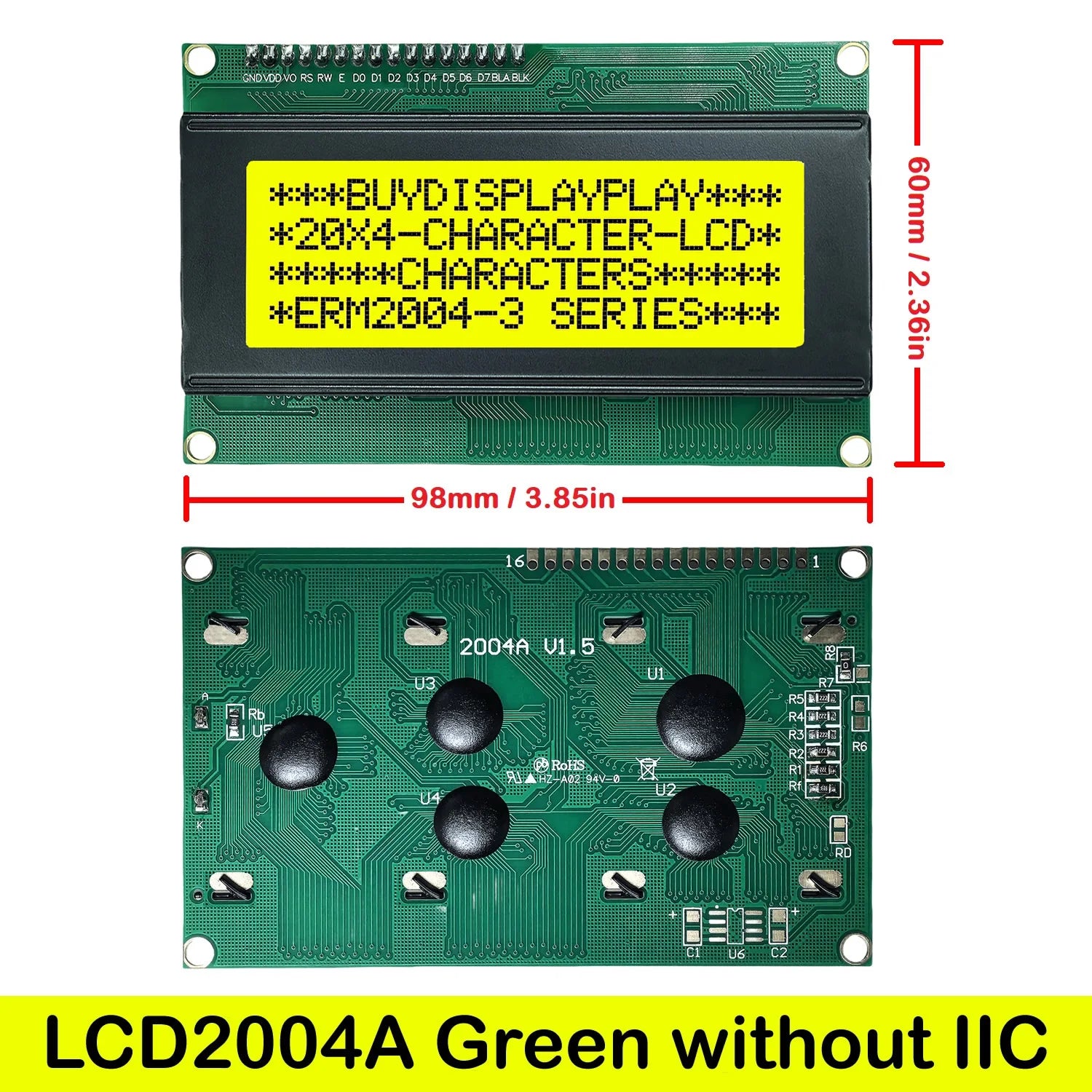

Visual Field Size: 76.0 mm x 26.0 mm
Interface Mode: single row parallel port
Point Size: 0.55mm × 0.55mm
Character Size: 29.5mm x 47.5mm

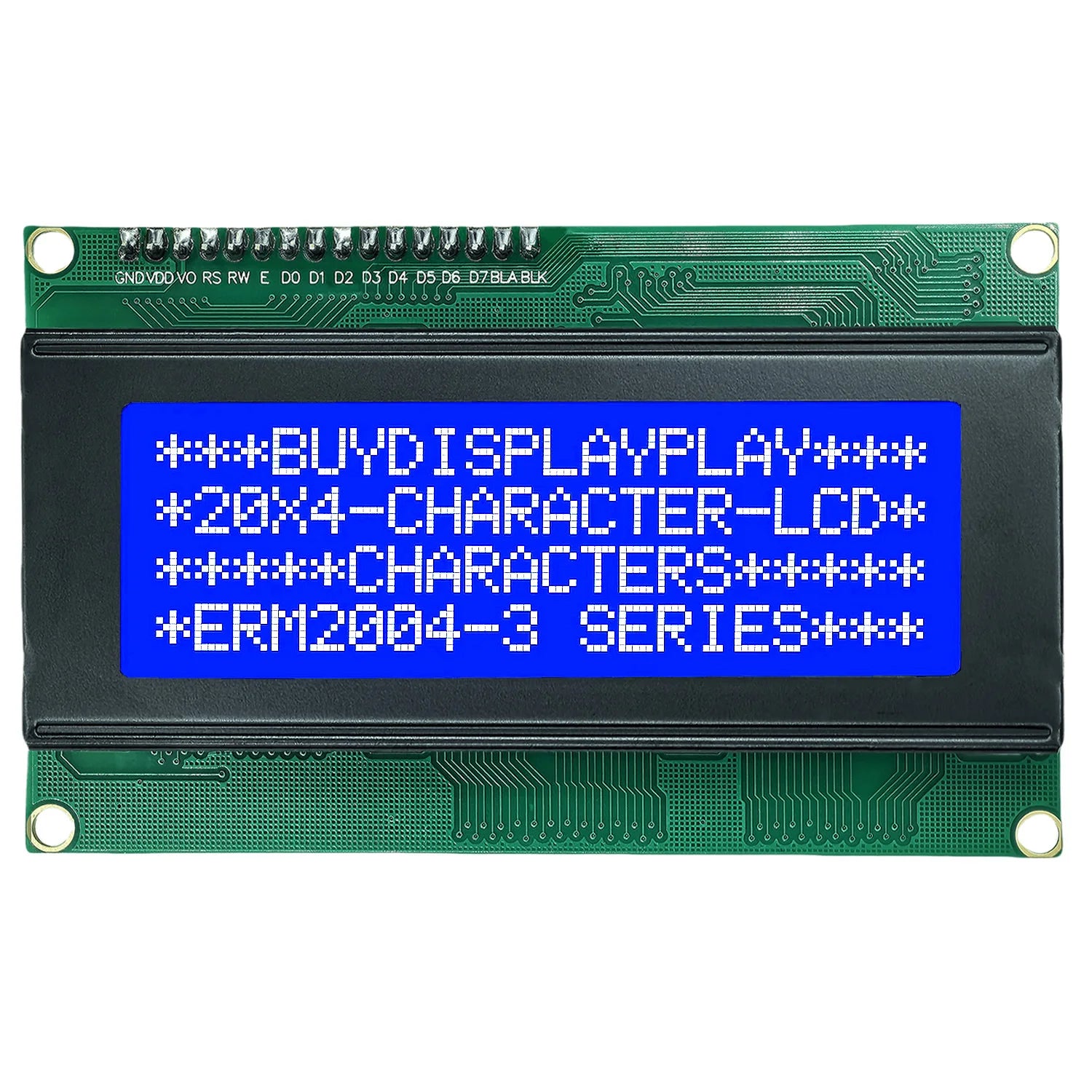

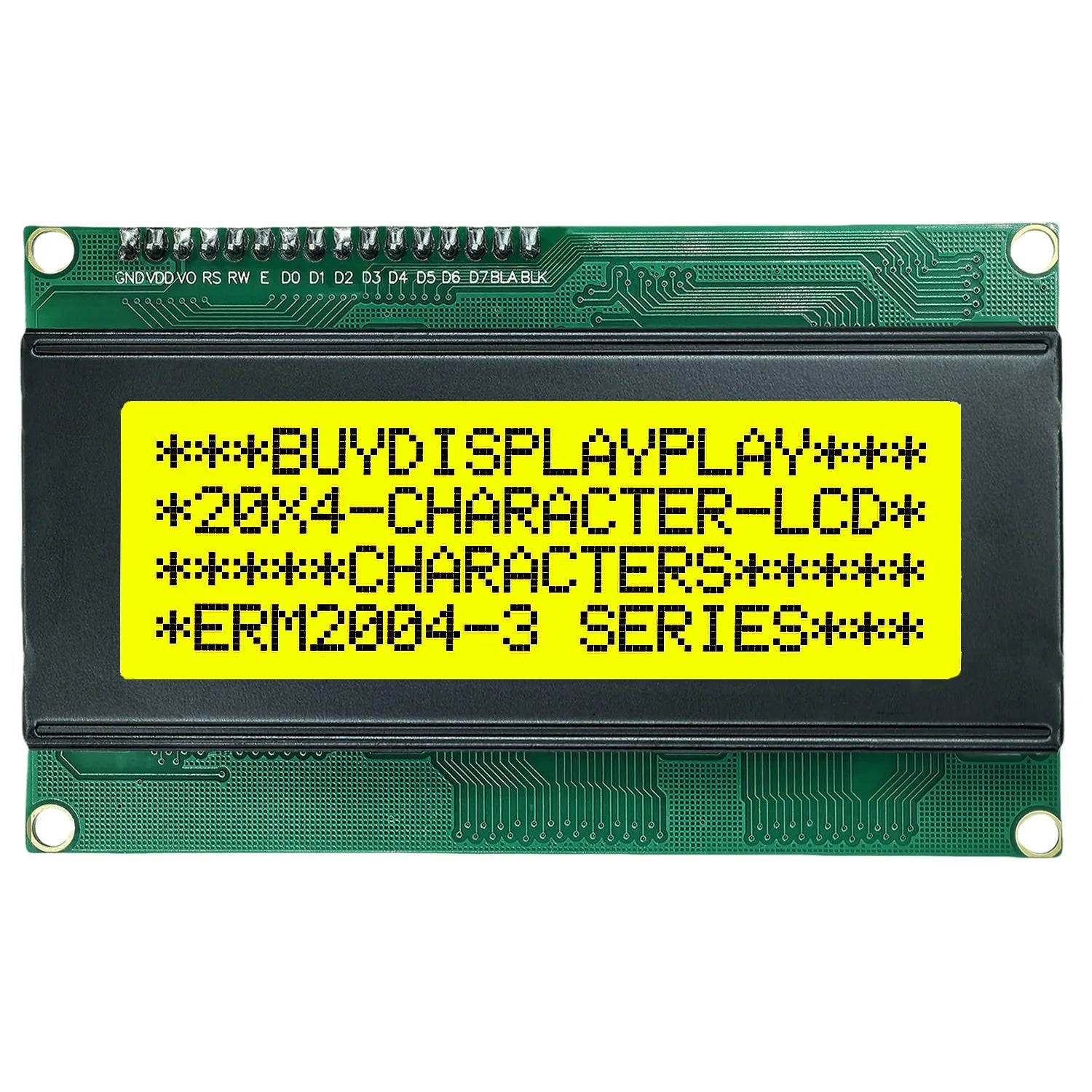

Display Content: 20 characters x 4 lines
Working Voltage: + 5V

INSTRUCTIONS

Pin 1: VSS is the ground power supply

Pin 2: VDD connected to 5V positive power supply

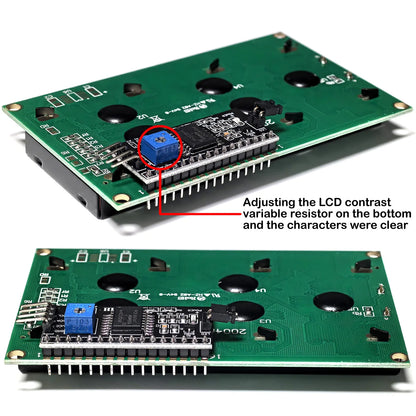

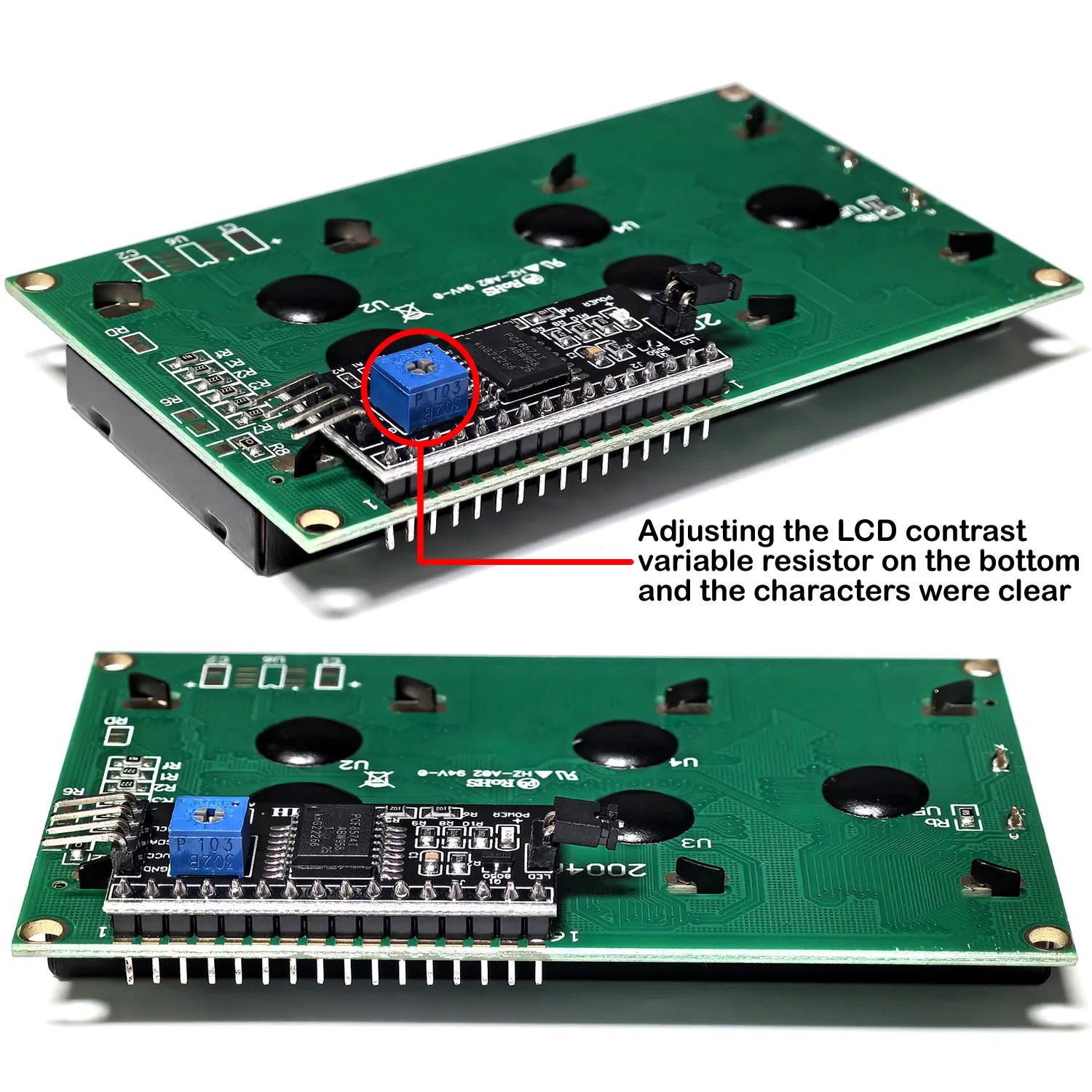

Pin 3: VO is the contrast adjustment terminal of LCD. When it is connected to the positive power supply, the contrast is weak. When it is connected to the ground power supply, the contrast is high. When the contrast is too high, it will produce "ghost". When it is used, the contrast can be adjusted through a 10k potentiometer

Pin 4: RS for register selection, data register for high level and instruction register for low level.

Pin 5: R / W is the read / write signal line, which is used for read operation at high level and write operation at low level. When RS and RW are at low level, they can write instruction or display address. When RS is at low level, RW is at high level, they can read busy signal. When RS is at high level, RWV is at low level, they can write data.

Pin 6: the e terminal is the enable terminal. When the e terminal jumps from high level to low level, the LCD module executes the command.

Pins 7-14: d0-d7 are 8-bit bidirectional data lines. Set the width of data bits to 8 bits or 4 bits through the working mode setting instruction (d4-d7 is valid)

Pin 15: BLA backlight power supply cathode

Pin 16: Negative pole of BLK backlight power supply

NOTE
Correct wiring! Do not connect the positive and negative side reversely, so that the electronic components of the board will be burned
