LED Dual USB 5V 2.4A Micro/Type-C Mobile Power Bank Charging Module with 18650 Lithium Battery Protection

Dual USB 5V 2.4A Power Bank Charging Module — Micro-USB & Type-C Input, 18650 Compatible

Build your own portable power bank with this all-in-one charging and protection module. Combining a lithium battery charger, boost converter, protection circuit, and dual USB output on a single compact PCB, this module gives you everything needed to turn one or two 18650 cells into a fully functional USB power bank — with LED battery level indication and comprehensive protection built in.

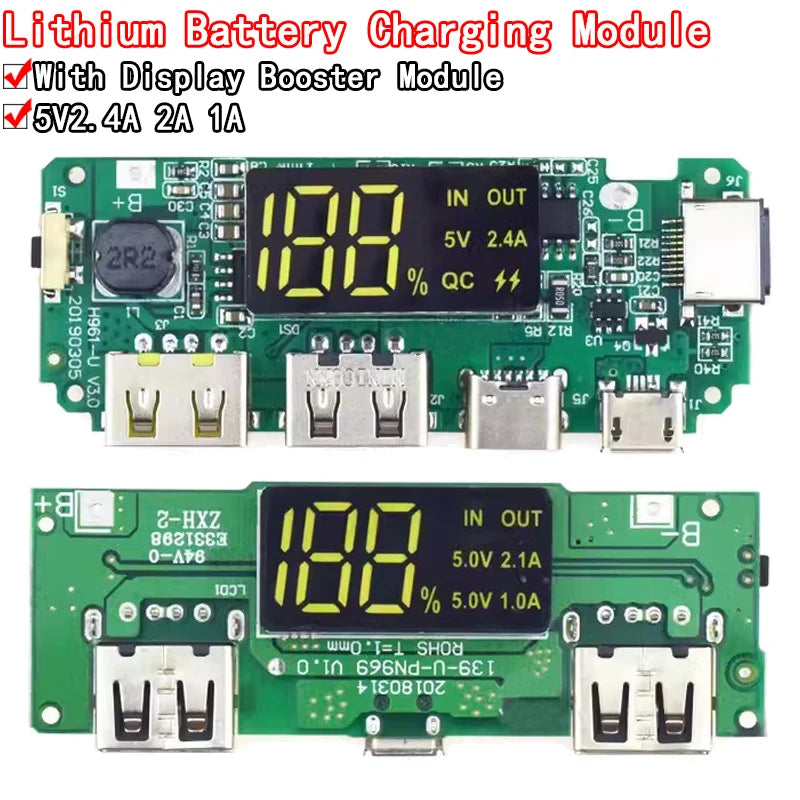

Available Variants

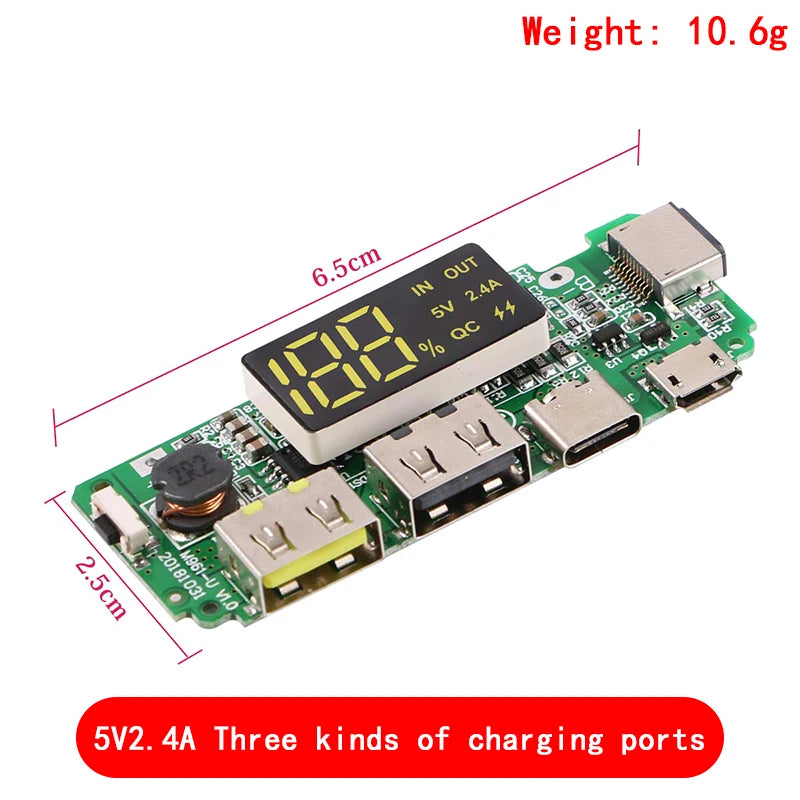

• 5V 2.4A — dual USB-A output at 5V 2.4A total, Micro-USB + Type-C input charging

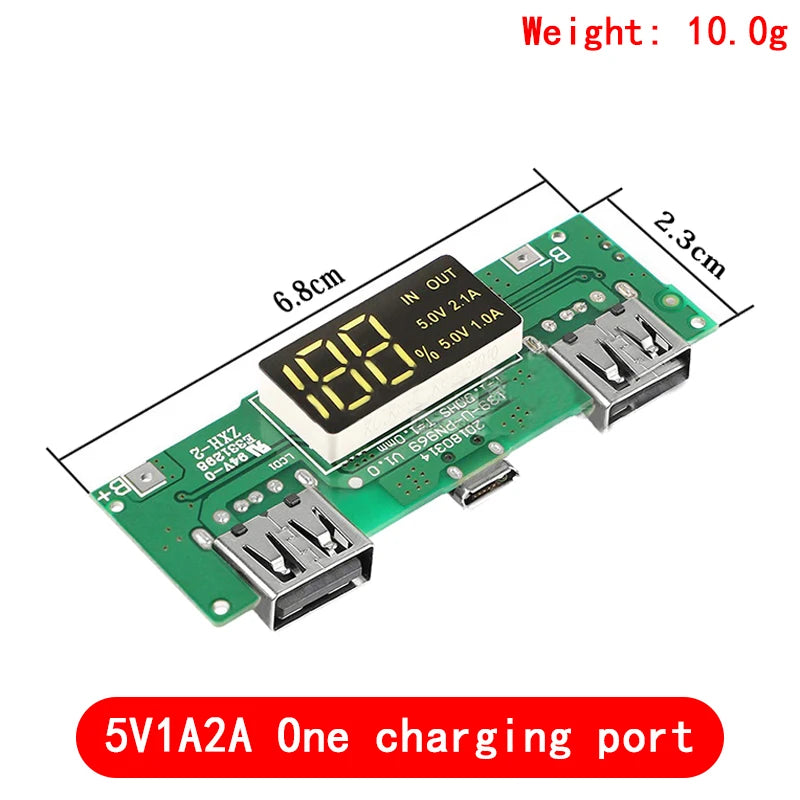

• 5V 2A / 1A — dual USB-A output (2A + 1A), Micro-USB input charging

Electrical Specifications

• Input Voltage: 5V via Micro-USB and/or Type-C (variant dependent)
• Charging Current: Up to 1A (input limited)
• Output Voltage: 5V DC (boost regulated)
• Output Current: 2.4A total (shared across both USB ports)
• Battery Compatibility: Single or dual 18650 Li-ion cells (3.6–4.2V)
• Charge Cutoff Voltage: 4.2V ±1%
• Discharge Cutoff Voltage: 2.5V (over-discharge protection)
• Supply Voltage: 5V DC input

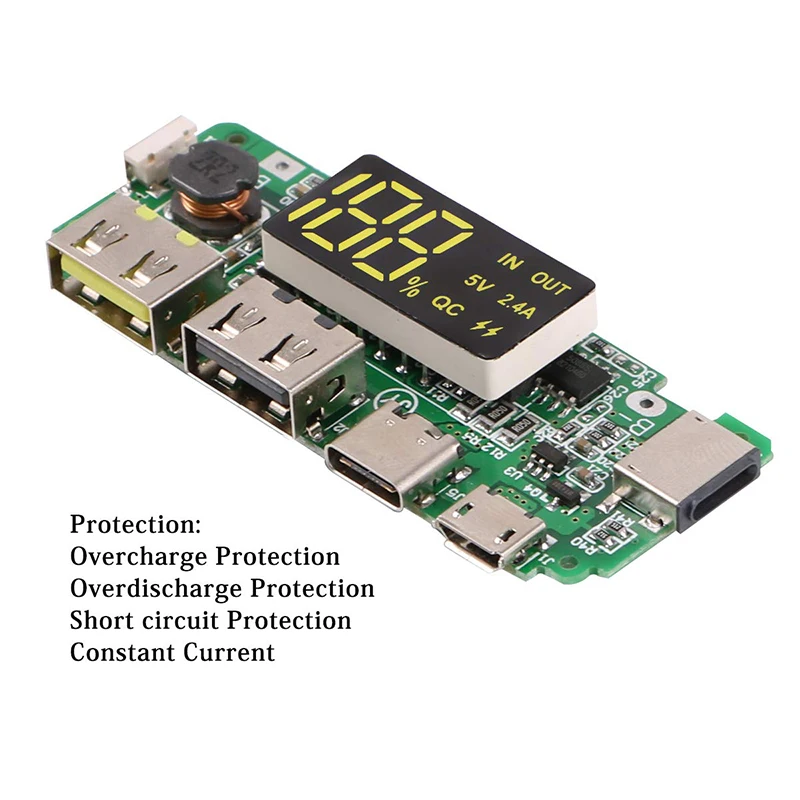

Protection Features

• ✅ Overcharge protection (4.2V cutoff)
• ✅ Over-discharge protection (2.5V cutoff)
• ✅ Overcurrent protection
• ✅ Short-circuit protection
• ✅ Reverse polarity protection
• ✅ Temperature protection (thermal shutdown)

LED Battery Level Indicator

• 4 × blue LEDs indicate remaining battery capacity in 25% increments
• Press the button to check battery level without connecting a load
• LEDs flash during charging, remain solid when fully charged

Key Features

• Simultaneous charge and discharge (pass-through charging supported)
• Micro-USB and Type-C input — compatible with most existing chargers and cables
• Dual USB-A output for charging two devices simultaneously

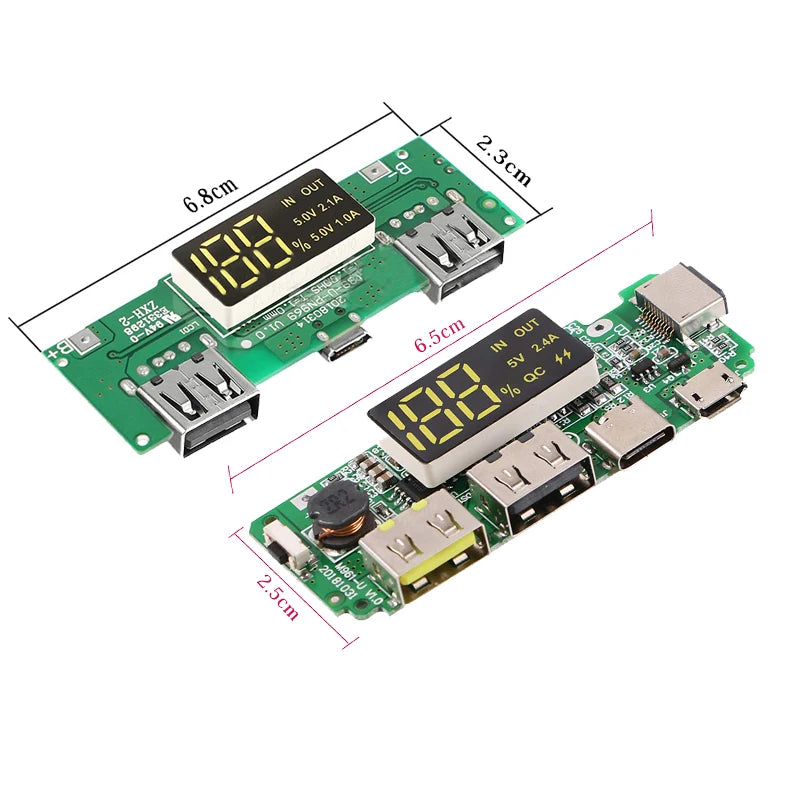

• Compact PCB — fits standard 18650 power bank enclosures
• No soldering required for battery connection (solder pads provided)

Typical Applications

• DIY portable USB power bank (phone charger, tablet charger)
• Raspberry Pi and Arduino UPS (uninterruptible power supply)
• Solar-charged battery pack with USB output
• Portable LED lighting power supply
• Emergency backup power for IoT devices
• Wearable electronics and portable project enclosures

Package Contents

• 1 × Power bank charging module (variant as selected)
• Note: 18650 battery cells and enclosure not included
